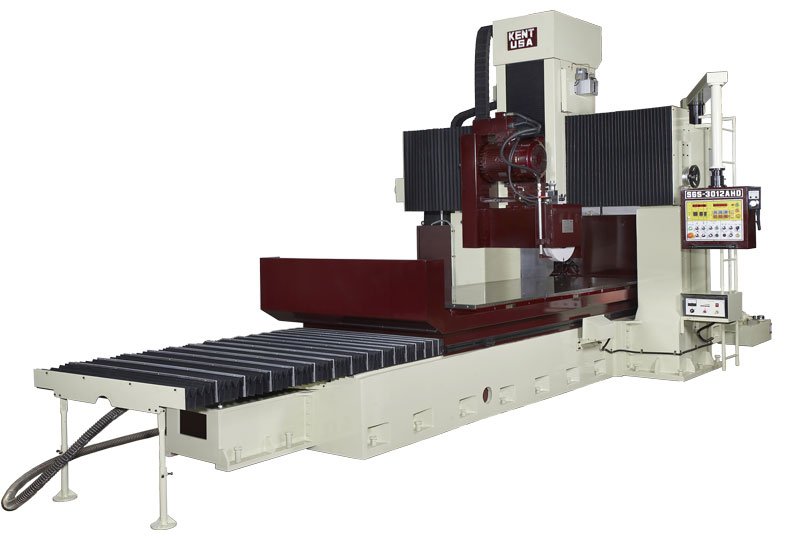

47" x 118" KENT USA SGS-3012AHD DOUBLE COLUMN DESIGN SURFACE GRINDER - NEW

Brand
KENT
Category
Grinding Machines
Type
Grinders, Surface, Recip.
Model
SGS-3012AHD
Stock #
12758
Year
Not specified
Condition
New
Location
Not specified
47" x 118" KENT USA SGS-3012AHD DOUBLE COLUMN DESIGN SURFACE GRINDER - NEW

PRODUCT FEATURES
  • 47” x 118” working capacity
  • 3-axis automatic movement with incremental downfeed, electronic auto-crossfeed
  • High tensile precision GB350 Meehanite castings
  • Full featured NC electronic control on Z axis
  • Precision hand scrapped double V turcite table ways for smooth and long lasting precision
  • High column design with 37.4” spindle center to table for extra clearance under the wheel
  • Centralized automatic lubrication system provides lubrication to all points
  • Safety 24V control circuit power




STANDARD ACCESSORIES
  • Grinding wheel
  • Wheel flange
  • Wheel balancing base
  • Wheel balancing arbor
  • Diamond dresser base
  • Magnetic separator & paper filter coolant
  • Electromagnetic chuck & control
  • Toolbox with tools
  • NC Z-axis controller
  • Hydraulic overhead parallel dresser



OPTIONAL ACCESSORIES
  • DRO system
  • Static Wheel Balancing Base


  • Working Surface
  • Grinding Surface
  • Horizontal Travel
  • Distance Between Two Columns
  • Distance Between Table Surface and Spindle Center
  • Distance Between Table Surface and Wheel Top
  • Inclination of Universal Head
  • Table Speed
  • Automatic Crossfeed of Spindle Seat (60 Hz)
  • Downfeed Handwheel Min Scale
  • Crossfeed Handwheel (1 gra)
  • Crossfeed Handwheel (1 rev)
  • Longitudinal Travel
  • Crossfeed Travel
  • Spindle Motor (H. Axle)
  • Spindle Motor (V. Axle)
  • Hydraulic Pump Motor
  • Crossfeed Motor
  • Downfeed Motor
  • Grinding Wheel (OD x T x ID) (H. Axle)
  • Grinding Wheel (OD x T x ID) (V. Axle)
  • Grinding Wheel (OD x T x ID) (H. Axle)
  • Grinding Wheel (OD x T x ID) (V. Axle)
  • Flow Rate of Coolant Pump
  • Max Load Capacity
  • Net Weight

  • SGS-3012AHD / T3012AHD

  • 47.2" x 118"
  • 51.2" x 122"
  • 126"
  • 63" ~ 75"
  • 45.3"
  • 33.5"
  • ±90°
  • 5 ~ 25M/min (16 ~ 80 ft/m)
  • 0 ~ 1"
  • 0.0002"
  • 0.001"
  • 0.2"
  • 7.9" x 129.9"
  • 0" ~ 55.1"
  • 20HP x 4P (Opt. 30P x 4P)
  • 10HP x 4P (Opt. 15HP x 4P)
  • 20 HP x 6P
  • 1/4 HP x 6P
  • DC Servo
  • 20" x 2" x 5" (Opt. 20" x 3" x 8")
  • 16" x 2" x 5"
  • 1250 RPM / 1050 RPM
  • 1750 RPM / 1450 RPM
  • 90 L/min
  • 10,560 lbs
  • 57,200 lbs
