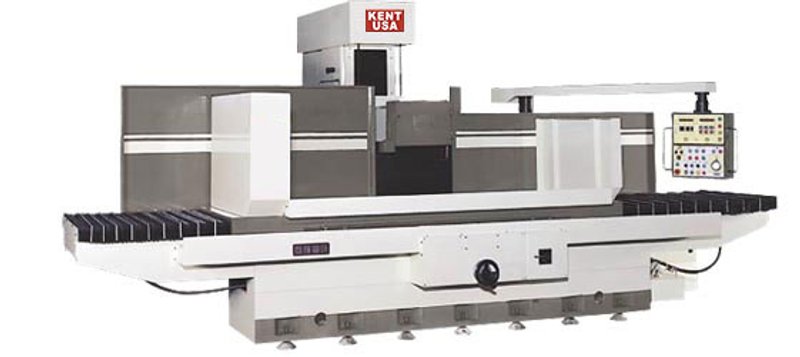

34" x 88" KENT USA SGS-3488 AHD AUTOMATIC SURFACE GRINDER - NEW

Brand
Model
SGS-3488AHD
Stock #
12755
Year
Not specified
Condition
New
Location
Not specified
NEW KENT USA MODEL SGS-3488AHD AUTOMATIC SURFACE GRINDER

PRODUCT FEATURES
  • 34″ x 88″ working capacity
  • 3 axis automatic movement
  • Precision turcite ways
  • Double-vee column cross traverse
  • NC Z-axis w/ servo motor and ball screw
  • Hydraulic table & electronic crossfeed
  • Automatic lubricator & rapid elevation



STANDARD ACCESSORIES
  • Grinding wheel
  • Wheel Flange
  • Wheel balancing base
  • Wheel balancing arbor
  • Diamond table dresser base & tip
  • Magnetic separator & paper filter coolant
  • Hydraulic overhead parallel dresser
  • NC Z-axis controller
  • Toolbox with tools


OPTIONAL ACCESSORIES
  • DRO system
  • Fine pole electric chuck & control
  • Interloc w/ control
  • Extra wheel flange
  • Static wheel balancing
  • Rustlick coolant


  • Table Travel
  • Saddle Travel
  • Working Capacity
  • T-Slot
  • Spindle Motor
  • Spindle Speed
  • Grinding Wheel
  • Vertical Graduation
  • Vertical Revolution
  • Auto Downfeed Increment
  • Spindle to Table
  • Net Weight
  • Gross Weight
  • SGS-3488AHD

  • 90.25"
  • 35.4"
  • 33.5" x 87.25"
  • 3 x 9/16”
  • 15 HP
  • 1150 RPM
  • 20” x 2” x 8”
  • 0.0005"
  • 0.050"
  • .0001" to 0.0333" Per Pass
  • 37.7"
  • 28,000 LBS
  • 28,900 LBS
