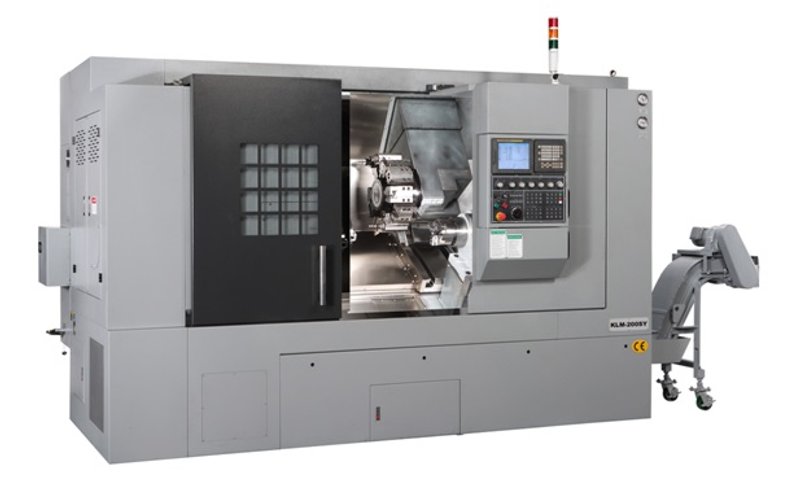

KENT USA KLM-200SY Horizontal Turning Center

The KENT USA KLM-200SY series CNC slant bed lathe combines proven machine design with advance technology in control and manufacturing.  Reliability and stability make these a favorite among demanding job shops and in-house productions alike.  The heavy duty turret and rigid machine body structure enable higher turning efficiency with better finish and longer tool life – resulting in greater productivity and profitability all around.  Upgrade your global competitiveness today.

OUTSTANDING FEATURES:

• High power spindle motor
• High speed / high accuracy 12 station servo-mechanical turret
• Powerful live/powered rotary tool turret for Y-axis machining
• Powerful sub-spindle for flexible complete machining
• Fully enclosed way covers and enclosure
• Induction hardened and precision ground box ways
• Certified Meehanite machine casting for superior dampening and stability
• High grade C3 precision ball screws and pretension for enhanced precision
• Auto lubrication system metered check valves and piston distributor

STANDARD EQUIPMENT & ACCESSORIES:

• Fanuc 0i-TF CNC control with 10.4” color LCD
• Fanuc i-Series high torque spindle and axis motor with digital drive system
• Fanuc Absolute Encoders – machine axis start up “Home” sequence not required
• Fanuc Auto-Measure System (X and Z)
• Fanuc Macro-B and High Speed Skip Function
• Fanuc USB, PCMCIA, Ethernet and RS-232 ports
• Fanuc Manual Guide i – computer assist programming
• Fanuc 400 registered part program numbers and 640M part program memory
• Swivel-Out control panel
• Heat exchanger for electrical cabinet
• Hydraulic power supply unit
• Flood coolant system (4 bar)
• Chain type chip conveyor and chip cart
• Full enclosure and way covers
• Automatic lubrication system
• 3 color stack indicator light
• 12 station heavy duty high precision servo turret
• Programmable tail stock body and quill
• Standard soft jaws 3 sets + hard jaws 1 set
• Induction hardened and precision ground box ways
• 45° slant bed with one piece Meehanite® casting
• C-3 grade high precision ball screws
• OD tool holder 20 x 20 mm 2 set
• Boring bar holder ø32 mm 3 sets
• Boring bar socket ø32 mm 1 set with 6/8/10/12/16/20/25 mm
• Operator and Maintenance/Parts manuals

Available Factory Options:

Bar feeder (various sizes available base on application)

Bar feeder interface card with extra M-code (required for bar feeder)

Bar capacity 65mm A2-6 spindle 8” chuck (4000 rpm)

Parts catcher option.

Auto door option.

42/A5 173E Collet Chuck (collets not included)

60/A6 185E Collet Chuck (collets not included)

Rotary tool holder (0 degree Radial)

Rotary tool holder (90 degree Axial)

Renishaw HPRA tool setter

Renishaw HPPA tool setter

Oil mist collector

Oil coolant skimmer

Control cabinet cooler (A/C unit)

Upgrade to high pressure 10-bar (150 psi) coolant system

Transformer (440-460-480 to 220 volt)

On-site start up installation assistance
