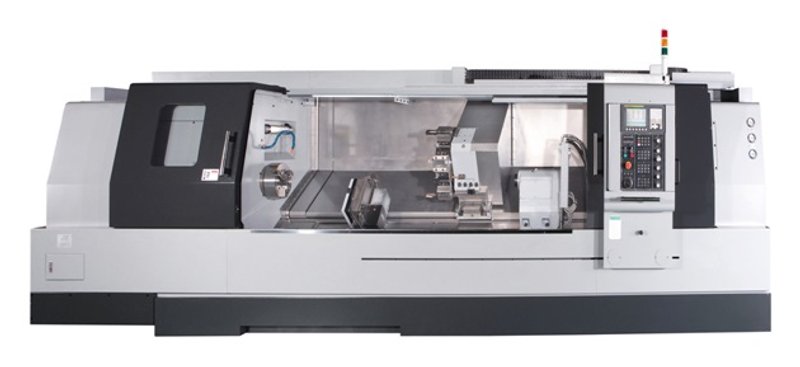

KENT USA KLR-380LX CNC TURNING CENTER

The KENT USA KLR-380 series CNC slant bed lathe combines proven machine design with advance technology in control and manufacturing.  Reliability and stability make these a favorite among demanding job shops and in-house productions alike.  The heavy duty turret and rigid machine body structure enable higher turning efficiency with better finish and longer tool life – resulting in greater productivity and profitability all around.  Upgrade your global competitiveness today.

OUTSTANDING FEATURES:

• High power spindle motor
• Large bar capacity
• Large maximum turning diameter
• High speed / high accuracy heavy duty 12 station turret
• Fully enclosed way covers and enclosure
• Induction hardened and precision ground box ways
• Certified Meehanite machine casting for superior dampening and stability
• High grade C3 precision ball screws and pretension for enhanced precision
• Auto lubrication system metered check valves and piston distributor
• Programmable tail stock body and quill

STANDARD EQUIPMENT & ACCESSORIES:

• Fanuc 0i-T CNC control with 8.4” color LCD
• Fanuc i-Series high torque spindle and axis motor with digital drive system
• Fanuc Absolute Encoders – machine axis start up “Home” sequence not required
• Fanuc Auto-Measure System (X and Z)
• Fanuc Macro-B and High Speed Skip Function
• Fanuc USB, PCMCIA, Ethernet and RS-232 ports
• Fanuc Manual Guide 0i – computer assist programming
• Fanuc 400 registered part program numbers and 640M part program memory
• Swivel-Out control panel
• Heat exchanger for electrical cabinet
• Hydraulic power supply unit
• Flood coolant system (4 bar)
• Chain type chip conveyor and chip cart
• Full enclosure and way covers
• Automatic lubrication system
• 3 color stack indicator light
• 12 station heavy duty high precision turret
• Programmable tail stock body and quill
• Standard soft jaws 3 sets + hard jaws 1 set
• Induction hardened and precision ground box ways
• 30º slant bed with one piece Meehanite® casting
• C-3 grade high precision ball screws
• Facing tool holder (R/H) 32x32 mm 1 set
• Facing tool holder (L/H) 32x32 mm 1 set
• Boring bar holder ø50 mm 3 sets
• Boring bar sockets ø50 mm 1 set with 16/20/25/32/40 mm
• U-drill holder ø50 mm 1 set
• Operator and Maintenance/Parts manuals

Available Factory Options:

Upgrade spindle nose taper from A2-8 to (A2-11 or A2-15)

Upgrade chuck diameter from 12” to (15” or 18”)

Upgrade spindle motor from 18.5/22 kW to 30/37 kW option

Upgrade bar capacity from 90 mm to (116.5/165.5 mm)

Upgrade maximum turning length from 1630 mm to (2150/3100 mm)

Upgrade to powered (live tools) turret APT-40

Upgrade to A2-15 spindle with 18” chuck, 1800 rpm, 165.5 mm (6.5”) bar capacity.

Bar feeder (various sizes available base on application)

Bar feeder interface (required for bar feeder option)

Upgrade to Fanuc 10.4” color LCD with Manual Guide i

Renishaw HPRA tool setter

Renishaw HPPA tool setter

Oil mist collector

Oil coolant skimmer

Air conditioner for electrical cabinet

Transformer (440/480 to 220 volt)

On-site start up installation assistance and commissioning
