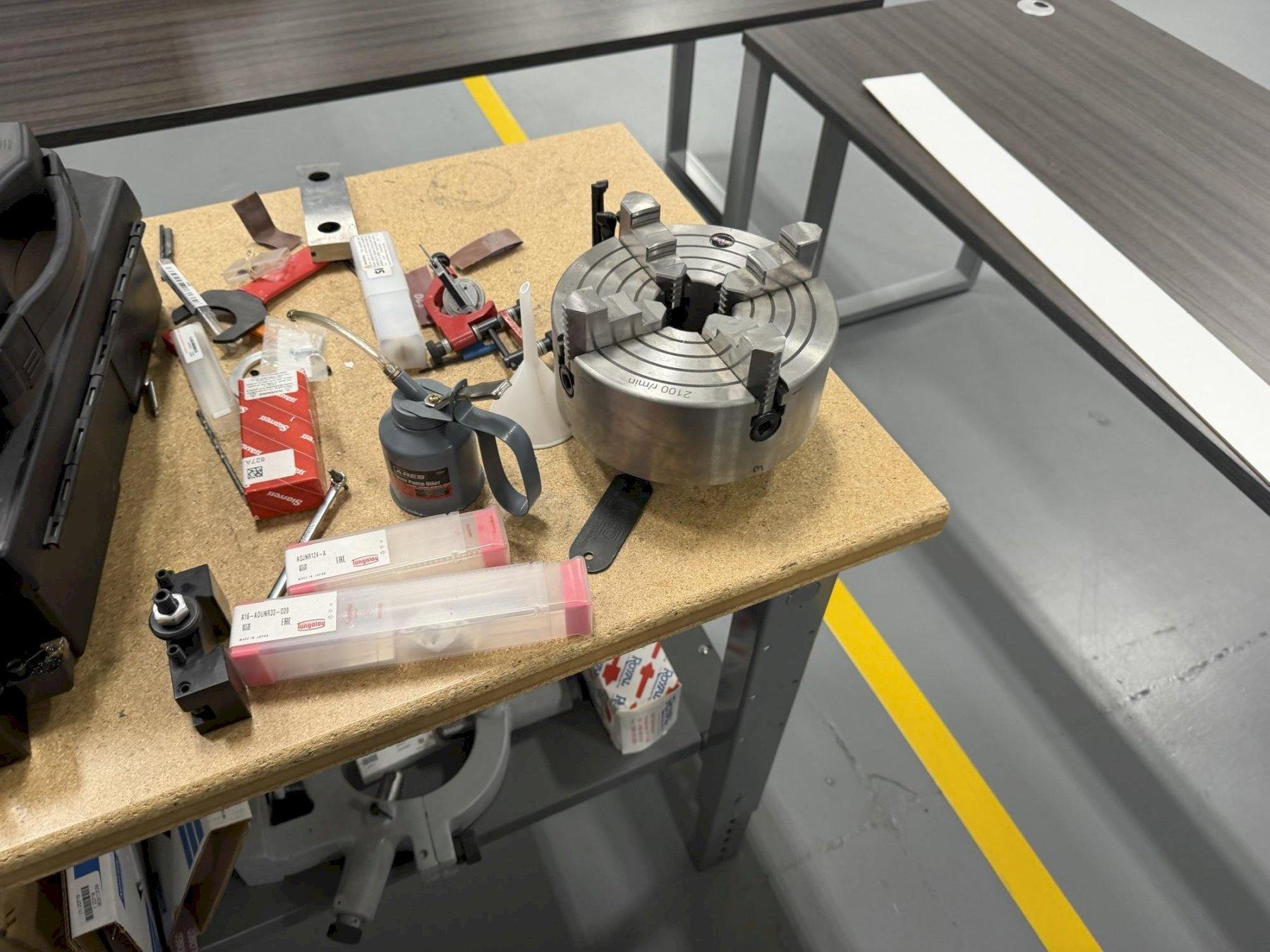

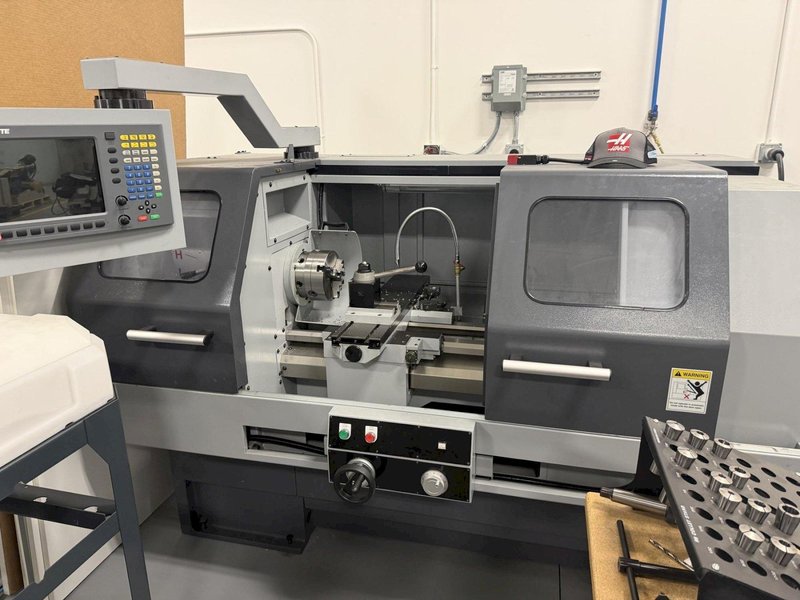

Kent CSM‑1640NC CNC Lathe, 2023 – Tailstock, Tooling Available

Swing Over Bed: 16″ Swing Over Cross Slide: 8.46″ Distance Between Centers: 40″ Width of Bed: 11″ Spindle Nose: Camlock D1‑6 Spindle Bore: 2.25″ Spindle Taper: MT #6 Spindle Speeds: 50–2000 RPM Longitudinal Travel (Z‑Axis): 33″ Cross Slide Travel (X‑Axis): 8″ Ballscrews: Z‑Axis 1.259″ dia, X‑Axis 0.98″ dia Rapid Traverse Speed: 236″/min (X & Z) Tailstock Quill Diameter: 2.12″ Tailstock Quill Travel: 5.1″ Tailstock Taper: MT #4 Spindle Motor: 7.5 HP (Fagor Servo option) Servo Motors: Z‑Axis 1.2 HP, X‑Axis 1.7 HP Net Weight: 3,740 lbs Packing Dimensions: 91″ × 69″ × 73″

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Equipped With:

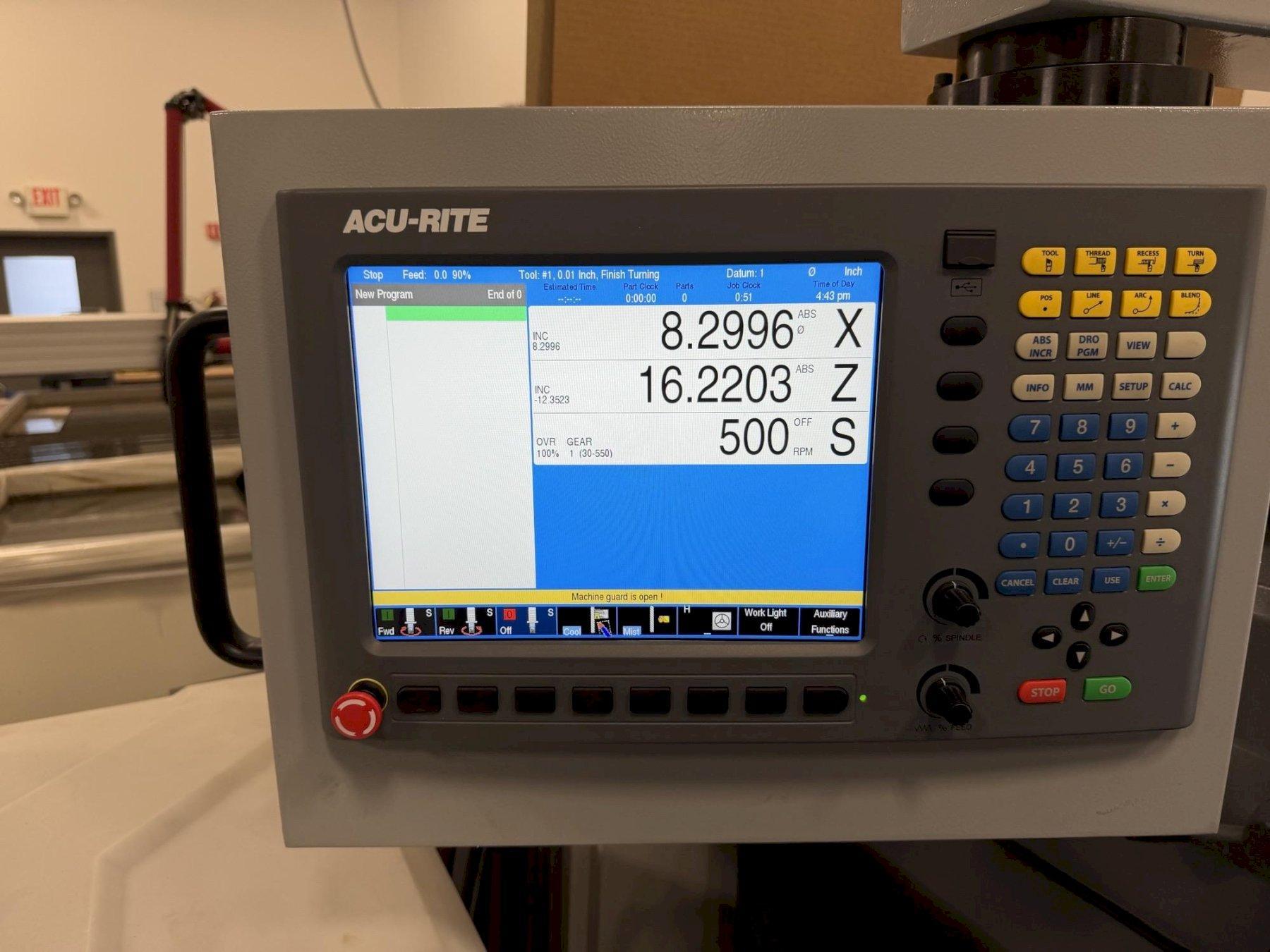

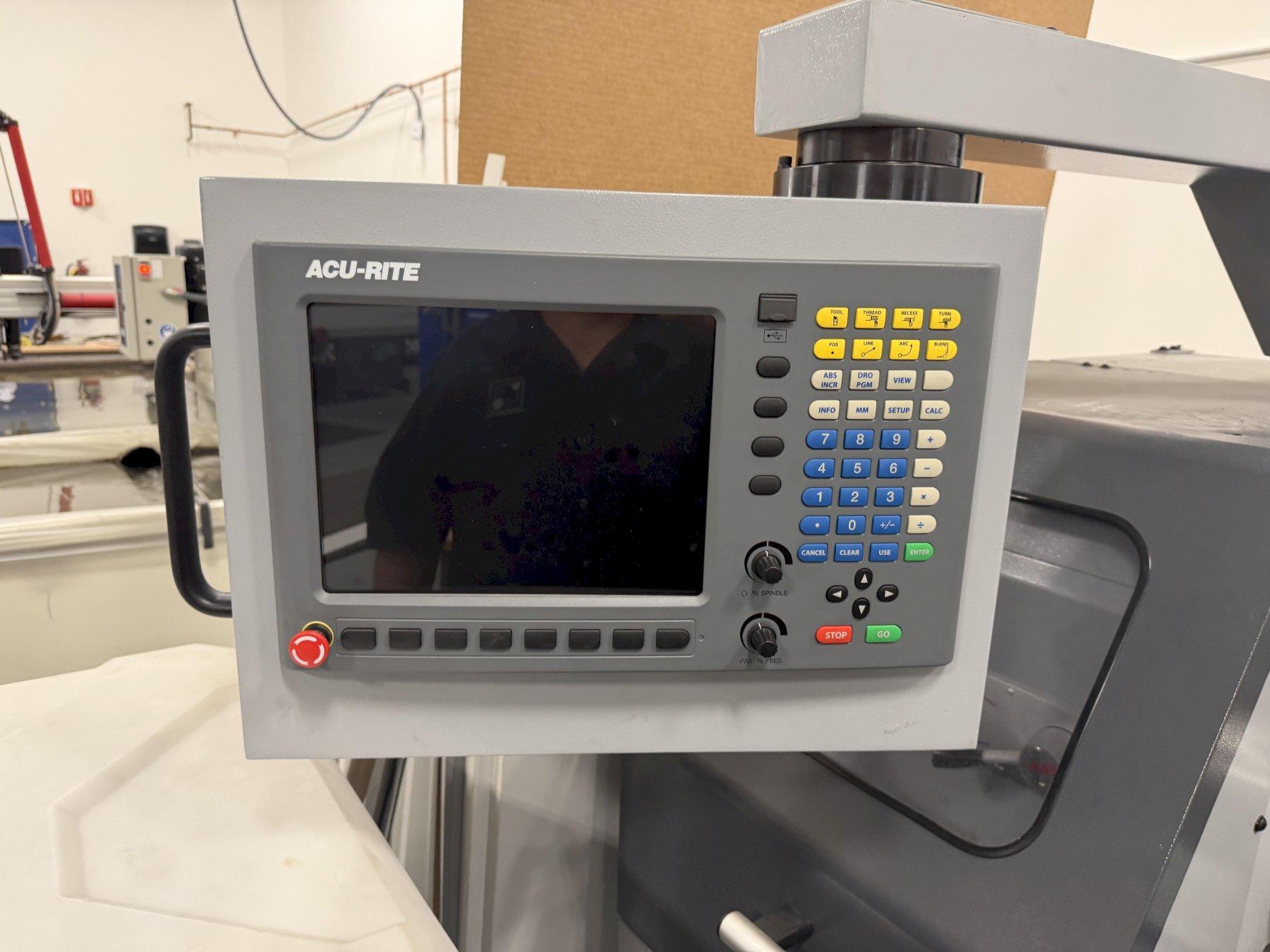

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Acu-Rite Control Tailstock Auto Lubrication Unit Flood Coolant System Chuck
