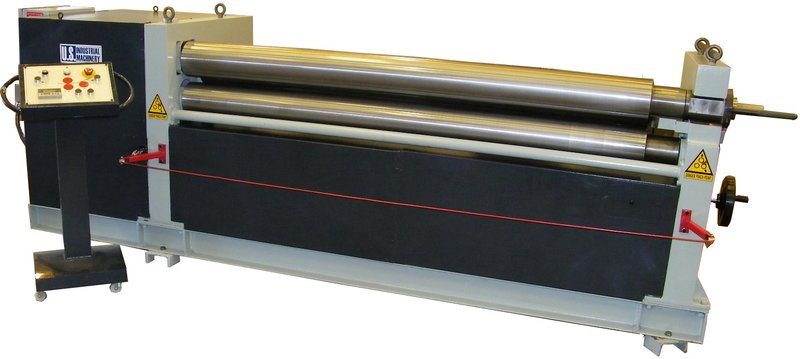

NEW 6' x 5/16" US INDUSTRIAL MODEL USR630 INITIAL PINCH BENDING ROLL

Brand
U.S. INDUSTRIAL
Category
Bending & Forming Equipment
Type
Plate Bending (incld Pinch) Rolls
Model
USR630
Stock #
14351
Year
Not specified
Condition
New

Location

Not specified
NEW 6' x 5/16" US INDUSTRIAL MODEL USR630 INITIAL PINCH BENDING ROLL

BASE PRICE: POR




STANDARD EQUIPMENT

Powered Roll Adjustment & Manual Precision Pinch Roll Adjustment
Top Roll Manual Swingout
Emergency Trip Line
Pedestal Control
Quick Roll Adjustment
Roll Position Indicators
Crowned Rolls
Low Voltage Push Button Controls
Hardened Rolls
Cone Rolling Attachment
LED Readout With Memory
Hydraulic Top Roll Swing Out





SPECIFICATIONS


Capacity                                                   6' x 5/16" Mild Steel @ 65,000 PSI
Pre Bend Capacity 5/16" Mind Steel @ 65,000 PSI
Roll Diameter 6.7" On All Three Rolls
Speed 12.5 FPM
Main Drive Motor 5.5 HP Reduction Gear Drive
Adjustment Motor 3 HP
Approx. Dimensions 144" x 54" x 44"H
Net Weight 6,800 Lbs
Voltage 220/440 Volts, 3 Phase
No files or videos to display
