COMPLETELY REBUILT AND UPGRADED MECHANICALLY AND ELECTRICALLY IN 2014

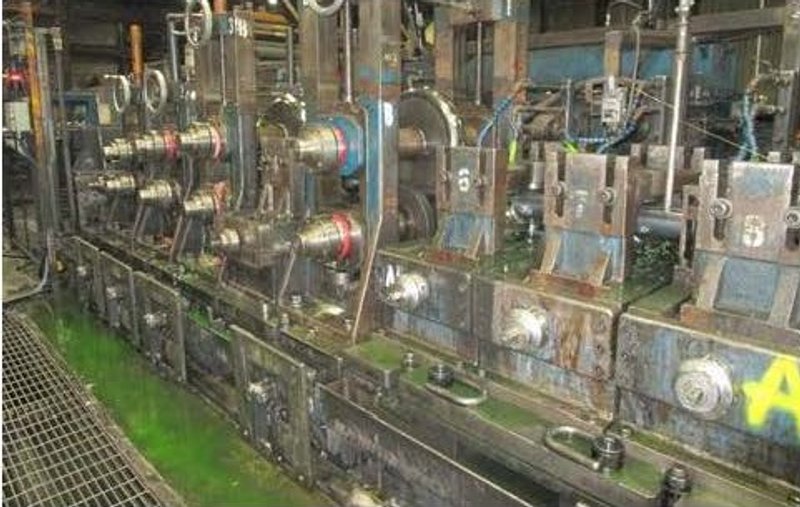

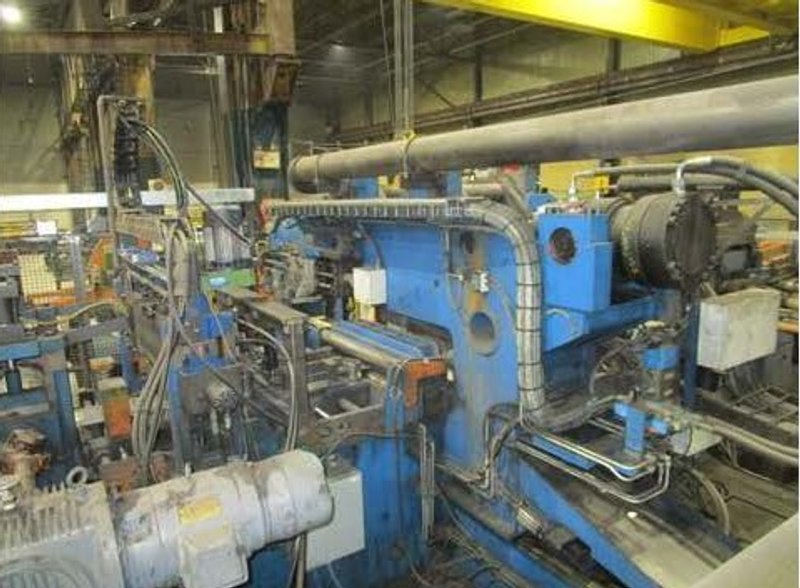

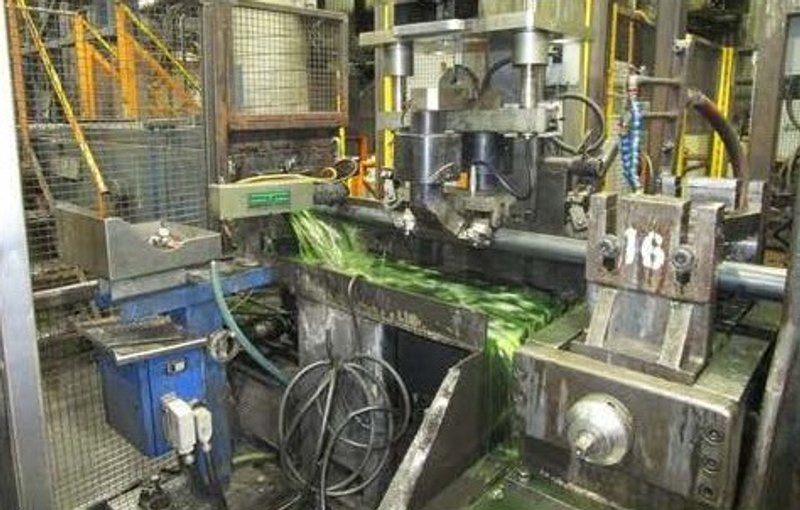

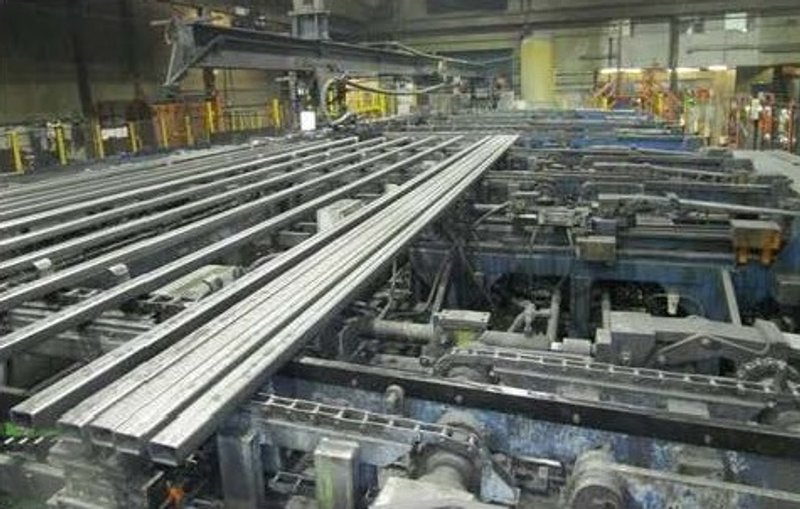

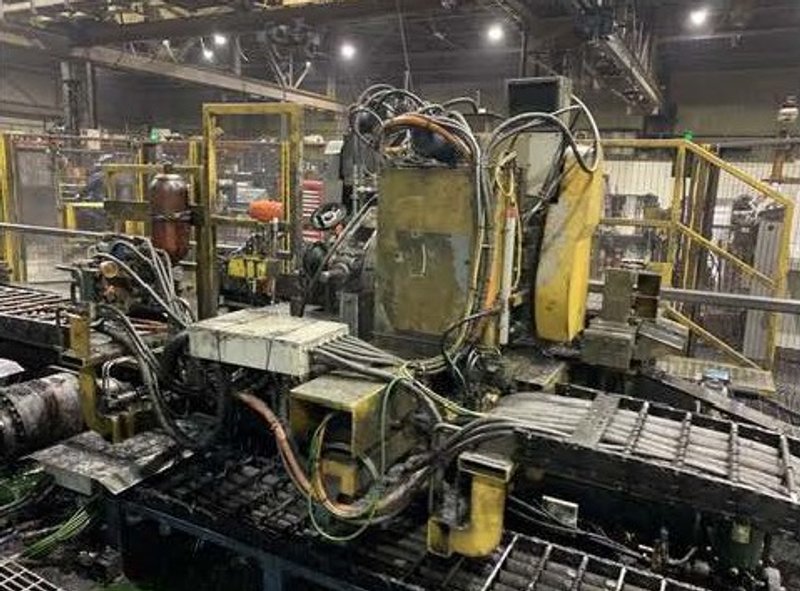

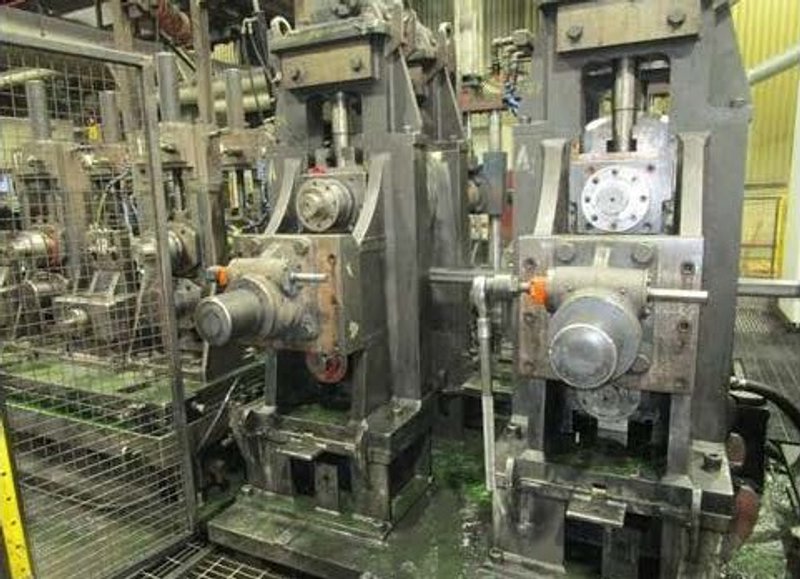

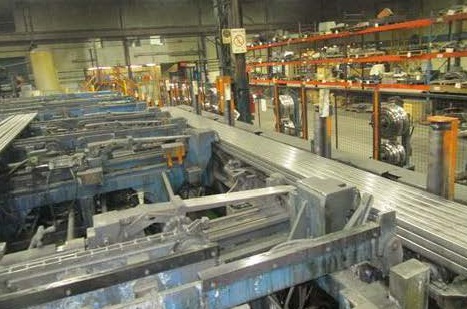

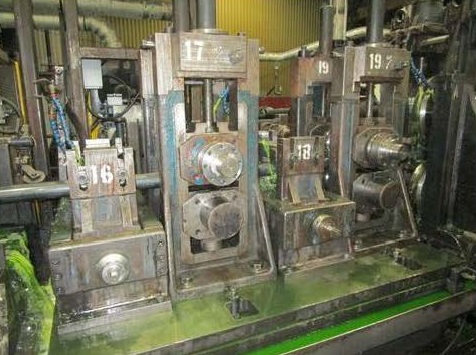

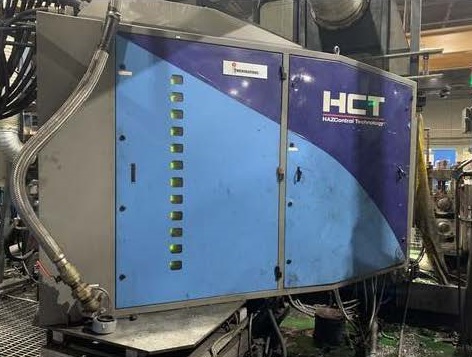

Tube Diameter: 2 3/8" - 7 1/2" Wall Thickness: .125" - 3/8" Mill Speed: 200 FPM Tube Length: 16'- 60' COMPLETE TUBE MILL LINE INCLUDING Quick Change Mill with Spare Set of Rafted Stands OTO MILLS Shear & End Welder New 2014 Drives and Gear Boxes New 2014 OTO MILLS TAC 90 Cut Off Saw New in 2018 600KW Thermatool Solid Sate 2018 600 KW THERMATOOL HCT HAZ Solid State Hi Freq Welder LINE CONFIGURATION Line Direction Left to Right ENTRY SECTION 4 Arm Turnstile 50,000# L-Type Coil Car 25,000# Floor Standing / Self Contained Hydraulics PRO ECO Mandrel Uncoiler Sliding Base 4 Leaf Hydraulic Expansion Water Cooled Brake & Cooler Powered Hold Down Roll Feed Up Drive, Air Clutch Peeler Table & Guide Table 5 Roll Flattener Entry & Exit Pinch Rolls Entry & Exit Edge Guides 60 HP DC Drive OTO MILLS Automatic Shear & Welder Year 2013 Model GG 710 - CU Entry & Exit Strip Guide Dual Clamping Hydraulic Sliding Shear 2 Torches / Welder Water Cooled Lincoln S500 Controllers Milling Head to Mill Off the Bead on Heavy Gauge Coils UNDERGROUND ACCUMULATOR Entry Rolls Exit Double Pinch Rolls for Pulling Strip Out 125 HP DC ARROW 4 Roll EDGE PREP STATION TUBE MILL FORMING SECTION Rafted Forming Mill with Spare Set of Rafted Stands Entry Edge Guides 3 Forming Stands 1 Side Ider Roll Stand 1 Forming Stand 3 Side Idler Roll Cluster 3 Finn Pass Stands 2 Side Pressure Rolls Single Point Adjustment 300 HP DC Motor, 500 Volt, 650 / 1900 RPM. (Forming) 250 HP DC Motor, 500 Volt, 650 / 1900 RPM (Finn) New Nova Gear Boxes in 2015 New Eurodrive Gear Transmissions in 2020 WELDING SECTION Rafted Twisting Seam Guide Stand (Spare Raft) 4 Roll Weld Box with Motorized Adjustment ID / OD Scarfing Pressure Roll Scrap Chopper with Scrap Conveyor. (New in 2018) THERMATOOL 600 KW, HCT HAZ Control Technology Solid State Welder New in 2012 Model HCT3-6006575 Frequency 150 - 300 KHZ Full Load DC Volts 236 Full Load DC Amps 3127 Full Load KVA 909 Full Load KVA 909 Phase 6 Freq. HZ 60 Digital Read Out and Controller INSPECTECH NDT System Measures Thickness of the Weld Measures Integrity of the Weld Digital Readouts COOLING TROUGH 30' TUBE MILL SIZING SECTION Rafted Sizing Mill with Spare sets of Rafts Side Roll Stand Vertical Sizing Stand Side Roll Stand Vertical Sizing Stand 2 Squaring Stands with Side Roll Clevis's Squaring Stands are Rafted with (3) SETS total, NEW 2014 TURKS HEAD 4 Roll with Spares Turks Heads Digital Positioning Schneider Readouts Single Point Adjustment New Nova Gear Boxes in 2015 New Eurodrive Gear Transmissions in 2017 200 HP, 500 Volt, 600 / 2400 RPM (Sizing) 372 HP, 520 Volt, 1270 / 1930 RPM. (Squaring) OTO MILLS Flying Dual Blade Cold Saw Cut-Off New in 2017 Model TAC 90 DF Troncatrice Cut-Off Dual Blade Max Blade Diameter 580mm (2) 25KW DC Blade Motors 78.5KW DC Carriage Motor Carriage Stroke: 4000mm Rack & Pinion Accelerator Flying Carriage ALLEN BRADLEY 1550M Digital Readouts FIVES OTO Eltav 6 Controller STACKER / BUNDLING / BANDING SECTION Run Out Table Side Discharge Sorting Table Blow Off Station with Scarfing Choppers Indexing Station Stacker Table with Forks Bundling Table Bundle Transfer Conveyor Dual Lifting Tables Digital Controller and Readout Batch Counter, Piece Counter, Length Counter, Bundle Strapping Section 30" x 32" Bundle Size Bundle Stacking Conveyor Side Discharge 3 Station Reject Conveyor Scrap Saw TOOLING: Rounds: 2.375", 2.875", 3.125", 3.5", 3.75", 4", 4.312", 4.5", 5", 5.563", 6.25", 6.625", 7", 7.375" Square: 2" x 2", 2.5" x 2.5", 3" x 3", 3.5" x 3.5", 4" x 4", 5" x 5", 6" x 6" Rectangle: 3" x 1.5", 3" x 2", 3.5" x 2.5", 4" x 2", 4" x 3", 5" x 2", 5" x 3", 6" x 2", 6" x 3", 6" x 4", 7" x 5", 8" x 3", 8" x 4" Tooling Sizes NEW: 4.5" , 5" , 6 5/8" , 7" , 7, 3/8" Large Quantity of Spare Parts: Motors, Gear Boxes, Induction Coils, Shafts, Screw Jacks, Couplings, Hydraulic Cylindes, Etc.. Tooling Changing Stations All Drives New in 2014 and Newer Operator Control Stations with Touch Screen Digital Readouts. ALLEN BRADLEY Powerflex Digital Drives SAF Digital Drives BROCK SOLUTIONS Control System ALLEN BRADLEY PLC's OTO AUTOMATION CAN BE INSPECTED UNDER POWER AND OPERATING |
