Tonnage | 150 |
Stroke | 6 inches |
Shut Height | 18 inches |
Adjustment | 4 inches |
Bed Size | 60" LR x 36" FB |
Ram Area | 60" LR x 36" FB |
SPM | 30-60 VSPM |

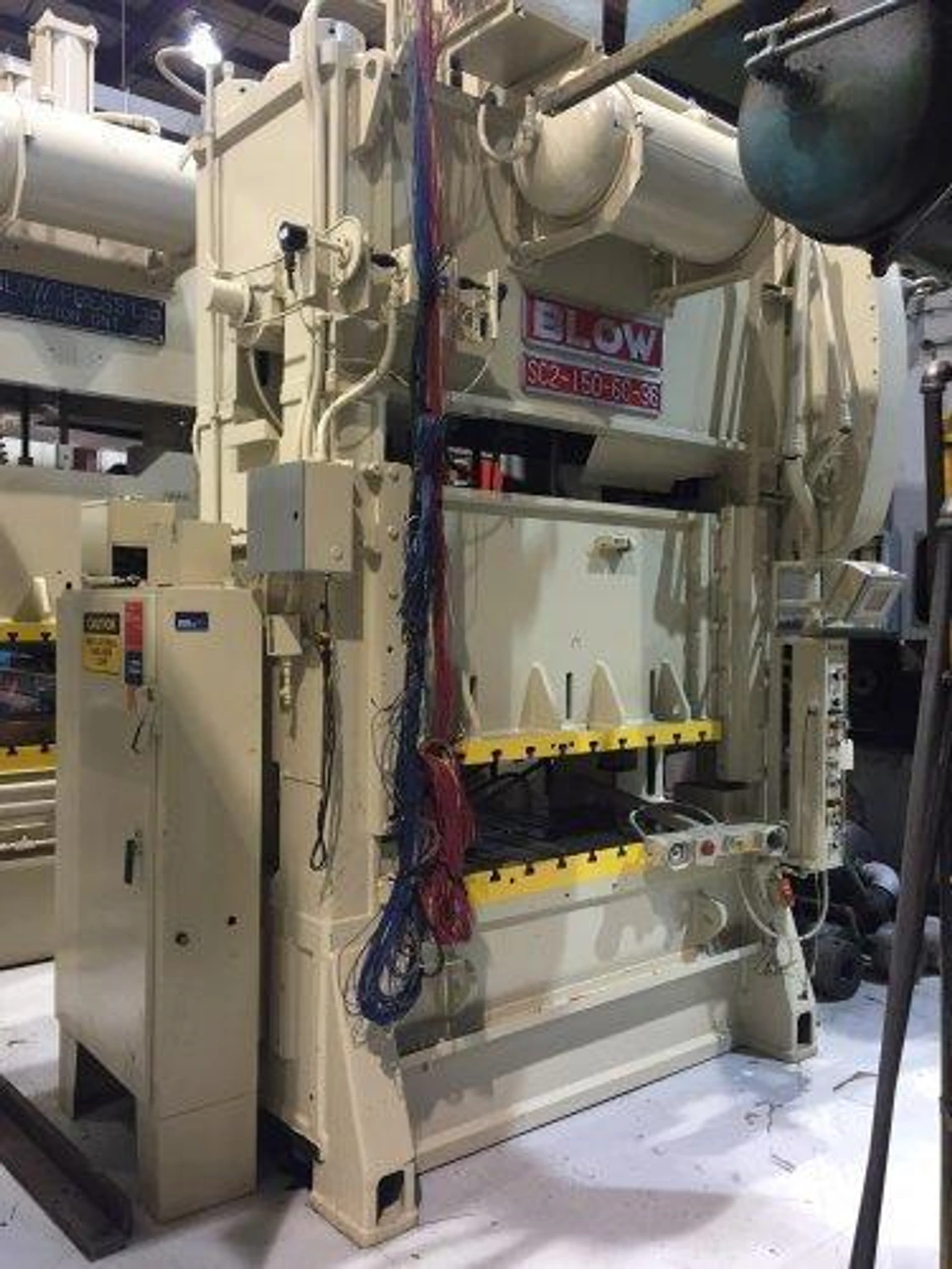

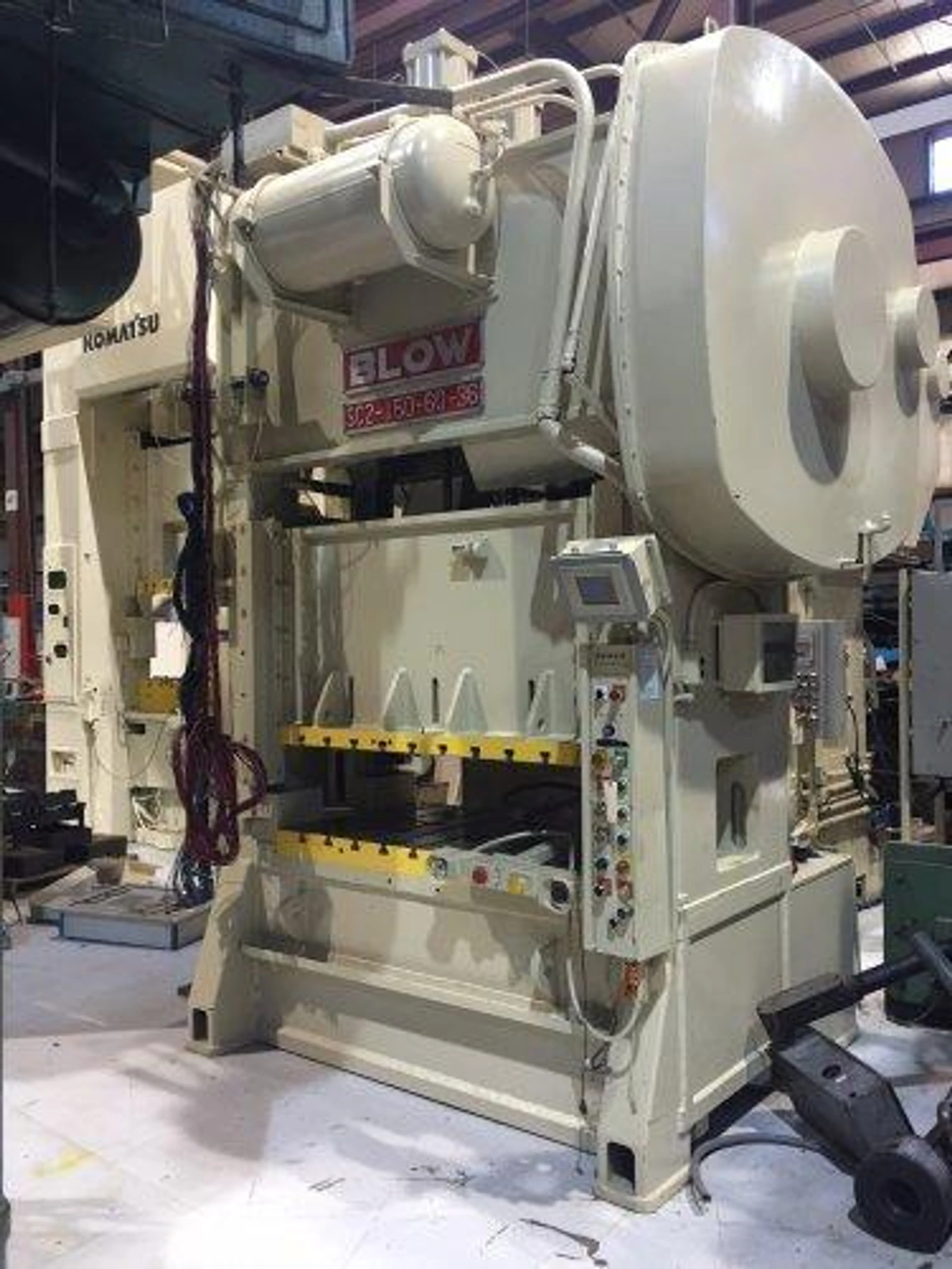

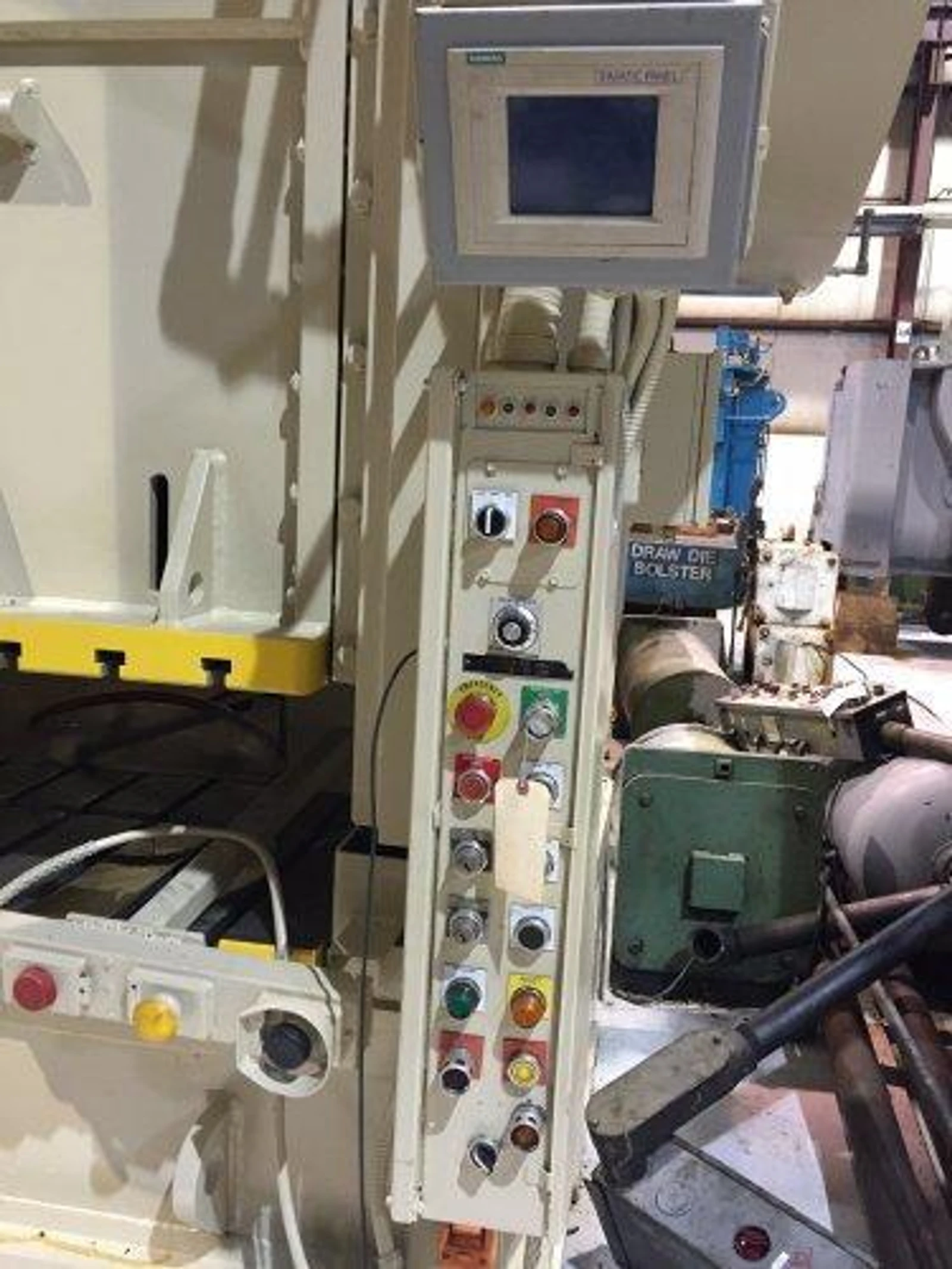

Standard Specifications Blow Press Model SC2-150-60-36 Straight Side Mechanical Metal Stamping Press 150 Ton Capacity 6" Stroke 18" Shut Height 4" Adjustment 60" LR x 36" FB Bed Area 60" LR x 36" FB Slide Area 30-60 VSPM Equipment and Features Air Clutch and Brake Air Counterbalances Recirculating Lube System T-Slotted Ram and Bolster T-Slots on 6" Centers- Standard 1" T-Slots 8 Point Gibbing Electrical Control Cabinet Variable Speed Motor Motors and Controls Palm Buttons Simatic Panel Siemens Baumer Electric Rotating Cam Limit Switch Dual Ross Air Valve Motorized Ram Adjustment Main Motor Fwd./ Reverse Imco Tonnage Monitor 13" Wide Windows Floor Standing This Used 150-ton Blow Straight Side Mechanical Metal Stamping Press Can Be Seen Under Power in our Warehouse! |
