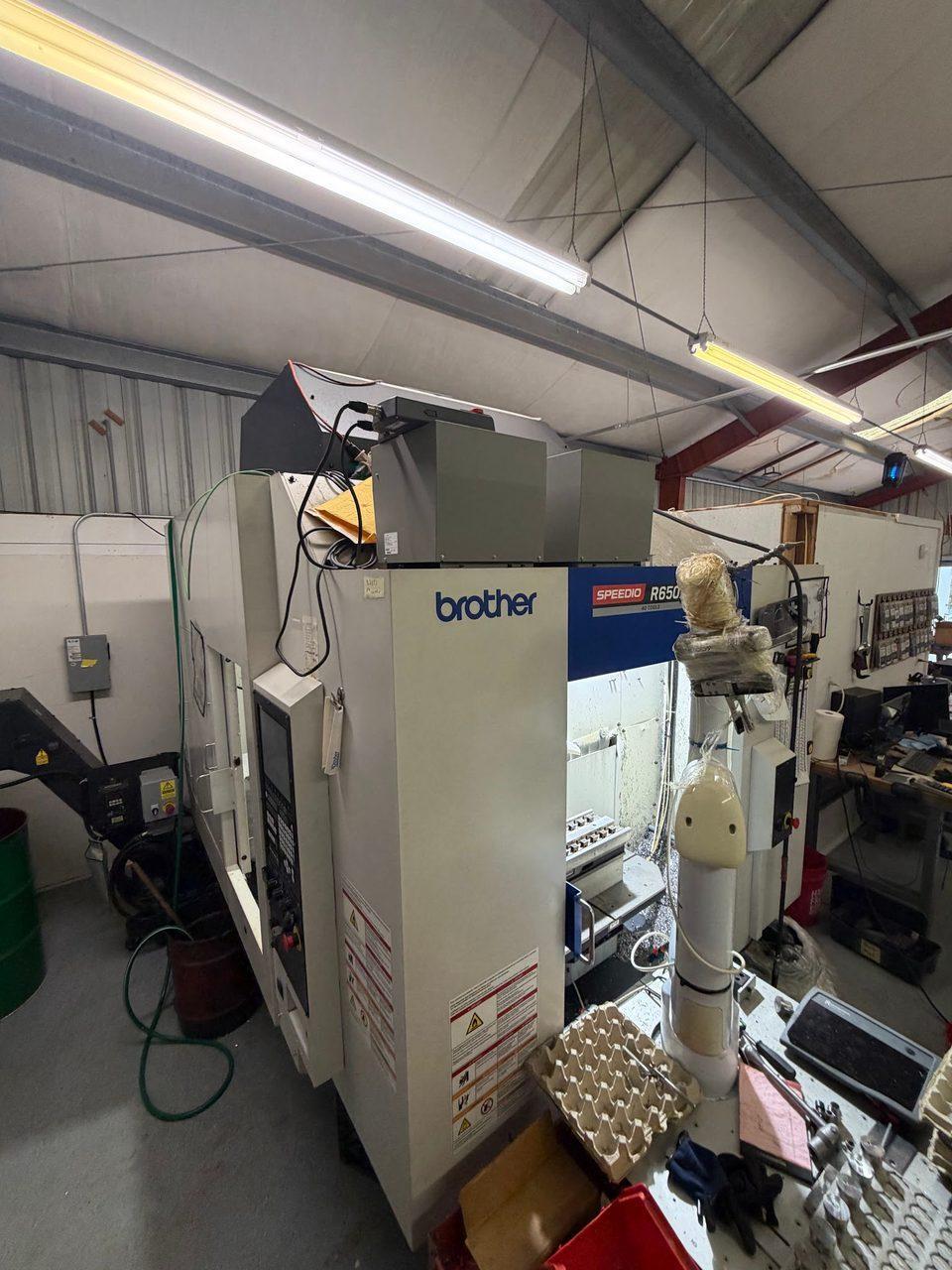

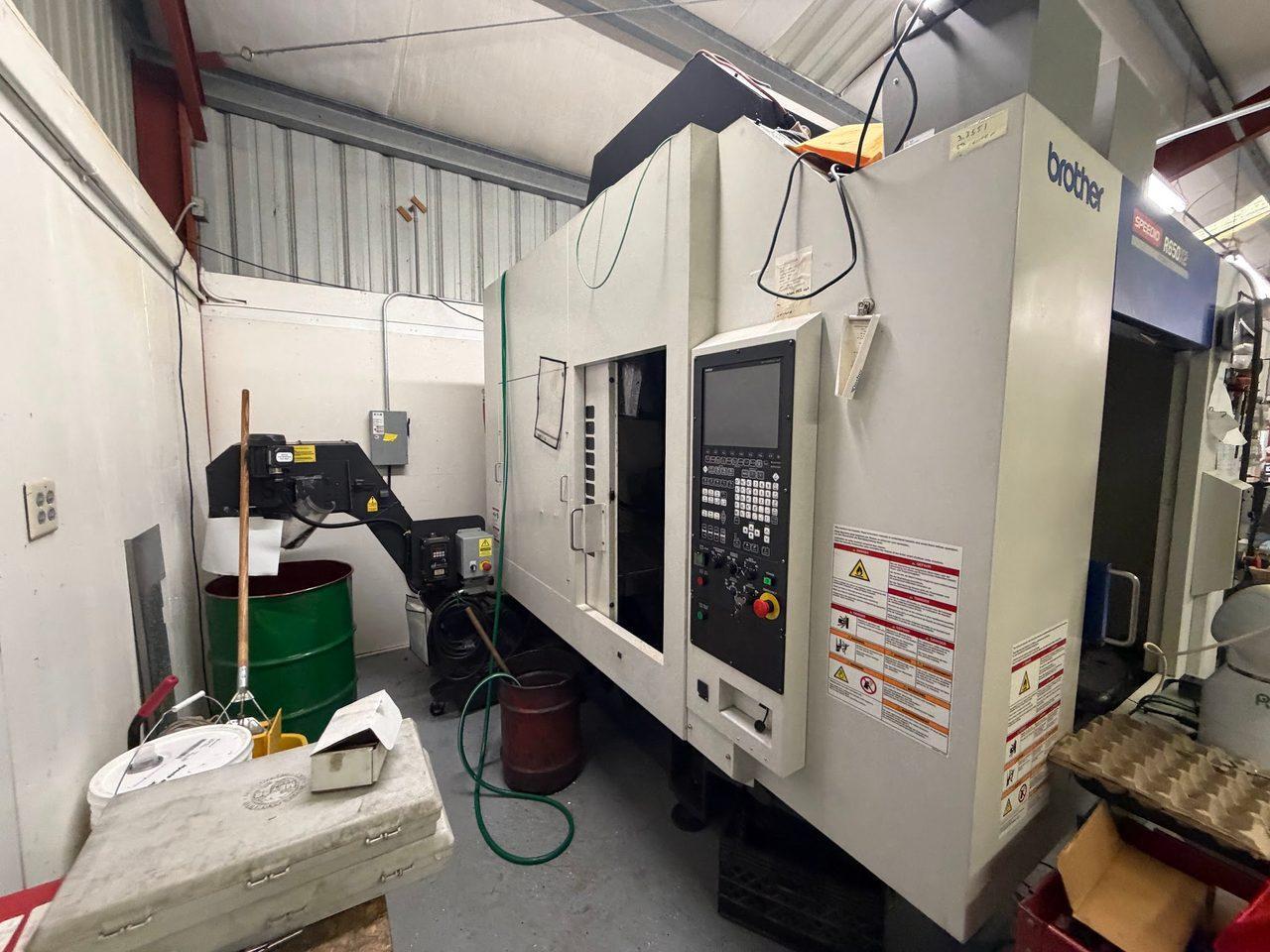

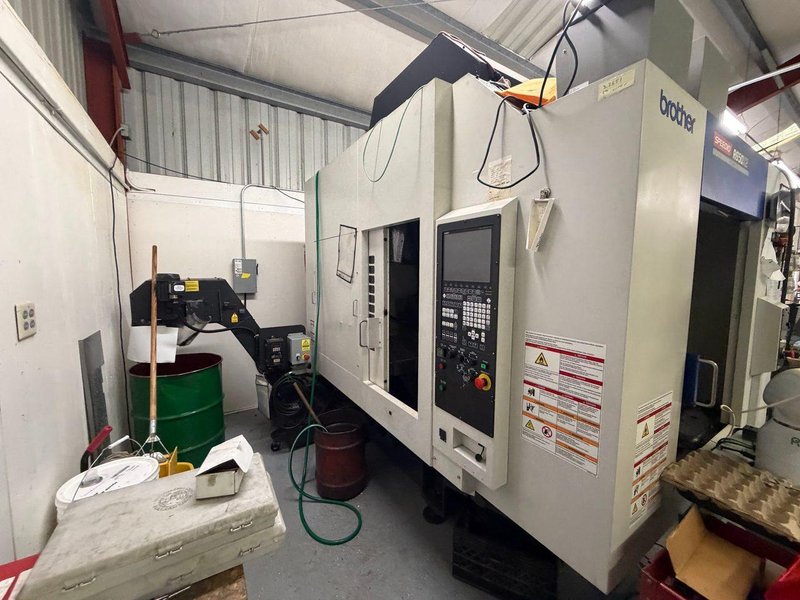

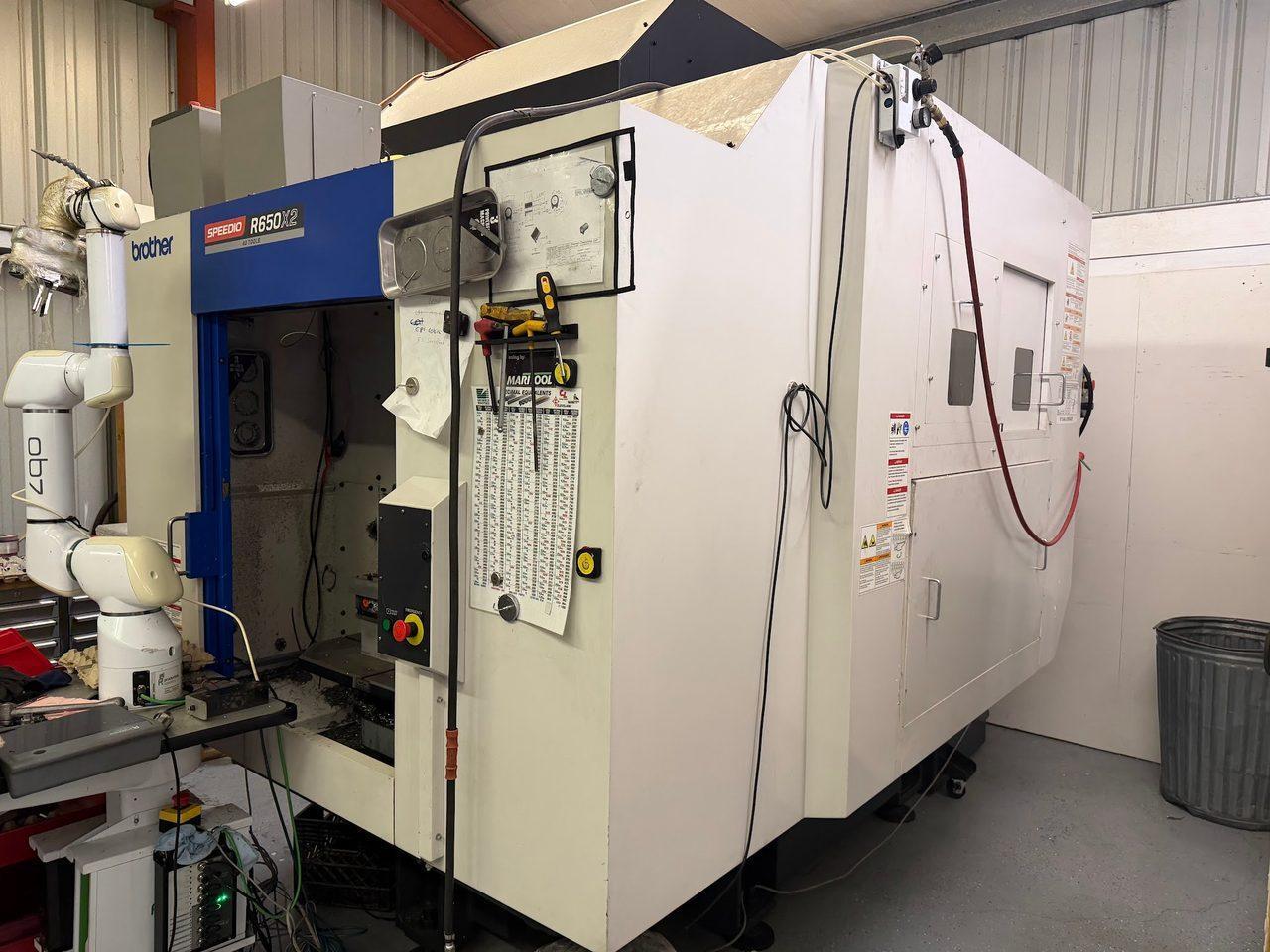

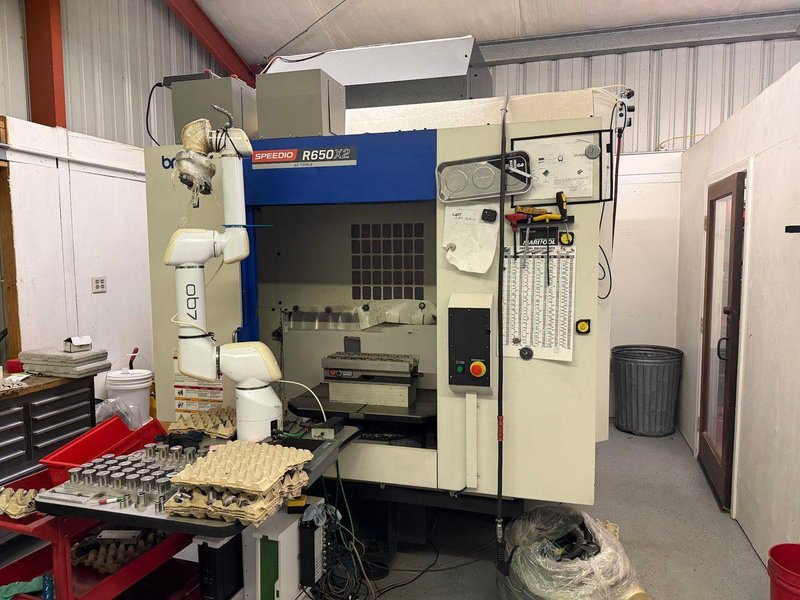

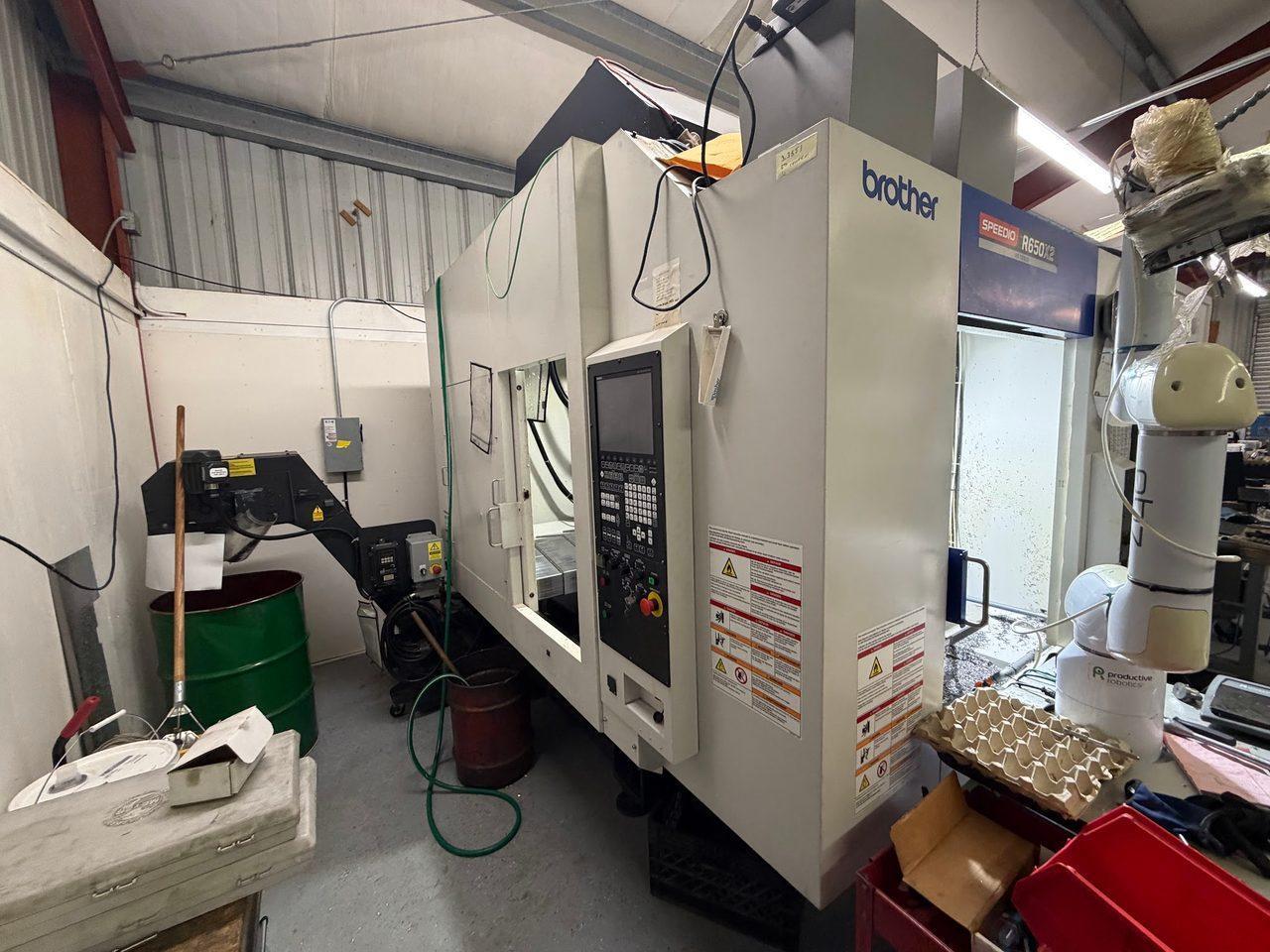

Brother Speedio R650X2 VMC, 2020 – Rotary Table, High Pressure Coolant
Brand
Category
Model
Not specified
Stock #
Not specified
Year
Not specified
Condition
Not specified
Location
Not specified
|
X Axis Travel: 25.6″
Y Axis Travel: 15.7″
Z Axis Travel: 17.1″
Spindle Motor: 17 HP
Spindle Speed: 16,000 RPM
Spindle Taper: BT30
Tool Changer: 40 ATC
Rapid Rate X Axis: 1,969 IPM
Rapid Rate Y Axis: 1,969 IPM
Rapid Rate Z Axis: 1,969 IPM
Table Size: 31.5″ x 15.7″
Weight: 8,818 LBS
Max Table Load: 441 LBS

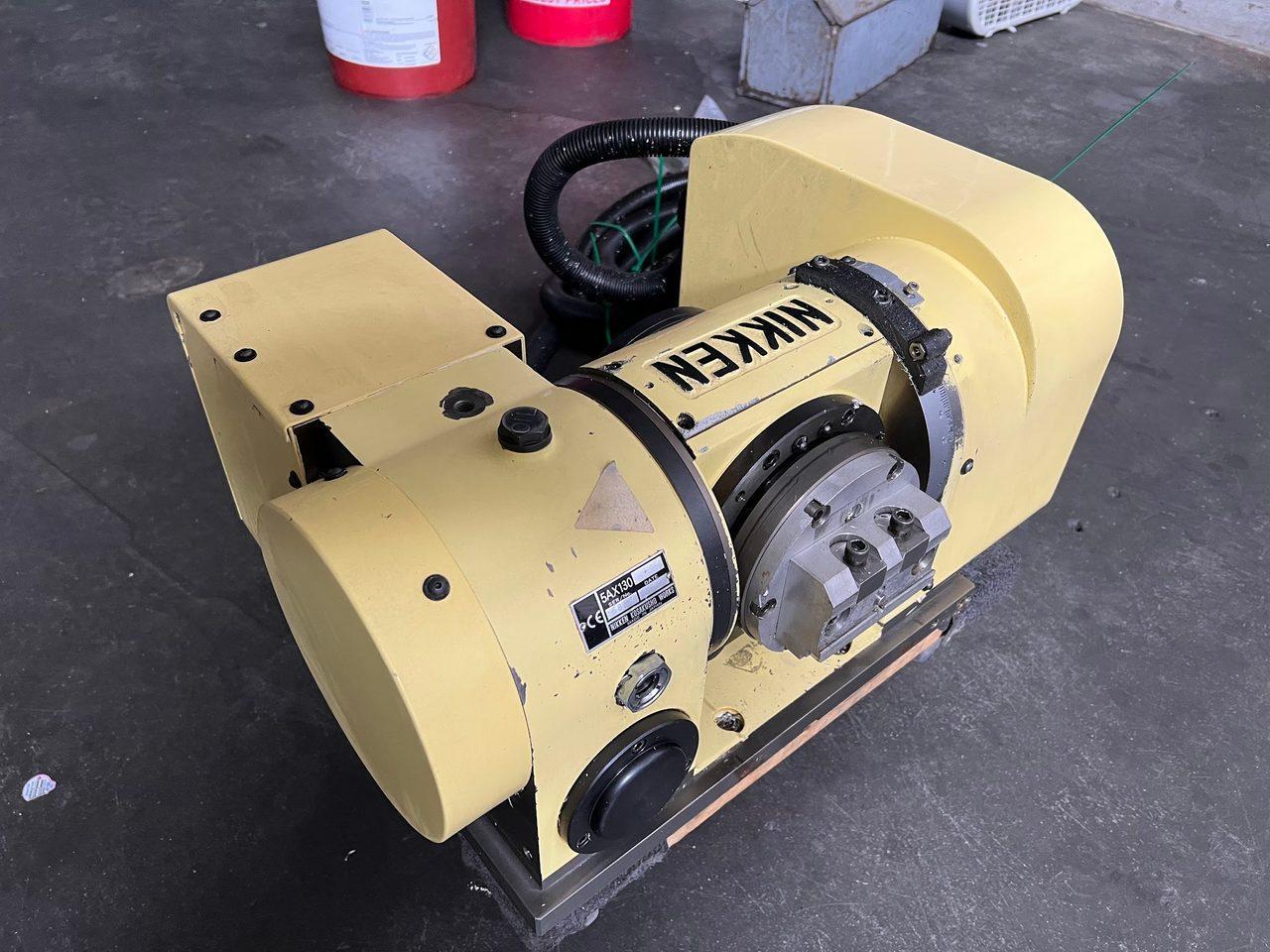

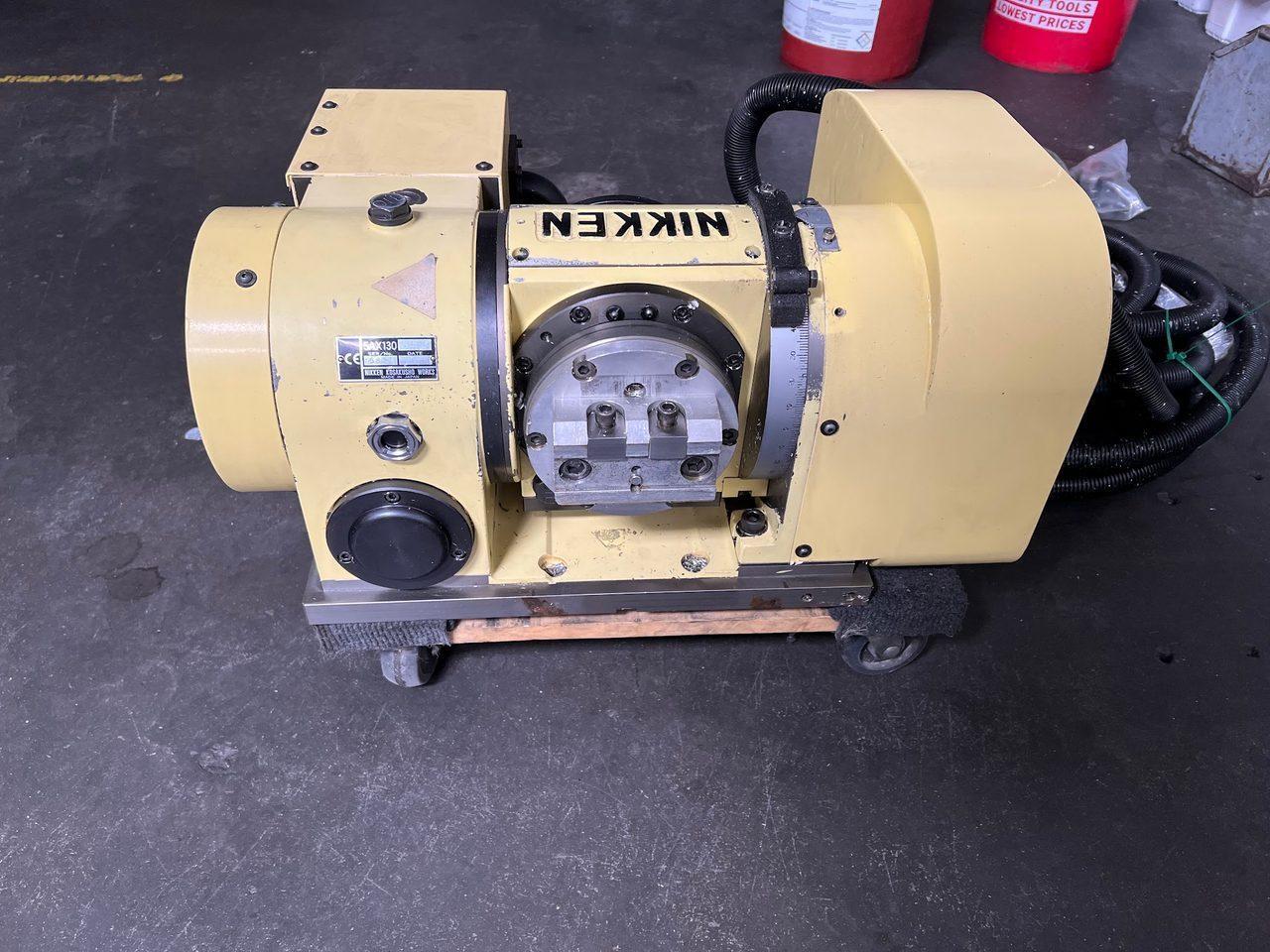

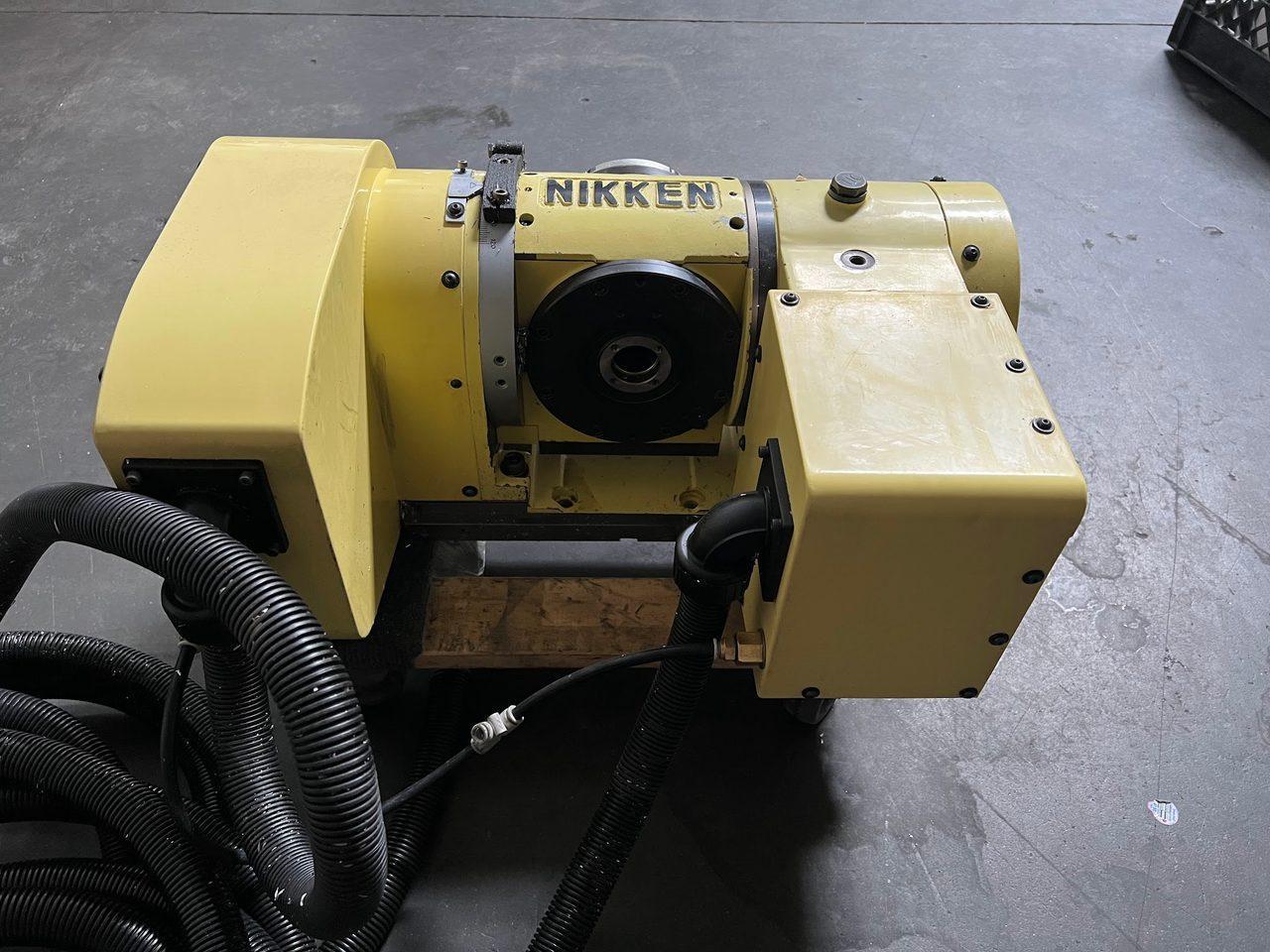

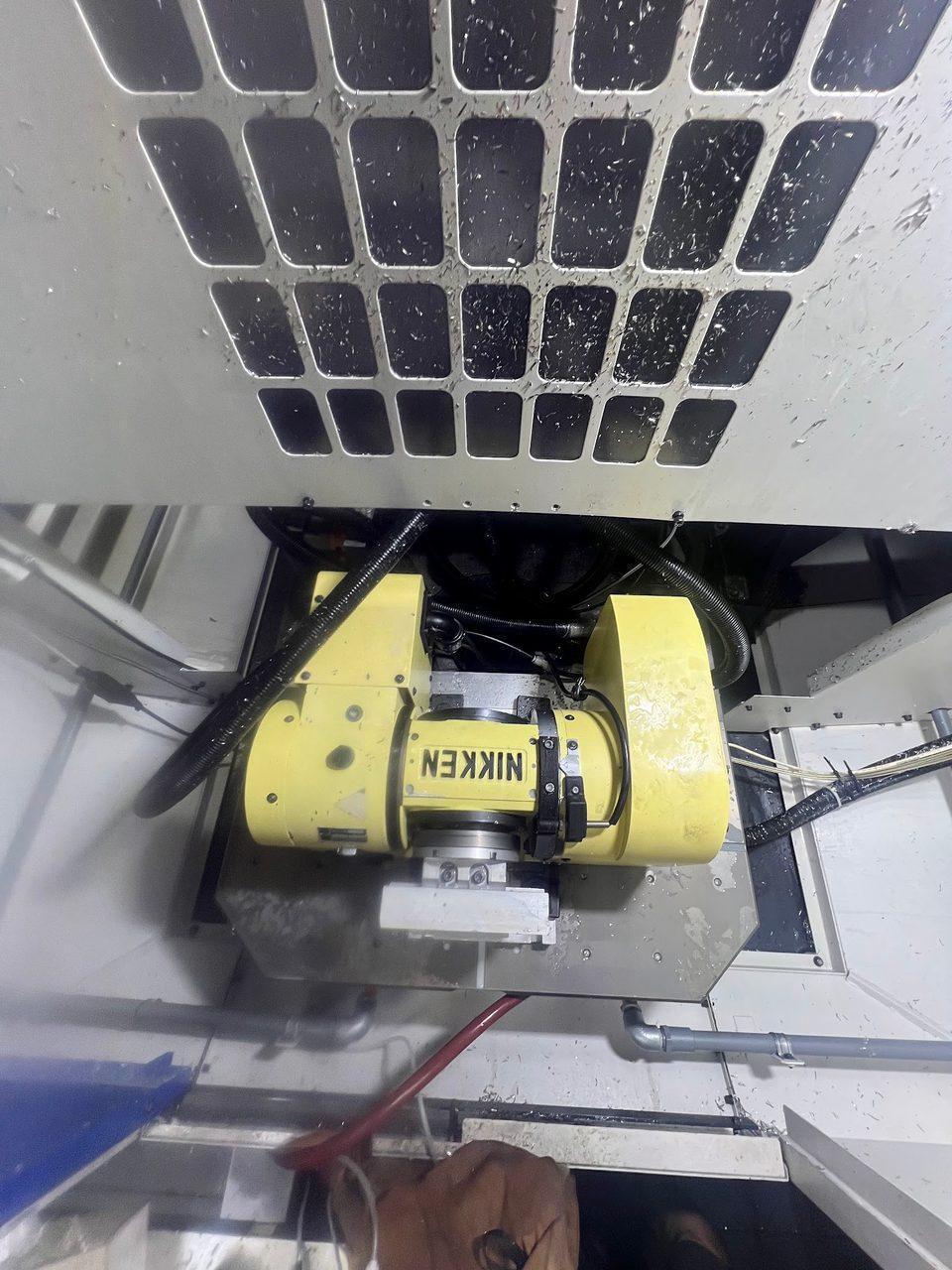

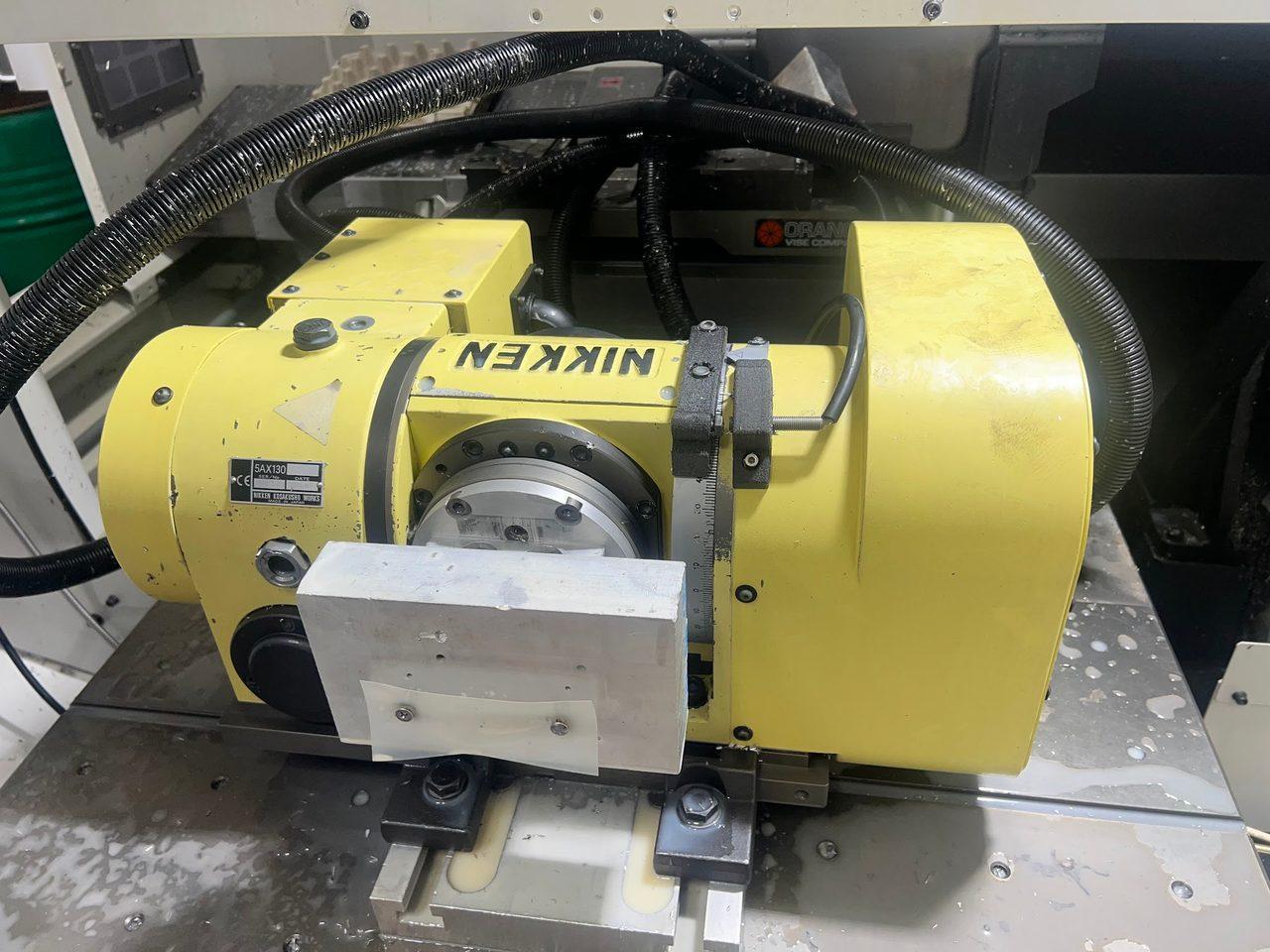

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Equipped With: All specifications are assumed to be correct but must be confirmed by the purchasing entity.,16,000 RPM Spindle 40+1 Position ATC High Pressure Coolant System Nikken 5AX-130 5th Axis Rotary Table Chip Conveyor Full integration with Brother control for easy setup & programming All original manuals and documents All specifications are assumed to be correct but must be confirmed by the purchasing entity.,*Robot Not Included All specifications are assumed to be correct but must be confirmed by the purchasing entity. |
