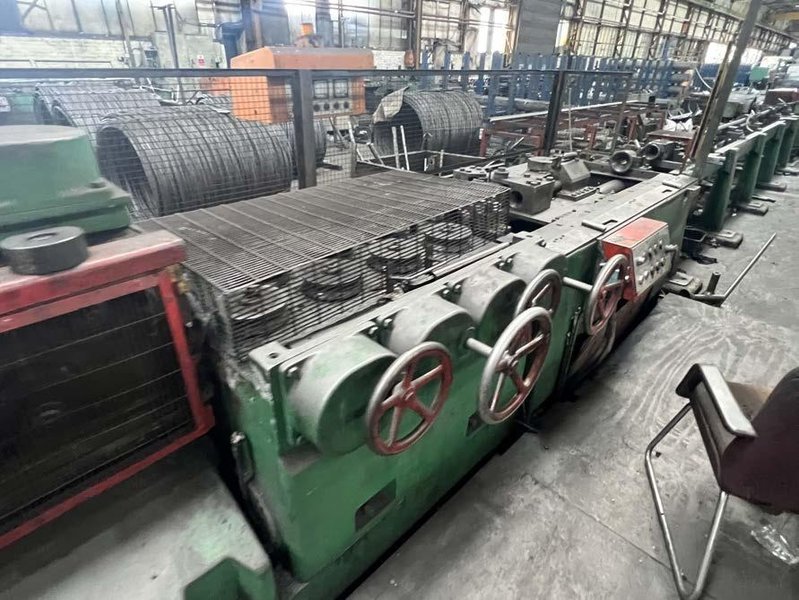

SCHUMAG KZ-RP IIB COMBINED DRAWING LINE (14724)

SCHUMAG KZ-RP IIB COMBINED DRAWING LINE
Stock # 14724

TECHNICAL DATA
Manufacturer    Schumag AG, Aachen, Germany
Model    KZ-RP IIB
Year of Manufacture    1973
Capacity
Rounds 10 mm – 32mm
Hexagons 10mm - 27mm
Squares     10mm - 24.5mm
Drawing Force    10,000 kg
Max. Drawing Speed    60 m/min
Max. Bar Length    6m
Main Motor    Power
Speed Voltage
Current    15 – 150 kW
150 - 1500 RPM
55 - 400V
404 Amps

Vertical Pay-off Single Crown
RIBI Coil Opener
Koch Pre-Straightener Type: KRE
Built: 1978
8-Roll Inverted 5-Roll Vertical
4-Roll Horizontal Pre-Straightener Non-Driven
Hydraulic push-pointer Force: 20,000 kg
Draw-bench
Draw Force: 10,000 kg Pneumatic Gripping
Gearbox and Motor 150 kW Motor
Two-Plane Straightening Section 7-Roll Vertical straightener
7-Roll Horizontal straightener Flying-shear
RIPO Straightening & Polishing Machine 60/45/30 HP, 734/986/1480 RPM
Guide Tube
Exit Table to Chamfering Machine or Collection Cradle SAS Chamfering Machine
Double Ended Built: 1995
Electrical Equipment Spares & Tooling
Spares include 1 Set of Cams
