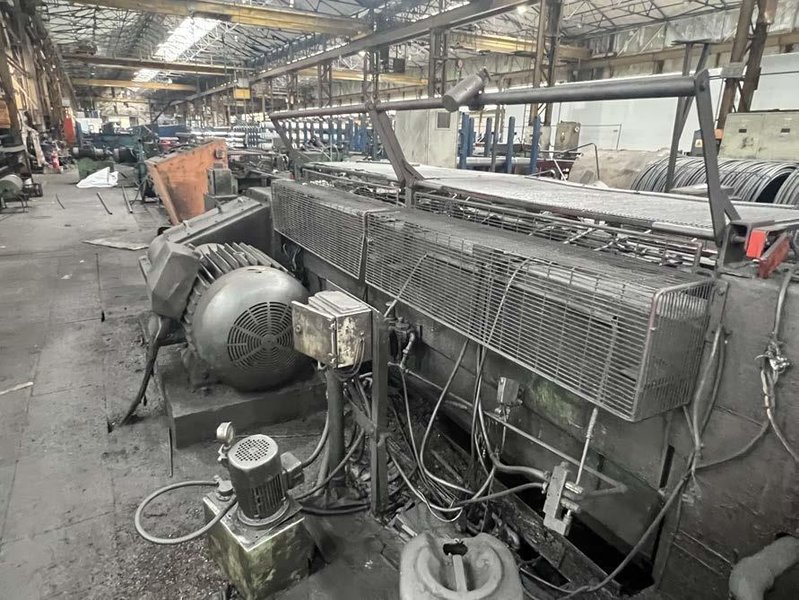

SCHUMAG KZ-R IB COMBINED DRAWING LINE (14723)

SCHUMAG KZ-R IB COMBINDED DRAWING MACHINE
STOCK # 14723

TECHNICAL DATA
Manufacturer    Schumag AG, Aachen, Germany
Model    KZ-R IB
Year of Manufacture    1969/72
Diameter Range    6 mm – 20mm
Drawing Force    6,500 kg
Max. Drawing Speed    14/40/60 m/min
Max. Bar Length    6m
Main Motor    Power    30 kW
    Speed    2825 RPM
    Voltage    400V
    Current    52.1 Amps
Vertical Pay-off Single Crown

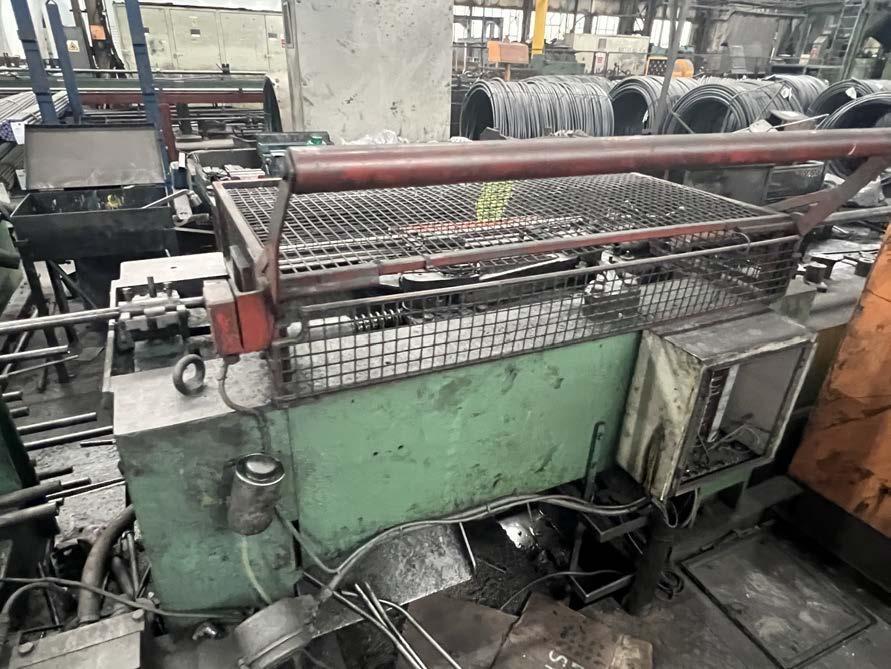

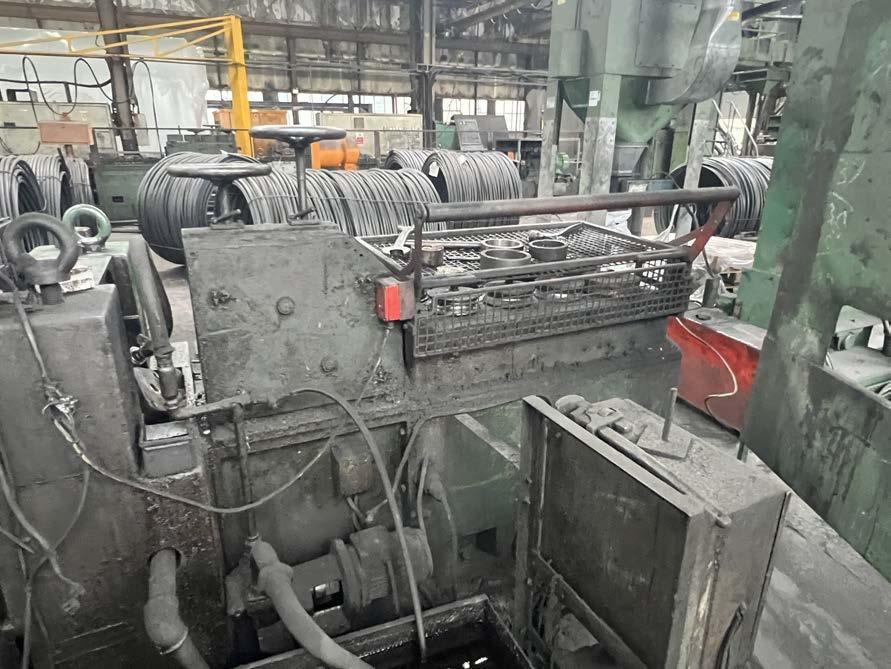

Pre-Straightener 8-Roll Inverted 5-Roll Vertical
4-Roll Horizontal Pre-Straightener Non-Driven
Draw-bench
Draw Force: 6,500 kg Pneumatic Gripping

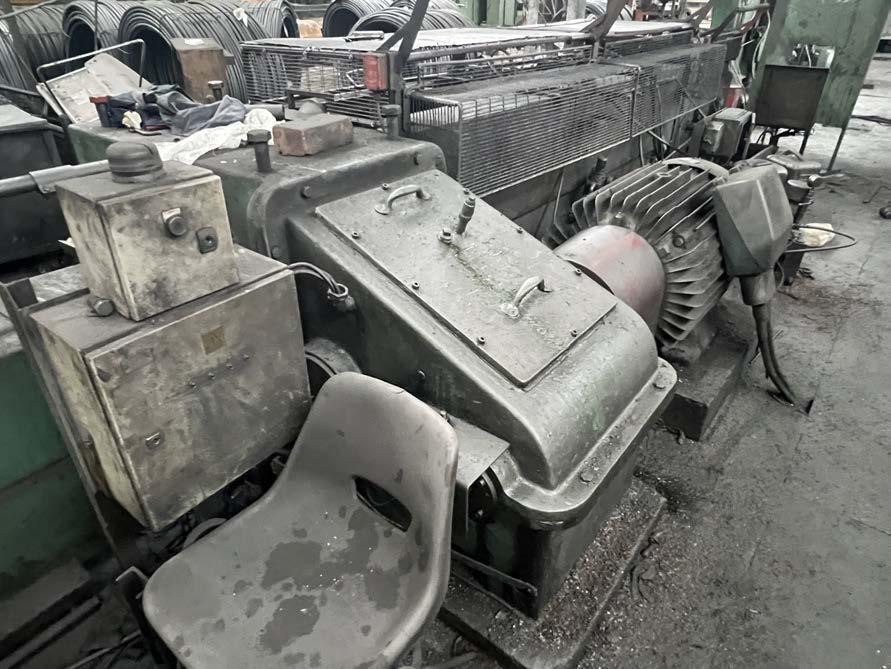

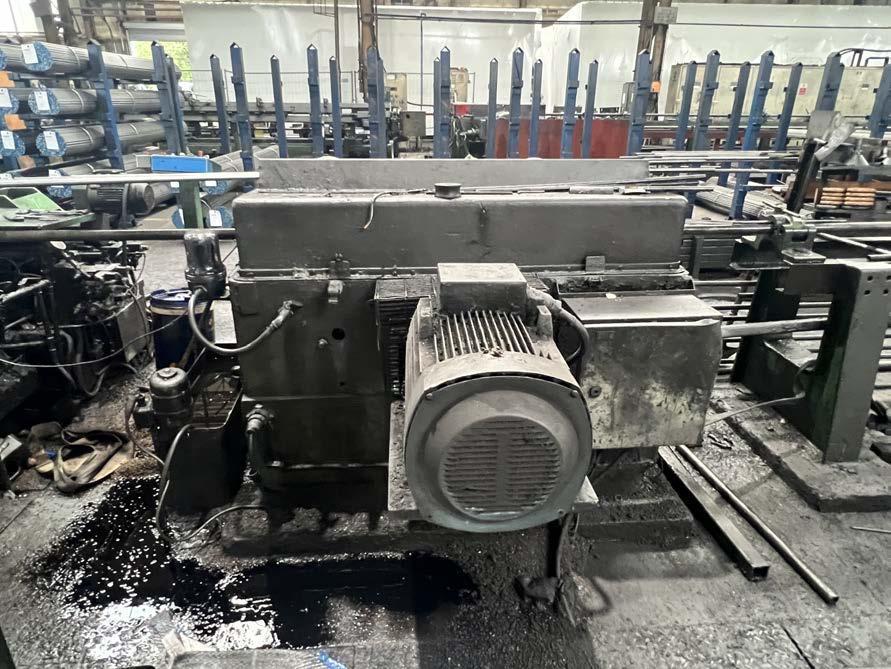

Gearbox and Motor 30 kW Motor
Flying-shear
RIPO Straightening & Polishing Machine
18.5 kW, 1450 RPM Motor
Guide Tube

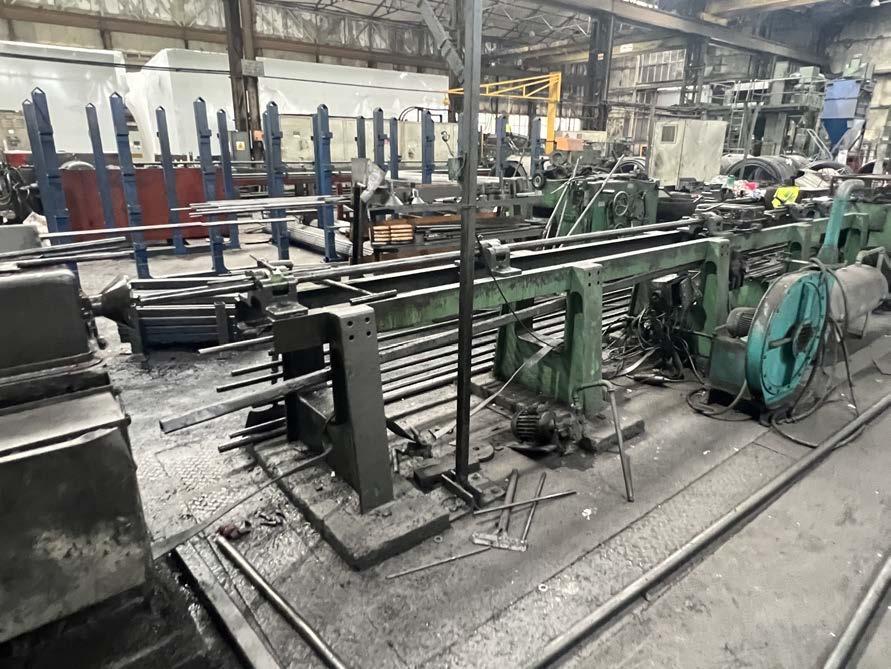

Exit Table to Chamfering Machine or Collection Cradle
Officina Meccanica Guarienti SM2 Chamfering Machine Double Ended
Built: 1990
Electrical Equipment Spares & Tooling

**Temporary Specifications Subject to Revisions**
**PRICE QUOTED AS IS WHERE IS SUBJECT TO PRIOR SALE**
**ALL SPECIFICATIONS ARE SUBJECT TO VERIFICATION**
