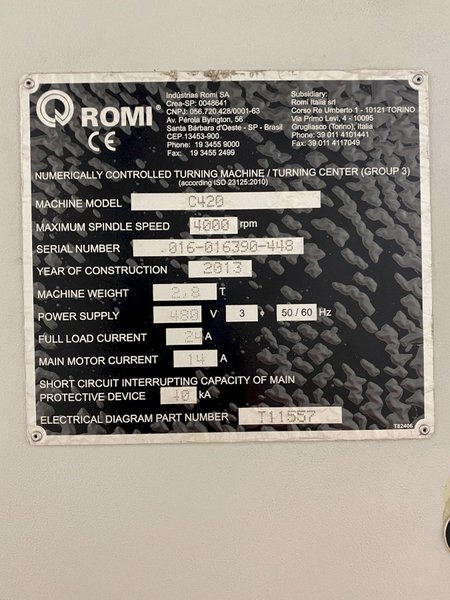

SERIAL ................................ 016-016390-448
NEW ................................... 2013

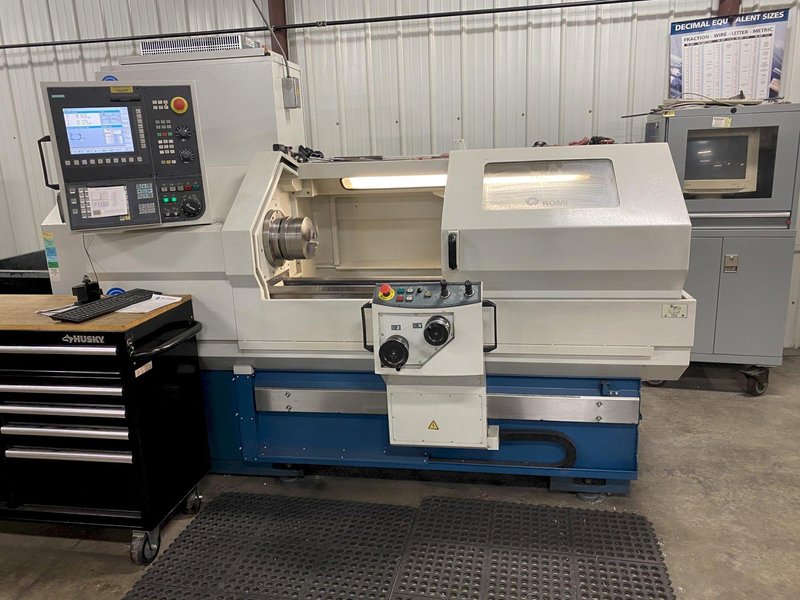

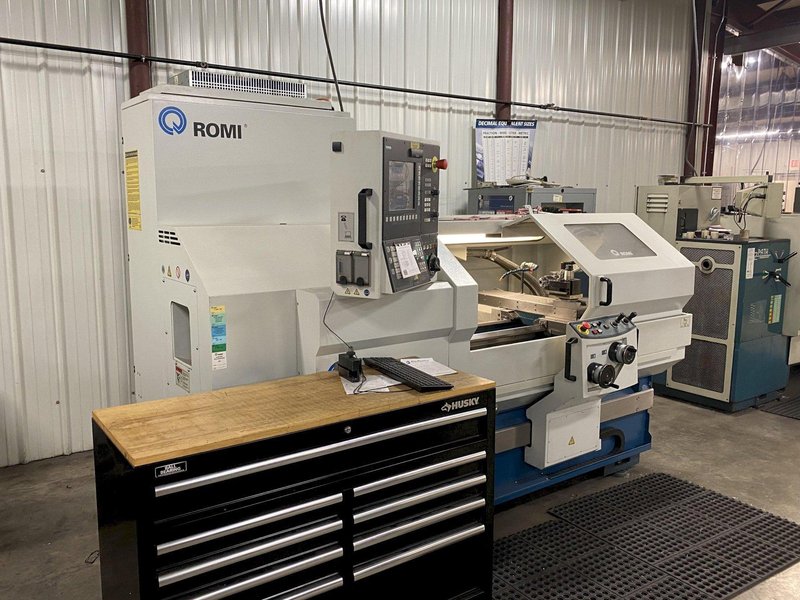

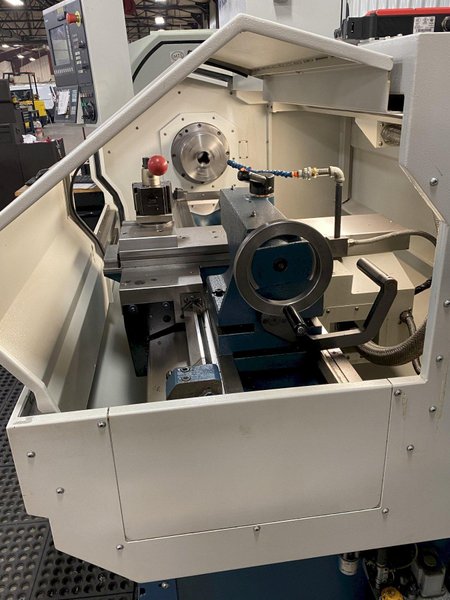

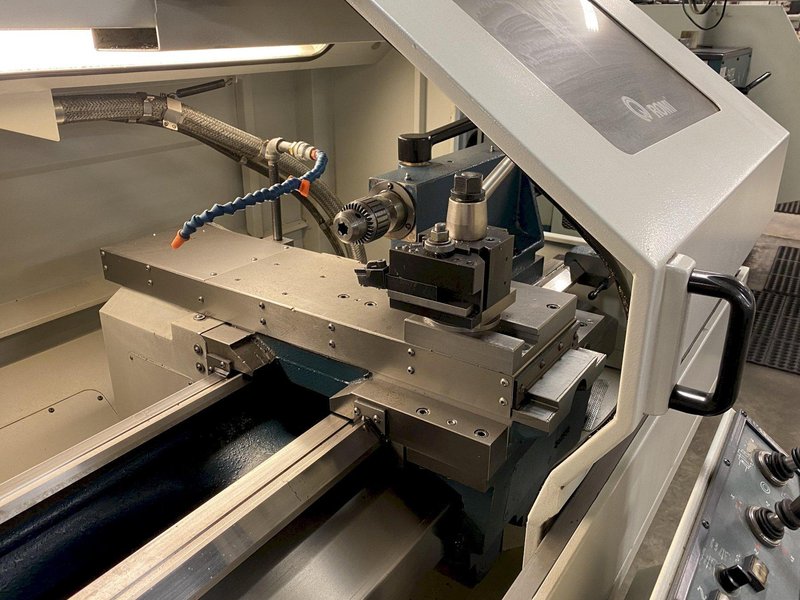

Model ................................. C420
Height of centers ..................... 8.5″
Distance between centers .............. 39″
Swing over bed ........................ 17″
Swing over cross slide ................ 7.85″

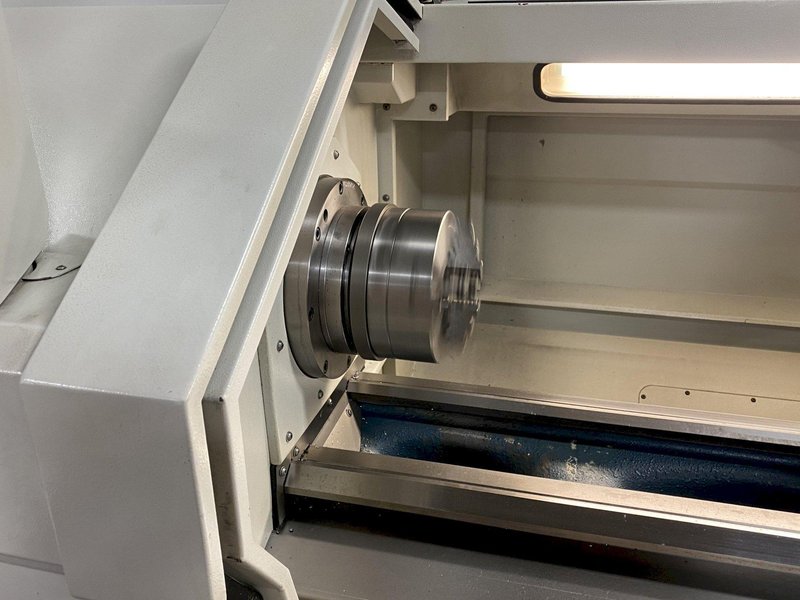

Main spindle nose ..................... A2-5″
Max. spindle speeds ................... 4.000 rpm
AC main motor ......................... 12.5 hp / 9 kw

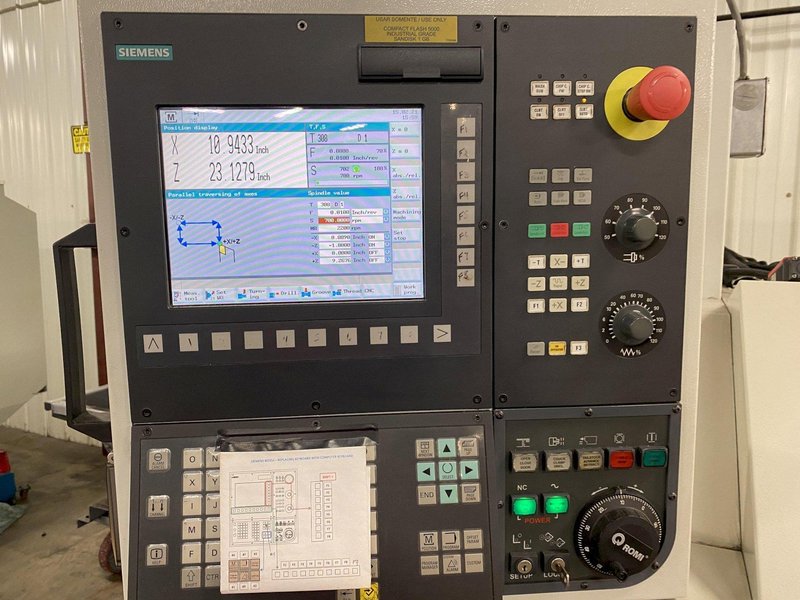

Siemens 802 DSL control
Travel (X axis)mm (in) ................ 220 (8.66)
Travel (Z Axis mm (in) ................ 565 (22.24)
Bed • Width mm (in) ................... 305 (12.00) • Height mm (in) - 350 (13.77)
Spindle nose ASA ...................... A2-5"
Spindle hole diameter mm (in) ......... 53 (2.08)
Speed range rpm ....................... 4-4,000
Rapid traverse (Z axis) m/min (ipm) ... 10 (393.70
Rapid traverse (X axis) m/min (ipm) ... 10 (393.70) |
