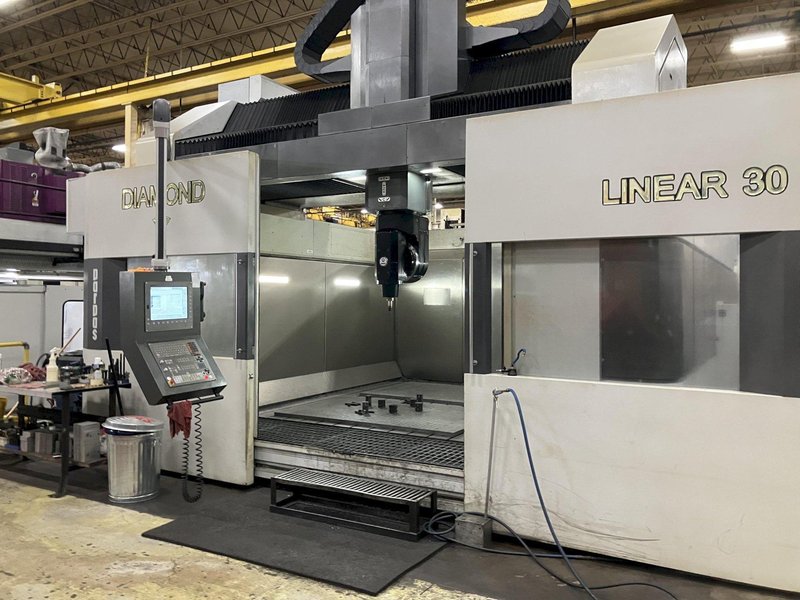

2014 PARPAS Diamond Linear 30 5 Axis Gantry - High Precision Machining Center
Brand
Category
Model
Diamond Linear 30 5 Axis Gantry
Stock #
57792
Year
2014
Condition
Very Good
Location
Minnesota
| Number Of Axes | 5 |
| CNC Control | yes |
| Type Of CNC Control | Heidenhain TNC 640 HSCI CNC Control |
| Table Size | 122.04" x 110.23" |
| Effective Width Between Colums | 102.36” |
| X | 118.11 inches |
| Y | 102.36 inches |
| Z | 55.11 inches |
| Axis A | Head Sweep +/- 110 Degrees |
| C-Axis, Ram Rotation | .001 Degrees |
| C-Axis, Ram Range | +/- 370 Degree |
| Spindle Speed RPM | 20000 |
| Taper | HSK-63-A |
| Automatic Tool Changer - Positions | 24 Station Automatic Tool Changer |

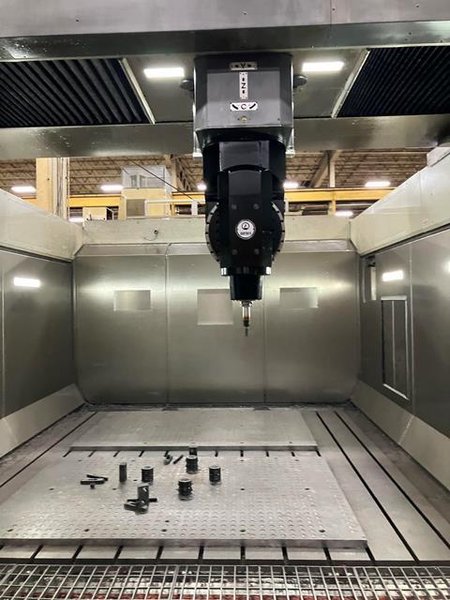

| Continuous Orthogonal Head | 5-Axis Continuous Orthogonal Head |
| Rapid Feeds | 236.232" |
| Power | 52 horsepower |
| Dimensions | 296.4" x 259.84" x 226.9" |
| Machine Height | 226.9" |
|

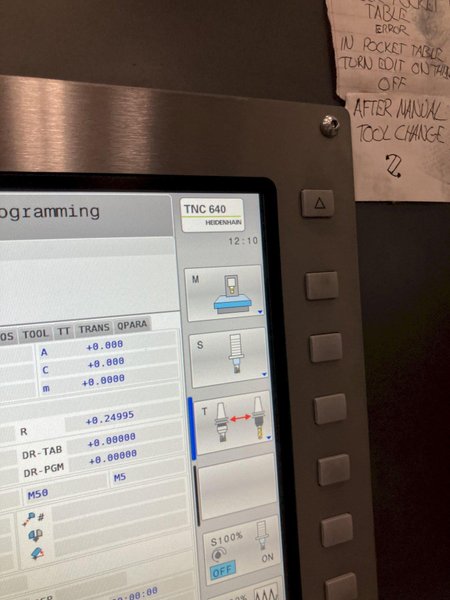

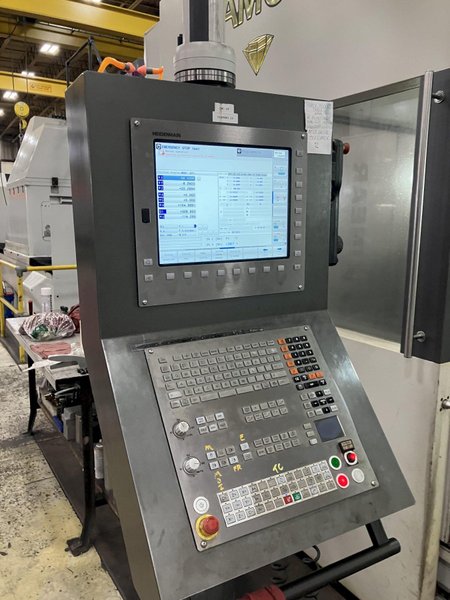

Heidenhain TNC 640 HSCI CNC Control
Dual Chip Conveyors 5-Axis Continuous Orthogonal Head Dual Chip Conveyors High Pressure Coolant Through Spindle 50 Bar Air Through Spindle Blum Laser Tool Pick Up |
|
