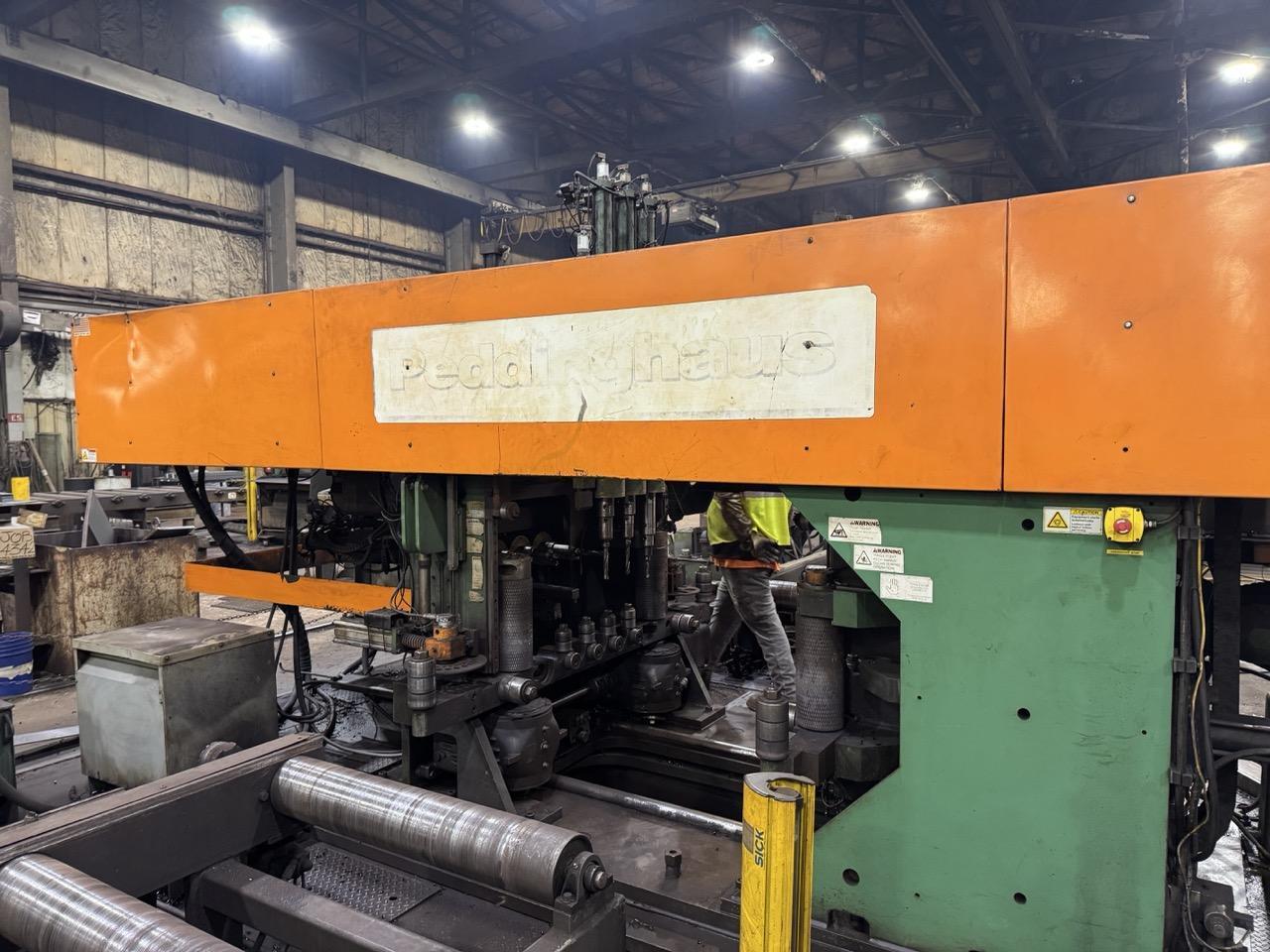

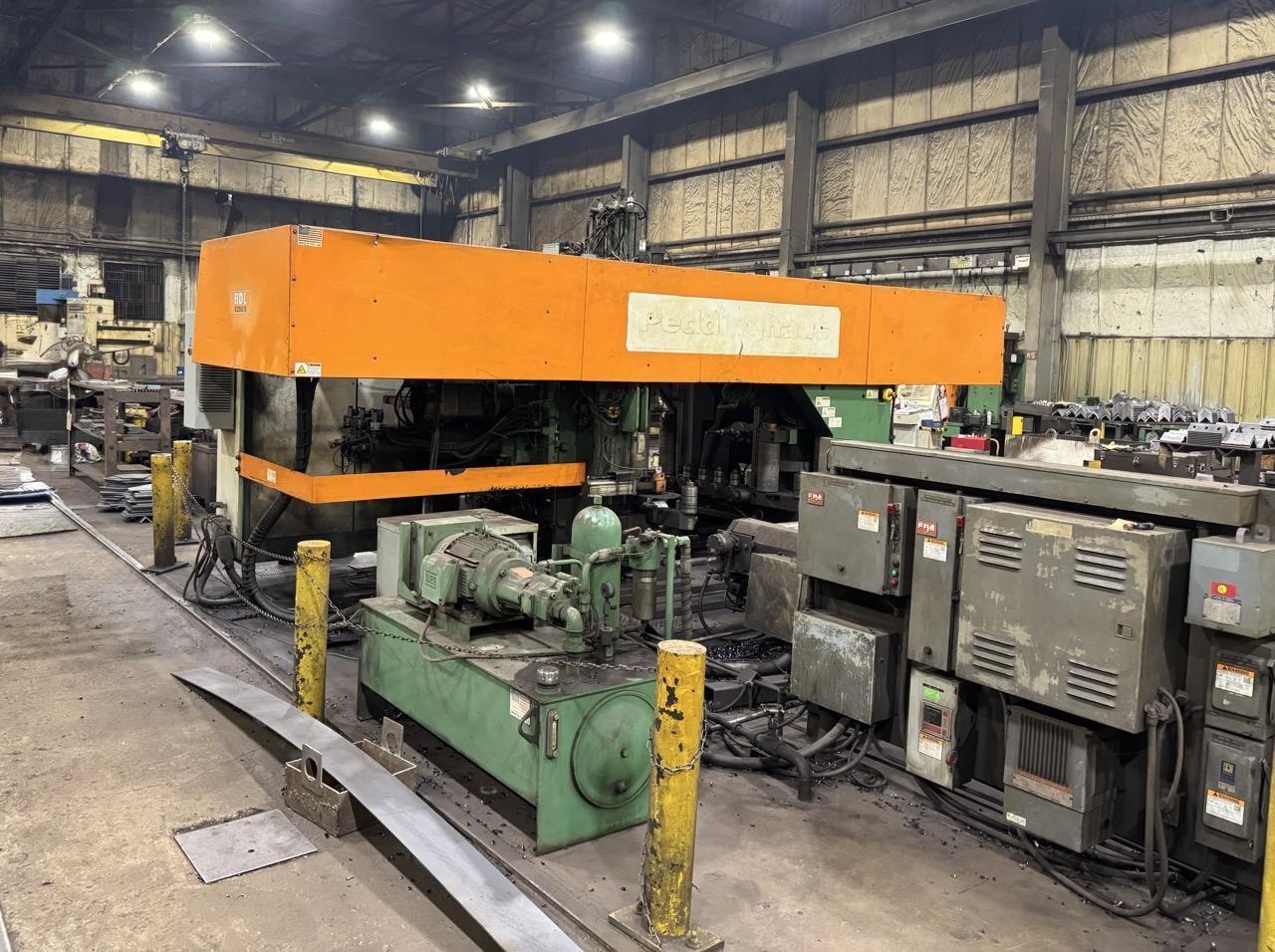

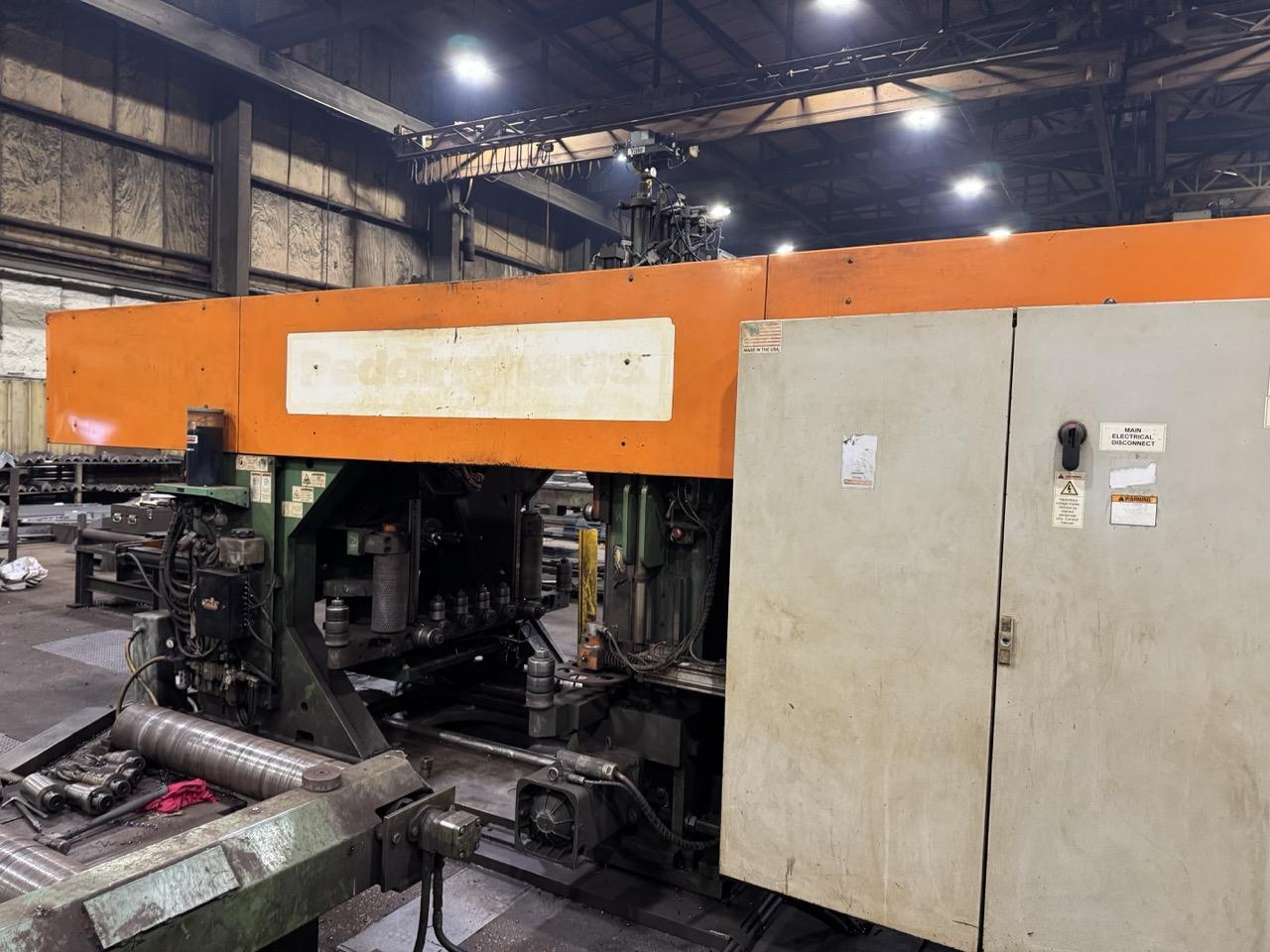

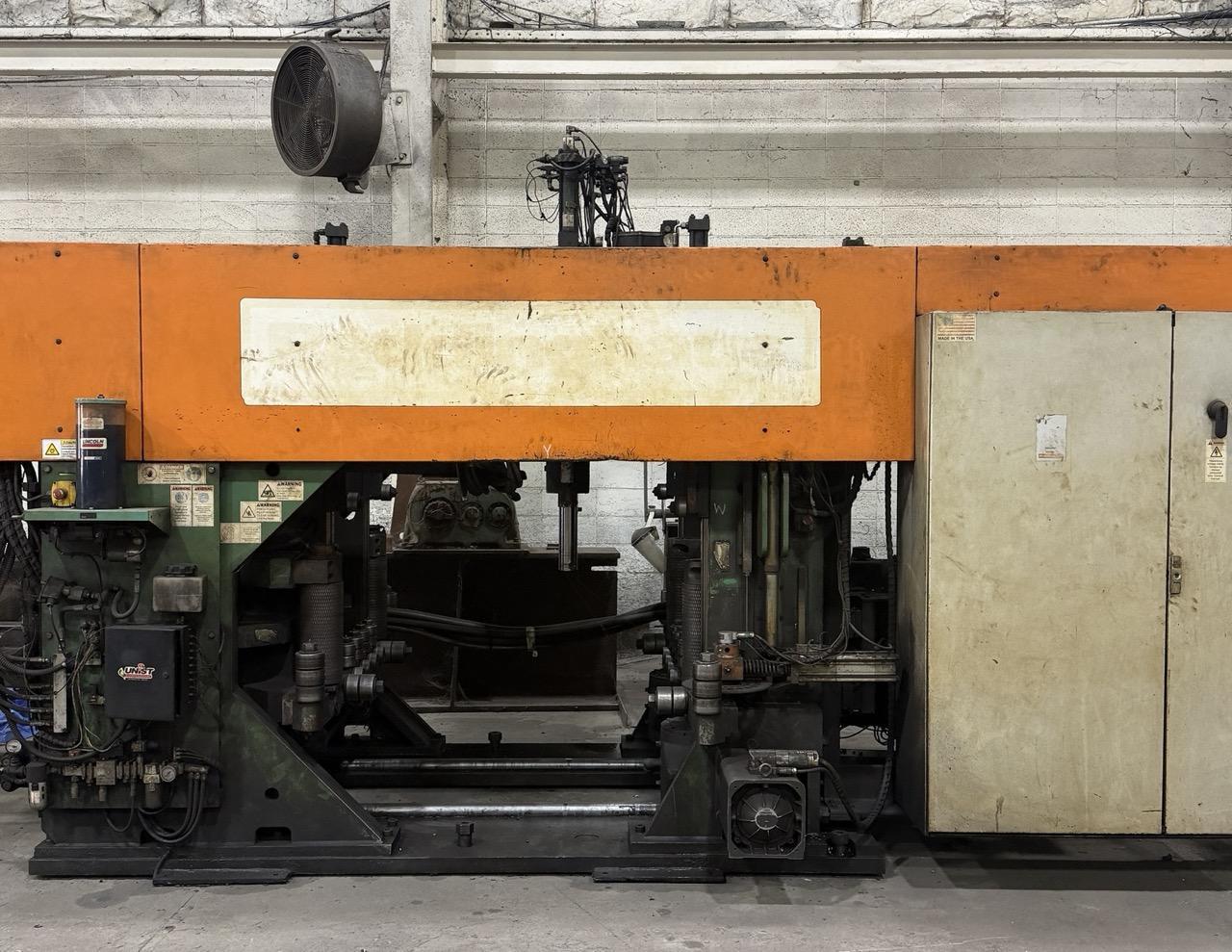

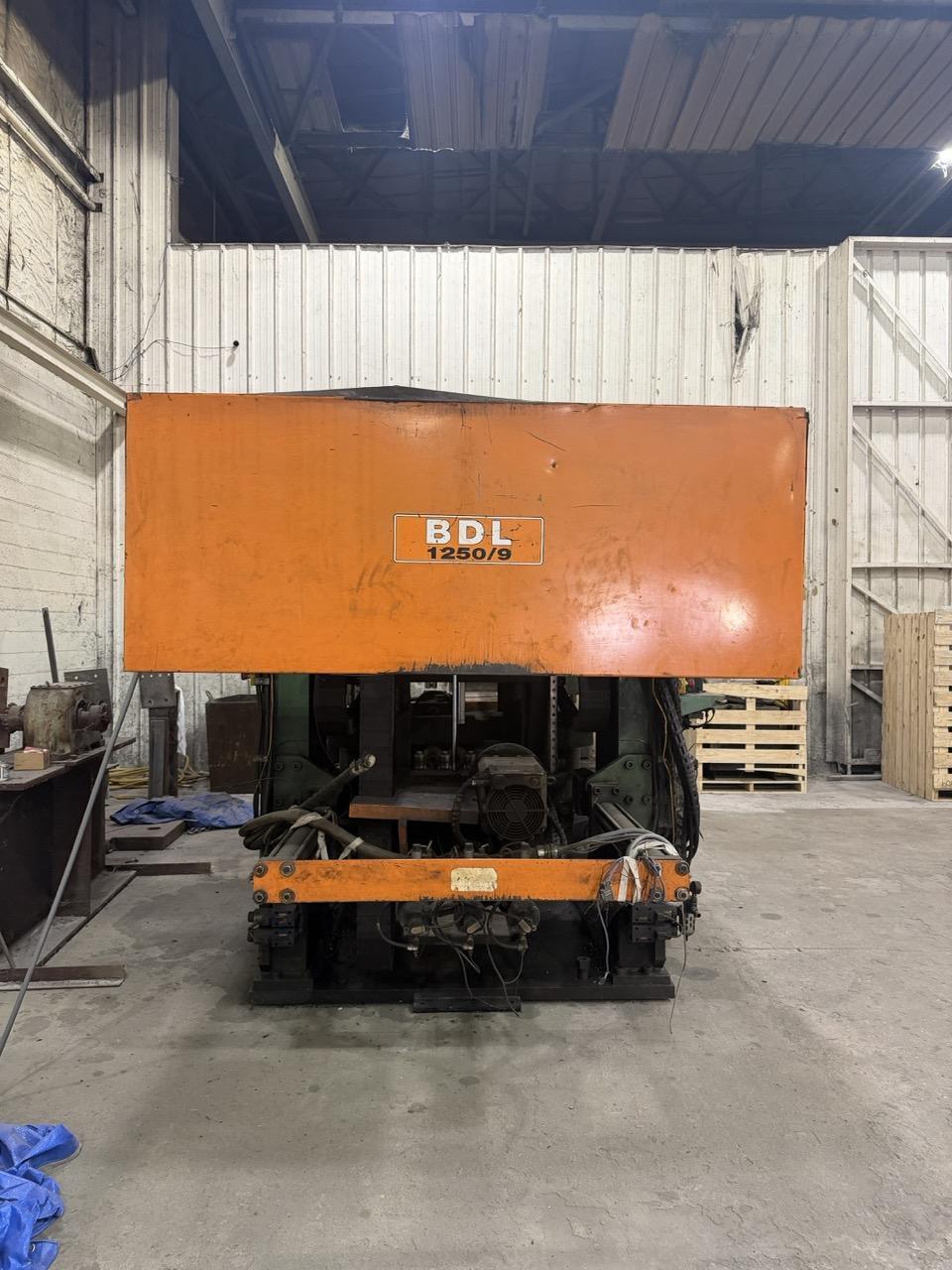

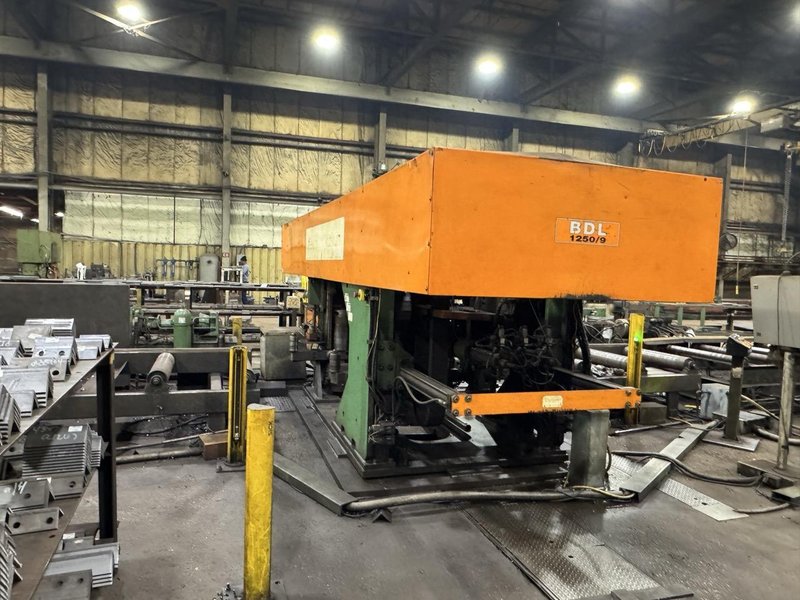

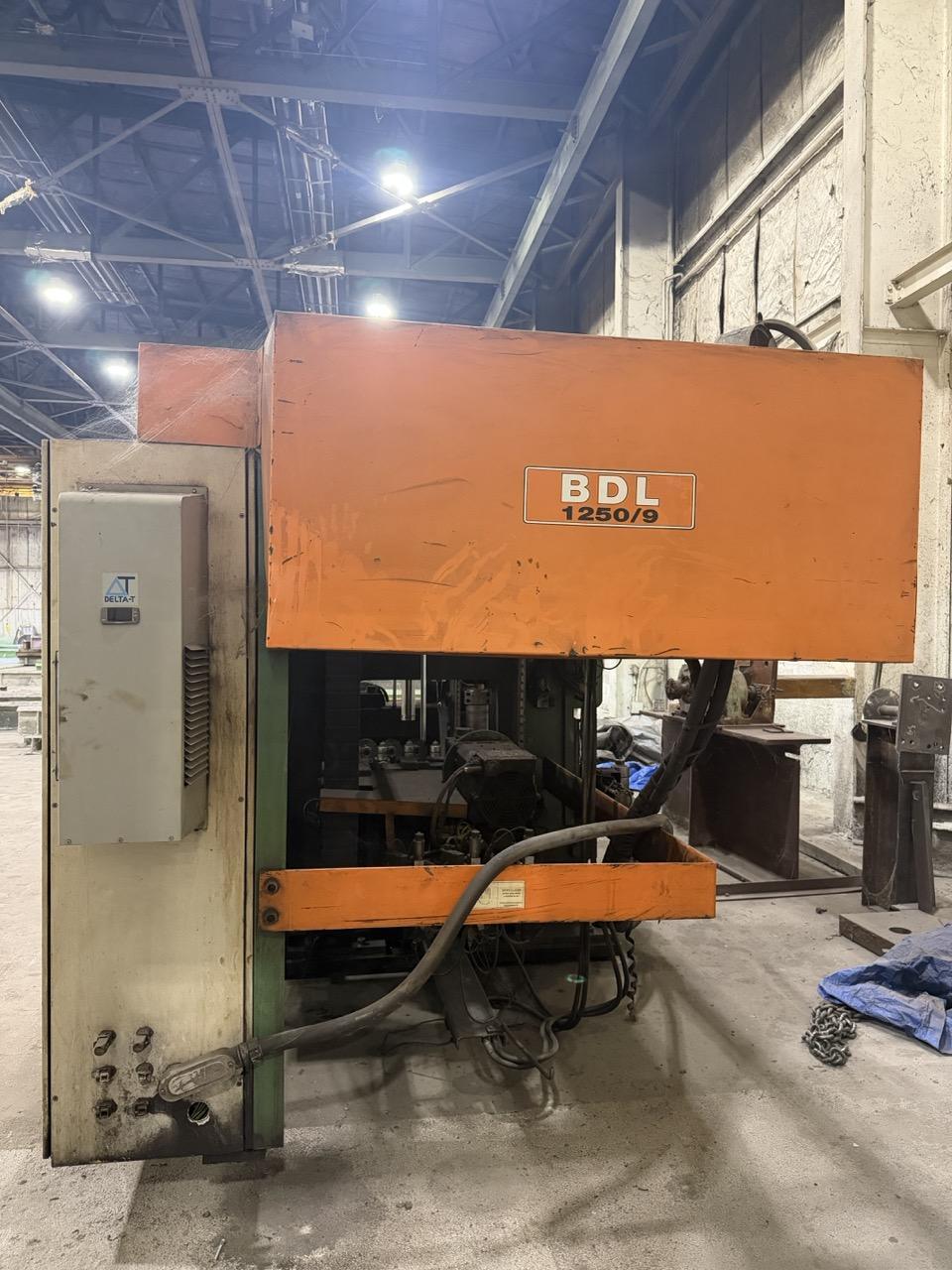

Peddinghaus BDL 1250-9D Beam Drill, 2013 – 9 Spindles
Brand
Category
Type
Model
BDL 1250-9D
Stock #
259221
Year
2013
Condition
Not specified
Location
Not specified
|
9-Spindle Configuration: 3 Drill Heads x 3 Spindles
Drill speed: Three Ranges 170–535 RPM, 145–1290 RPM, 200–1860 RPM
Drill Diameter: max 2″ (51mm)
Drill Power: 25 HP
Material Thickness: min 3/4″ (20mm) for plates, min 1/4″ (6mm) overall, max 24″ (610mm)
Width: min 3″ (75mm), max 49.21″ (1250mm)
Length: min 62″ (1575mm)
Length/Weight: max 730 lbs/ft, up to a max piece weight of 43,800 lbs
X-axis Feedrate: 130 ft/min

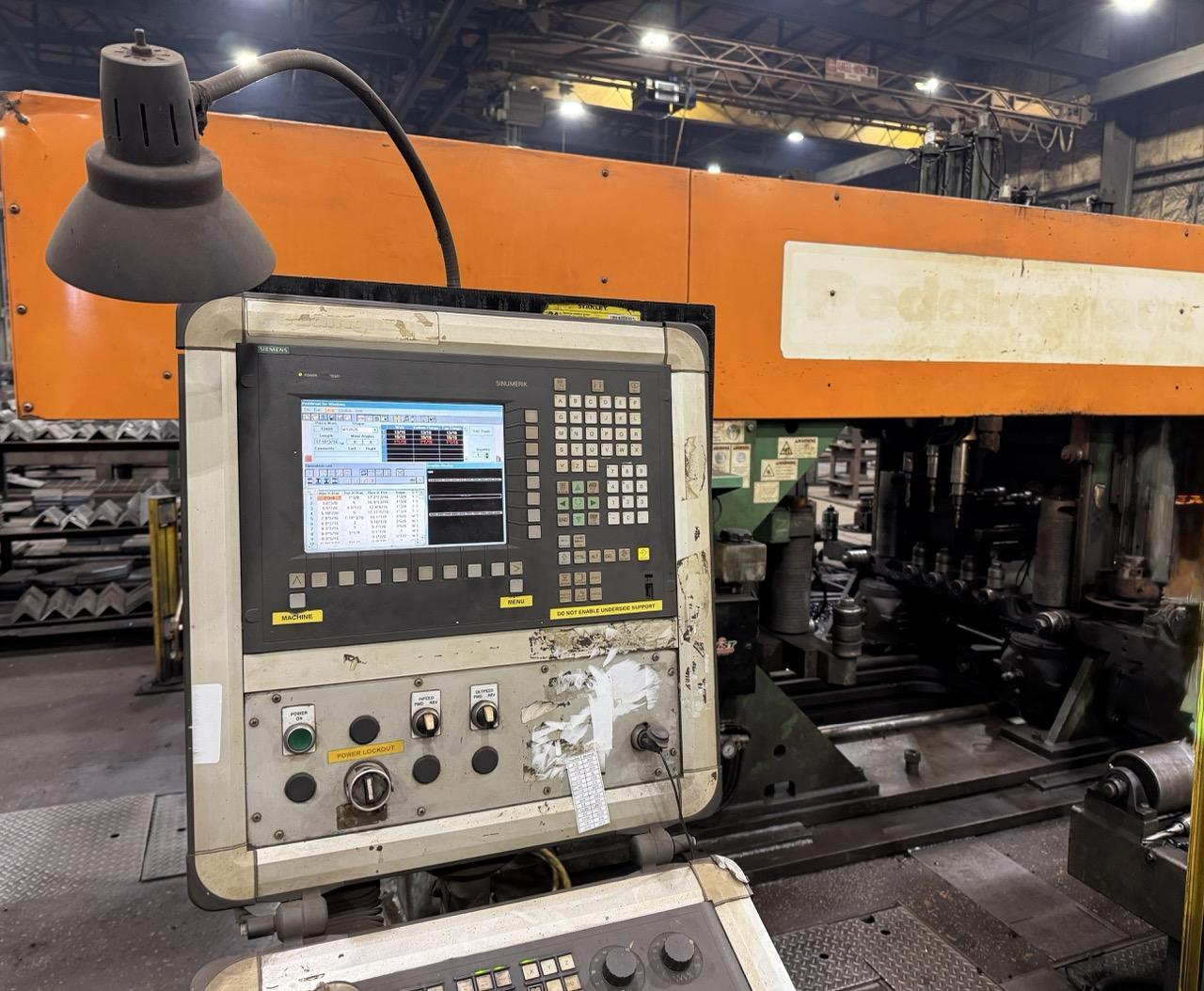

Control: Siemens Sinumerik
Electrical: 460V, 3 Ph, 60 Hz
Weight: 32,430 lbs
All specifications are assumed to be correct but must be confirmed by the purchasing entity. |
