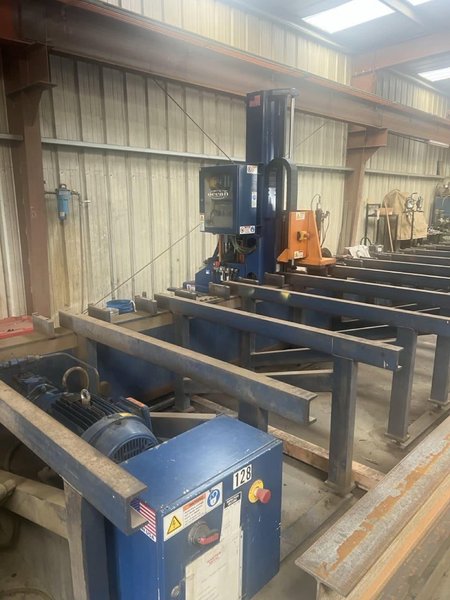

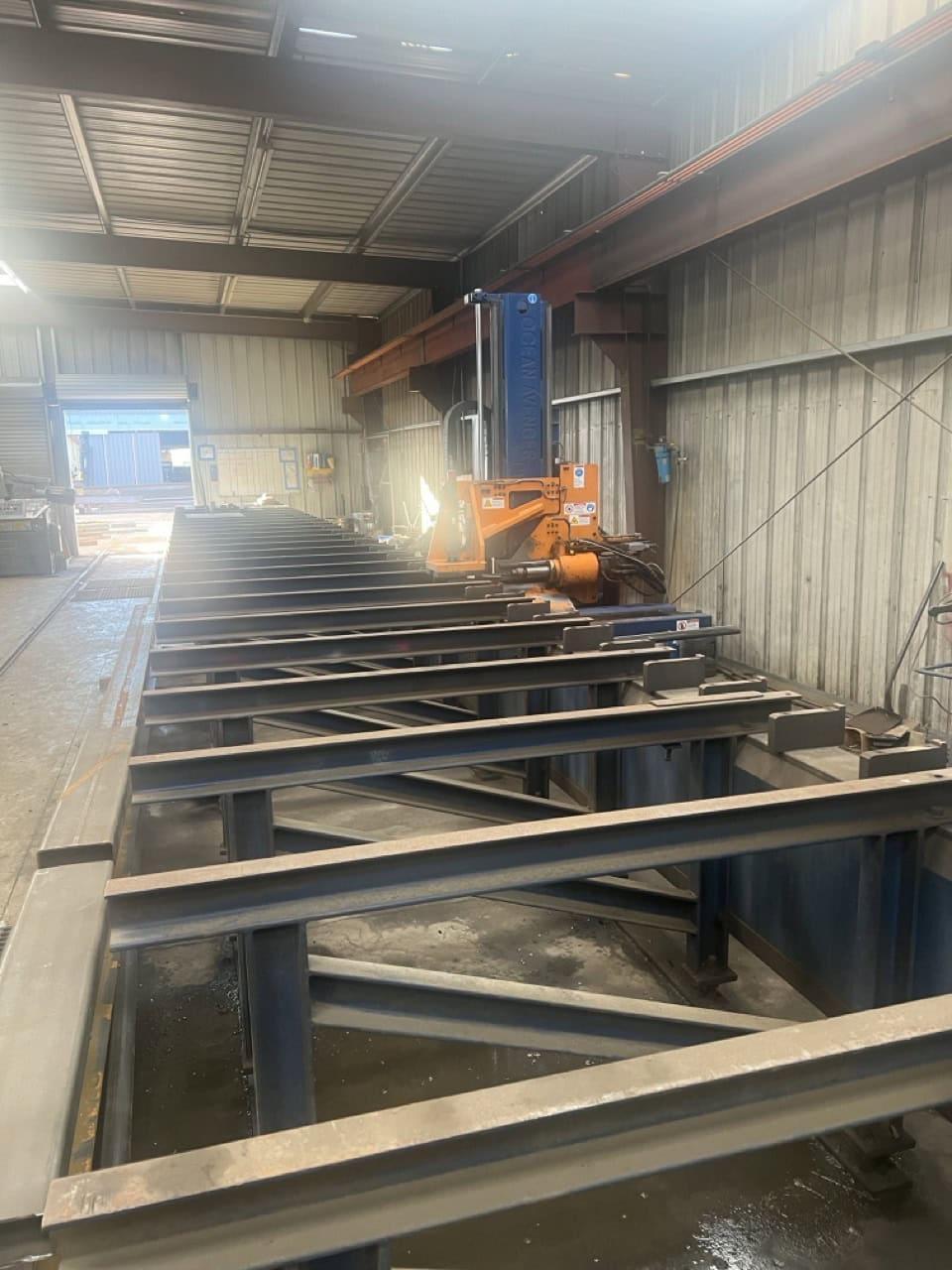

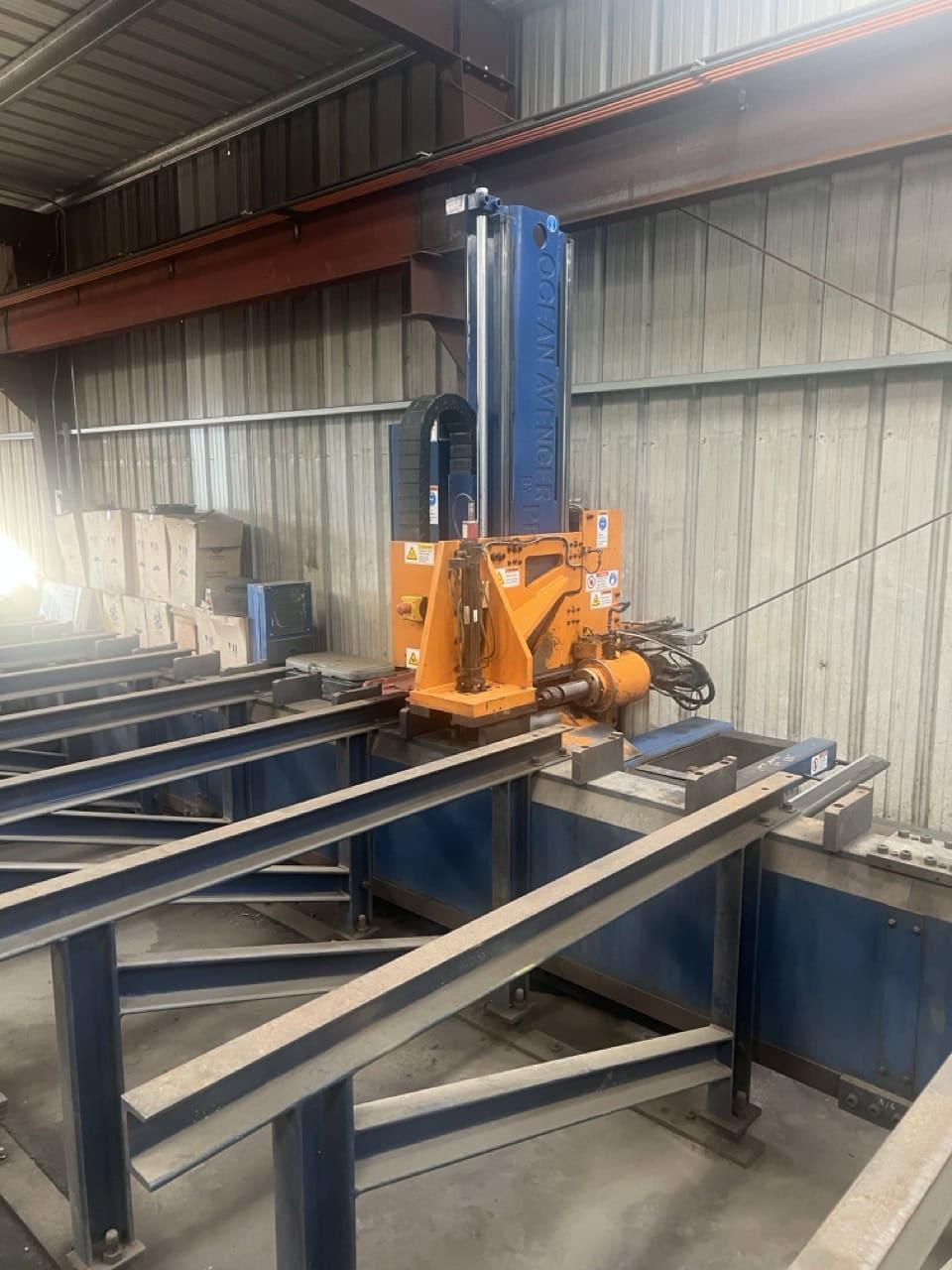

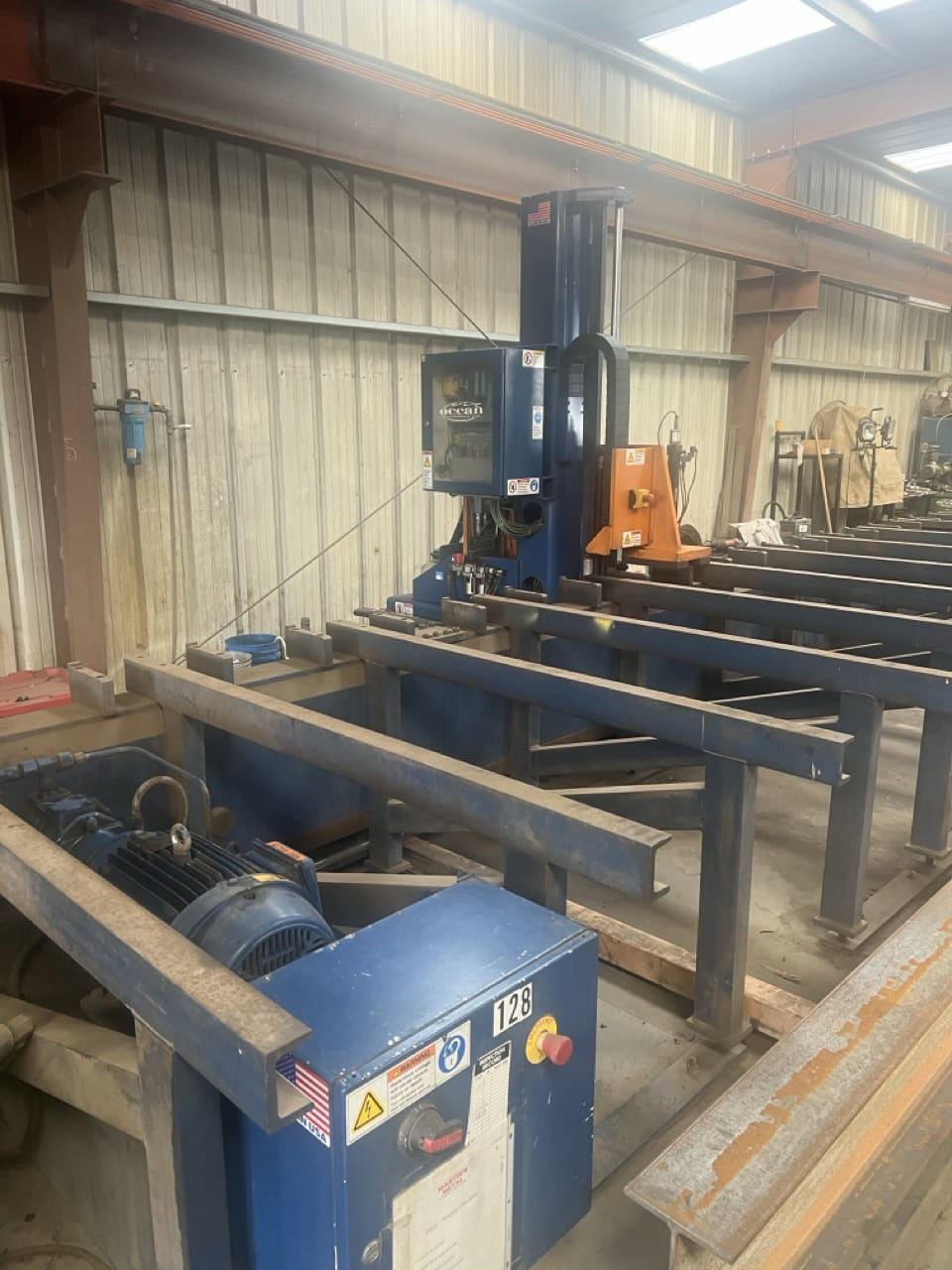

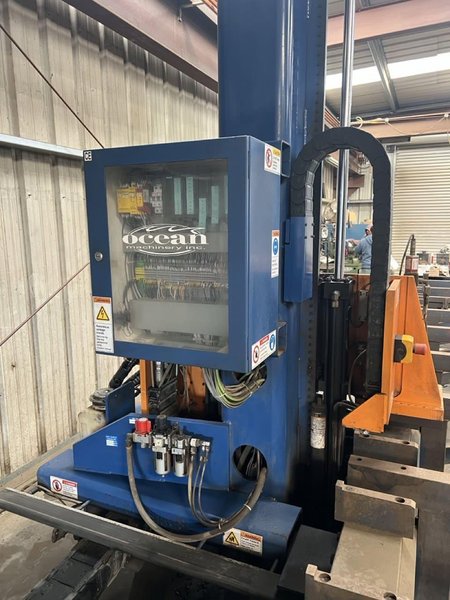

Peddinghaus Ocean Avenger MDL 1000 Beam Drill, 2008
Brand
Not specified
Category
Type
Model
MDL 1000
Stock #
445154
Year
2008
Condition
Not specified
Location
Michigan
|
Max. Drill Diameter: 1-9/16”
Max Profile Height: 39″
Max Beam Length: 480”
Max Speed (X-Axis):1417 IPM
Max Speed (Y-Axis):1417 IPM
Maximum Thickness: 6″
Spindle Speeds: 200 – 850 RPM
Spindle Motor Power: 13.5 HP
Drilling Feed Rate: 2 – 10 IPM
Drill Spindle Rapid:192 IPM
Maximum Spindle Stroke:13″

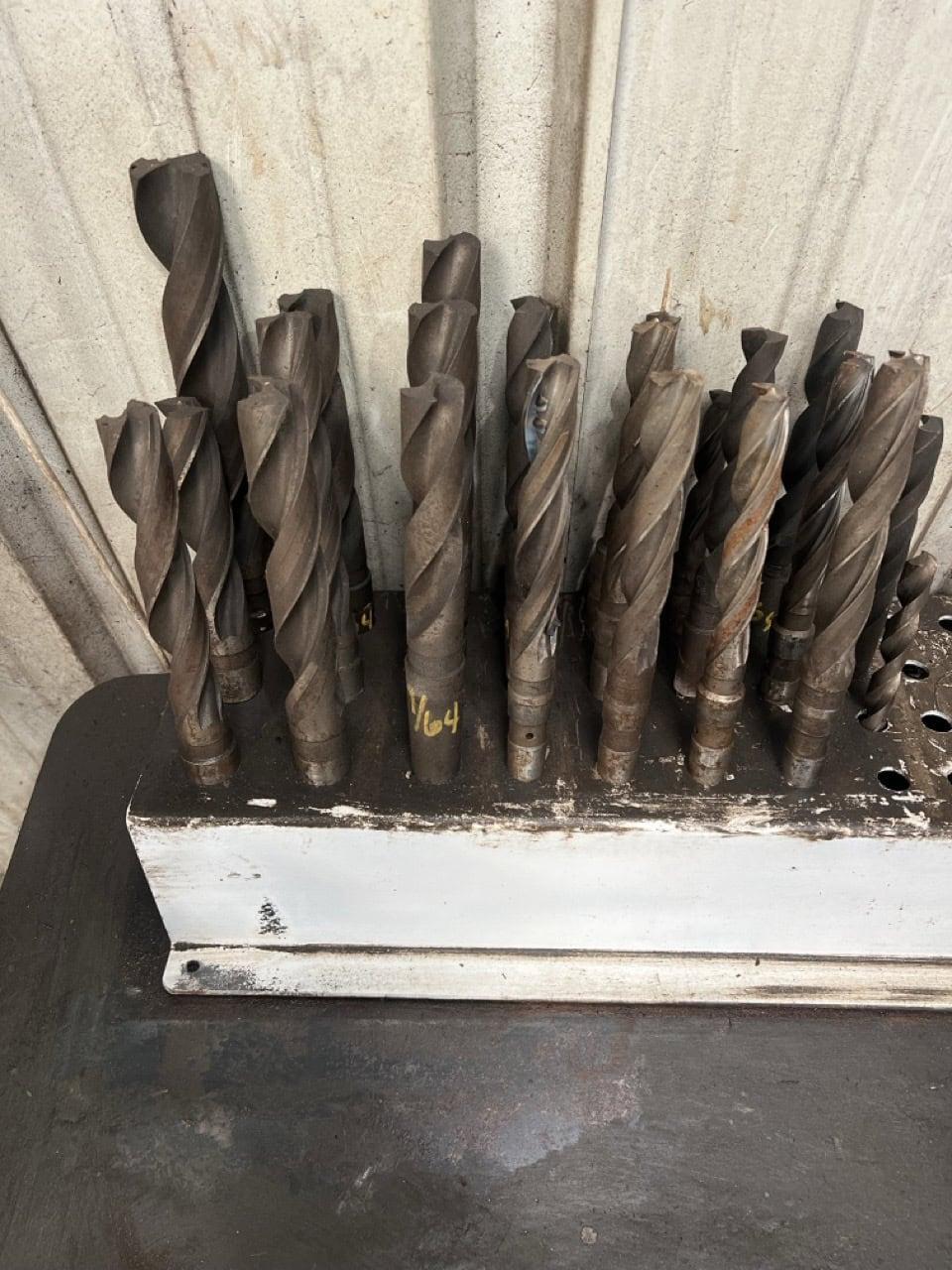

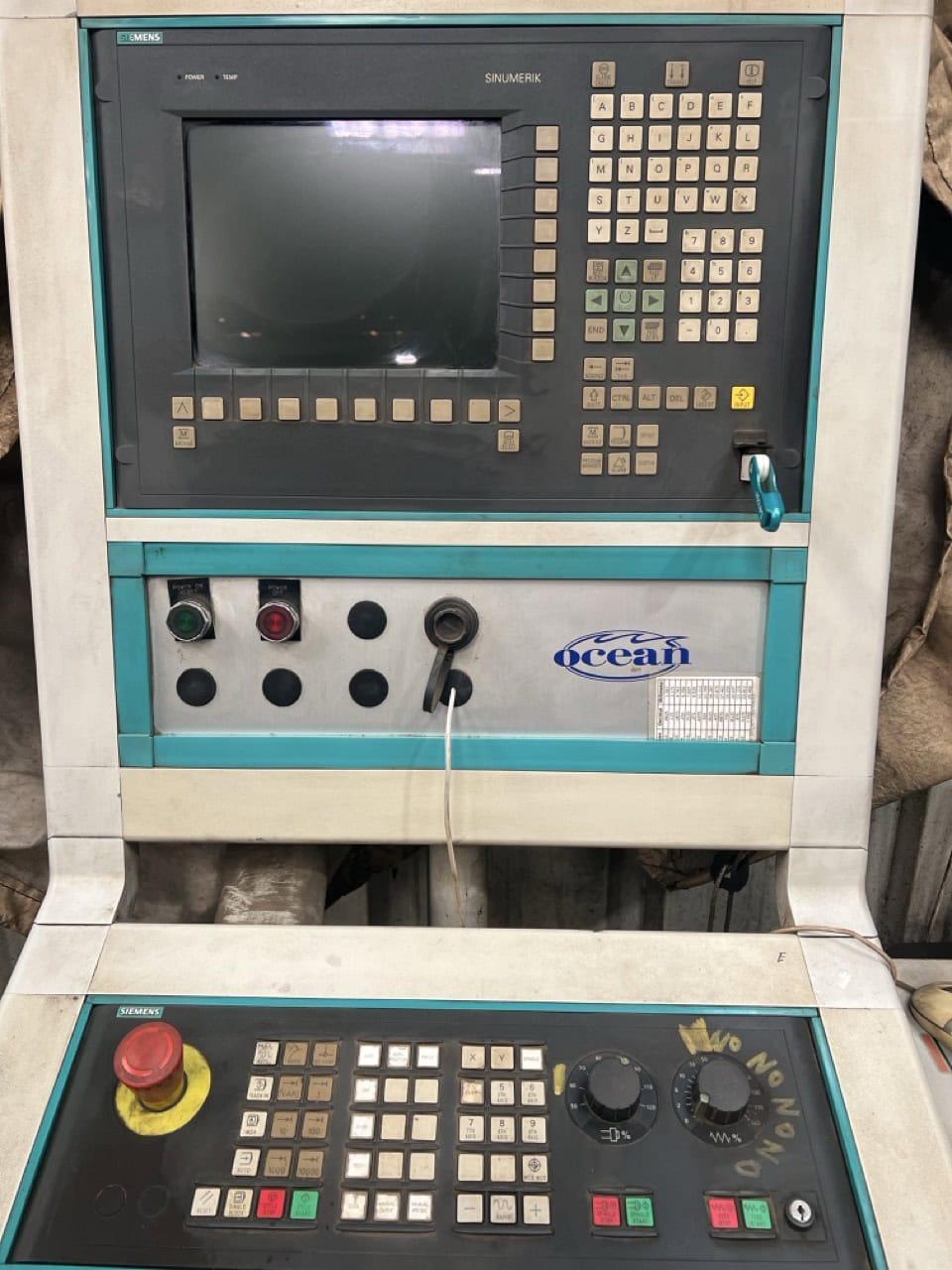

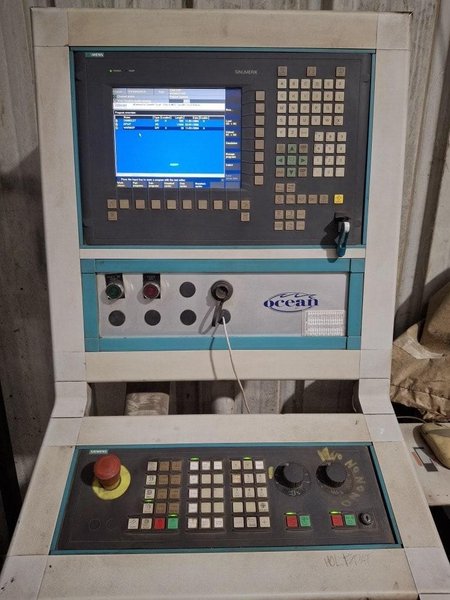

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Equipped With: All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Siemens CNC Control Available Tooling All specifications are assumed to be correct but must be confirmed by the purchasing entity. |
