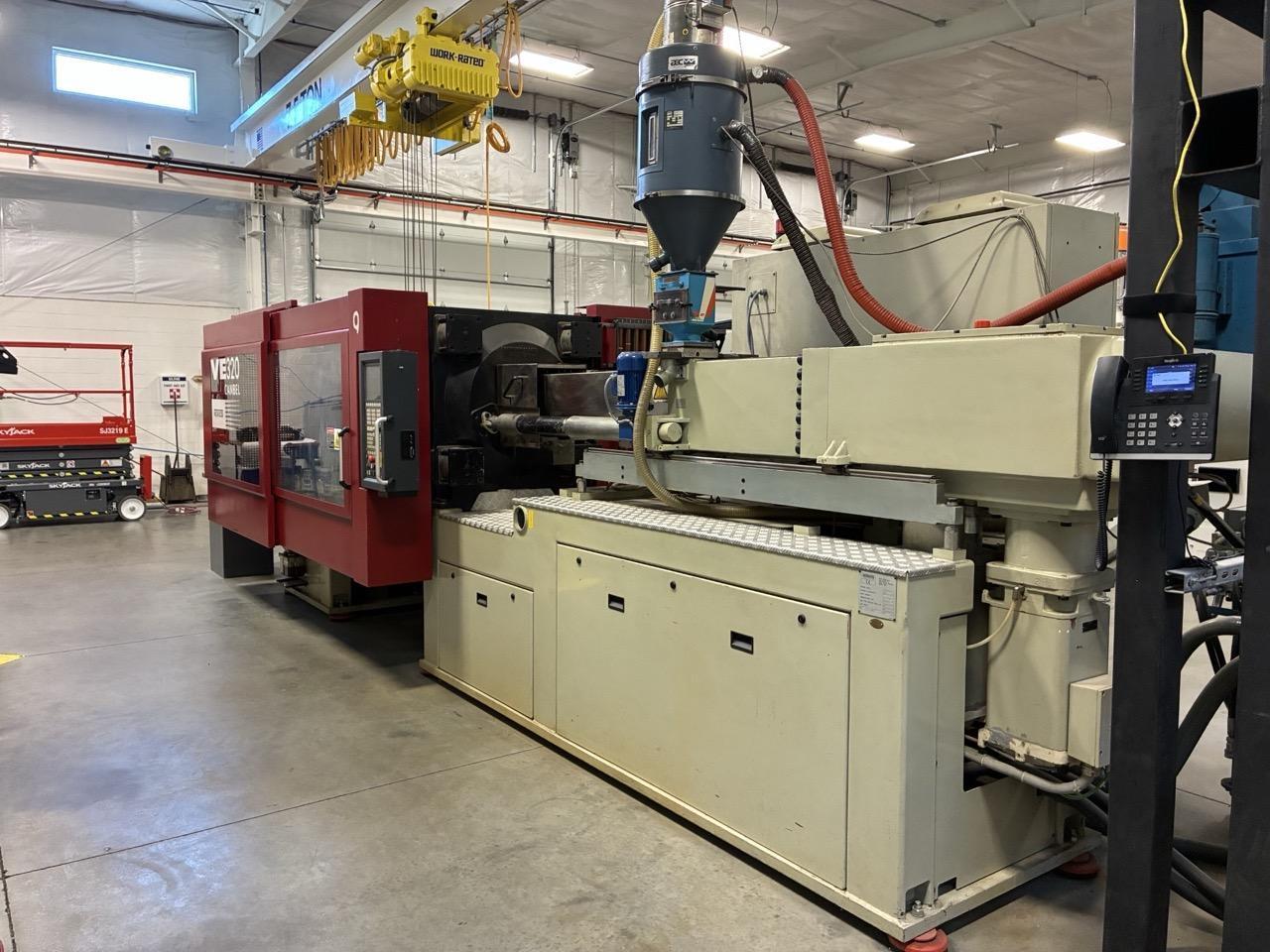

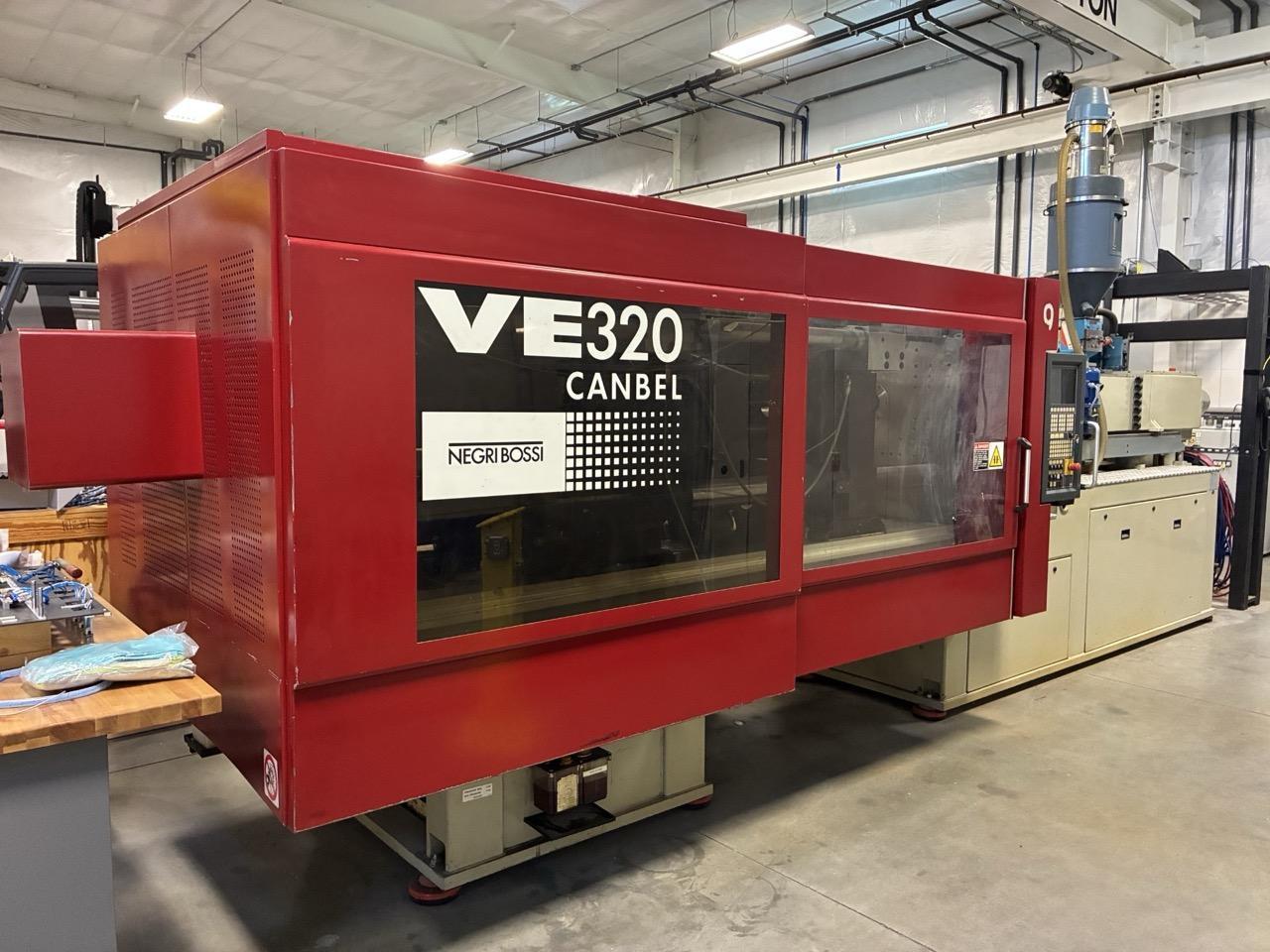

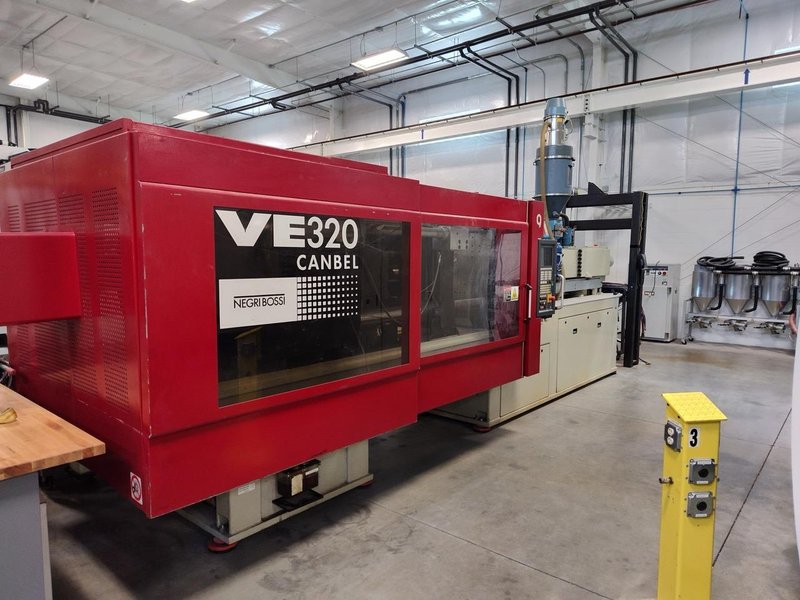

Negri Bossi VE320 All-Electric Injection Molding Machine, 2010 – 70 mm Screw, CANbus Control

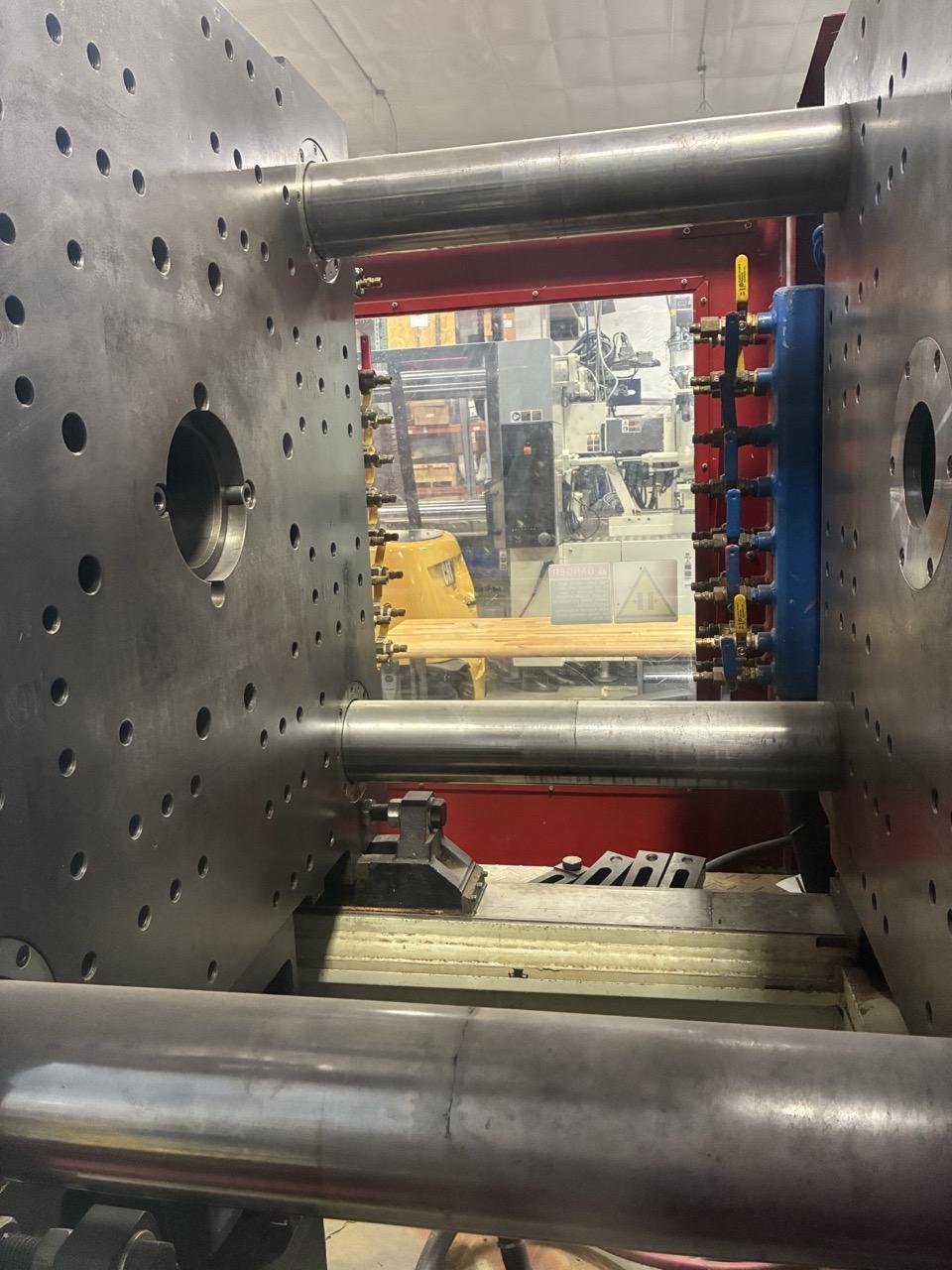

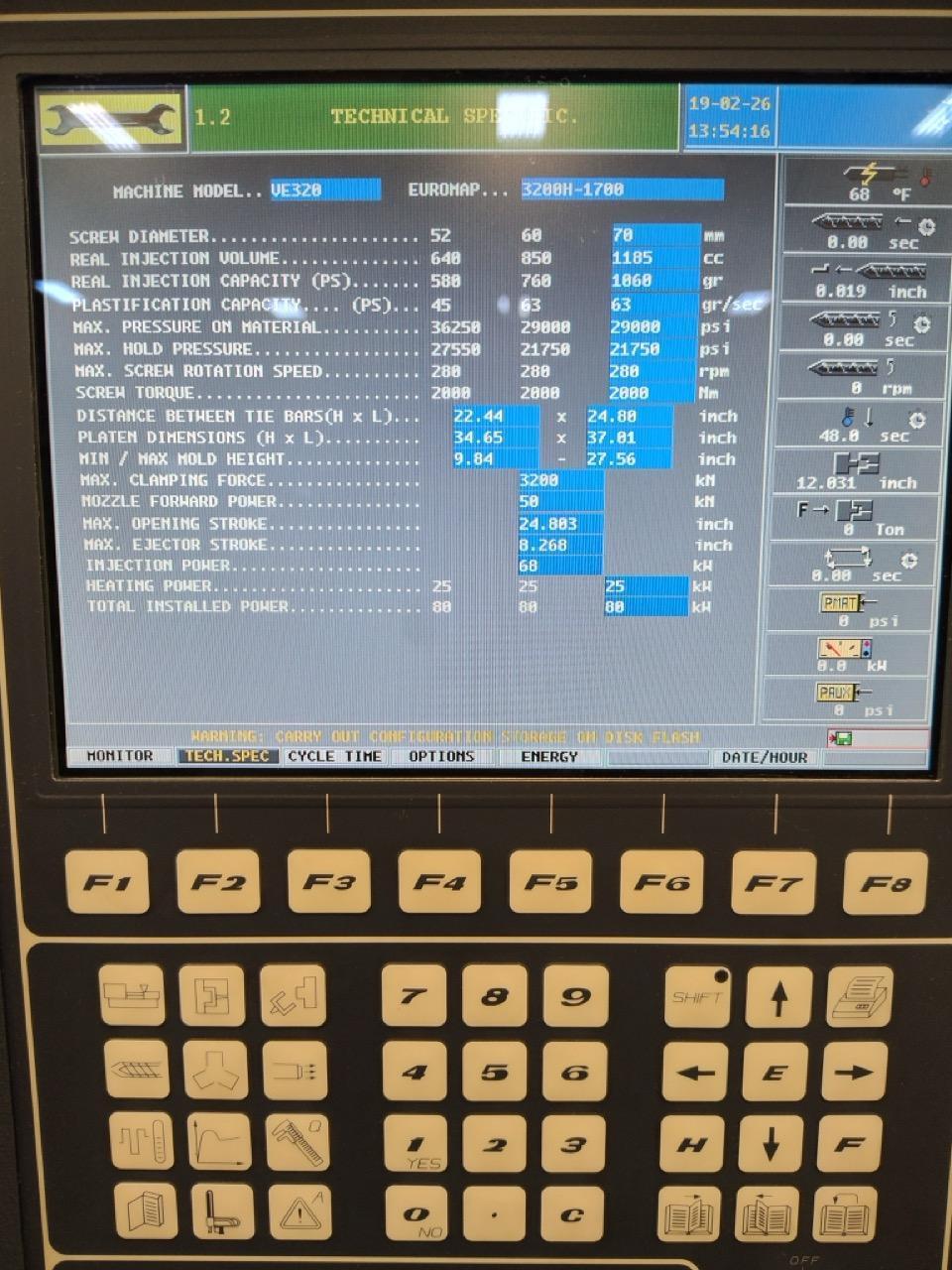

Clamping Force: 3,200 kN (Approximately 360 US Tons) Clamp Type: Toggle Configuration: Horizontal, All-Electric Shot Capacity (PS): 37.39 Oz. (1,060 g) Injection Volume: 1,185 cm³ Screw Diameter: 70 mm Maximum Screw Speed: 280 RPM Screw Torque: 2,000 Nm Plasticizing Capacity (PS): 63 g/Sec. Maximum Injection Pressure: 29,000 PSI Maximum Holding Pressure: 21,750 PSI Tie Bar Spacing (H × W): 22.44″ × 24.80″ Platen Size (H × W): 34.65″ × 37.01″ Minimum Mold Height: 9.84″ Maximum Mold Height: 27.56″ Maximum Opening Stroke: 24.803″ Maximum Ejector Stroke: 8.268″ Nozzle Contact Force: 50 kN Injection Power: 60 kW Heating Power: 25 kW Total Installed Power: 80 kW Maximum Auxiliary Hydraulic Pressure: 90 Bar Voltage: 460V Frequency: 60 Hz Weight: Approximately 25,353 Lbs.

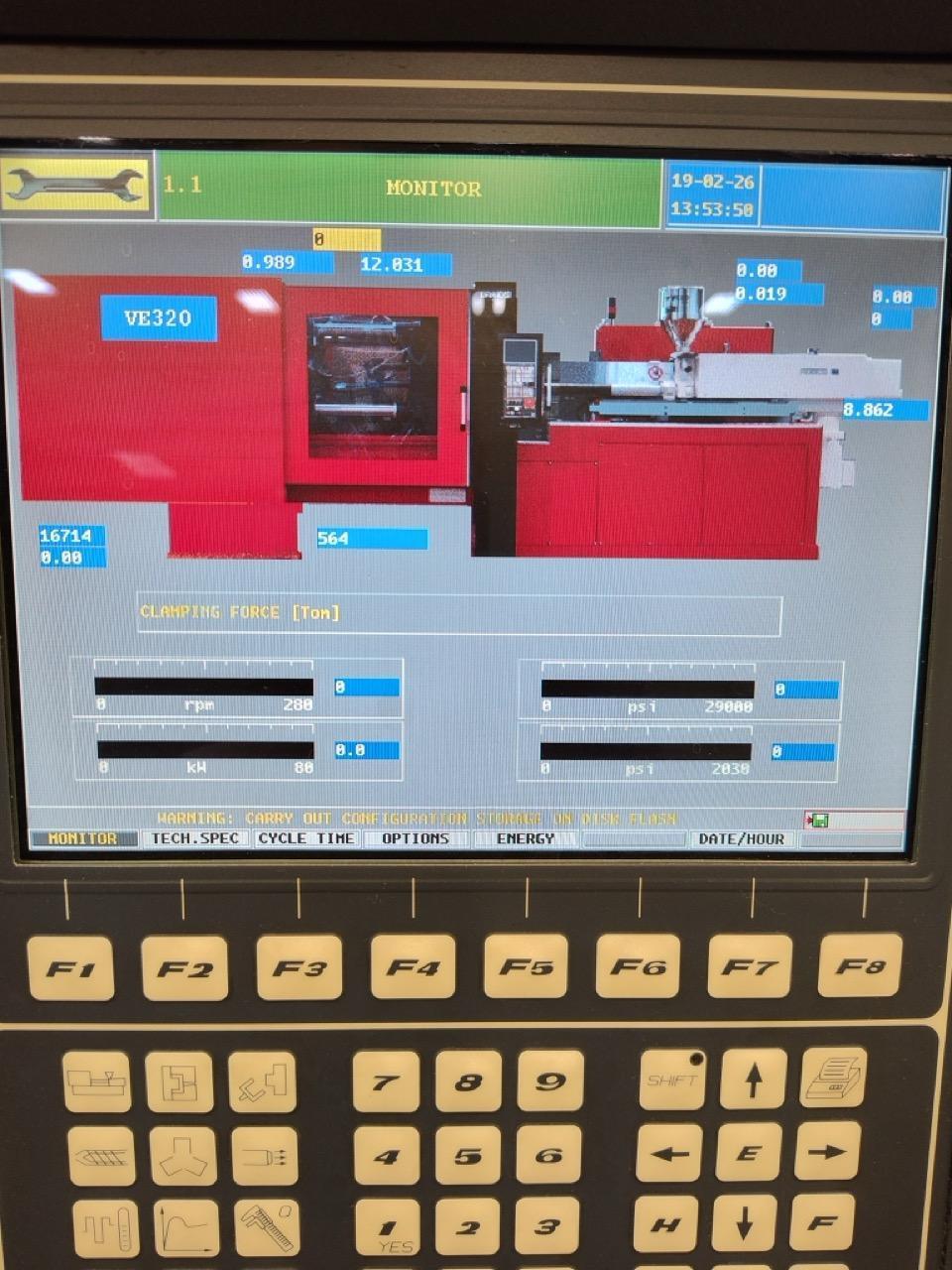

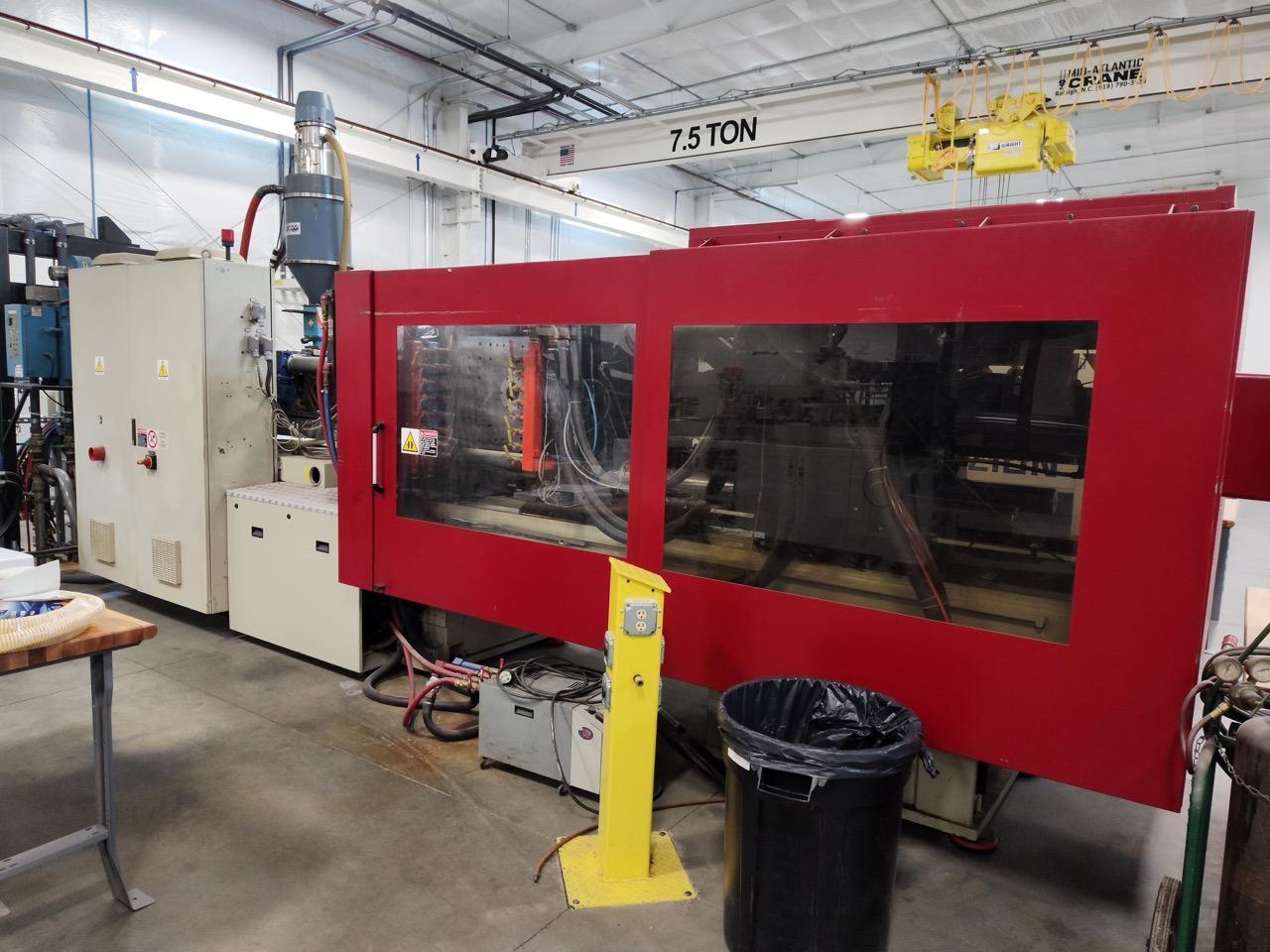

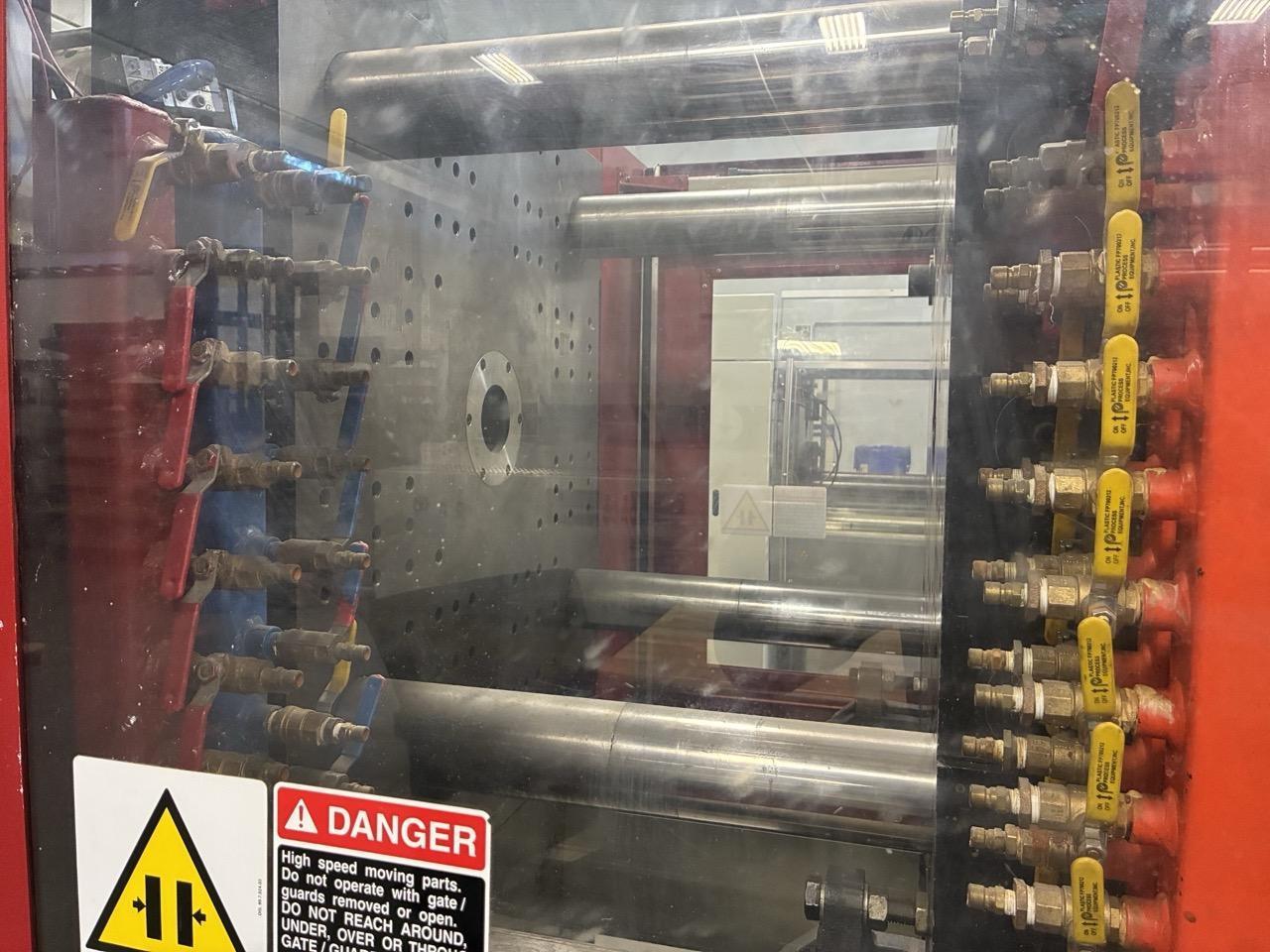

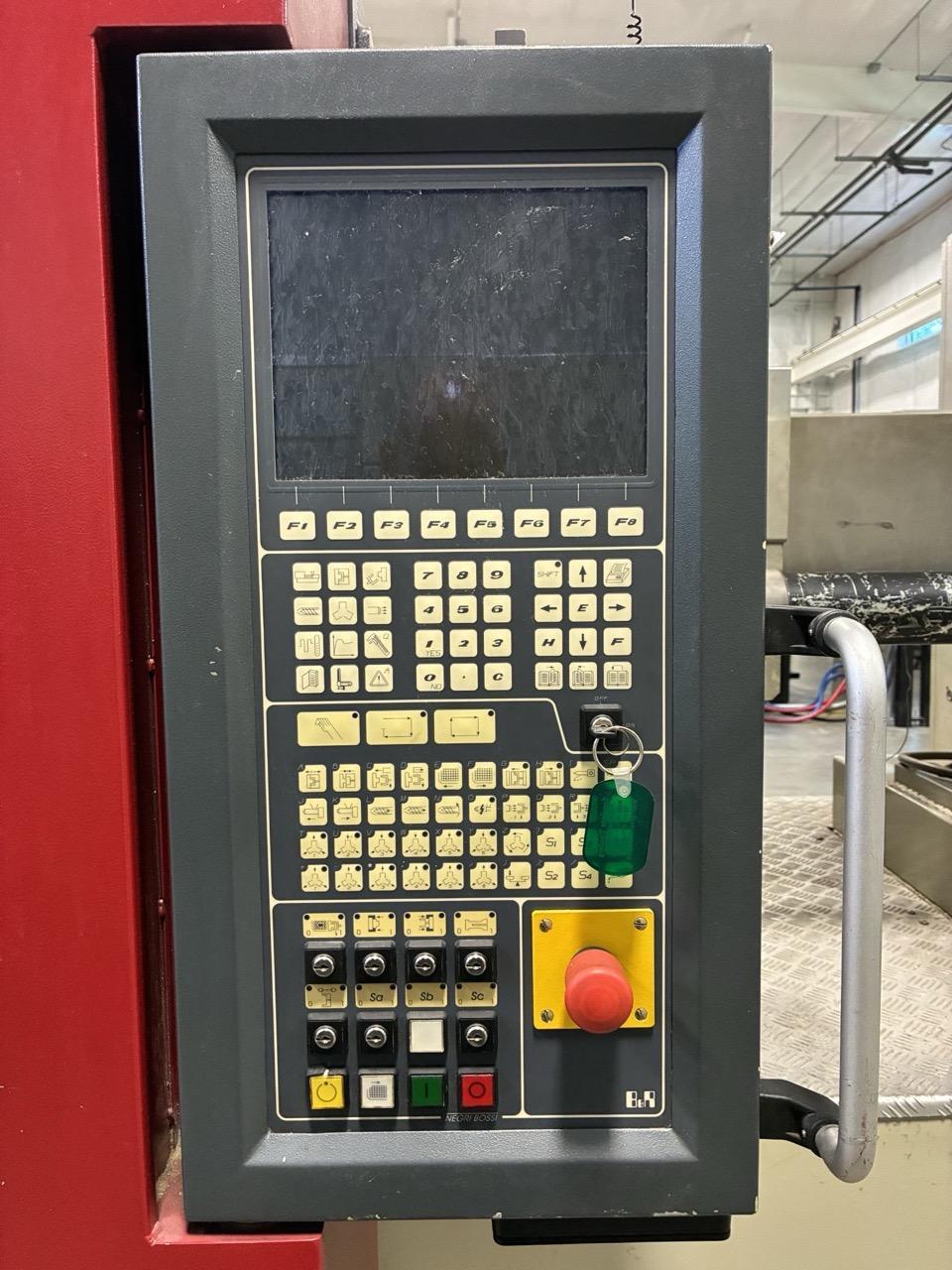

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Equipped With: – CANbus Digital Control – Enclosed Clamp Area With Sliding Access Doors – Emergency Stop Controls

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
