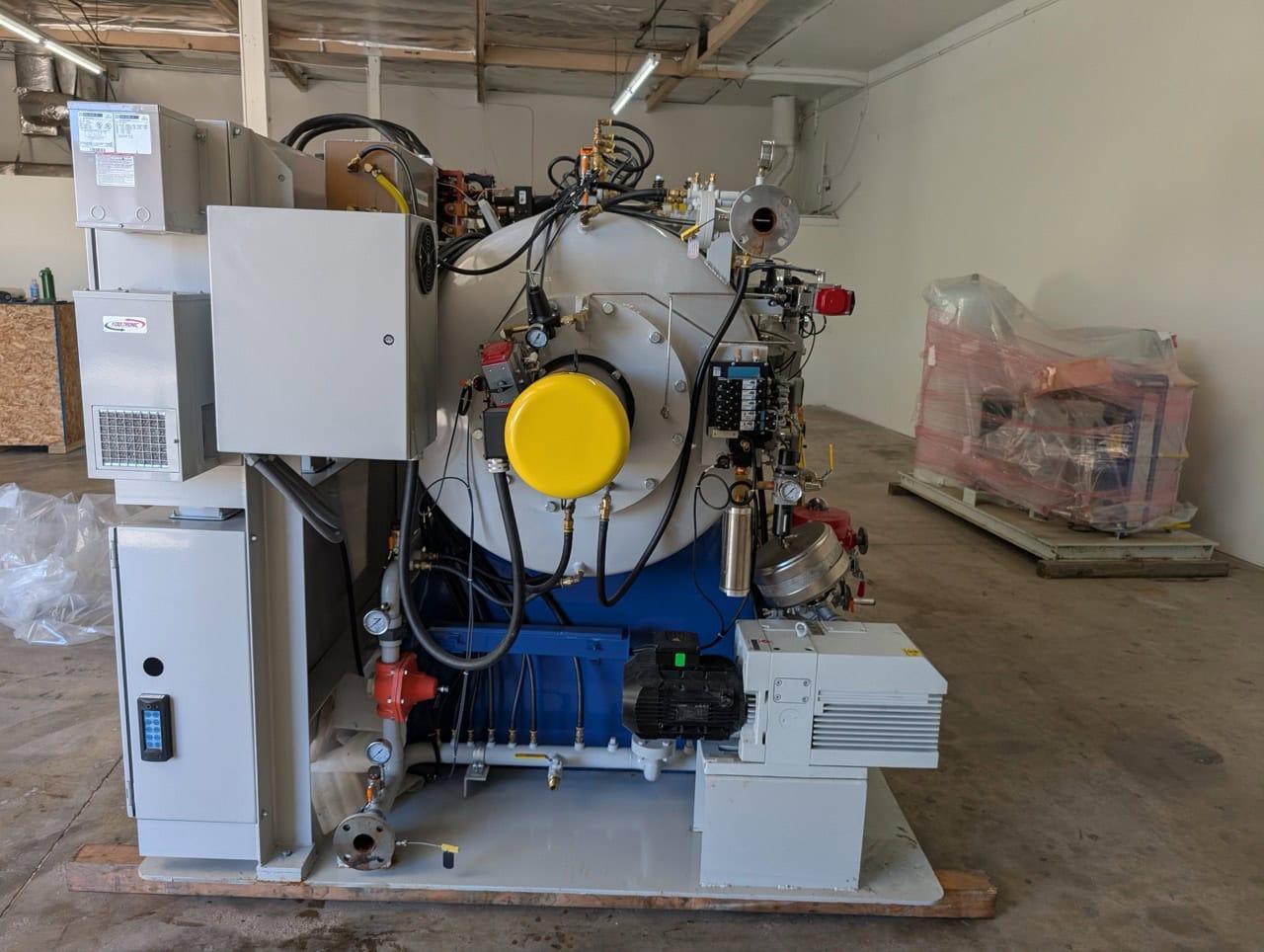

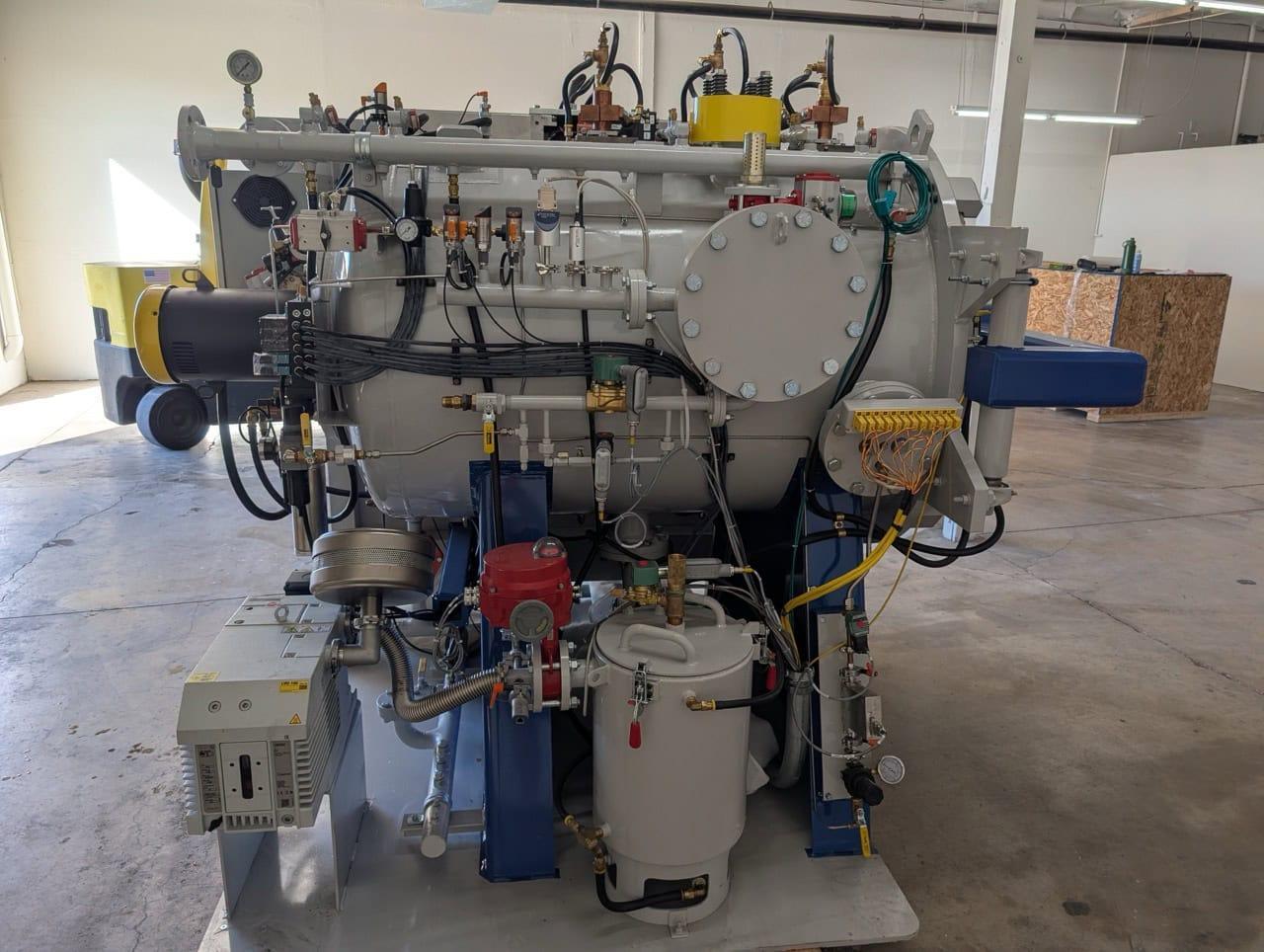

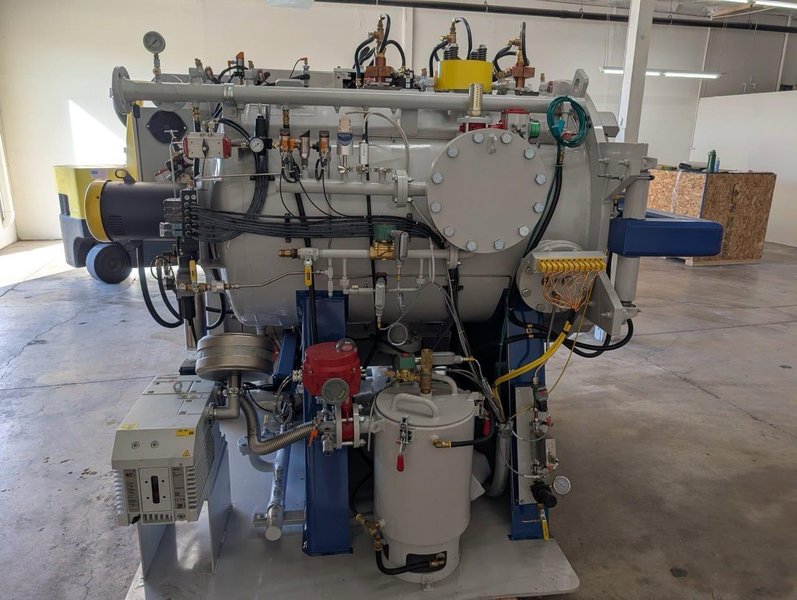

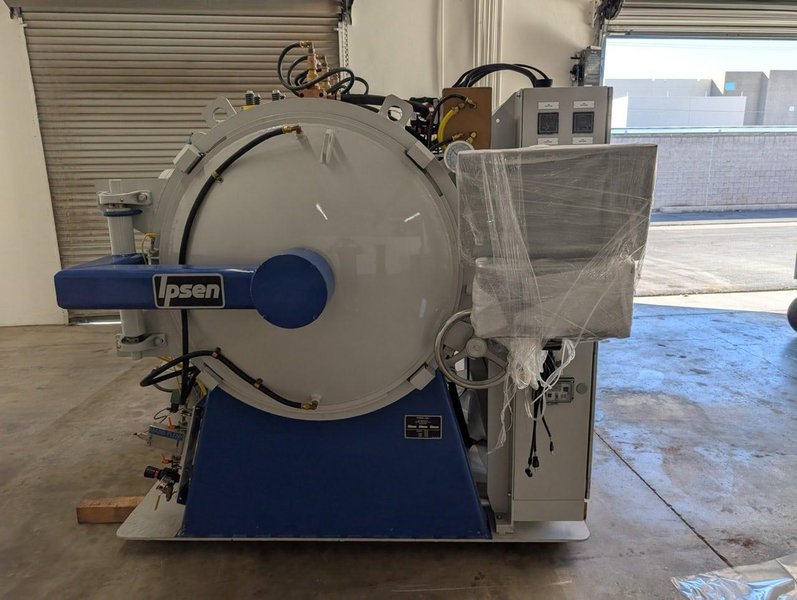

Ipsen TITAN DS 12x12x24 Vacuum Debind & Sinter Furnace DS121224, 2024 – 12″ x 12″ x 24″ Hot Zone, 400 Lb. Capacity, 2,550°F, 2 Bar Argon Quench

Model: TITAN DS 12x12x24 2 Bar (Nameplate Model DS121224) Furnace Type: Horizontal Vacuum Debind & Sinter Furnace Application: Debinding and sintering for MIM / PM parts, vacuum heat treating

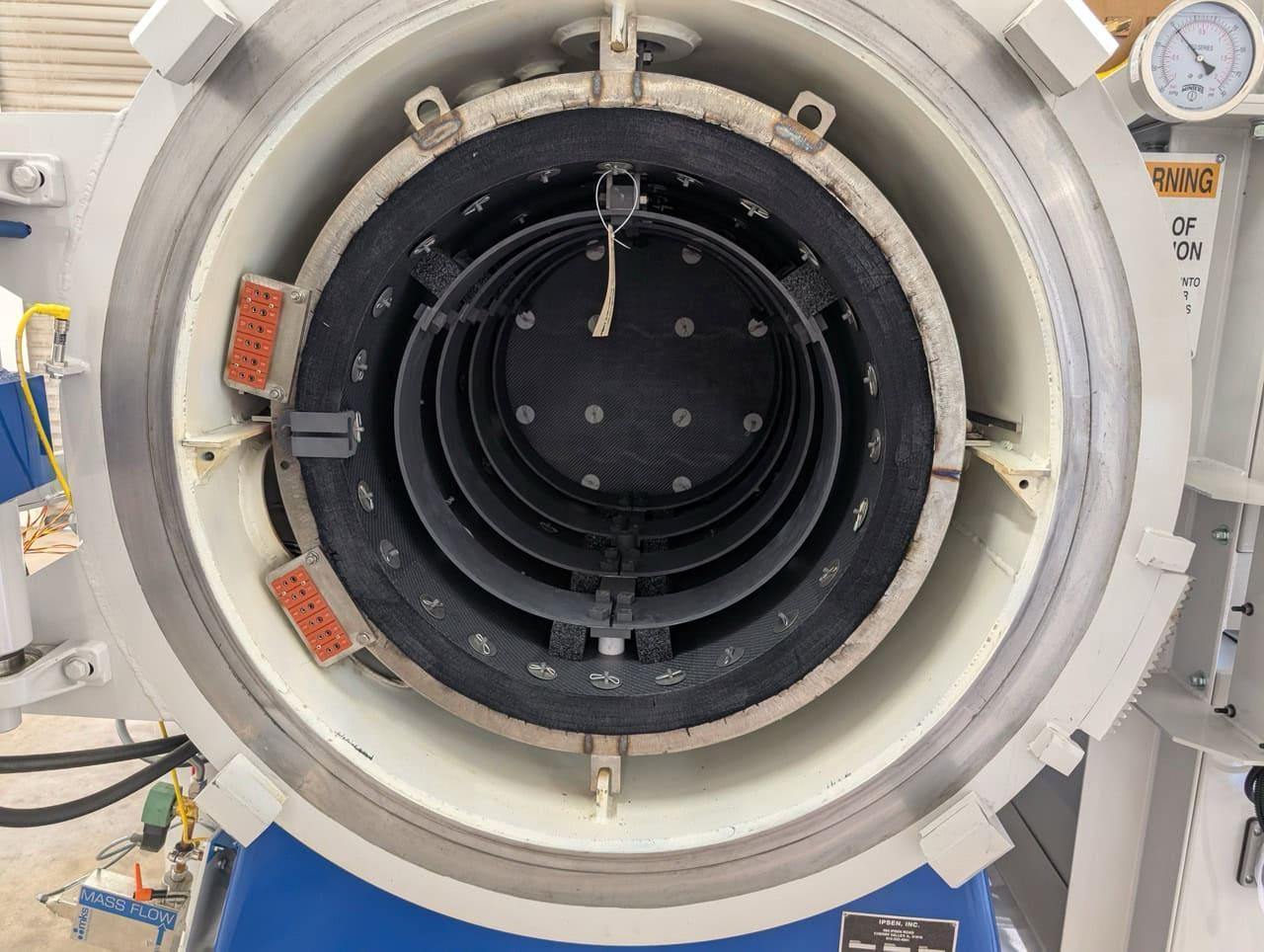

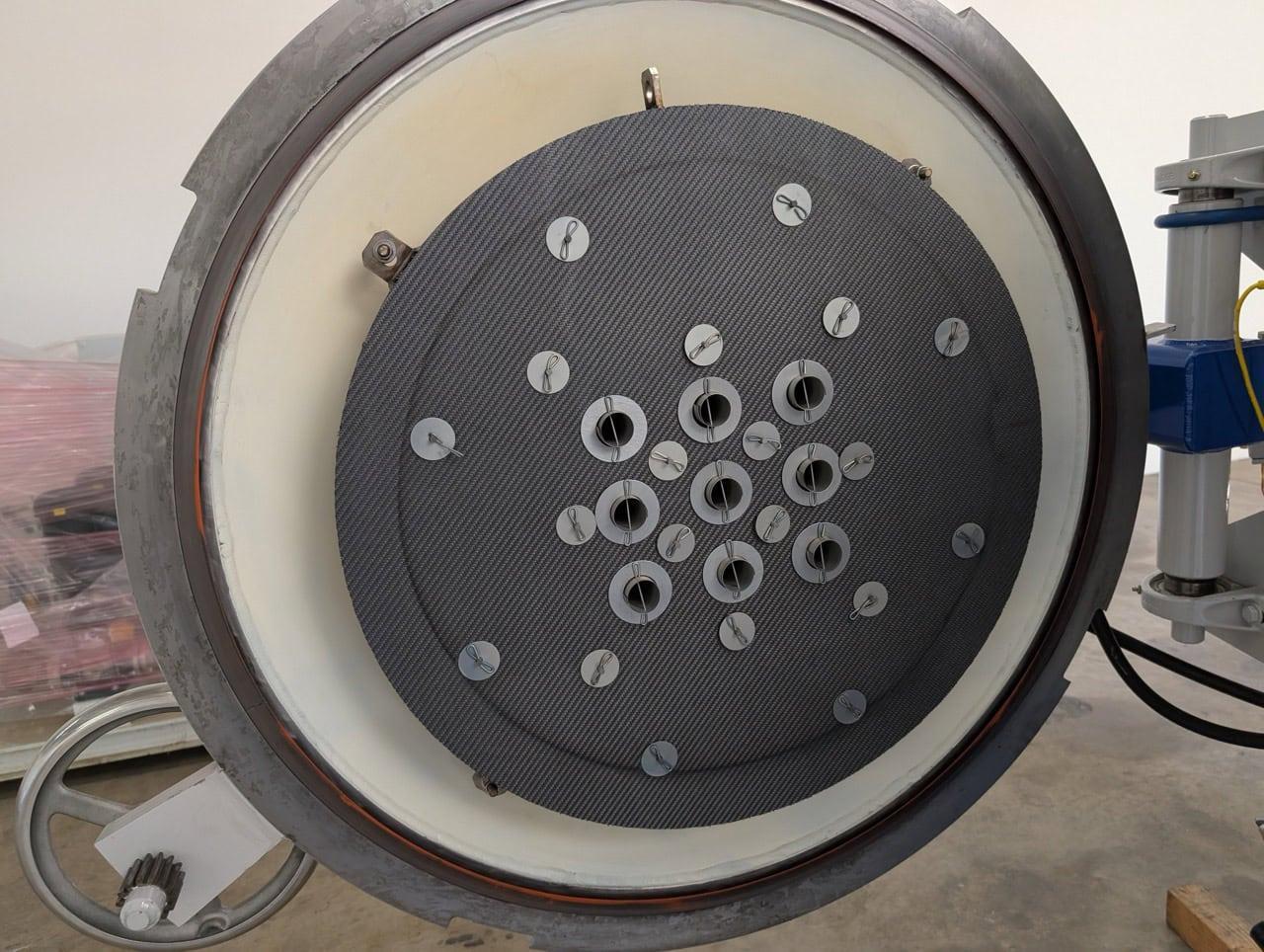

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Hot Zone Load Size: 12″ W x 12″ H x 24″ L Maximum Load: 400 Lbs. Operating Temperature Range: 500°F – 2,550°F Cleanup Temperature: 2,650°F (2 Hrs. Max) Hot Zone Trim Zones: 2 Heating Elements: Curved Graphite Heat Shields: 2″ Graphite Felt w/ CFC Hot Face Binder Trap: Yes

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Ultimate Vacuum: 20 Microns Mechanical Pump: Leybold Trivac D65B Diffusion Pump: None Partial Pressure: Inert Gas Partial Pressure System (0 – 1,000 Microns)

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Maximum Quench Pressure: 2 Bar Quench Gas: Argon Gas Cooling Motor: 15 HP Controlled Cooling: Via VFD

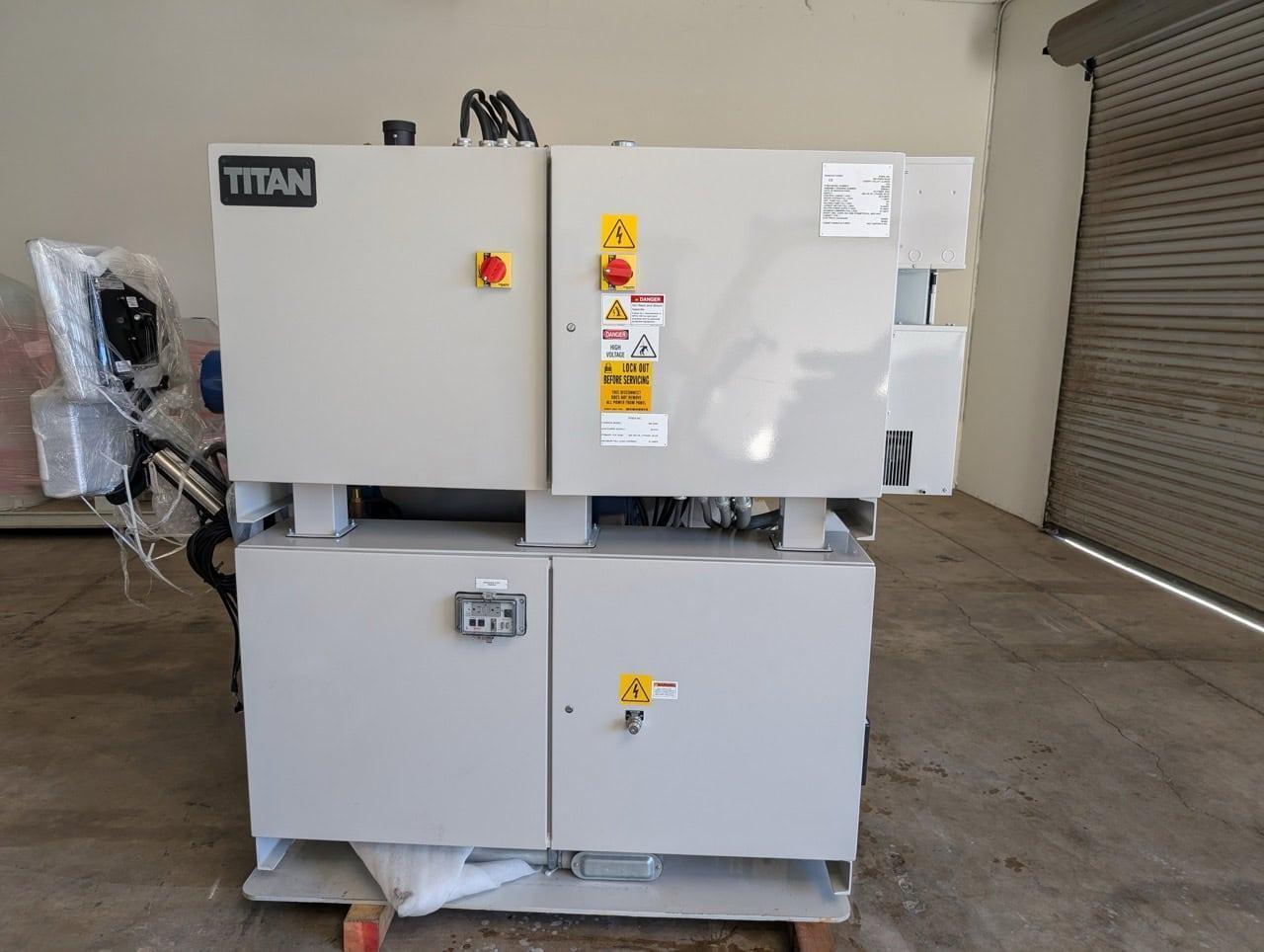

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Control System: Ipsen Vacuprof Touchscreen Over-Temperature Instrument: Honeywell UDC-1200 Vacuum Instrument: Inficon Control Cabinet: AKD Controls

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Electrical: 460V / 3 Phase / 60 Hz Maximum Amperage Draw: 87 Amps Heater Power Supply Load: 76 Amps

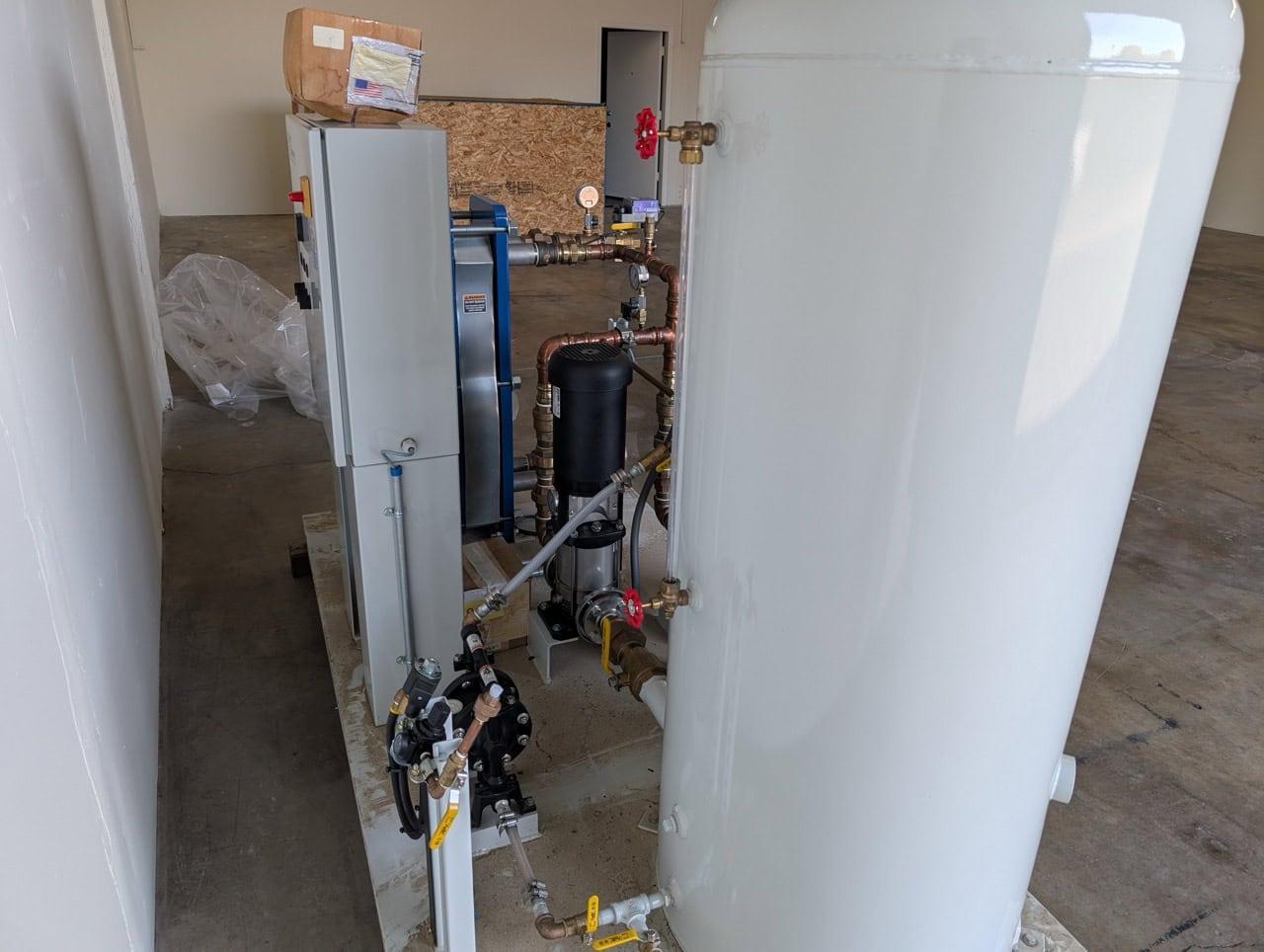

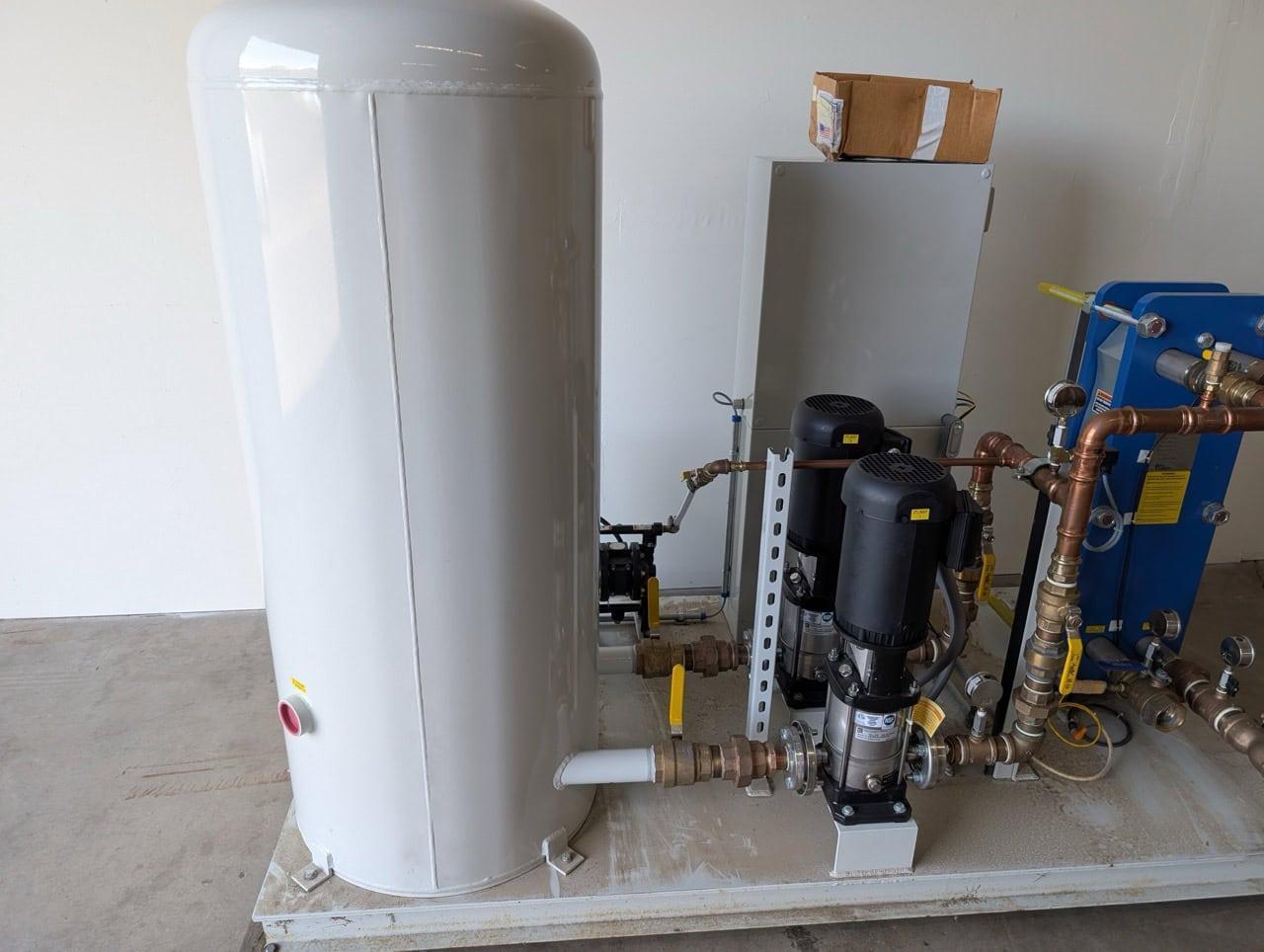

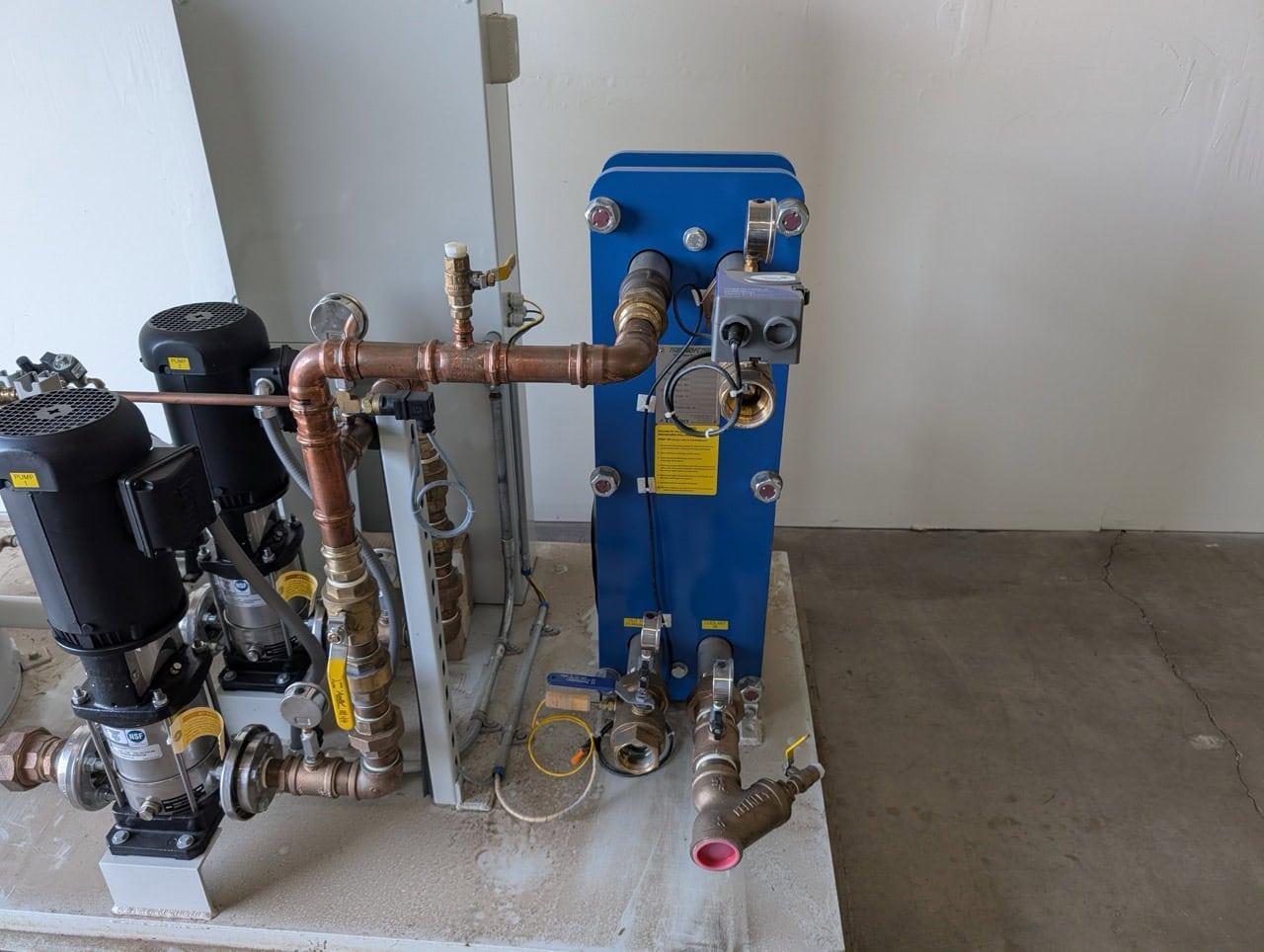

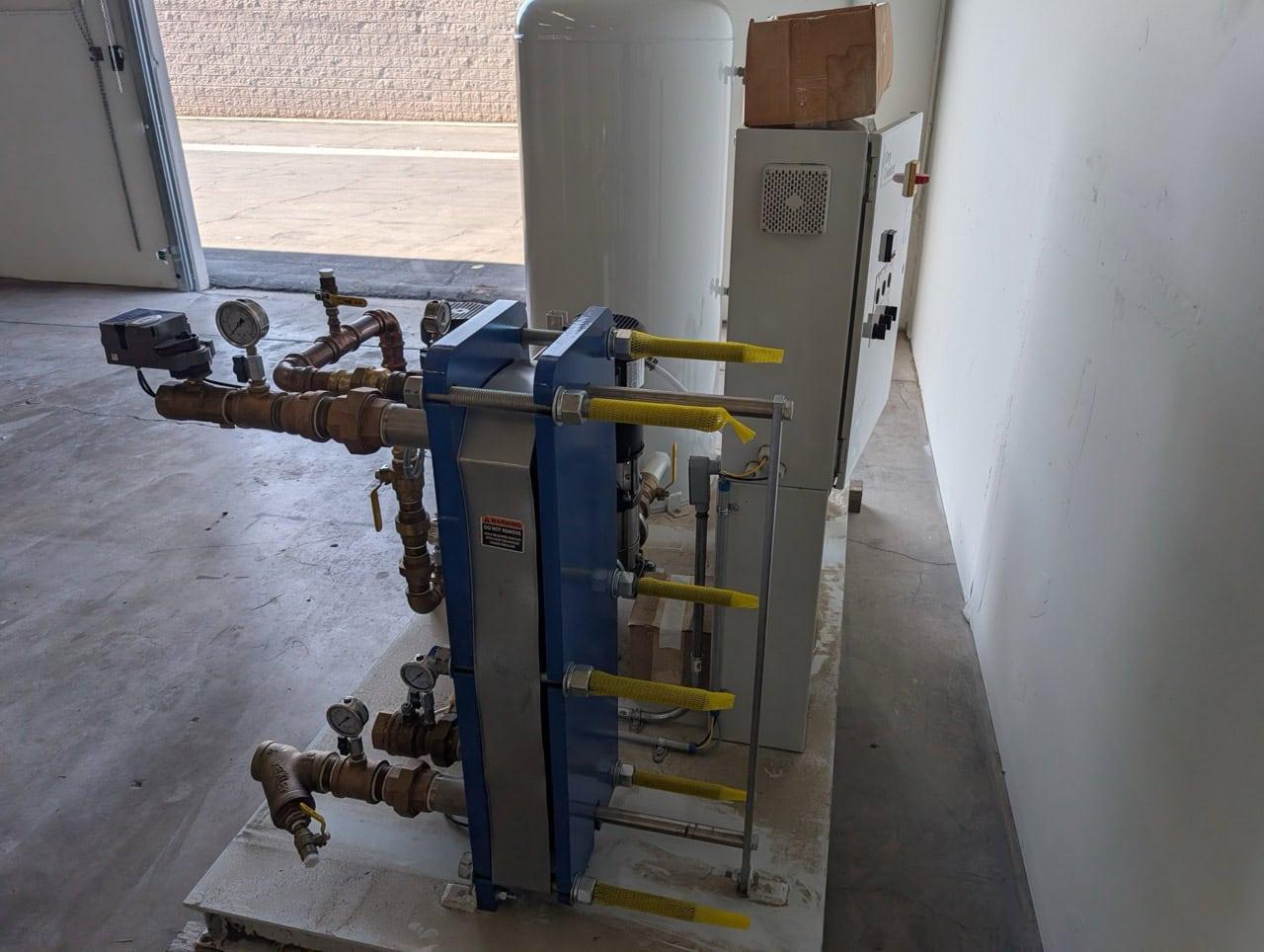

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Water: 60 GPM Peak Demand, 50 PSIG Water Connections: 2″ 150# ANSI Flanged Inlet & Drain Included Water System: Aqua-Vent CleanLoop Furnace Pump Station, Model CDX-150-120-PHE-EDP-MVP-MP, 30 GPM / 60 PSI, 480V

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Includes: Ipsen Operation & Maintenance Manual
