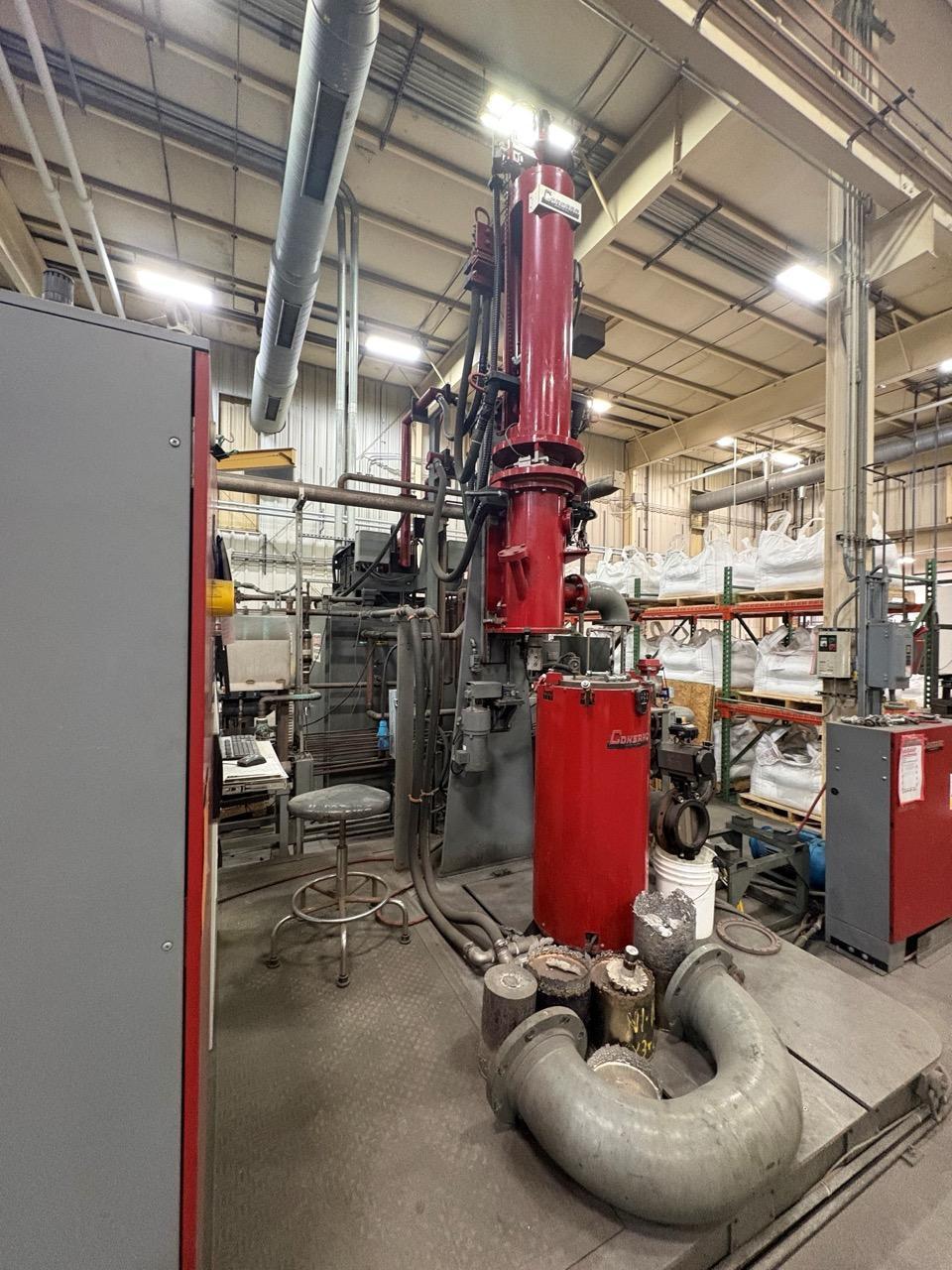

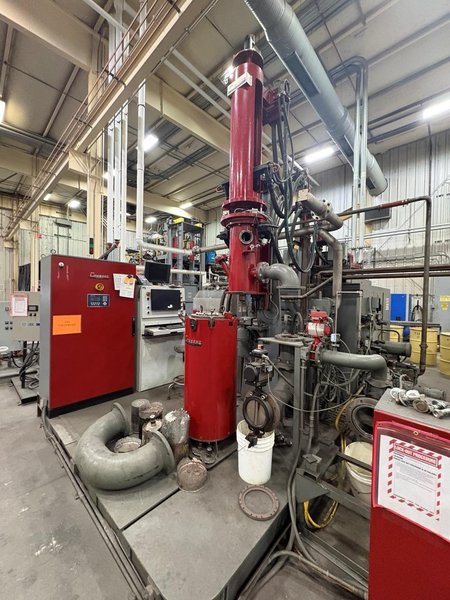

Consarc 450 Lb. ESR/VAR Vacuum Remelt Ingot Furnace, 2010 – 8″ Max Ingot Diameter, 450 Lb. Capacity, 480V

Minimum Ingot Diameter: 2.75″ Maximum Ingot Diameter: 8″ Maximum Ingot Length: 29″ Maximum Ingot Weight: 450 Lbs. Ingot Density: 0.22 Lbs./Cu. In. Maximum Crucible Depth: 29.5″ Minimum Stub Length: 3″ Maximum Electrode Length: 50″ Maximum Electrode Diameter: 6″ Maximum Electrode Plus Stub Length: 52″ Maximum Ram Travel: 34.75″ Ram Low Speed: 4 IPM Ram High Speed: 20 IPM Incoming Power: 480V AC VAR Output: 70V DC, 6,000 Amps ESR Output: 51V Open Circuit, 5,000 Amps

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Equipped With:

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Vacuum Arc Remelting Capability Electroslag Remelting Capability Servo Motor Ram Drive Ball Screw Ram Drive Water-Cooled Electrode Suspension Ram Camera Monitoring System Load Beam System Water-Cooled Power Leads Closed-Loop DI Water Cooling System Auxiliary Cooling Water System Water-Cooled Crucible Jacket

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
