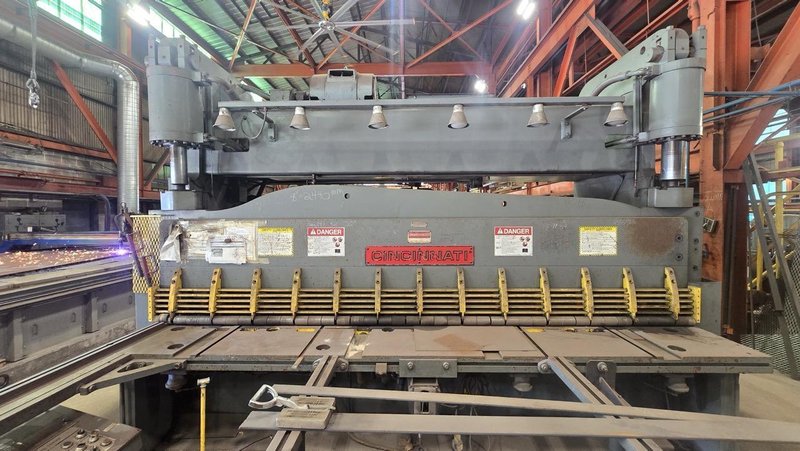

3/4″ x 12′ Cincinnati 6SE12 Hydraulic Shear, 1982 – Front Arms, Backgauge, 25′ Sheet Support Rollers
Brand
Category
Type
Model
6SE12
Stock #
791775
Year
1982
Condition
Not specified
Location
Not specified
|
Mild Steel Cutting Capacity: 3/4″
Cutting Length: 12′
Distance Between Housings: 12′ 3″
Maximum Rake: 11/16″ Per Foot
Back Gauge Range: 48″
Number Of Hold-Downs: 15
Stroke Rate: 7–24 Strokes Per Minute
Main Motor: 50 HP
Throat Depth: 14″
Table Height: 32″
Overall Width: 179-1/8″
Overall Height: 120″
Approximate Weight: 46,700 Lbs.
All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Equipped With: – Backgauge – Hydraulic Hold-Downs – Adjustable Rake – Adjustable Knife Clearance All specifications are assumed to be correct but must be confirmed by the purchasing entity. |
