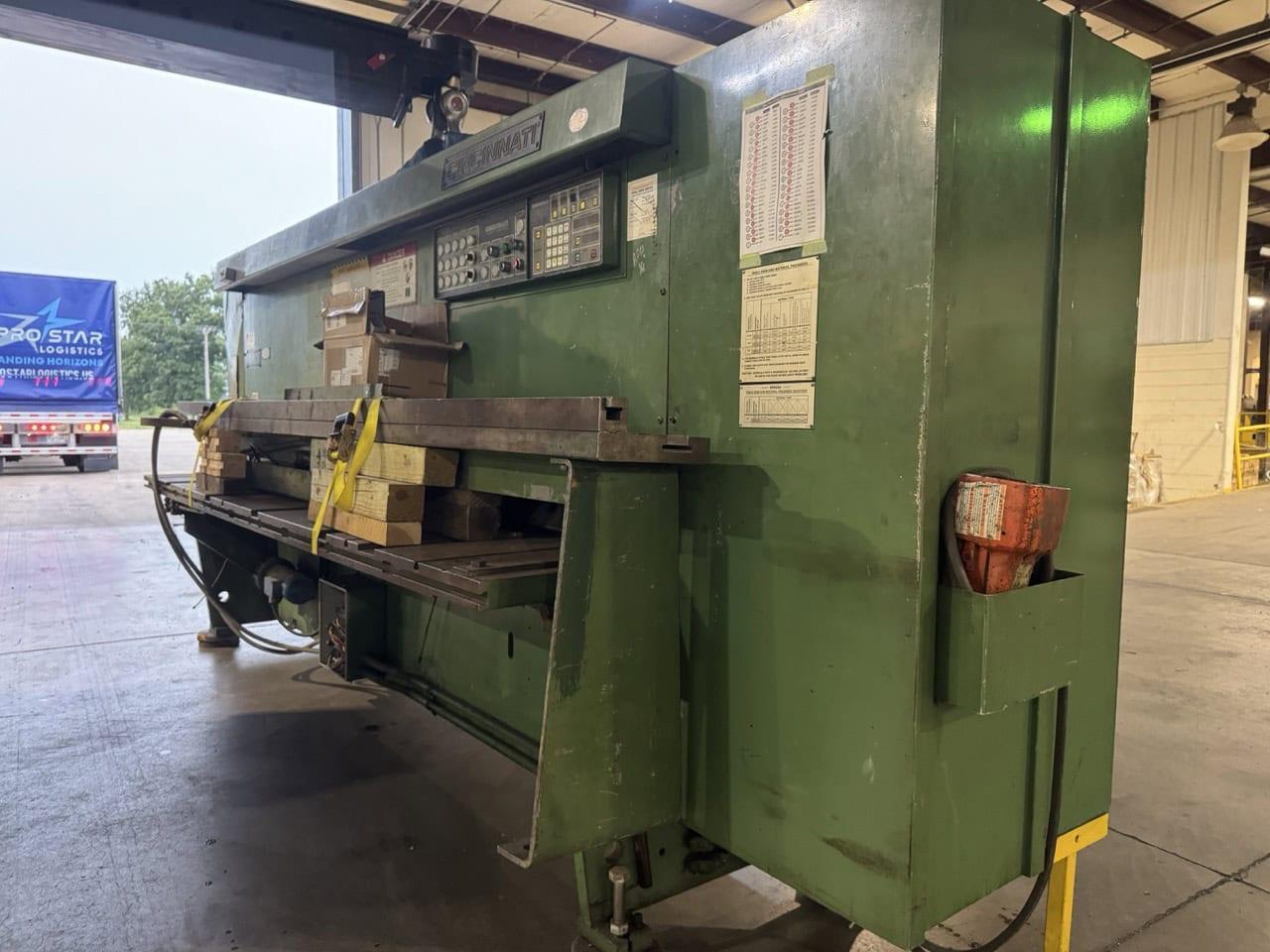

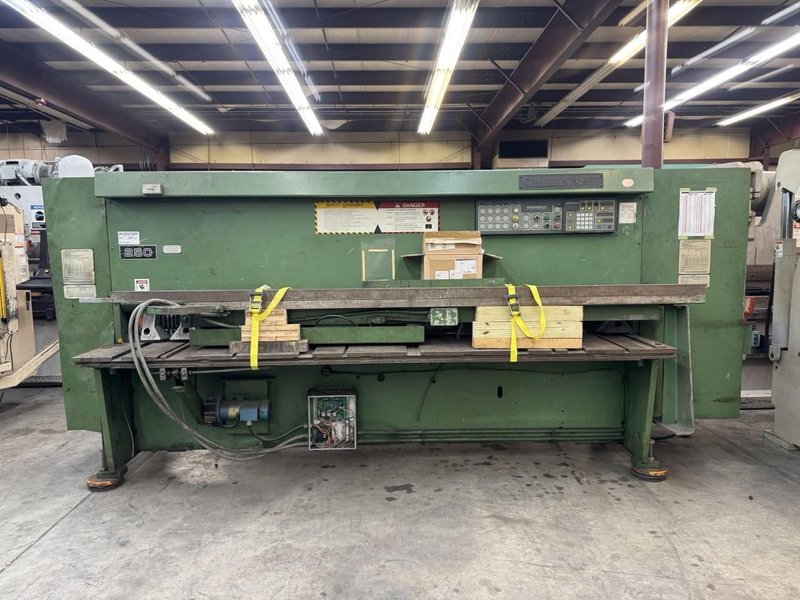

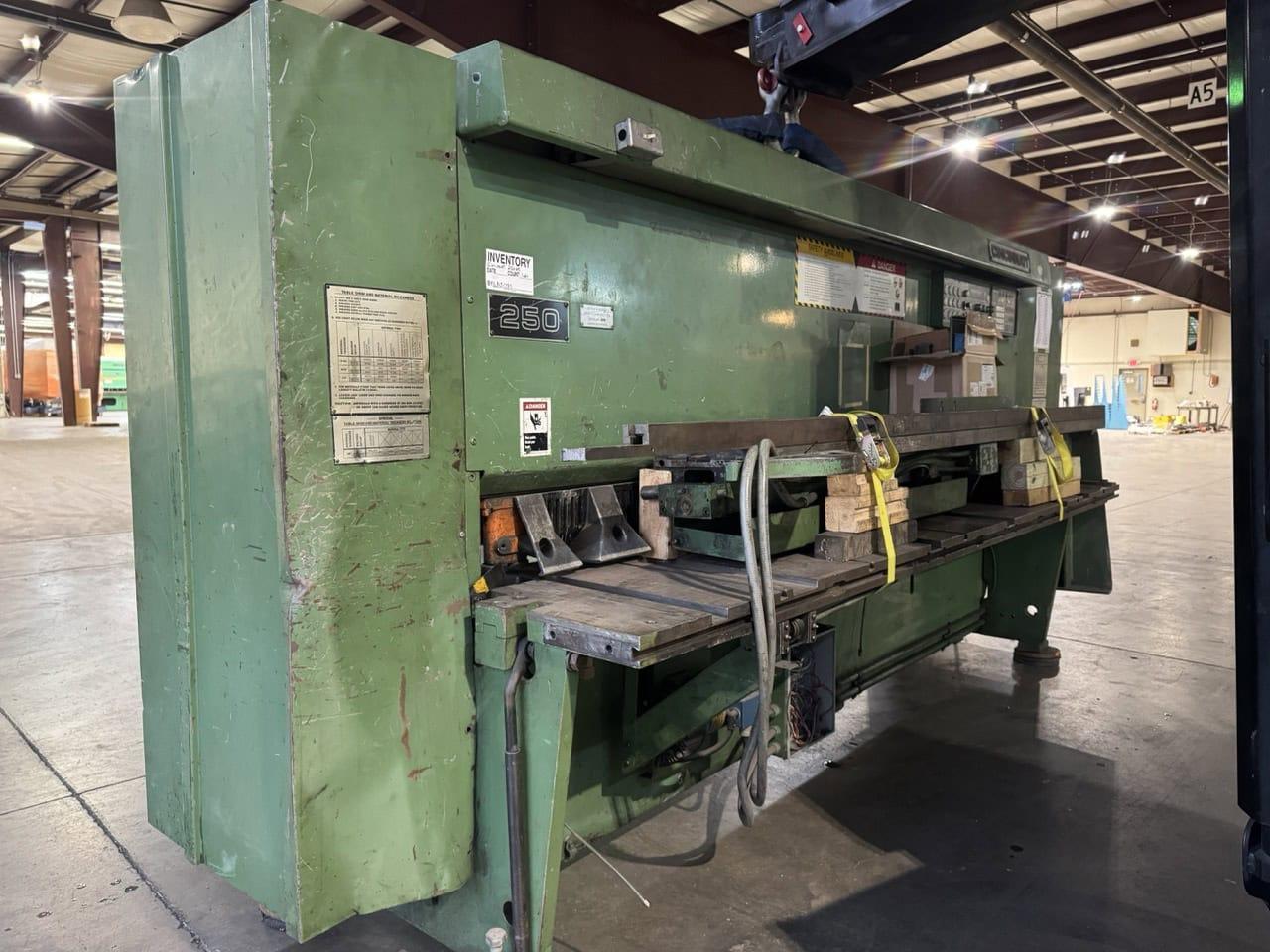

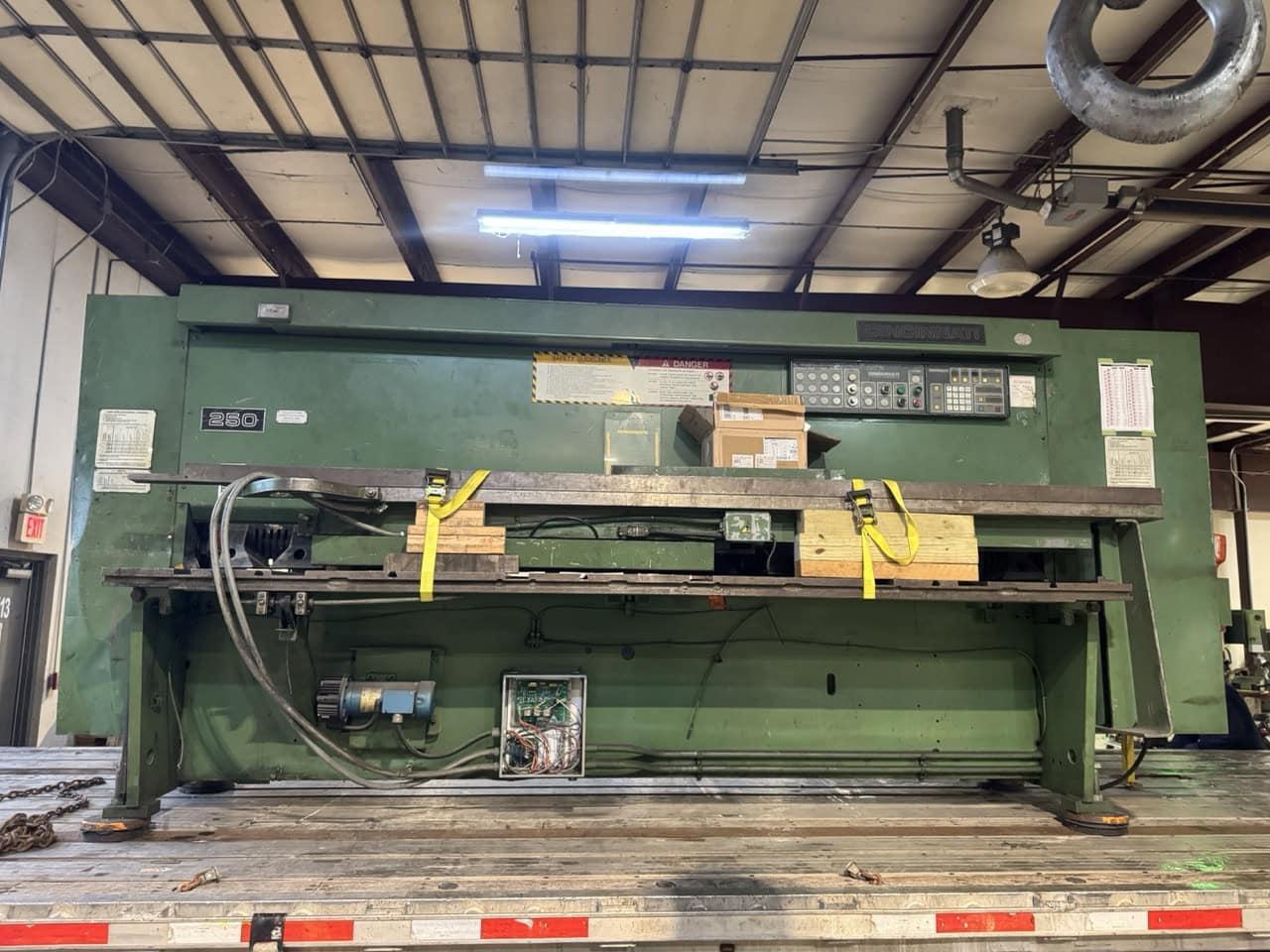

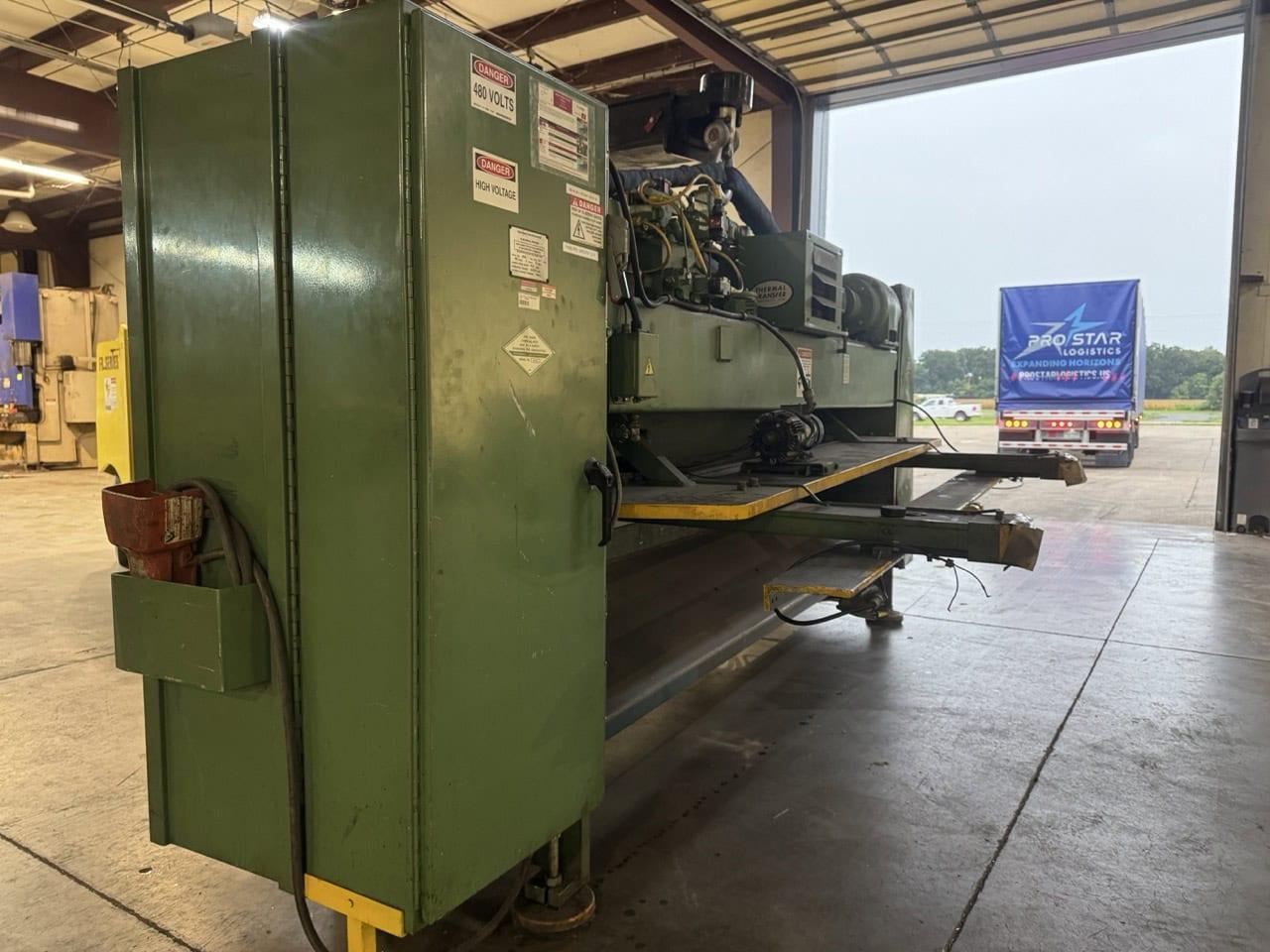

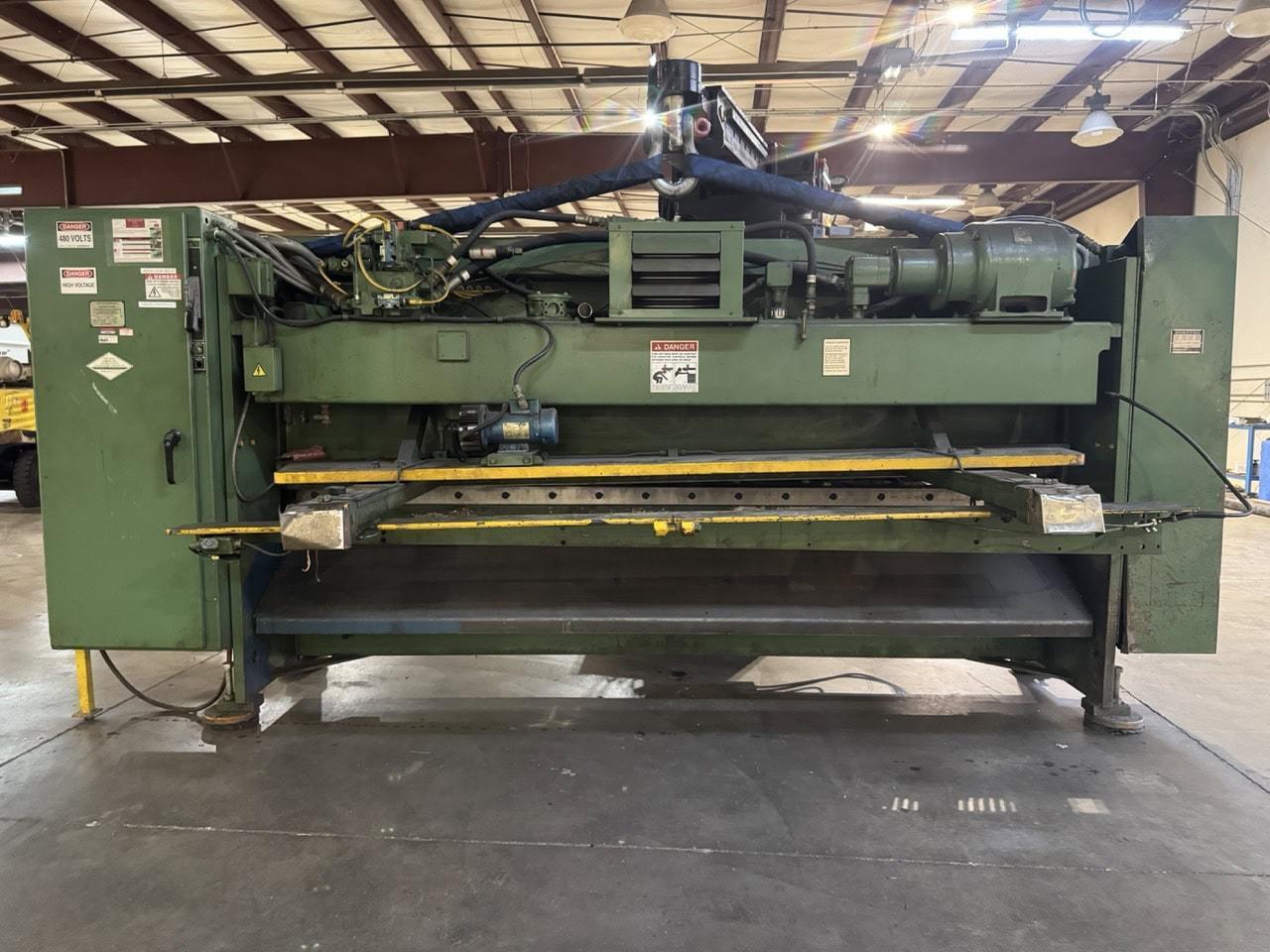

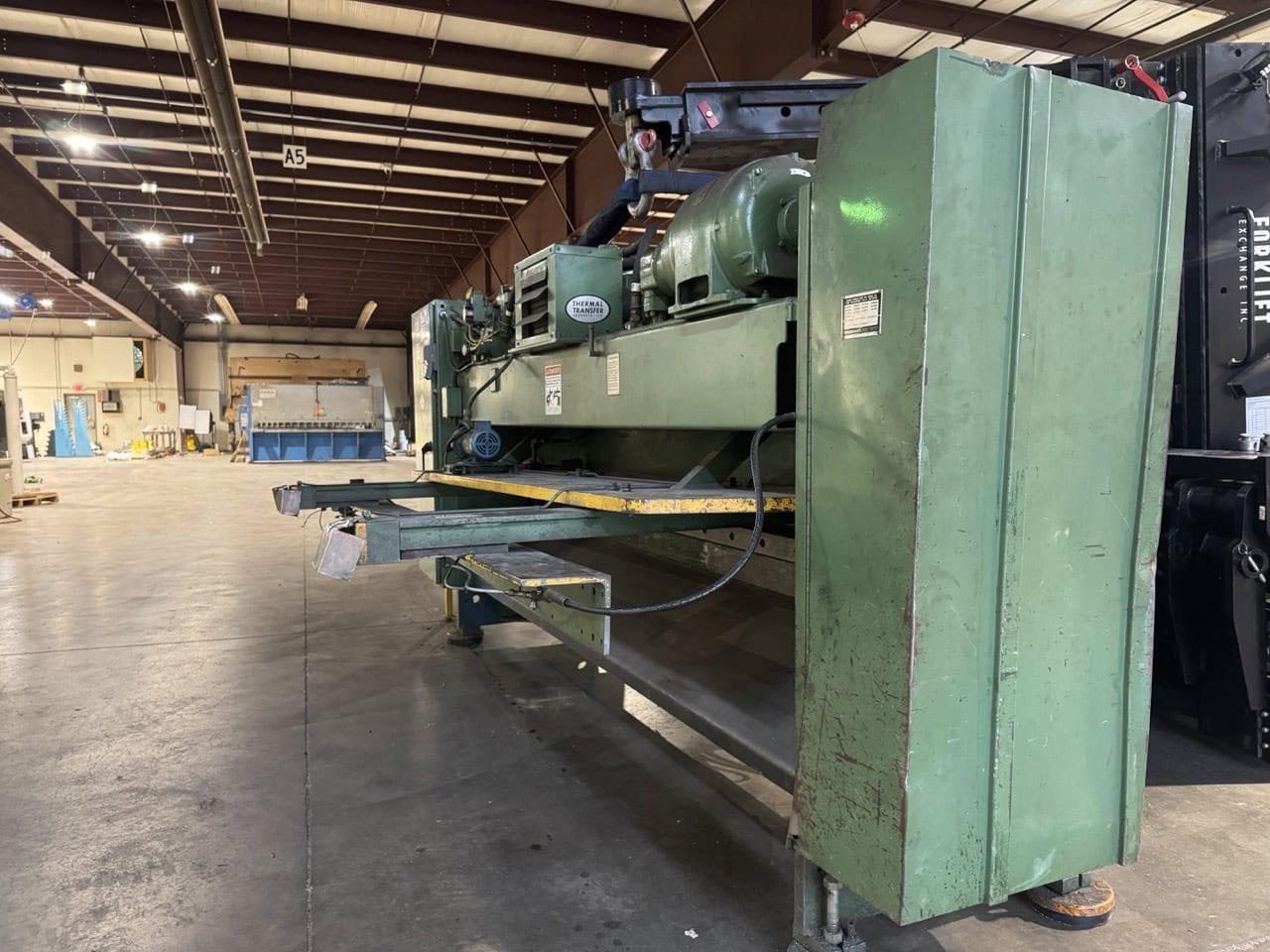

1/4″ x 10′ Cincinnati 250HSX10 Shear, 2000

Capacity, mild steel 1/4″

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Maximum cutting length 122.75″ / 10′ 2.75″

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Backgauge range 0–48″, front-operated high-speed power backgauge

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Backgauge speed Up to 120 IPM

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Rake angle 0.250″ per foot, electronically adjustable

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Shearing force 8.5 tons Hold-downs 12 standard; the 2000 programmable-control package is commonly equipped with 15

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Clearance under hold-downs 1/2″ Strokes per minute

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Approximately 20–45 standard; 32–70 SPM on the 2000 high-production configuration

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Main motor 25 HP

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Front gauge / squaring arm 120″ Cincinnati front squaring arm

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
