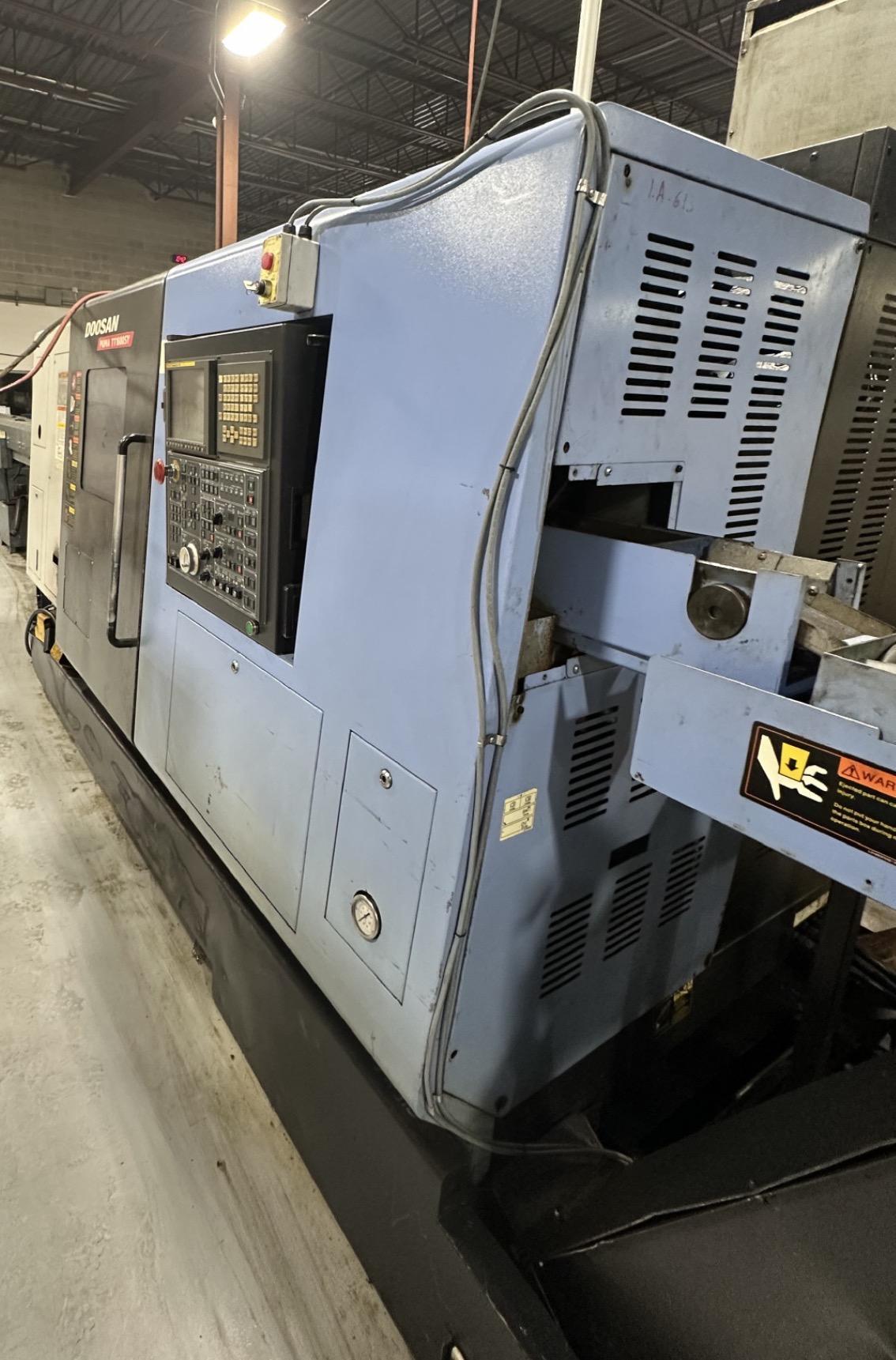

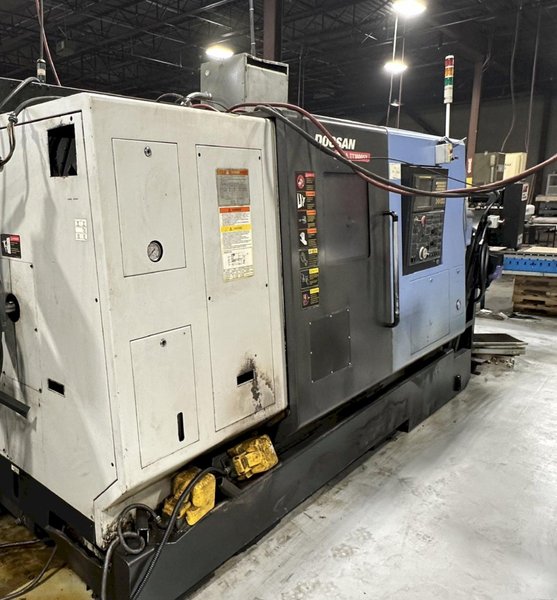

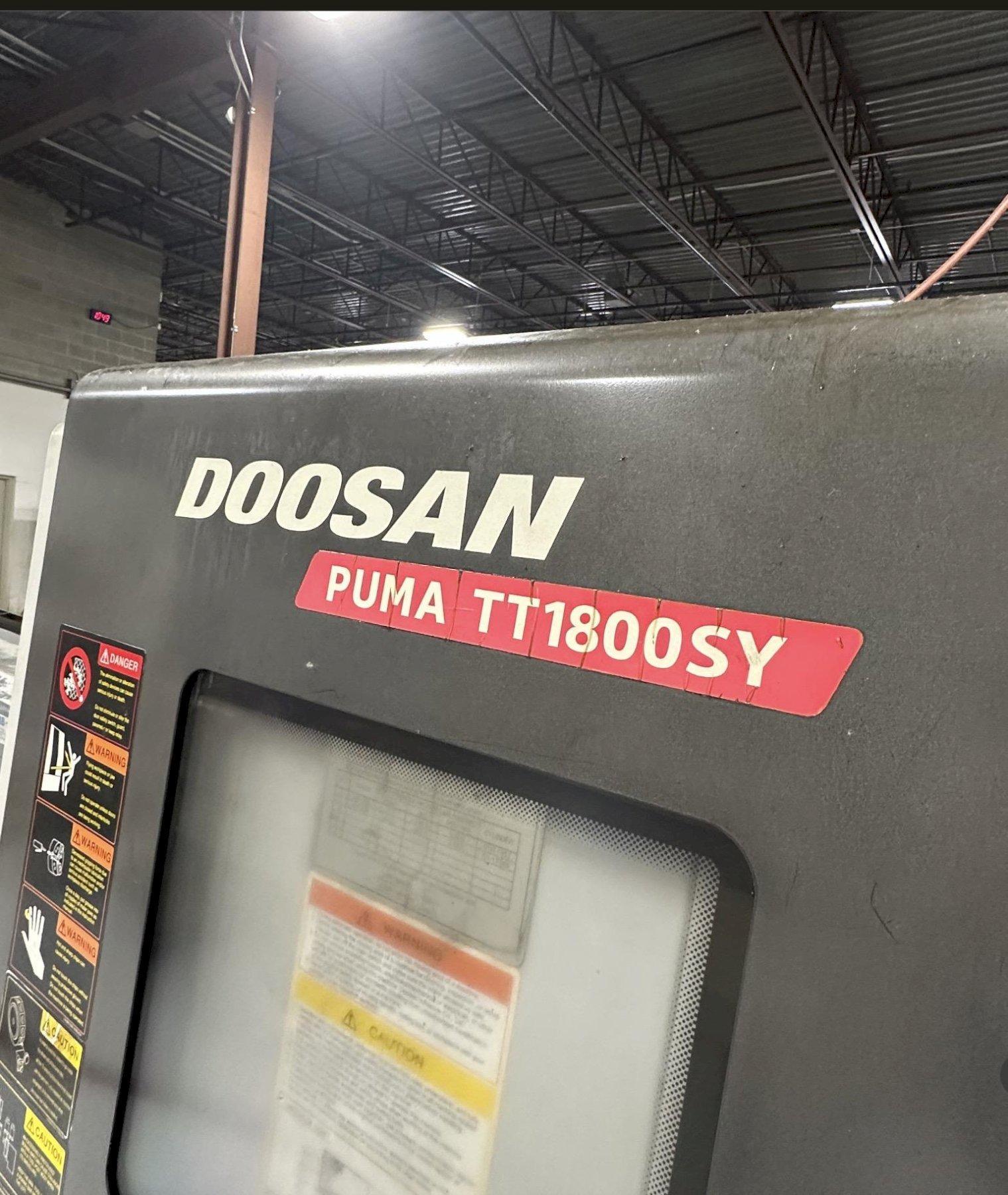

2008 Doosan Puma TT1800SY Used Twin Spindle Twin Turret CNC Lathe For Sale

Name: 2008 Doosan Puma TT1800SY Used Twin Spindle Twin Turret CNC Lathe For Sale
Brand: DOOSAN
SKU: 54445
Availability: InStock

Brand

DOOSAN

Not specified

CNC Control	yes

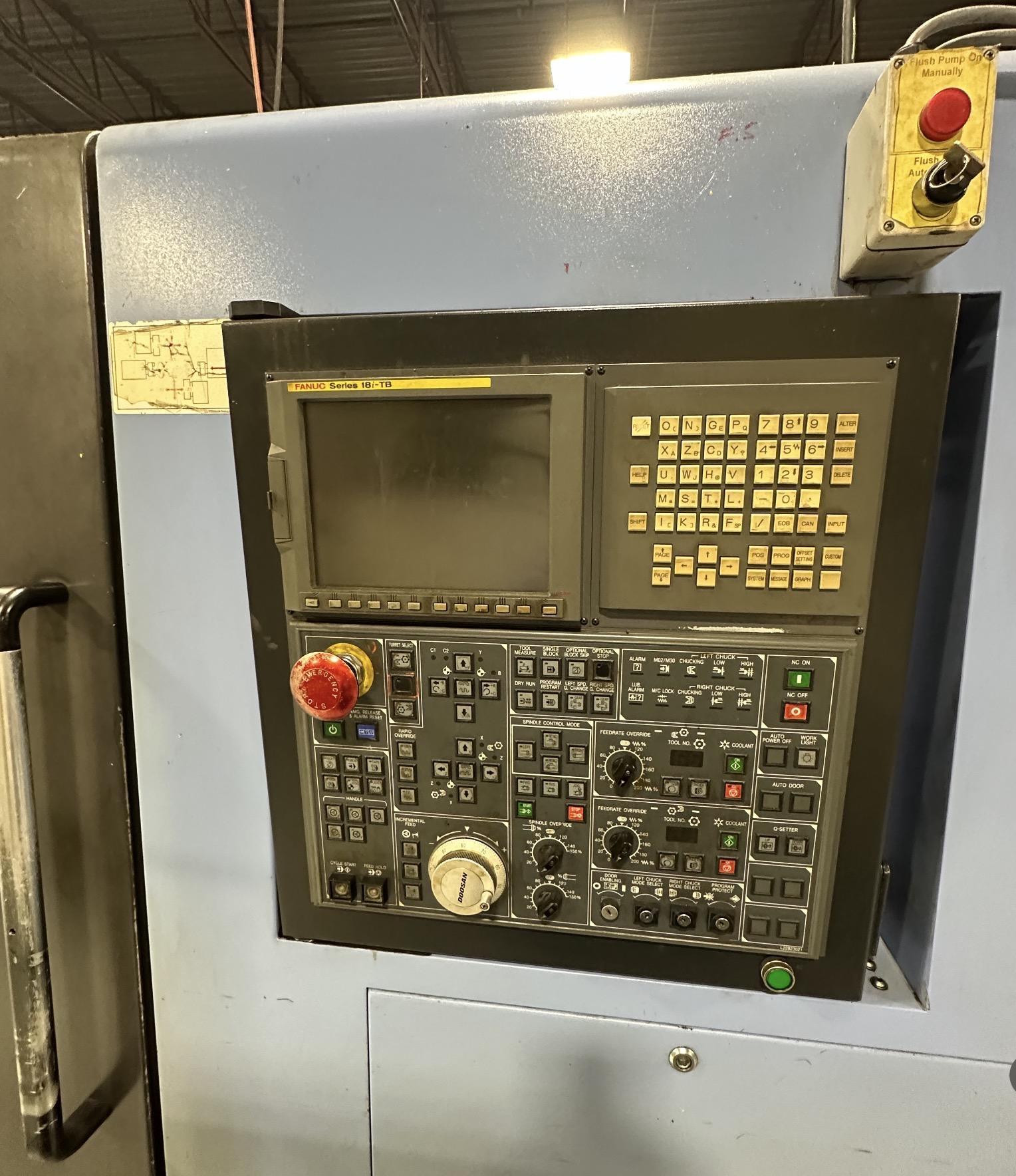

Type Of CNC Control	Fanuc 18i-TB
# Axis	8
Swing	9.1 inches
Turning Diameter	9.1 inches
Center Distance	27.6 inches
Chuck Size	8 inches
Bar Capacity	2.6 inches
X Axis Travel	6.5 inches
X2 Travel	7.5 inches
Y Axis Travel	3.9 inches
Z Axis Travel	27.6 inches
Z2 Travel	28.3 inches
A Axis Travel	30.3 inches
C Axis Index	0.001°
Rapid Traverse (X/Y/Z)	787/295/787 ipm
Spindle Nose	A2-6
Spindle Speed	5,000 rpm
Main Motor	25 hp
Tailstock	no
Y Axis	yes

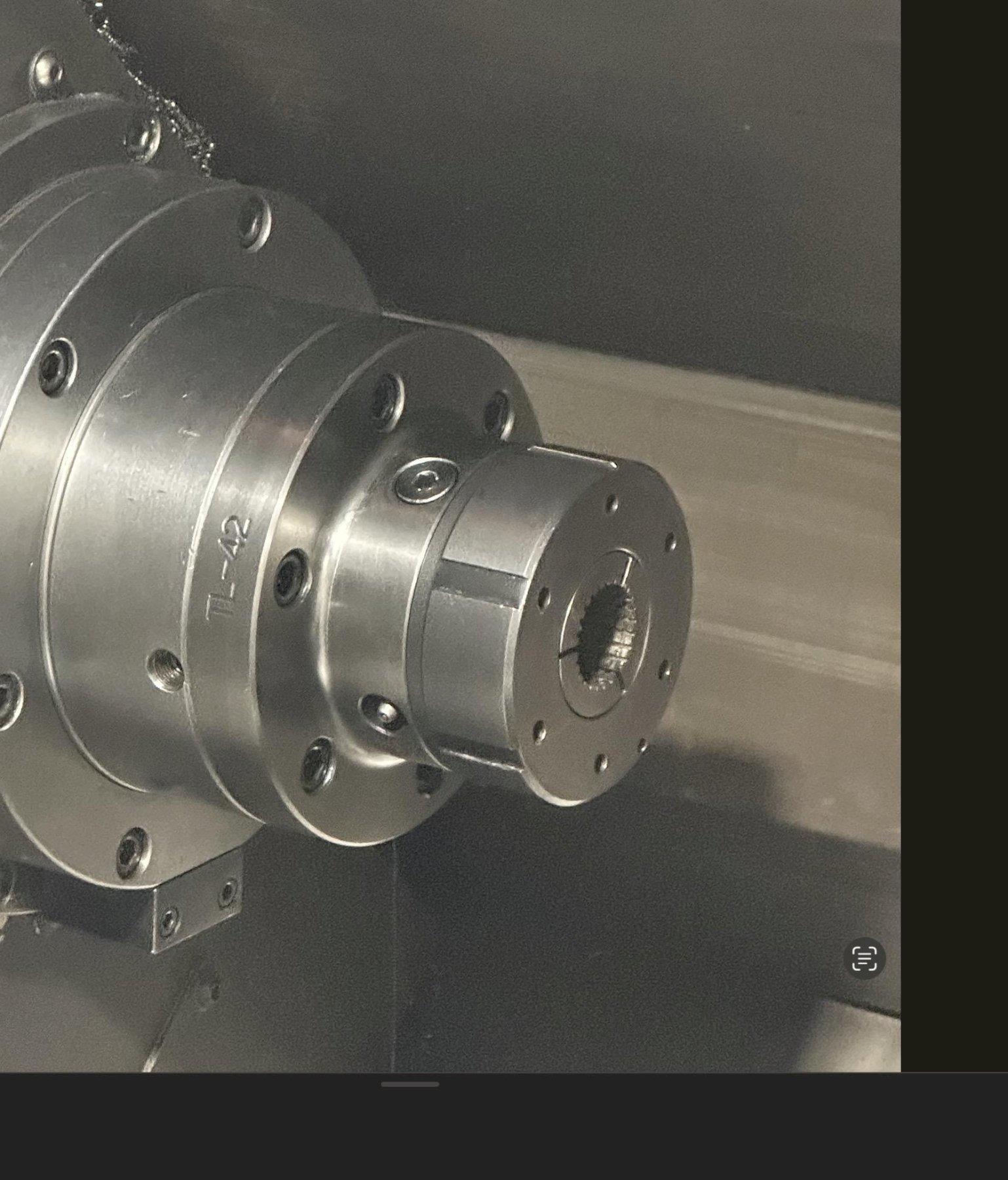

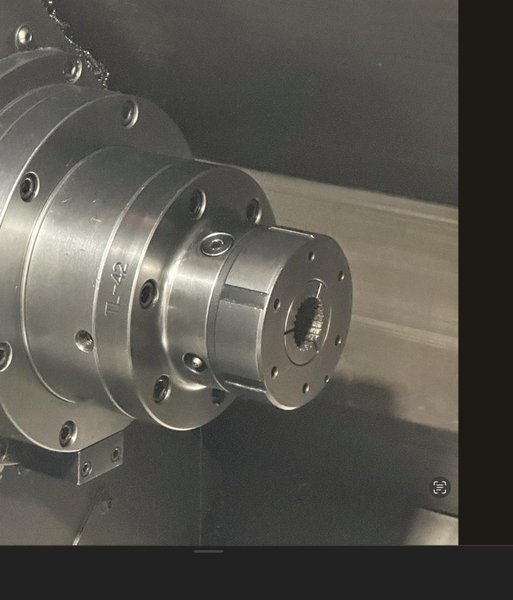

Live Tooling	yes
Live Tooling Speed	5,000 rpm
Live Tooling Motor	7.5 hp

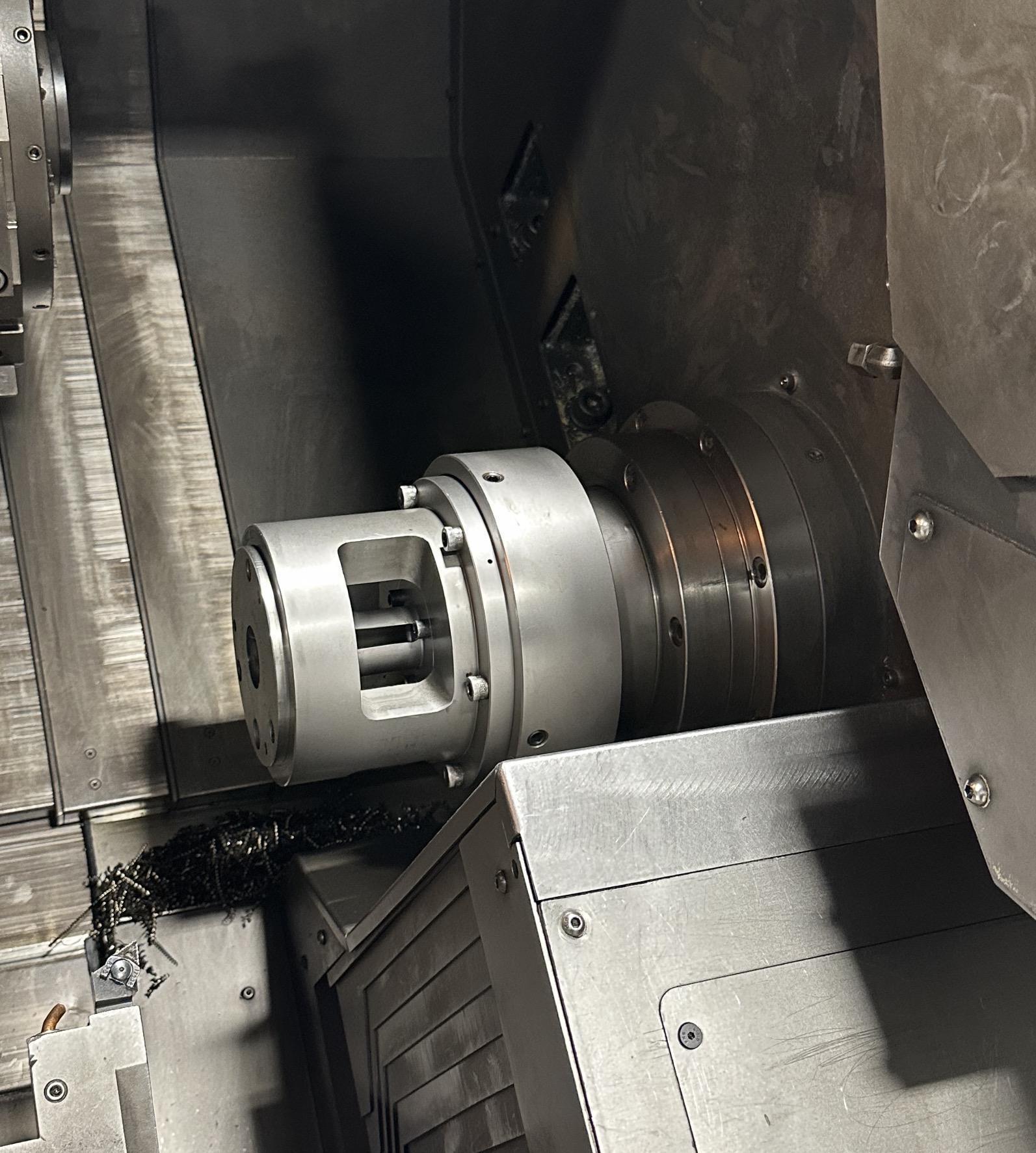

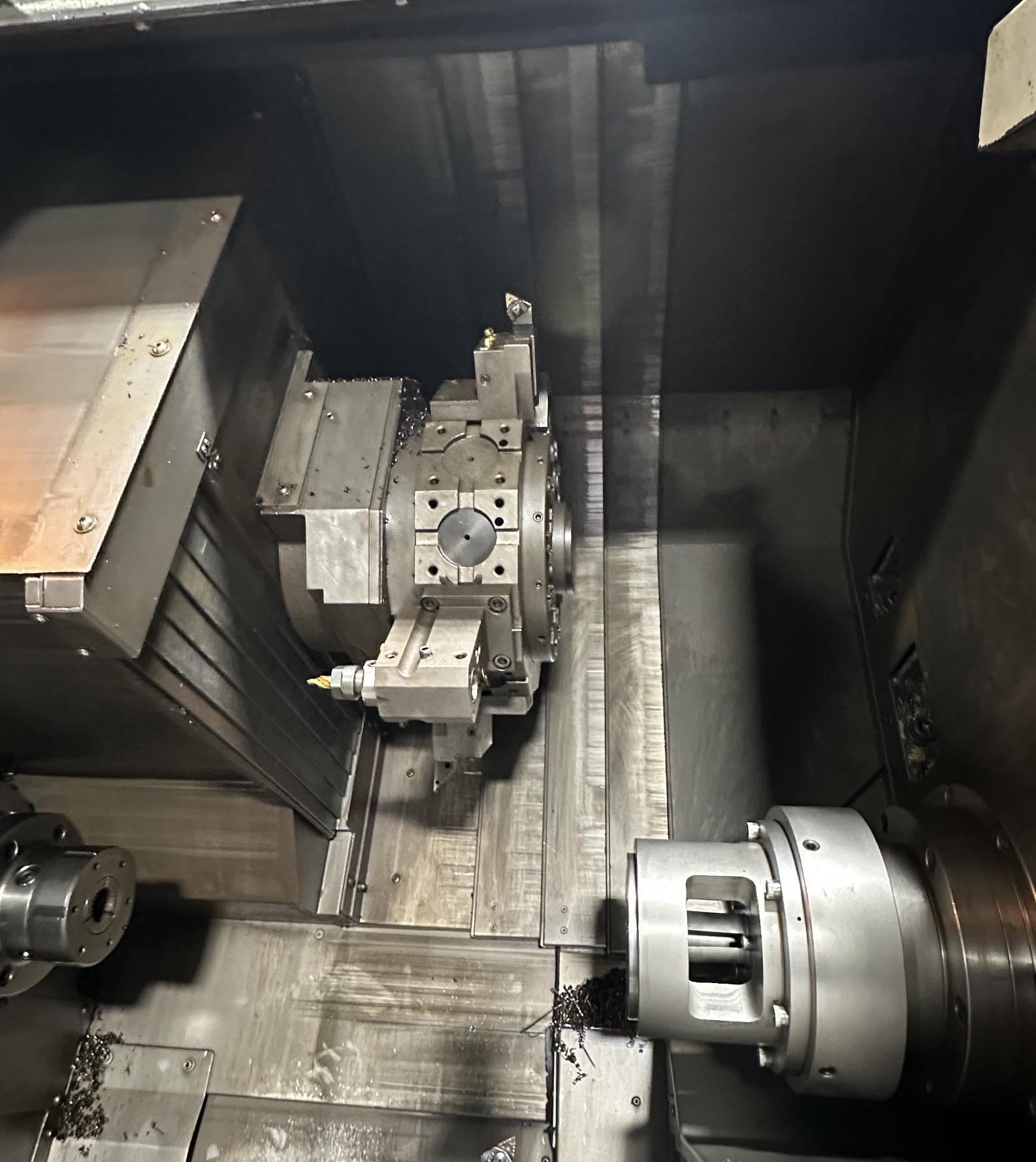

Sub Spindle	yes
Sub Spindle Chuck	8 inches
Sub Spindle Bar Capacity	2.6 inches
Sub Spindle Nose	A2-6
Sub Spindle Speed	5,000 rpm
Sub Spindle Motor (HP)	25 hp

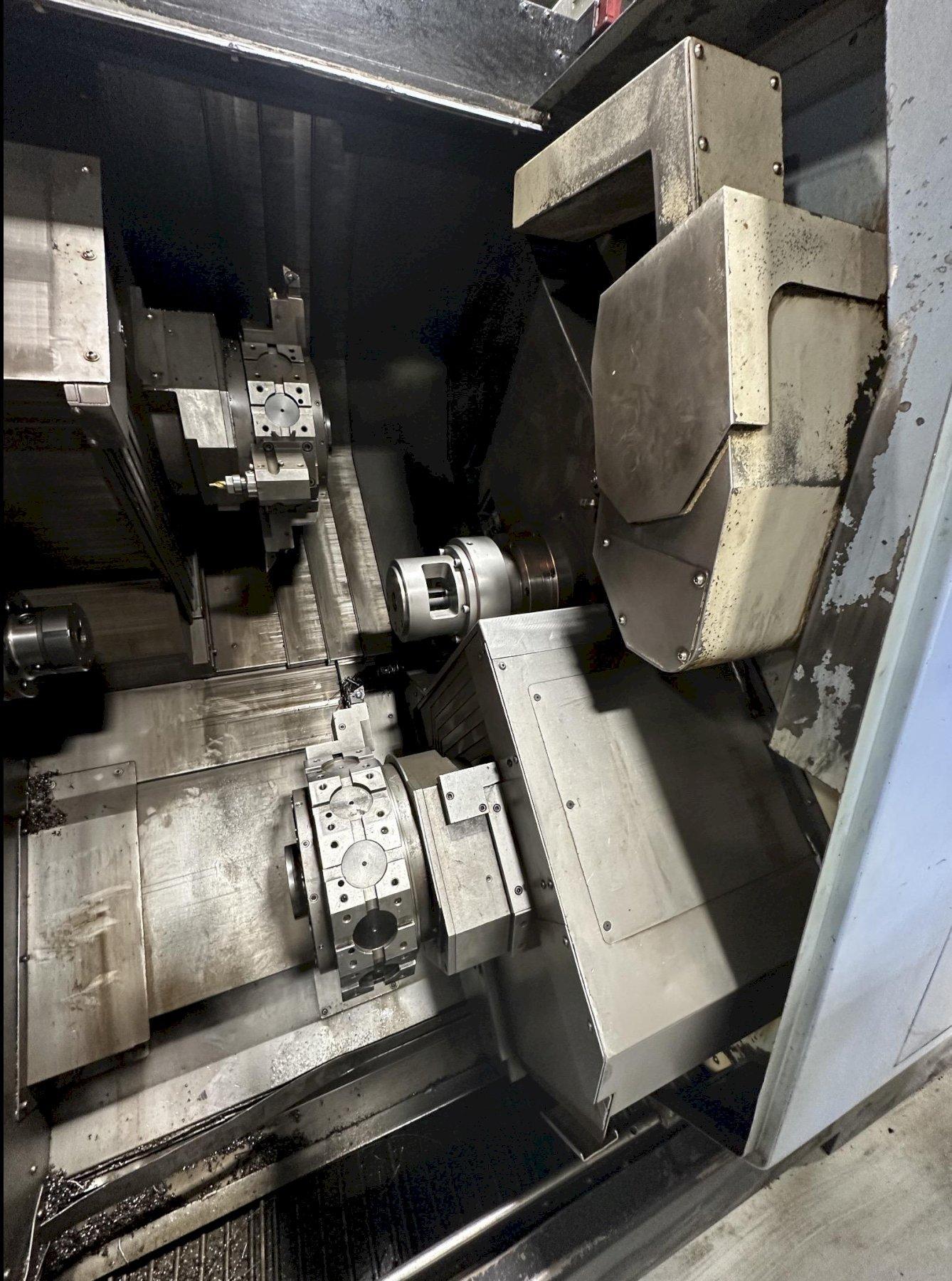

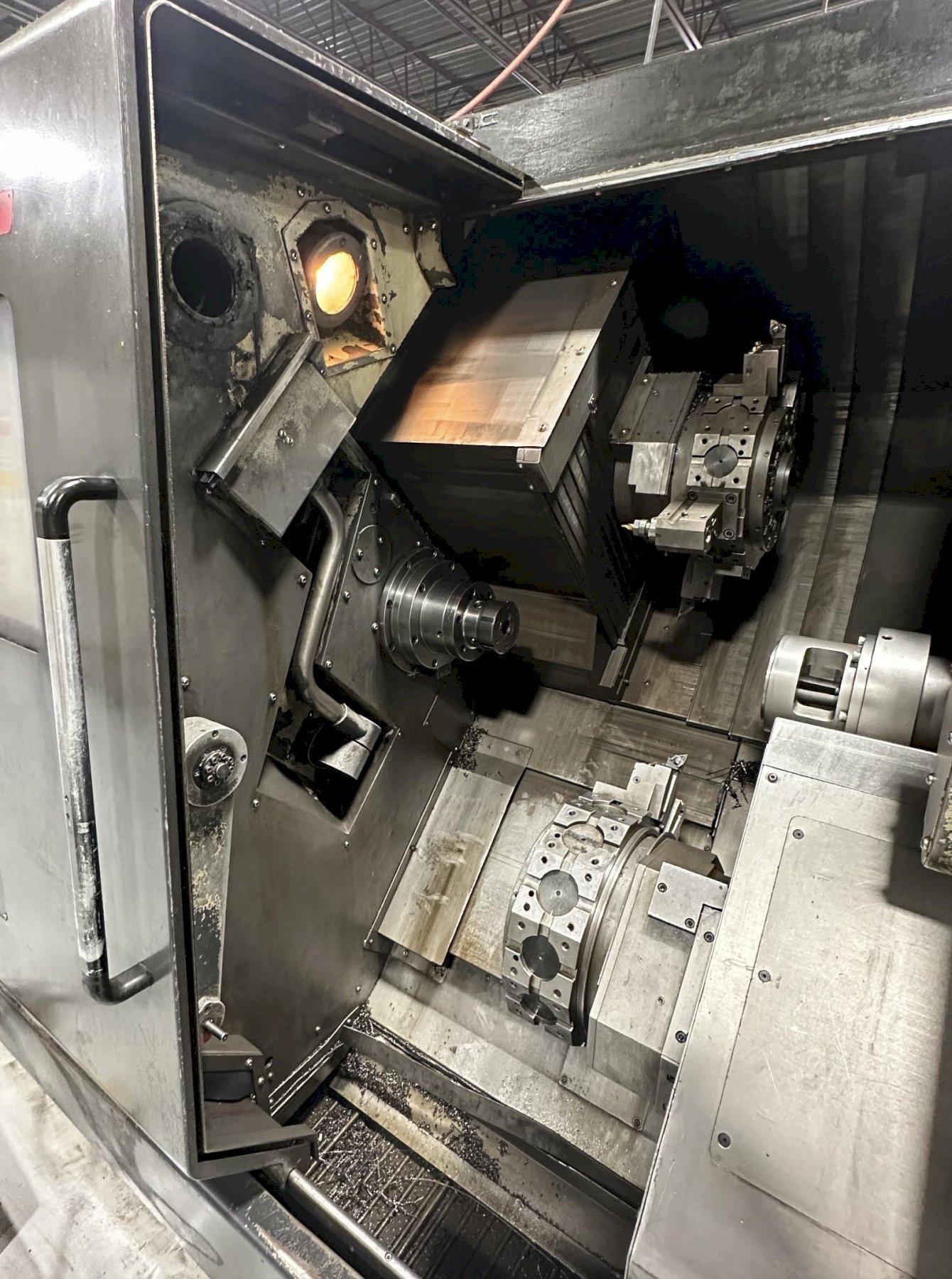

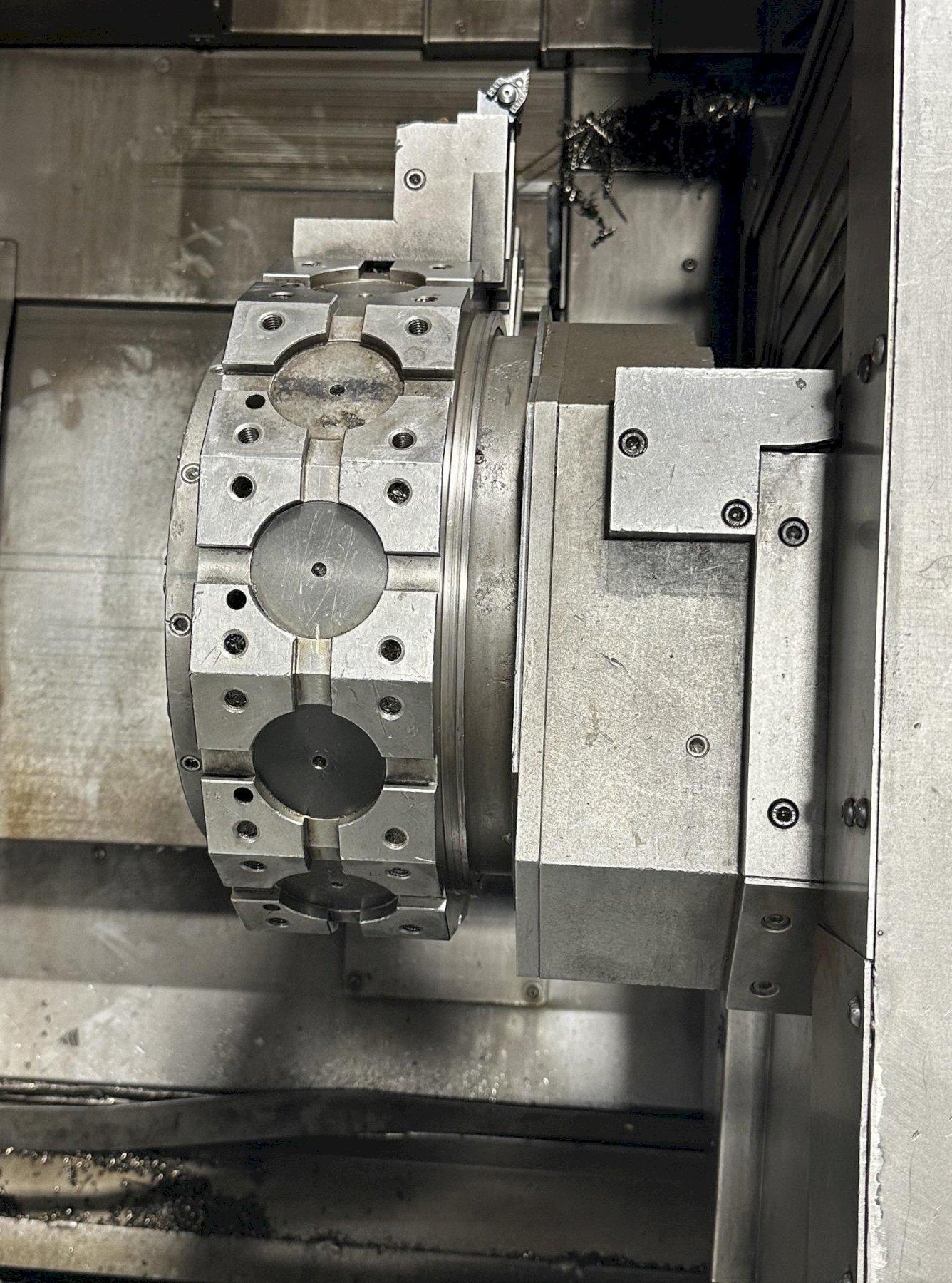

Turret Capacity	24+24
Machine Dimensions	158" x 85" x 82"
Machine Weight	20000 pounds
- Fanuc 18i-TB CNC Control - Chip Conveyor - Coolant Tank - Live Tooling - Sub Spindle - Y Axis Upper Turret - Tool Presetter - Parts Catcher - Parts Conveyor - Bar Feeder Interface
