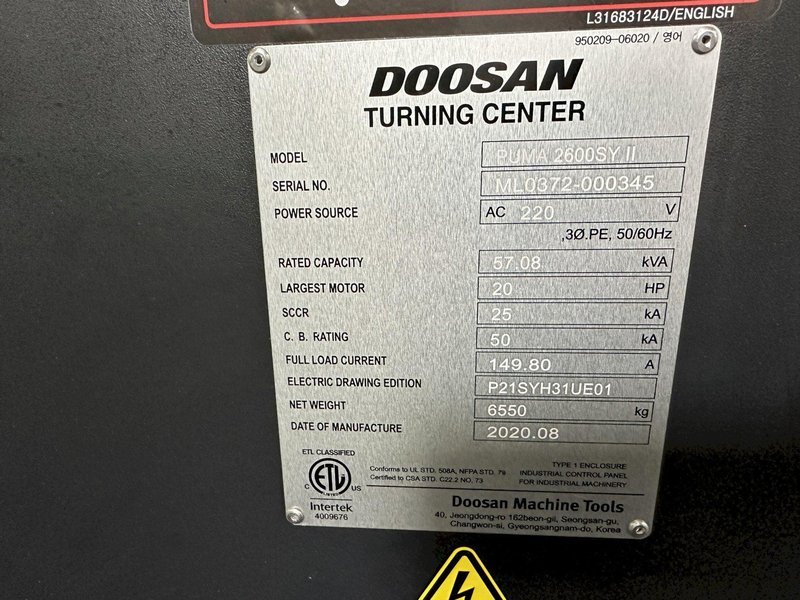

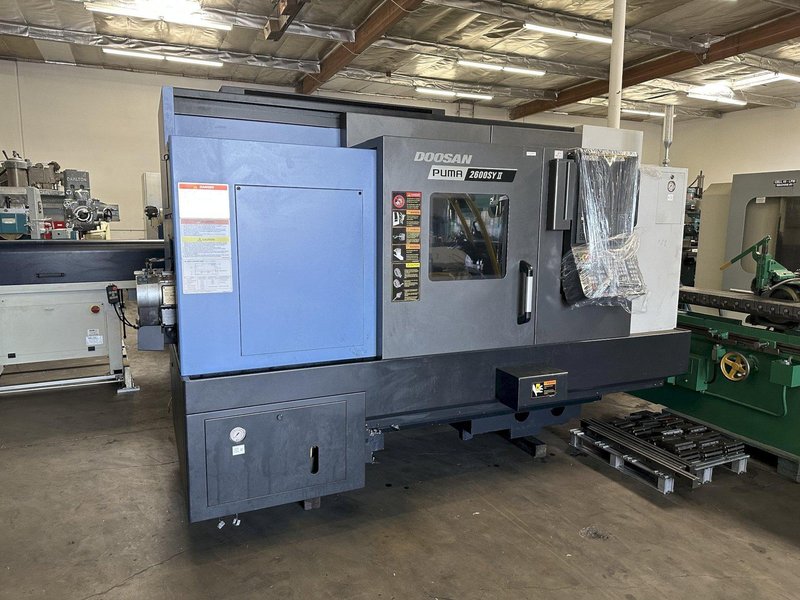

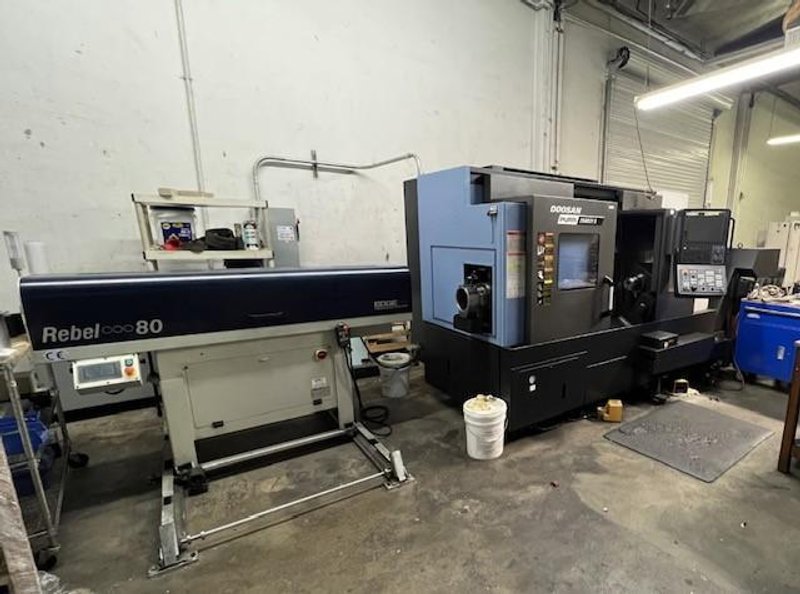

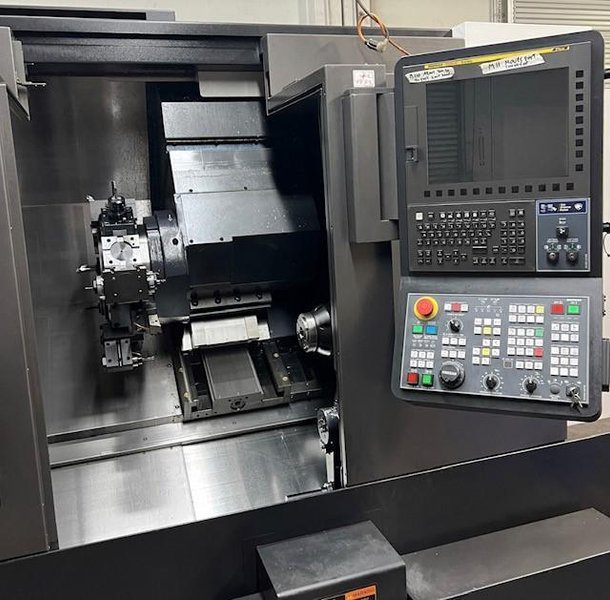

2020 Doosan Puma 2600SY II CNC Universal Turning Center With Milling, Y Axis & Sub Spindle

Capacities

Max Turning Diameter: ⌀376 mm (14.8 in)

Max Turning Length: 760 mm (29.9 in)

Through Hole Diameter: ⌀82 mm (3.2 in)

Travels

Travel Distance X-axis: 260 mm (10.2 in)

Travel Distance Y-axis: 105±52.5 mm (4.1±2.1 in)

Travel Distance Z-axis: 830 mm (32.7 in)

Travel Distance B-axis: 830 mm (32.7 in)

Rapid Traverse X-axis: 30 m/min (1181 in/min)

Rapid Traverse Y-axis: 10 m/min (394 in/min)

Rapid Traverse Z-axis: 30 m/min (1181 in/min)

Rapid Traverse C-axis: 200 rpm

Spindle

Chuck Size: 10 in

Speed: 4,000 RPM

Power: 22 kW (30 HP)

Torque: 599 Nm (442 Ft-Lbs.)

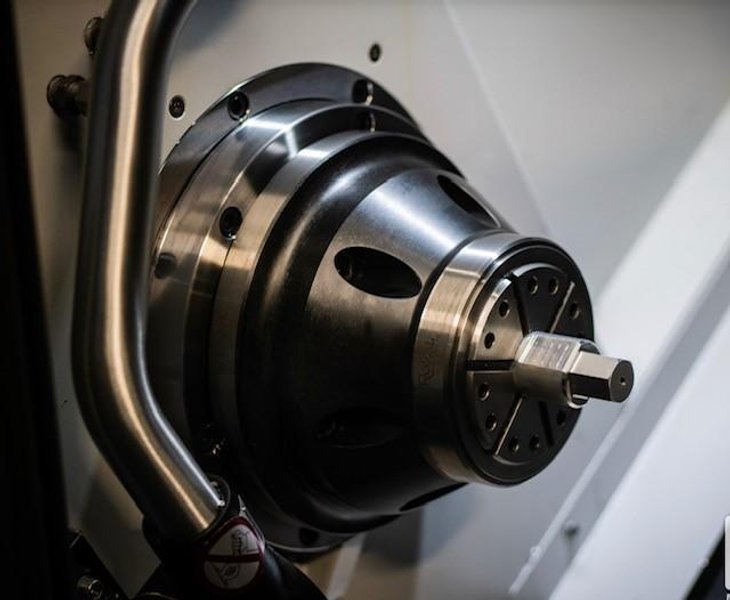

Sub Spindle

Chuck Size: 8 in

Speed: 6,000 rpm

Power: 15 kW (20 HP)

Torque: 134 Nm (98 Ft-Lbs.)

Tooling

Shank: BMT-65

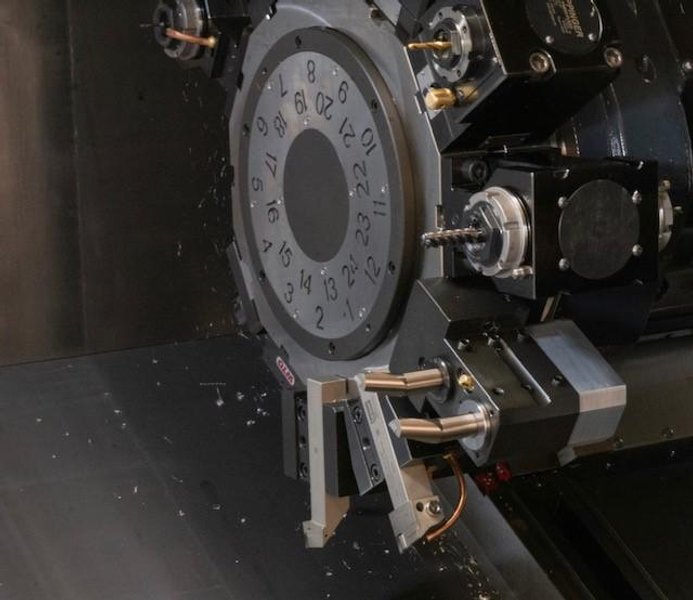

Turret Stations: 24

Boring Bar Diameter: ⌀50 mm (2 in)

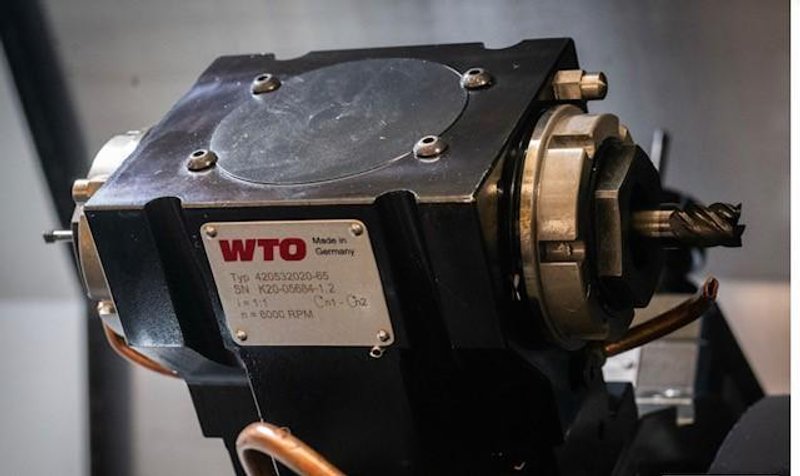

Tooling (Milling):

Rotary Tool Speed: 5,000 RPM

Rotary Tool Power: 7.5 kW (10 HP)

Rotary Tool Torque: 95.5 Nm (70 Ft-Lbs.)

Machine Size & Weight:

Length: 3,600 mm (142 in.)

Height: 2,163 mm (85 in.)

Width: 1,905 mm (75 in.)

Weight: 6,550 kg (14,440 lbs.)

Equipped With

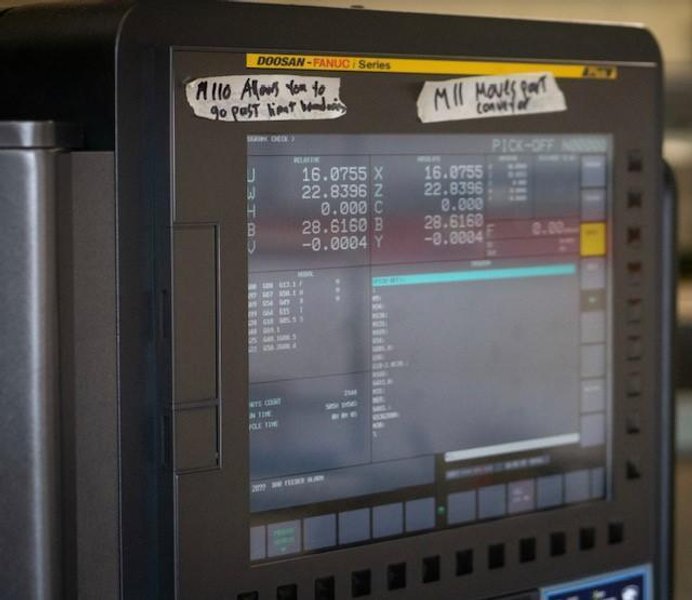

Fanuc OiT Control

Turbo Rear Discharge Conveyor With Rear Coolant Tank

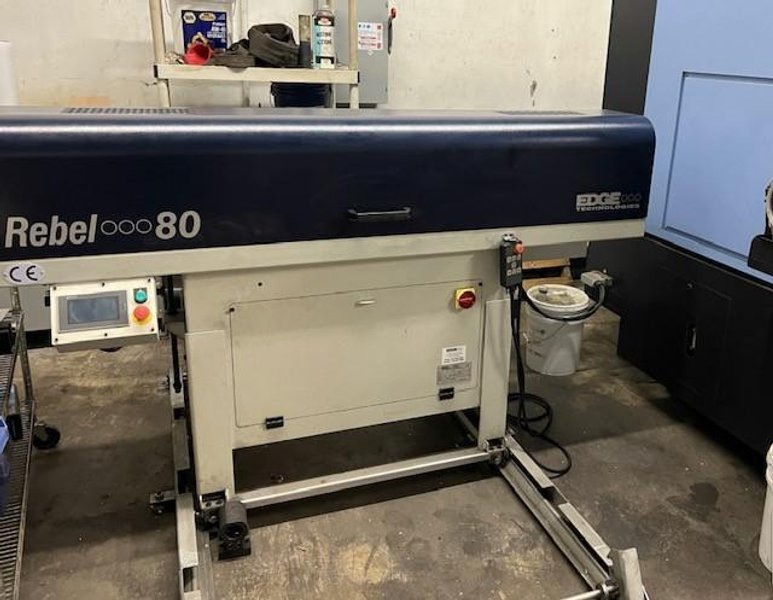

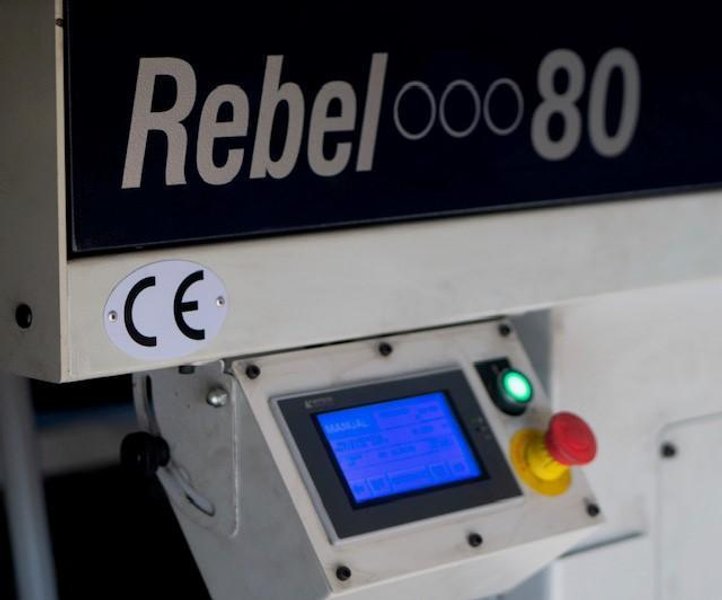

Edge Rebel 80 Slug Load Bar Feed

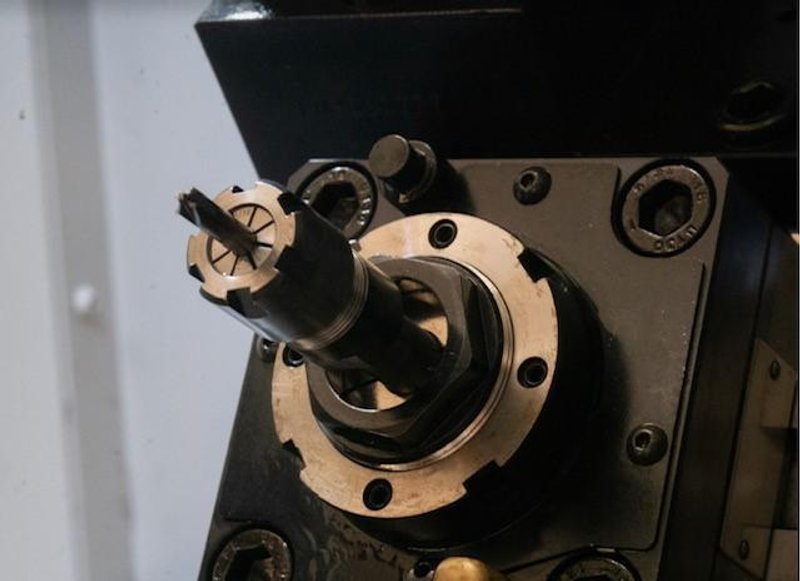

(3) ER32 X-Axis (Straight Milling) Tools

(2) ER-32 Z-Axis (Both Sides Milling) Tools \Manuals

Hand Wrench Set For ER22

Box Guide Ways

Active Thermal Compensation
