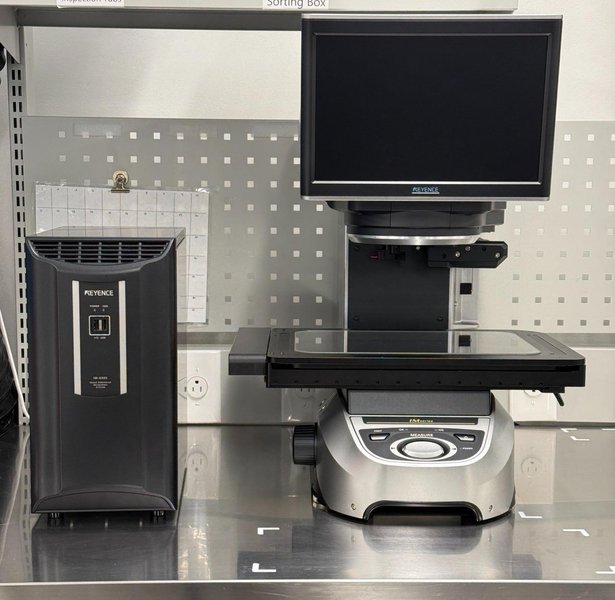

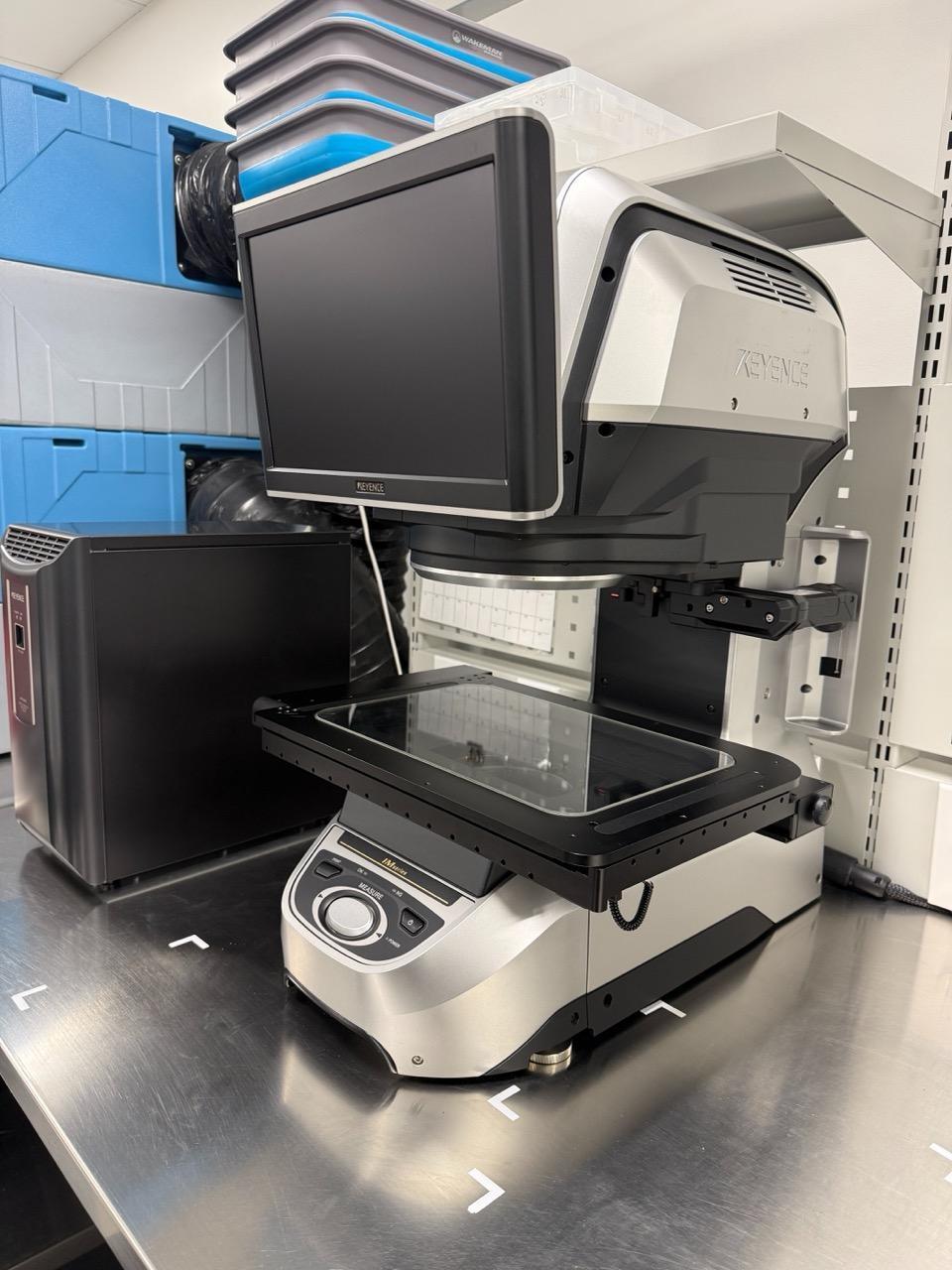

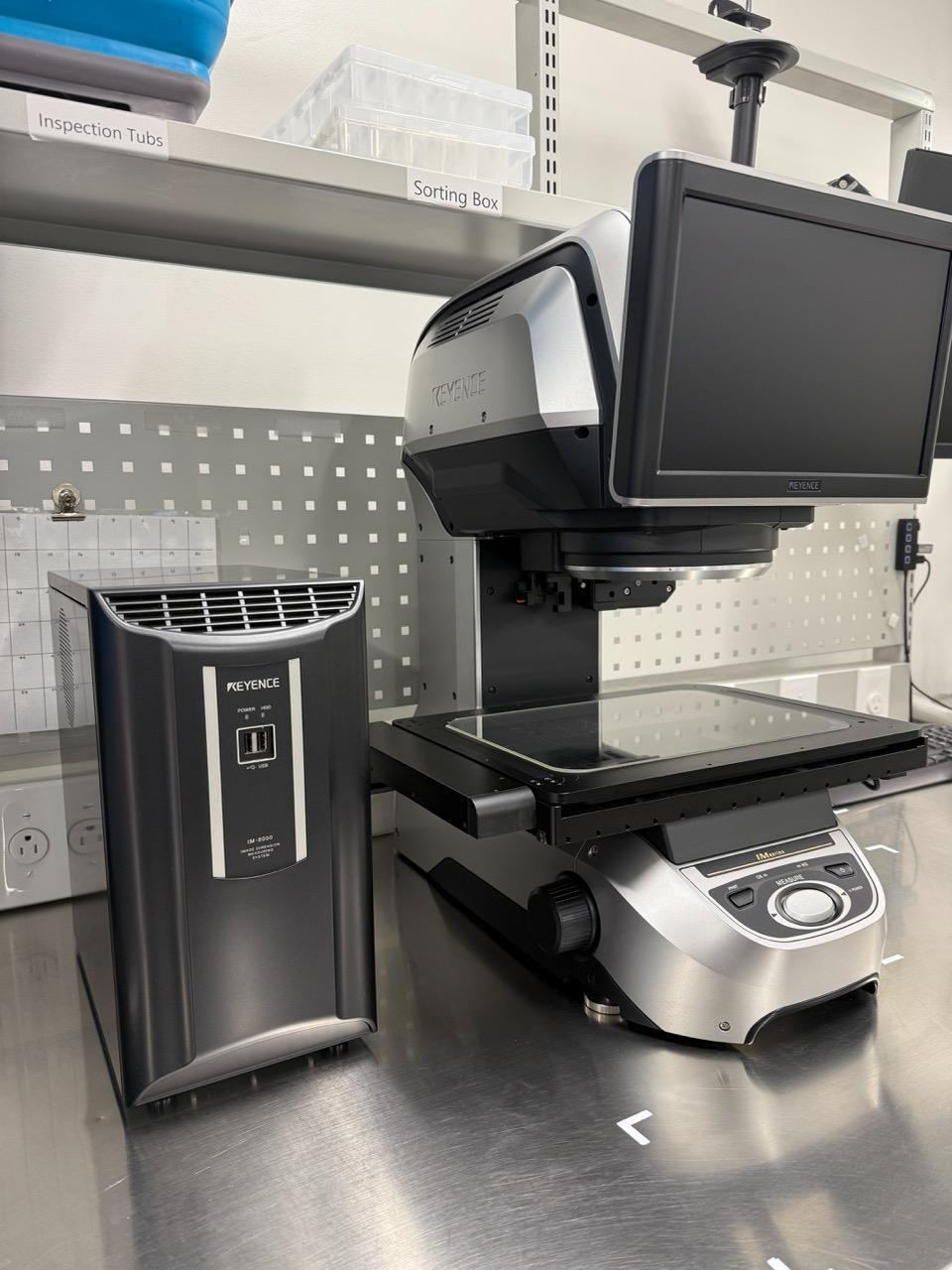

Keyence IM-8030 Image Dimension Measurement System, 2023

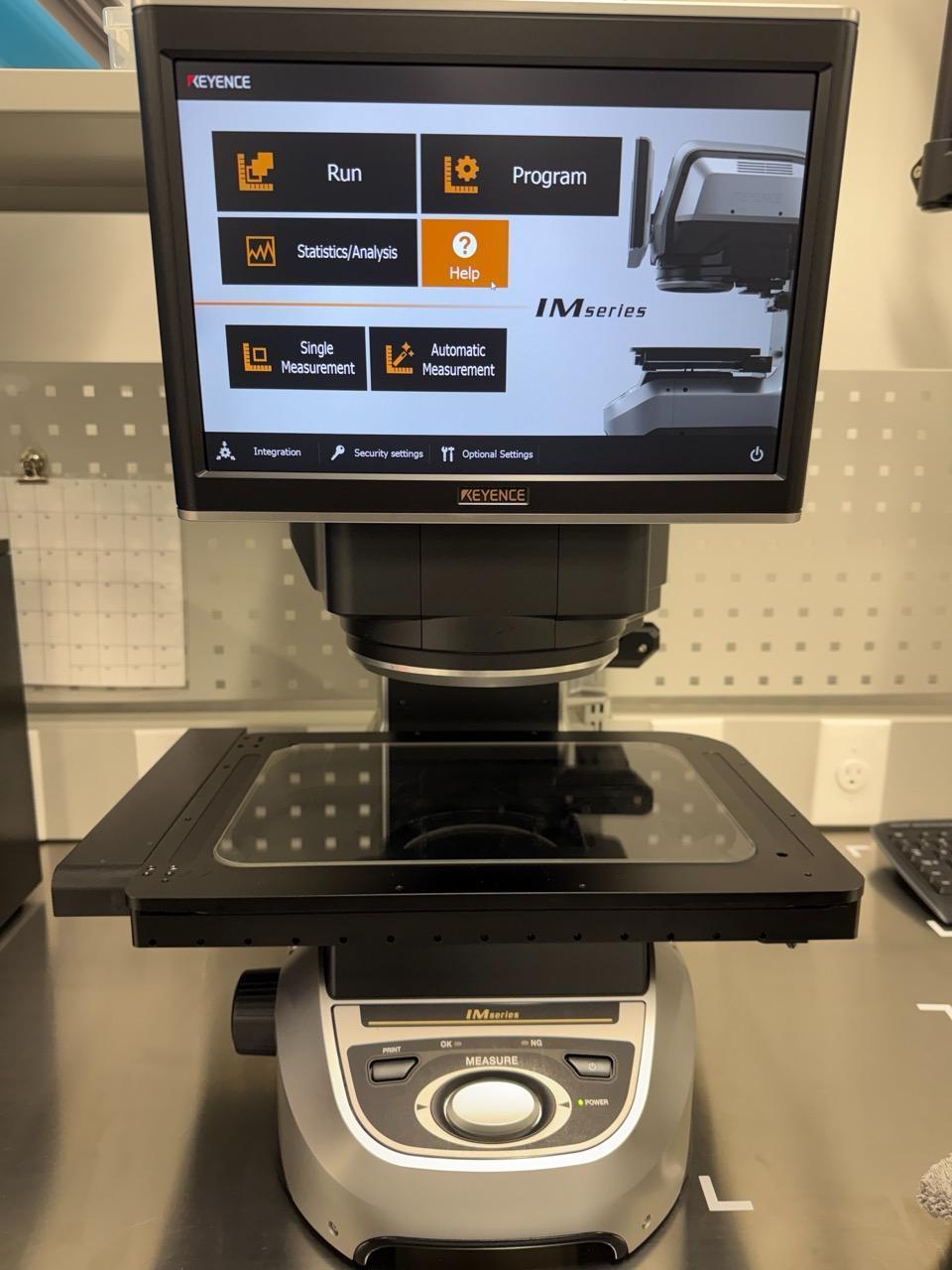

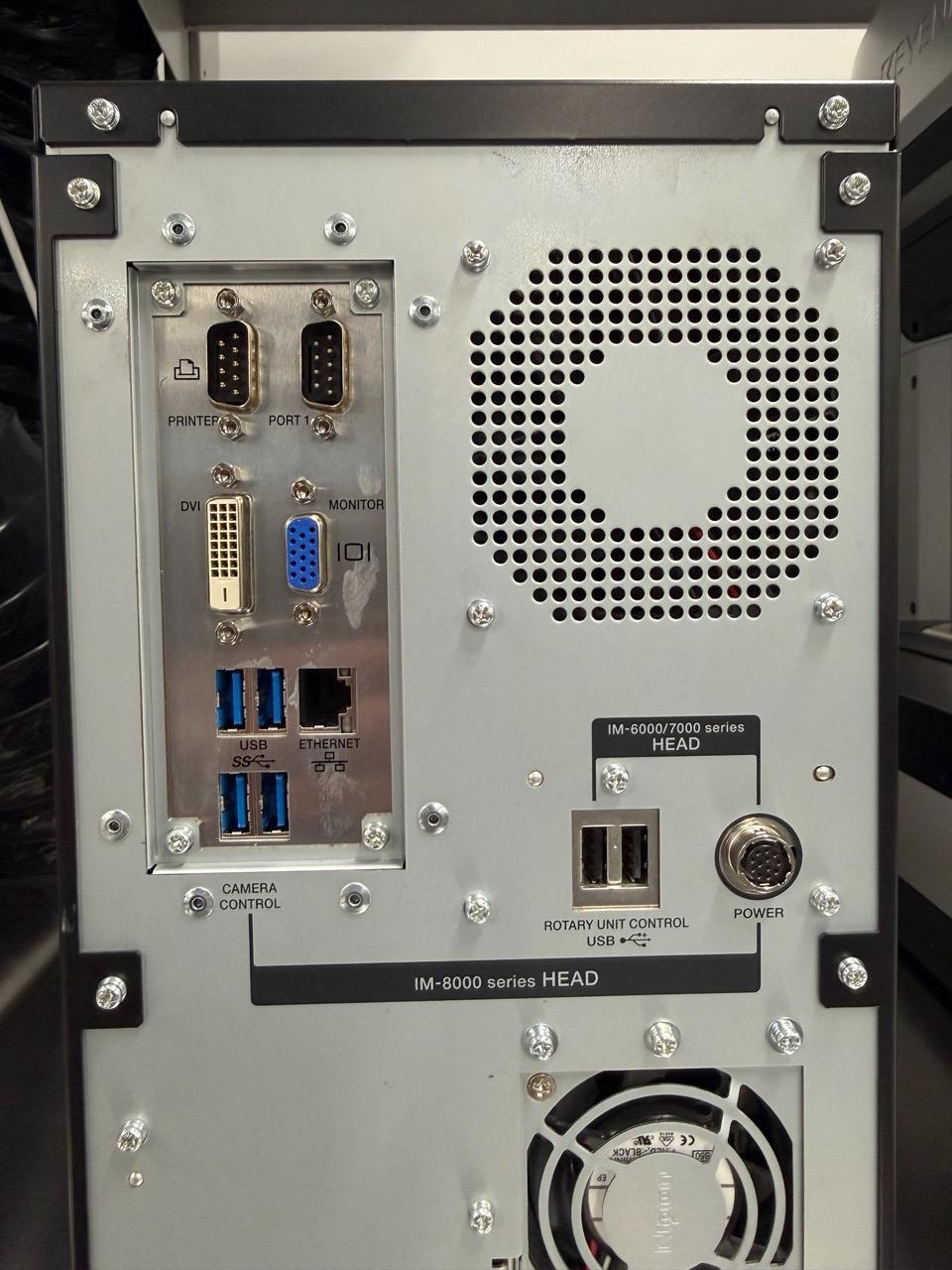

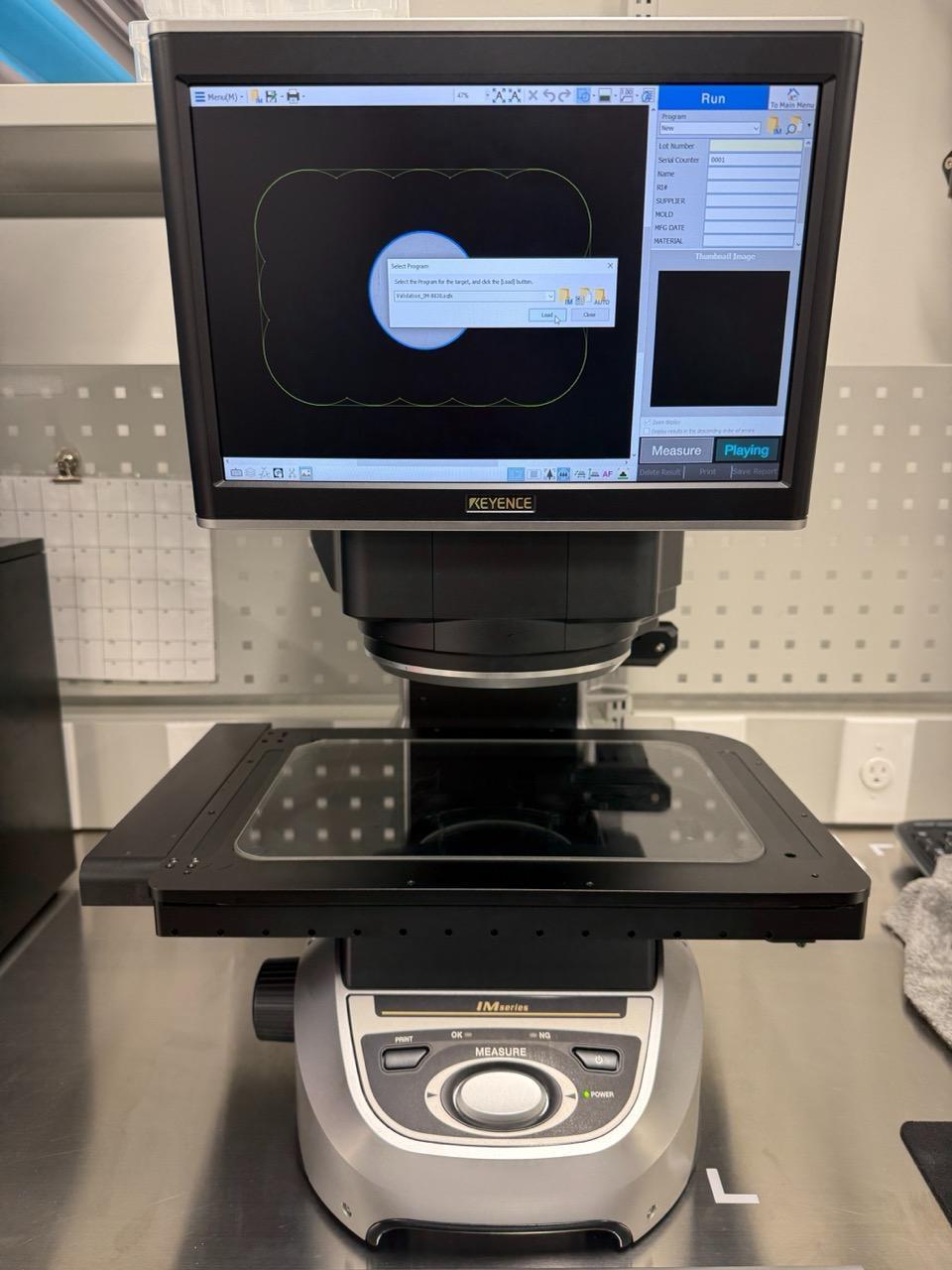

Wide-Field View Measurement Area: 11.81″ × 7.87″ High-Precision View Measurement Area: 8.86″ × 4.92″ Minimum Display Unit: 0.000004″ (0.004 mil) XY Stage Travel: 7.87″ × 3.94″, motorized Z Stage Travel: 2.95″, motorized Stage Load Capacity: 16.5 lbs Light Probe Measurement Area: 7.48″ × 3.54″ Light Probe Diameter: Ø0.118″ Light Probe Maximum Depth: 1.18″ Light Probe Measuring Force: 0.054 ozf Light Probe Repeatability: ±0.000079″ Head Weight: ~72.8 lbs Controller Weight: ~17.6 lbs Display: 12.1″ LCD Display Resolution: WXGA, 1280 × 800 Hard Drive: 500 GB LAN: RJ-45, 10/100/1000BASE-T USB 3.1: 4 ports — rear USB 2.0: 4 ports — 2 front / 2 rear Monitor Output: DVI-D External Input: Non-voltage input External Output: OK / NG / FAIL / MEAS Power Supply: 100–240 VAC ±10%, 50/60 Hz Power Consumption: ≤430 VA Operating Temperature: 50–95 °F Humidity: 20–80% RH, non-condensing

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
