Cutting capacity @ 90°: 20″ H × 25″ W
Capacity @ 45°: 20″ × 17″
Capacity @ 60°: 20″ × 11.25″
Column tilt: 0–60° left/right, 3° canted
Blade size: 1.25″ × 0.042″ × 17′‑6″
Blade speed: 50–475 FPM
Feed force: 0–350 lbs
Blade tension: Hydraulic, up to 45,000 PSI
Vises: Hydraulic, full stroking; optional 60° faceplates
Index length: 24″ shuttle stroke
Wheel diameter: 23″ cast iron
Coolant capacity: 60 gallons

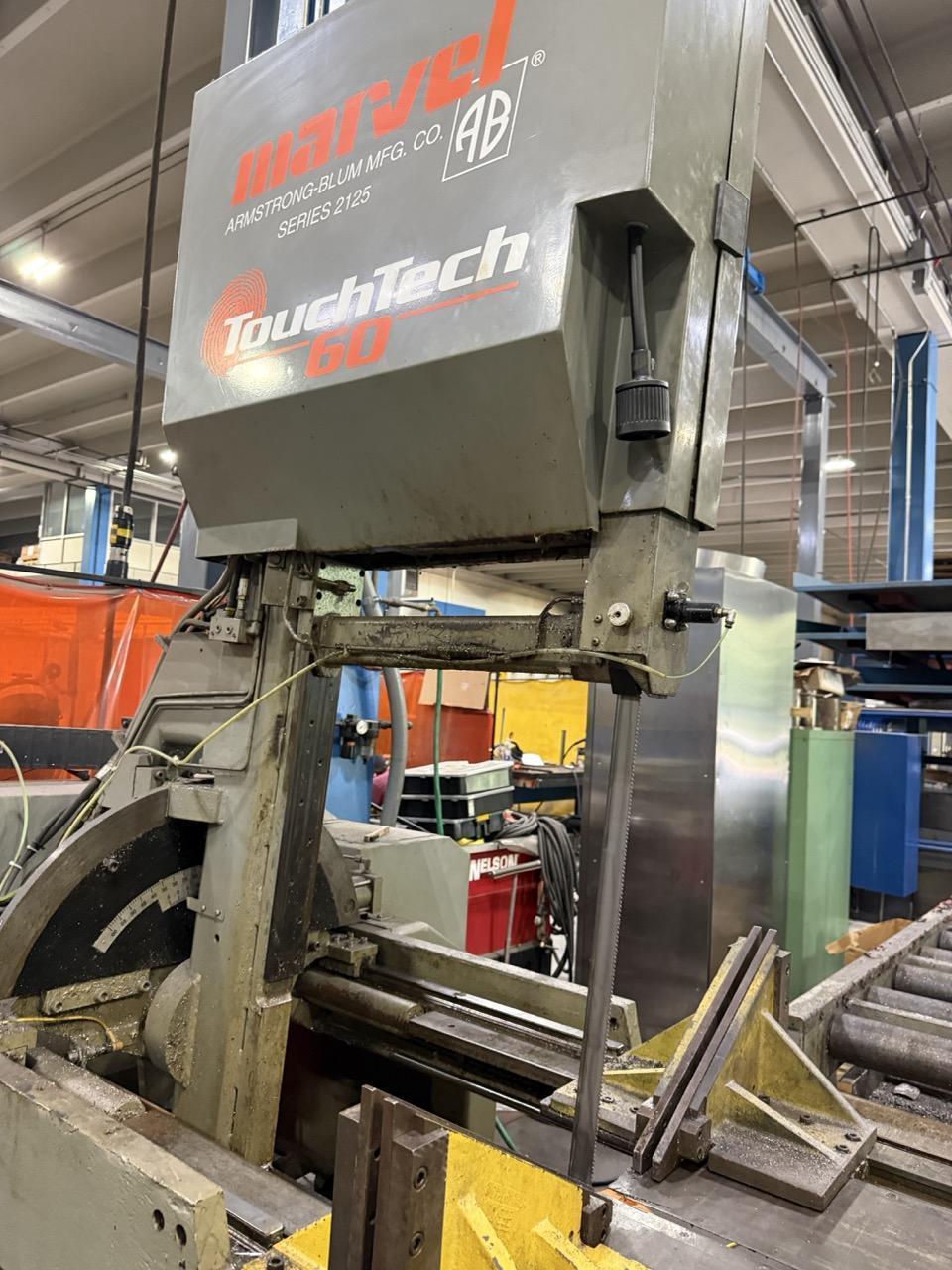

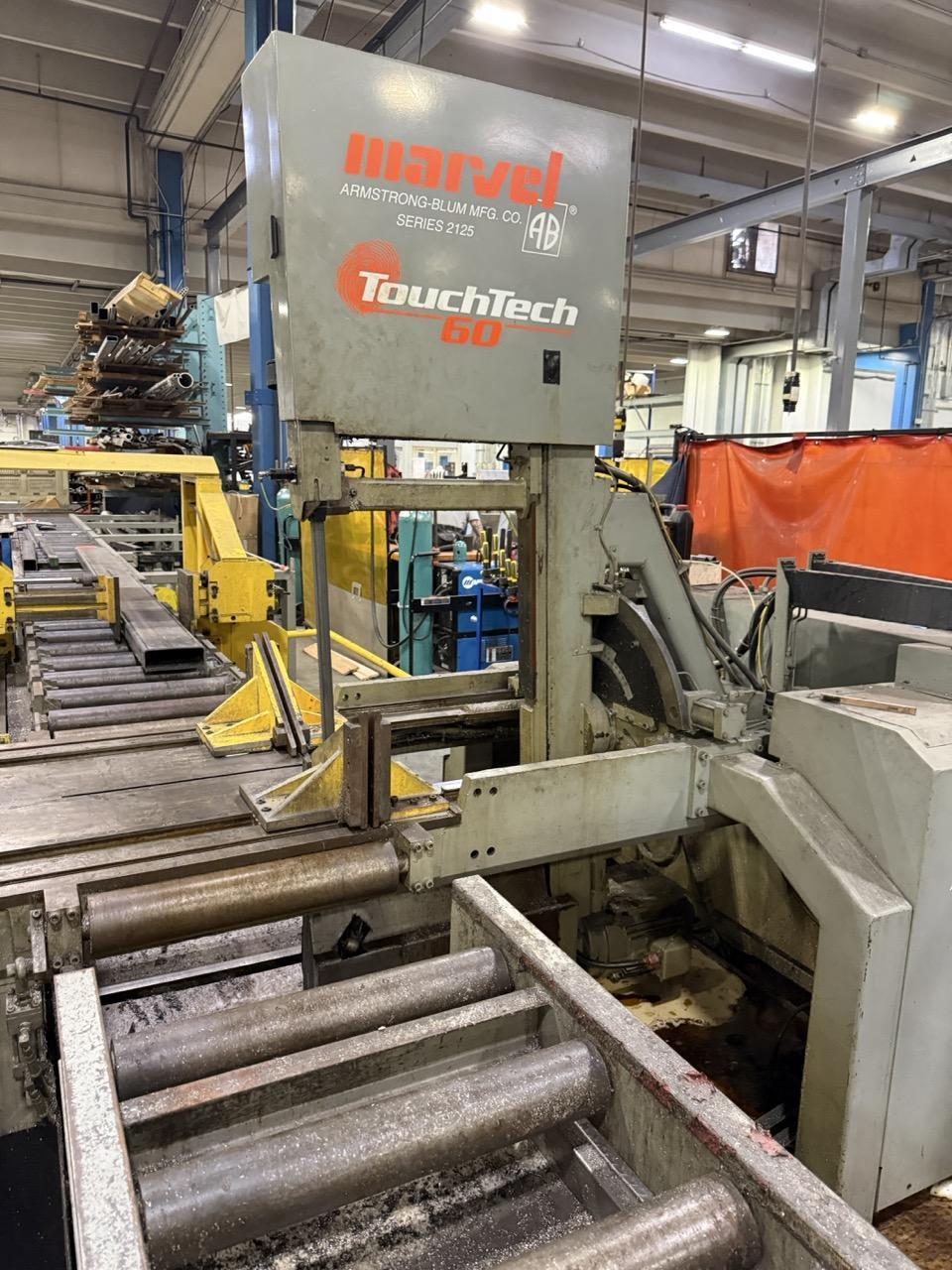

Control system: Marvel PCII / TouchTech 60
Drive motor: 15 HP (approx.)
Hydraulic motor: 3 HP
Weight: 9,000–10,000 lbs depending on options

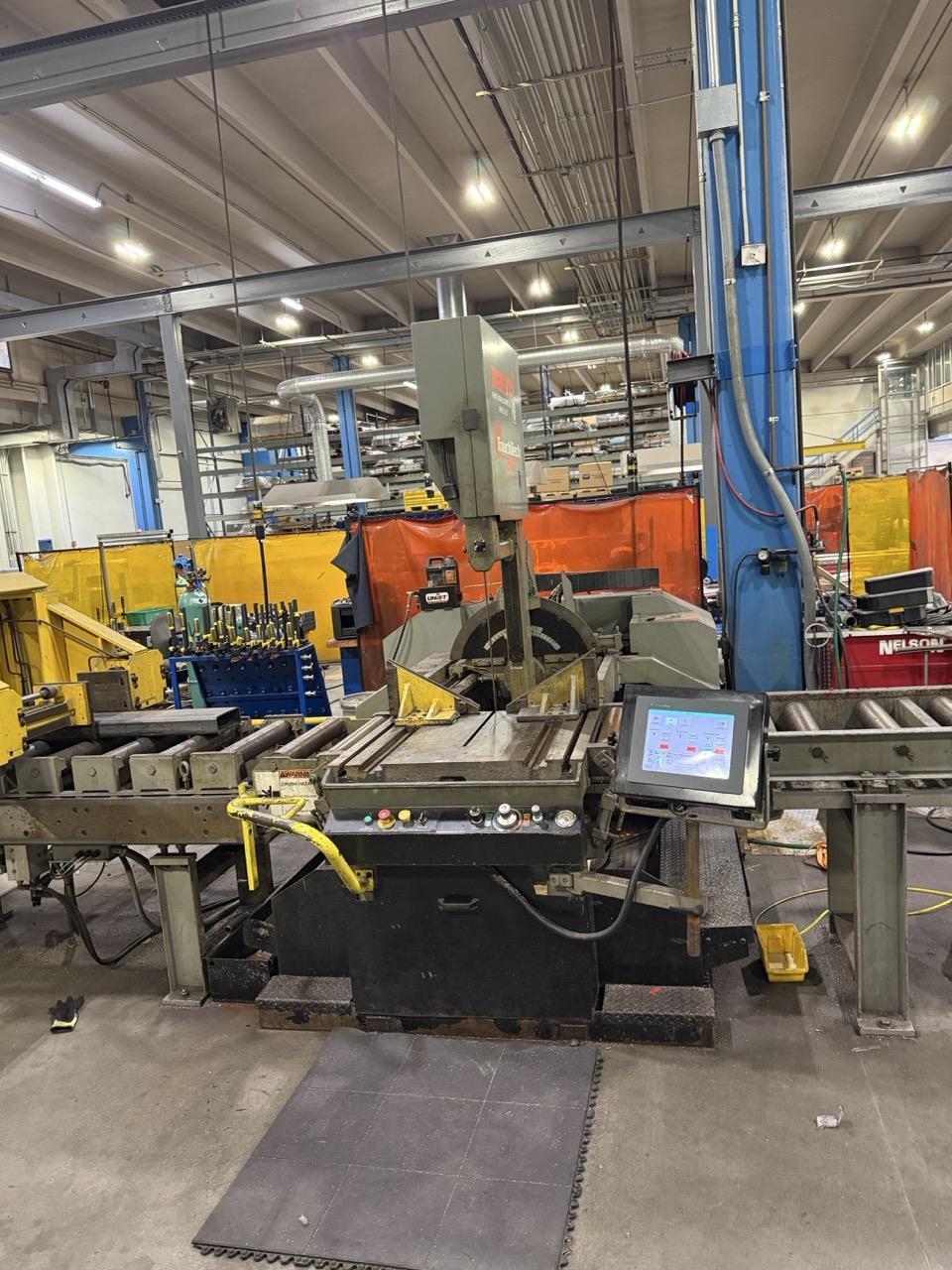

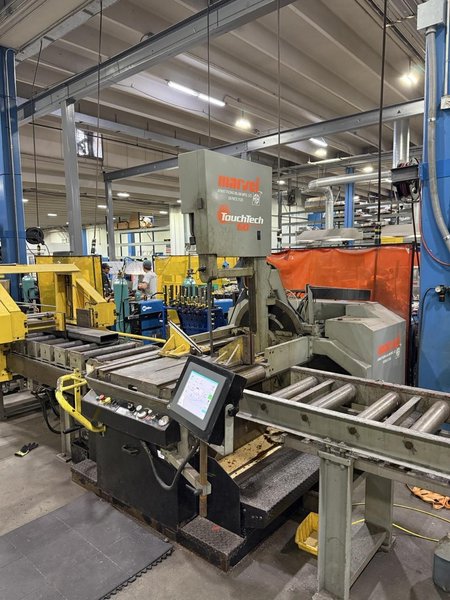

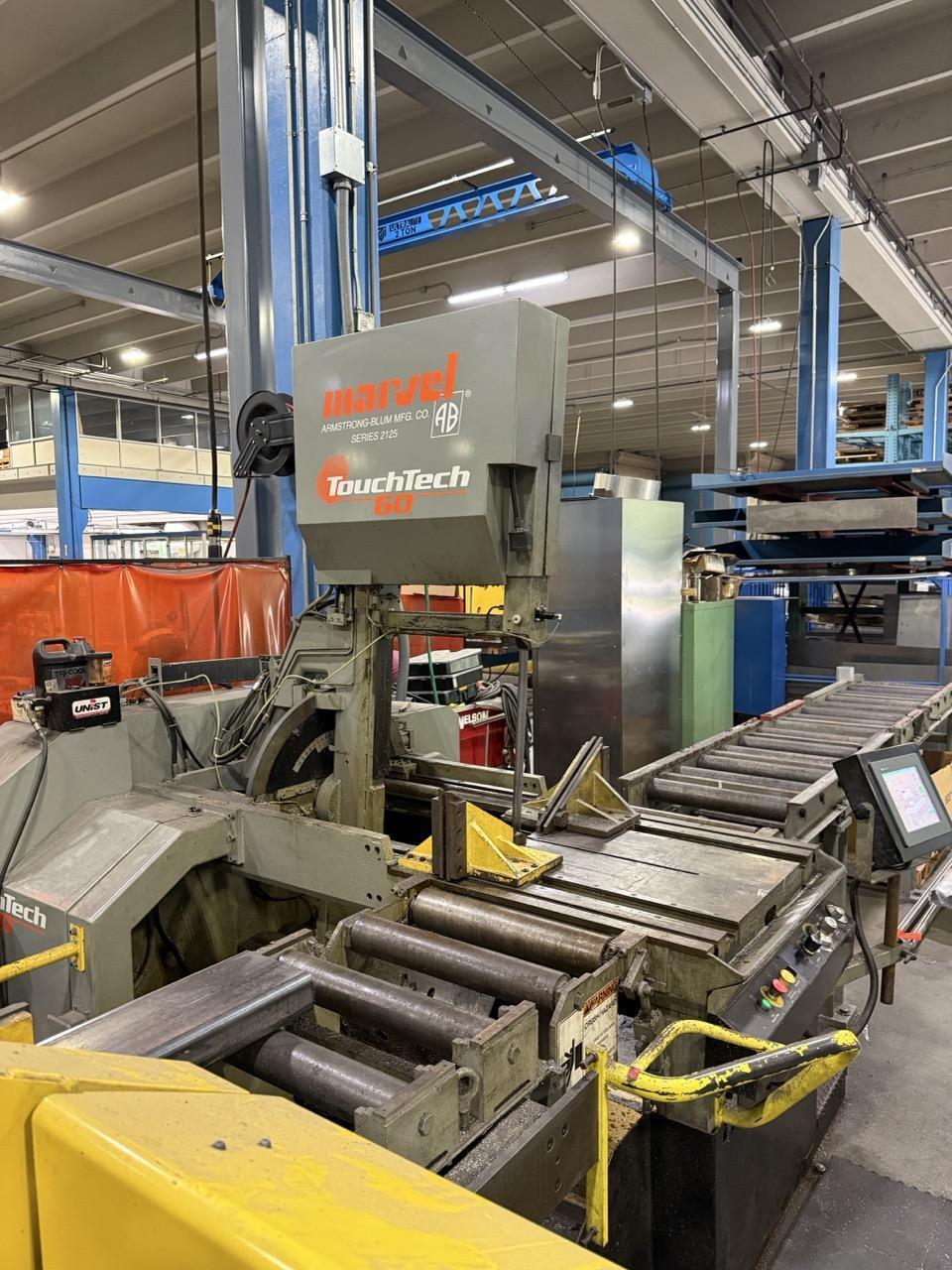

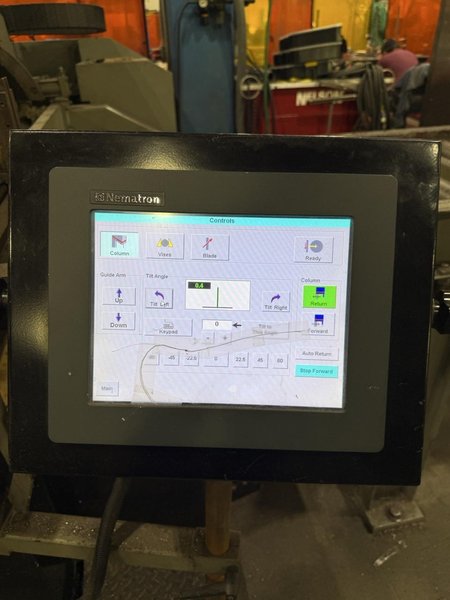

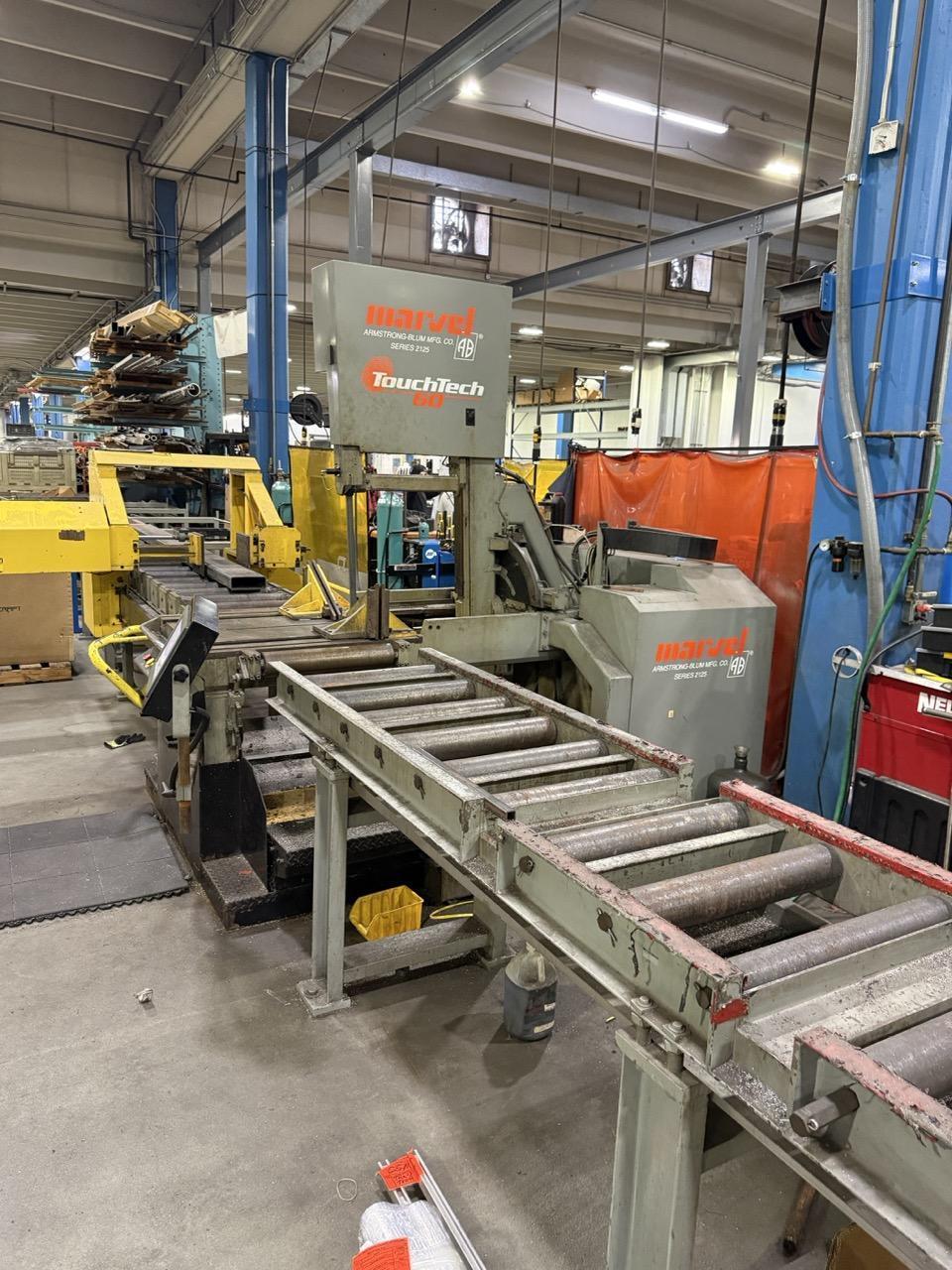

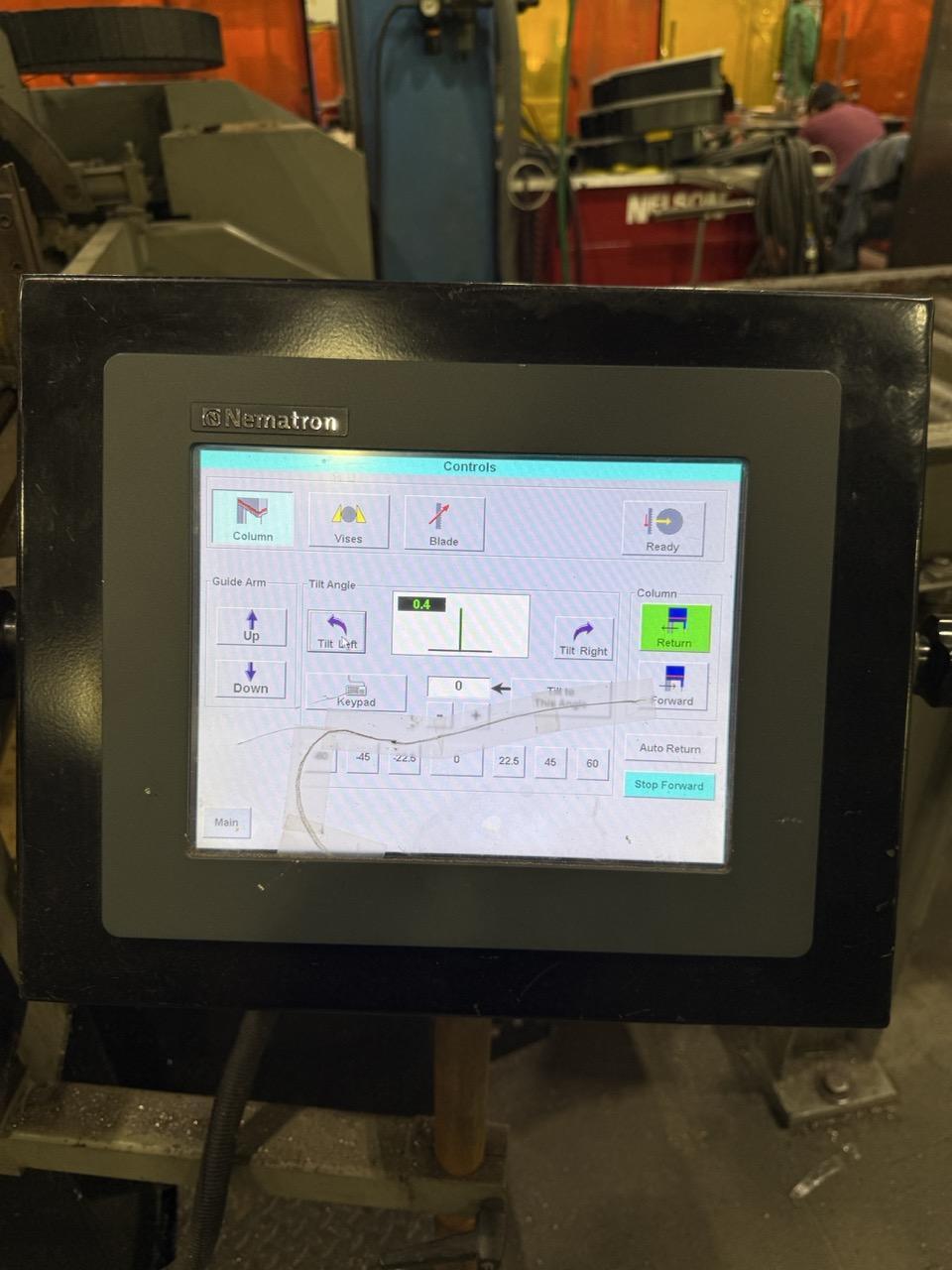

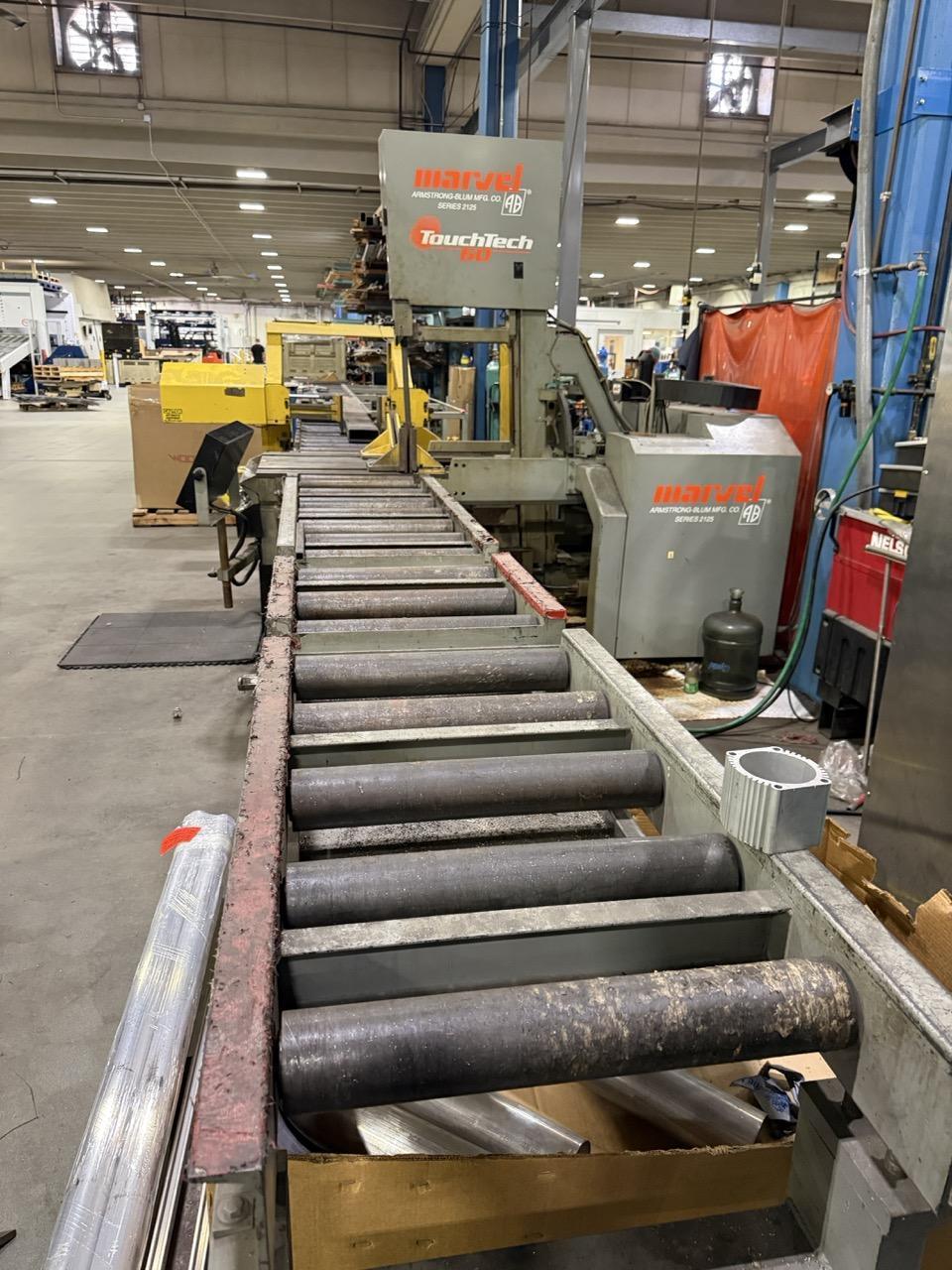

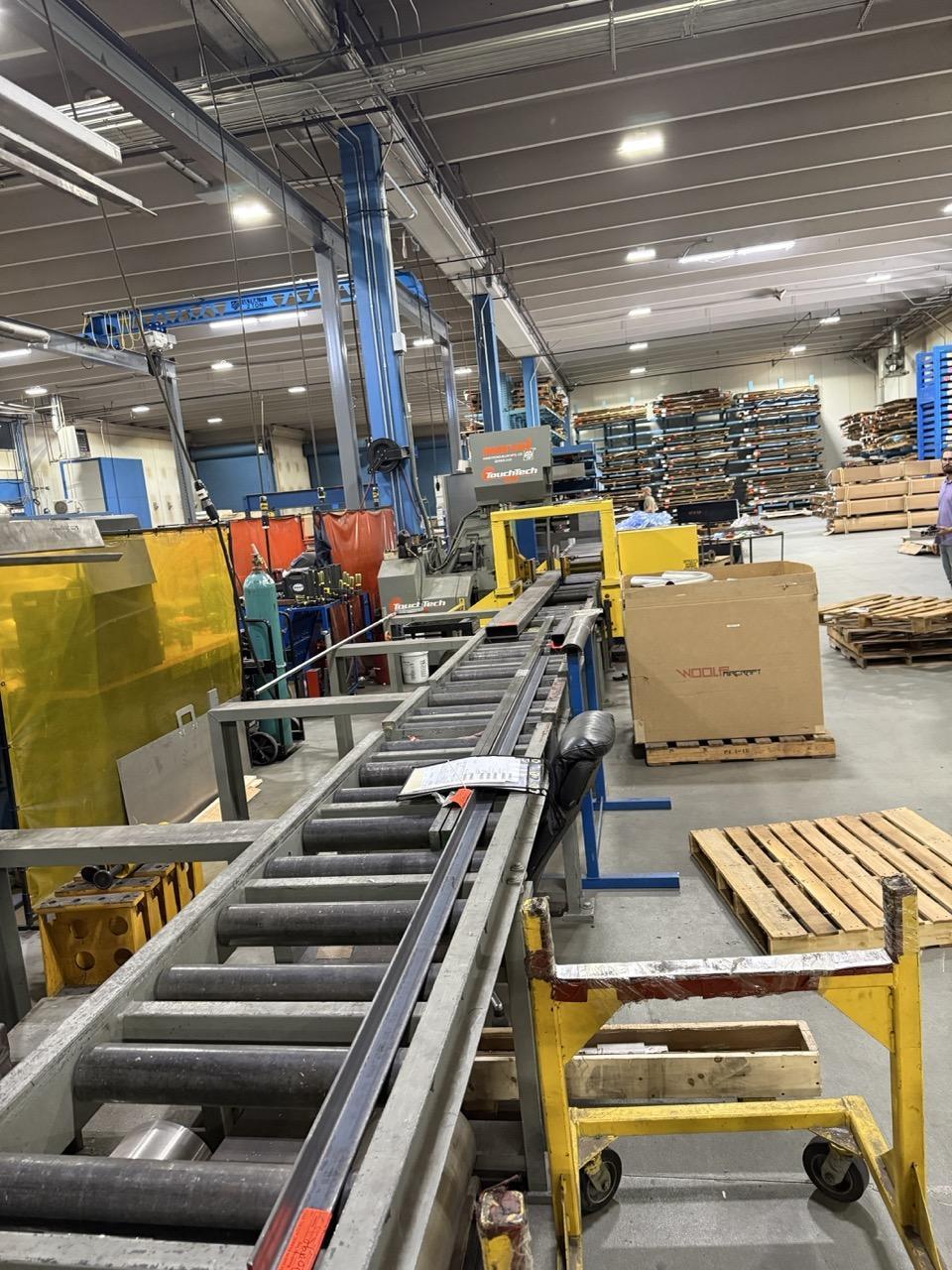

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Equipped with: Full Auto indexing automatic feed In feed out feed conveyors as seen in photos All specifications are assumed to be correct but must be confirmed by the purchasing entity.,* machine is operated by a wireless mouse Touchscreen component does not work. All functions of the saw work the same.* All specifications are assumed to be correct but must be confirmed by the purchasing entity. |
