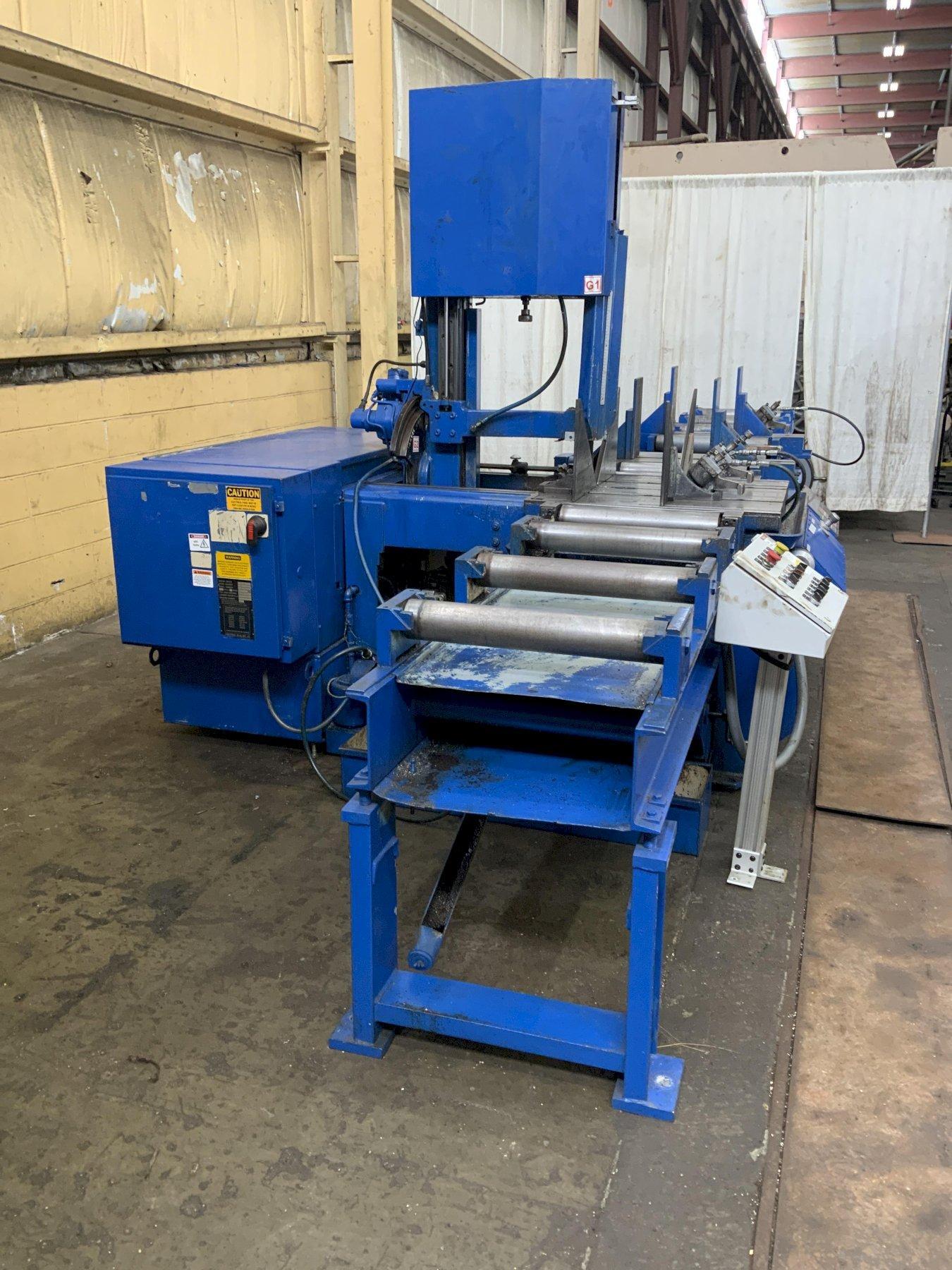

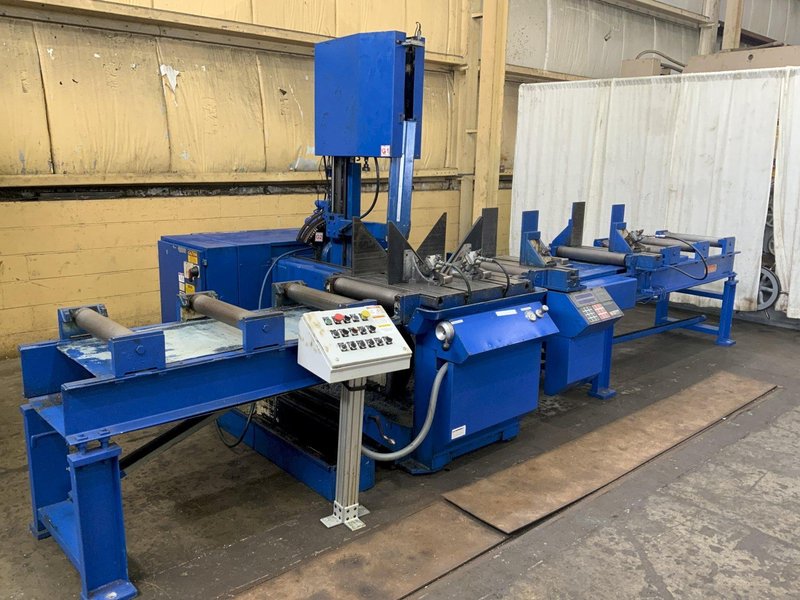

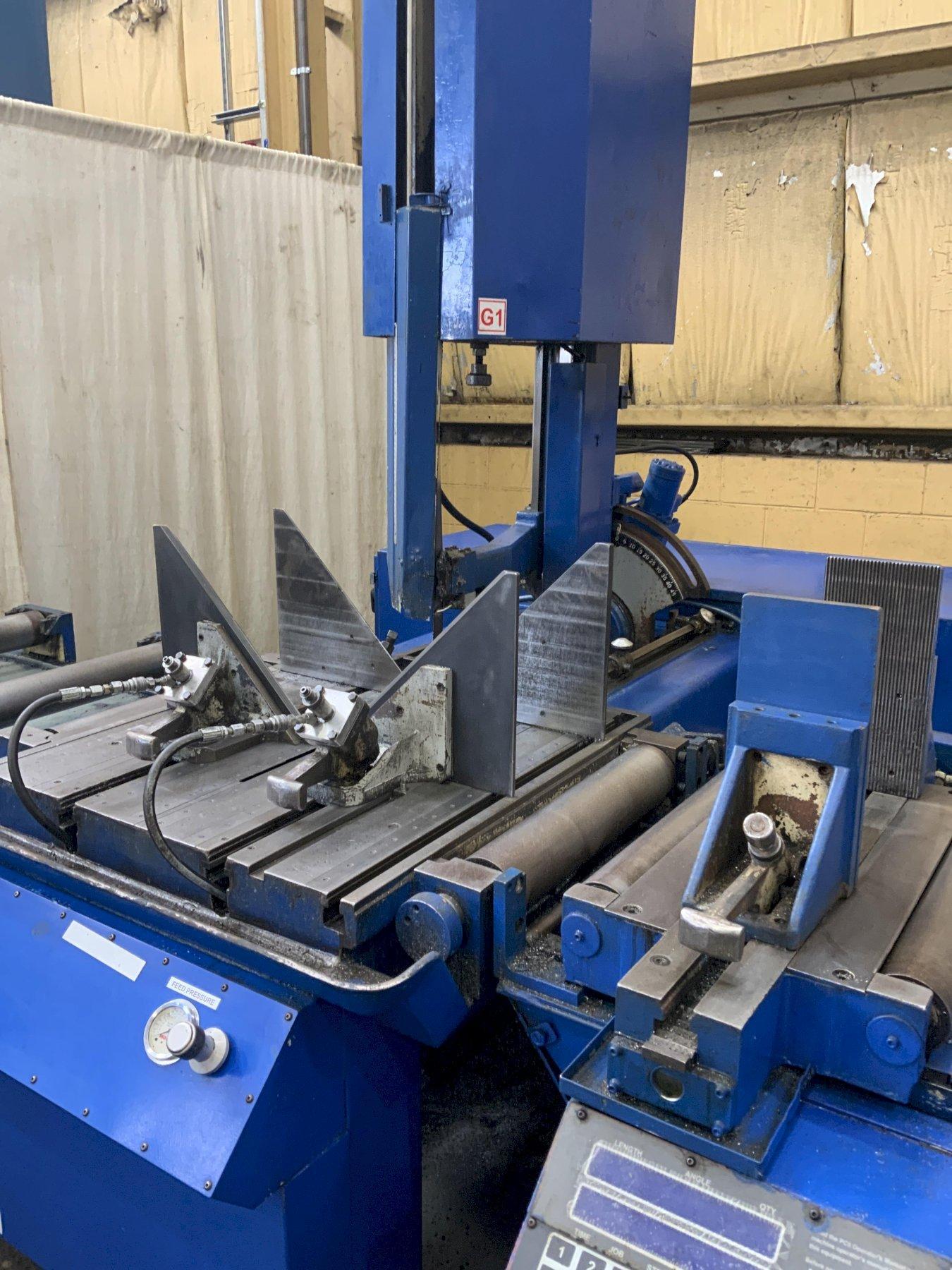

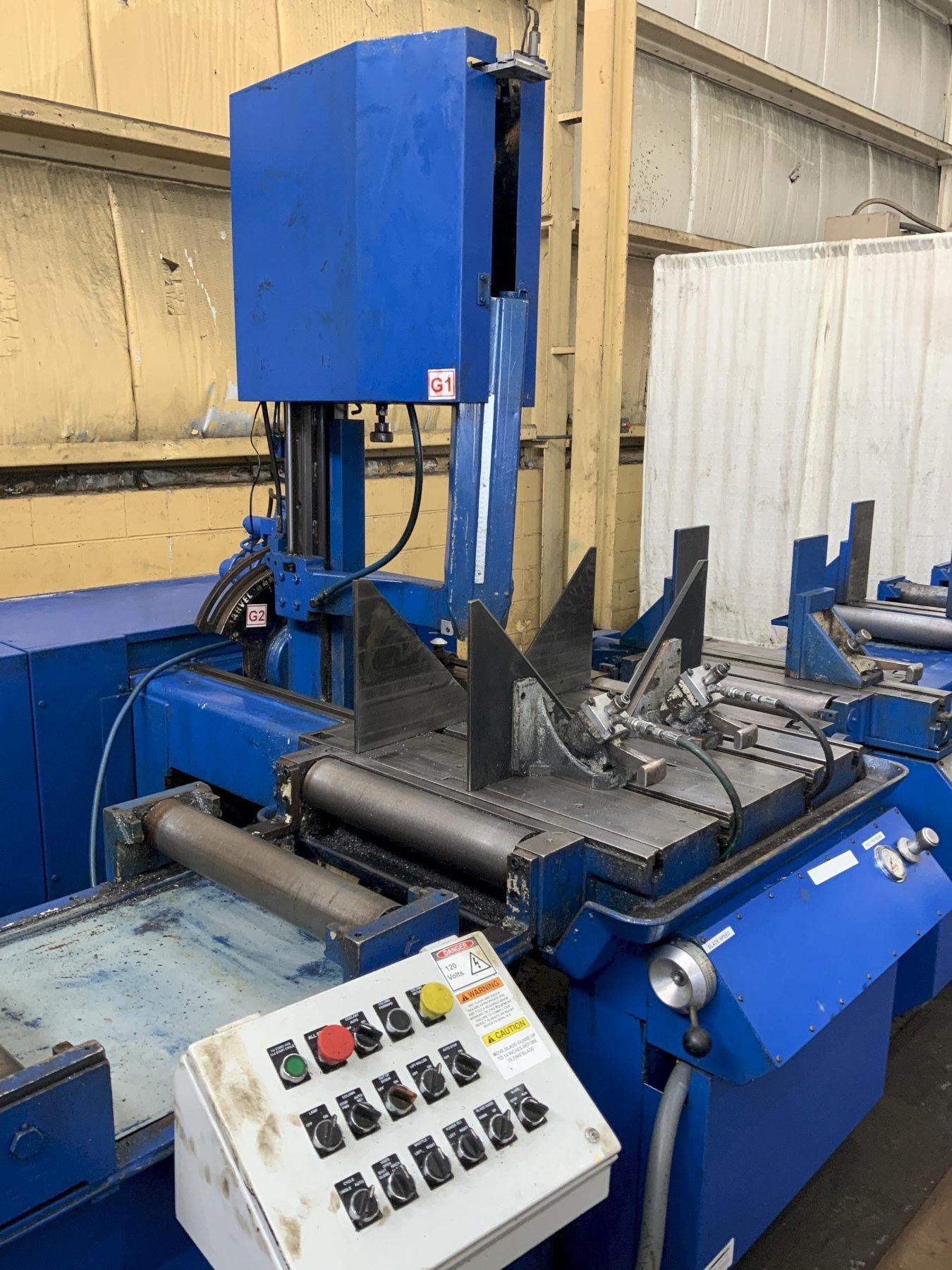

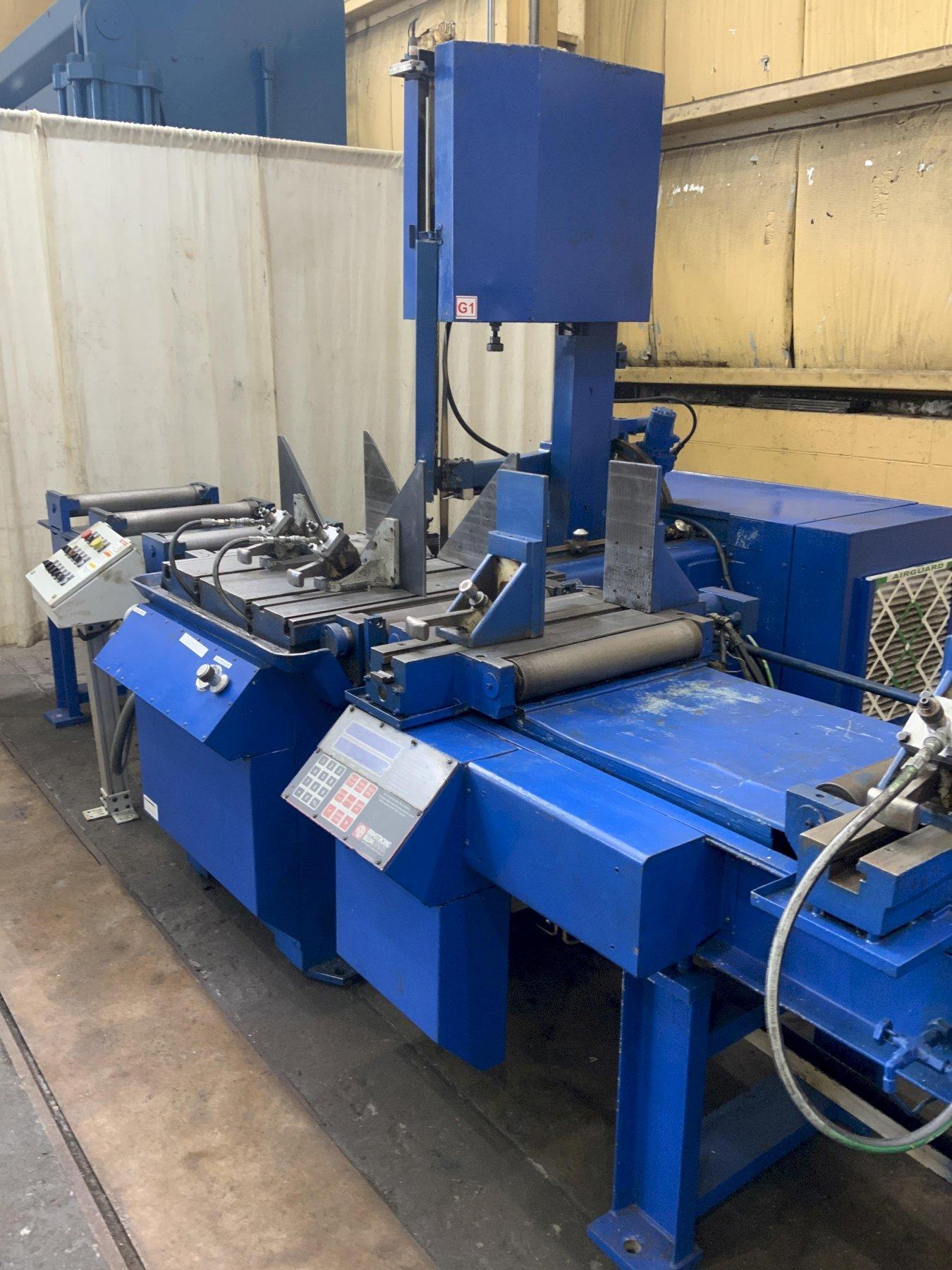

18" X 20" MARVEL MODEL #81APC II VERTICAL BAND SAW: STOCK #80861

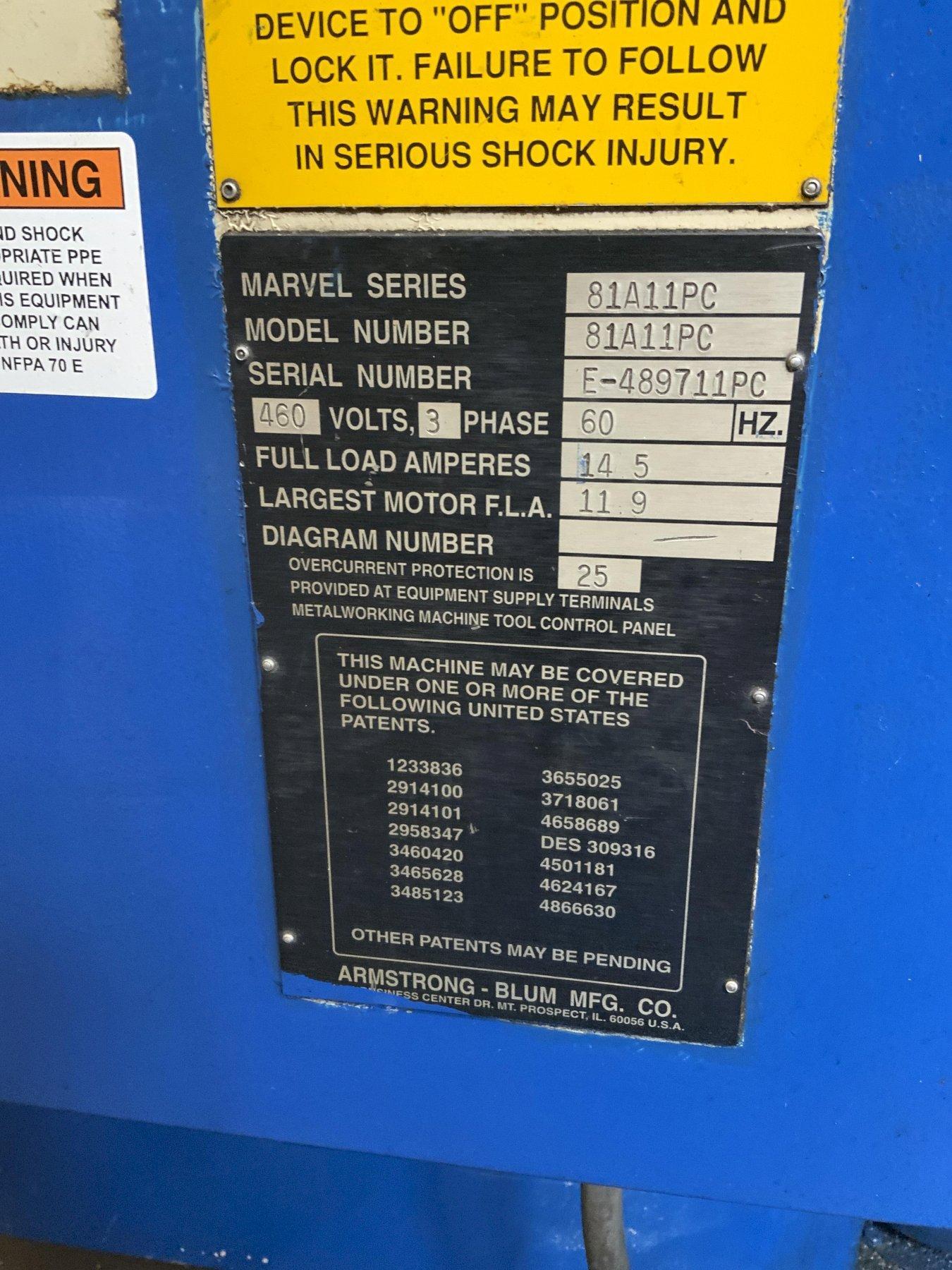

SERIAL ............................ E489711PC

MODEL ............................. 81A11PC

YEAR NEW .......................... 19

CAPACITY .......................... 18" X 20" (18" ROUNDS)

CAPACITY AT 45 DEGREES ............ 18" X 13" (13" ROUNDS)

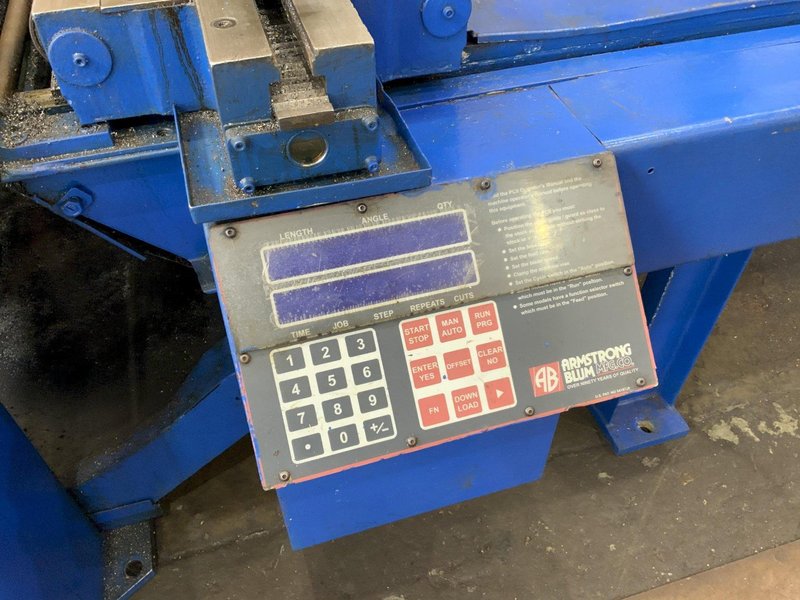

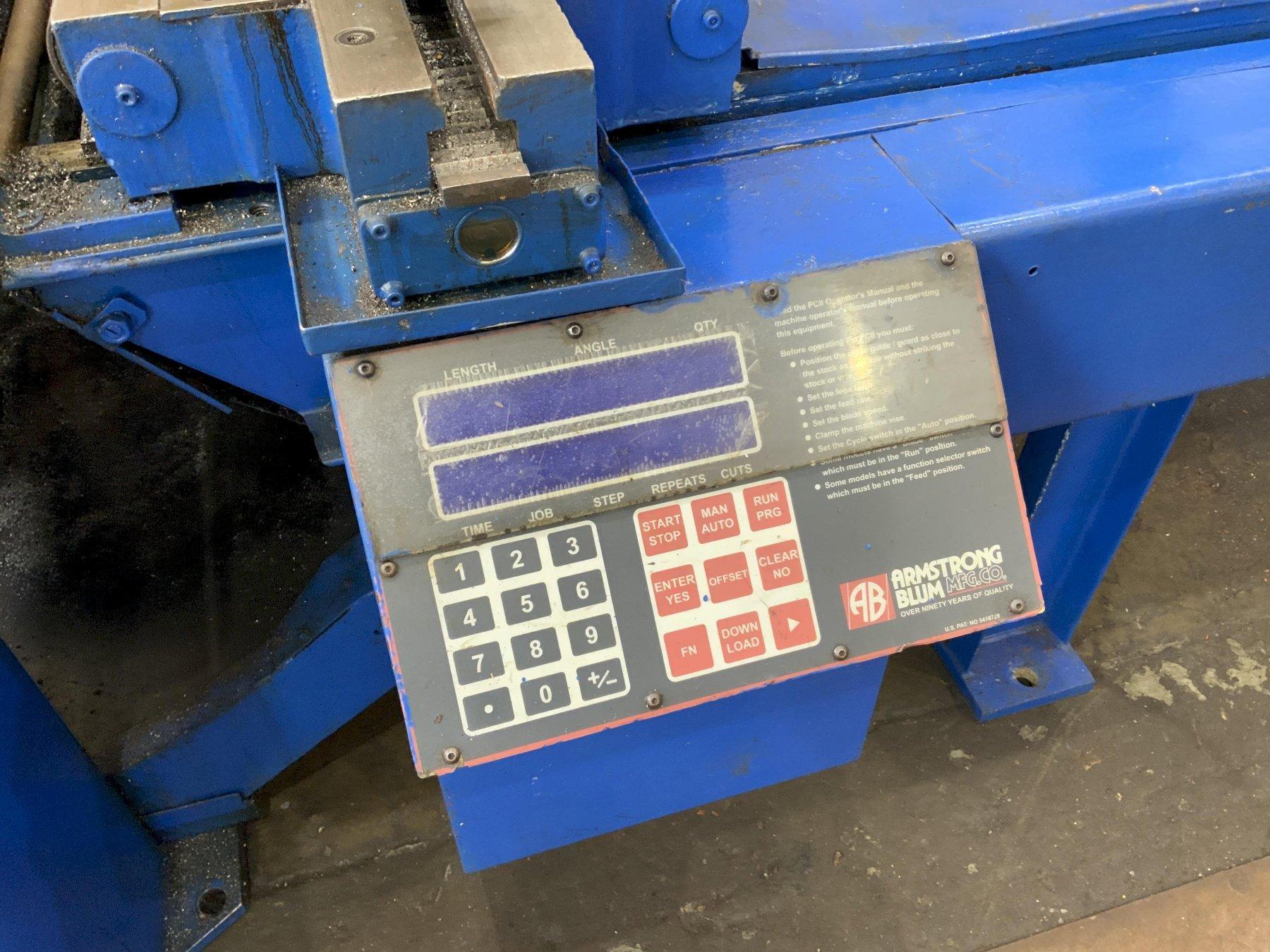

PROGRAMMABLE STOCK FEED ........... YES

BLADE SPEEDS ...................... 60 TO 400 FPM (VARIABLE)

POWER FEED TO HEAD ................ 0# TO 300#

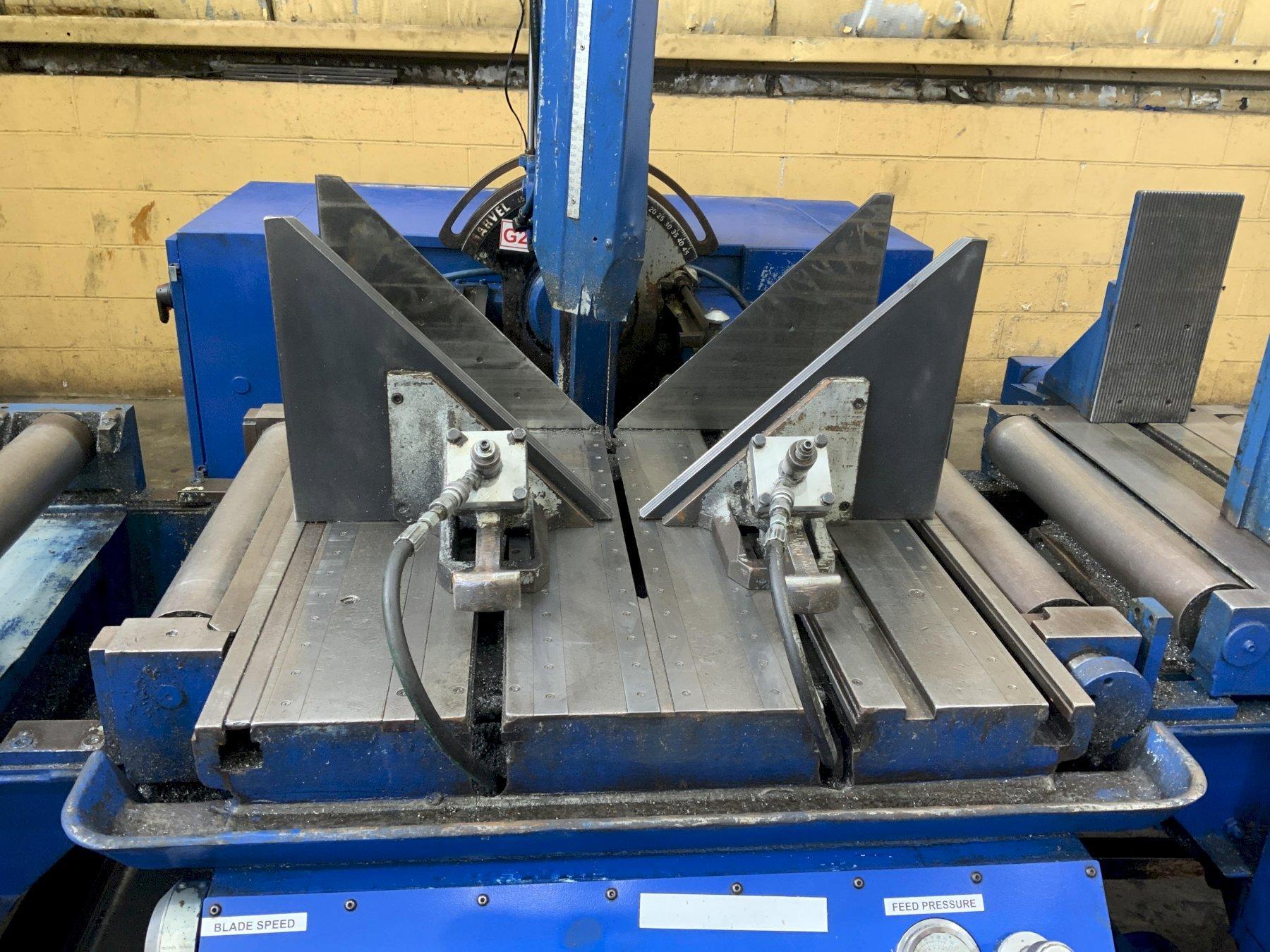

DUAL HYDRAULIC VISES .............. YES

HEAD TILTS 45 DEGREES ............. RIGHT AND LEFT POWERED

LENGTH OF BLADE ................... 14'6" X 1-1/4"

HYDRAULIC TILT .................... YES

HYDRAULIC BLADE GUIDE ............. YES

WORKING SURFACE OF TABLE .......... 30" X 33"

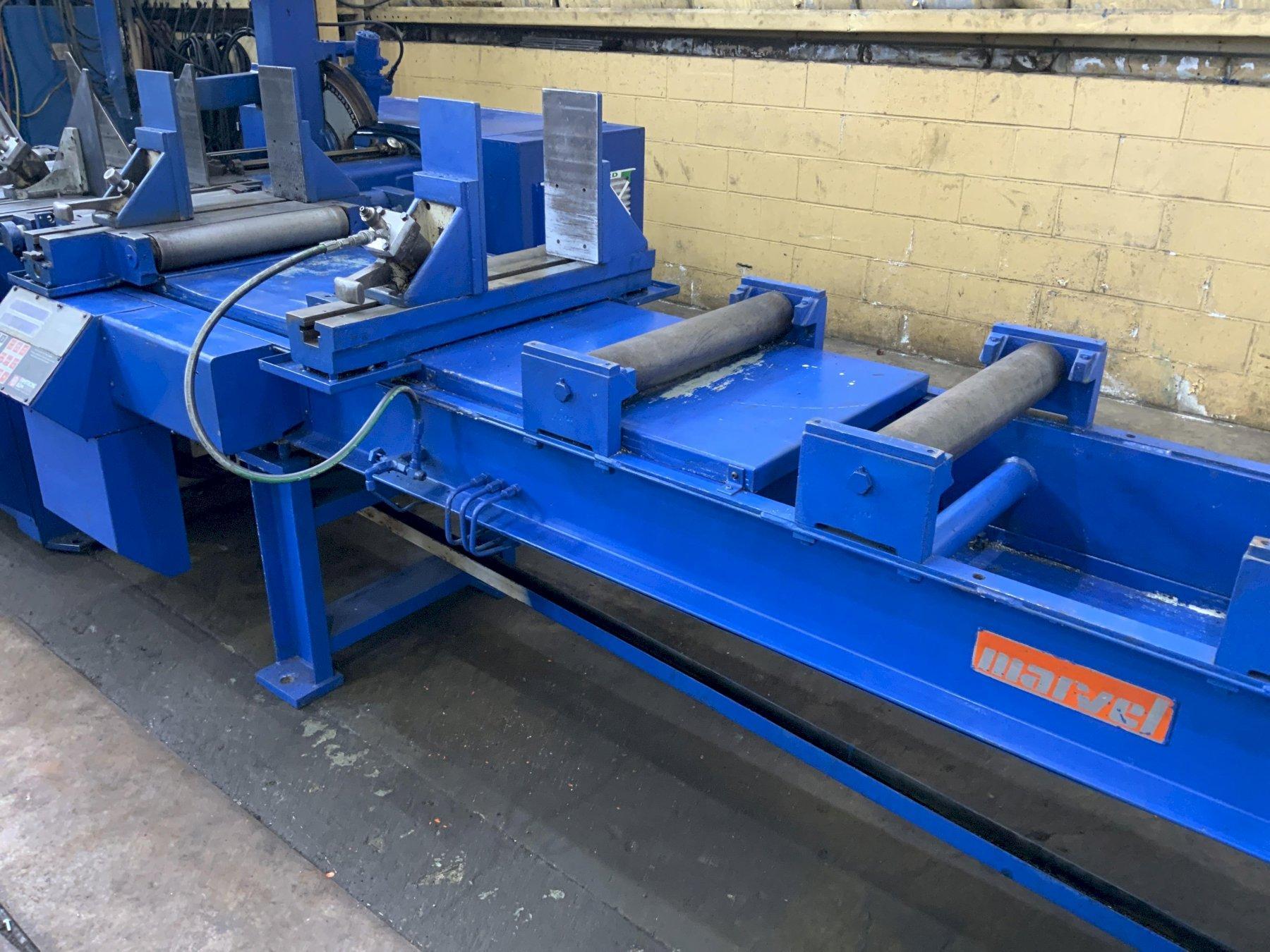

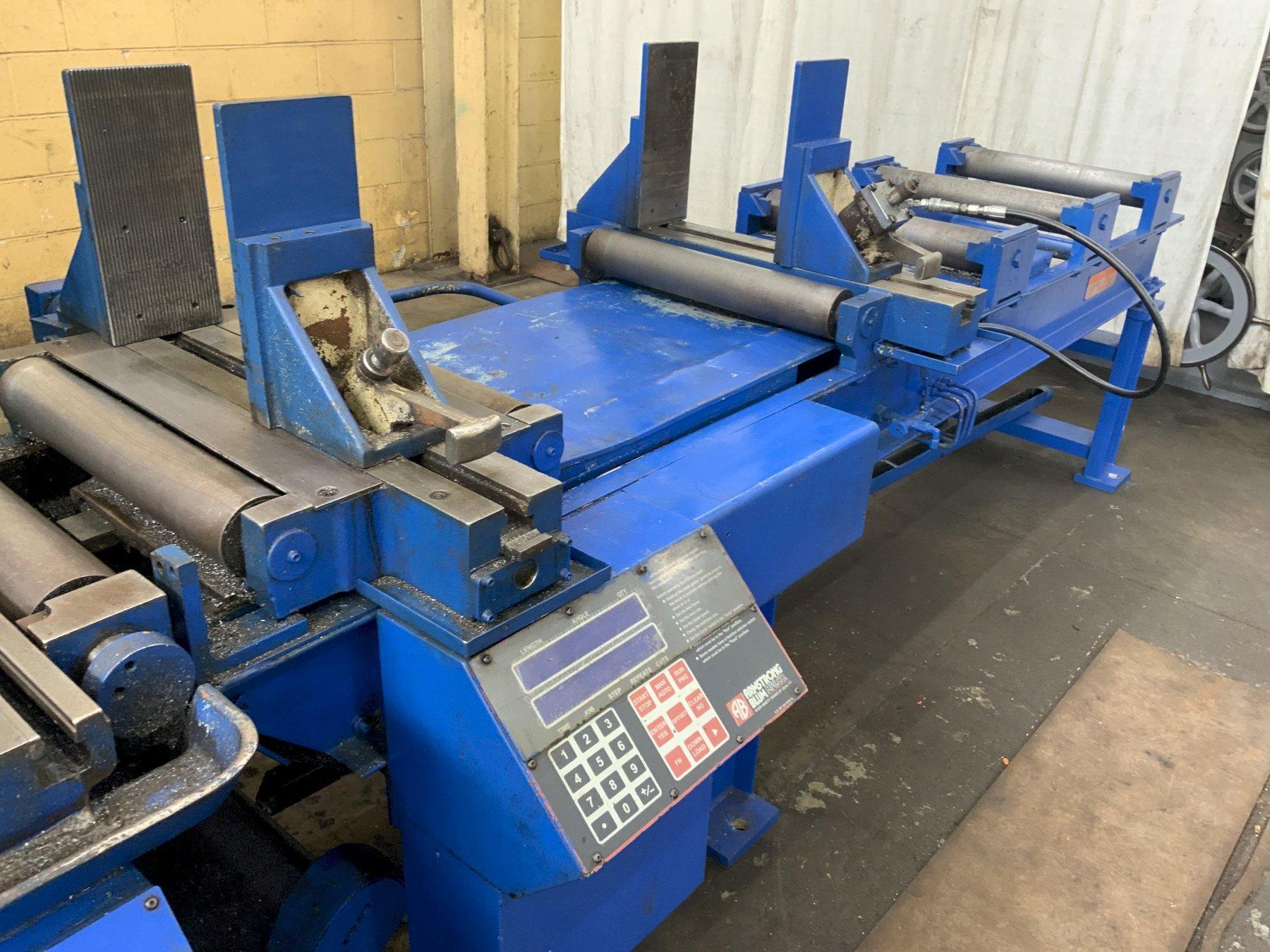

STOCK FEED TABLE .................. 24" MAX SINGLE FEED - 19 CYCLES

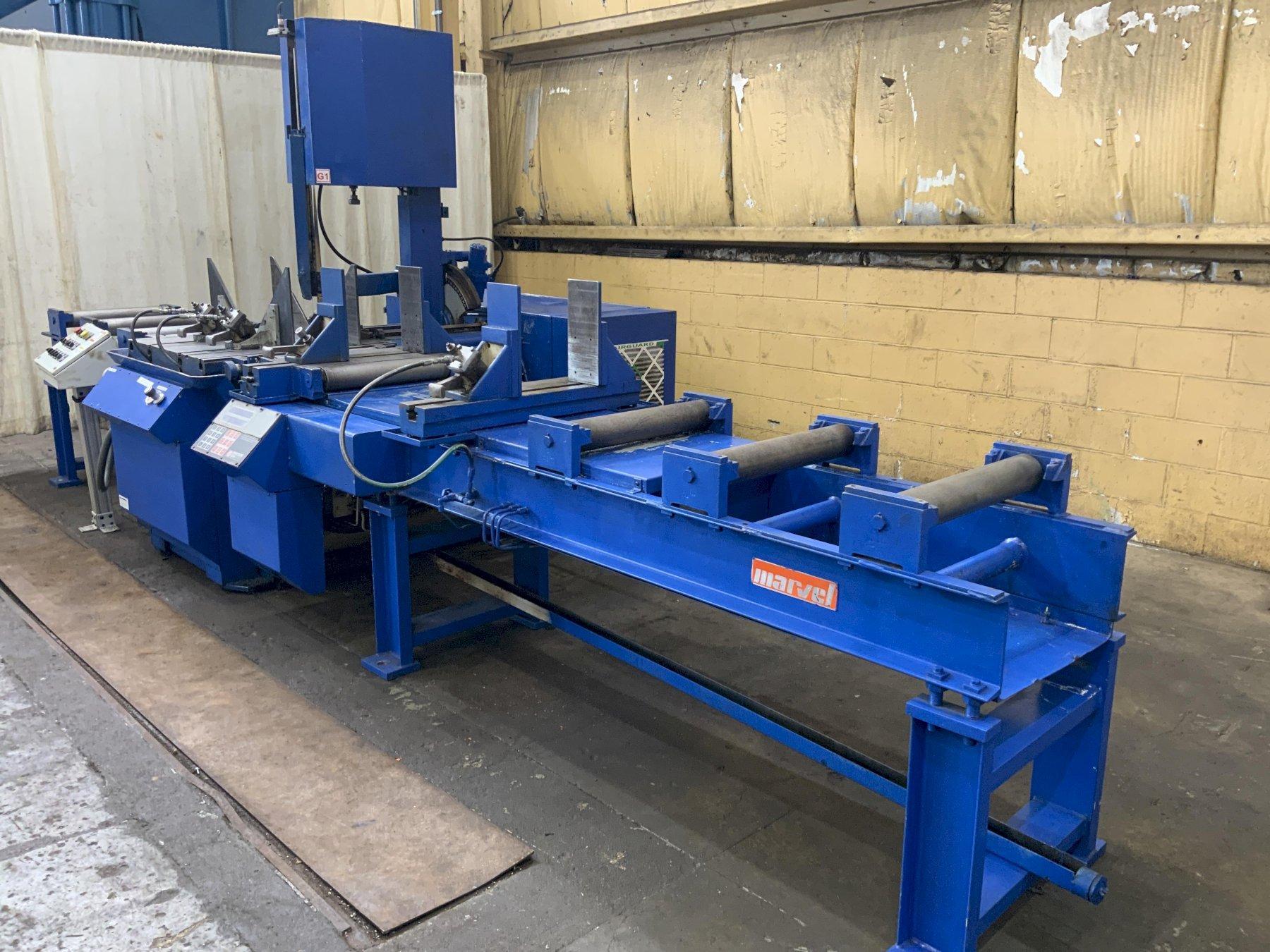

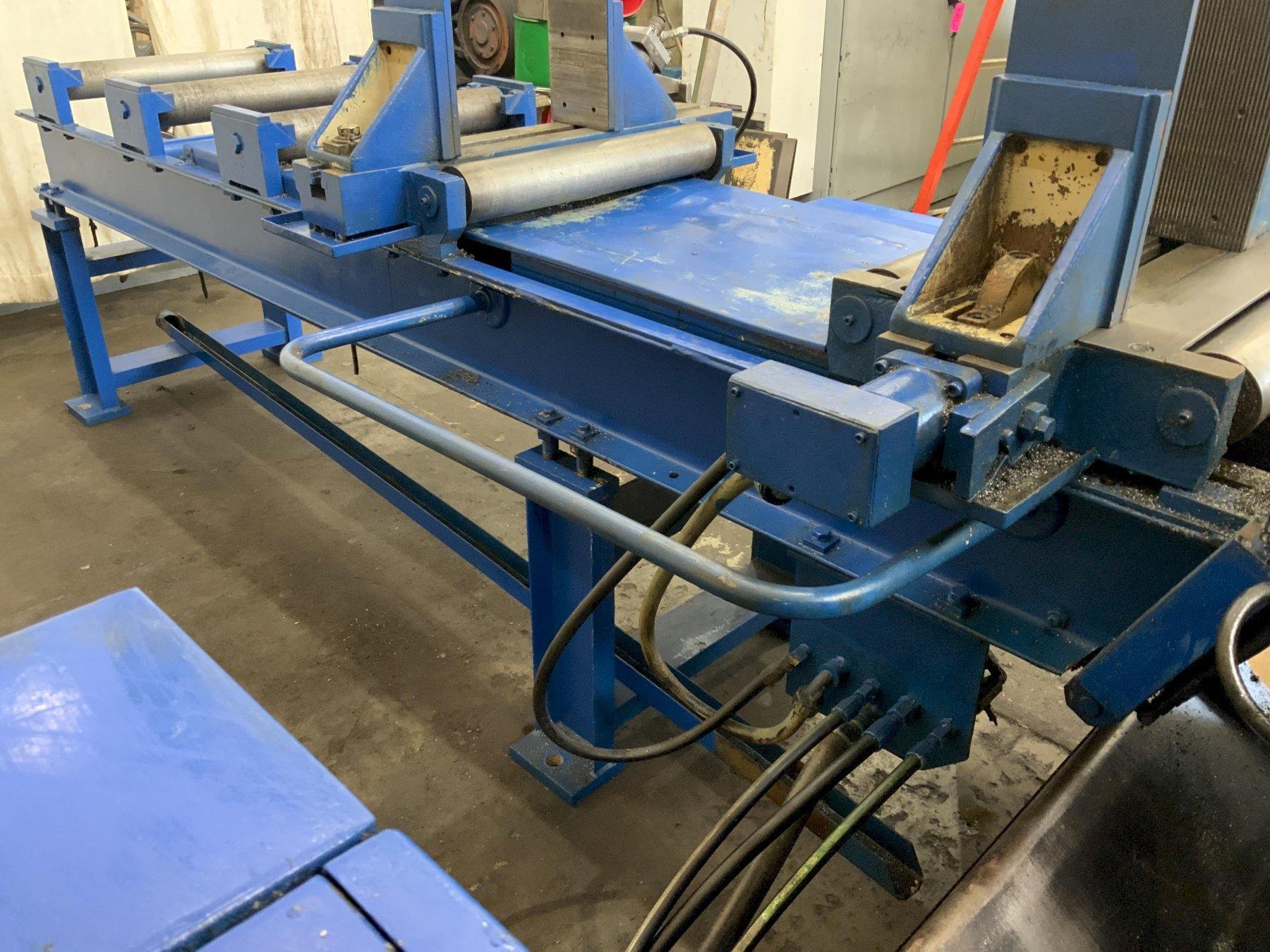

EXIT & ENTRY CONVEYOR ............. YES

CAPACITY ON SHUTTLE FEED TABLE .... 7,000 LBS

MANUAL TILTING DEAD STOP GAUGE .... YES

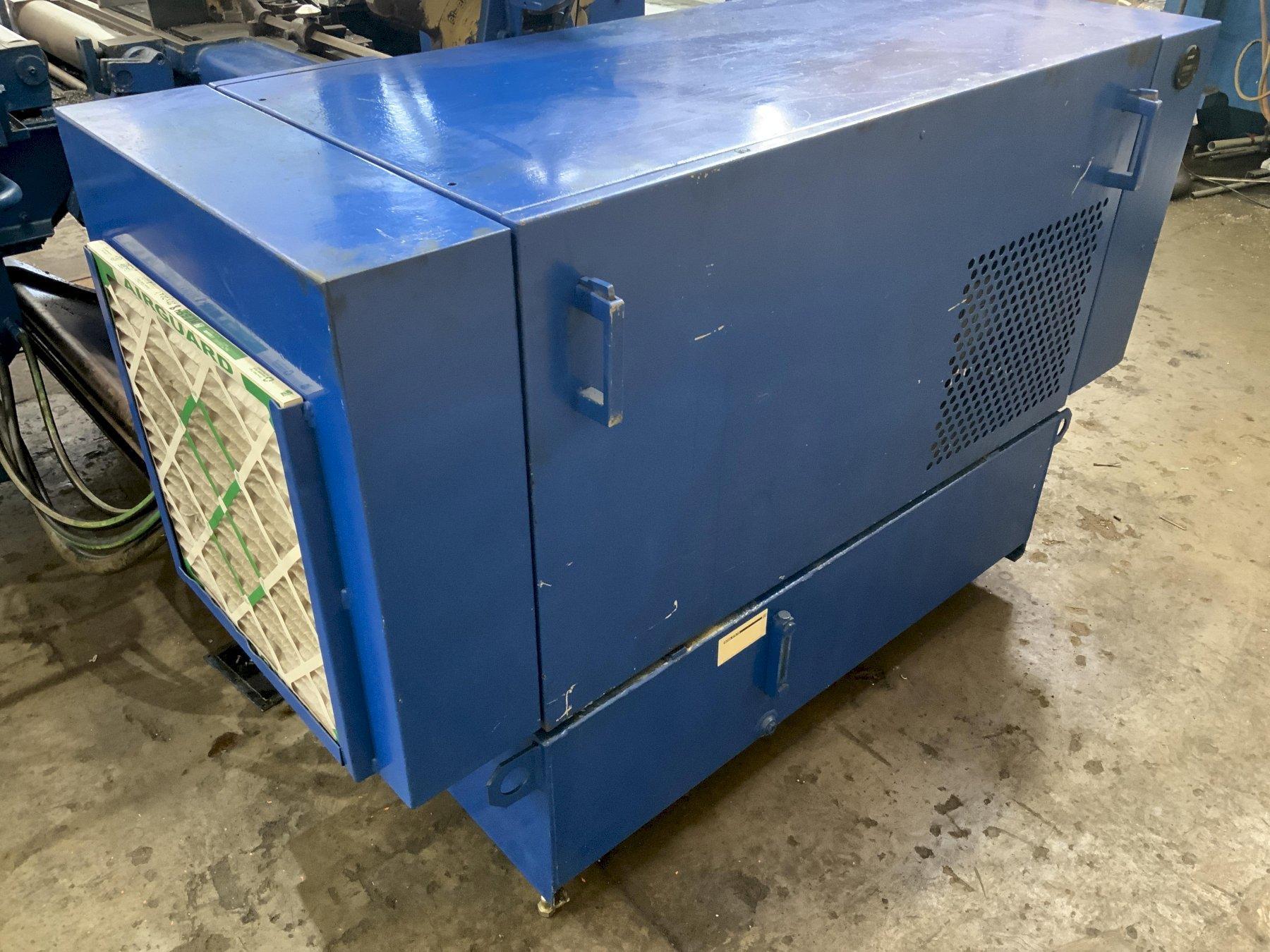

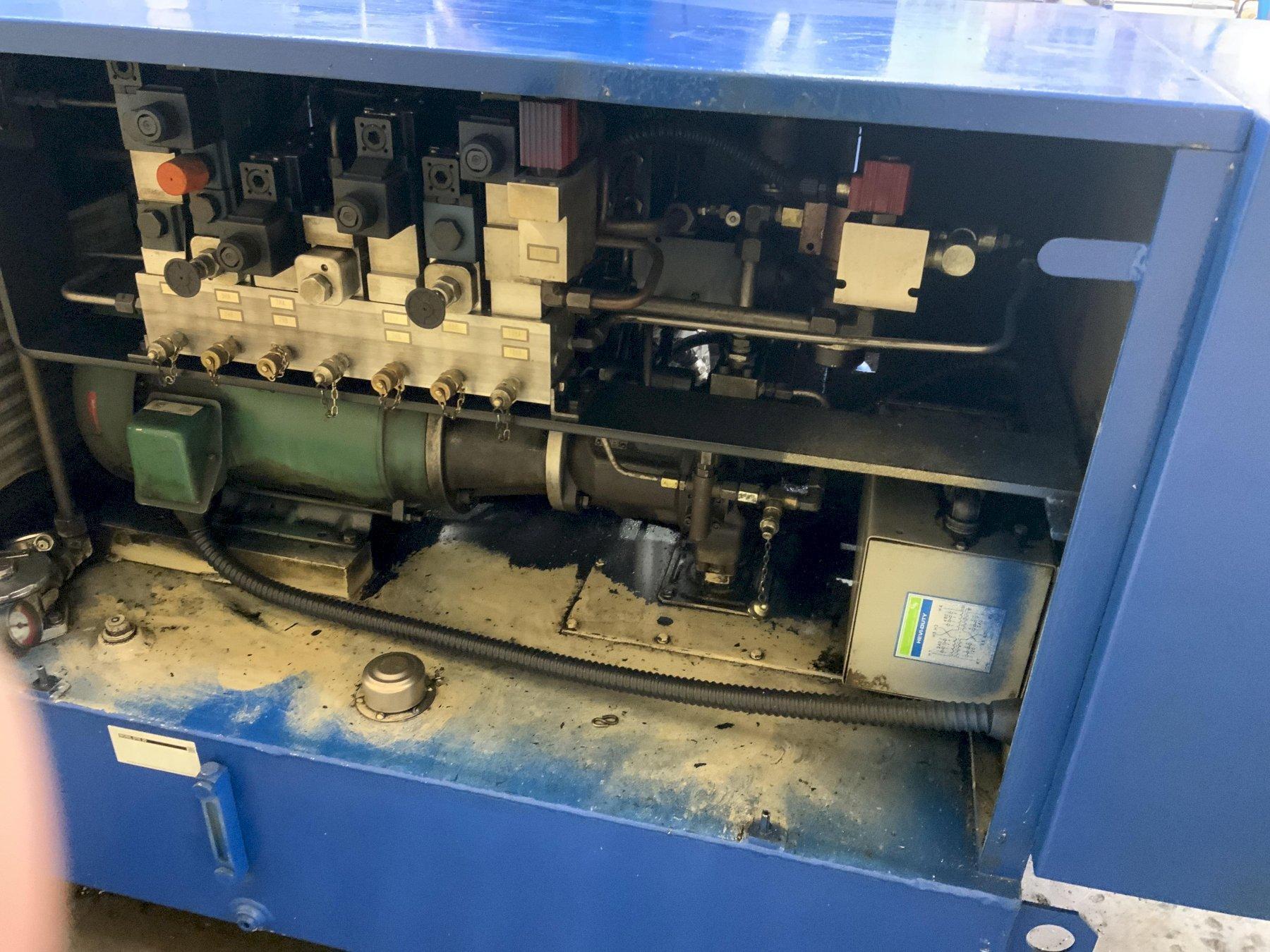

MAIN HYDRAULIC MOTOR .............. 7-1/2 HORSEPOWER
