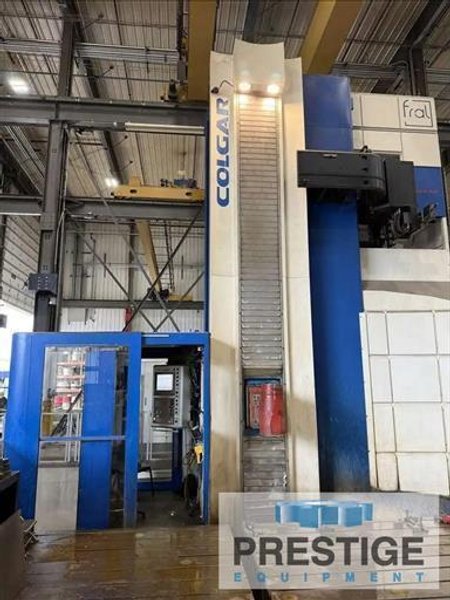

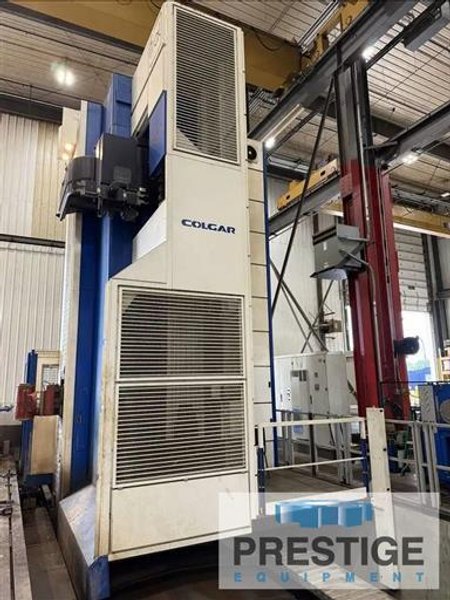

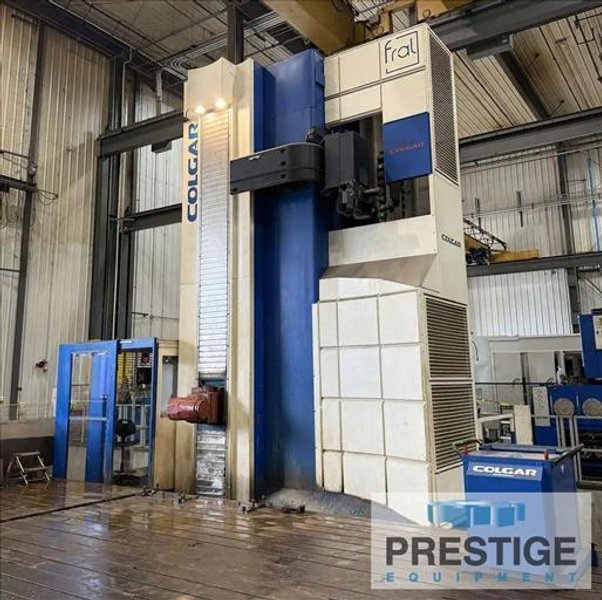

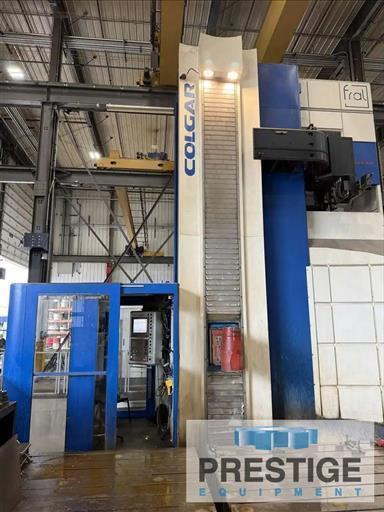

Boring Mills Horizontal Floor Type CNC

SPECIFICATIONS:
Spindle Diameter 6.3"
Spindle Taper Capto C-10
Ram Cross Section 16" x 19.8"
Y-Axis Vertical Travel of Head 196.85"
X-Axis Column Travels 433.07"
Z-Axis Ram Travel 59.05"
W-Axis Spindle Travel 35.43"
Spindle Speeds, Infinitely Variable 5-3000 RPM
Rapid Traverse, X,Y,Z Axes 787.4 IPM
Rapid Traverse, W-Axis 590.5 IPM
Spindle Motor 100 HP

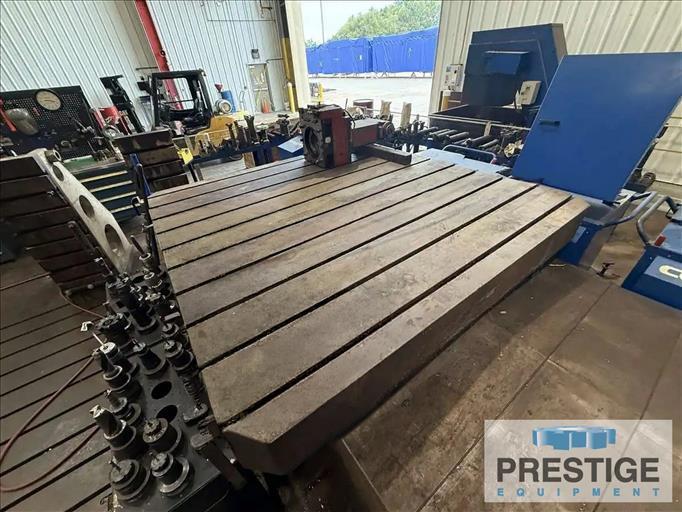

B-AXIS CNC ROTARY TABLE:
Table Size 98.42" x 98.42"
Table Infeed Travel 59.05"
Rotary Table Indexing 360 x 1 Degree
MACHINING HEAD ATTACHMENTS:

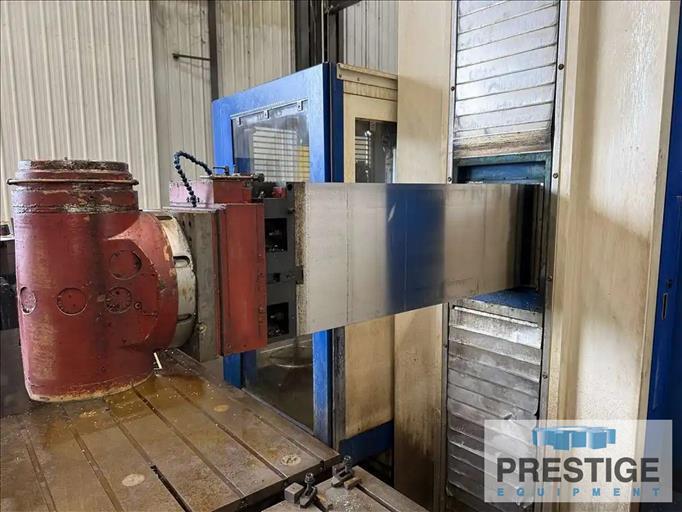

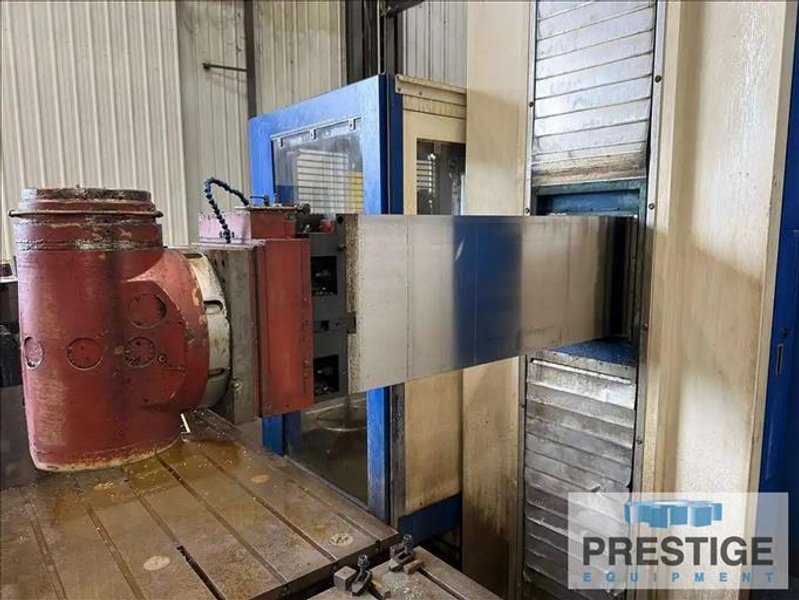

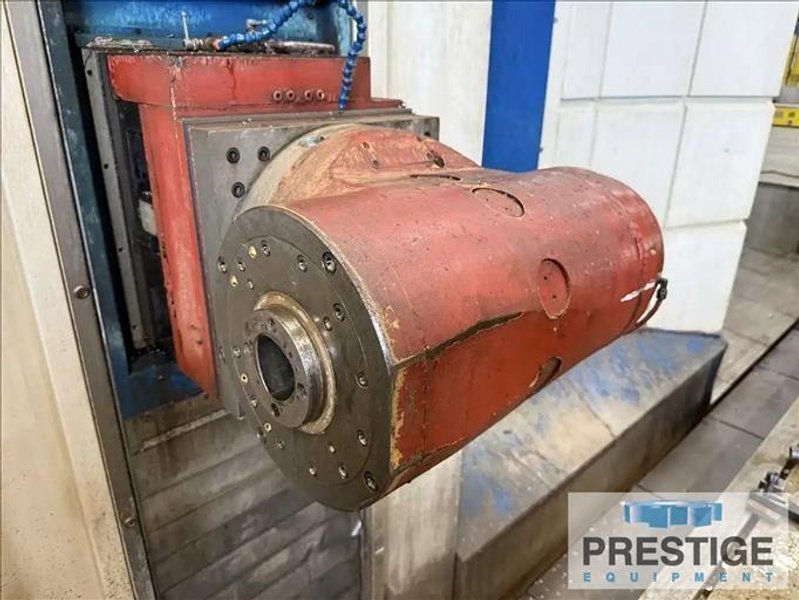

360° Indexing Right-Angle Head
TSQ 300 Right-Angle Head, Capto C10, 2,000 RPM, Indexable
TSQ 80 Right-Angle Head, Capto C8, 2,000 RPM, Indexable
TA 120 Right-Angle Head, Capto C8, 3,000 RPM, Indexable
MAPA Right-Angle Head, Capto C6, 1,500 RPM, Indexable
TSQP 70 Right-Angle Head, Capto C6, 1,500 RPM, Indexable



Equipped With:

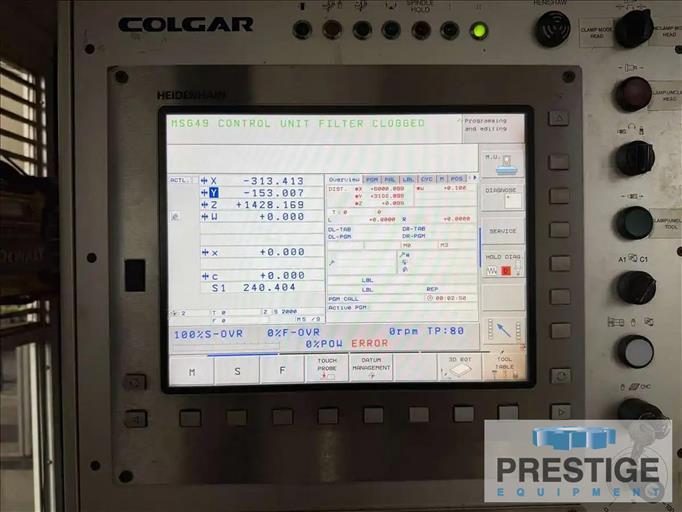

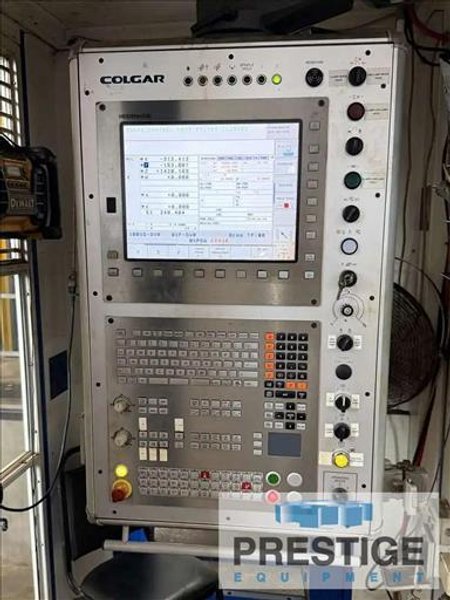

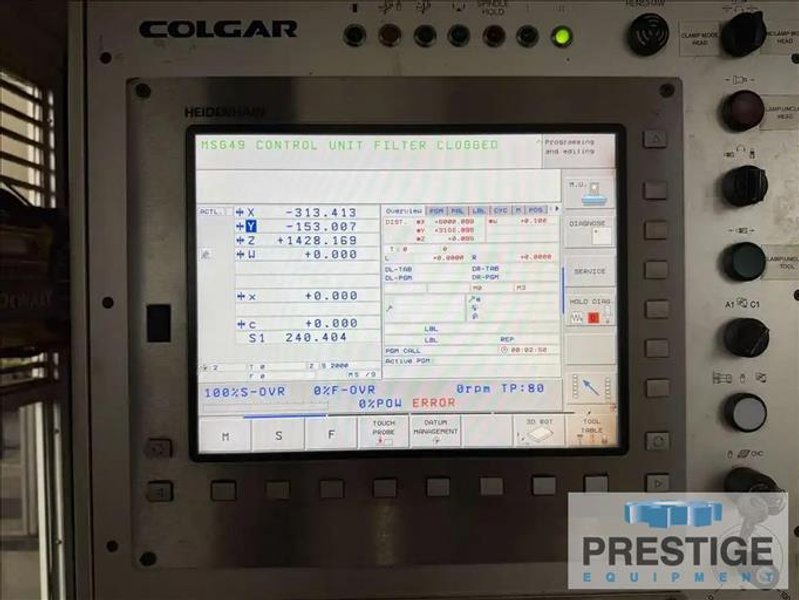

Heidenhain iTNC 530 CNC Control
80-Station Automatic Tool Changer

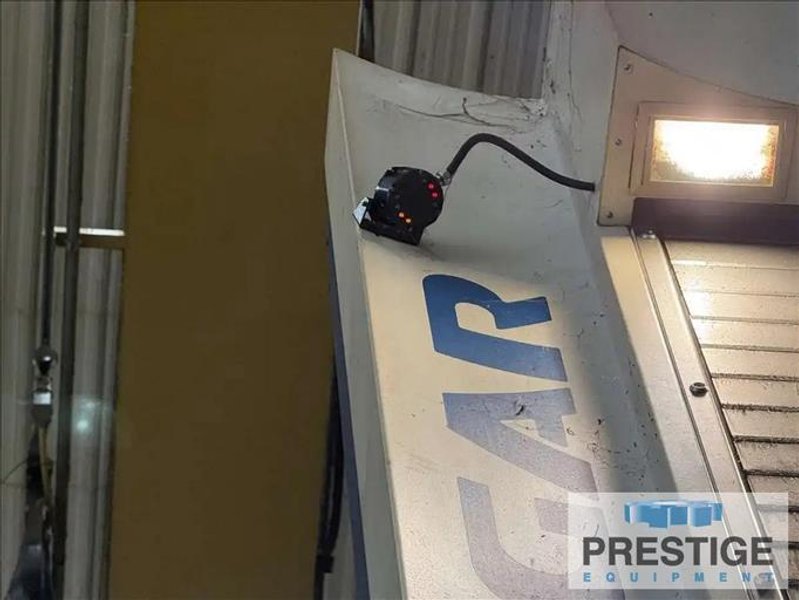

Renishaw Probing
Thru-Spindle Coolant, 220 PSI
Flood Coolant

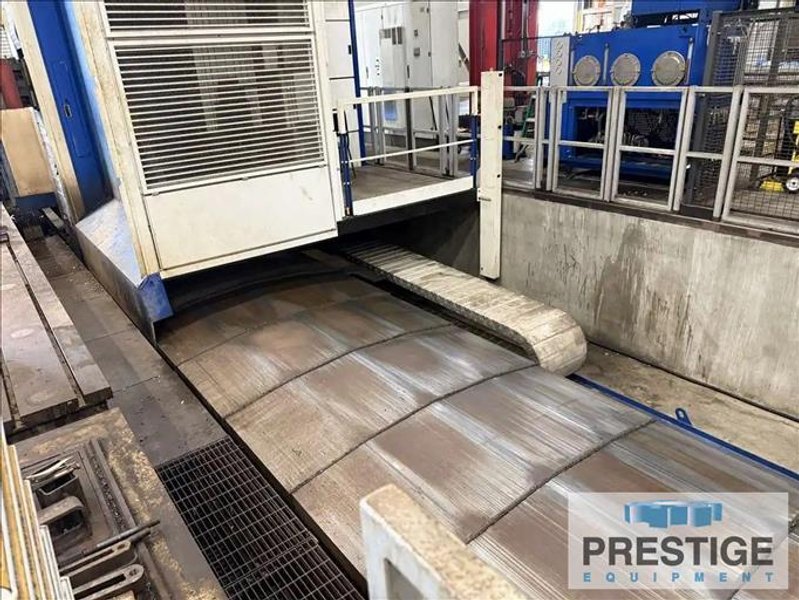

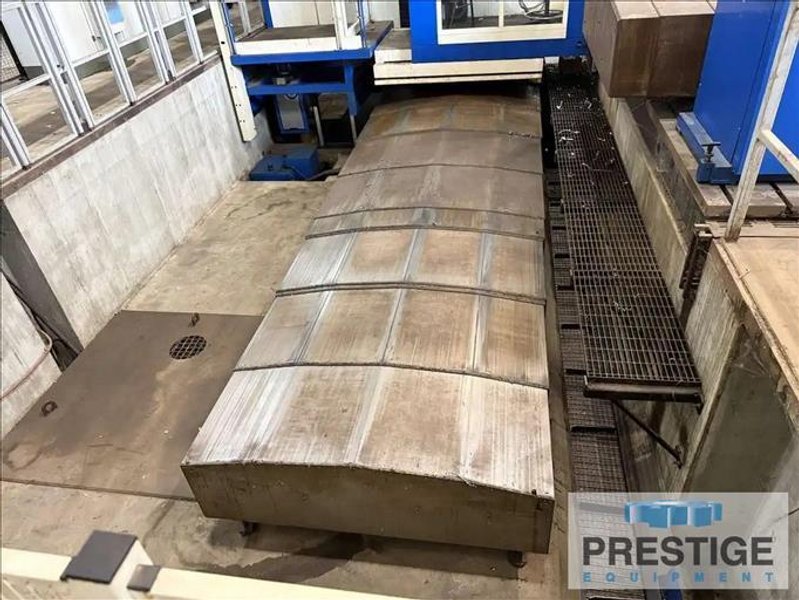

Steel Telescoping Way Covers

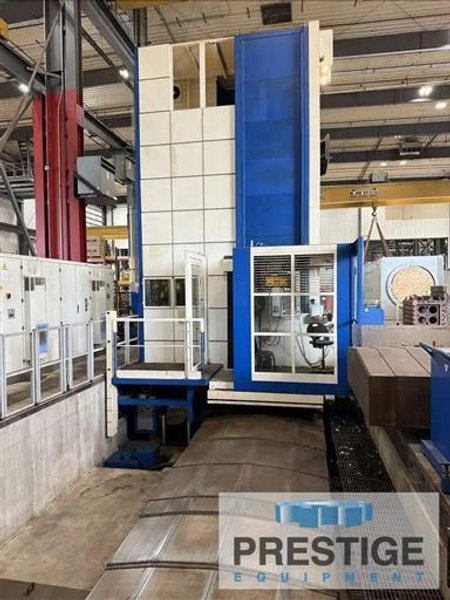

Operator Platform & Cab

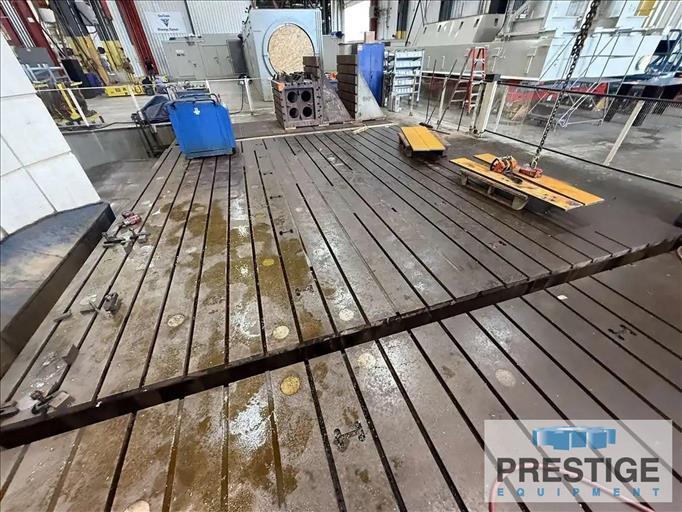

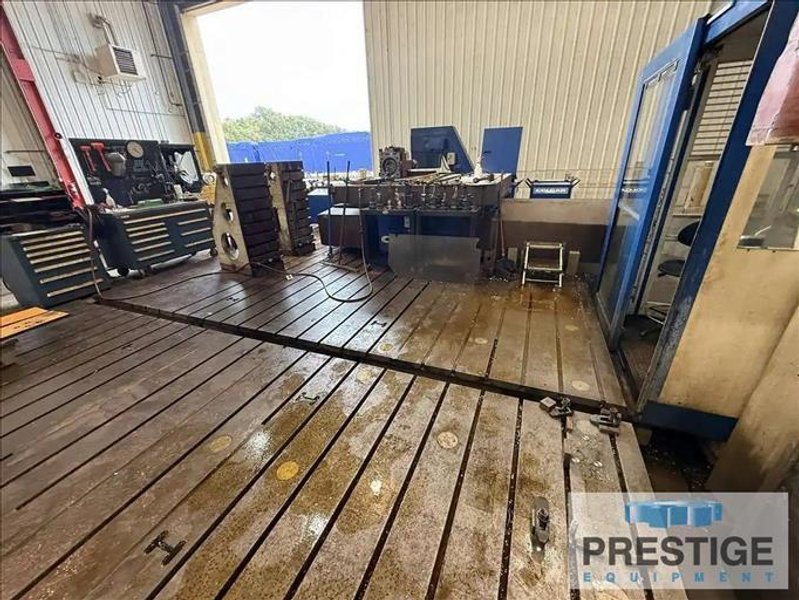

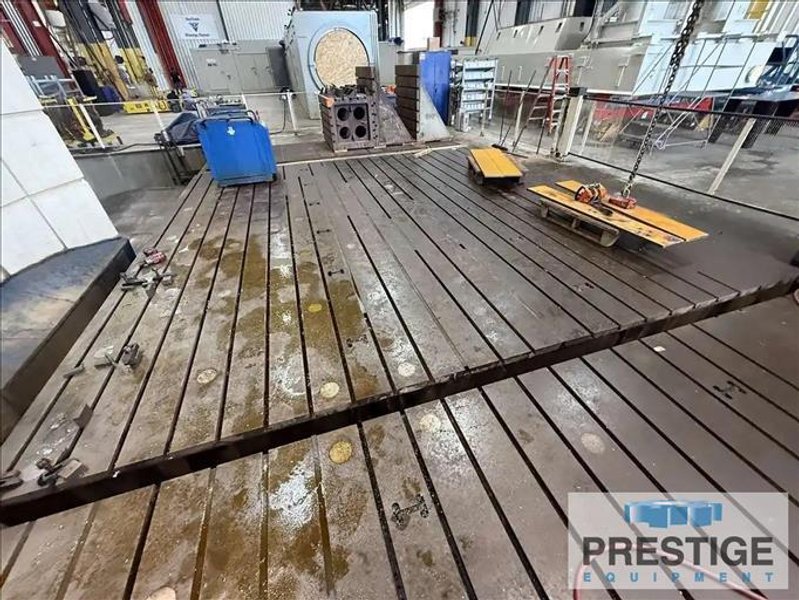

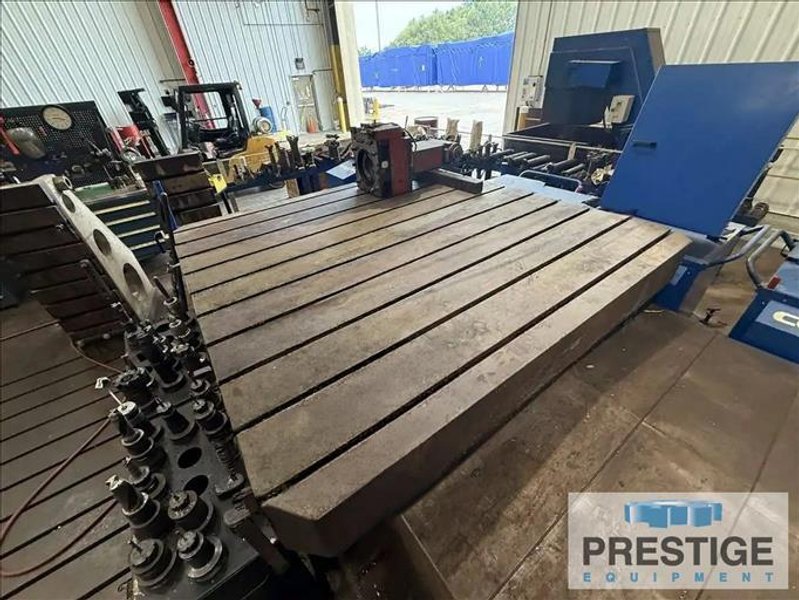

2-Floor Plate Areas 236.22" x 236.22" Each
100 HP Spindle Motor


NOTES: Machine Was Complete Rebuilt & Retrofit in 2016
