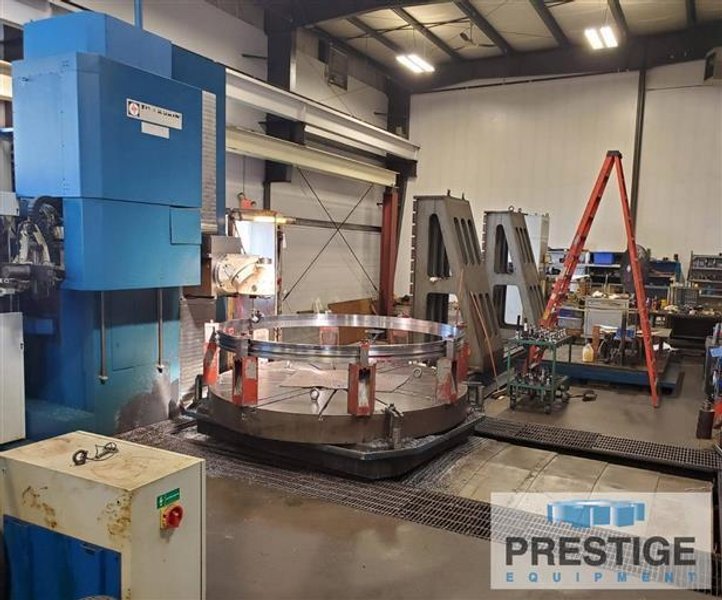

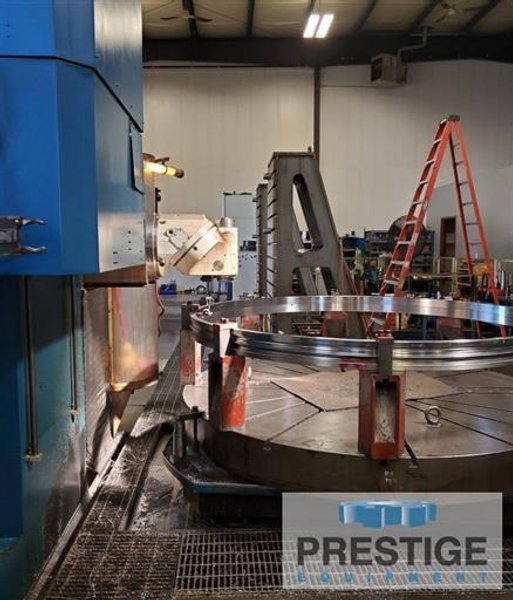

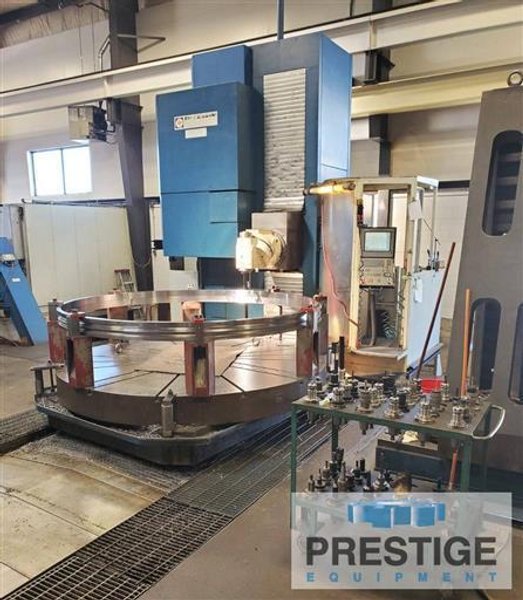

Boring Mills Horizontal Floor Type CNC

CAPACITY:
Spindle Diameter 5.9"
Spindle Taper #50 CAT
Vertical Travel of Head, Y-Axis 98.42"
Column Travel, X-Axis 354.33"
Ram Travel, Z-Axis 59.05"
Spindle Speeds 20-4,000 RPM
Spindle Motor 40 HP (30 KW)
TOS IN-FEEDING (B-Axis) CNC ROTARY TABLE:
Table Size 78.74" x 98.42"
Table Infeed, V-Axis 88.58"
Table Rotation .001
Table Weight Capacity 44,000 lbs
Floor Space:
Machine Footprint 748.42" x 415.43"
Machine Height 225.86"
Main Machine Weight 92,400 lbs
TOS CNC Sweep Head:
Swivel 210 Degrees
Reach 17.12"
Speed 20-4,000 RPM
Taper #50 CAT
Max Torque 1,000 RPM
TOS CNC Universal Head:
Reach, Horz. Pos. 21.65"
Reach, Vert. Pos. 20.66"
Speed 20-4,000 RPM
Taper #50 CAT
Max Torque 1250 Nm
TOS CNC Straight Head:
Reach 15.74"
Speed 20-4,000 RPM
Taper #50 CAT
Max Torque 2000 Nm



Equipped With:

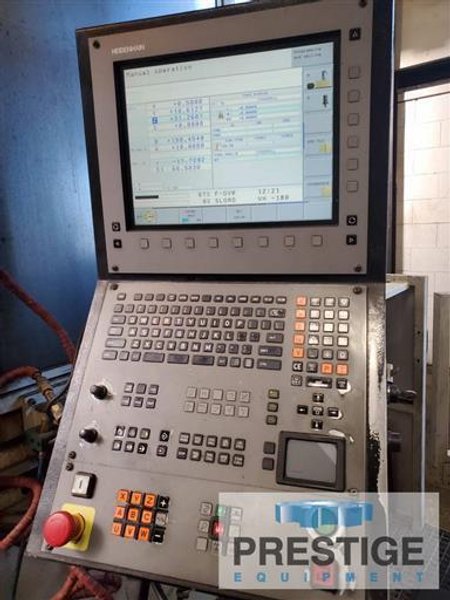

Heidenhain iTNC 530 CNC Control
40-Station Automatic Tool Changer
3-Station Automatic Head Changer
78.74" x 98.42" In-feeding CNC Rotary Tables w/ 88.58" Infeed
(1) 74.21" x 251.96" T-Slotted Floor Plate
(1) 78.74" x 78.74" T-Slotted Floor Plate
TOS CNC Sweep Head, Model VK
TOS CNC Universal Head, Model VO
TOS CNC Straight Head, Model VA1
Through Spindle Coolant
3D Touch Probe for Measuring & Positioning the Work Piece
Tool Monitoring Device
Remote Control Diagnostics
Chip Conveyor


Note: Inspect In Plant Under Power!
