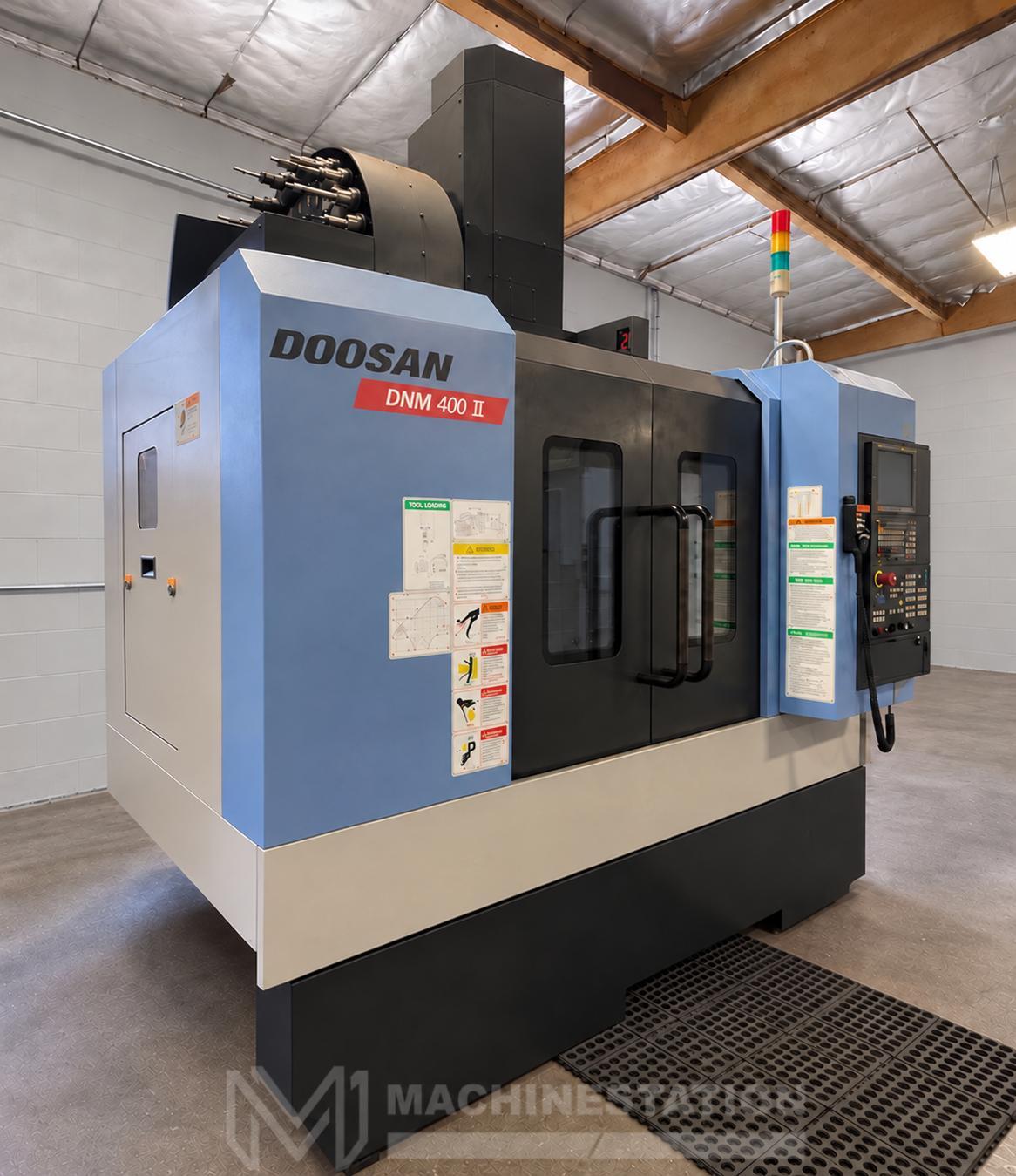

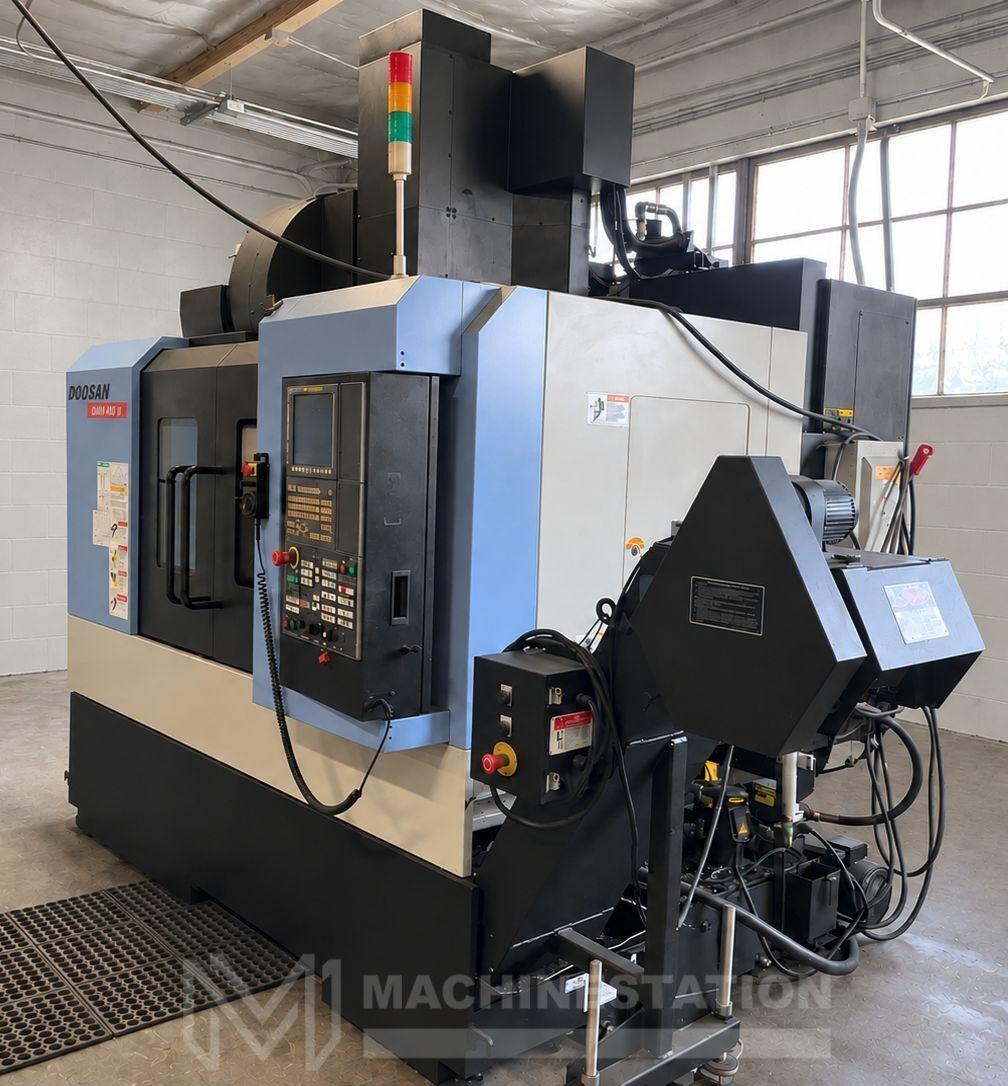

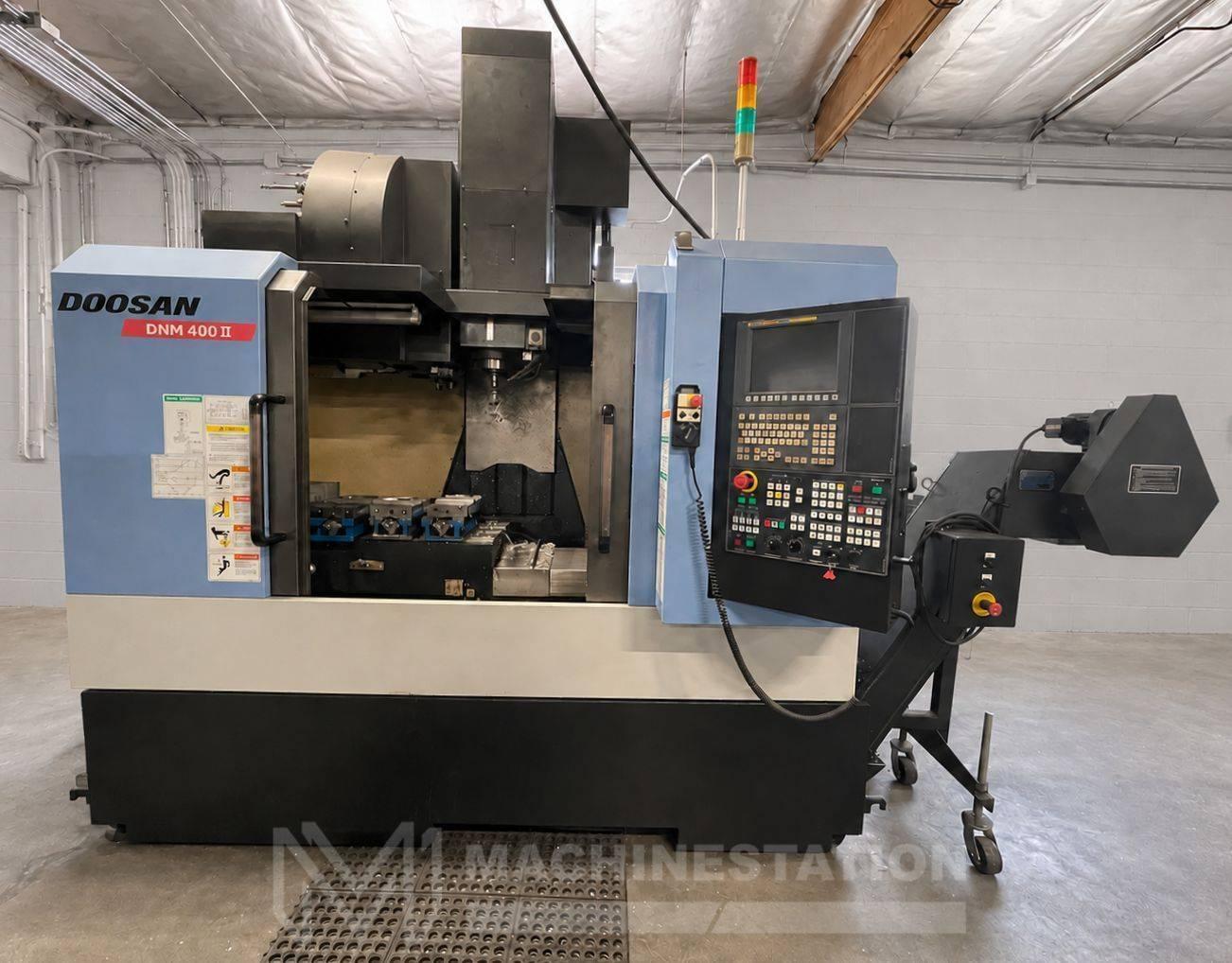

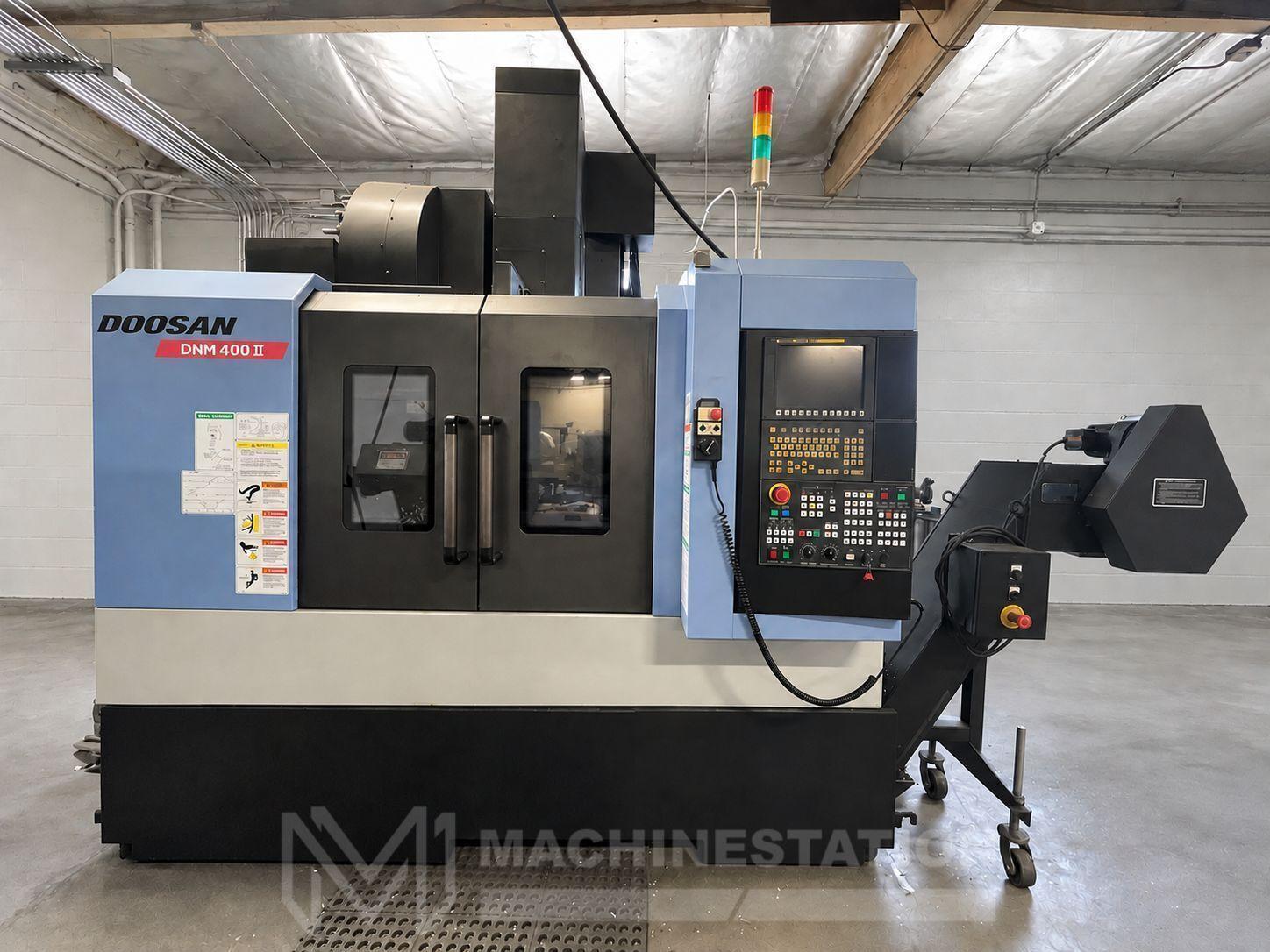

Doosan DNM 400 II CNC Vertical Machining Center – 12,000 RPM, TSC Mill

Doosan DNM 400 II CNC Vertical Machining Center – 12,000 RPM, TSC Mill

Name: Doosan DNM 400 II CNC Vertical Machining Center – 12,000 RPM, TSC Mill
Brand: DOOSAN
SKU: 113686
Availability: InStock

Brand

DOOSAN

Location

Not specified

Specifications
Files & Videos

Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.

Equipment is sold AS-IS, WHERE-IS. All sales are final.

Features:

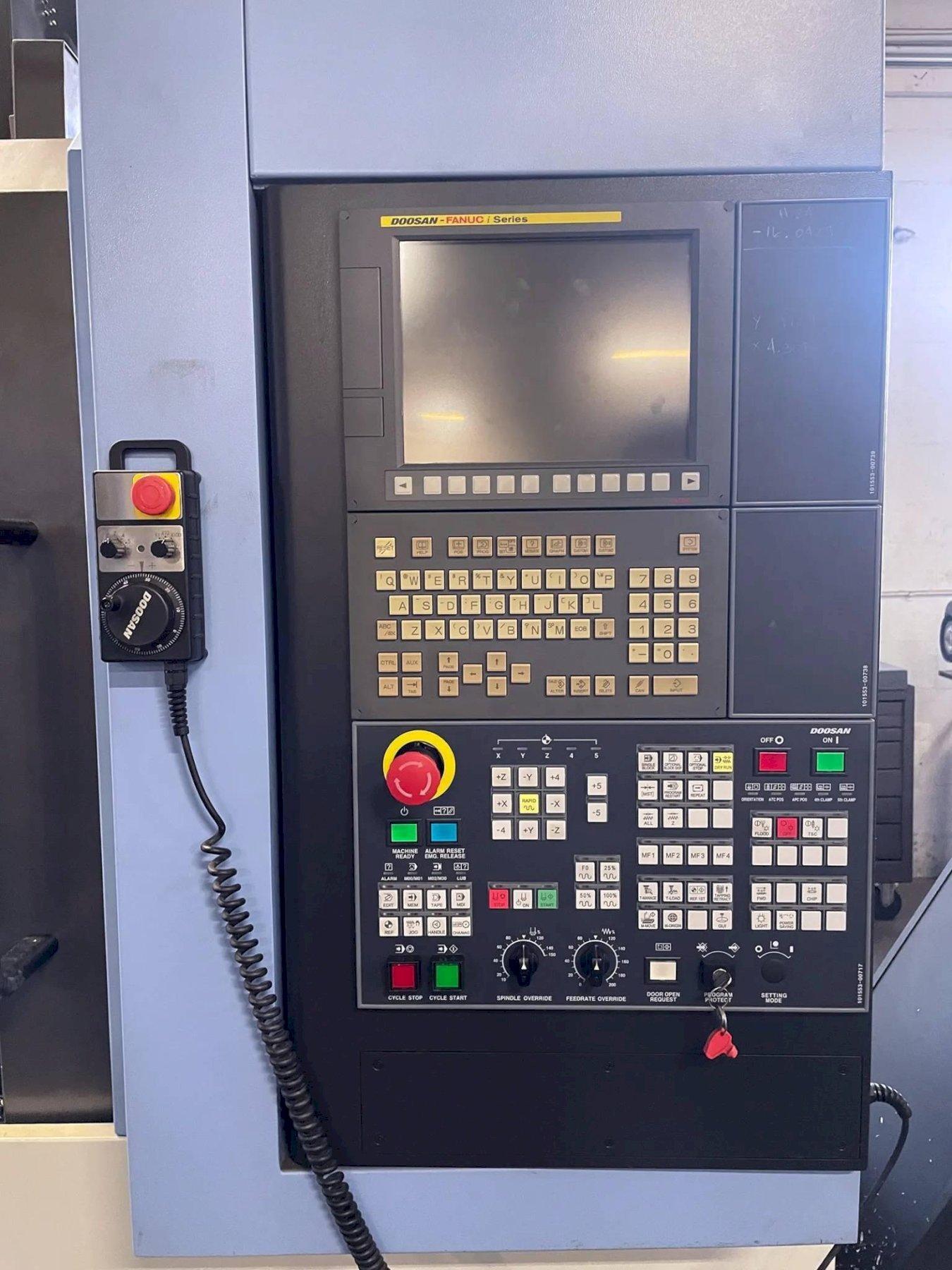

Doosan Fanuc i-Series CNC Control
12,000 RPM High-Speed Spindle
Through-Spindle Coolant

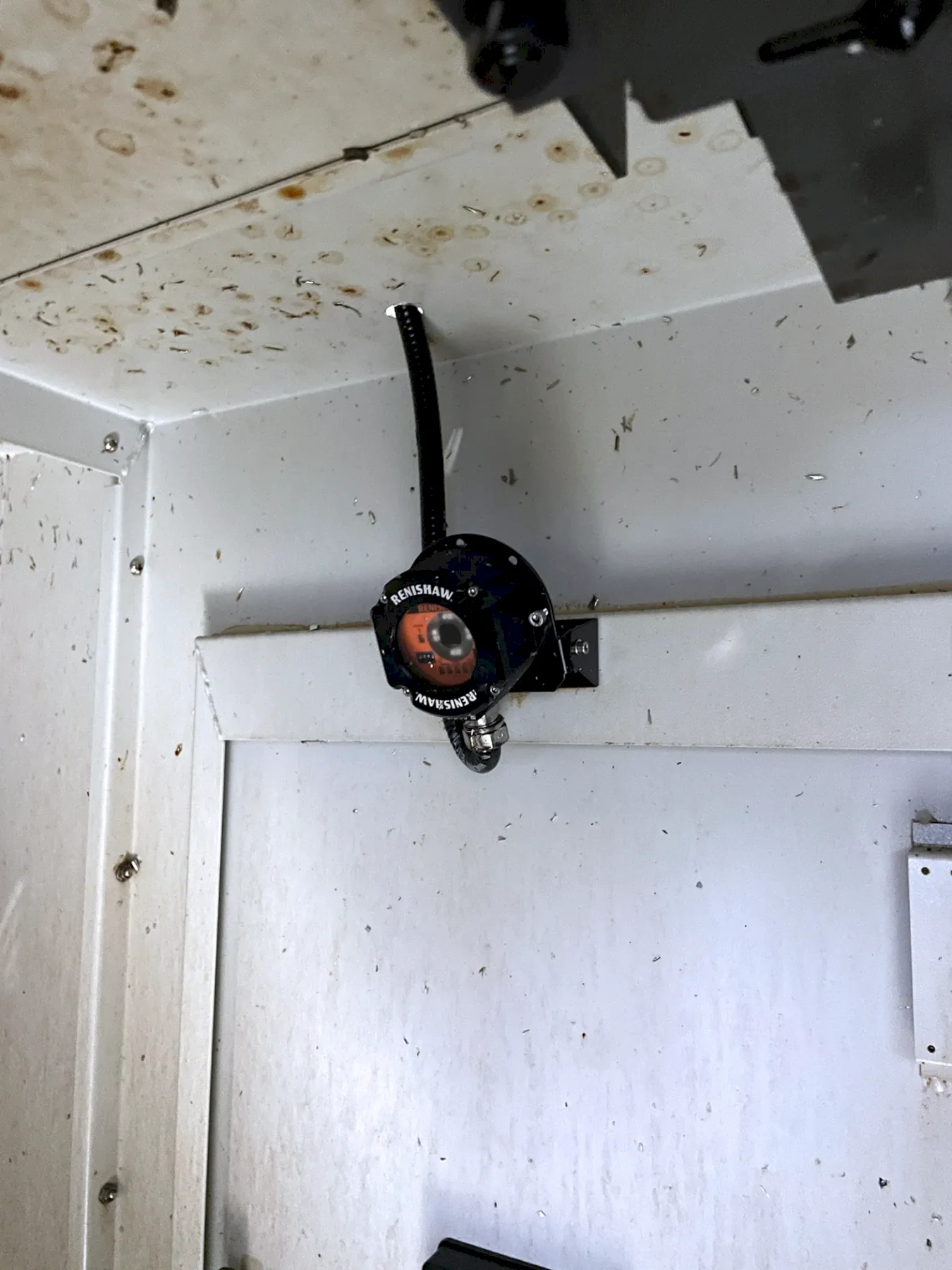

Renishaw Receiver Installed
CAT-40 Big Plus Taper Spindle

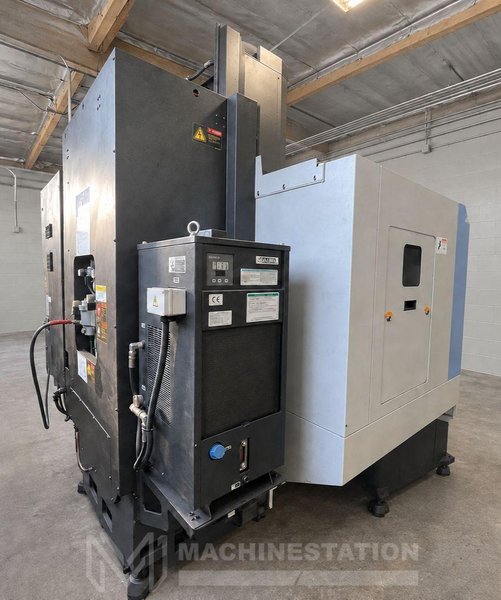

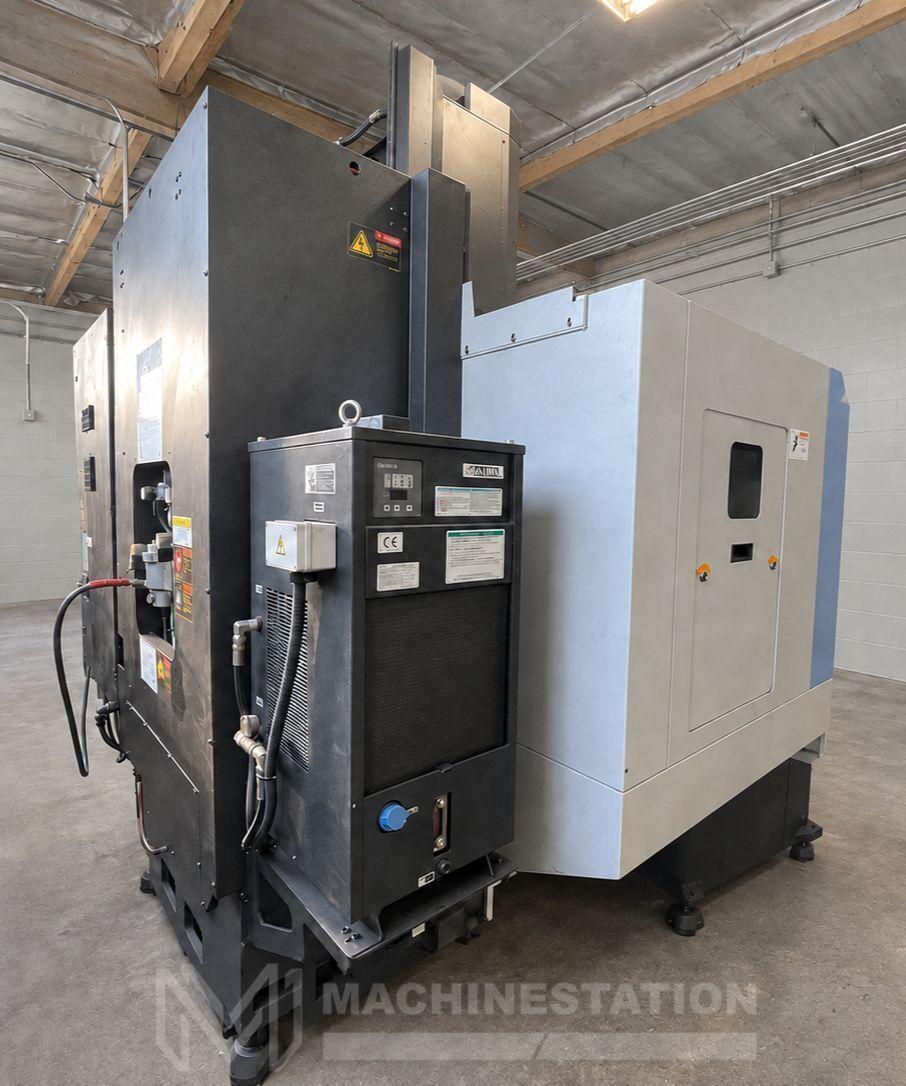

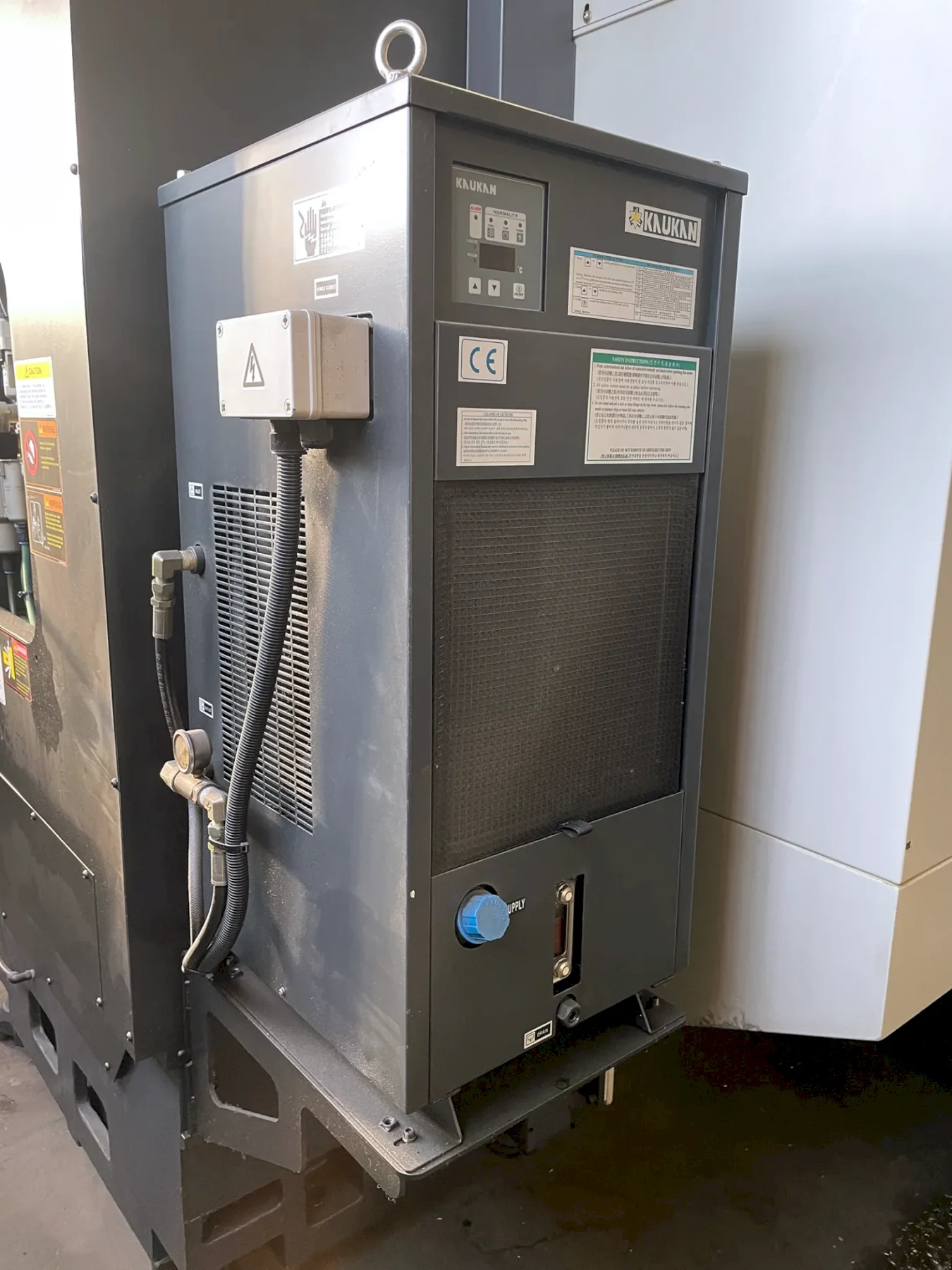

Kaukan Spindle Oil Chiller
MPG Handwheel Control
Automatic Lubrication System
Coolant Tank

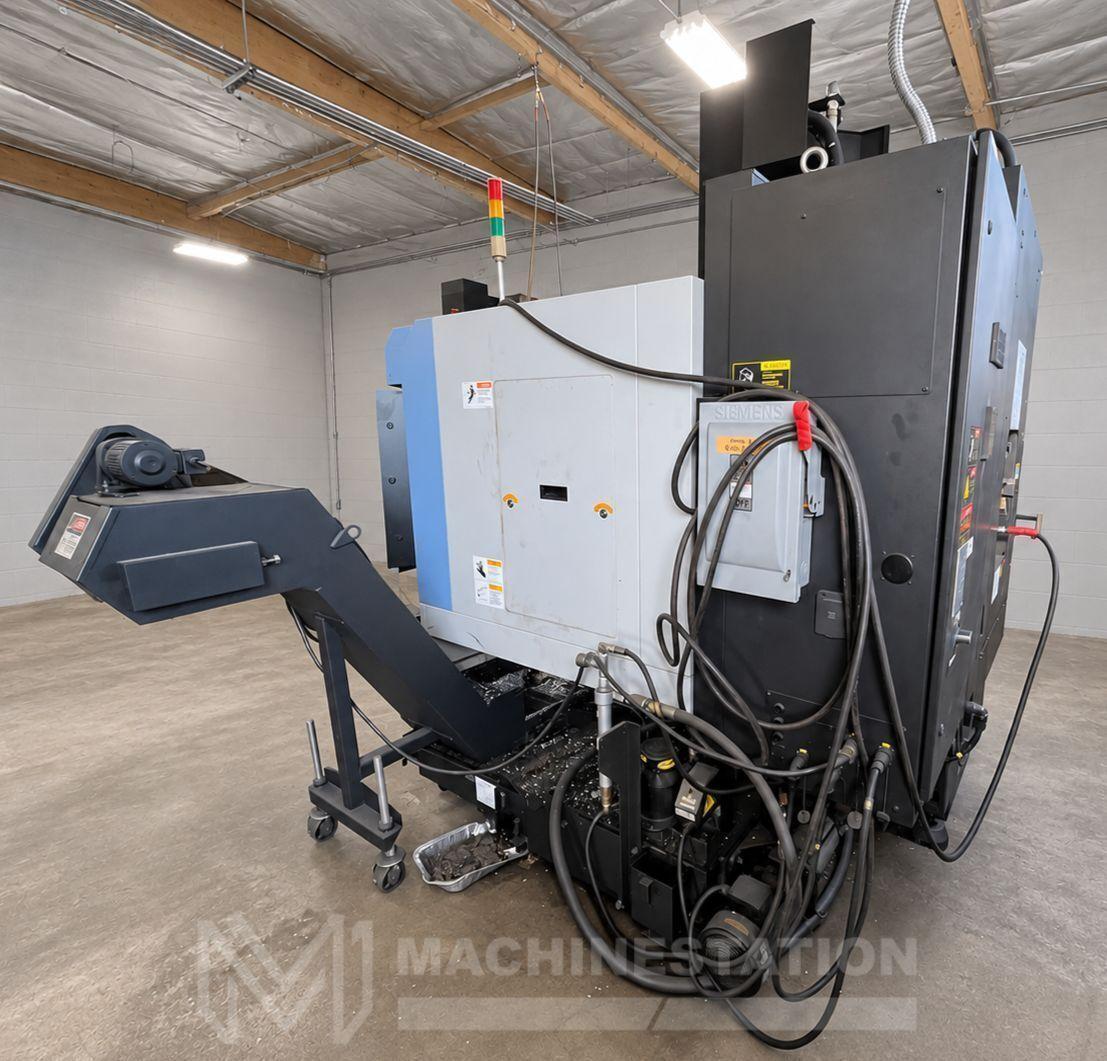

Chip Conveyor

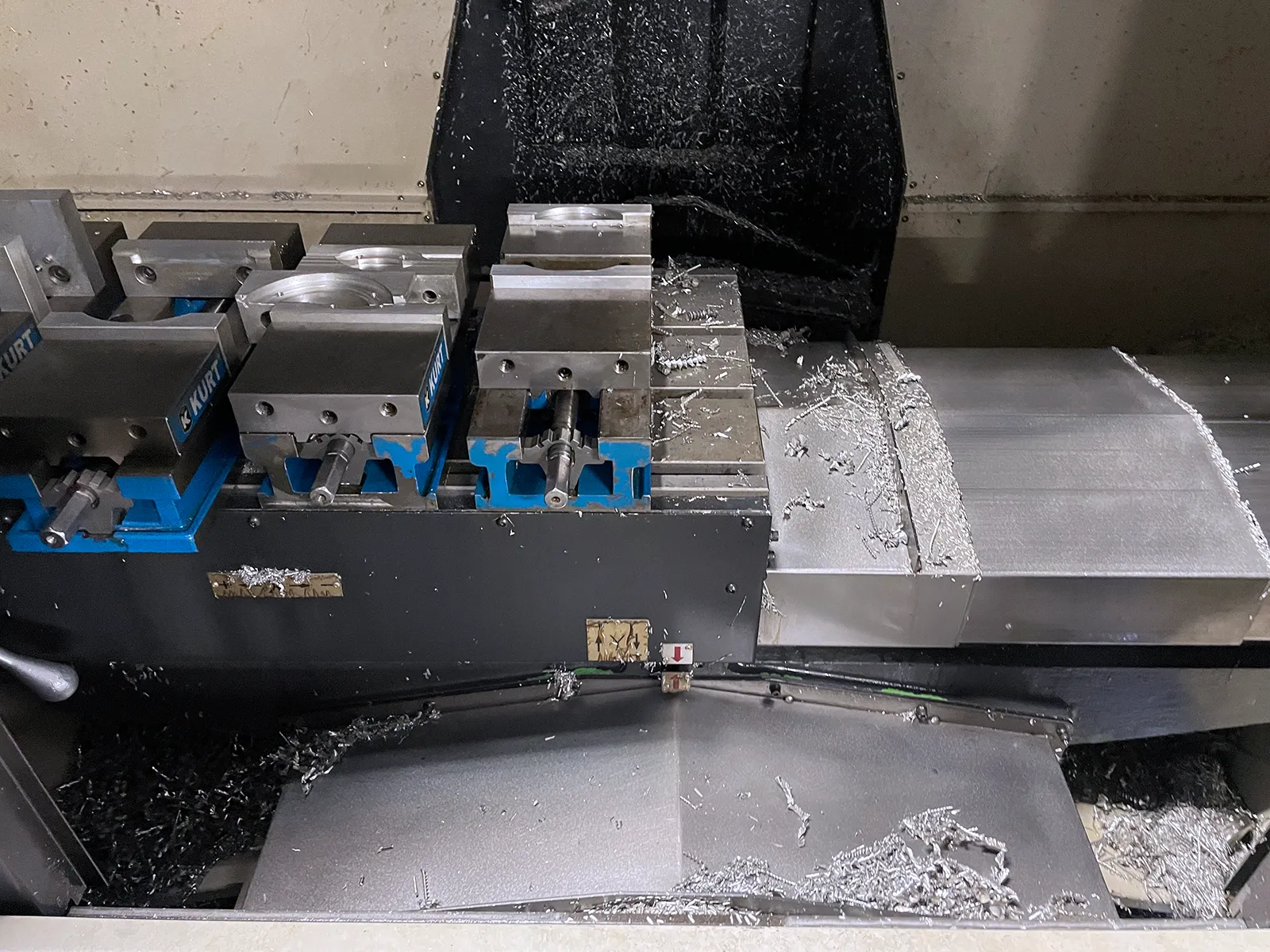

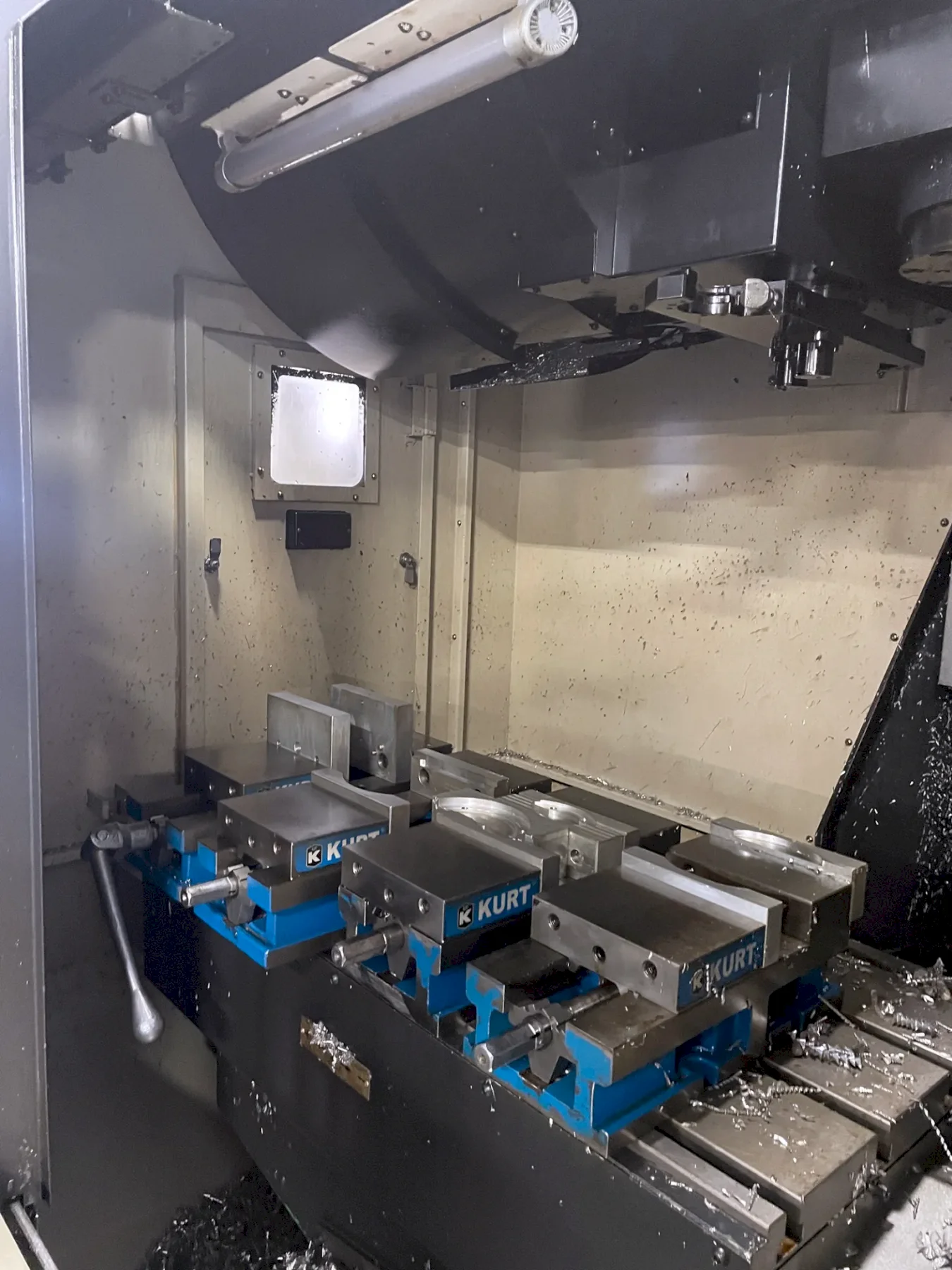

Note: Tool Holders and Vises Are Not Included With Machine

Travels:
X-Axis Travel: 30.0 inch
Y-Axis Travel: 17.1 inch
Z-Axis Travel: 20.1 inch
Rapid Traverse Rates X & Y Axis: 1,417 IPM
Rapid Traverse Rate Z Axis: 1,181 IPM
Cutting Feed Rate: 590 IPM
Spindle Nose to Table: 5.9 inch – 26.0 inch

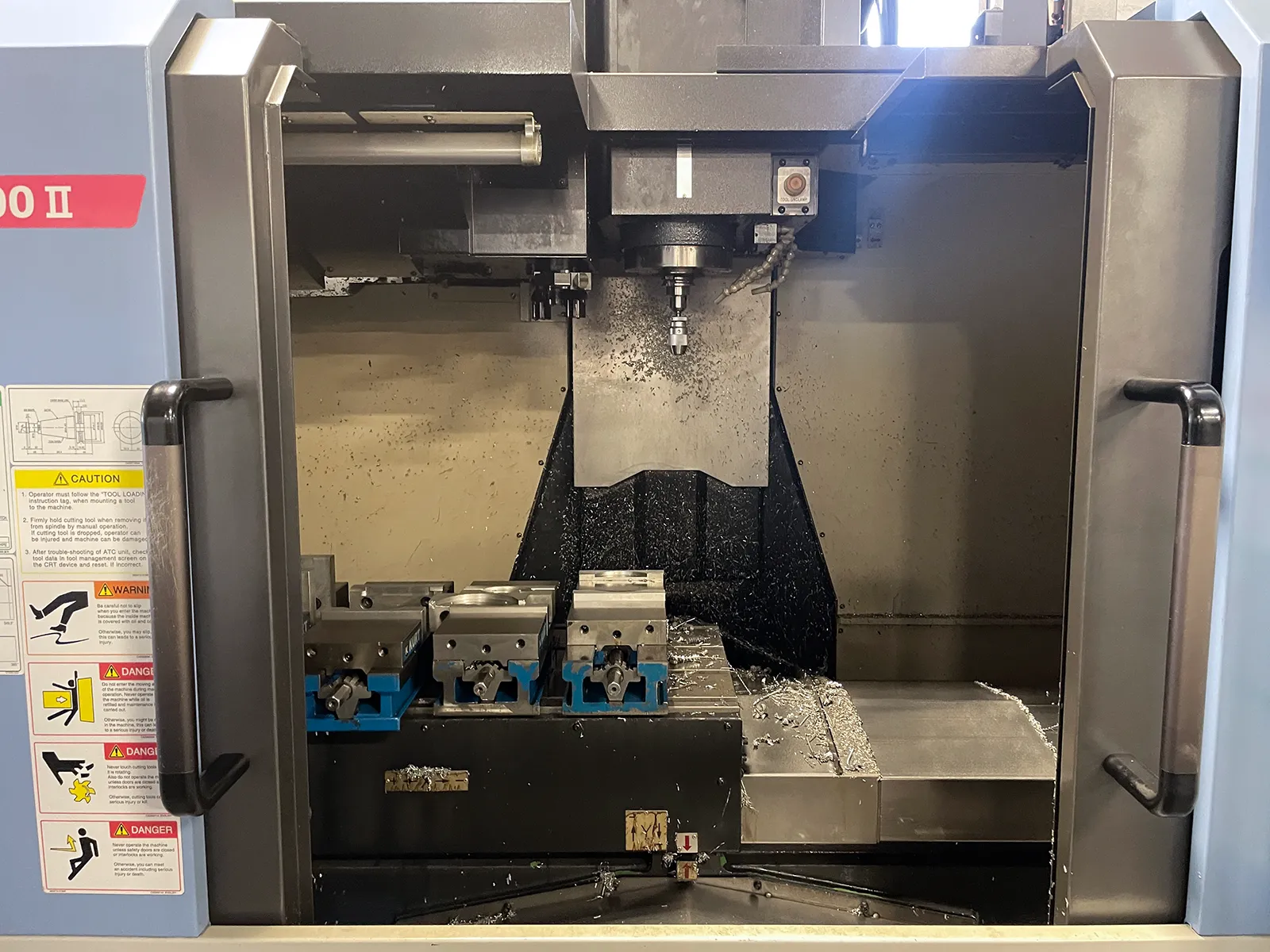

Table:
Length: 36.2 inch
Width: 17.1 inch
Number of Standard T-Slots: 4
Maximum Weight on Table: 1,323 lbs

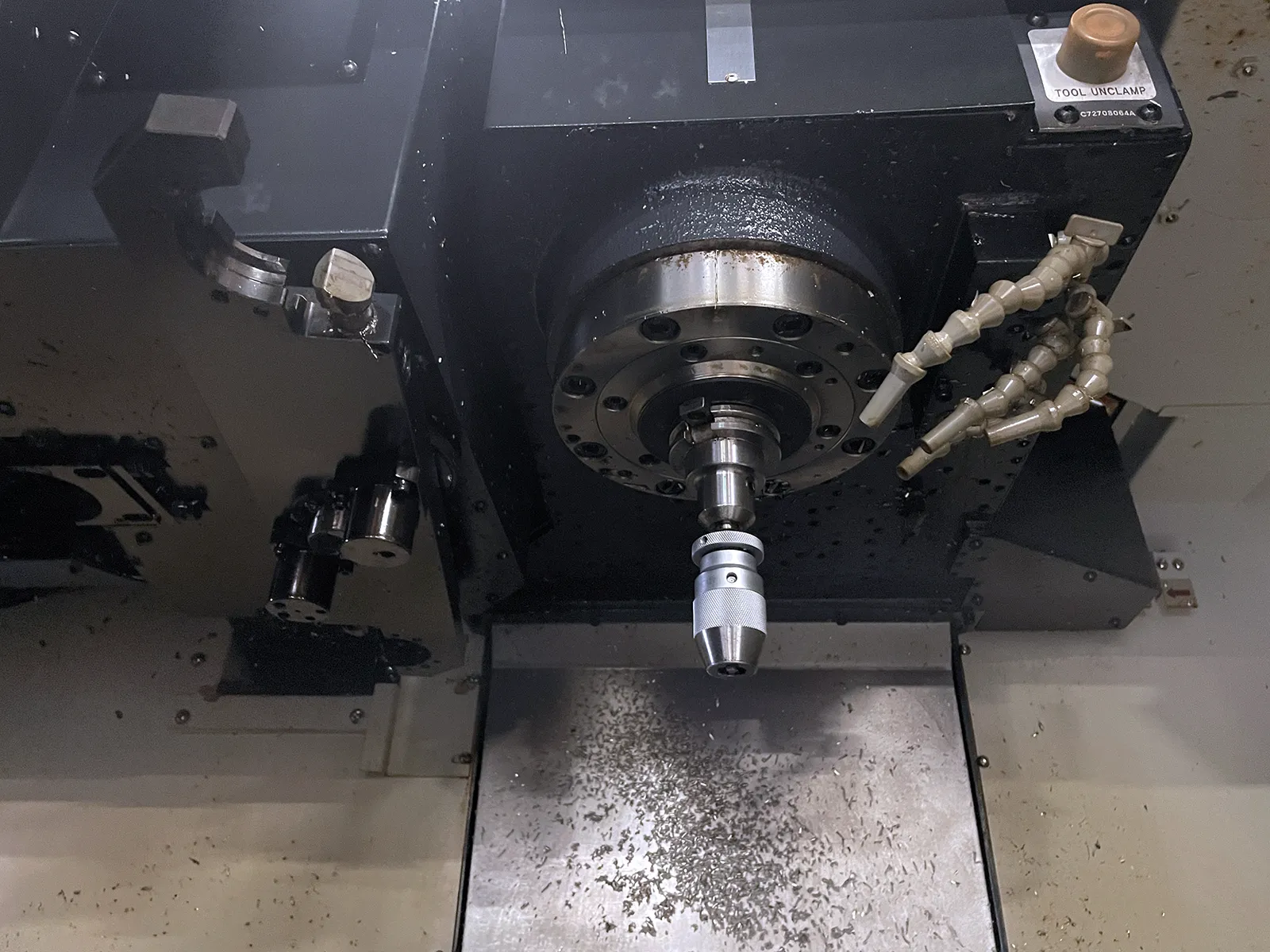

Spindle:
Taper Size: CAT-40 Big Plus
Speed Range: 12,000 RPM
Spindle Power: 20 HP

Automatic Tool Changer:

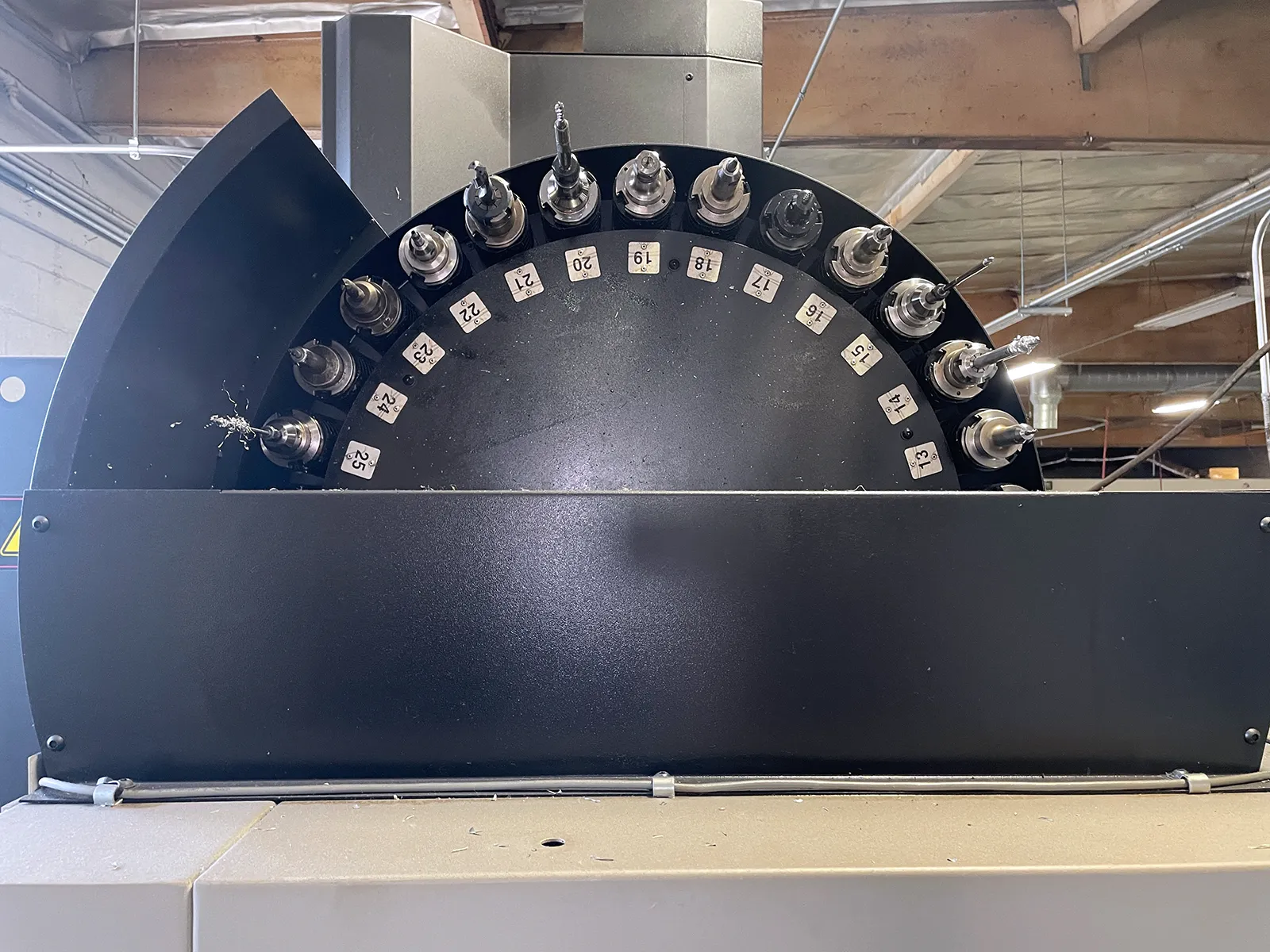

Capacity: 30 Stations
Maximum Tool Weight: 17.6 lbs
Maximum Tool Diameter: 3.1 inch – 4.9 inch
Maximum Tool Length: 11.8 inch
Tool Changing Time: 1.3 Seconds

General:
Air Required: 78.3 psi
Power: 220V / 3-Phase / 50/60 Hz / 30 kVA
Overall Dimensions: 89.8 inch × 103.0 inch × 106.4 inch High Approx.
Weight: 11,023 lbs Approx.
