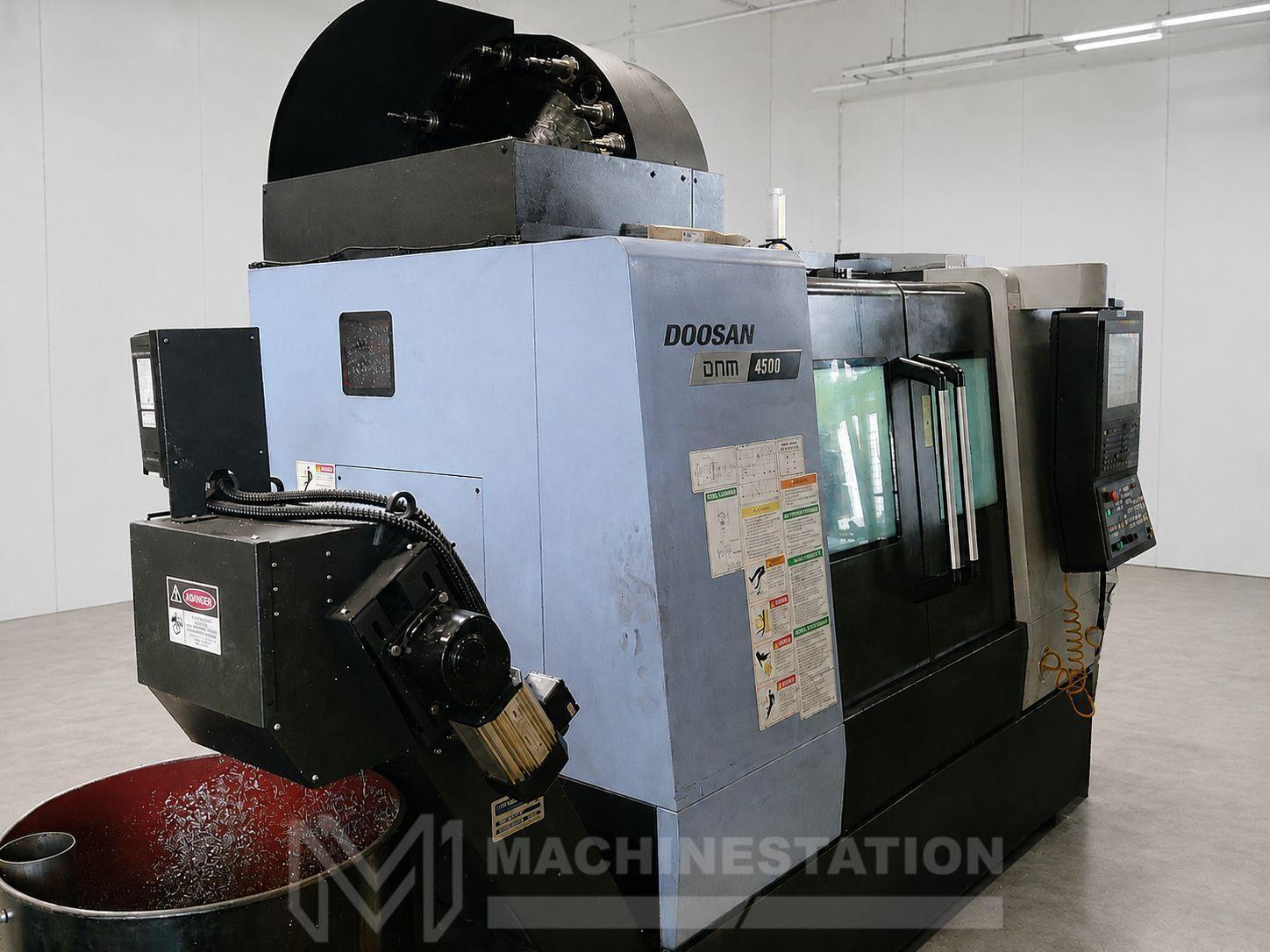

Name: Doosan DNM 4500 CNC Vertical Machining Center – 2021 4th Axis, TSC Mill
Brand: DOOSAN
SKU: 115151
Availability: InStock

Brand

DOOSAN

Location

Not specified

Specifications
Files & Videos

Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.

Equipment is sold AS-IS, WHERE-IS. All sales are final.

Make:	Doosan
Model:	DNM-4500
Year:	2021

Features:
Doosan-Fanuc CNC Control
4th Axis Detron GXA-210S Rotary Table
8,000 RPM Precision Spindle
30 Station High Speed Automatic Tool Changer
Through Spindle Coolant
Renishaw Receiver Installed
1,417 IPM Fast Rapid Traverse Rate
Coolant Tank
Hennig Chip Conveyor

Travels:
X-Axis: 31.5 inch
Y-Axis: 17.7 inch
Z-Axis: 20.1 inch
Rapid Traverse Rates X & Y Axis: 1,417 IPM
Rapid Traverse Rates Z Axis: 1,181 IPM
Spindle Nose to Table (Min.-Max.): 5.9 inch – 26 inch

Table:
Length: 39.4 inch
Width: 17.7 inch
Number of Standard T-Slots: 3
T-Slot Width: 4.9 inch x 0.7 inch
Max Weight on Table: 1,322 lbs

Spindle:
Taper Size: 40
Speed Range: 8,000 RPM
Spindle Power: 15 HP

Automatic Tool Changer:
Capacity: 30 Station Side Mounted
Max Tool Weight: 17.6 lbs
Max Tool Diameter: 3.1 inch – 4.9 inch
Max Tool Length: 11.81 inch
Tool Changing Time: 1.2 Seconds
