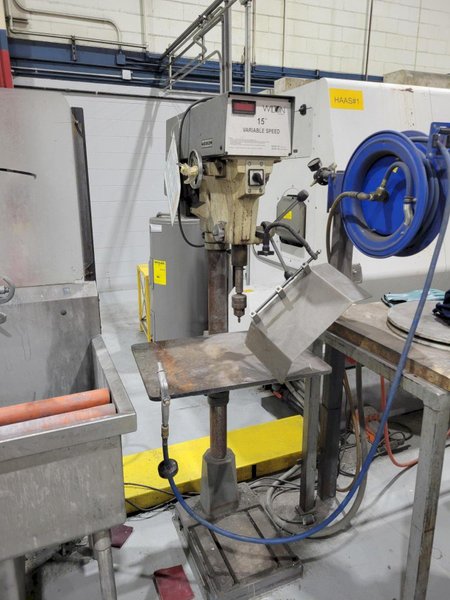

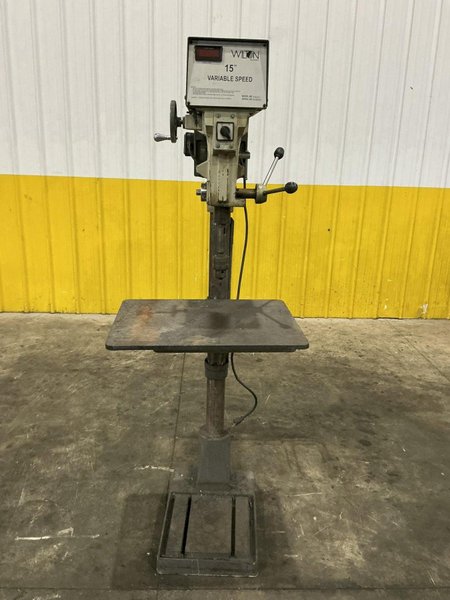

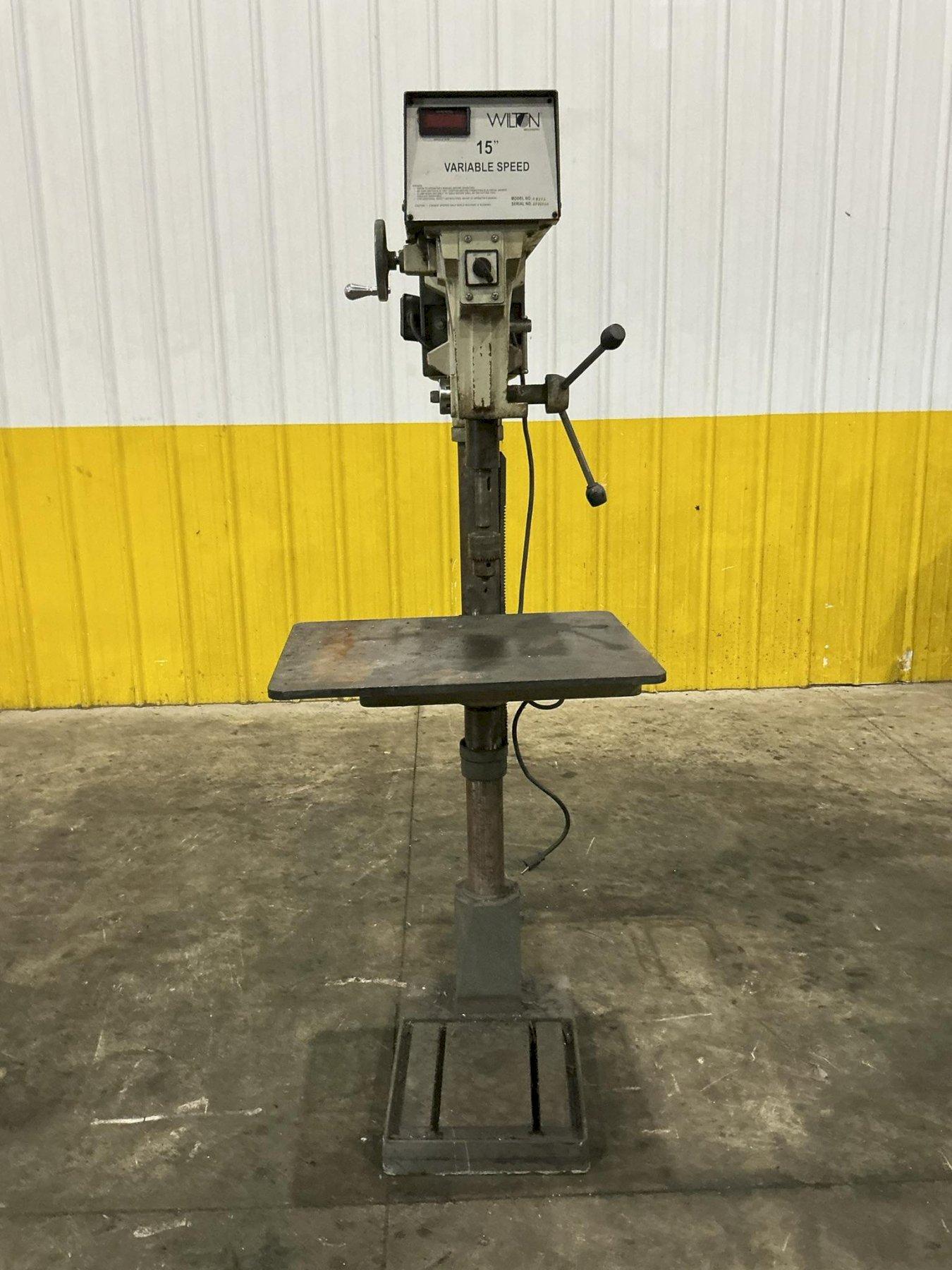

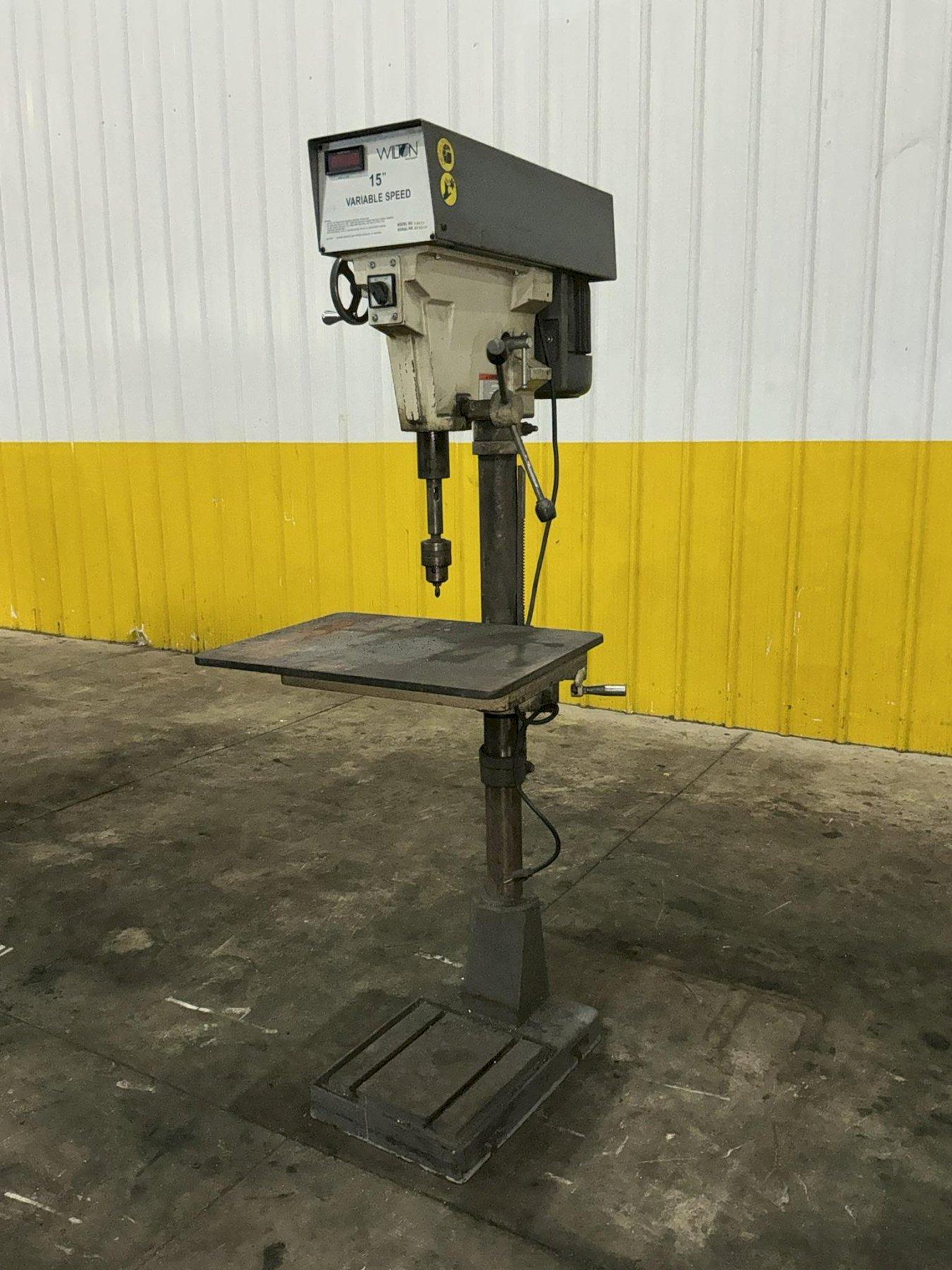

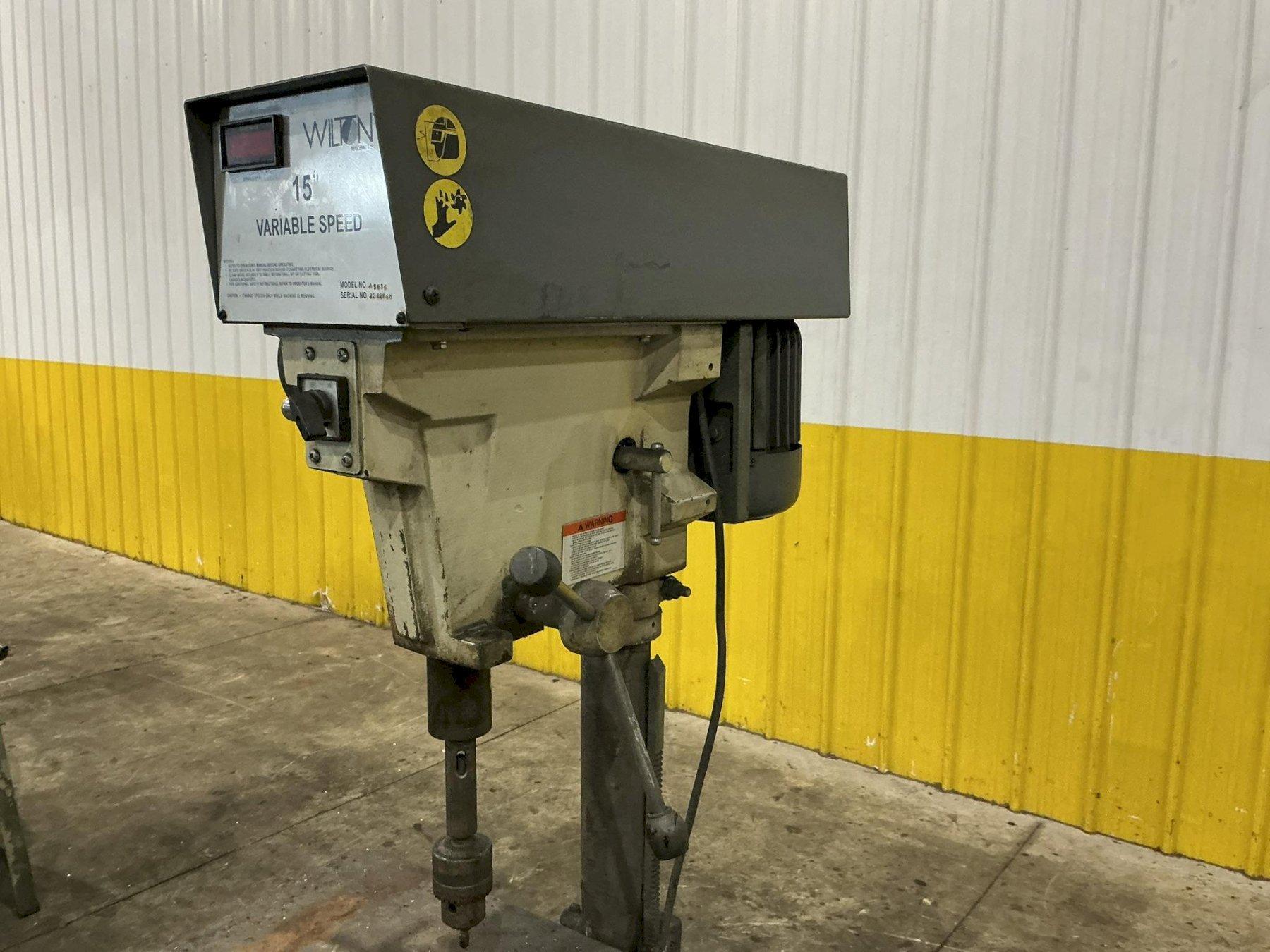

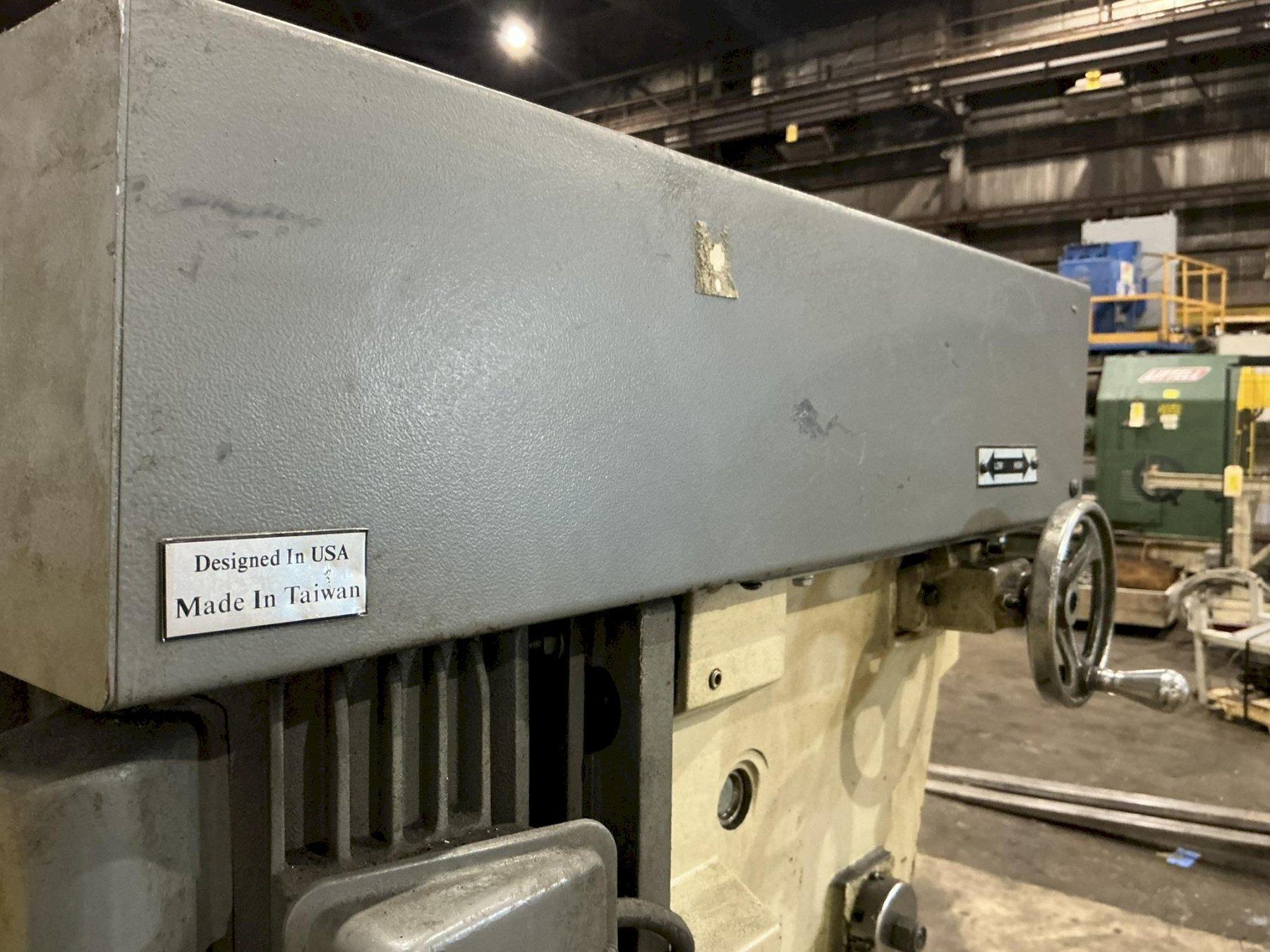

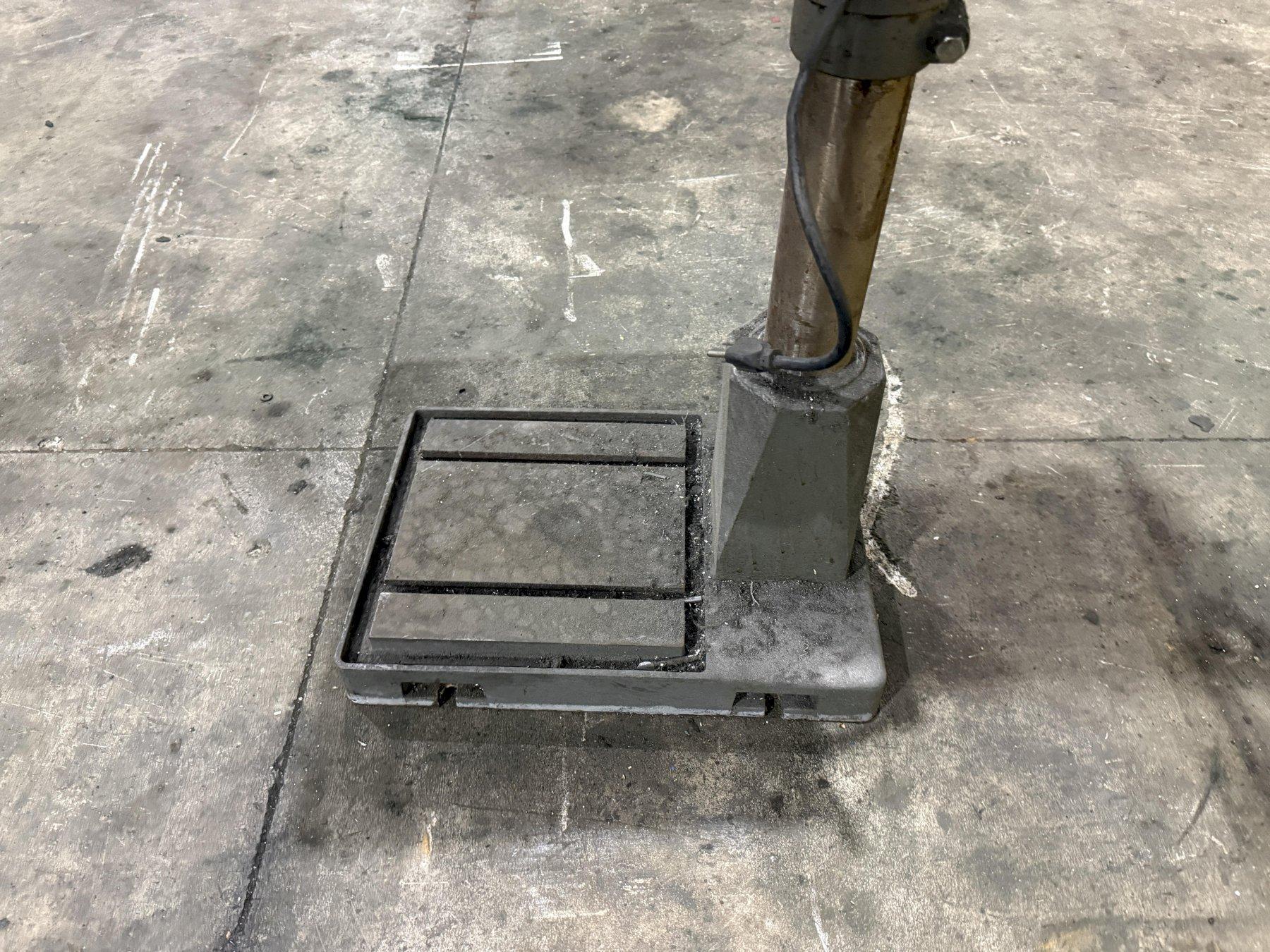

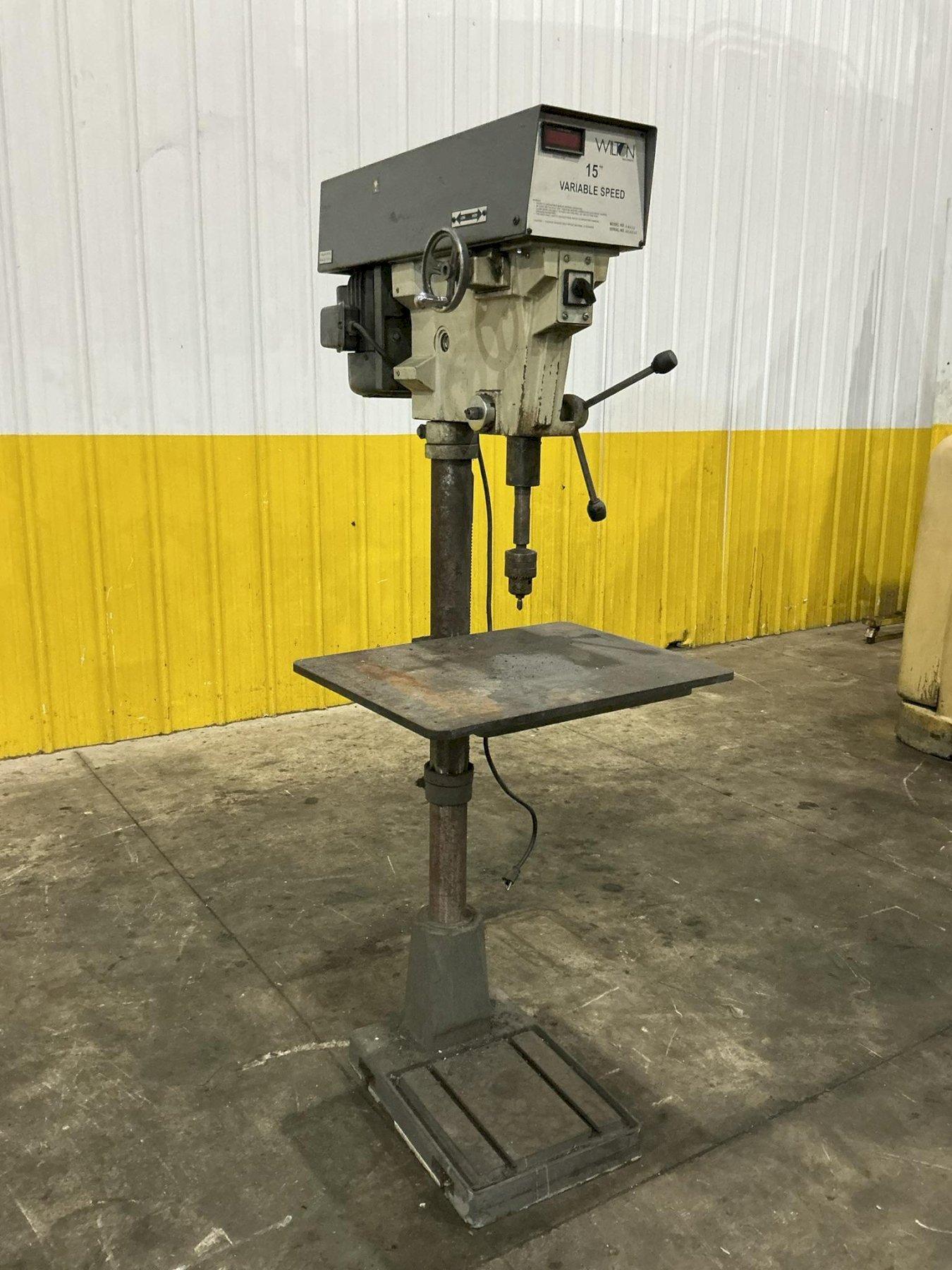

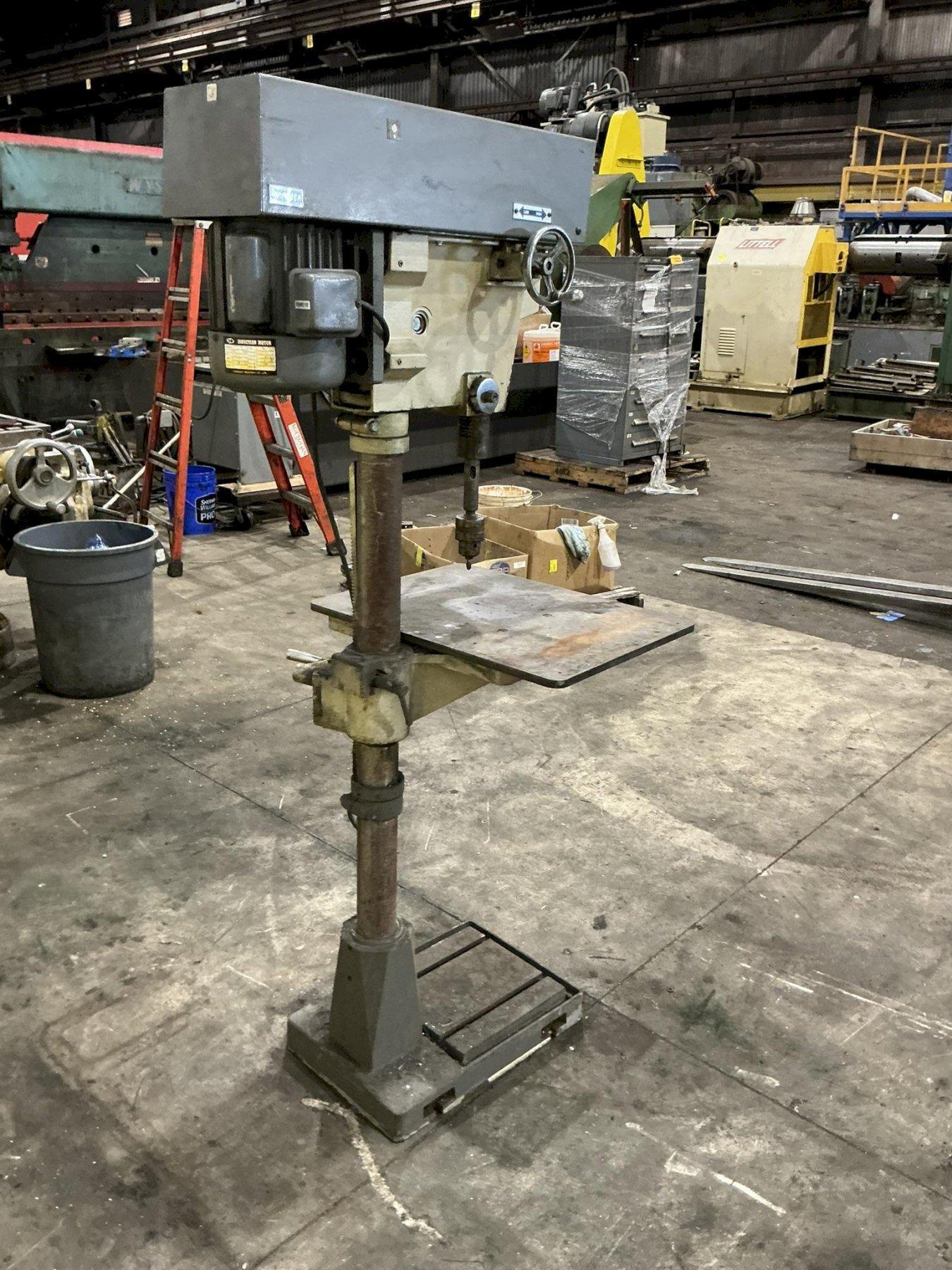

15" WILTON MODEL #A5816 VARIABLE SPEED SINGLE SPINDLE DRILL PRESS : YOBRO 26291
Brand
Category
Model
A5816
Stock #
26291
Year
Not specified
Condition
Not specified
Location
Ohio
| Power | 1 horsepower |
| Quill Travel | 6 inches |
| Spindle Taper | #2 MORSE TAPER |
| Spindle To Table | 41 inches |
| Column Diameter | 3 inches |
| Motor | 1 horsepower |
| Electrical | 115/220V, 1 PHASE |
| Power | 1 horsepower |
| RPM | 1730 |
| CNC Control | No |
| Dimensions | 67-1/2 |
|

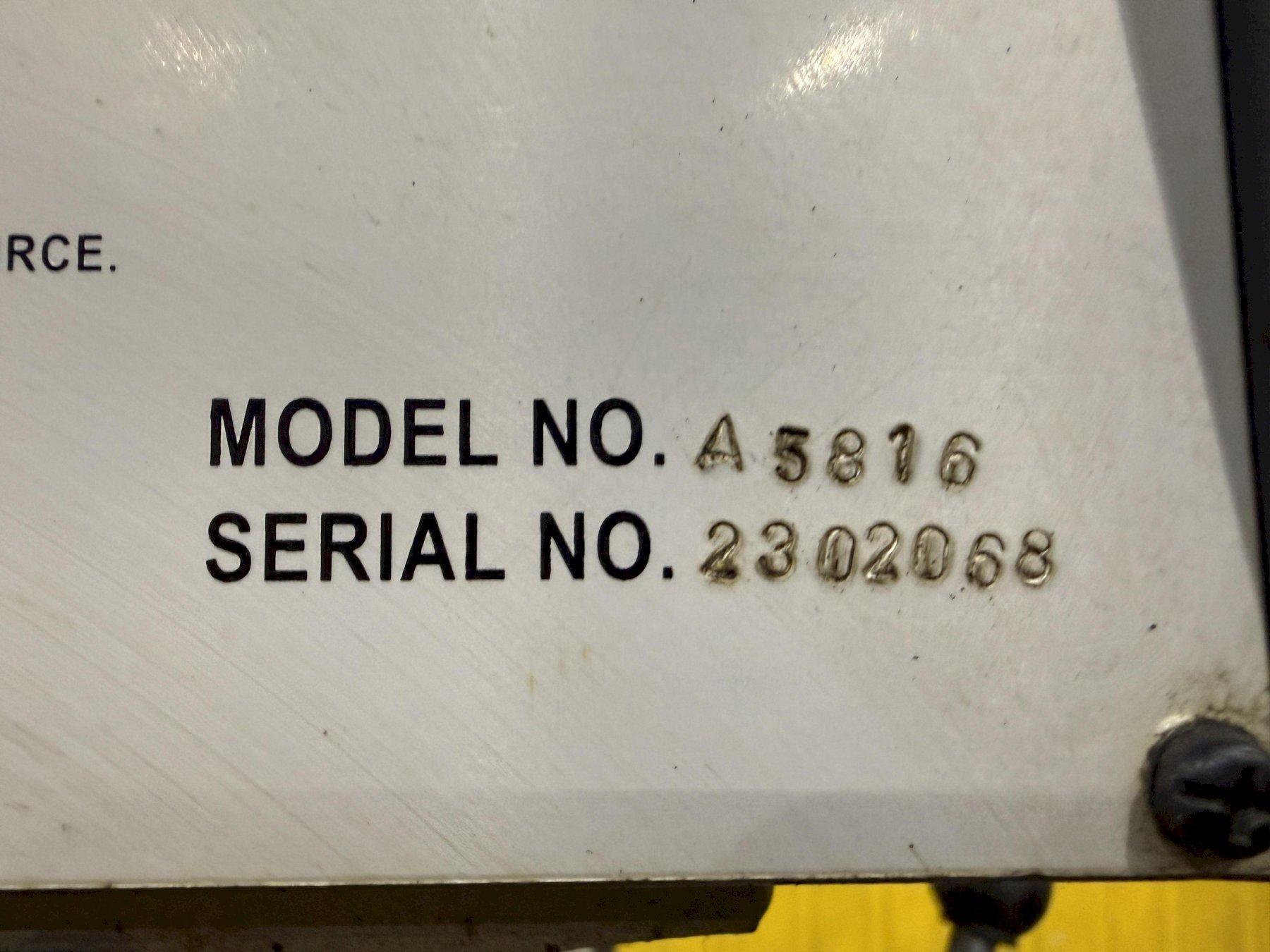

SERIAL .............. 2302068
MODEL ............... A5816 TYPE ................ FLOOR MODEL
DRILLS TO CENTER .... 15"
SPINDLE SPEED ....... 400 TO 5,000 RPM

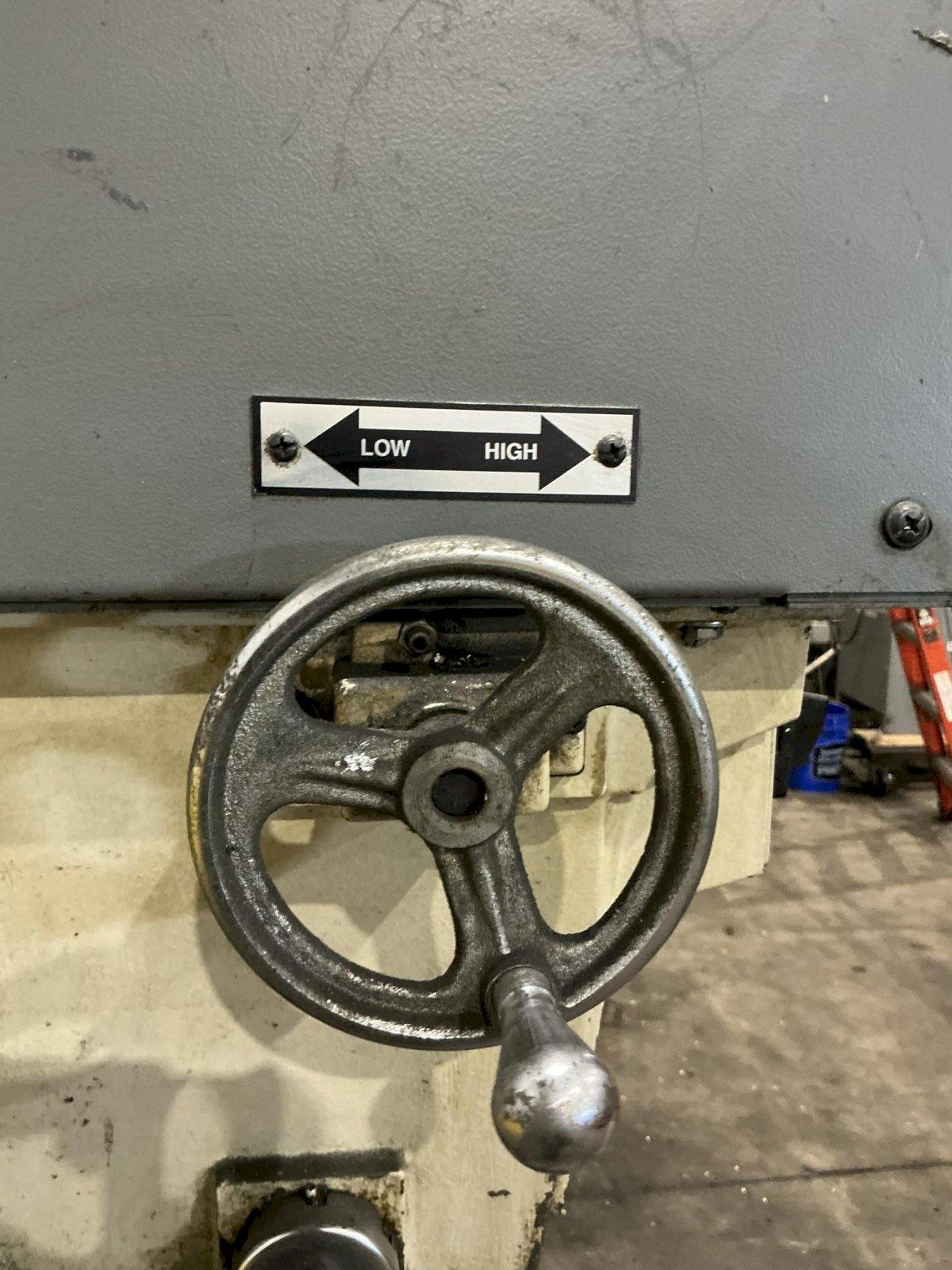

SPEED CONTROL ....... VARIABLE SPEED

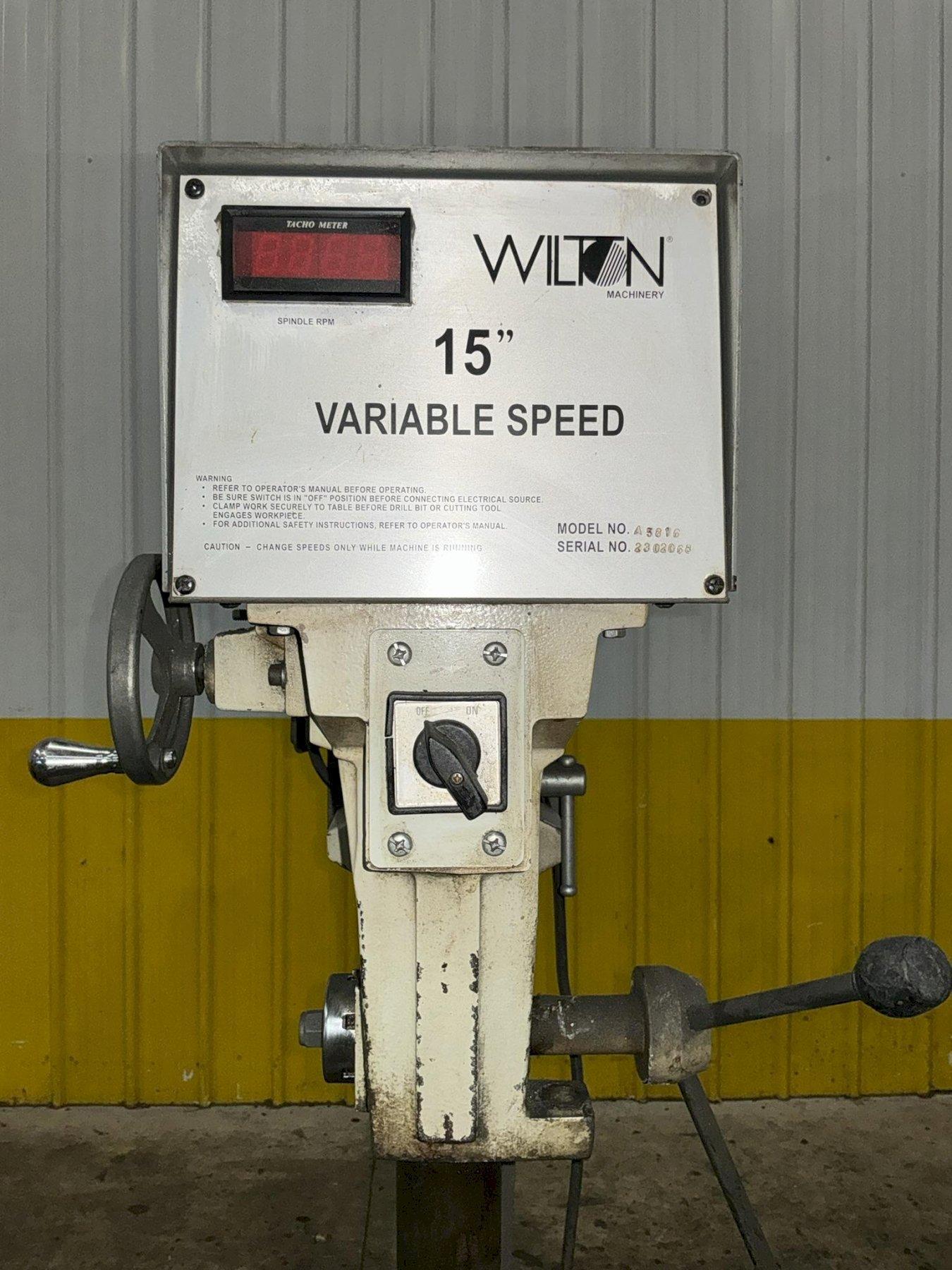

SPEED DISPLAY ....... DIGITAL / LED
DRILLING CAPACITY ... 5/8" CAST IRON
DRILLING CAPACITY ... 1/2" STEEL
QUILL DIAMETER ...... 2-1/4"
QUILL TRAVEL ........ 6"

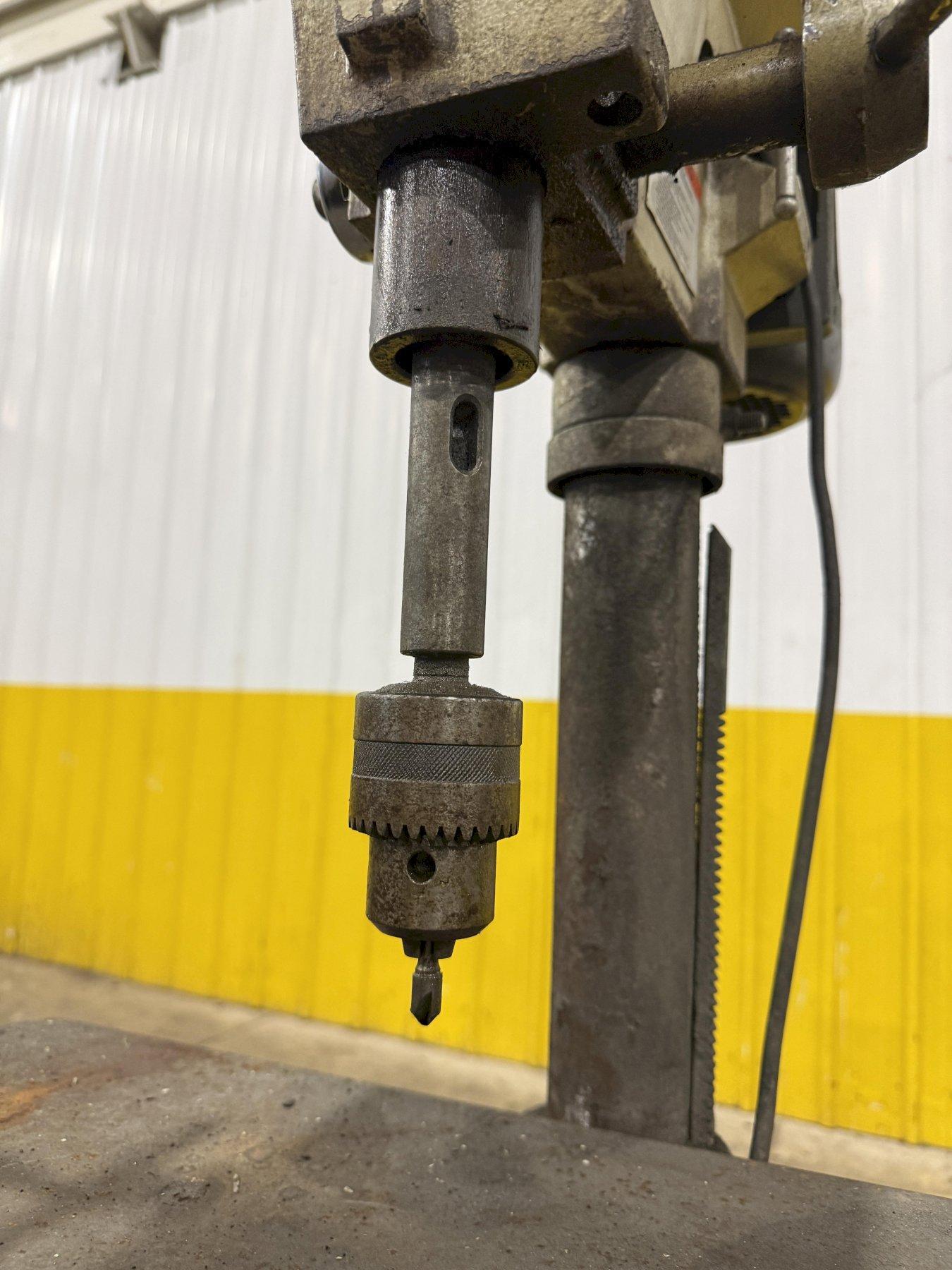

SPINDLE TAPER ....... #2 MORSE TAPER
TABLE SIZE .......... 15-1/4" X 17-3/4"
TABLE WORK AREA ..... 12-1/2" X 14-1/2"
TABLE T-SLOTS ....... 1/2"
SPINDLE TO TABLE .... 41"
SPINDLE TO BASE ..... 47-1/2"
COLUMN DIAMETER ..... 3"

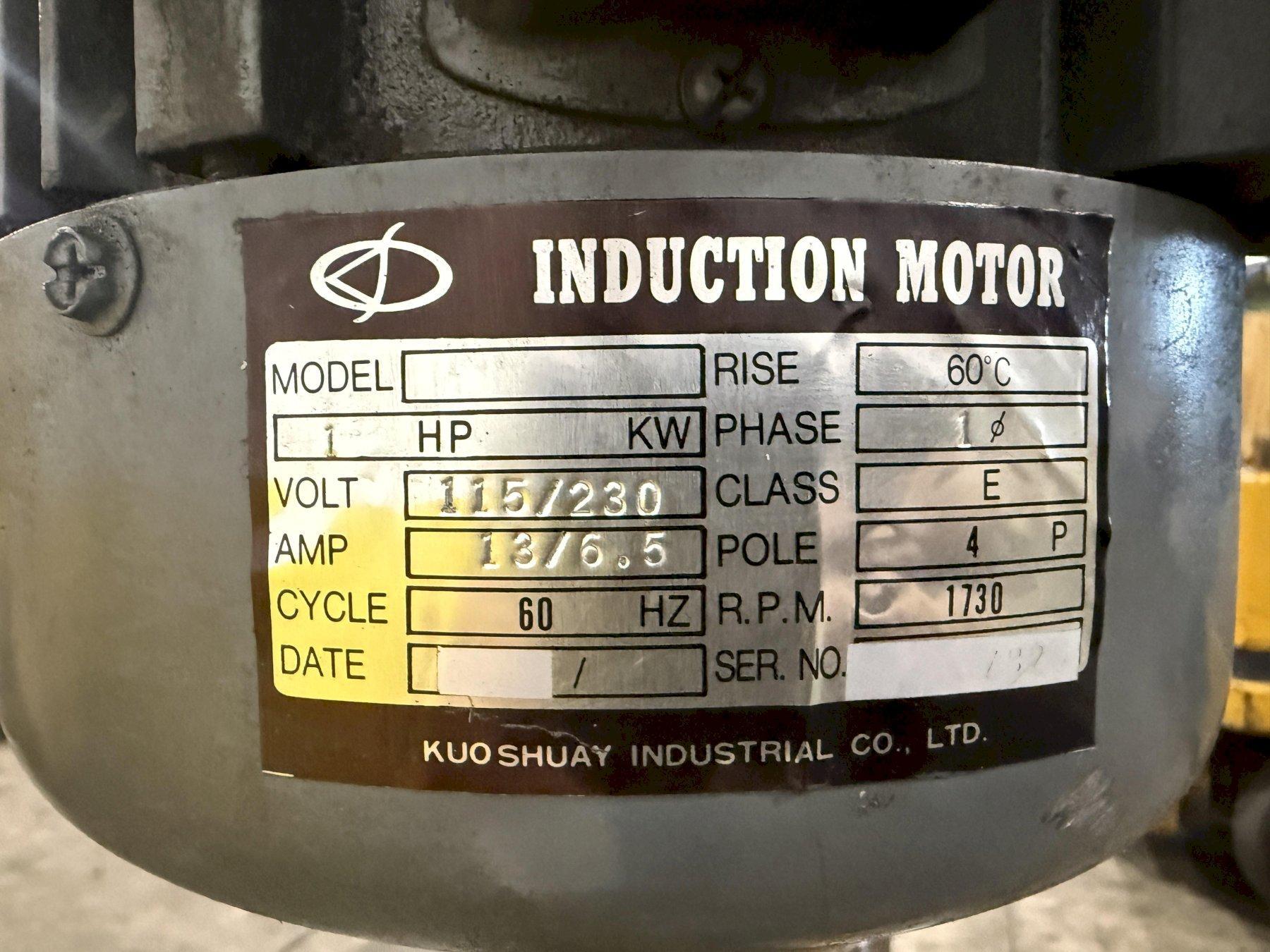

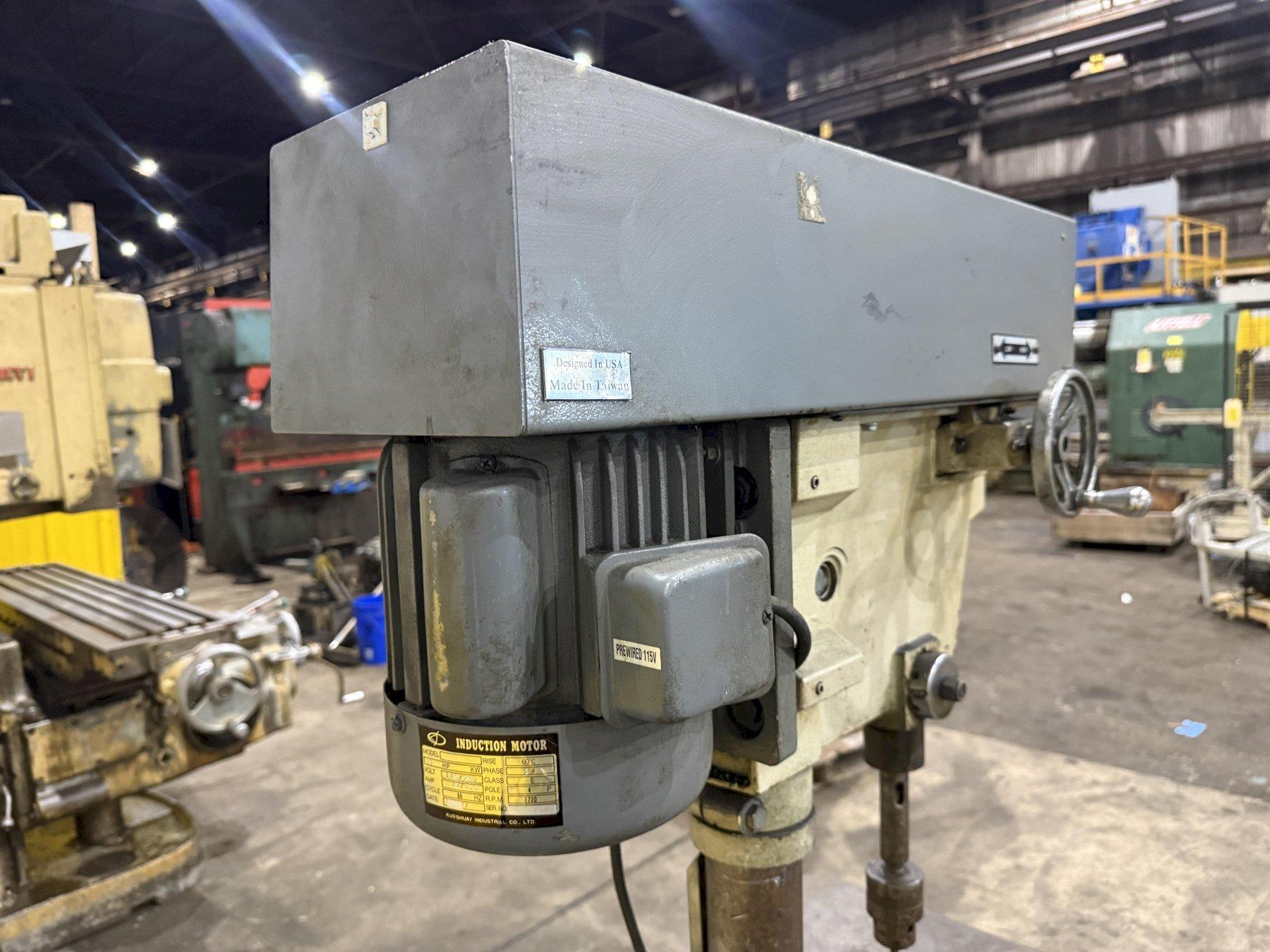

MOTOR ............... 1 HP
MOTOR SPEED ......... 1,730 RPM
ELECTRICAL .......... 115/230V, 1 PHASE, 60 HZ
AMPS ................. 13/6.5
MOTOR CLASS ......... E
TEMP RISE ........... 60°C
MOTOR POLES ......... 4
OVERALL HEIGHT ...... 67-1/2" |
|
