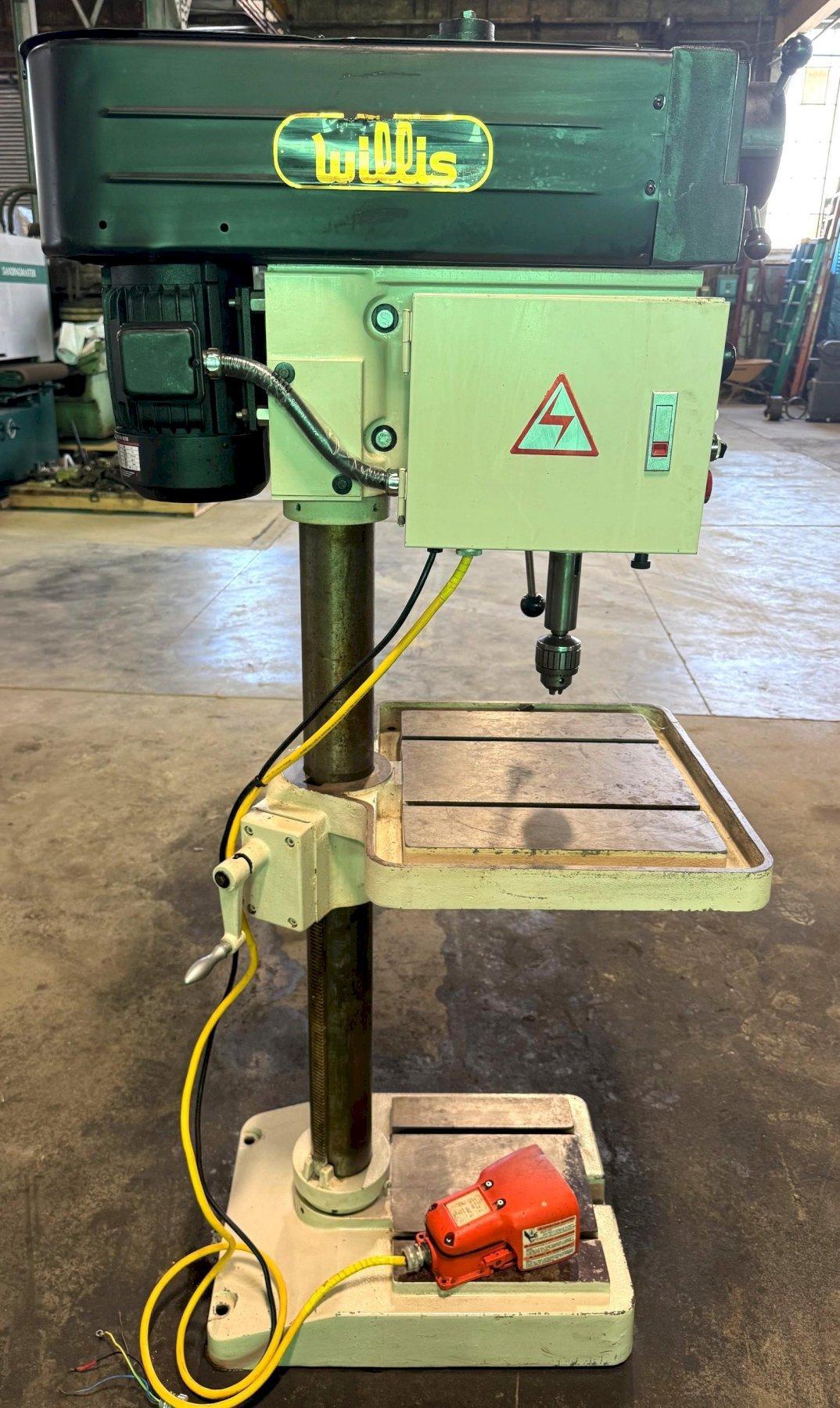

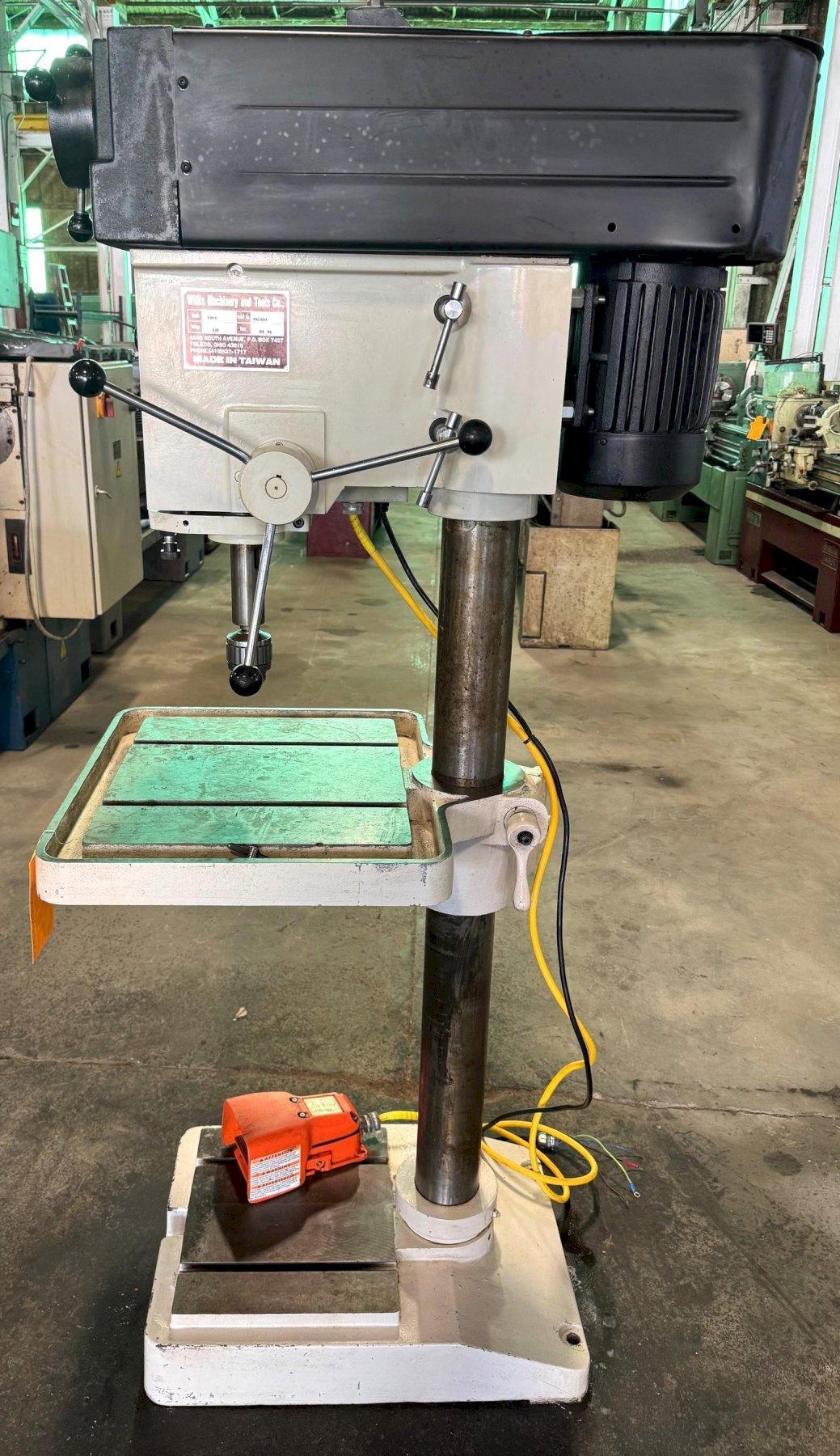

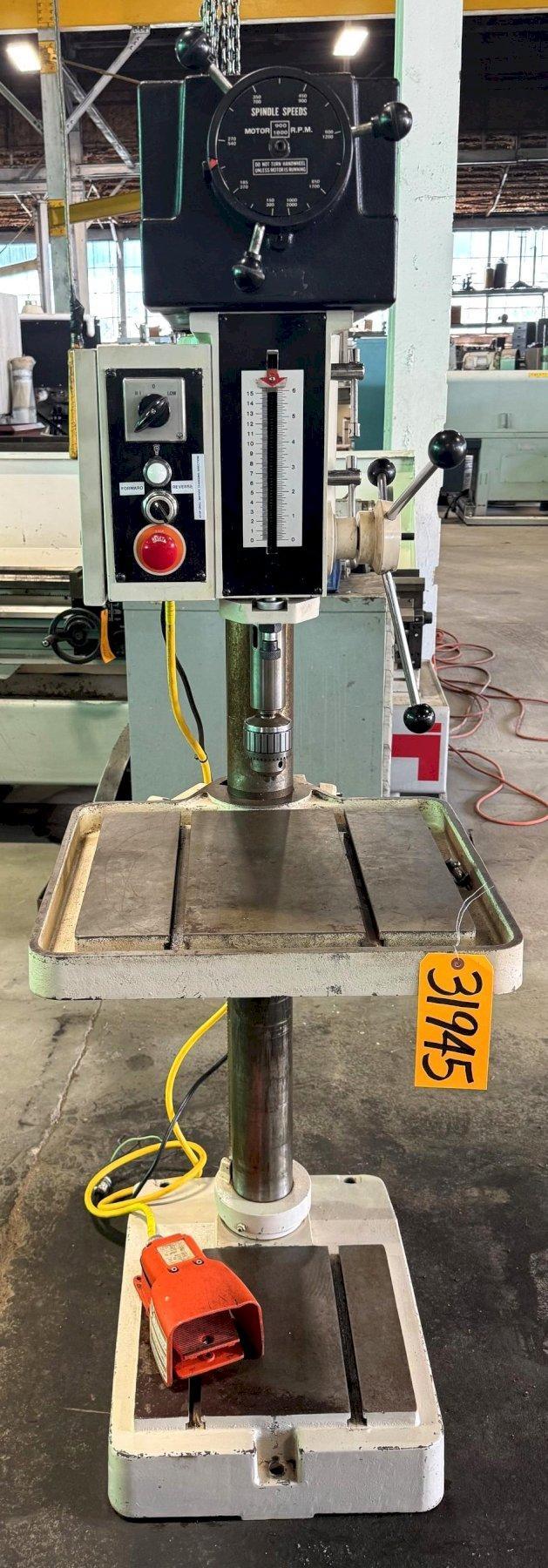

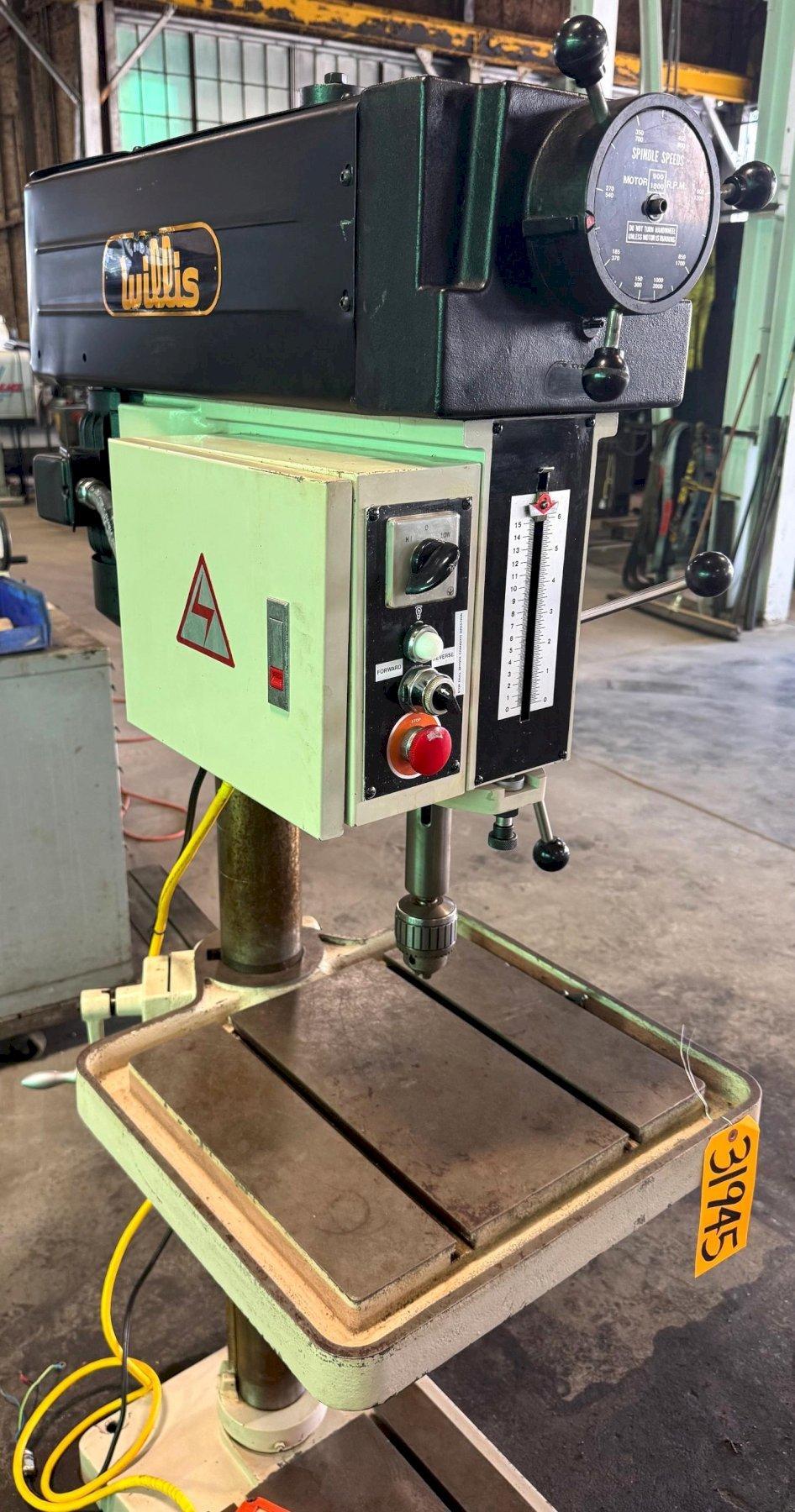

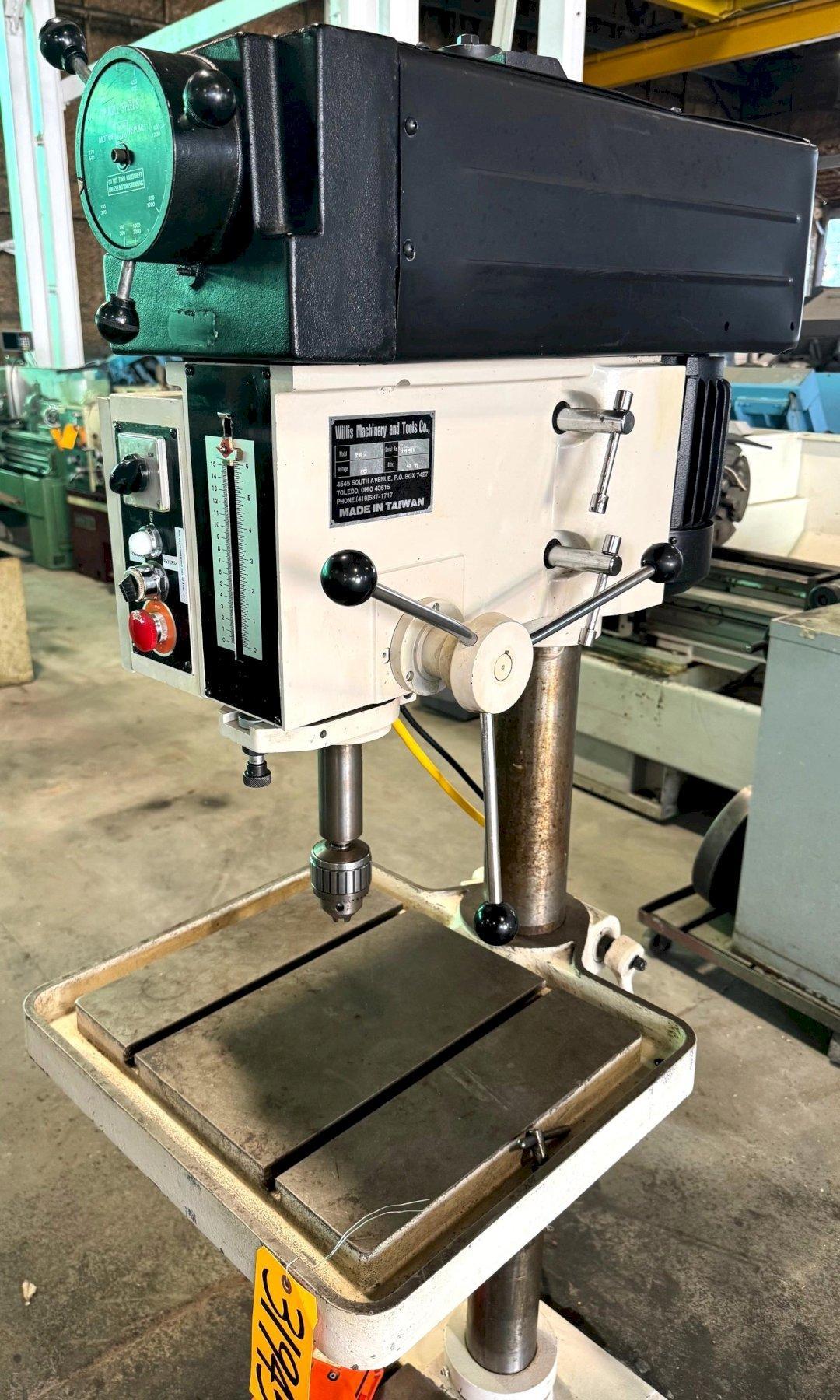

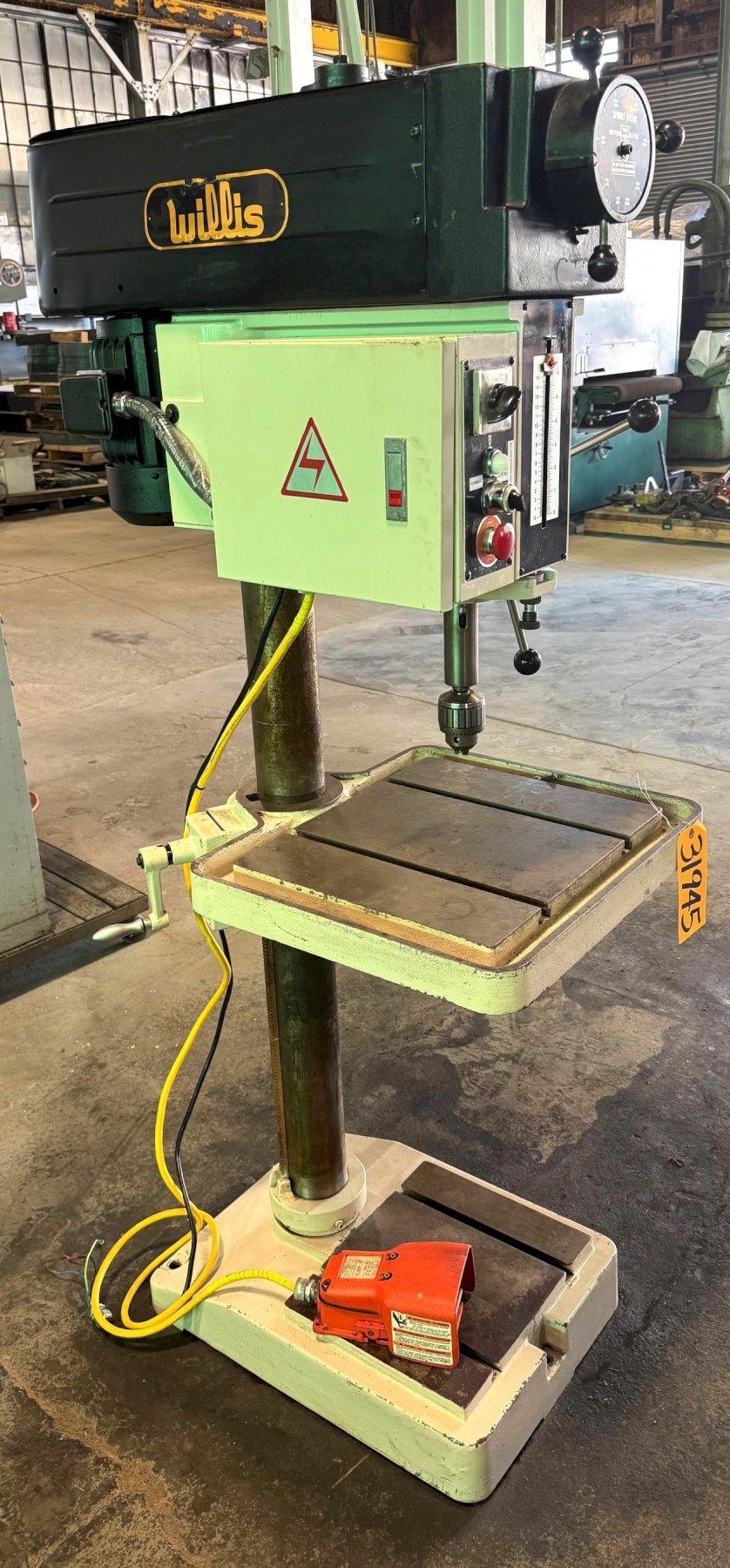

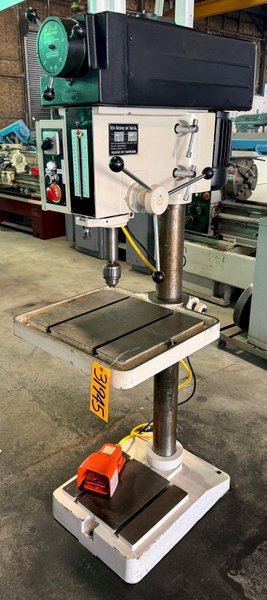

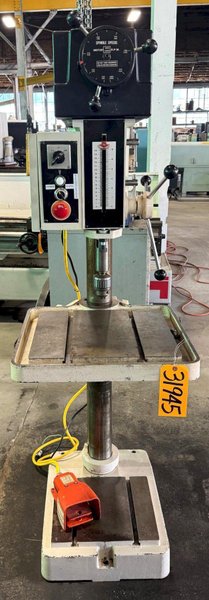

WILLIS SINGLE SPINDLE DRILL

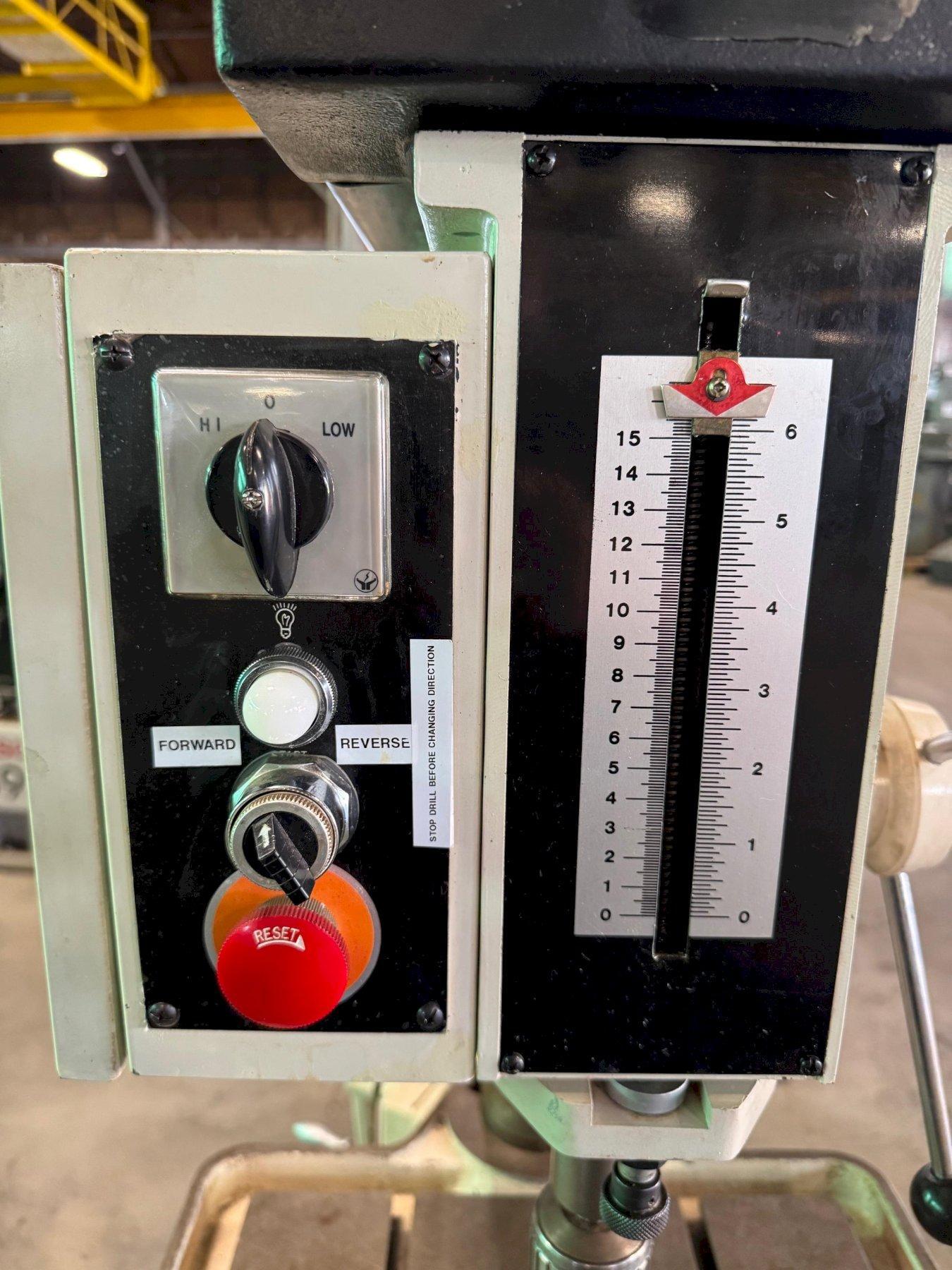

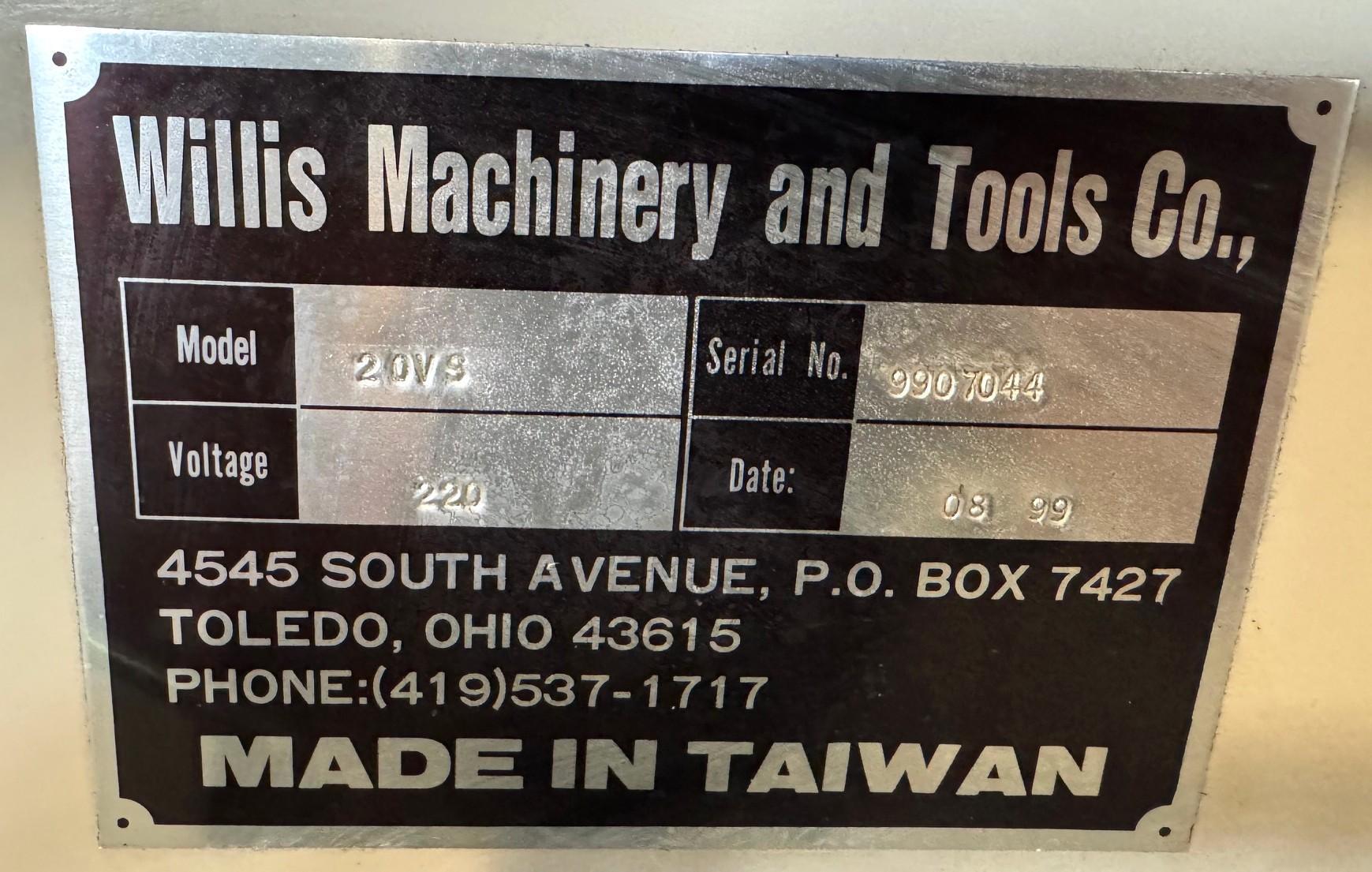

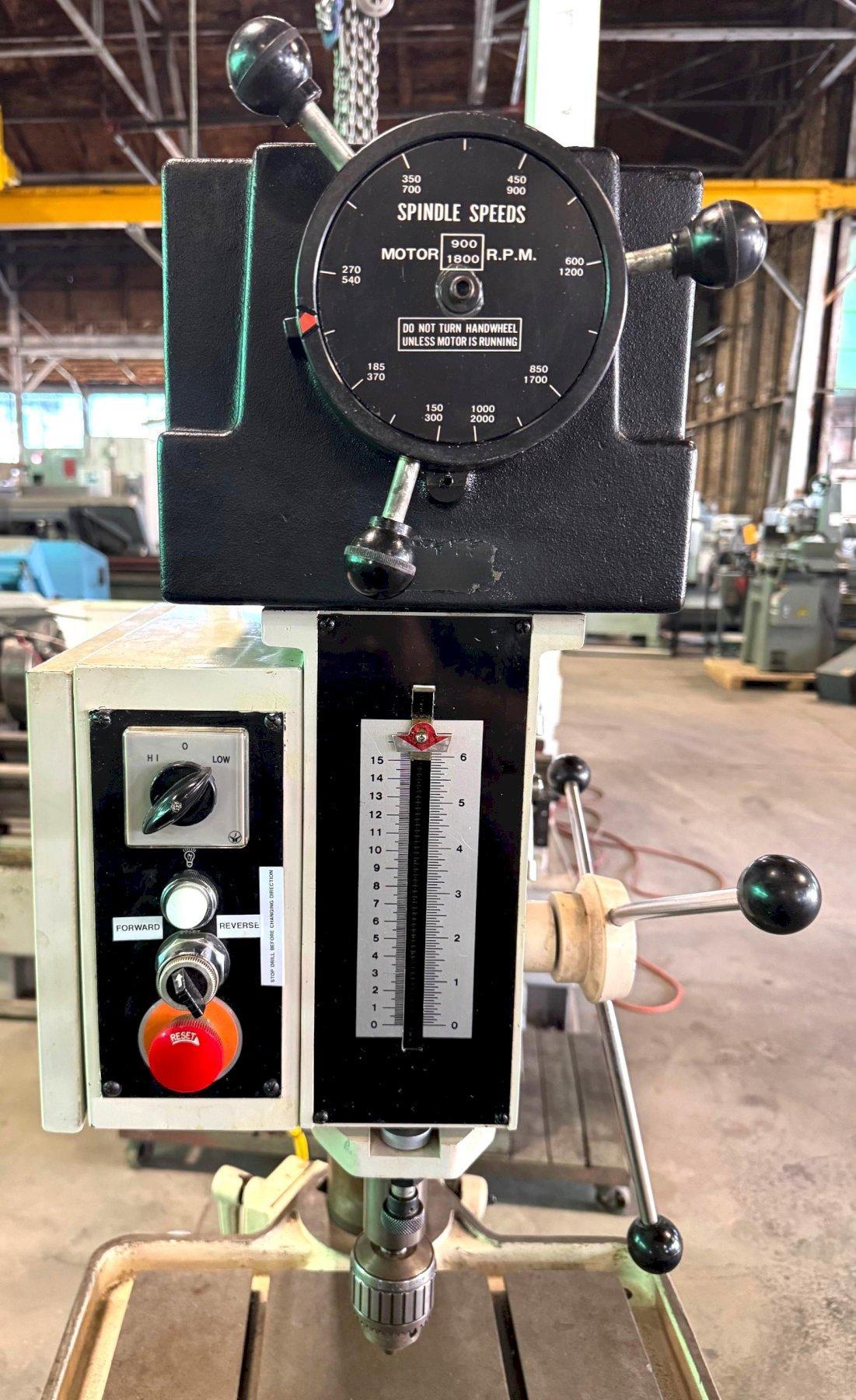

MODEL: 20VS SERIAL NUMBER: 9907044 GENERAL SPECIFICATIONS Floor Model Drills To Center Of Circle: 20" Drilling Capacity In Cast Iron: 1-3/8" Drilling Depth, Manual Feed: 6-1/2" Maximum Distance Spindle Nose To Table: 28-3/4" Maximum Distance Spindle Nose To Machined Base: 39-1/4" Spindle Taper: No. 3 M.T. Spindle Speeds, Variable: 150 - 2000 RPM Column Diameter: 4" Table Size: 22" x 19-1/2" (2 T-Slots) Vertical Travel Of Table: 19" Vertical Travel Of Drill Head: 18-1/2" Quill Diameter: 3" EQUIPPED WITH 2 HP Two Speed Motor, 220/60/3 High/Low Speed Switch Forward/Reverse Switch Emergency Stop Button Positive Depth Control Table Raising Mechanism Electric Footswitch Operation Approximate Weight: 650 Lbs. F.O.B. Cincinnati, Ohio ALL SPECIFICATIONS SUBJECT TO VERIFICATION BY PURCHASER |
