Precision. Reliability. Productivity.

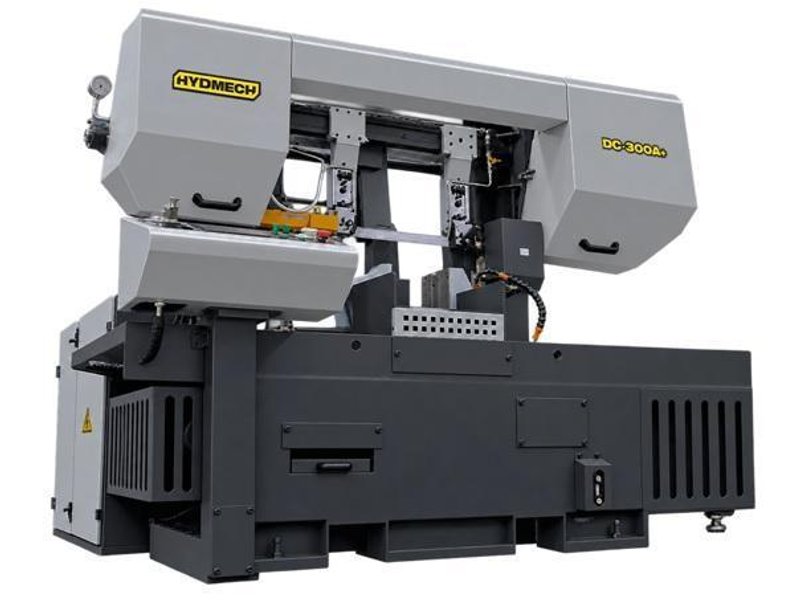

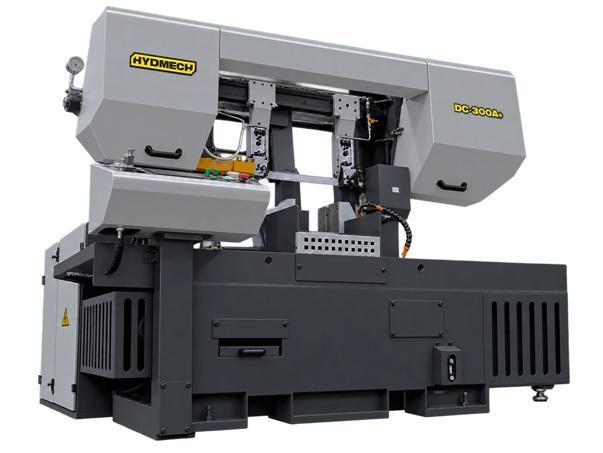

The HYDMECH DC-300A is a compact, fully automatic dual-column horizontal band saw designed for consistent, high-accuracy cutting in production environments where efficiency and repeatability are critical. Its rigid dual-column construction, combined with a four-point hydraulic blade tensioning system, delivers straight, square cuts across a wide range of solid and structural materials.
Built for unattended operation, the DC-300A features full hydraulic automation, PLC-controlled cycle sequencing, and variable frequency blade speed control—making it an ideal solution for fabrication shops, service centers, and manufacturers seeking reliable automatic sawing in an efficient production footprint.
Why the DC-300A Performs
· Rigid dual-column construction for cutting accuracy
· Concrete polymer–filled saw bow and column for vibration damping and stability
· Four-point hydraulic blade tensioning for consistent blade performance
· High-efficiency power transmission through a direct blade drive system
· Heavy-duty bearing housing isolates gearbox from blade tensioning forces to improve long-term reliability
· Pre-hardened, pre-loaded linear motion guides for smooth saw frame travel
· Variable frequency blade speed control for material-specific cutting
· Automatic shuttle indexing for repeatable length accuracy
· Designed for continuous production with minimal operator intervention
Automatic Operation & Control System
The DC-300A utilizes PLC-controlled automatic cycle sequencing to manage material clamping, blade feed, head movement, and shuttle indexing. A digital linear scale with sensor feedback ensures accurate length positioning and repeatable batch production.
A pressure-balancing hydraulic valve automatically regulates feed force based on material conditions, improving cut quality while extending blade life. Operators can quickly program cut lengths and batch quantities through the user-friendly touchscreen interface, reducing setup time and ensuring consistent performance across shifts.
Technical Specifications
|
Capacity – 90°
Rectangular
|
11.81” H x 11.81” W
300 mm H x 300 mm W
|
|
Capacity – 90°
Round/Square
|
11.81”
300 mm
|
|
Blade Size
|
1 1/4” x 14’ 5”
34 mm x 4400 mm
|
|
Blade Speed
|
65-265 SFM VFD
20-80 m/min
|
|
Blade Drive
|
5 HP VFD
3.7 kW
|
|
Auto Multi-indexing
|
Up to 23.62” in a single stroke
Up to 600 mm in a single stroke
|
|
Hydraulic Tank Capacity
|
80 L
21.13 Gallons
|
|
Coolant Tank Capacity
|
15 Gallons
|
|
Hydraulic Motor
|
1 HP
0.74 kW
|
Coolant Motor & Cleaning Brush Motor
|
0.16 HP
0.12 kW
|
|
Electrical Protection
|
IP54
|
|
Machine Voltage
|
480 V, 3 Phase, 60 Hz
208, 240, 575 V with optional transformer
|
|
Table Height
|
29.5”
750 mm
|
|
Machine Weight
|
3,748 lbs.
1,700 kg
|
|
Machine Dimensions
L x W x H
|
102” x 75” x 69”
2600 mm x 1900 mm x 1760 mm
|
| |
|
|
|
Standard Features
· Fully automatic dual-column horizontal band saw design
· Rigid dual-column frame
· Concrete polymer–filled saw bow and columns
· Direct frequency drive transmission for smooth, maintenance-free blade drive with no belts or pulleys
· Heavy-duty direct blade drive motor with German Nord gearbox and motor for high torque and reliable power transmission
· Variable frequency blade speed control
· Four-point hydraulic blade tensioning system
· Automatic blade guide adjustment with clamping vise
· 7” touchscreen control
· PLC-controlled automatic cycle sequencing
· Out-of-stock detection switch for unattended operation
· Hydraulic automatic material indexing (shuttle feed)
· Floating shuttle indexing vise for uneven material
· Digital linear scale/encoder for length control
· Laser cut-line indicator for fast, accurate blade-to-material alignment
· Hydraulic main split front vise and shuttle vise
· Variable vise pressure control for secure clamping of thin-walled tubes and profiles
· Hydraulic overhead bundling clamps secure multi-bar or tube bundles for faster throughput and consistent bundle cutting accuracy. Note: reduces saw capacity to 7.25” H x 11.81” W. Easily removed to utilize the saws full capacity
· Roller support across the full length of the indexing table
· Separate hydraulic power pack with large-capacity reservoir
· Mist lubrication system
· Powered wire cleaning brush
· Electrically driven chip auger
· Signal tower LED run/stop light on top of the machine
· Electrical protection to IP54
· Work light
Optional Features
· Remote Pedestal Control
· Automatic lubrication system - reduces routine maintenance requirements, ensures consistent lubrication of moving components, and helps extend machine service life.
· Roller Discharge Tables – 5’ and 10’ (1.5 m/3 m)
· Vertical Alignment Rollers for long stock
· Idler and Powered Conveyors
· Coolant Drip Pans, Filler Plates, Forklift Cut-Outs
|
