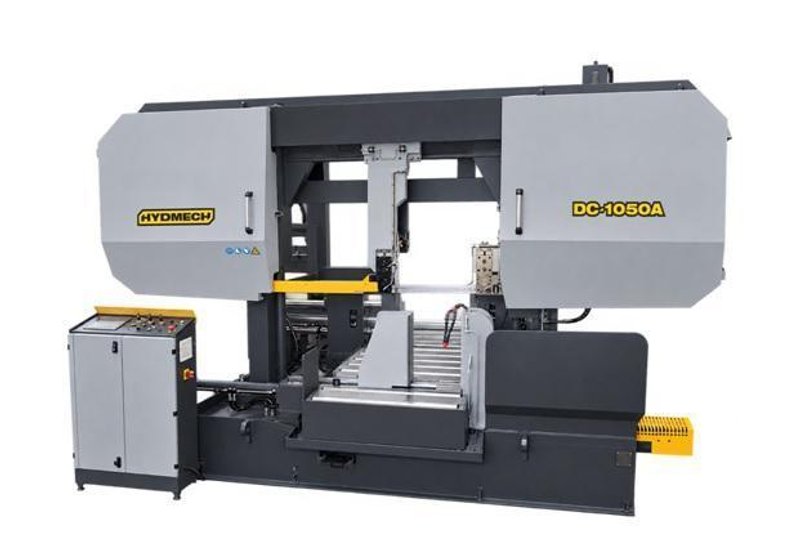

NEW 41" x 41" HYDMECH MODEL DC-1050A+ AUTOMATIC DUAL POST BAND SAW

Capacity – 90°

Rectangular

41” H x 41” W

1050 mm H x 1050 mm W

Capacity – 90°

Round/Square

41”

1050 mm

Blade Size

2 5/8” x 34’ 11”

67 mm x 10650 mm

Blade Speed

65-265 SFM VFD

20-80 m/min

Blade Drive

25 HP VFD

18.5 kW

Auto Multi-indexing

Up to 11.81” in a single stroke

Up to 300 mm in a single stroke

Hydraulic Tank Capacity

80 L

21.13 Gallons

Coolant Tank Capacity

25 Gallons

Hydraulic Motor

1 HP

0.74 kW

Coolant Motor & Cleaning Brush Motor

0.16 HP

0.12 kW

Electrical Protection

IP54

Machine Voltage

480 V, 3 Phase, 60 Hz

208, 240, 575 V with optional transformer

Table Height

31.5”

800 mm

Machine Weight

29,762 lbs.

13,500 kg

Machine Dimensions

L x W x H

236” x 165” x 142”

6000 mm x 4200 mm x 3600 mm

Standard Features

·         Fully automatic dual-column band saw design

·         Concrete polymer–filled saw bow and dual columns

·         Direct frequency drive transmission for smooth, maintenance-free blade drive with no belts or pulleys

·         Heavy-duty direct blade drive motor with German Nord gearbox and motor for high torque and reliable power transmission

·         Variable frequency blade speed control (65–265 SFPM)

·         Four-point hydraulic blade tensioning system

·         Direct blade guide system

·         Automatic blade guide adjustment synchronized with clamping vise

·         PLC-controlled automatic cycle sequencing

·         10” touchscreen HMI with integrated PLC control

·         Out of stock switch

·         Independent closed-loop servo ball screw system for saw head feed (up/down)

·         Closed-loop servo ball screw indexing system with programmable multi-indexing for accurate, repeatable batch cutting

·         Digital linear scale/encoder for length control

·         Laser cut-line indicator for fast, accurate blade-to-material alignment

·         Hydraulic main split front vise with variable vise pressure

·         Full capacity hydraulic overhead bundling clamps secure multi-bar or tube bundles for faster throughput and consistent bundle cutting accuracy

·         Roller support across the full length of the indexing table

·         Separate hydraulic power pack with large-capacity reservoir

·         Mist lubrication system

·         Powered wire cleaning brush

·         Electrically driven chip auger

·         Signal tower LED run/stop light on top of the machine

·         Electrical protection to IP54

·         Work light

Optional Features

·         Automatic lubrication system - Reduces routine maintenance requirements, ensures consistent lubrication of moving components, and helps extend machine service life.

·         Power transformer

·         Remote pedestal control

·         Roller Discharge Tables – 5’ and 10’ (1.5 m/3 m)

·         Vertical Alignment Rollers for long stock

·         Idler and Powered Conveyors

·         Coolant Drip Pans, Filler Plates, Forklift Cut-Outs
