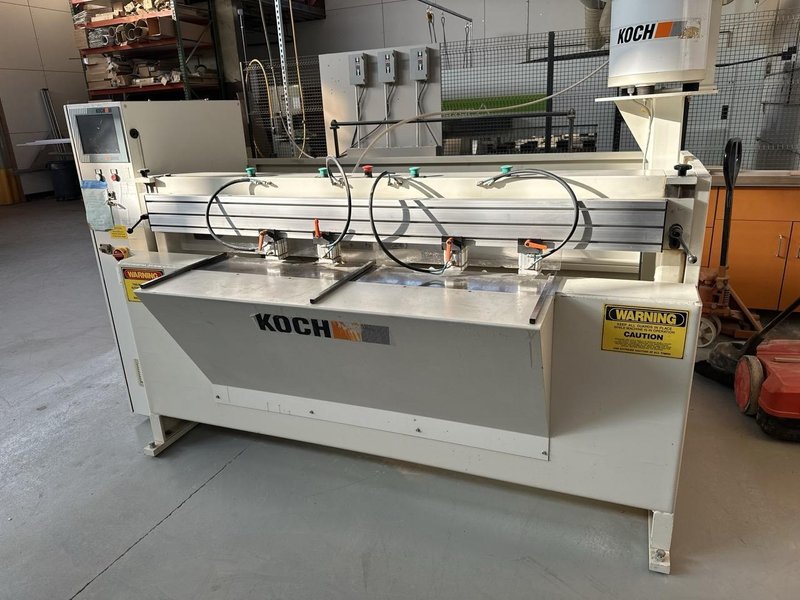

Koch Sprint PTP 3/1300 Automated Dowel Machine, 2007

Stock Length Range: 4.25″ – 31.5″ Stock Width Range: 0.75″ – 51″ Stock Thickness Range: 0.5″ – 2.4″ Horizontal Drilling Spindle Motor: 1.25 HP Horizontal Drill Speed: 7,200 RPM Max Drilling Depth: 1.1″ Drill Bit Shank Diameter: 0.39″ Dowel Diameter Supported: 0.31″ And 0.39″ Dowel Length Range: 1.2″ – 1.4″ Dowel Projection Range: 0.28″ – 0.55″ Control Interface: CNC With Color Touchscreen Power Supply: 480 VAC 3 Phase Machine Dimensions Approx: 103″ × 52″ × 80″ Approximate Weight: 2,000 Lbs

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Equipped With

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Horizontal Drilling Station Glue Injection And Dowel Insertion System Vibrating Hopper Dowel Feeder Central Lubrication System CNC Control With Monitor And Touchscreen All Available Manuals

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
