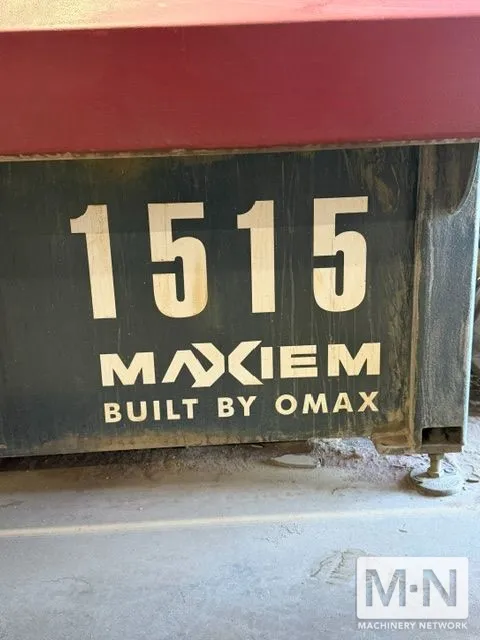

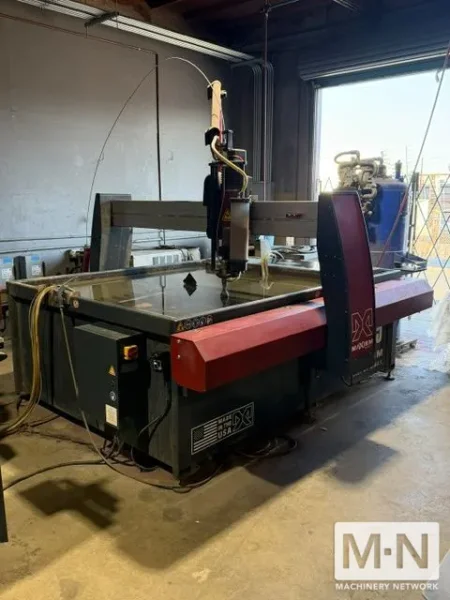

2018 MAXIEM 1515 CNC WATERJET

X-Y travel: 5' 2" × 5' 2" (1.57 m × 1.57 m)
Z-axis travel: 12" (304 mm)
Table size: 7' 4" × 5' 8" (2.24 m × 1.73 m)
📐 Machine Size / Weight
Footprint (with pump & controller): ~13' 3" × 12' 5"
Height: ~10' 6"
Weight (empty): ~6,000 lbs
Operating weight: ~14,100 lbs

(Some base-frame-only listings show smaller footprint/weight without pump/controller.)

⚙️ Performance
Max cutting speed: ~500 in/min (12.7 m/min)
Linear accuracy: ±0.003"
Repeatability: ±0.001"
Ballbar circularity: ~±0.005"
⚡ Electrical / Capacity
Power: 3-phase, 380–480V, 50/60 Hz
Max load: 300 lb/sq ft
Noise: <80 dBA (submerged cutting)
💧 Pump Options (Typical)
20 HP / 30 HP / 40 HP direct drive options
Pressure: typically 50,000 psi (up to 60,000 psi with some pumps)
🧠 Notable Features
IntelliTRAX linear drive system (high precision motion control)
Motorized Z-axis with MAXJET nozzle
Cuts metal, stone, glass, plastics with no heat-affected zone
Compact footprint vs. full-size 5' × 10' waterjets
💡 Practical Takeaway

The MAXIEM 1515 is essentially a 5' × 5' class waterjet:

Good for job shops, prototype work, and smaller parts
Lower cost and footprint than a full 3015/4020 machine
Still delivers production-level accuracy and 50k psi cutting
