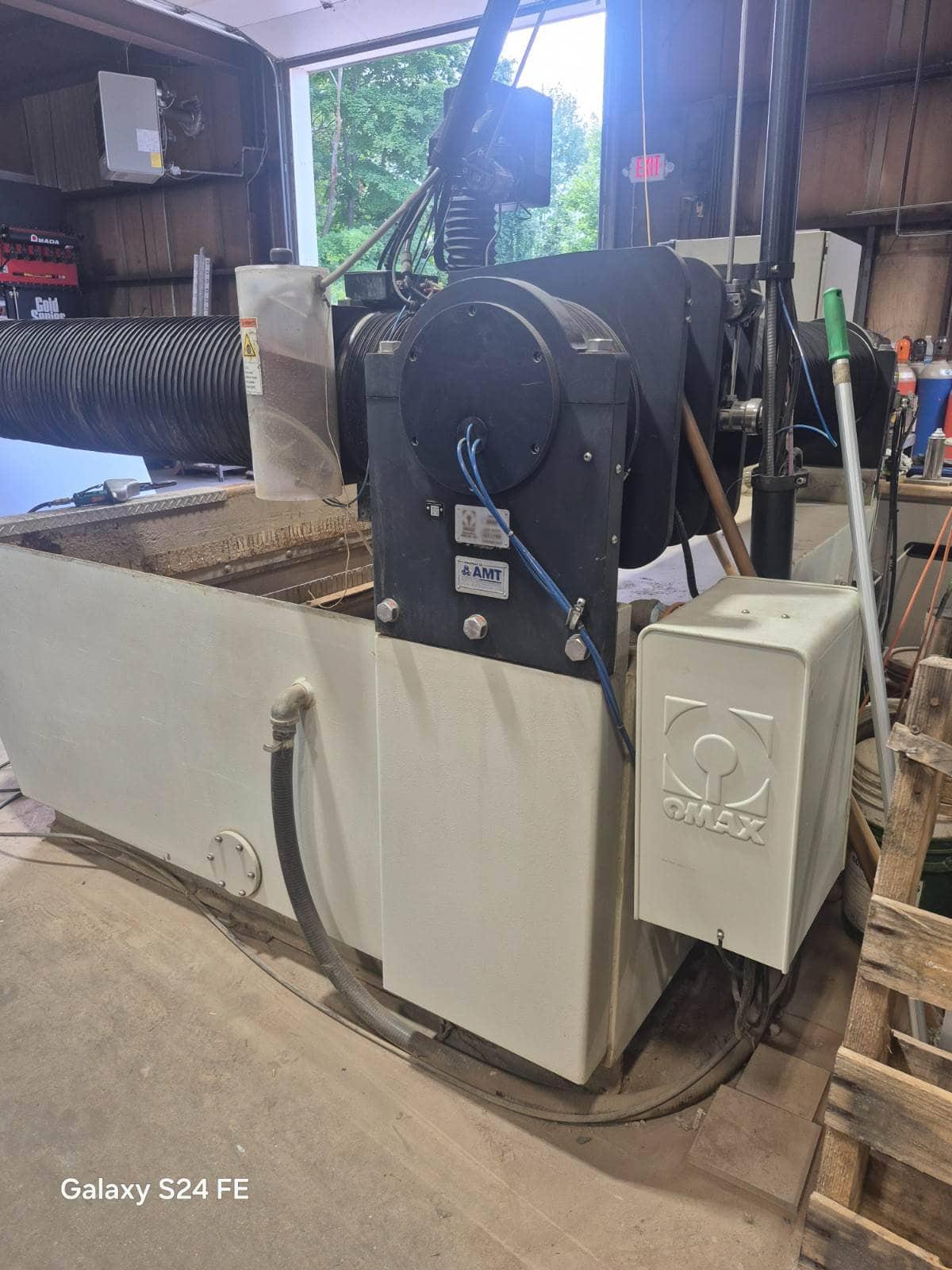

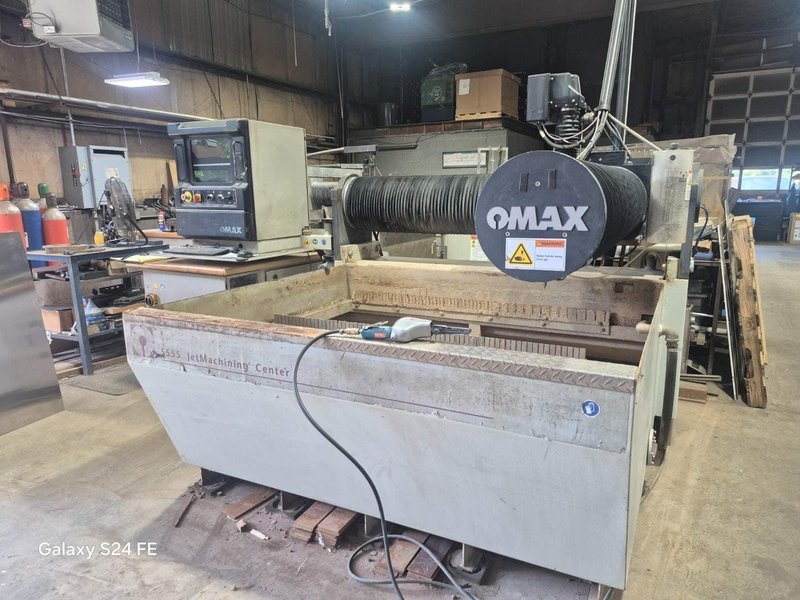

55″ x 55″ Omax 5555 Waterjet Cutting System, 2018

– 4’ 7” x 4’ 7” (1,397 mm x 1,397 mm) X-Y cutting area – OMAX MAXJET® 5i Nozzle for more accurate and consistent jet – 40 hp Enduromax 60kpsi Pump

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Equipped with the following Options: 1) Drill Head 2) Terrain follower 3) 600lbs hopper 4) High cycle kit

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,– Footprint – (L x W) 10’ 11” x 7’ 11” – Height 9’ 10” – Z-Axis Travel 8”

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Performance & Specifications – Linear Positional Accuracy: ±0.001″ (±0.025 mm) – Repeatability: ±0.001″ (±0.025 mm) – Ballbar Circularity: ±0.0025″ to ±0.003″ – Speed: Up to 180 in/min (4,572 mm/min) – Electrical Requirements: 3-Phase, 380–480 VAC ±10%, 50–60 Hz – Noise Level: Below 80 dBA at one meter (for submerged cutting)

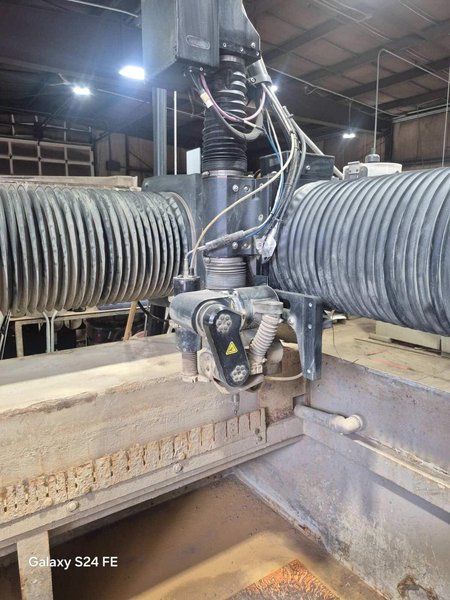

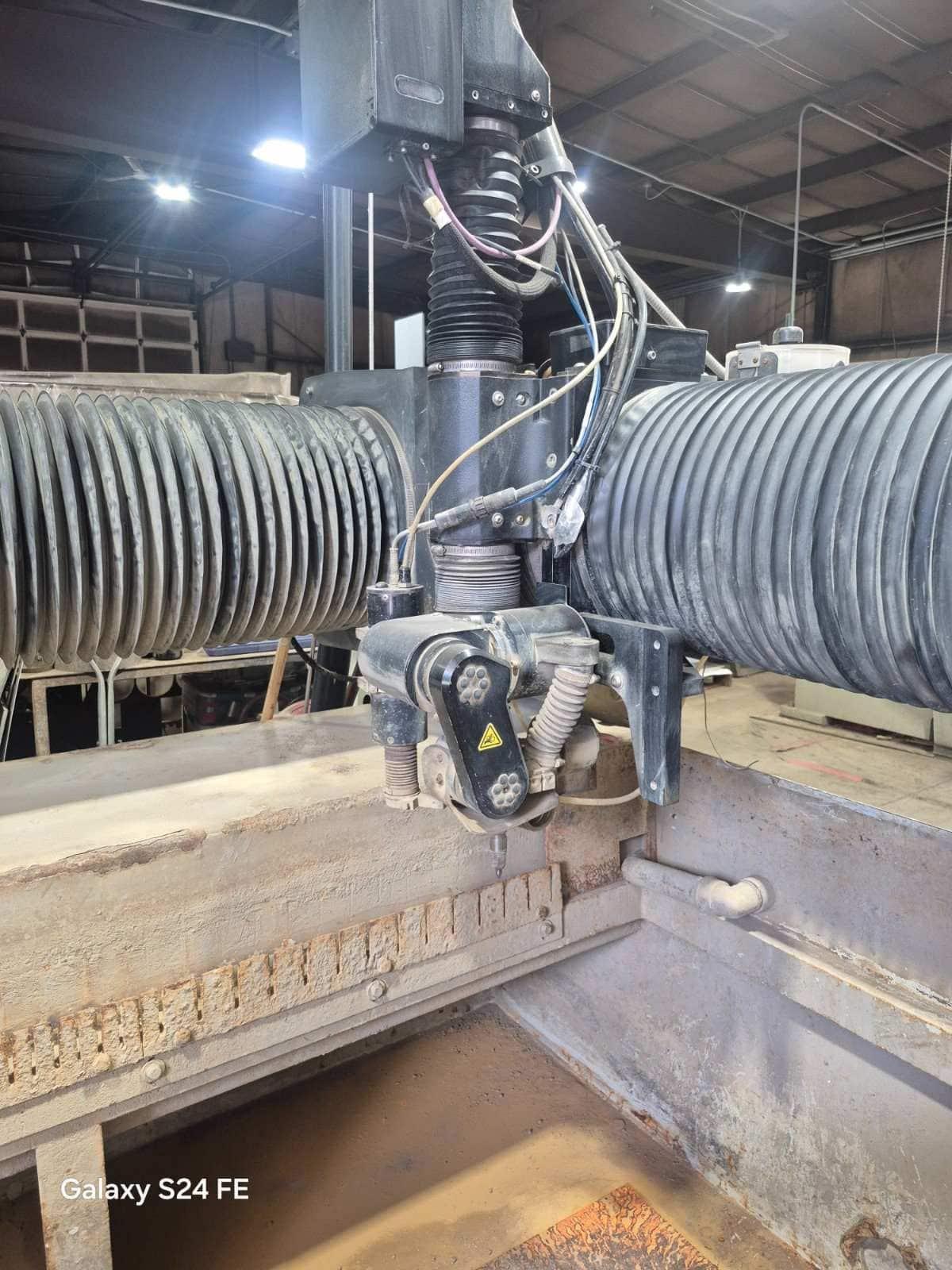

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,2018 Configuration Features – Nozzle: OMAX MAXJET 5i nozzle

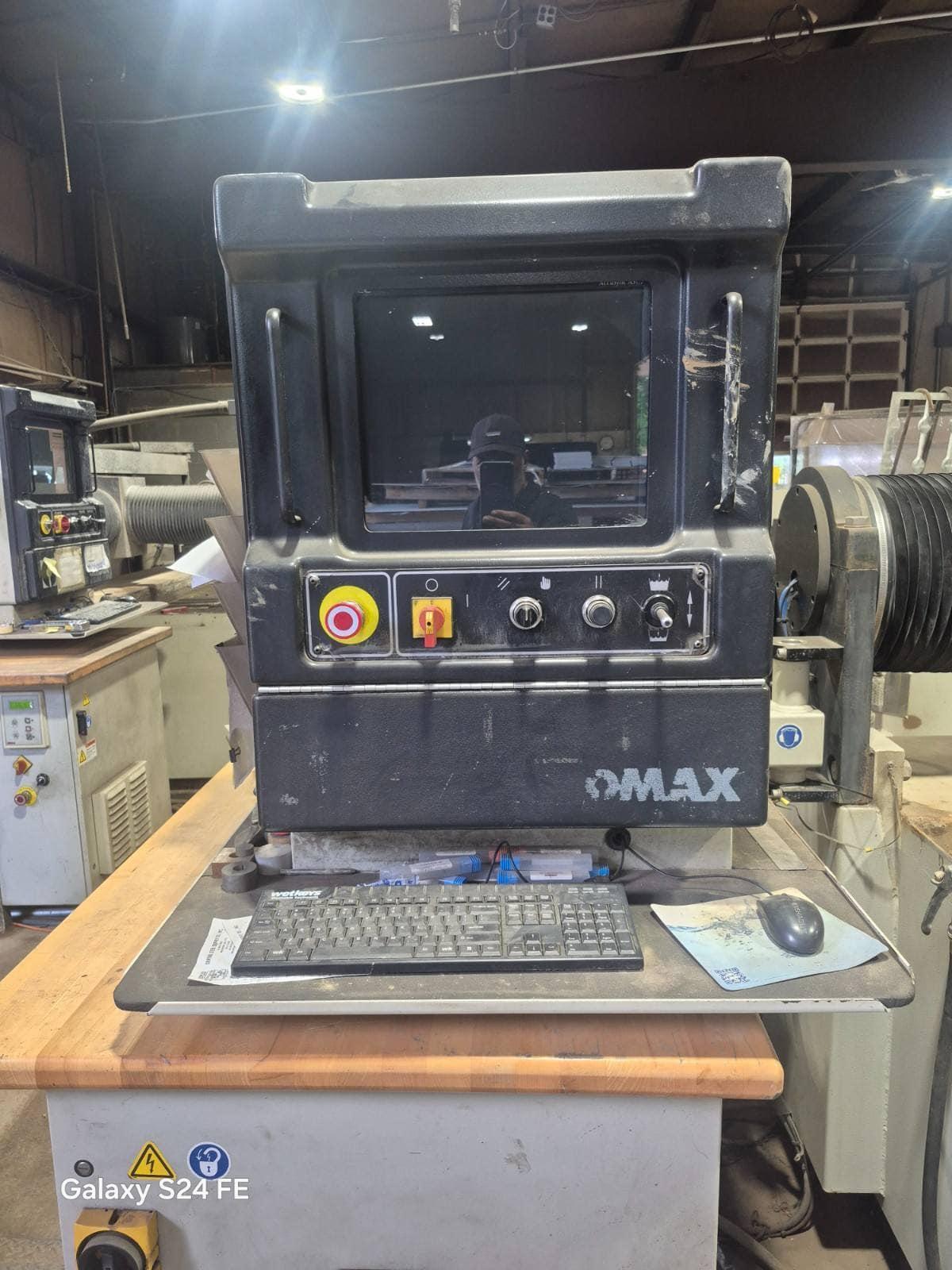

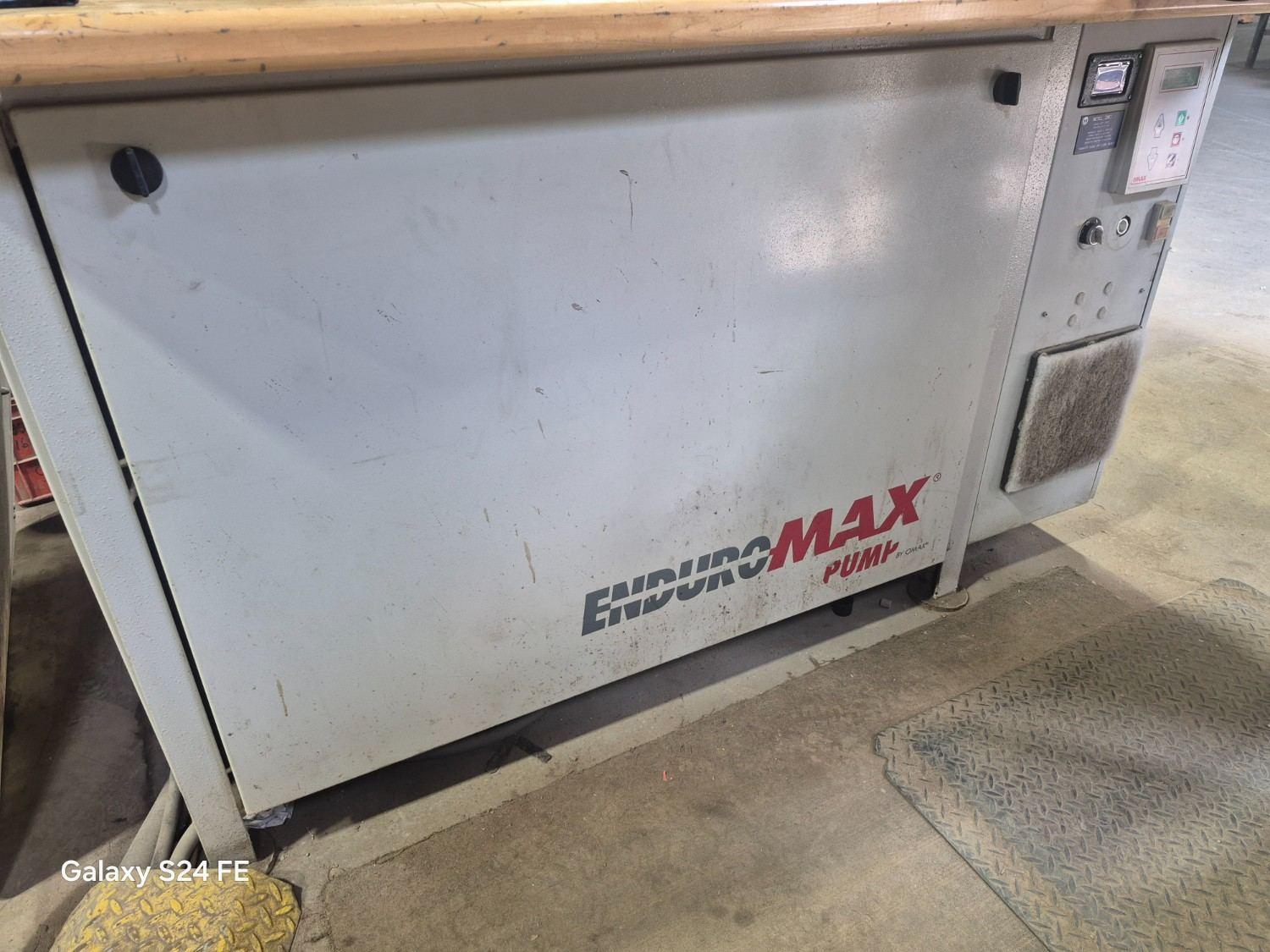

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Pump Options: Frequently paired with a 40 hp EnduroMAX 60,000 PSI direct-drive pump Software: IntelliMAX CNC software suite

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
