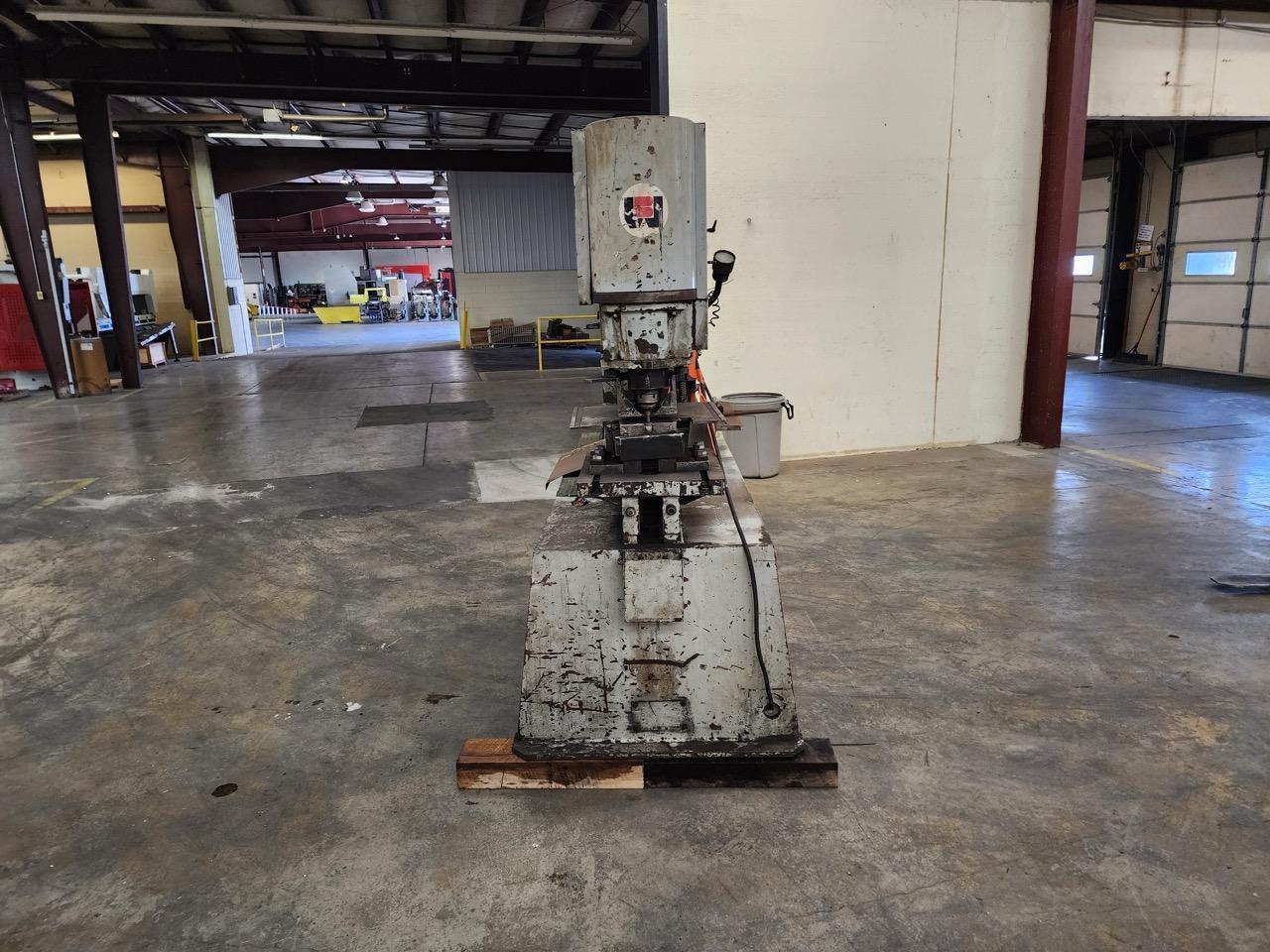

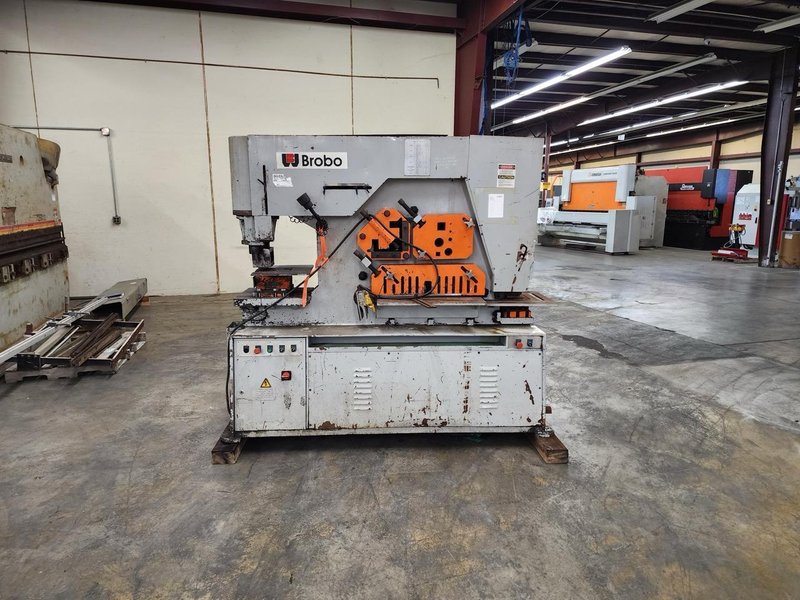

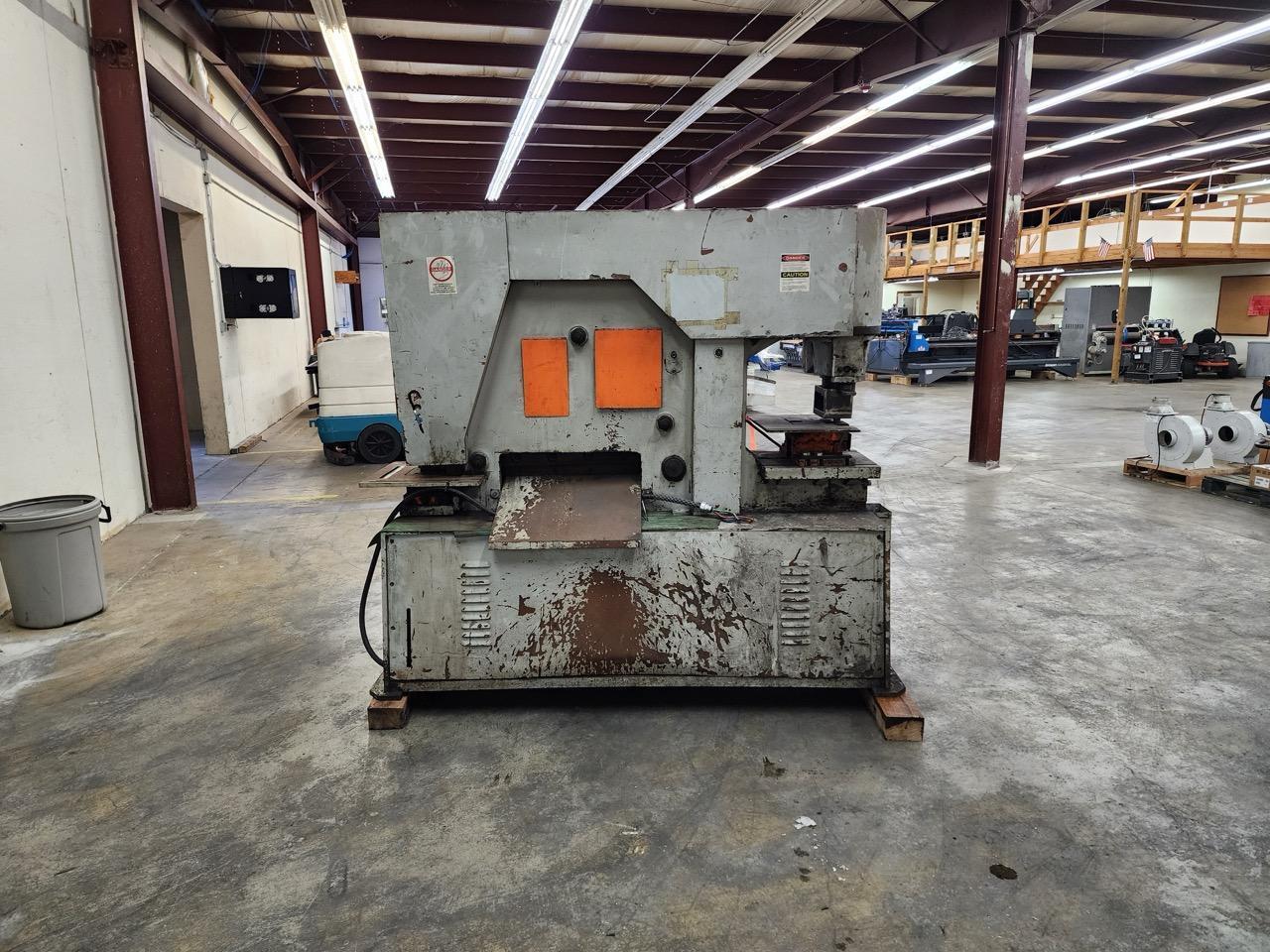

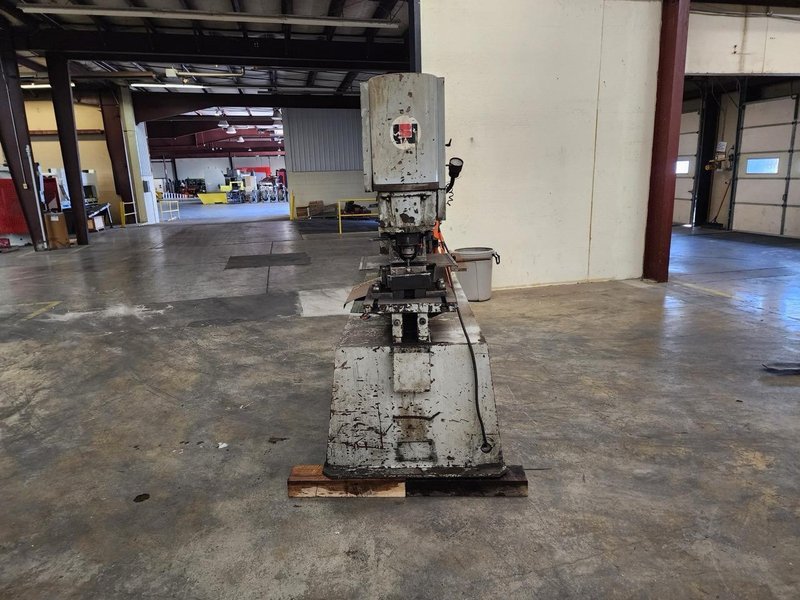

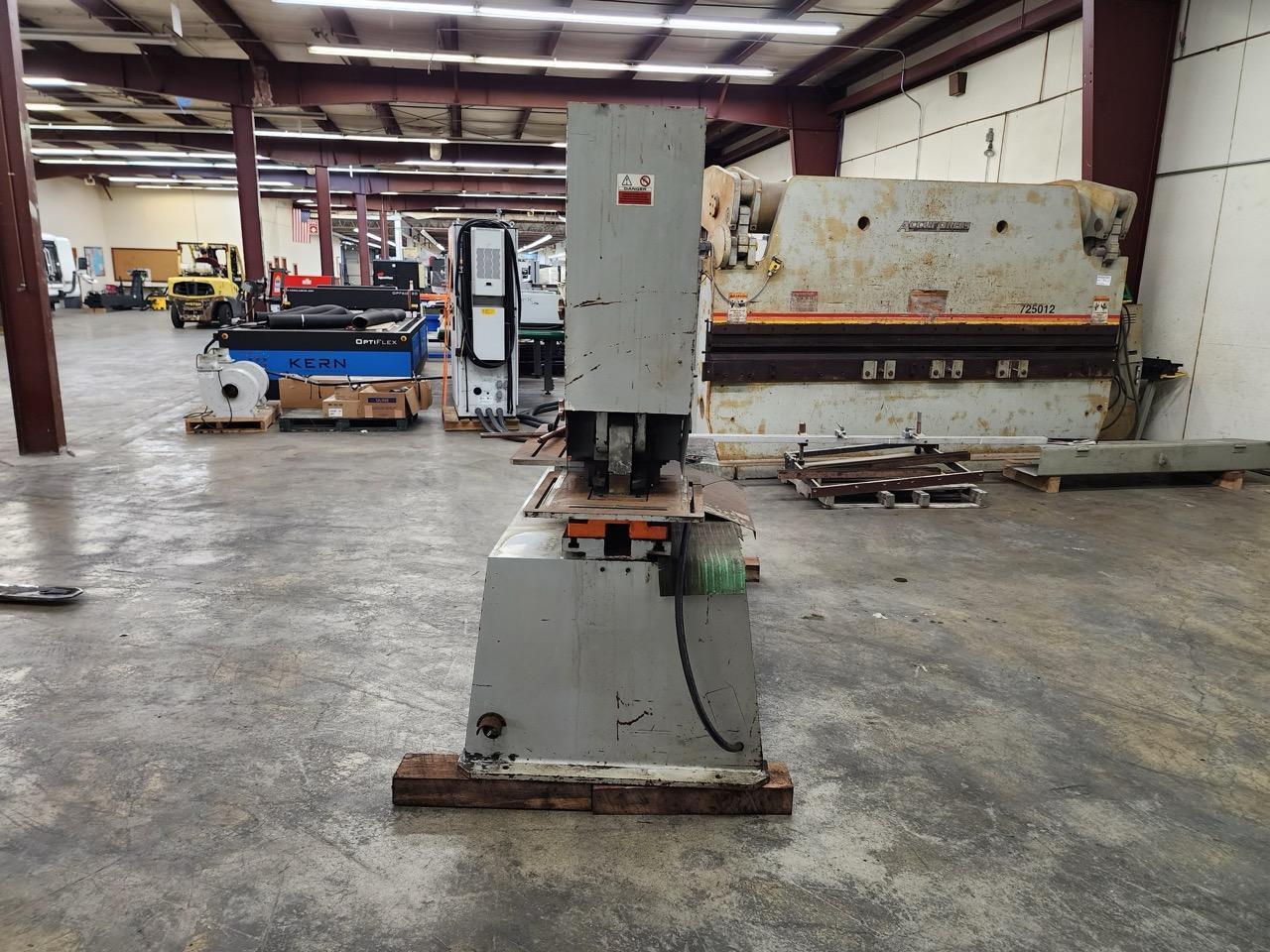

BROBO Q35Y-25 120 Ton Hydraulic Ironworker

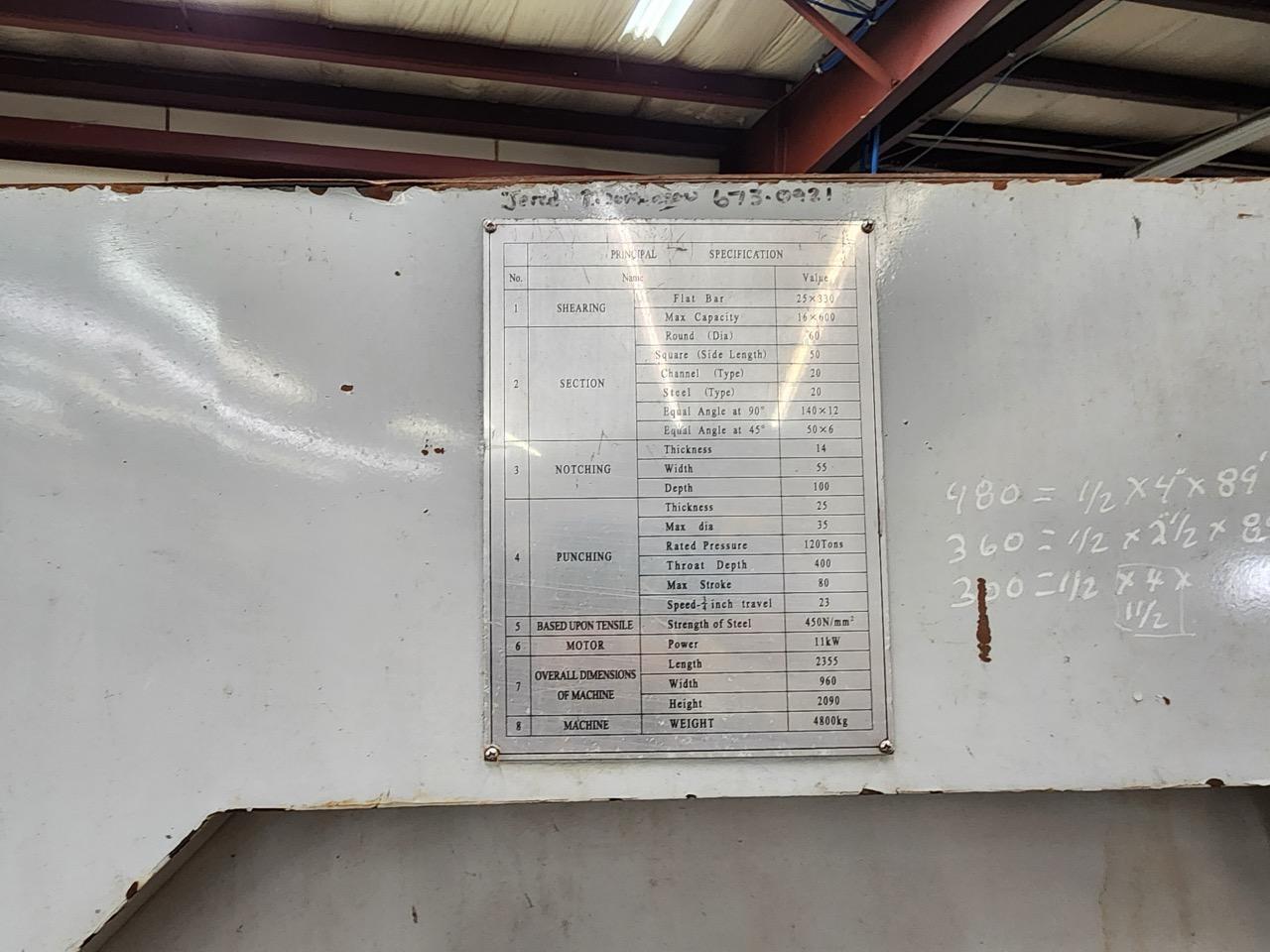

SPECIFICATIONS SHEARING CAPACITIES FLAT BAR: 25 X 330 MAXIMUM CAPACITY: 16 X 600 SECTION CUTTING CAPACITIES ROUND (DIAMETER): 60 SQUARE (SIDE LENGTH): 50 CHANNEL (TYPE/HEIGHT): 20 I-STEEL (TYPE/HEIGHT): 20 EQUAL ANGLE AT 90°: 140 X 12 EQUAL ANGLE AT 45°: 50 X 6 NOTCHING CAPACITIES THICKNESS: 14 WIDTH: 55 DEPTH: 100 PUNCHING CAPACITIES THICKNESS: 25 MAXIMUM DIAMETER: 35 RATED PRESSURE: 120 TONS THROAT DEPTH: 400 MAXIMUM STROKE: 80 SPEED (3/4″ TRAVEL): 23 MATERIAL RATING BASED UPON TENSILE STRENGTH OF STEEL: 450 N/MM² MOTOR SPECIFICATIONS POWER: 11 KW OVERALL MACHINE DIMENSIONS LENGTH: 2355 MM WIDTH: 960 MM HEIGHT: 2090 MM MACHINE WEIGHT TOTAL WEIGHT: 4800 KG

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
