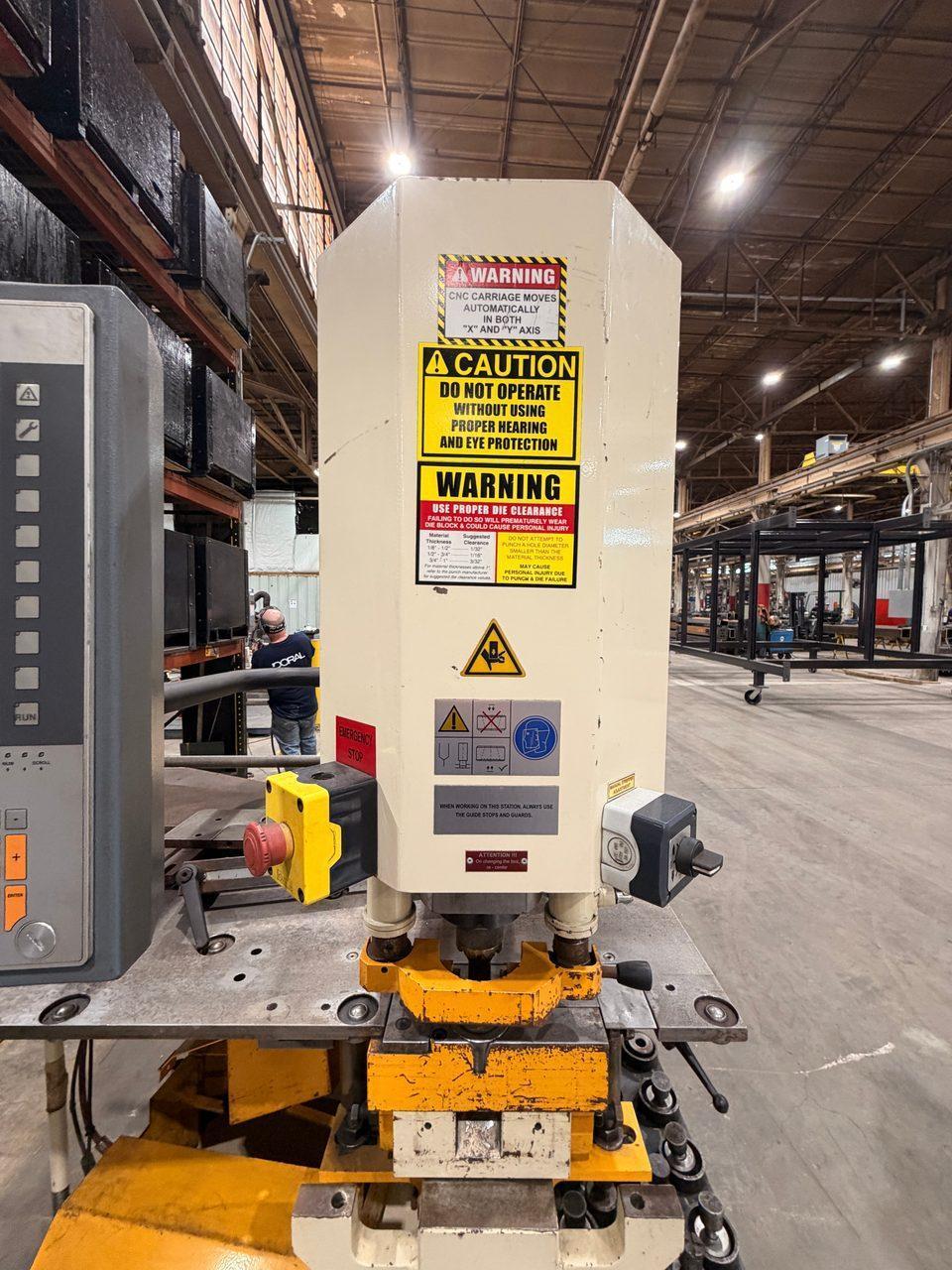

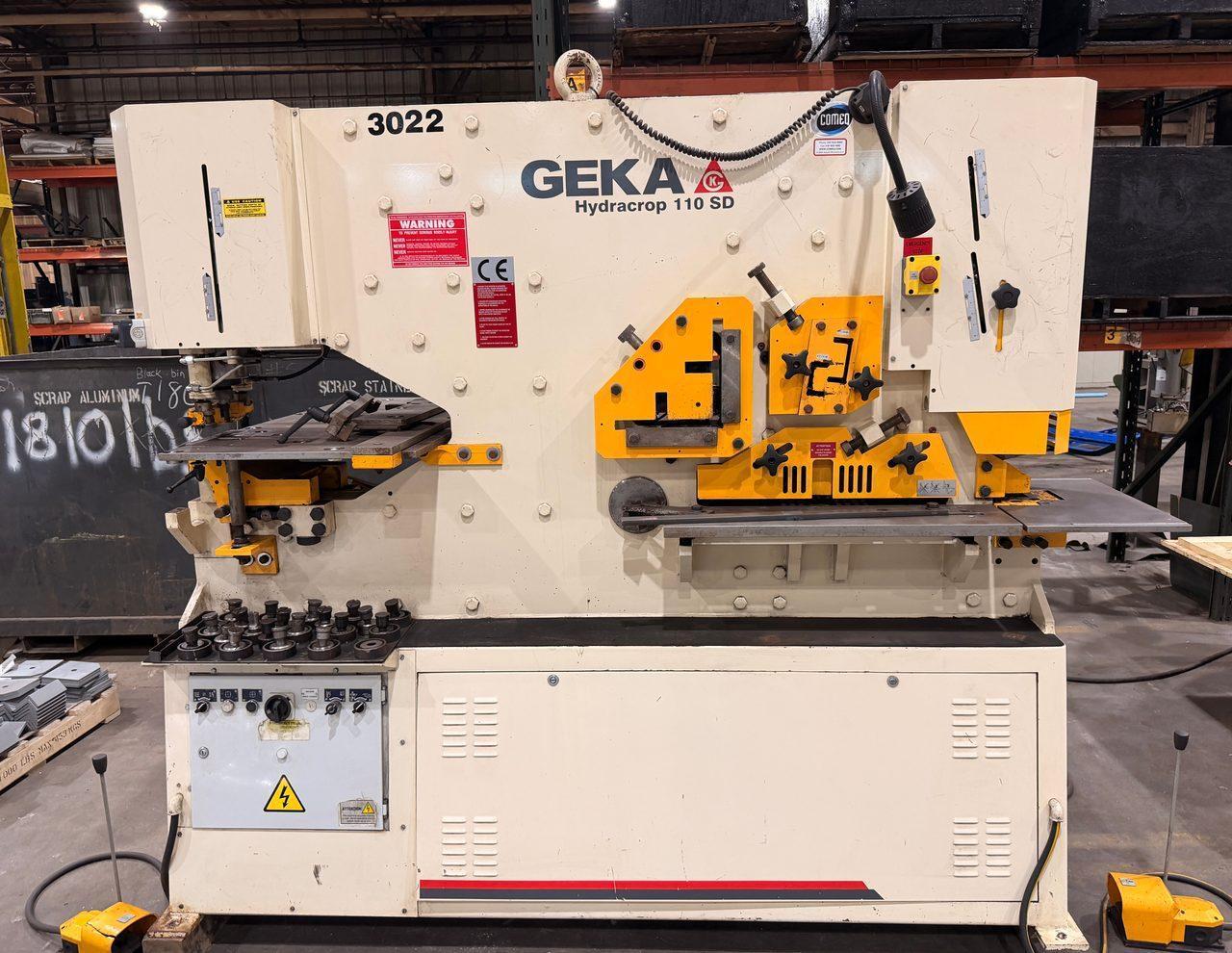

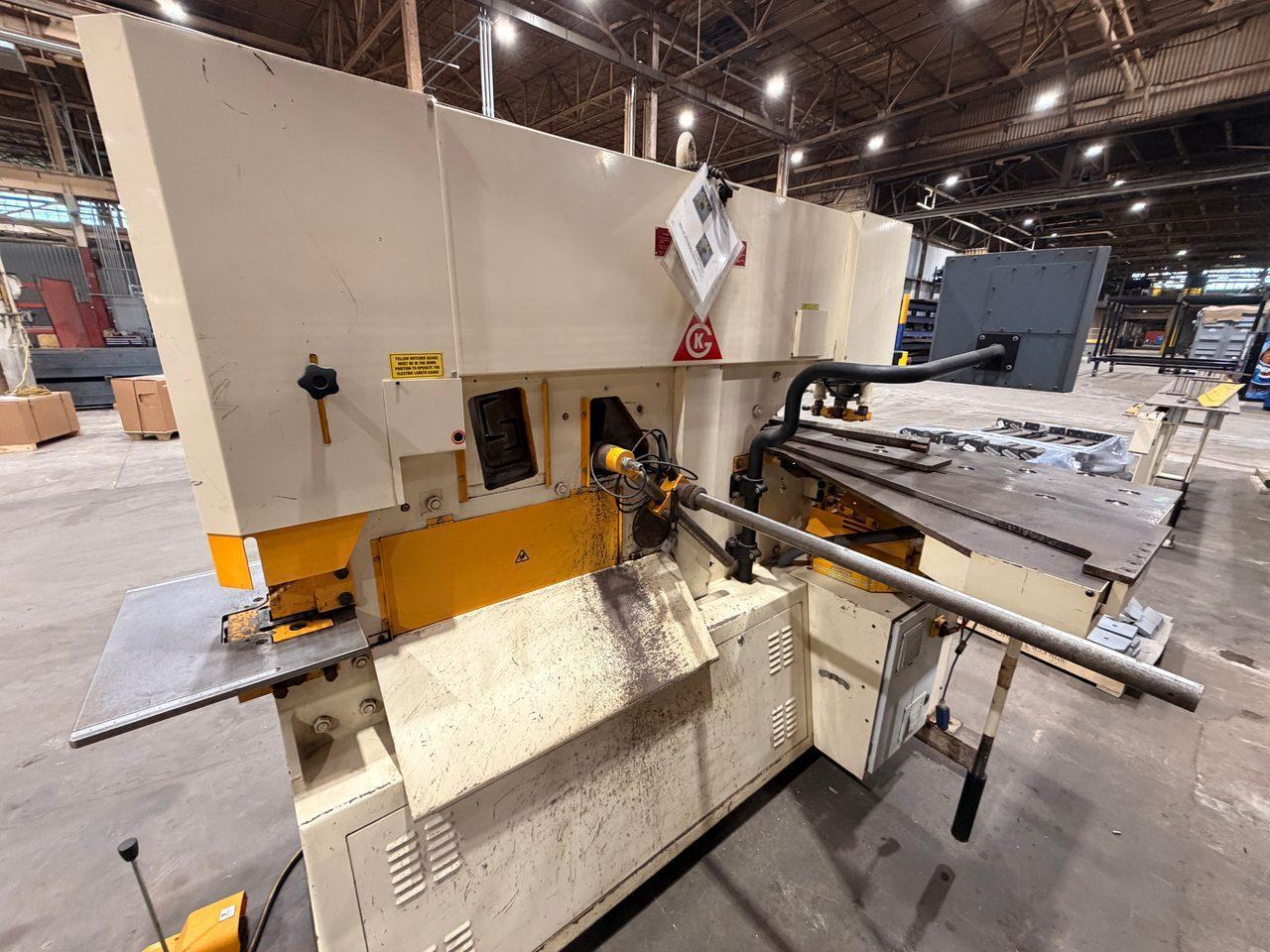

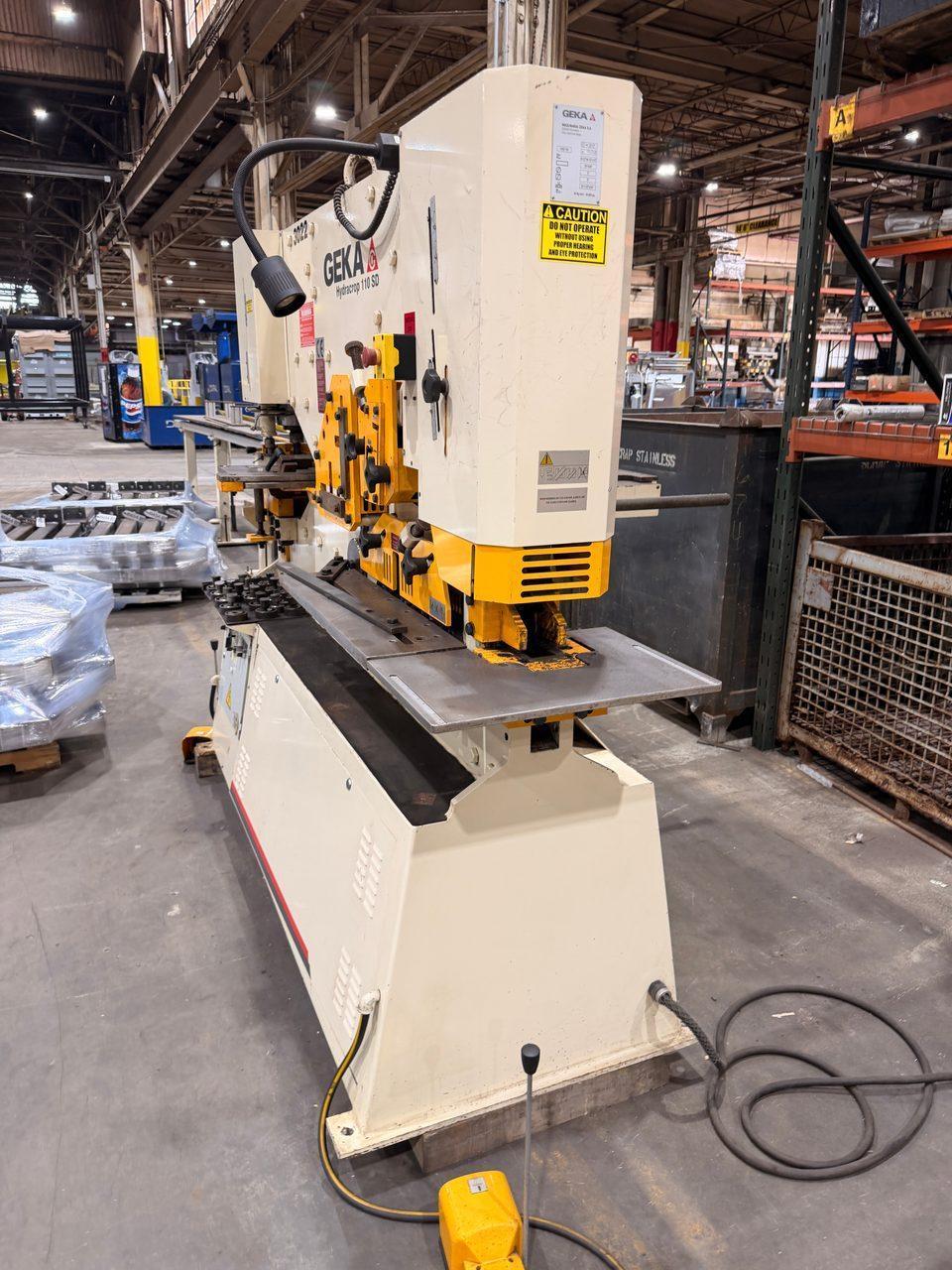

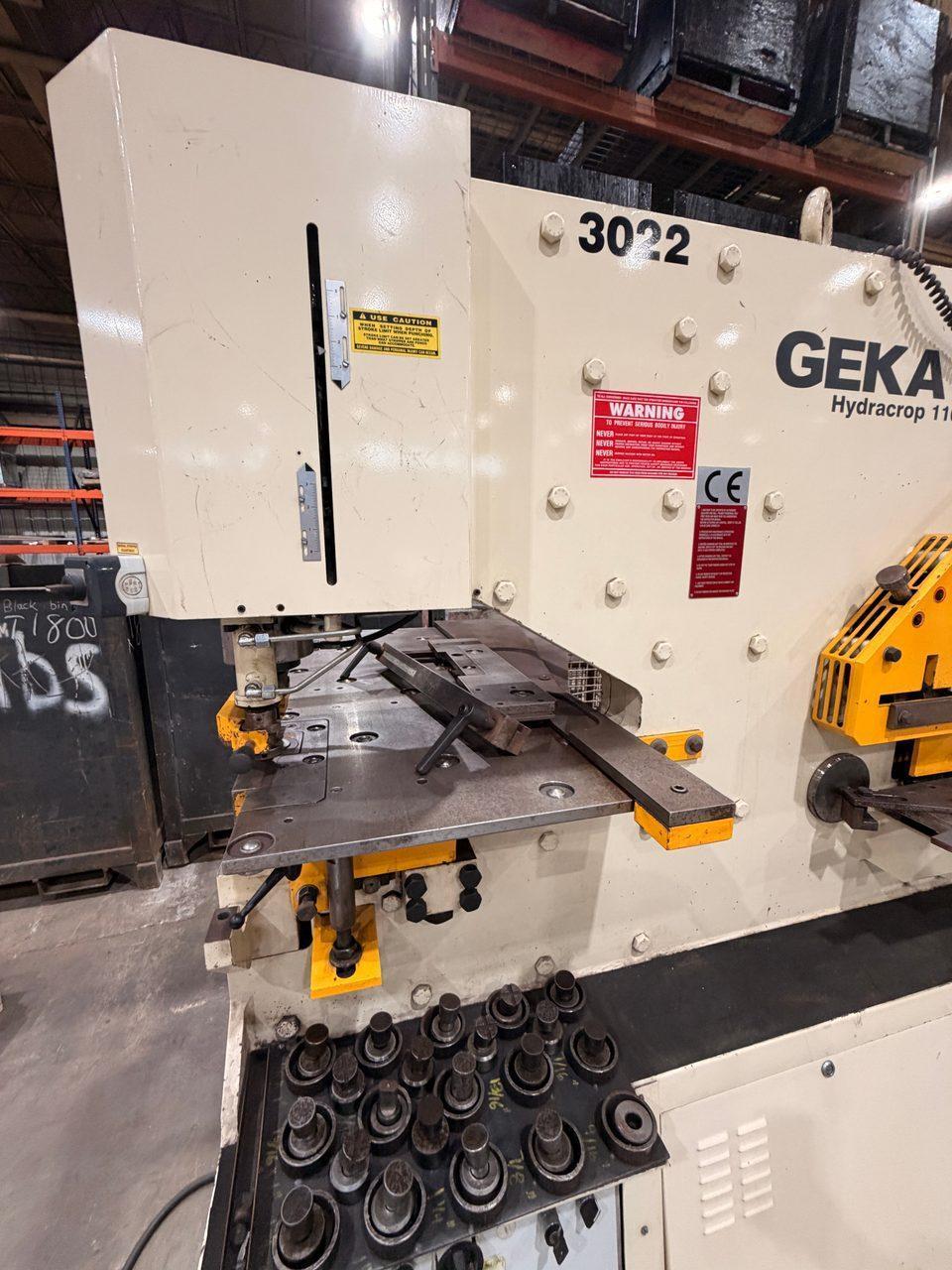

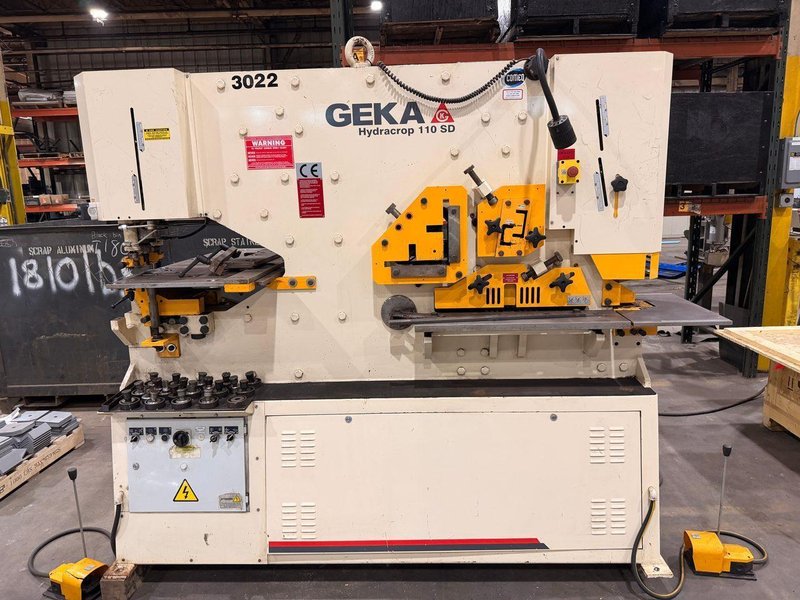

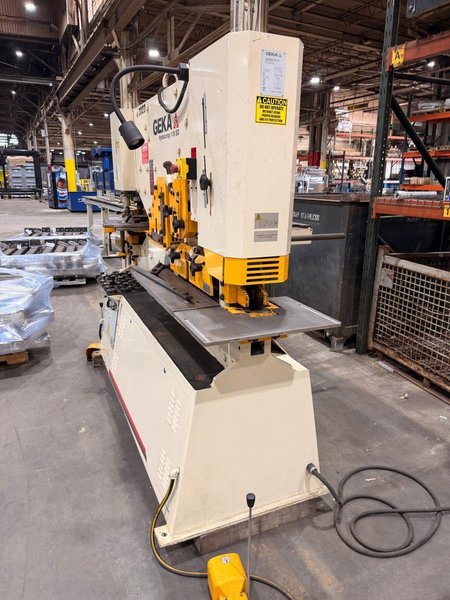

110 Ton Geka Hydracrop 110/180 SD Hydraulic CNC Ironworker, 2017 CNC feeder/positioner

Tonnage Capacity, Punch End: 110 Ton Tonnage Capacity, Angle Shear: 180 Ton Throat Depth: 24″ Stroke Length: 3-5/32″ Working Height: 45-1/8″ Flat Shear Blade Length: 24″

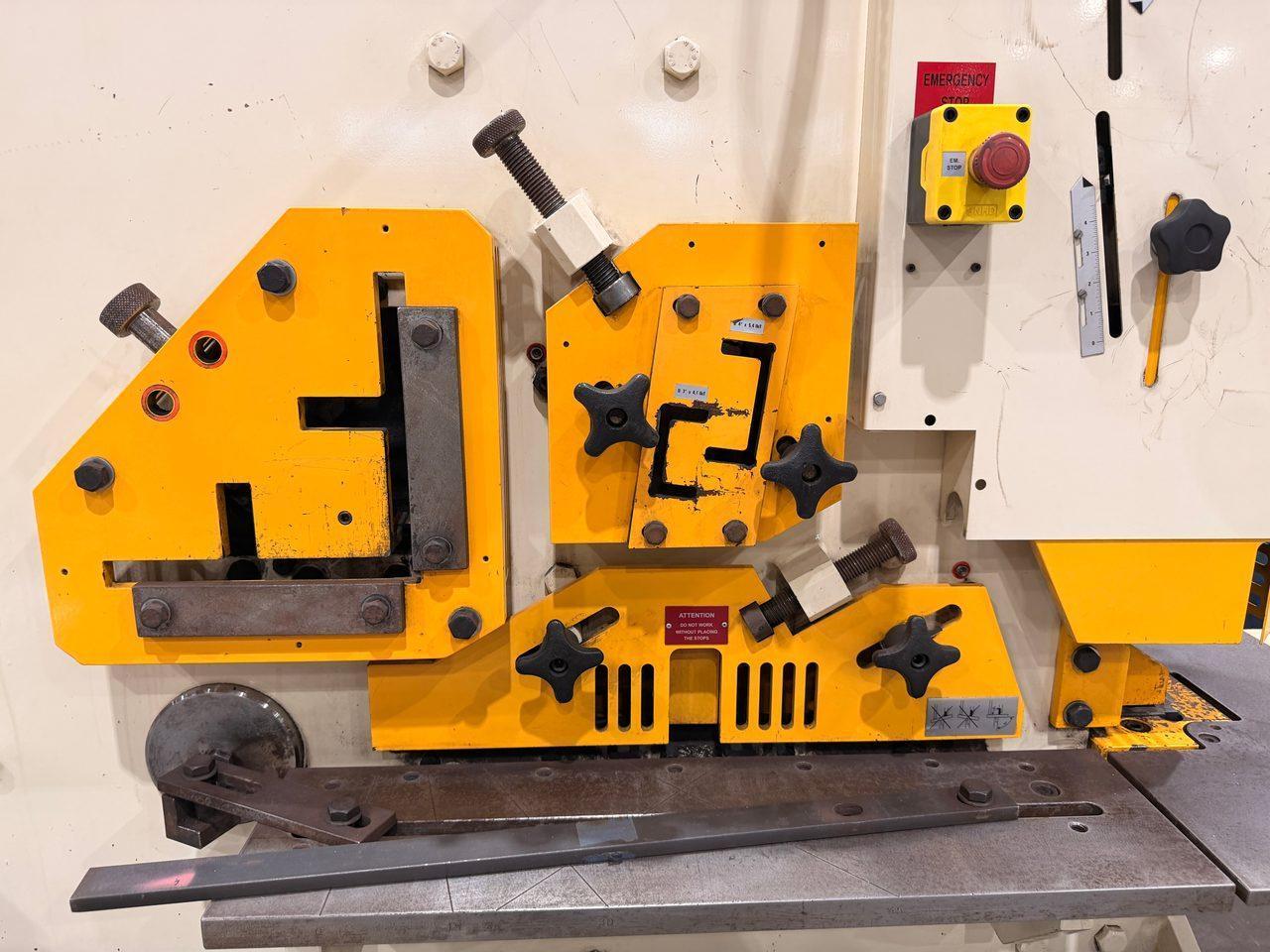

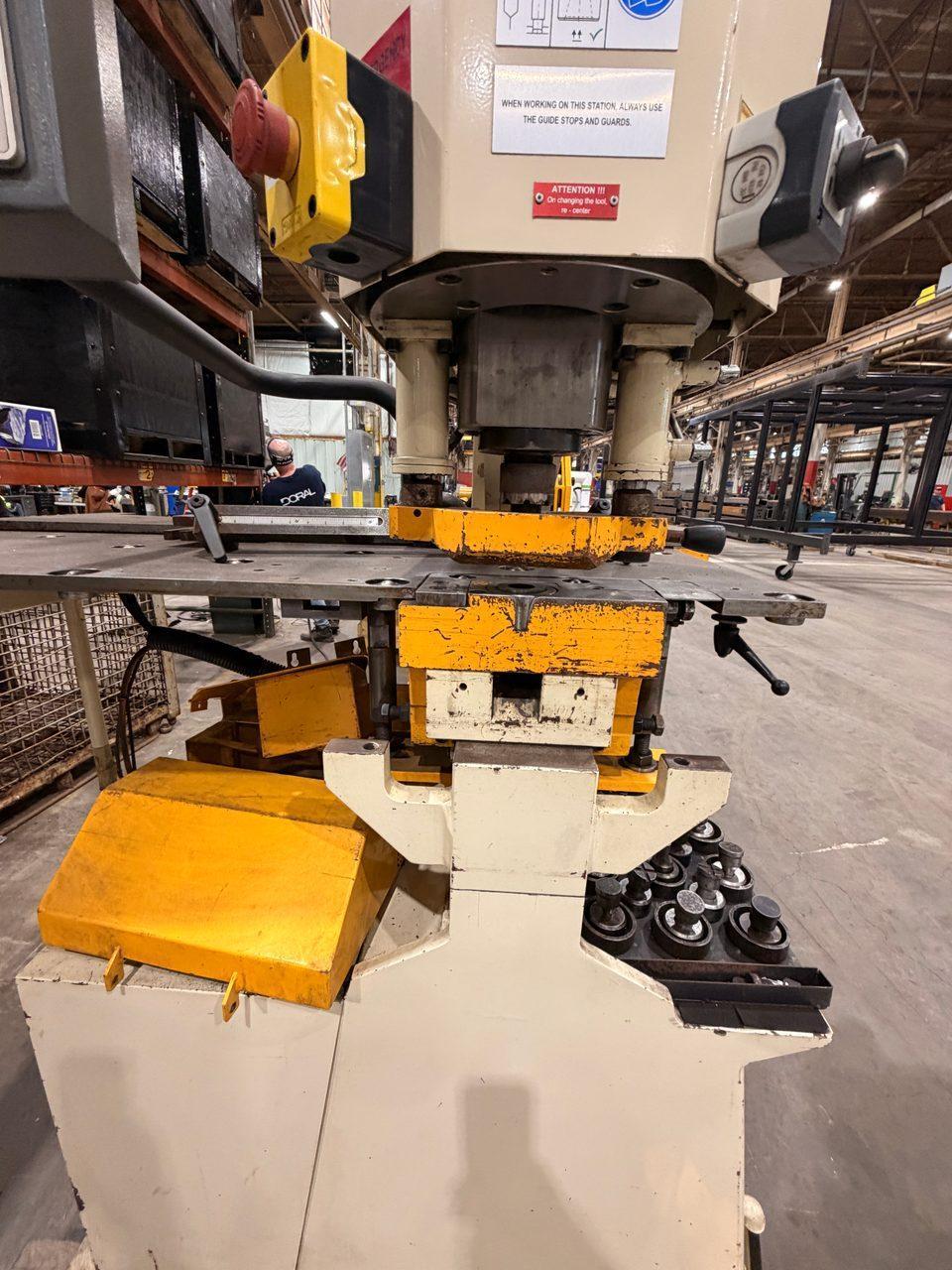

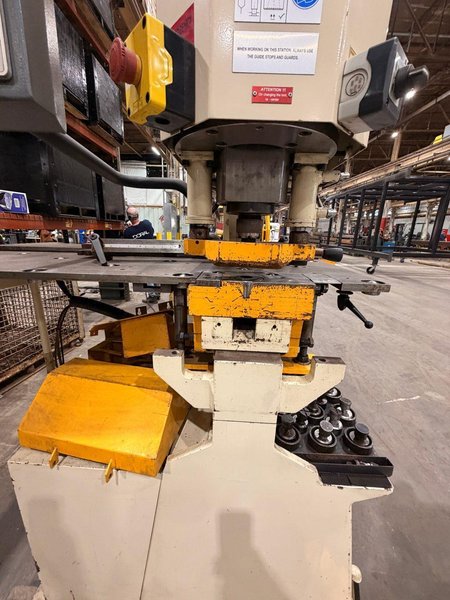

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Punching Capacity: 1-1/2″ Diameter Thru 3/4″ Plate Shearing Capacity, Flat Bars: 24″ x 5/8″ Shearing Capacity, Flat Bars: 16″ x 3/4″ Angle Shearing Capacity, 90°: 6-1/2″ x 6-1/2″ x 1/2″ Angle Shearing Capacity, 45°: 3″ x 3″ x 5/16″ Shearing Capacity, Round Bars: 2″ Shearing Capacity, Square Bars: 2″ Notching Capacity, Width: 2″ Notching Capacity, Depth: 3-1/2″ Notching Capacity, Plates: 1/2″

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Motor HP: 7.5 Electrical: 220/440V(Wired 440)/3PH

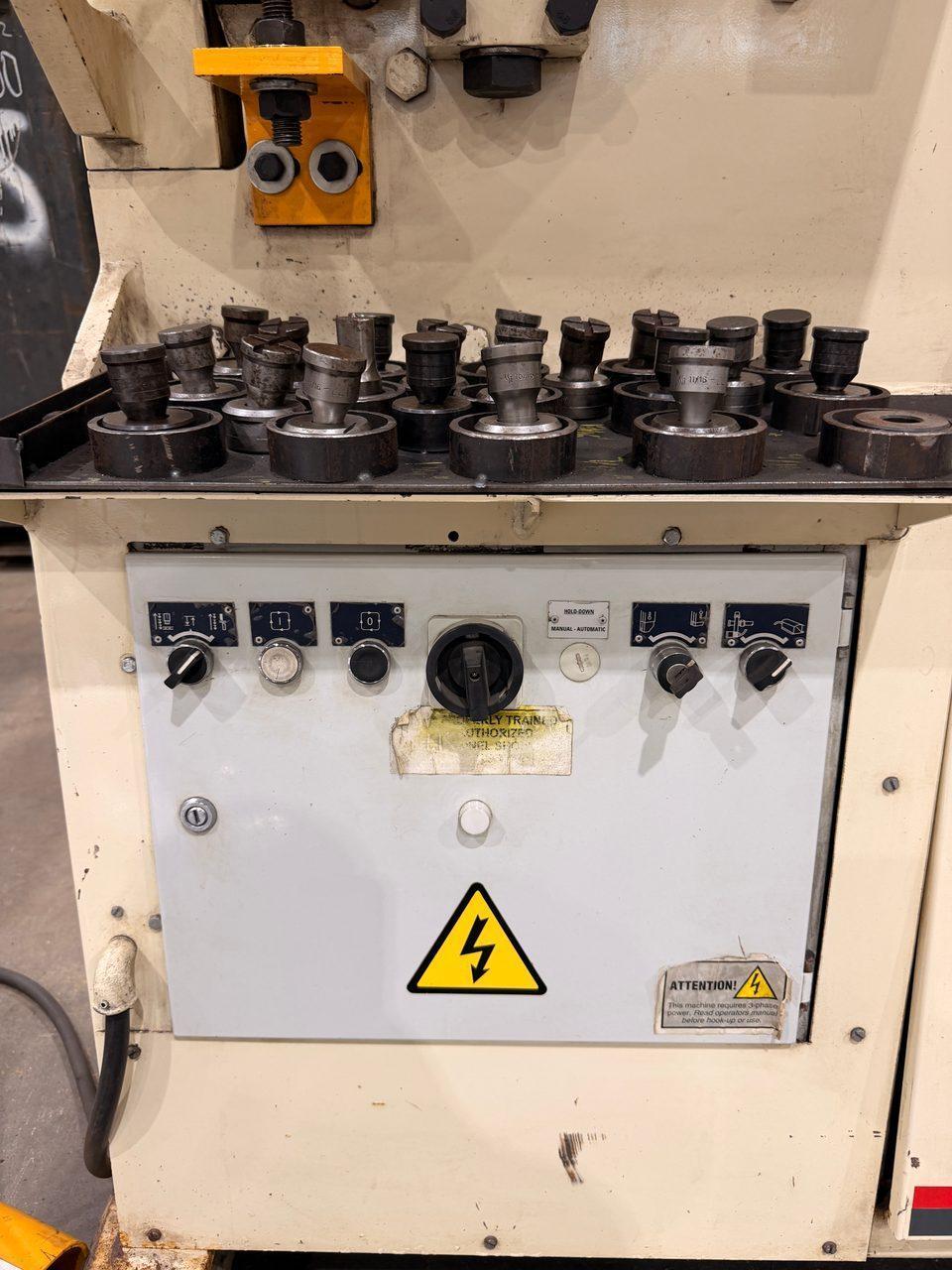

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Equipped with:

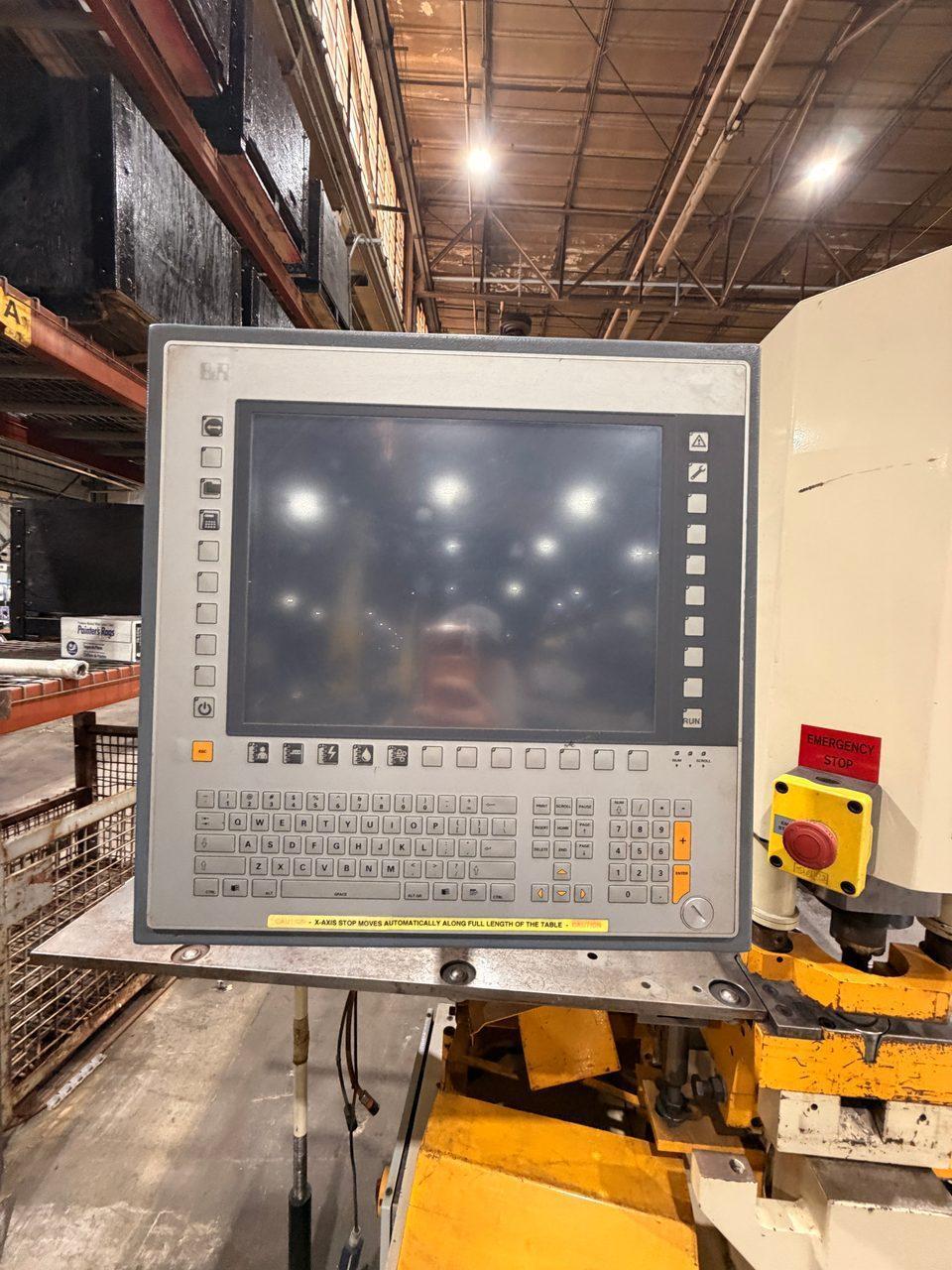

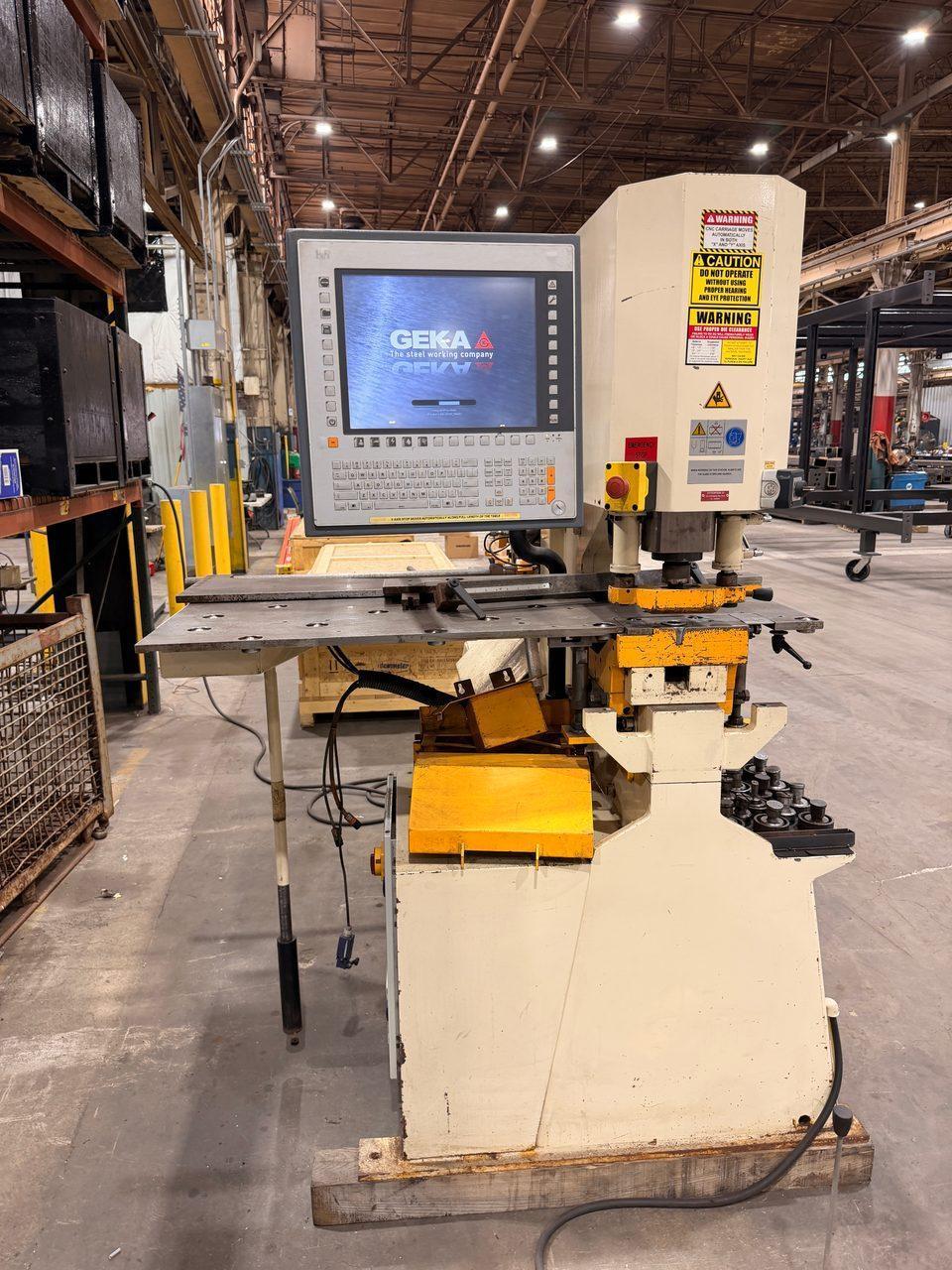

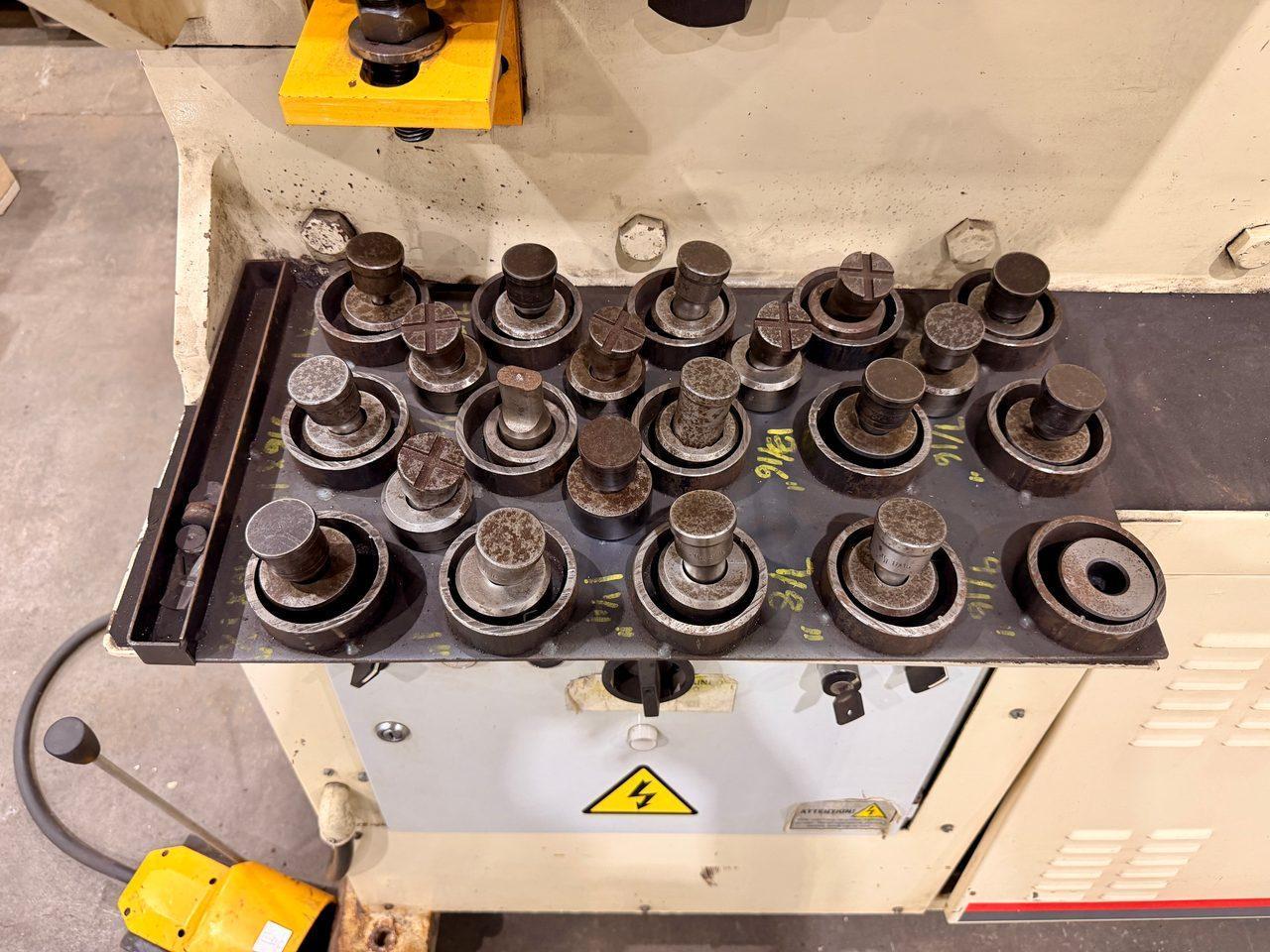

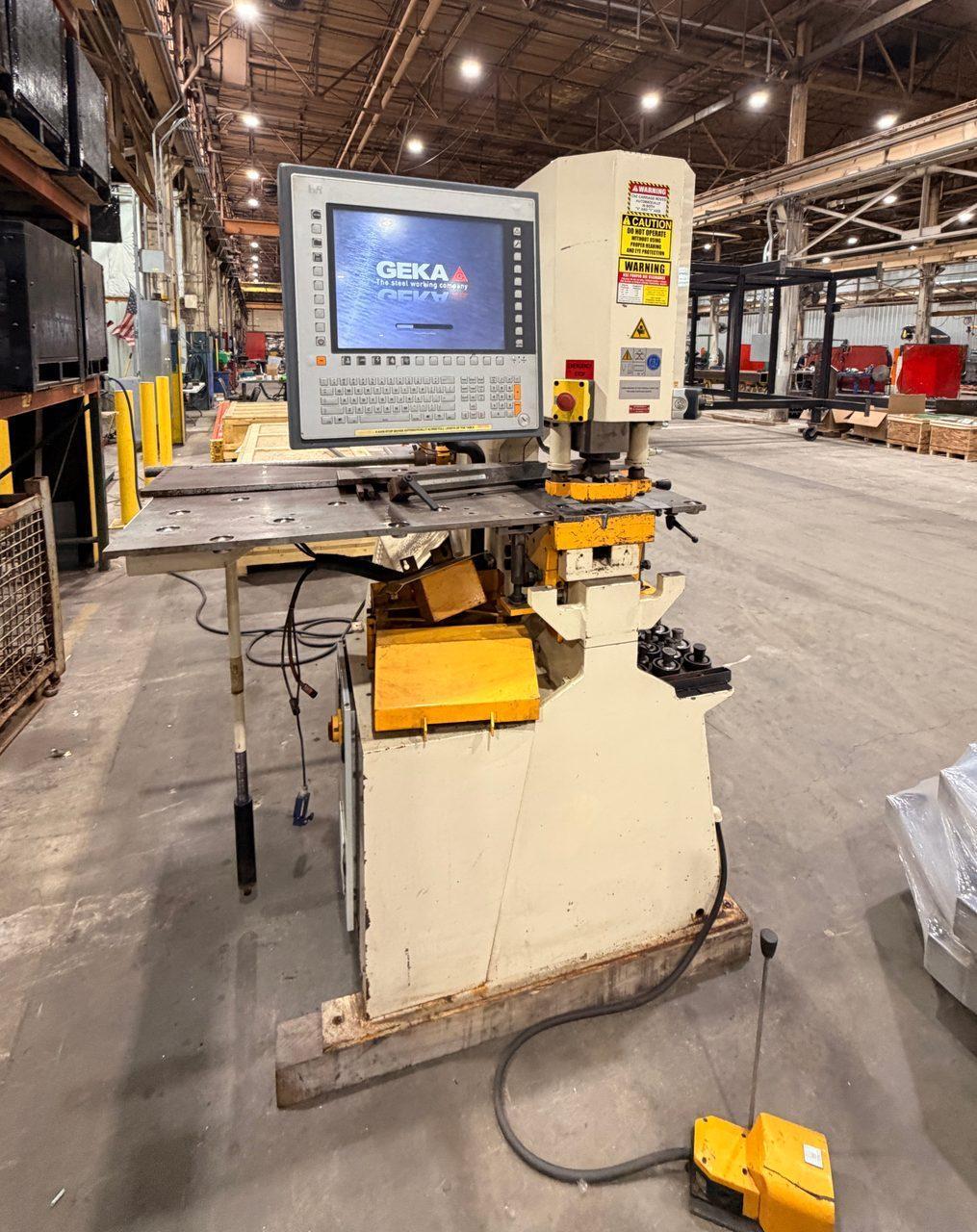

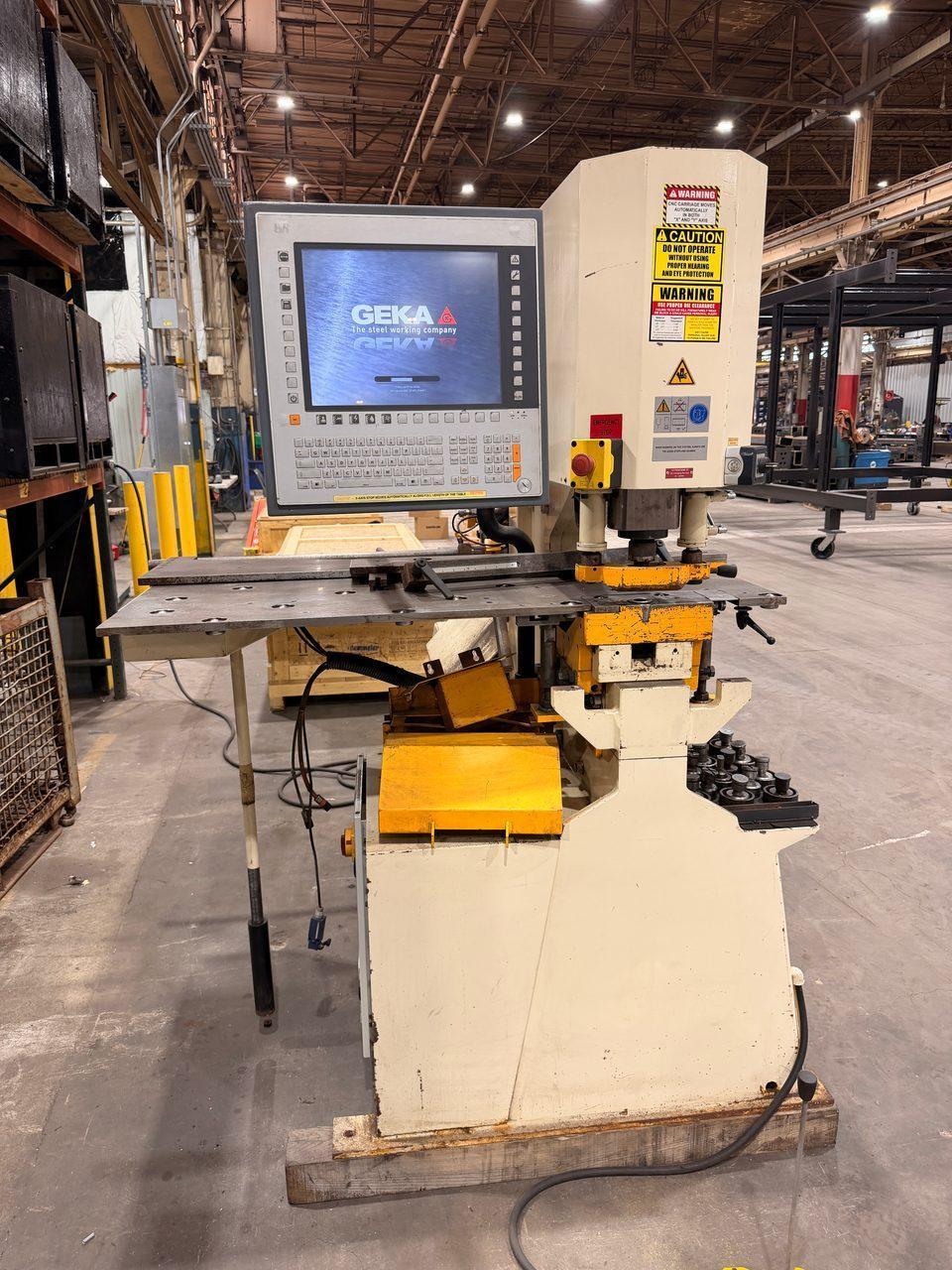

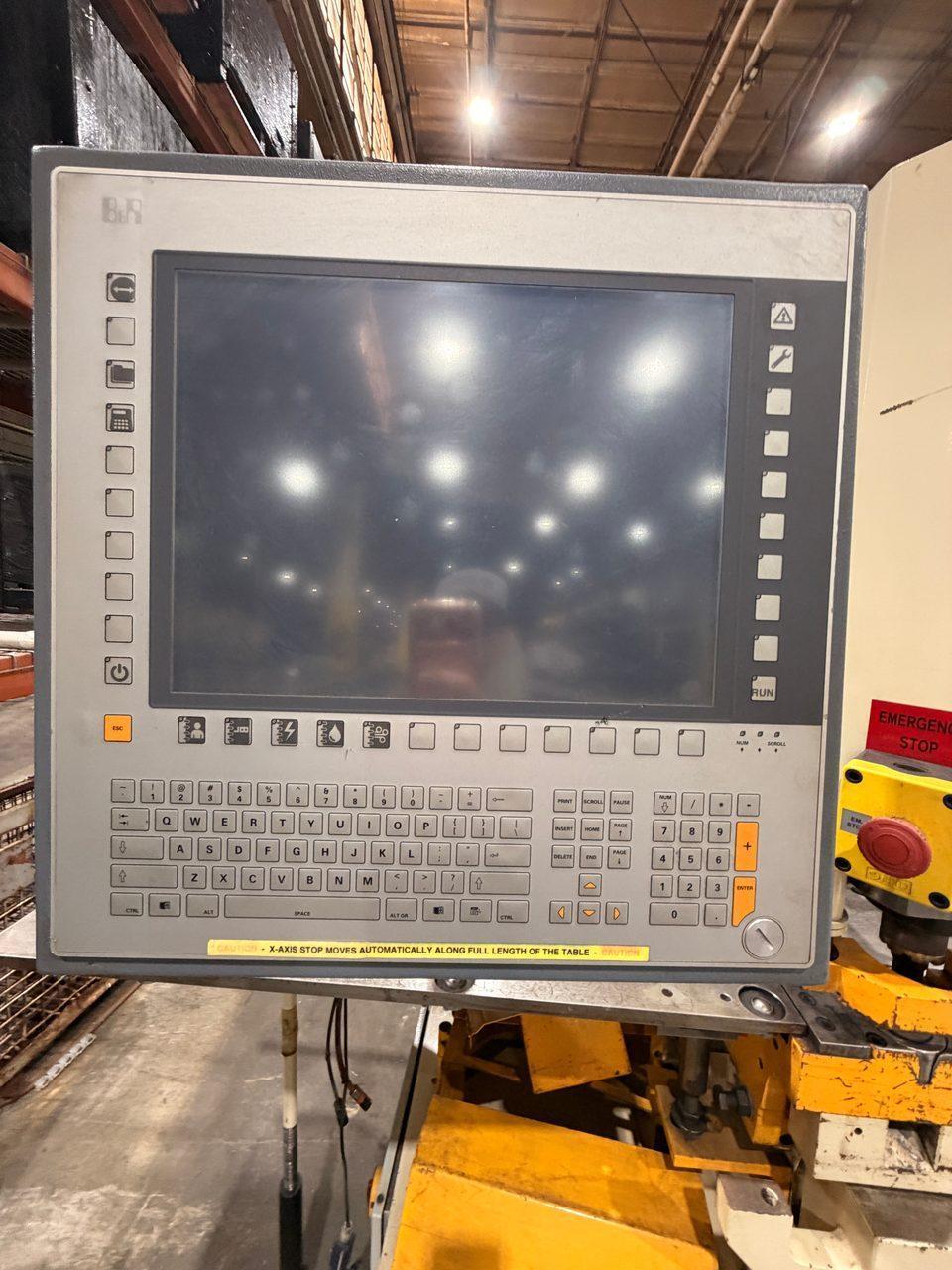

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Misc tooling CNC feeder/ positioner (Semi-Paxy CNC Automatic Positioner) Features and specifications for the Semi-Paxy CNC Automatic Positioner Basic features: Support chassis Two servo motor-driven positioning carriages Touch screen Conveyor assembly consisting of independent servo drives along each axis, spindle and encoder units Maximum Widths according to Model: HYDRACROP or PUMA (20″ throat) = 15 3/4″ Y Gauging. HYDRACROP Models 110SD and 165 SD = 20″Y Gauging. PUMA (30″ throat) = 25 5/8″ Y Gauging.

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
