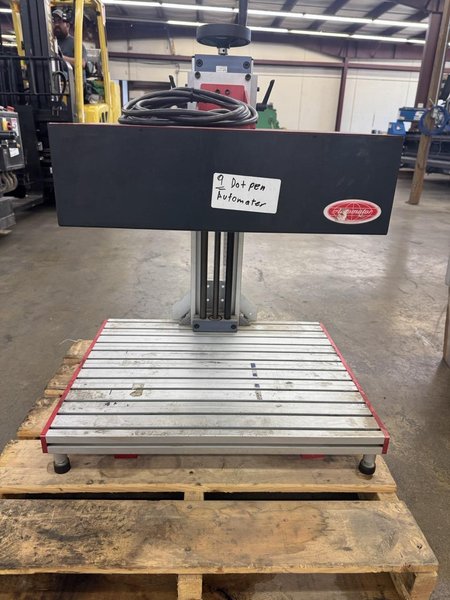

Automator ADP300400 CNC Dot Peen Marker, 2022 – 11.8″ x 15.7″ Marking Area

2022 Automator ADP300400 industrial dot peen marking system featuring a large 300 x 400 mm marking area, programmable permanent part identification, serial-number and 2D-code capability, and flexible pneumatic or electric marking configurations for manufacturing and traceability applications.

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Manufacturer Automator Marking Systems Model ADP300400 Year 2022 Machine Type Industrial Dot Peen / Pin Marking System Marking Area 300 x 400 mm Marking Area – Imperial 11.8″ x 15.7″ Marking Technology Dot Peen / Micro-Percussion Marking Head Dimensions Approx. 514 W x 424 D x 148 H mm Marking Head Dimensions – Imperial 20.2″ x 16.7″ x 5.8″ Marking Head Weight Approx. 21 kg / 46.3 lb Benchtop Base Area 670 x 540 mm / 26.4″ x 21.2″ Standard Column Height Approx. 500 mm Tip Movement Pneumatic, spring-return or electric solenoid Marking Modes Controlled Dot / Vibratory / Electric Controlled Dot Pins Up to 6 standard tip configurations Vibratory Pins 2 standard configurations Electric Pin Available Controller Options Automator AC500 or AC250 AC500 Display 7″ color graphic touchscreen Communications Ethernet, RS-232, RS-485, USB and I/O Internal Memory 64 MB AC250 Capacity Standalone operation up to 8 programs Power Supply 90–250 VAC, 50/60 Hz

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
