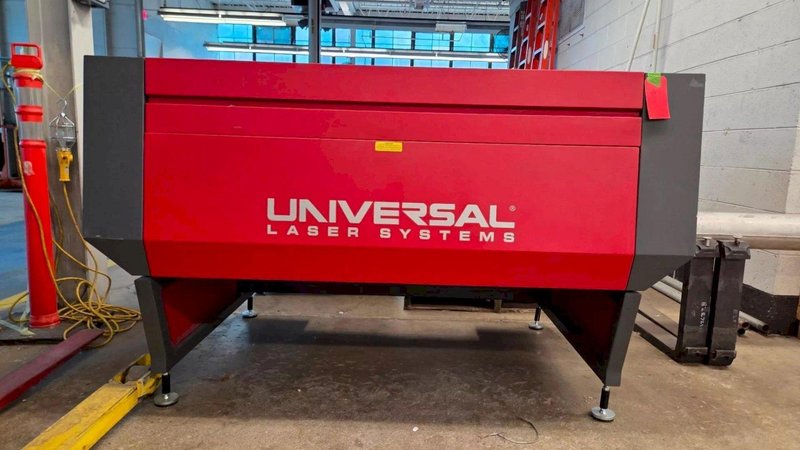

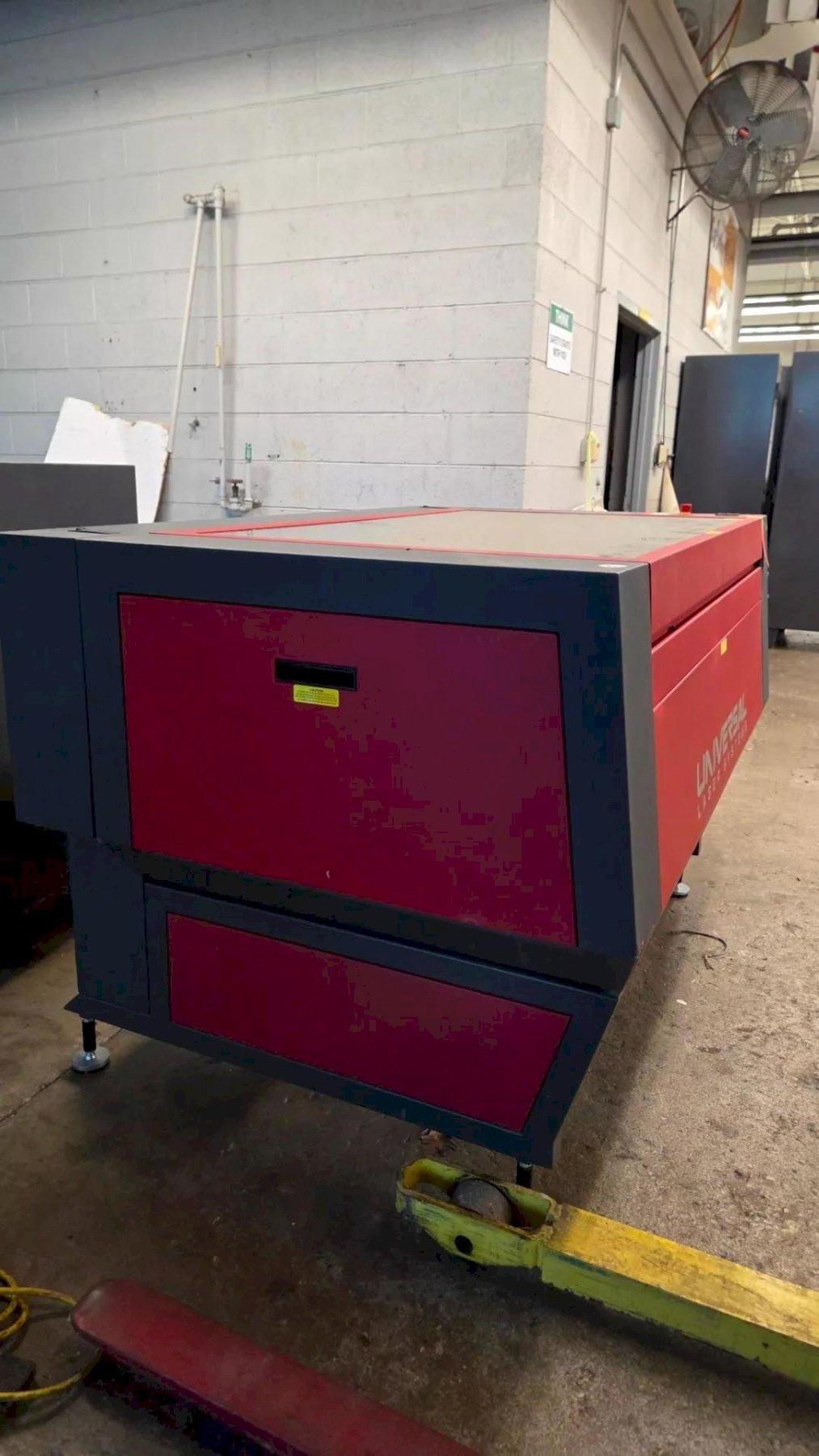

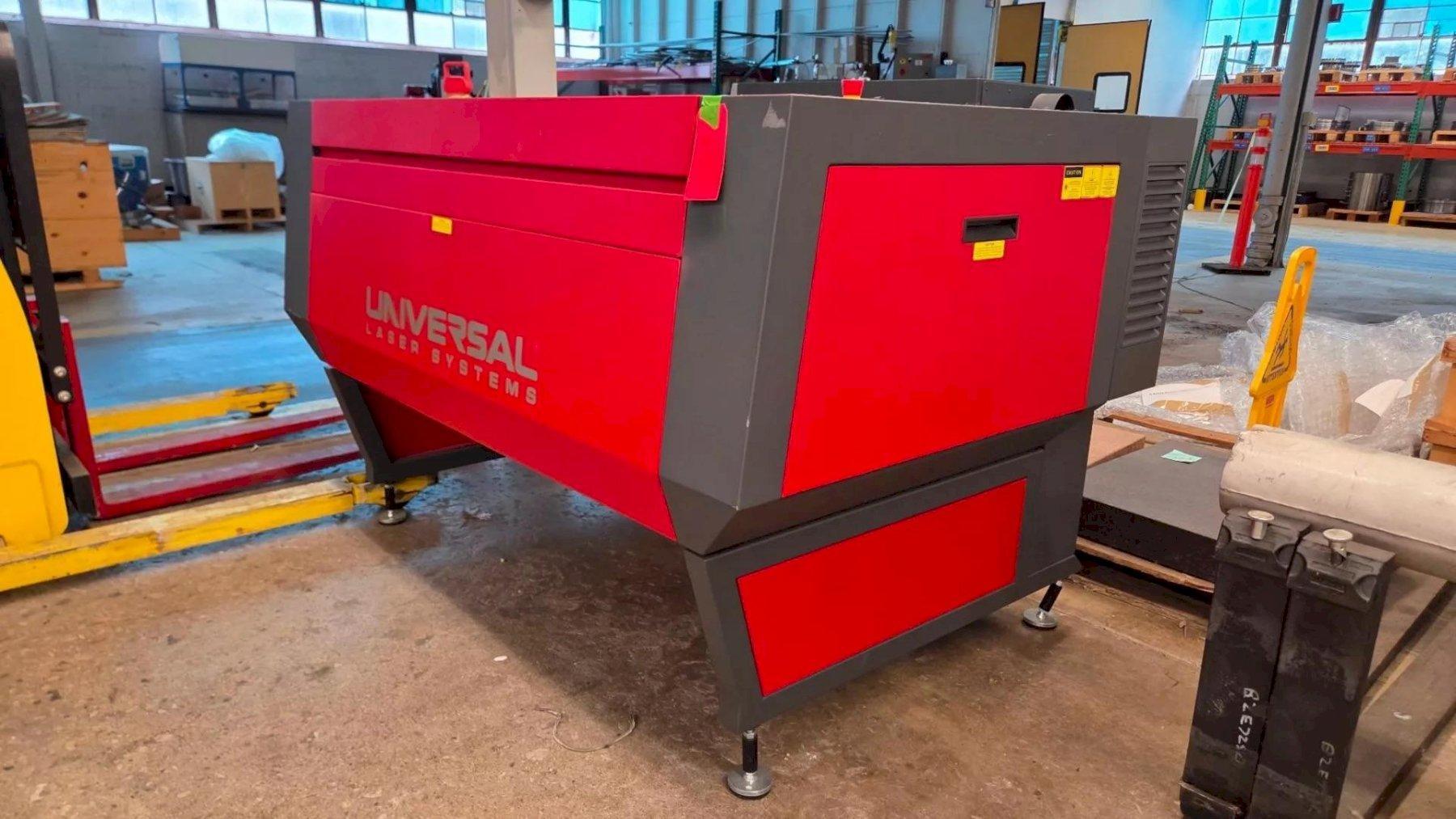

Universal Laser Systems ILS12 Dual 75w CNC Laser Cutter/Engraver, 2018 – W UAC 4000 Air Filtration

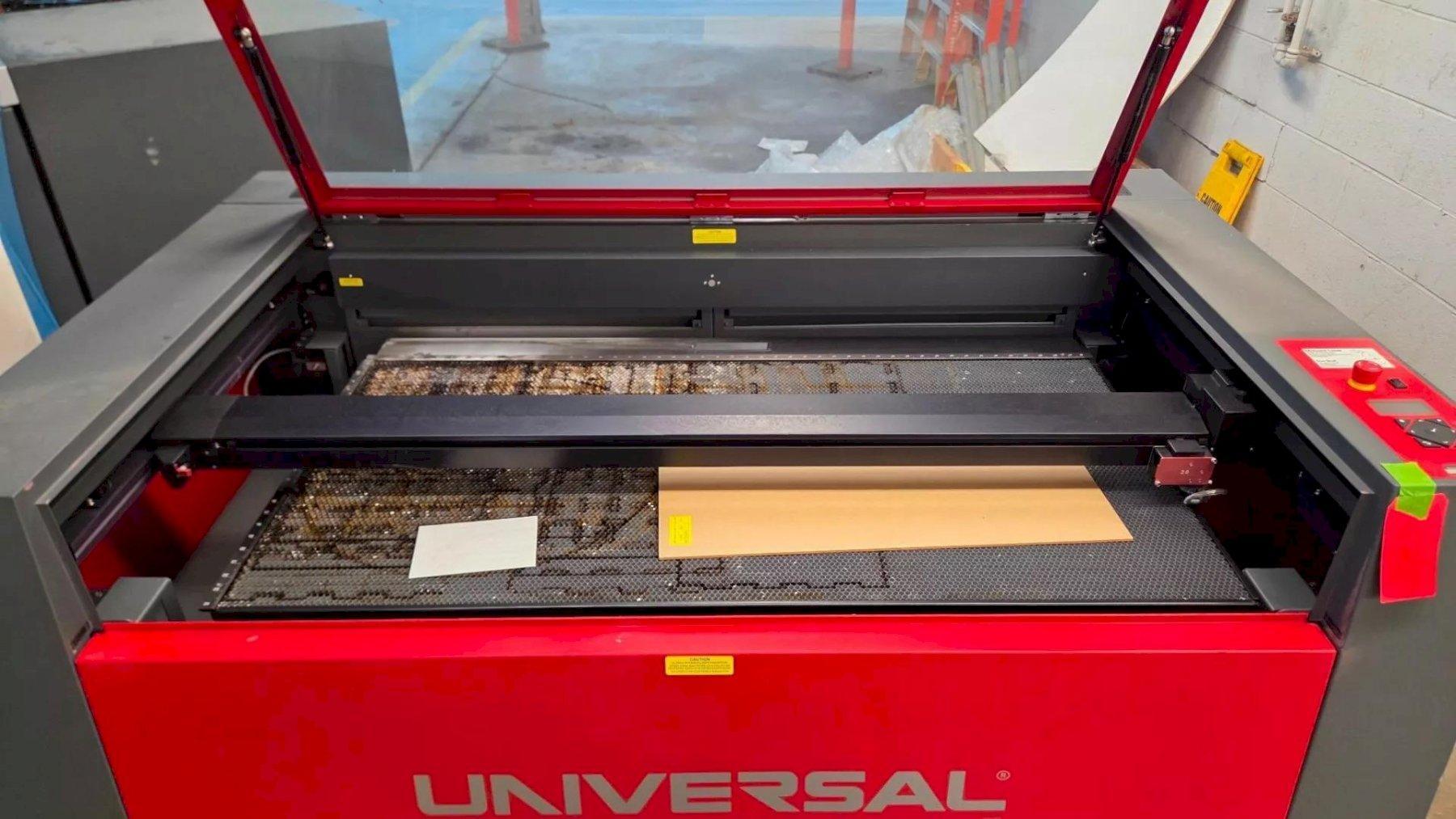

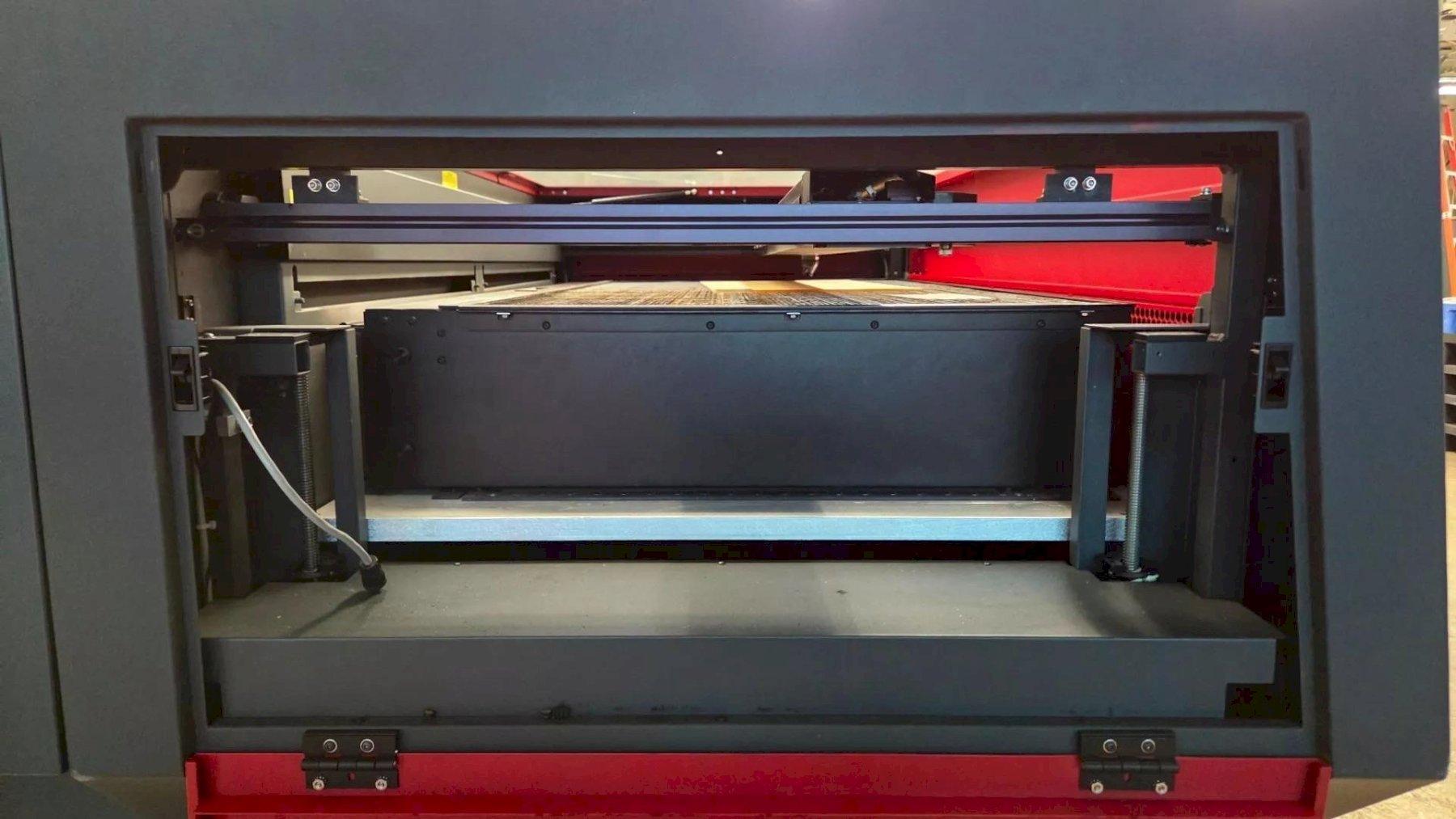

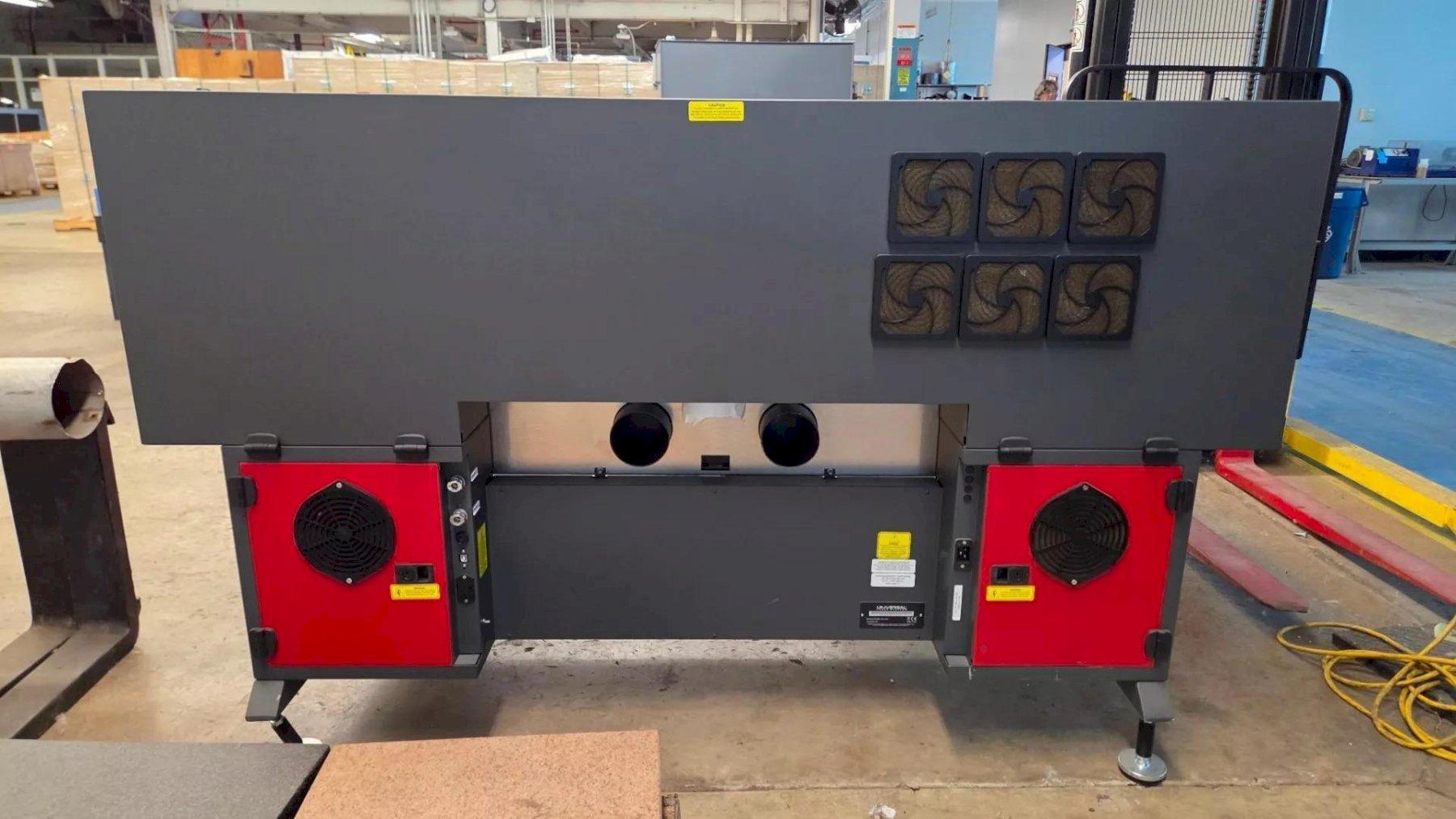

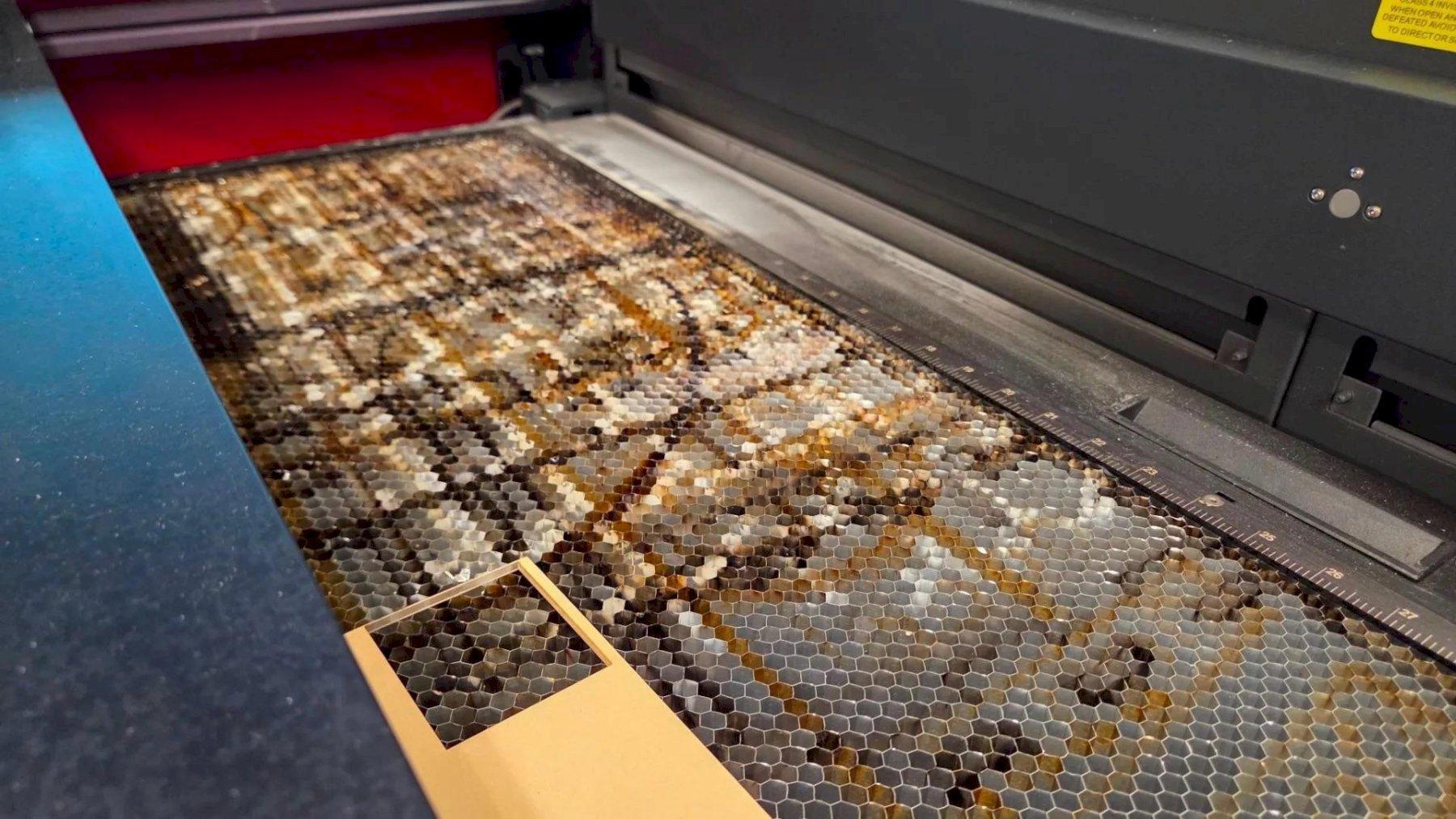

LASER MATERIAL PROCESSING AREA: 48″ X 24″ (1219 X 610 MM) MAXIMUM PART SIZE (W X D X H): 52.5″ X 30″ X 12″ (1334 X 762 X 305 MM) MOTORIZED Z-AXIS TABLE LIFT CAPACITY: 60 LBS (27 KG) ROTARY CAPACITY: 10.25″ (260 MM) MAXIMUM DIAMETER OVERALL LASER SYSTEM FOOTPRINT (W X D X H): 69″ X 44″ X 46″ (1753 X 1118 X 1168 MM) LASER SYSTEM WEIGHT: APPROX. 430 LBS (195 KG) CLASS 4 PASS-THROUGH WORK AREA: 24″ X INFINITE LENGTH OPEN SIDE PORT ENTRY CLEARANCE: 23.75″ X 8″ RESOLUTION SELECTION: UP TO 1000 DPI / LPI OPTICS & MOTION: DIGITAL STEPPER MOTORS, ENCLOSED V-GROOVE RAILS, KEVLAR STRUCTURAL BELTS LASER POWER CONFIGURATION: SUPPORTS SINGLE (10 TO 75 WATTS) OR DUAL (UP TO 150 WATTS) LASER CARTRIDGES (RAPID RECONFIGURATION™) ELECTRICAL POWER REQUIREMENTS: SINGLE-PHASE 220V–240V AC, 50/60 HZ, 10–16 AMPS EXHAUST COLLECTOR PORTS: DUAL 4″ OD FITTINGS ON REAR CHASSIS LASER MANUFACTURE DATE: MAY 2018

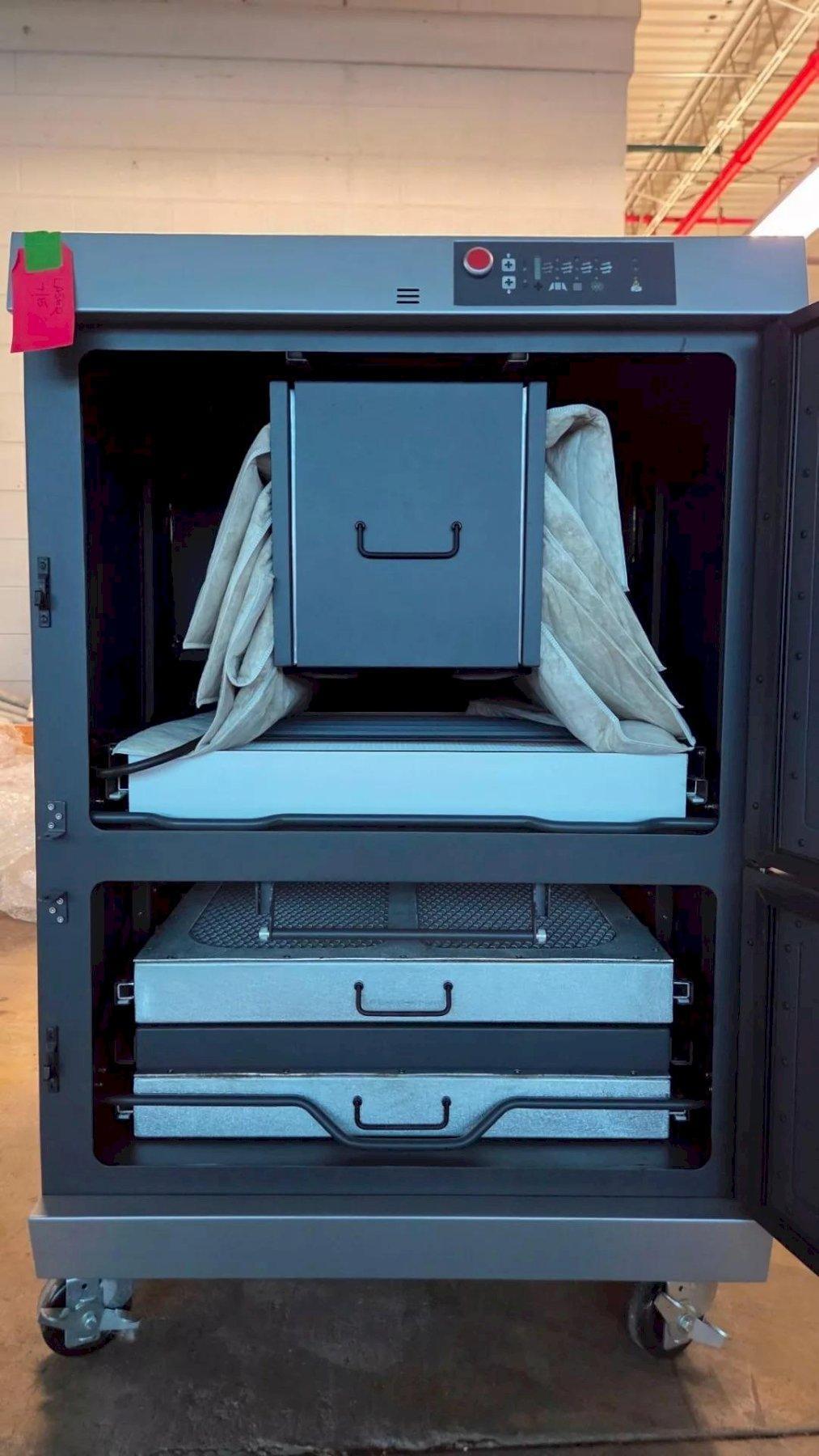

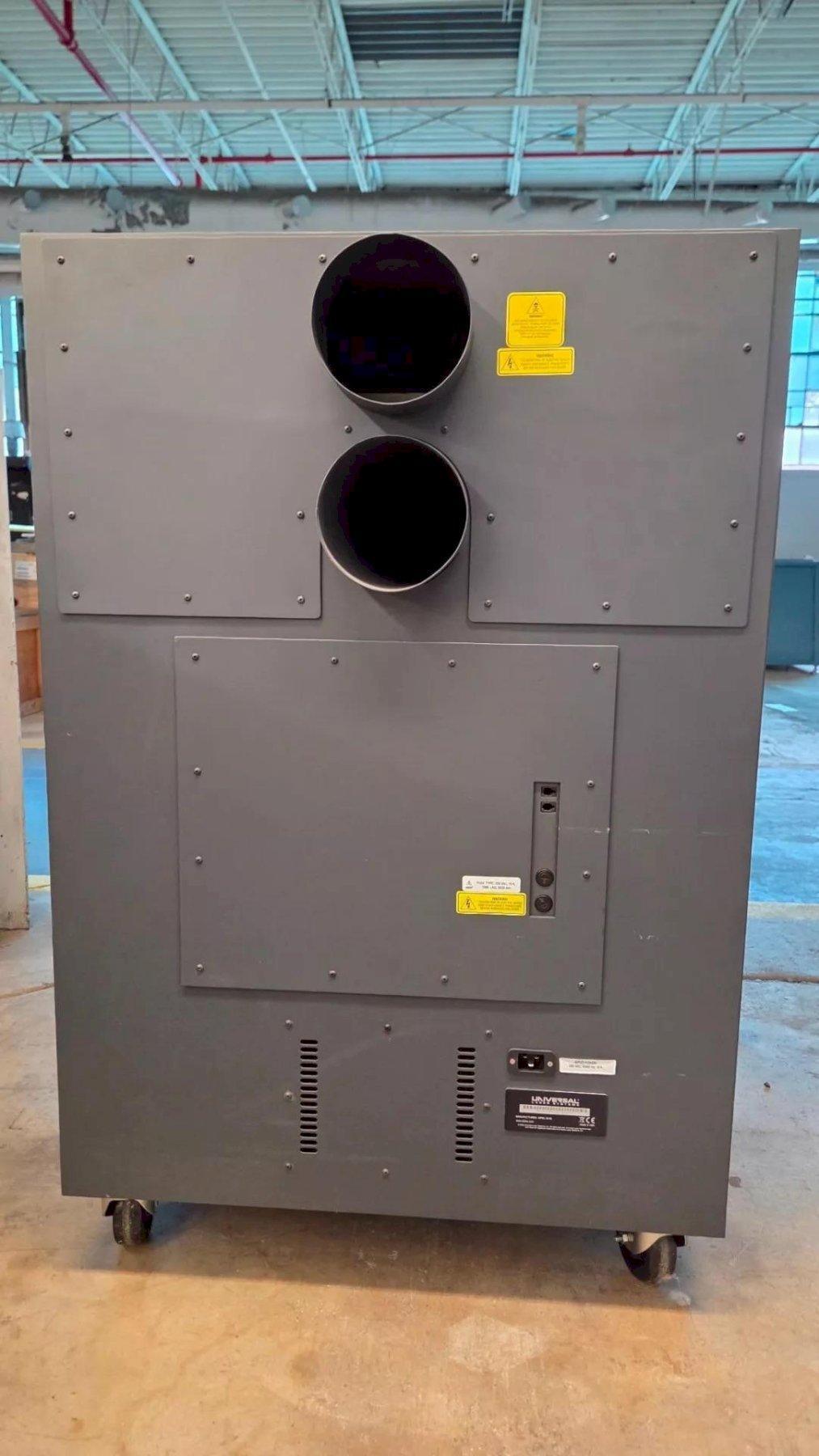

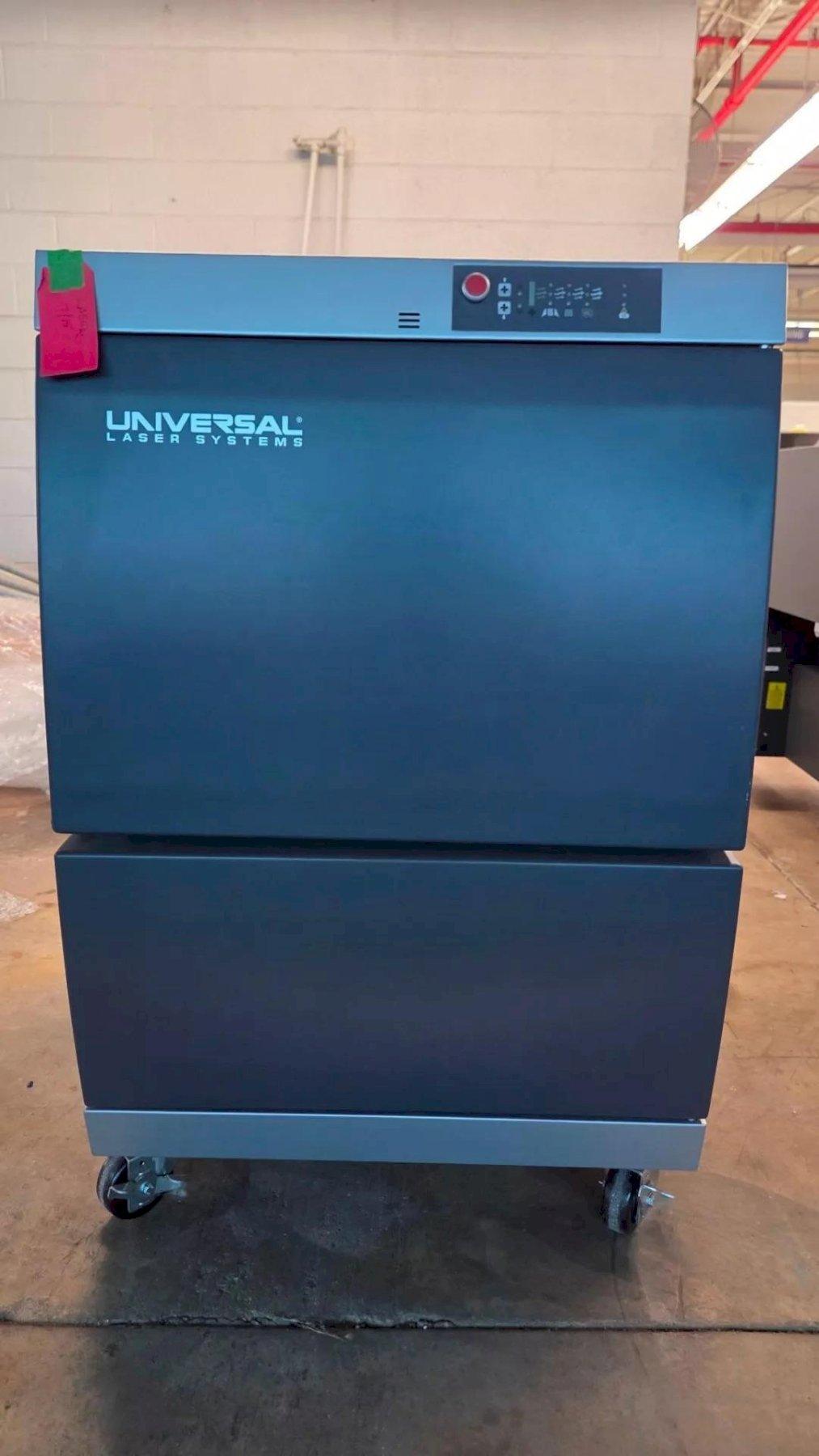

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,EQUIPPED WITH: UNIVERSAL LASER SYSTEMS UAC 4000 ADVANCED AIR FILTRATION UNIT (SN: UAC4000XXX040118122643, MANUFACTURED: APRIL 2018, 4-STAGE ACTIVE FILTRATION SYSTEM, MOBILE ON CASTERS)

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
