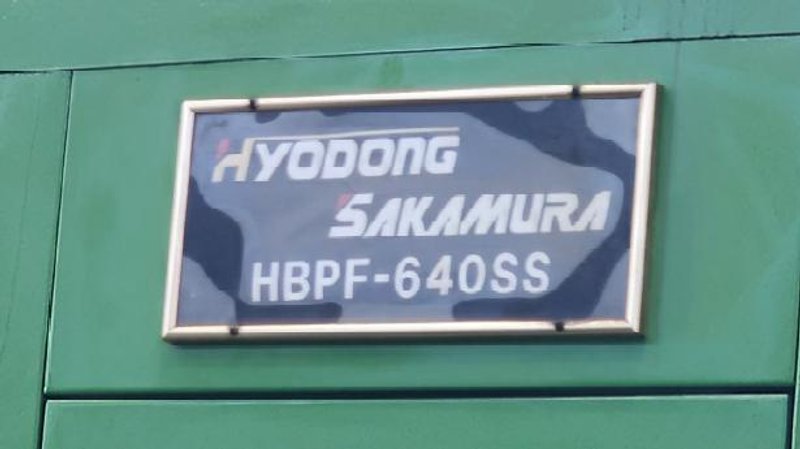

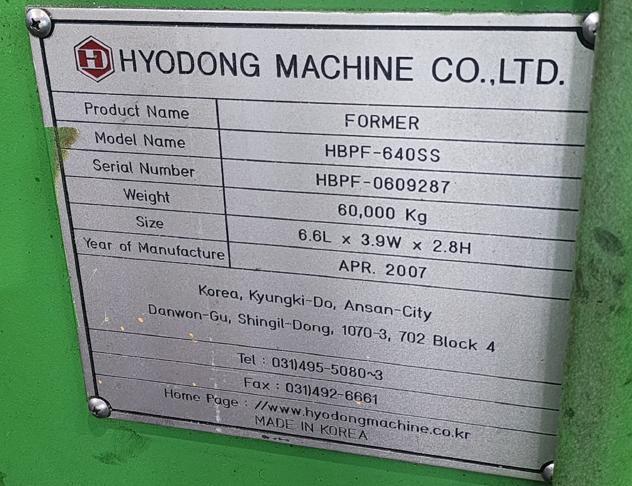

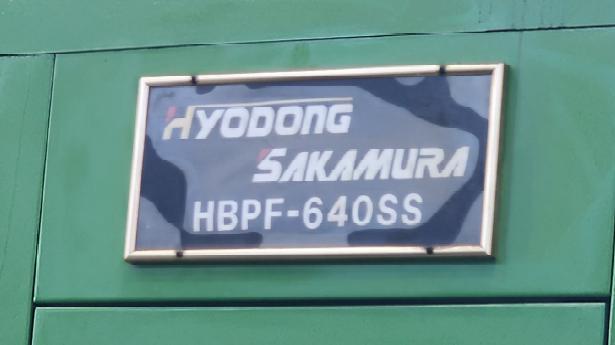

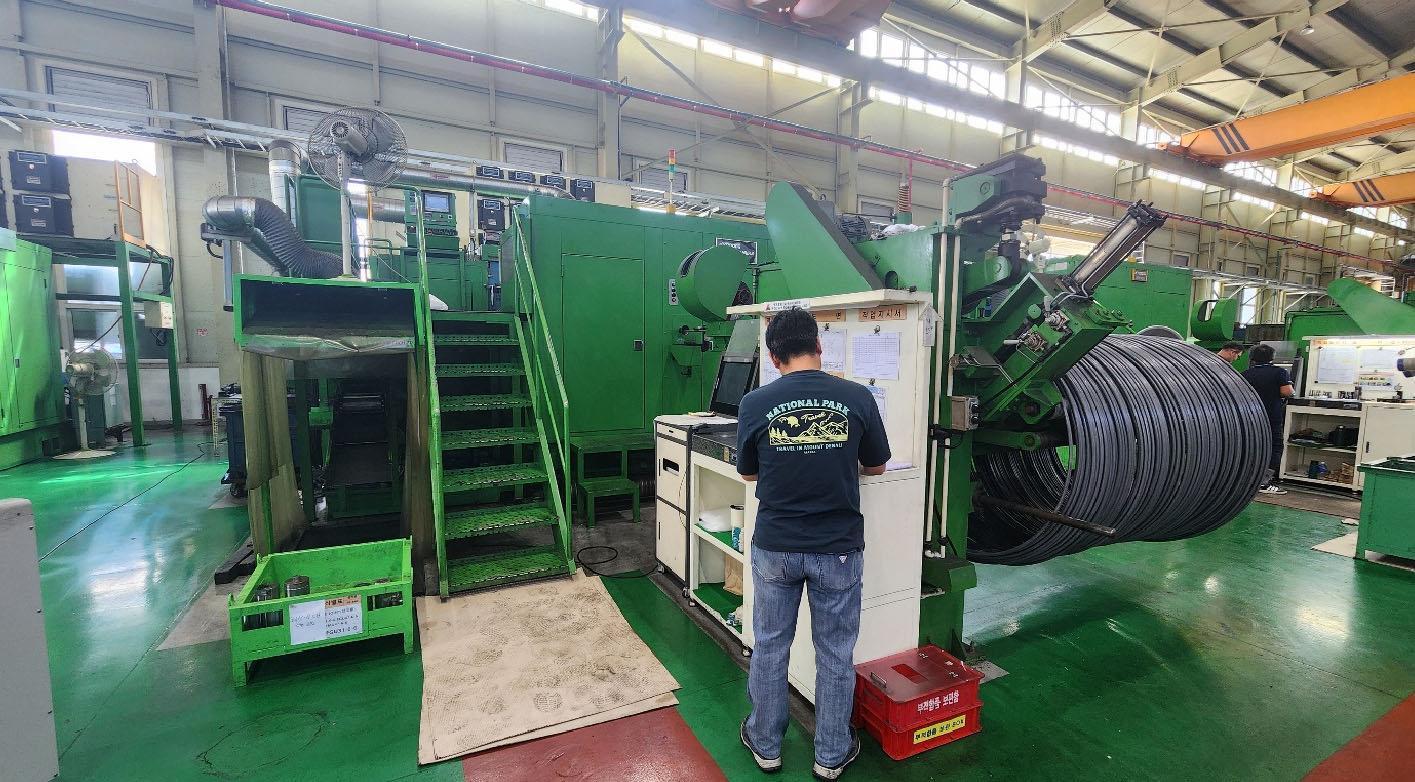

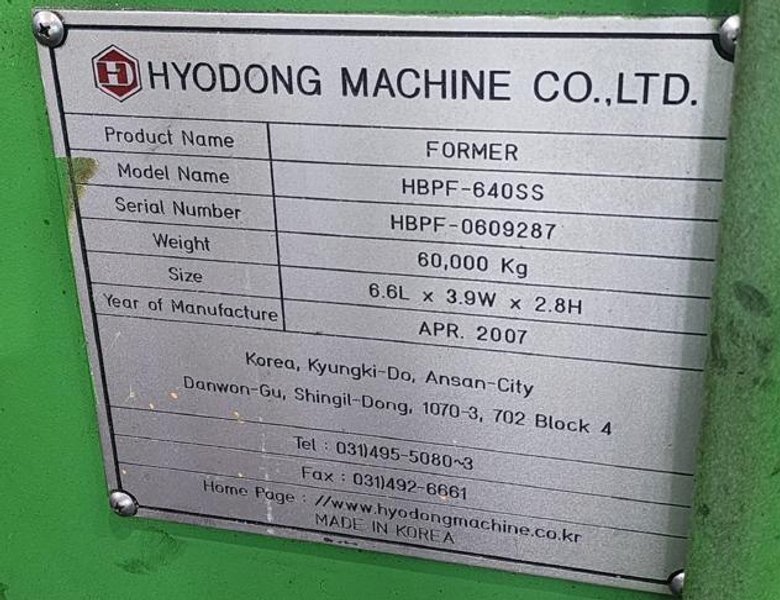

HYO DONG HBPF-640SS

Name: HYO DONG HBPF-640SS
Brand: HYODONG
SKU: 117453
Availability: InStock

Brand

HYODONG

Location

Not specified

Specifications
Files & Videos

SPECIFICATIONS:

Model: HBPF-640SS

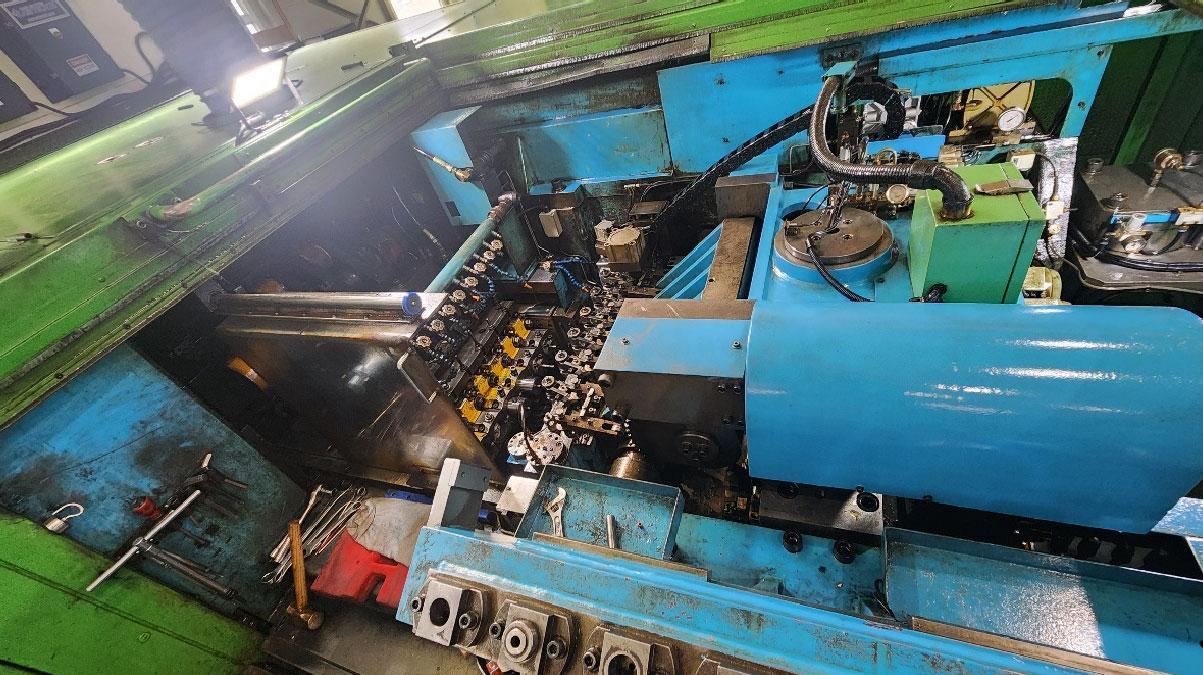

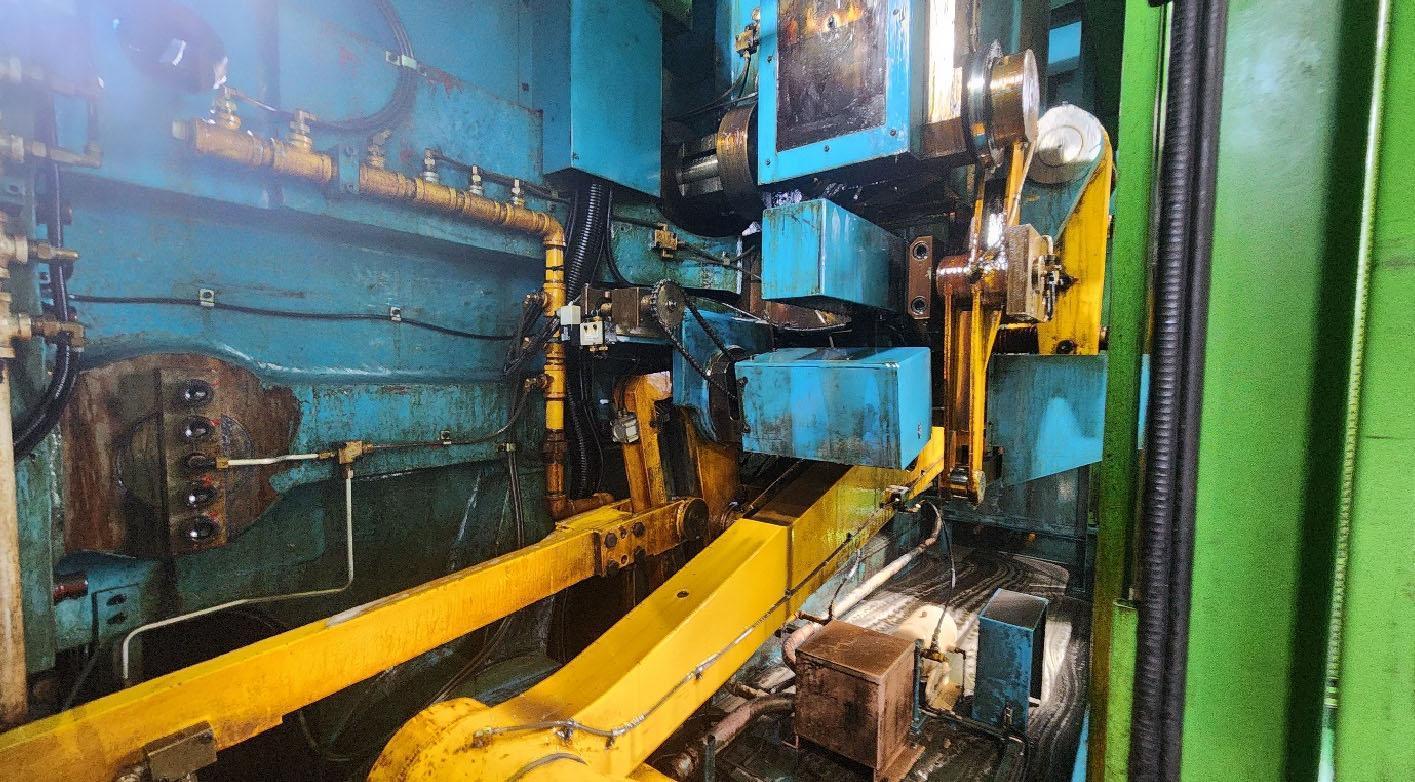

Forging Stations: 6 Stations

Original Bolt Size: 16 mm (26AF)

Target Production Range after Conversion: M12–M20

Open-Up Diameter: Ø32 mm

Under Head Length: 25–150 mm

Forging Load: 220,000 kgf

Cut-Off Diameter: Ø23 mm

Cut-Off Length: 10–160 mm

Cut-Off Knife Size: Ø80 × 32 mm

Cut-Off Quill Size: Ø65 × 80 mm

Punch Size: Ø80 × 220 mm

Die Size: Ø100 × 250 mm

Center Distance Between Dies: 117 mm

PKO Stroke: 35 (40) mm

KO Stroke: 10–130 mm

Ram Stroke: 250 mm

Crank Shaft Diameter: Ø350 mm

Maximum Machine Speed: 120 pcs/min

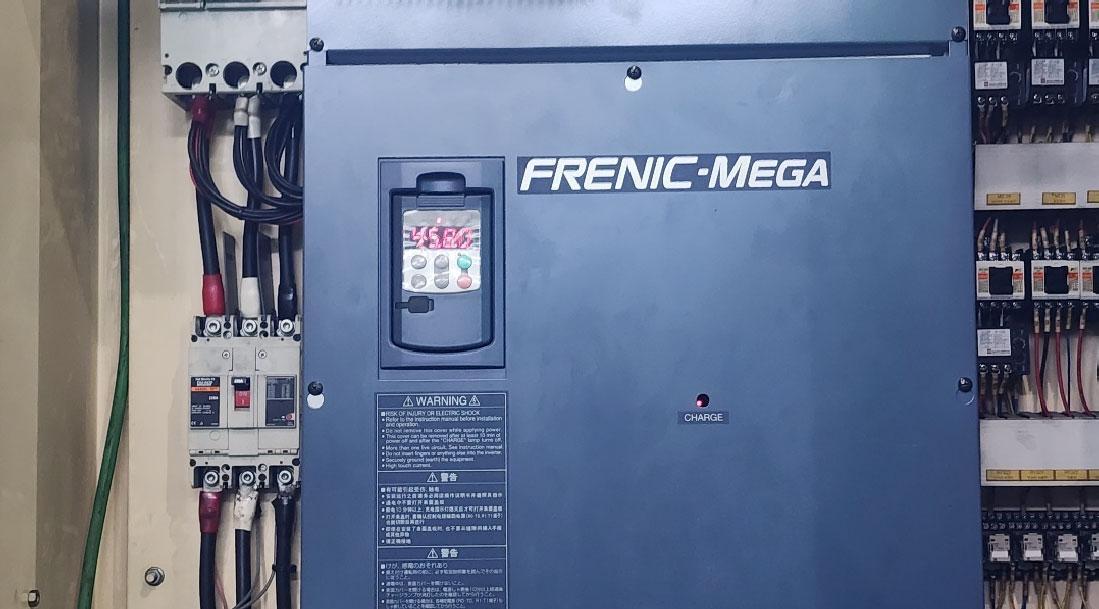

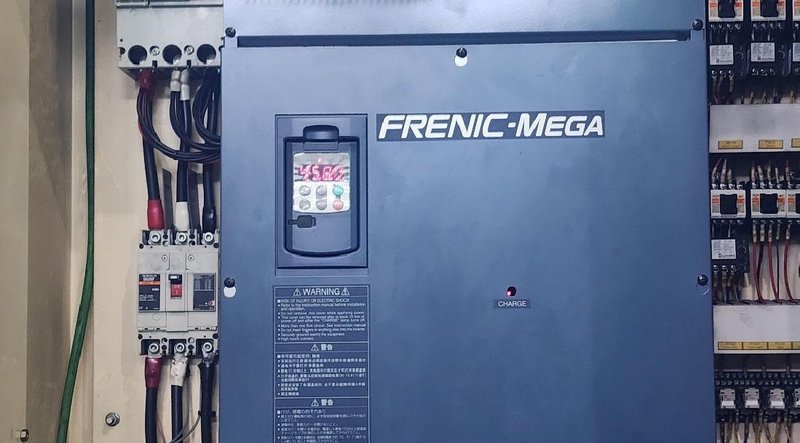

Main Motor: 75 kW

Machine Dimensions: Approx. 6.6(L) × 3.9(W) × 2.8(H) m

Machine Weight: Approx. 60,000 kg

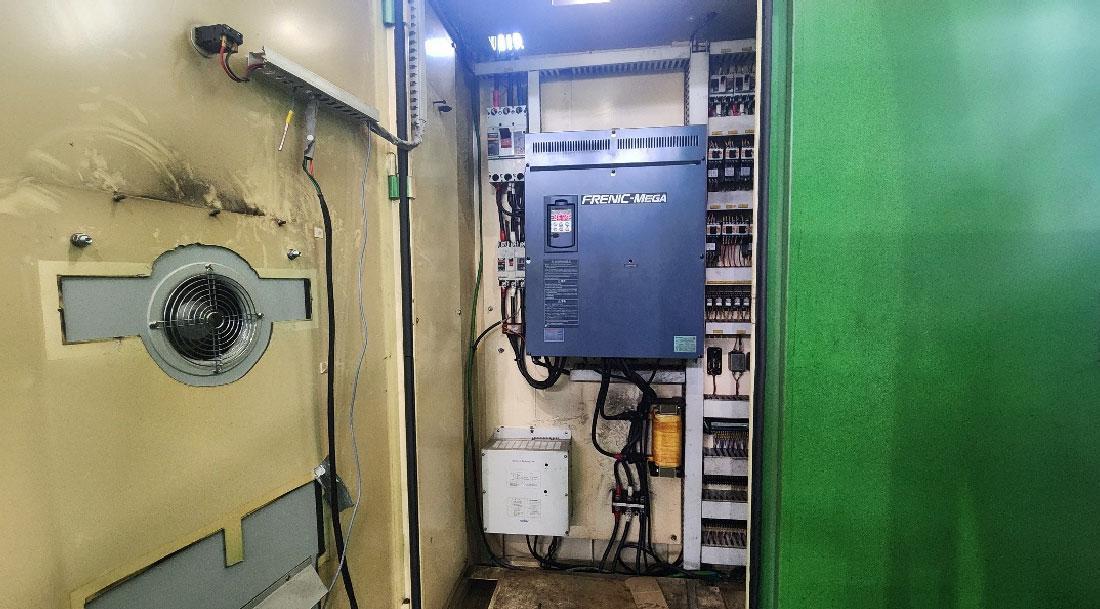

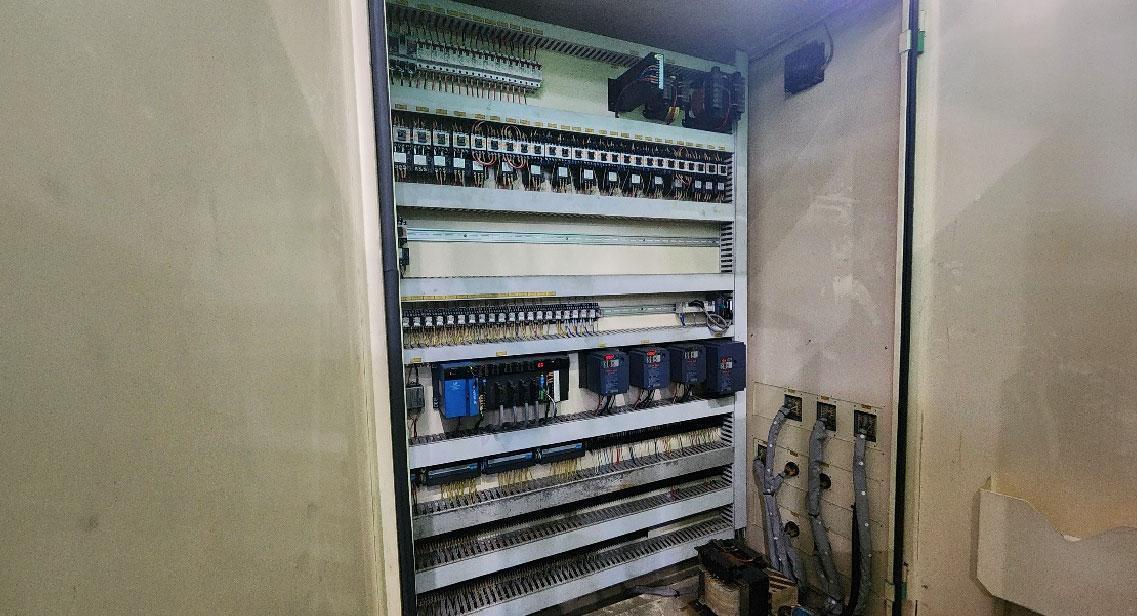

Electrical Capacity: 100 kVA

Air Capacity: 4.0 L/J

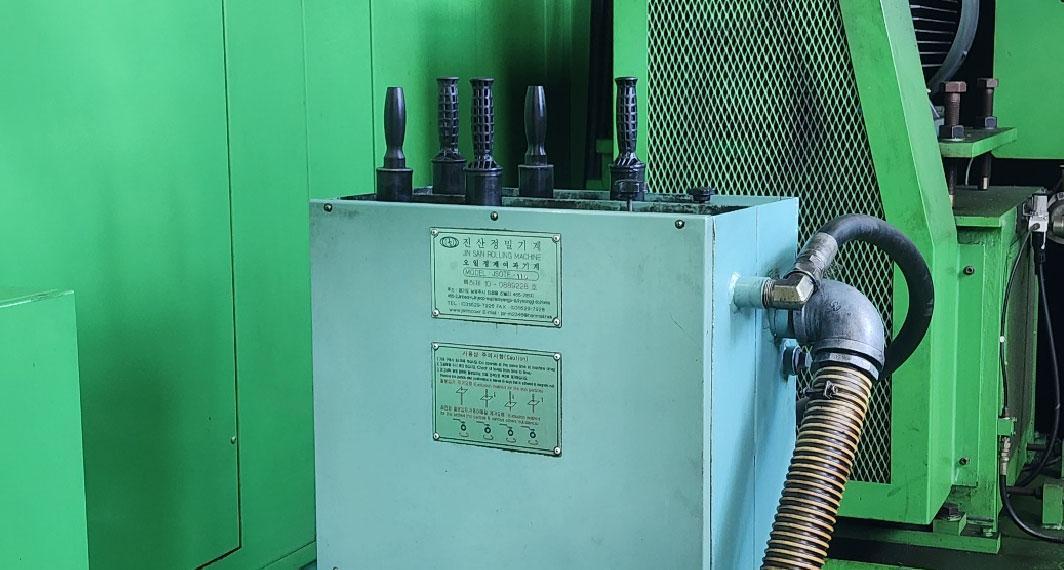

Lubrication & Coolant Oil Capacity: 1,000 L

Die Block Size: 289 mm

Center Distance, Quill & Pusher: 50 mm

Lubrication Pump Capacity: 0.75 kW

Coolant Pump Capacity: 0.75 kW
