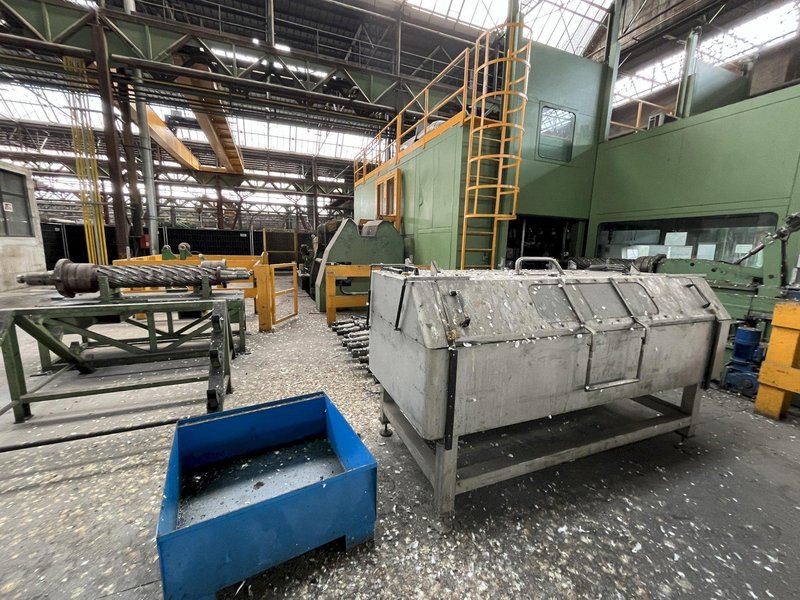

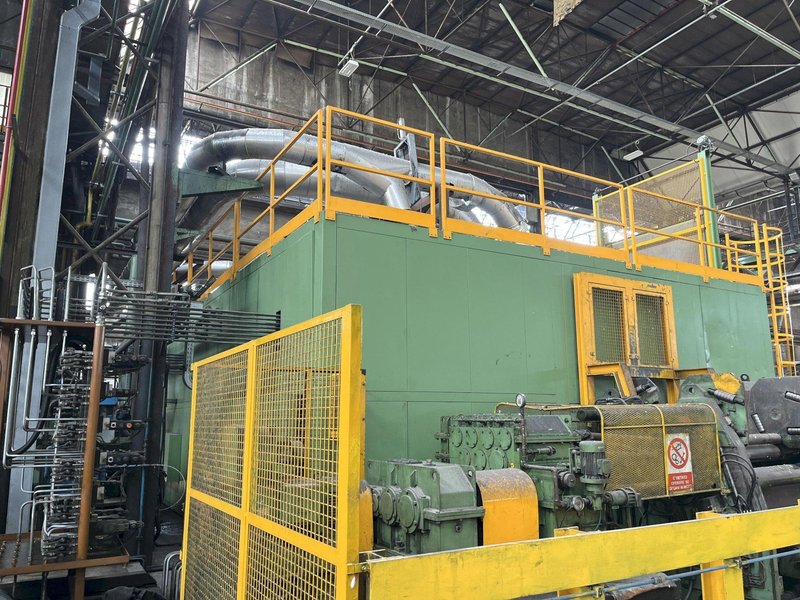

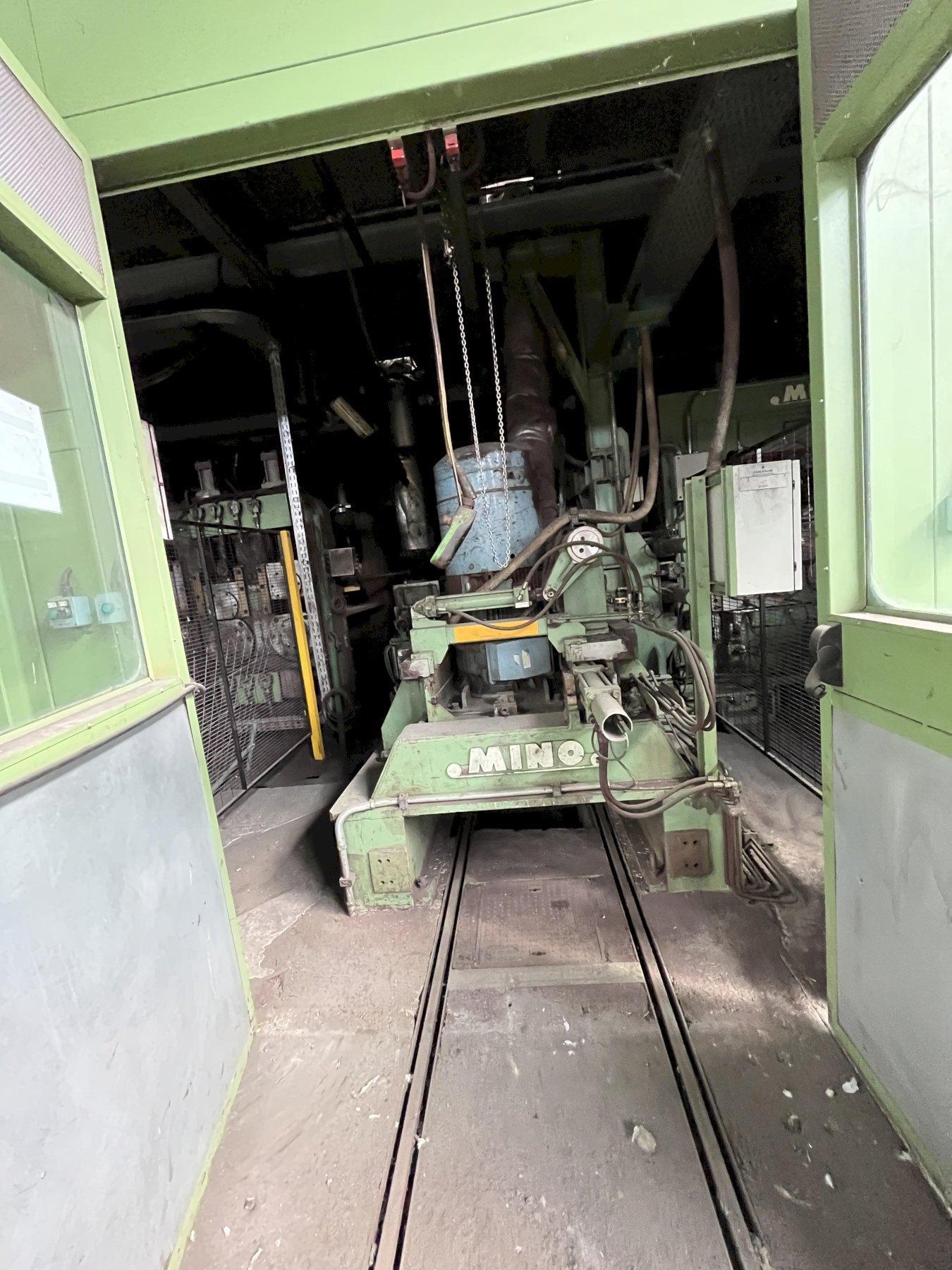

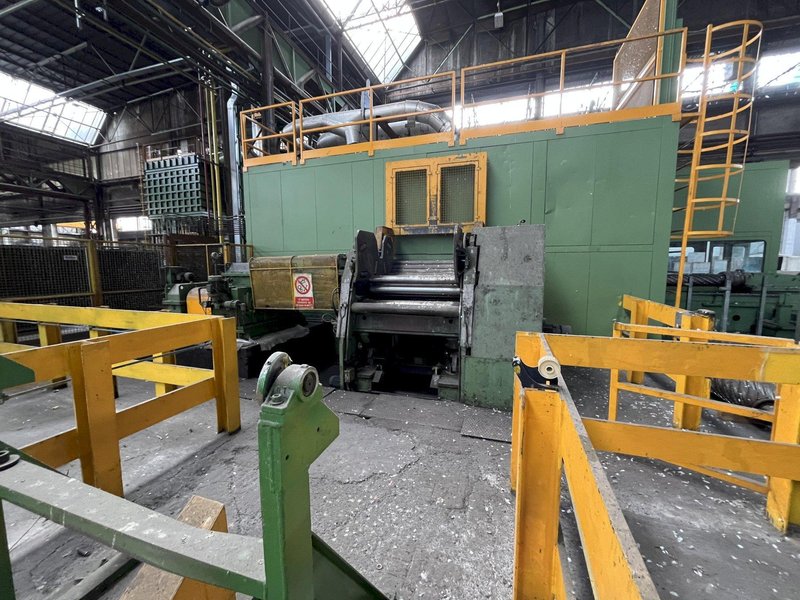

MINO SLAB SCALPING (MILLING) LINE

MINO Milling Line incorporates top and bottom full width milling knives as well as edge milling heads together with a complete dust and chip extraction system supplied by DIZETA.

The line occupies approximately 300 m² with an installed electrical power of 400 kW.

The system utilizes oil lubrication and processes:

• Strip width: 560–1,052 mm
• Thickness: 17.5 mm
• Speed: 4–9 m/min
• Line Direction: Right to left
• Exit Upcoiler
• Milling Knife Washing Unit.

Cutting roll dimensions: 1250mm x 250mm

Line Configuration

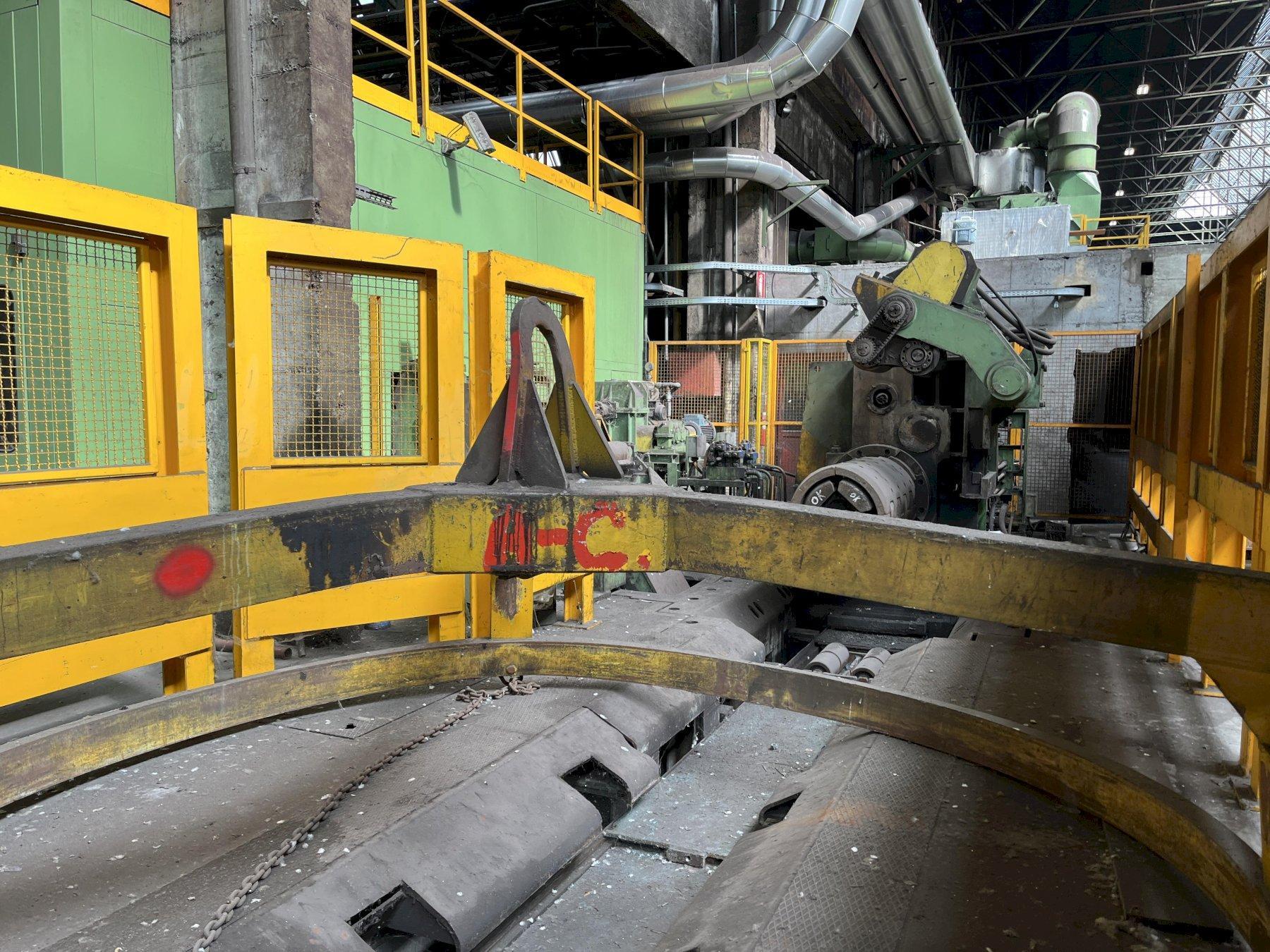

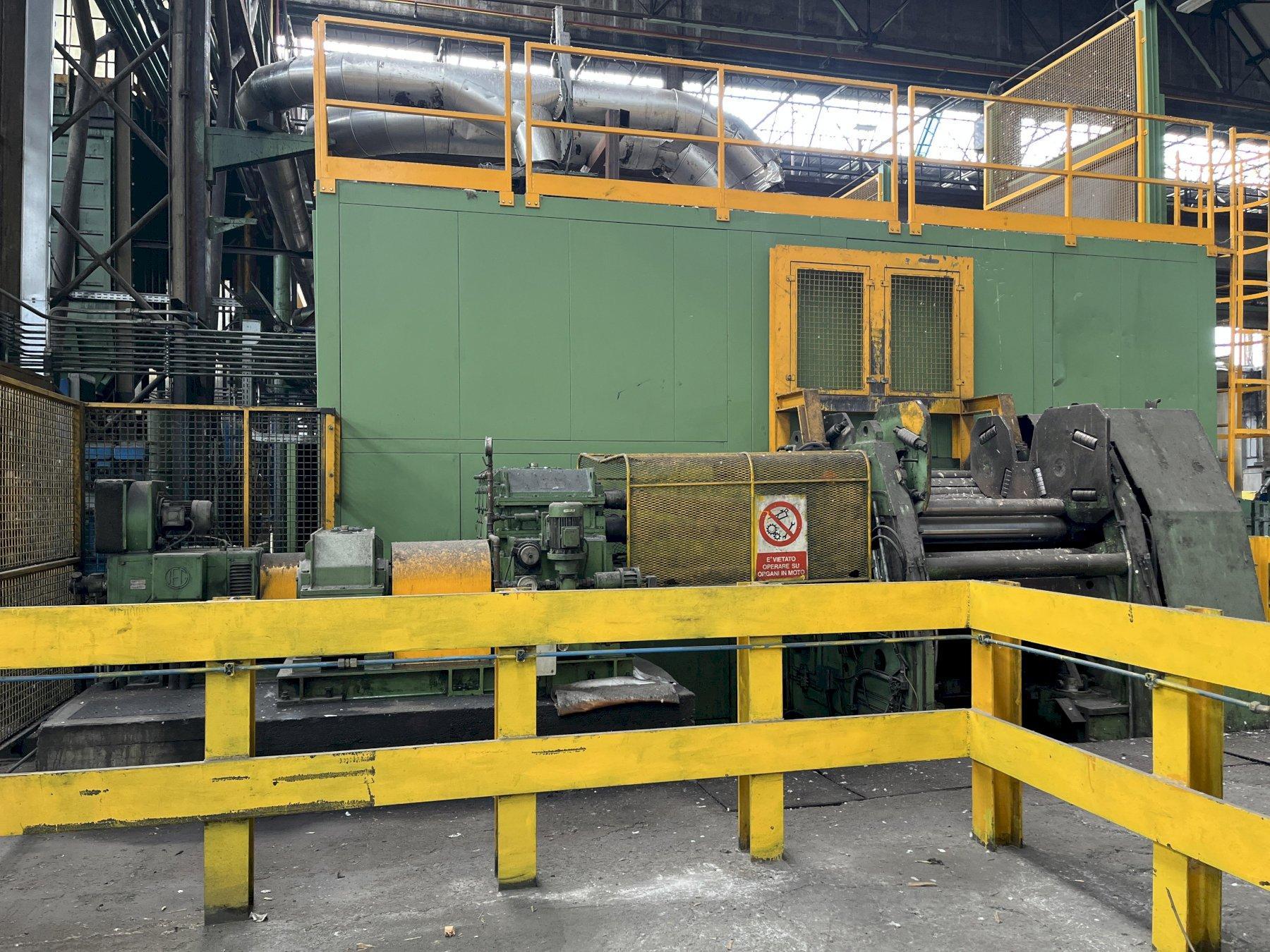

Pay – off:

Uncoiler with Snubber Control Roll Arm

Mandrel OD: 500 + 600mm (LEAFS)

Underground coil car

Motor Drive: 10kW- 400V DC

Peeler table

Edge guiding rolls, Hydr Adjustment

Pinch roll stand – 11kW AC drive

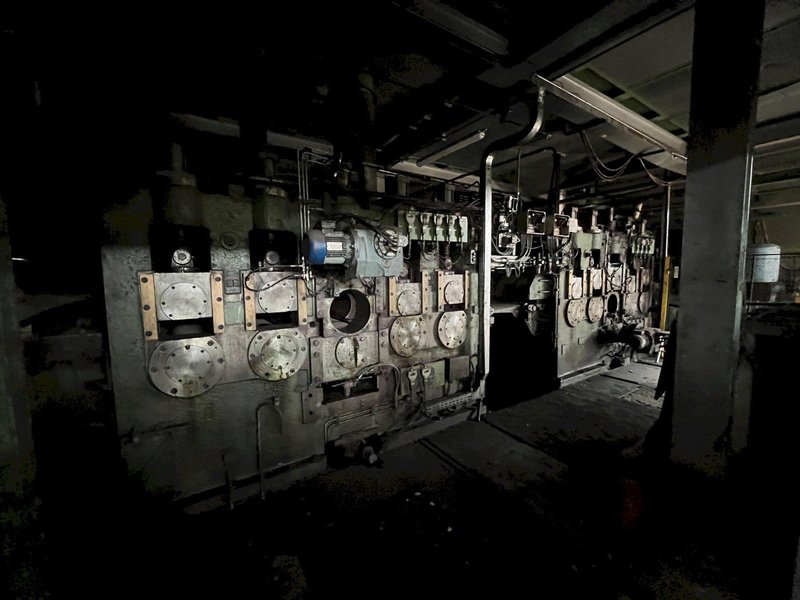

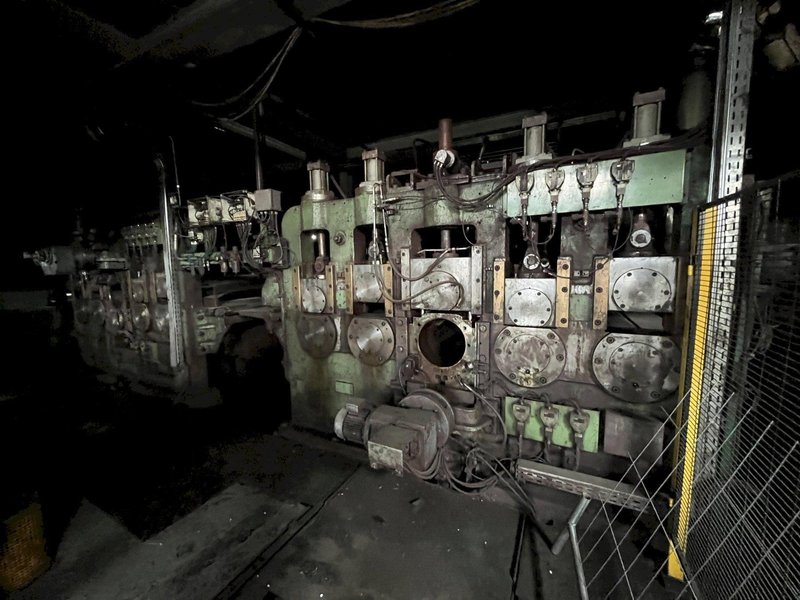

Precision Leveler, 9  Roll

Individual spindle adjustment for top rolls

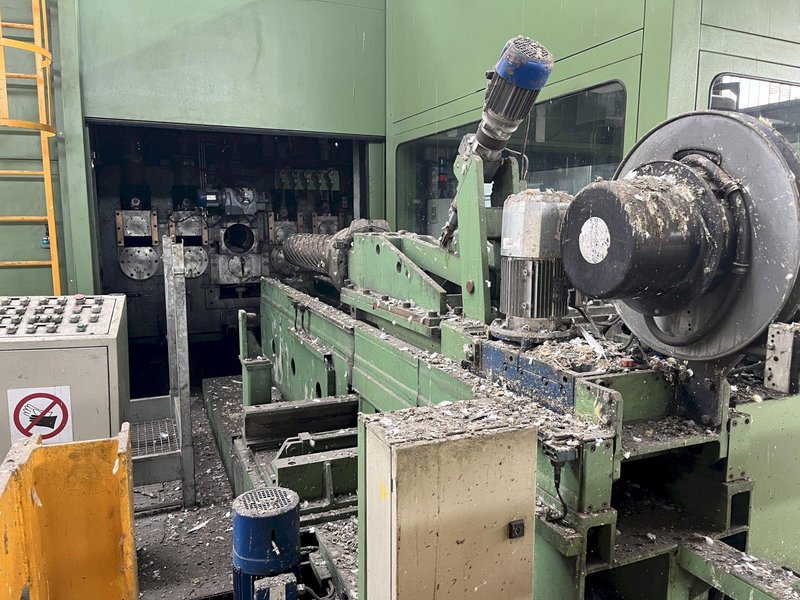

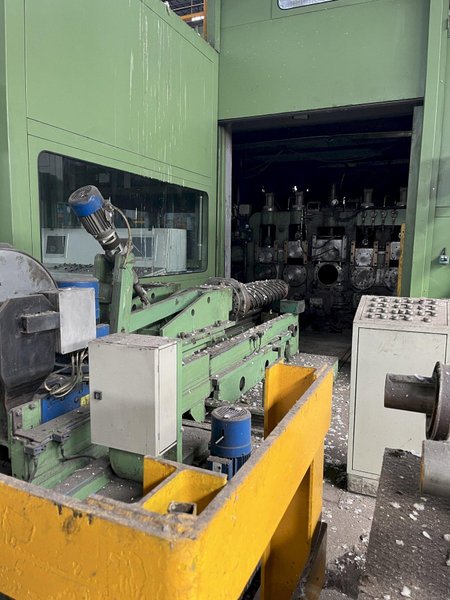

Side  Edge Milling Unit

200kW- 230/400V DC

Dege Guide Rolls

Chip vacuum system

Mill entry section:

Pinch rolls, (2) stands – 12.5kW DC drive per roll set

Bottom Milling Knife +  pressure roll

250kW AC drive @400/690V 50Hz

Pinch rolls, (2) stands – 12.5kW DC drive per roll set

Scrap collection

Roll change sledge

Mill exit section:

Pinch rolls, (2) stands – 12.5kW DC drive per roll set

Top Milling Knife + Pressure Roll – 250kW AC drive @400/690V 50Hz

Pinch rolls, (2) stands – 12.5kW DC drive per roll set

Scrap collection

Roll change sledge

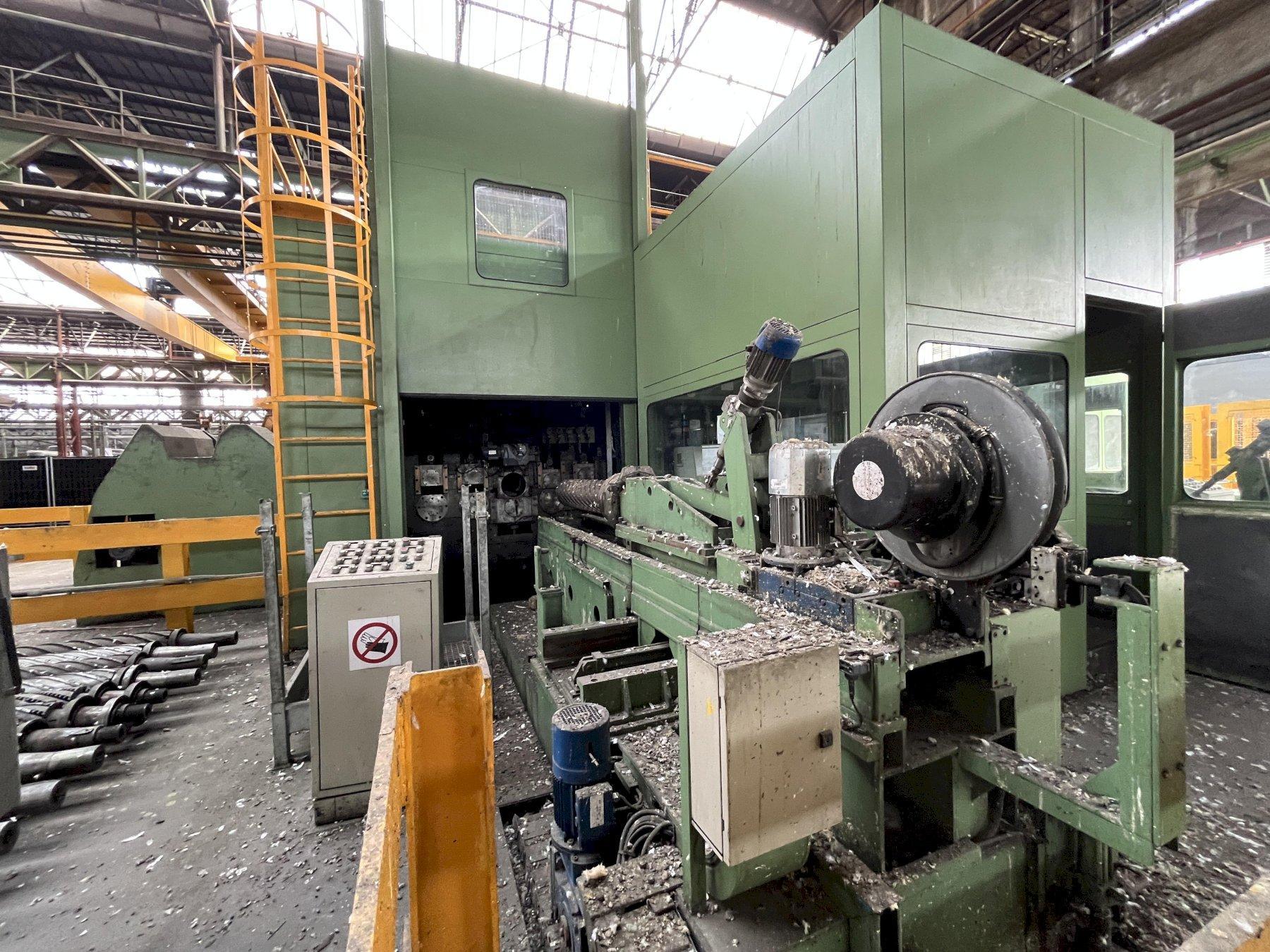

Re-coiling:

Upcoiler – 40kW - 400V DC drive

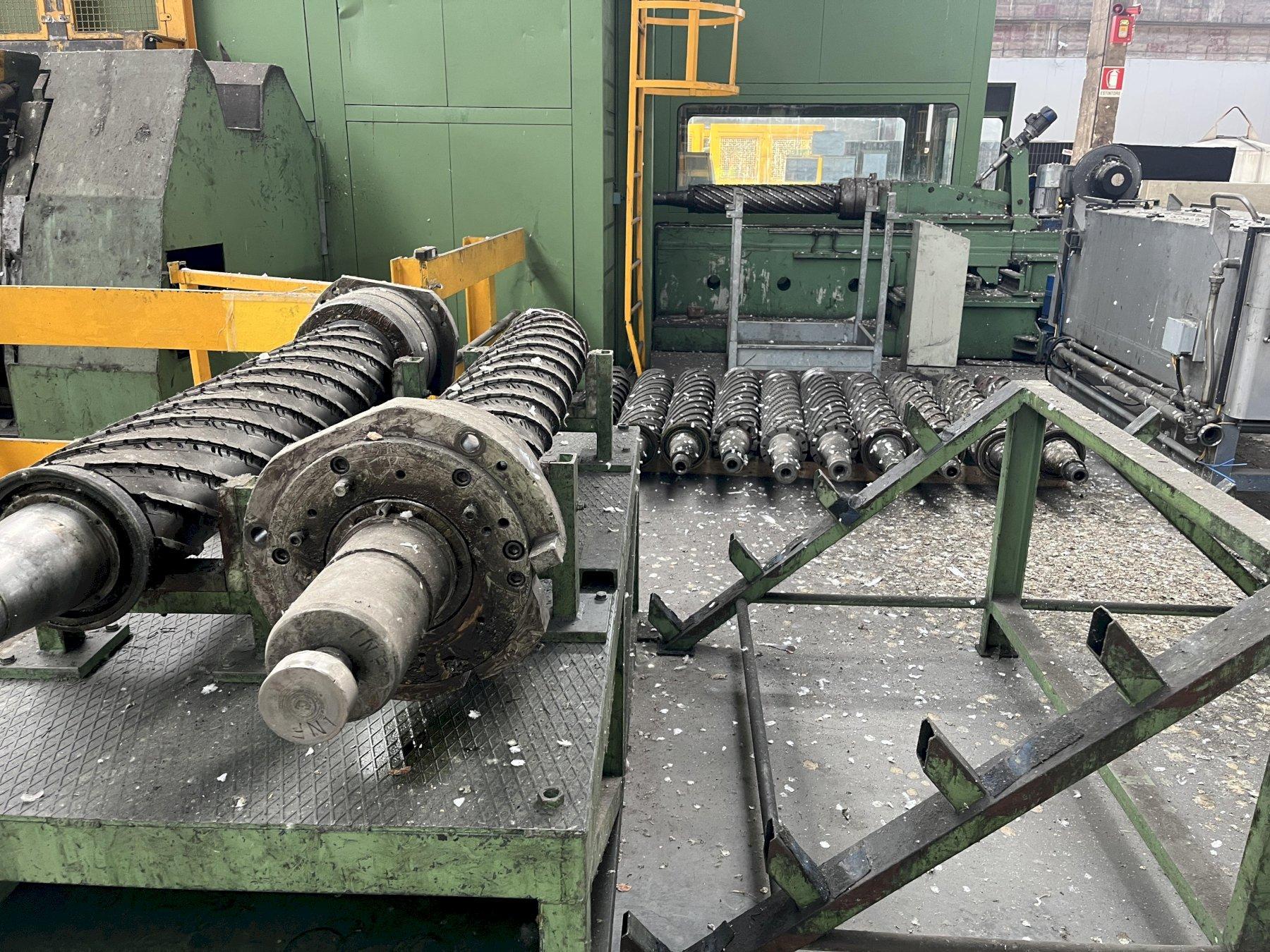

Spare milling Knives (12)  to be confirmed
