MINO SCALPING (MILLING) LINE

Lower and upper milling cutters with milling edger, calendar roller, and levelling and up-coiling system.  Suitable for rebuild

TECHNICAL SPECIFICATIONS:

• Area: 300 m²
• Total Electrical Power: 750 kW
• Max Strip Width: 360 mm
• Max Strip Thickness: up to 20 mm
• Strip Speed: 20 m/min

LINE CONFIGURATION

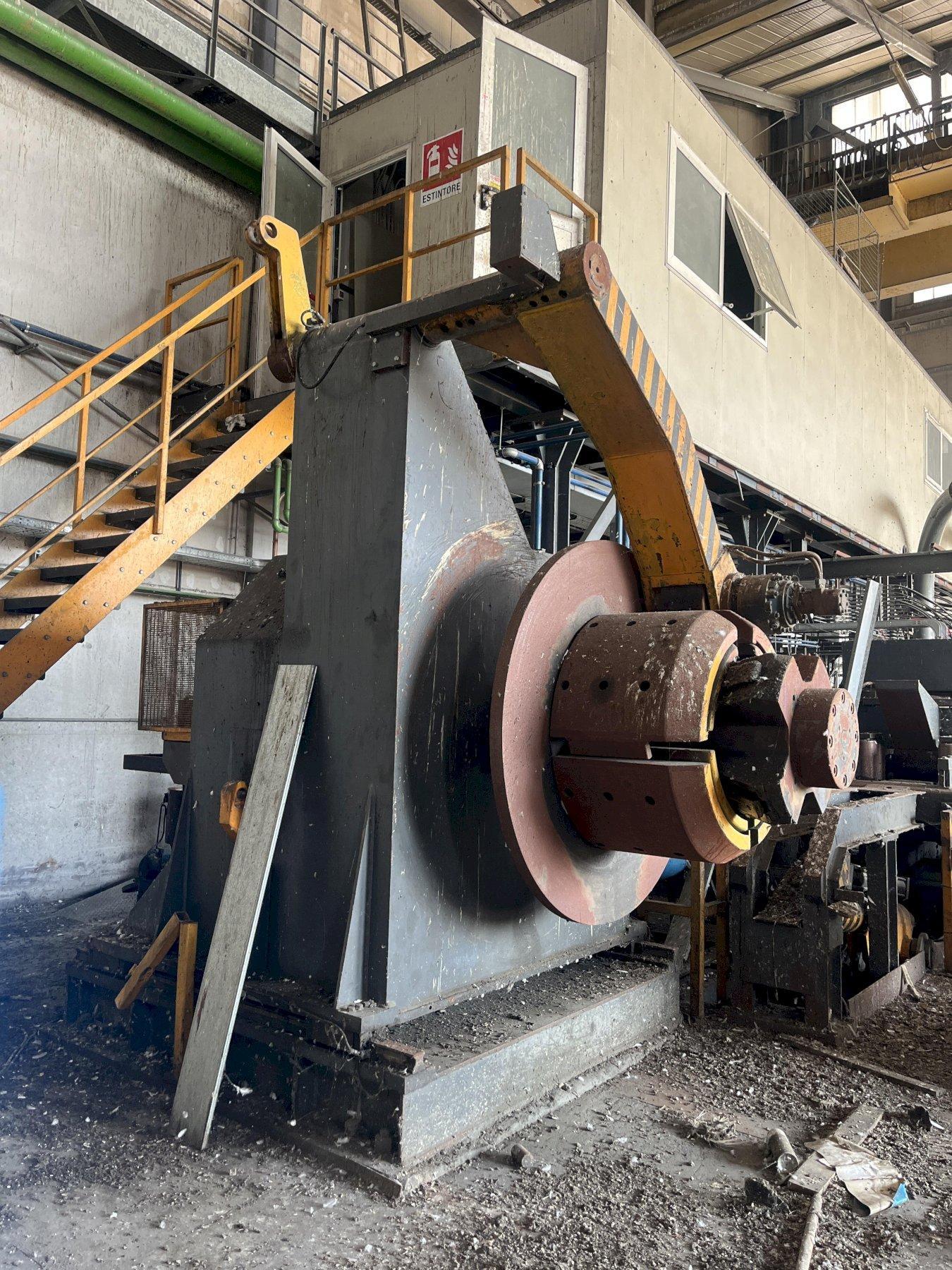

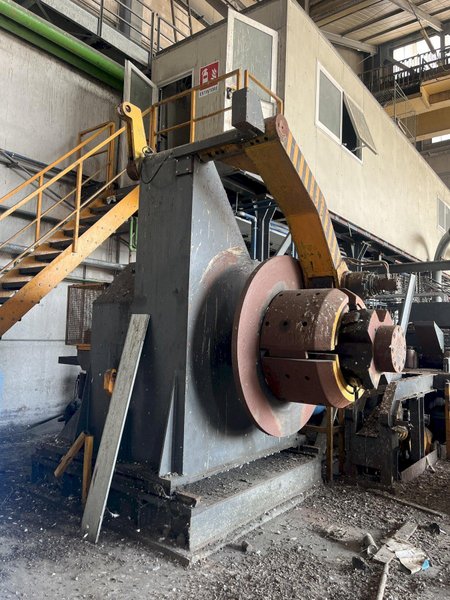

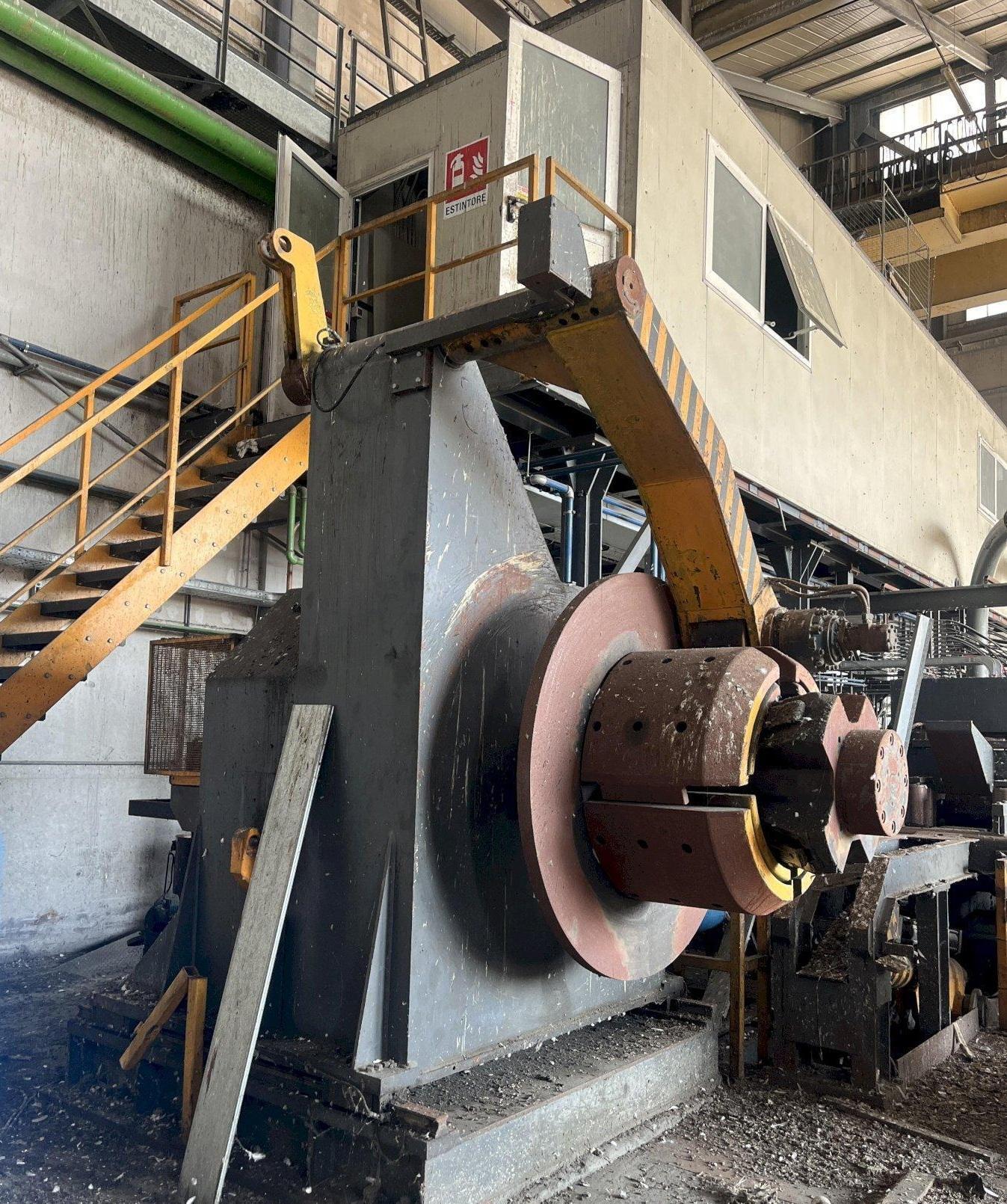

UNCOILER, MANDREL TYPE

Mandrel OD: 610mm / 850mm LEAFS

Hydraulic Expansion

Overarm Snub Roll with hydraulic motor

COIL OPENER, HYDRAULIC OPERATED

ENTRY STRAIGHTENER, 9 ROLL

          Side Entry Guide Rolls

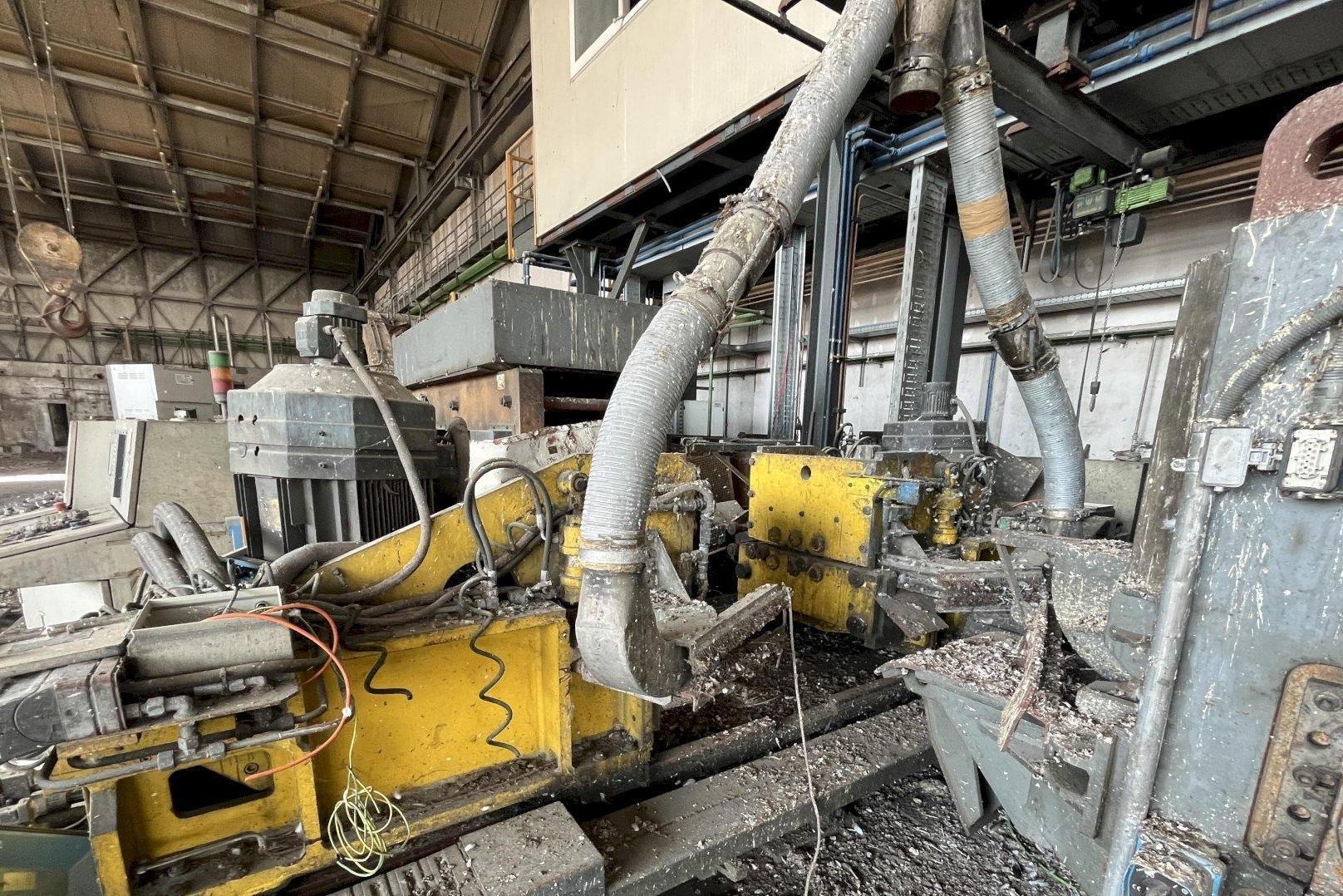

LINSINGER EDGE MILLING MACHINE

          Entry Guide Rolls

          Adjustable Width, hydraulic operated

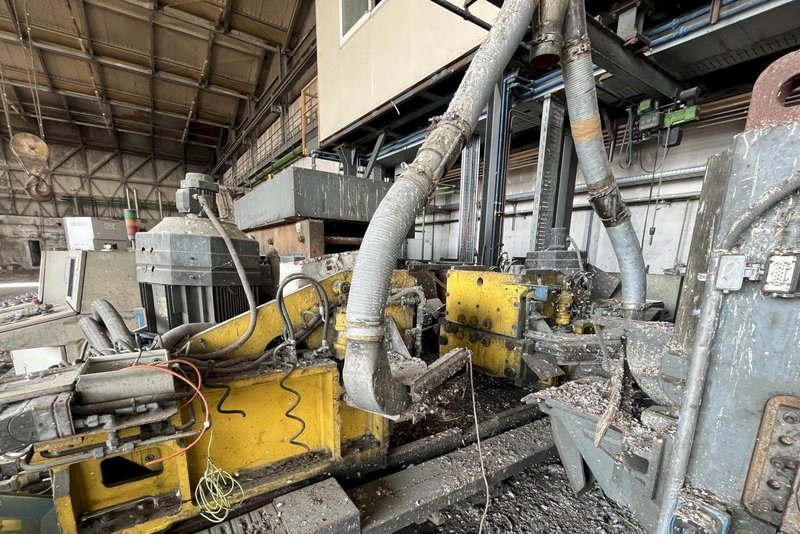

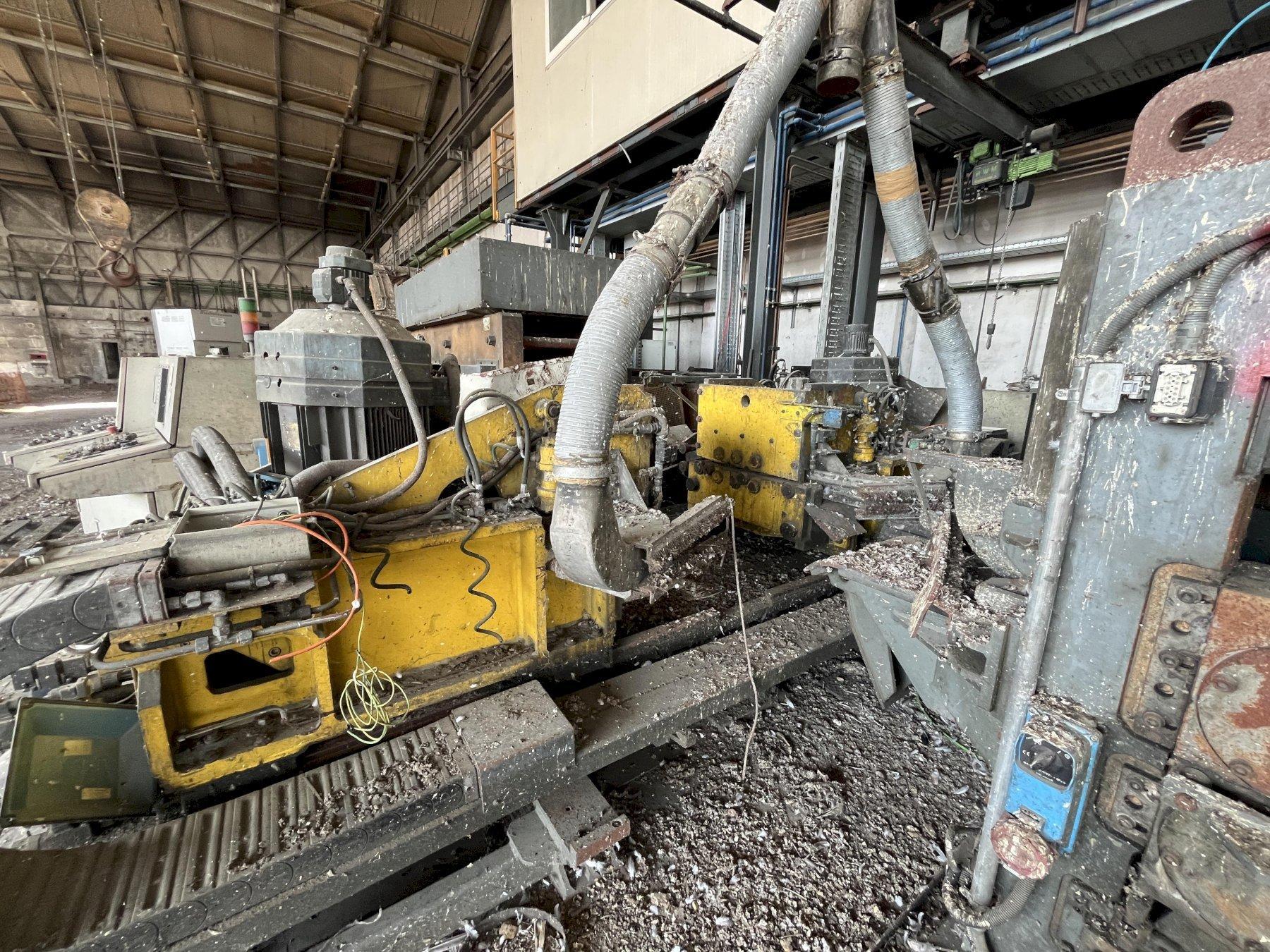

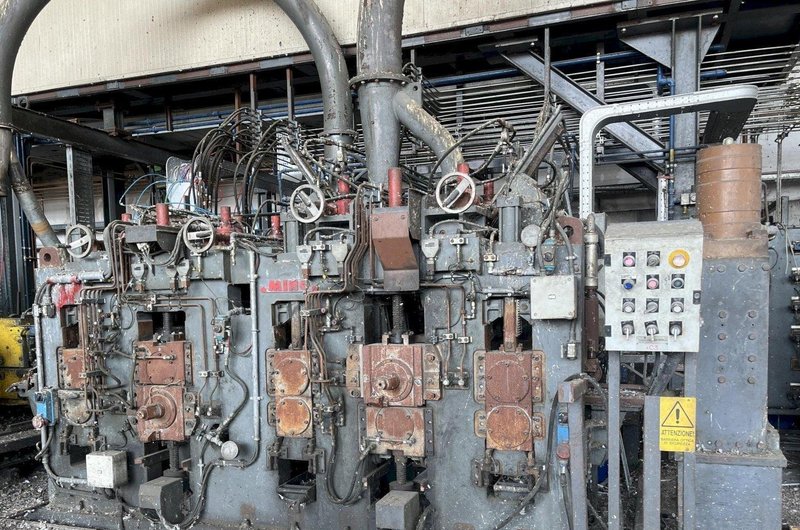

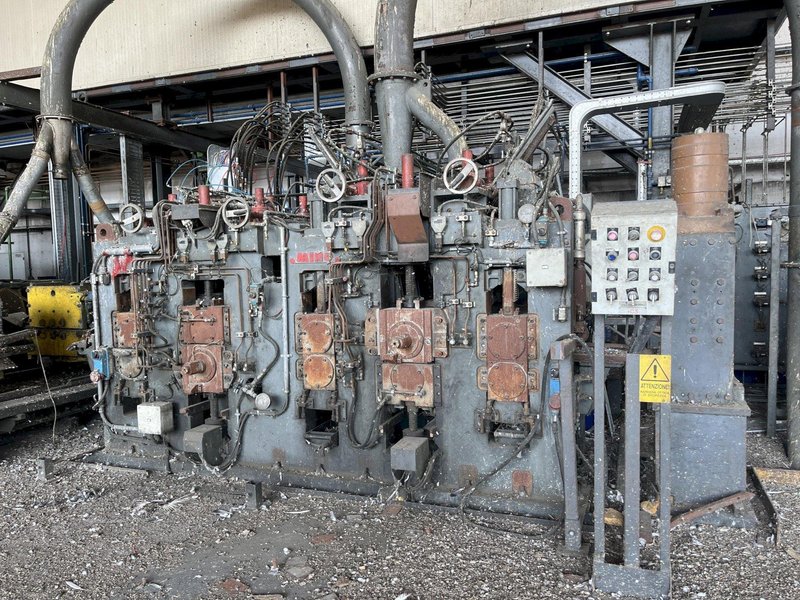

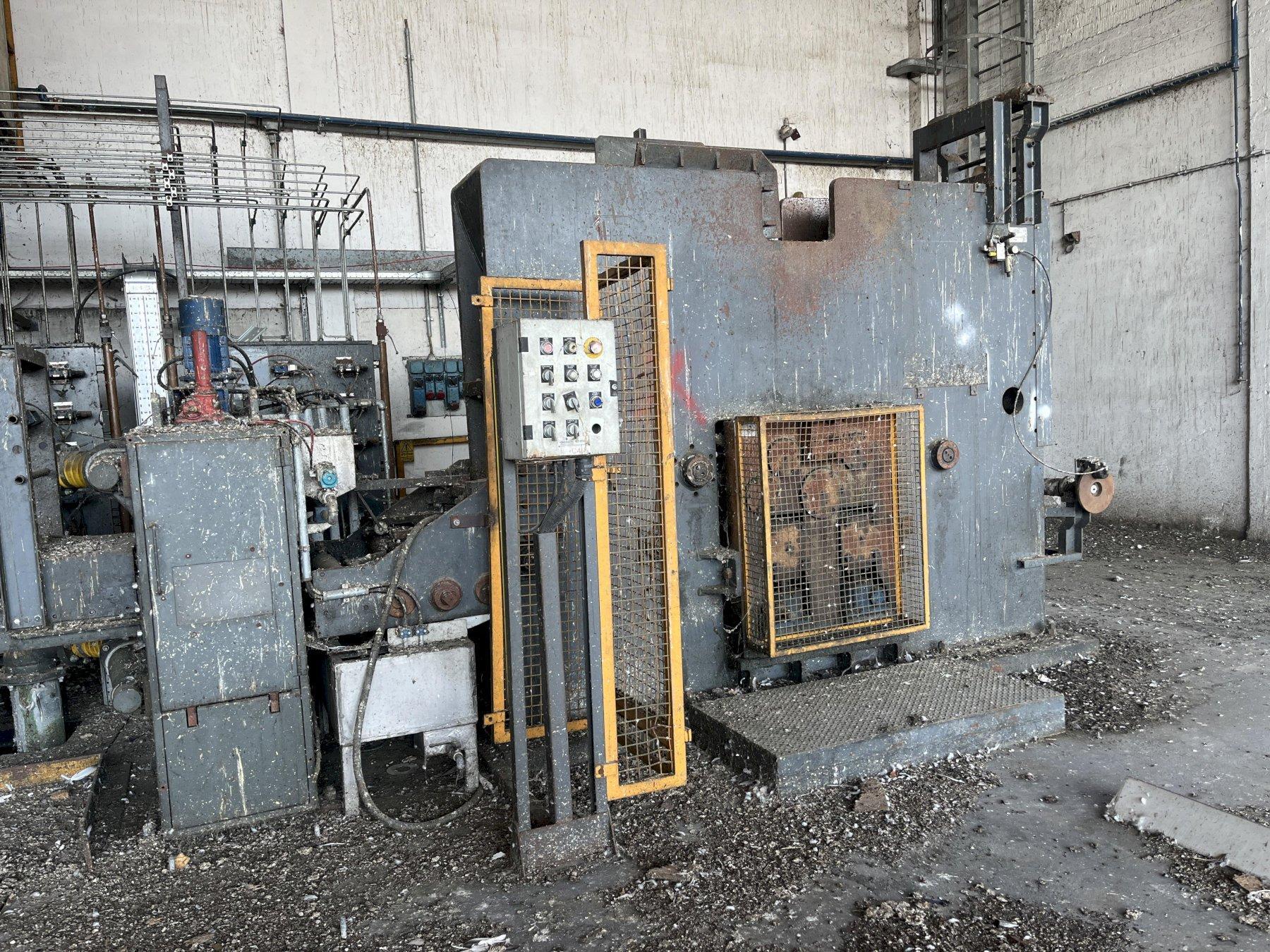

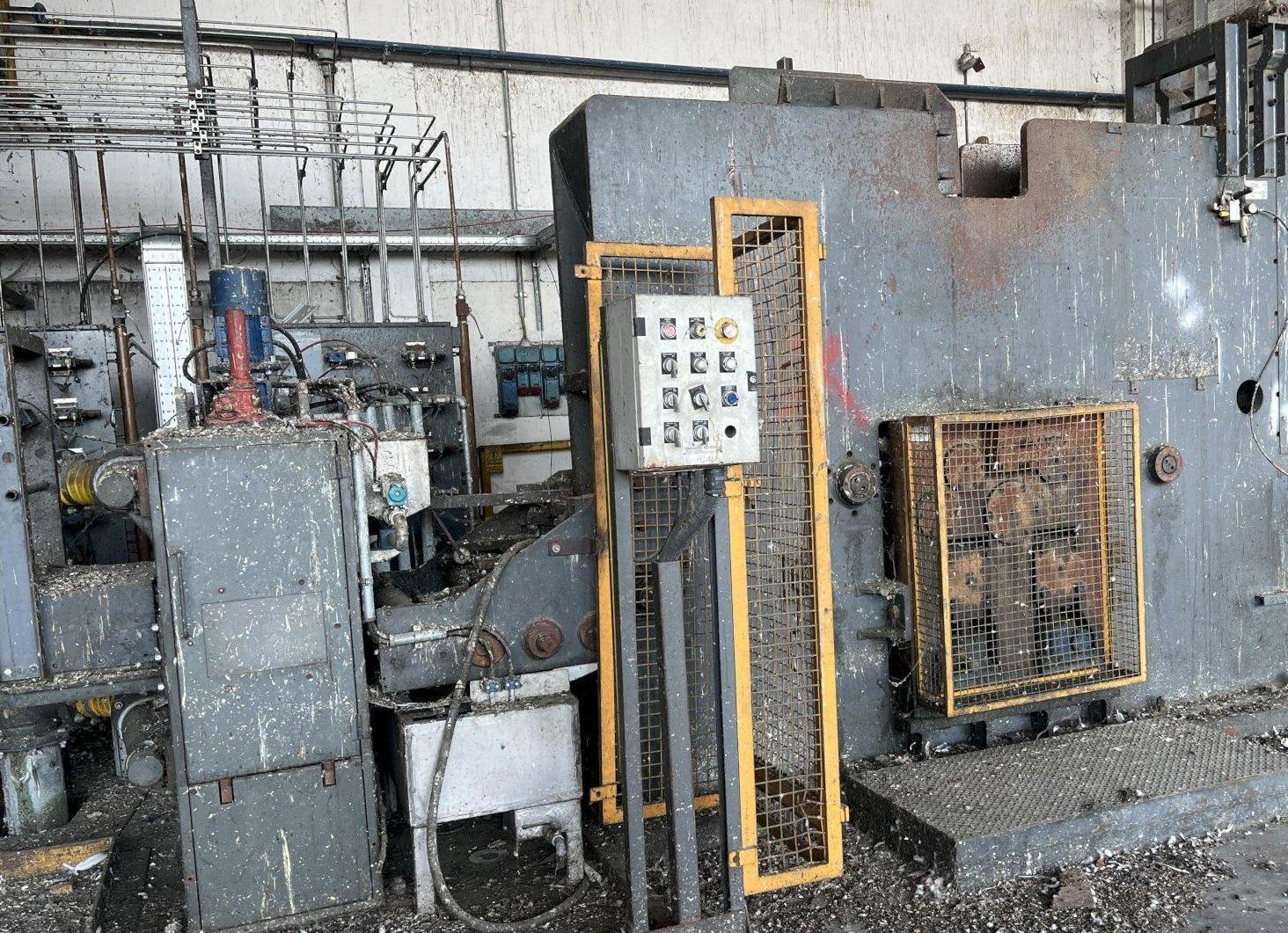

 MINO MILLING/SCALPING SURFACE MACHINE

          Top and Bottom Milling Cutters

          (3) Sets Pinch Control Rolls, Entry, Center, Exit

          Hydraulic Top Adjustment, Rolls & Cutters

CROP SHEAR, HYDRAULIC, DOWN ACTING

BRUSHING STAND

Entry Guide Table

Motor Top Adjustment

EXIT UPCOILER

ANCILLARY EQUIPMENT

• 1 set scalping tools
• 1 set edge tools

GVM Vacuum Chip Extraction & Filtration System

• Sleeve filter
• Cyclone system
• Suction capacity: 30,000 m³/h
• Electrical Power: 37 kW

          Hydraulic Power motor pump reservoir tank

          Hydraulic Valve Stands

          Operator’s Console
