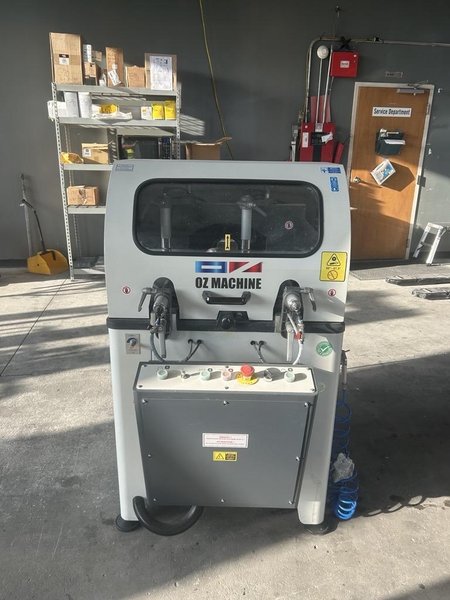

OZ Machine APEX I-A Hydraulic Aluminum Corner Crimper w/ POLAR V Automatic End Milling Machine, 2024 – 220V 3PH

Late-model OZ Machine aluminum profile fabrication package featuring an APEX I-A automatic hydraulic corner crimping machine with rising miter and a POLAR V automatic hydro-pneumatic end milling machine for precision processing of aluminum and PVC window, door, storefront and curtain-wall profiles.

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Manufacturer OZ Machine / Özçelik Machinery Model APEX I-A Year 2024 Machine Type Automatic Hydraulic Aluminum Corner Crimping Machine Application Corner crimping / joining aluminum profiles Operating System Hydraulic Centering System Automatic profile centering with rising/retractable miter Controls PLC controlled Crimping Blade Adjustment Adjustable according to profile Profile Capability Wide and high aluminum profiles Motor Power 2.2 kW / approx. 3 HP Motor Speed 1,400 RPM Electrical 220V AC, 3 Phase, PE Frequency 50–60 Hz Current – Your Machine 10.5 A Hydraulic Oil Pressure 120–150 bar Air Pressure 6–8 bar Dimensions – Your Machine Plate 2,065 × 1,420 × 1,300 mm Approx. Dimensions 81.3″ × 55.9″ × 51.2″ Weight – Your Machine Plate 444 kg / approx. 979 lb Standard Crimping Sets 1/4″ and 3/16″ sets

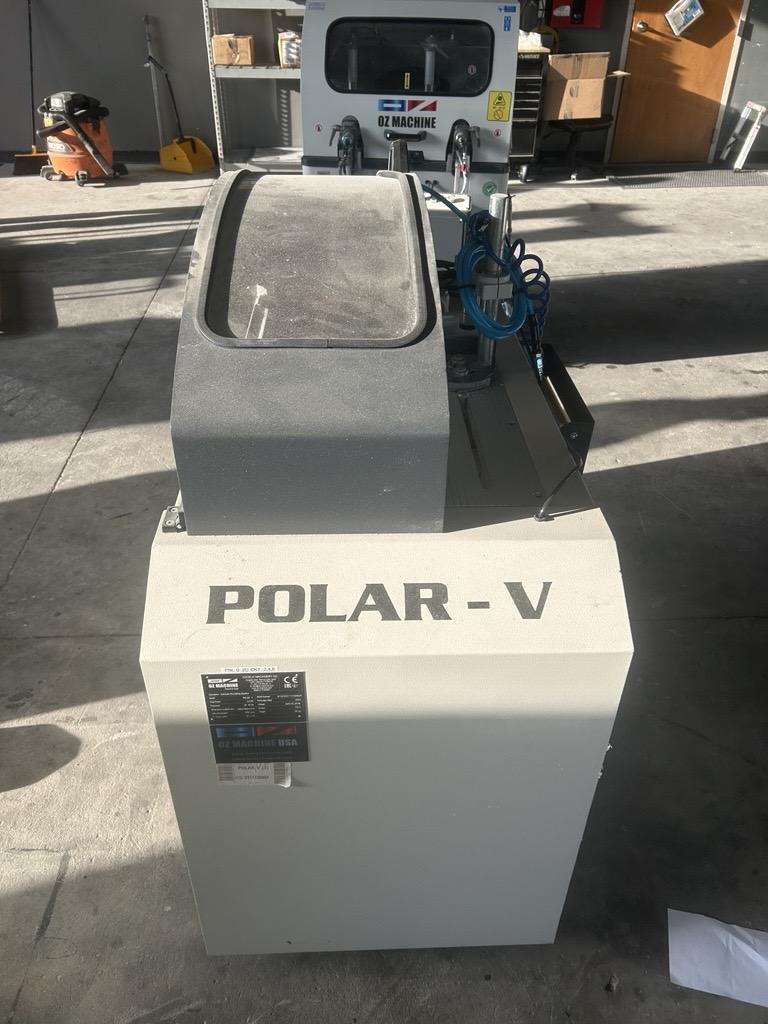

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Model POLAR V Machine Type Automatic End Milling Machine Application End milling aluminum and PVC/vinyl profiles Typical Use Mullion & transom profile preparation Motion System Hydro-pneumatic Clamping Pneumatic vertical & horizontal Motor Power 2.2 kW / approx. 3 HP Spindle Speed 3,000 RPM Electrical – Your Machine 220V AC, 3 Phase, PE Frequency 50–60 Hz Current – Your Machine 8.5 A Air Consumption – Your Machine 22 L/min Maximum Cutter Diameter Approx. 10-5/8″ Maximum Profile Width Approx. 10-13/16″ / 275 mm Maximum Profile Height Approx. 7-1/16″ / 180 mm Angle Capability Adjustable end milling angles using graded miter Safety Enclosed cover with safety sensor Profile Support Conveyor/profile support Cooling System Equipped / standard depending on configuration Blade Adapter Yes Blade Holding Station Yes Dimensions – Your Machine Plate 1,350 × 1,400 × 1,210 mm Approx. Dimensions 53.1″ × 55.1″ × 47.6″ Weight – Your Machine Plate 180 kg / approx. 397 lb

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
