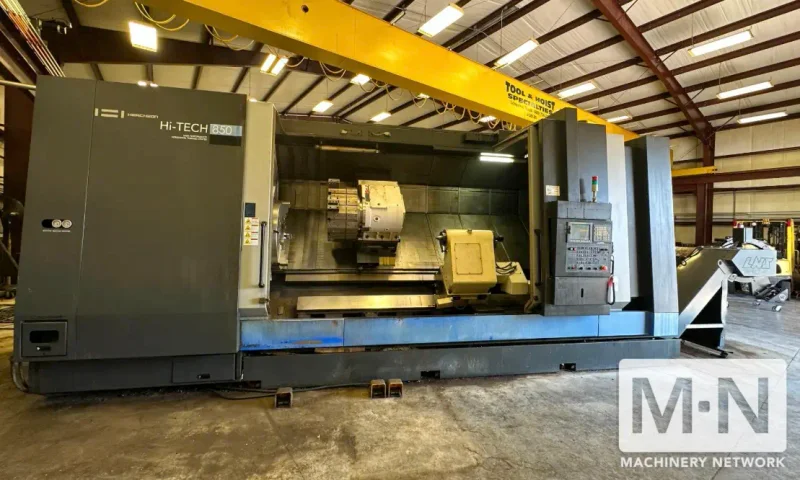

Hwacheon Hi-Tech 850L CNC Lathe, 2013

Name: Hwacheon Hi-Tech 850L CNC Lathe, 2013
Brand: HWACHEON
SKU: 53395
Availability: InStock

Brand

HWACHEON

Location

Not specified

Specifications
Files & Videos

Overview

Type:

CNC Lathes

Manufacturer:

HWACHEON

Model:

HI-TECH 850L

Year:

2013

Stock #:

53395

Status:

For Sale

ImperialMetric

Swing	41.34"	1,050 mm
Machining Length	137.8"	3,500.1 mm
Max. Turning Length	137.8"	3,500.1 mm
Max. Turning Diameter	36.22"	919.99 mm
X-Axis	19.1"	485.14 mm
Z-Axis	143.7"	3,650 mm
Chuck Size	32"	812.8 mm
Bar Capacity	6.46"	164.08 mm
Spindle Bore	7.28 in
Spindle Nose	A2-15	A2-15
Power	60.4 hp	45 kW
Max RPM	1,500 RPM	1,500 RPM
Turret Stations	12	12
Tailstock	Yes	Yes
Cut Hours	14,437 hr.	14,437 hr.
Dimensions	307″ x 114.17″ x 118.11″	307″ x 114.17″ x 118.11″
Weight	48,502 Lbs	48,502 Lbs

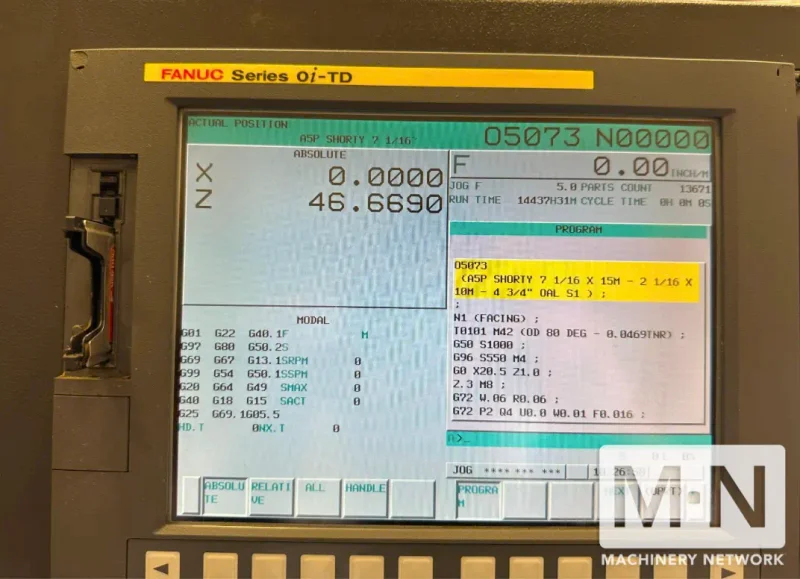

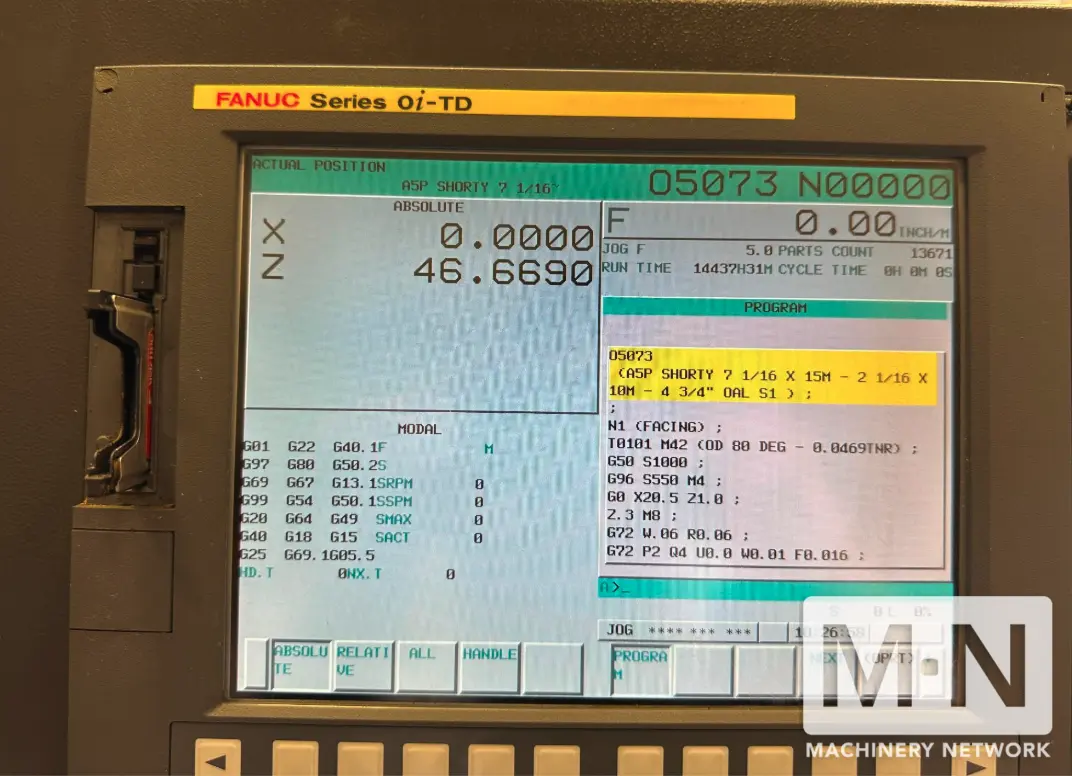

Fanuc 0i-TD CNC Control

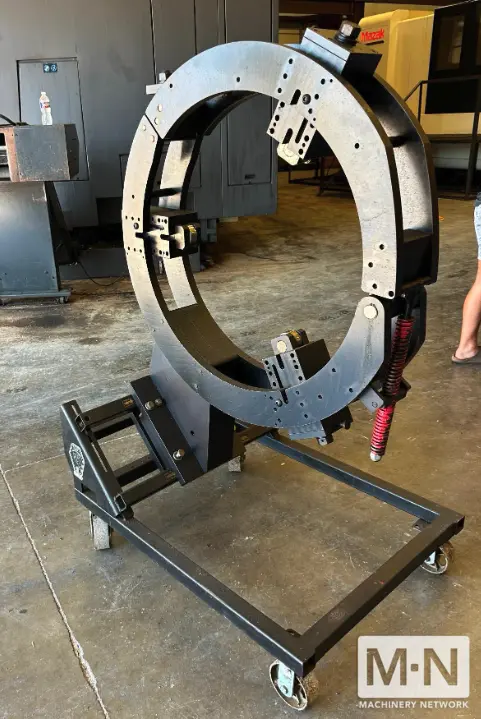

Schmidt Tool RIP-131 Heavy Duty Traveling Steady Rest
- Clamp Cap. 7,000 Lbs
- Workpiece Dia. 12.1" - 31"
- Bearing Type NUTR35
- Steady Rest Weight 809 Lbs
32" Samchully HCH-32 3 Jaw Chuck
Programmable Tailstock
Renishaw Tool Setter RP7 Probe
LNS Chip Conveyor & Remote Control Box
Manuals & Docs

No files or videos to display
