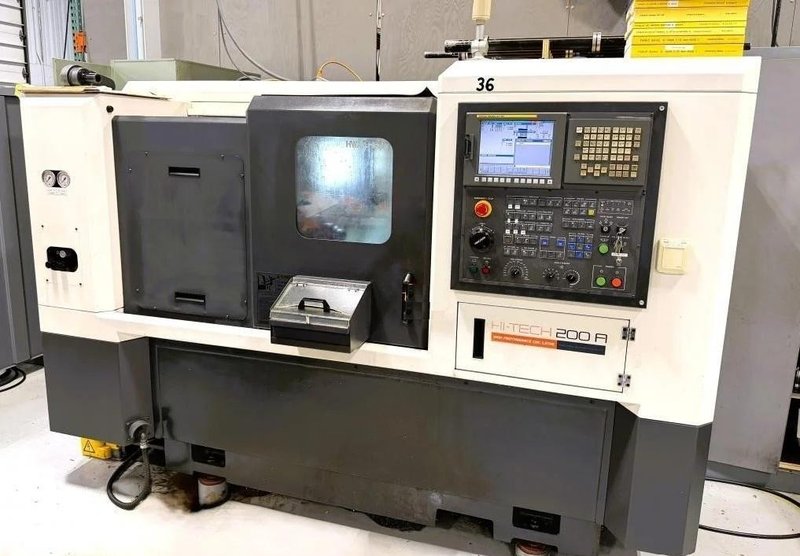

Used 2009 Hwacheon Hi-Tech 200a CNC Lathe For Sale
Brand
Category
Type
Model
Hi-Tech 200A
Stock #
Not specified
Year
2009
Condition
Used
Location
Michigan
| CNC Control | yes |
| CNC Control | Fanuc |
| # Axis | 2 |
| Swing | 19.69 inches |
| Max Turning Length | 15.81 inches |
| Turning Diameter | 13.78 inches |
| Center Distance | 16 inches |
| Chuck Size | 8 inches |
| Bar Capacity | 2 inches |
| X Axis Travel | 7.68 inches |
| Z Axis Travel | 16.93 inches |
| Rapid Traverse (X/Z) | 1181 ipm |
| Spindle Nose | A2-6 |
| Spindle Speed | 5,000 rpm |
| Main Motor | 15 hp |
| Live Tooling | no |
| Tailstock | yes |
| Y Axis | no |
| Sub Spindle | no |

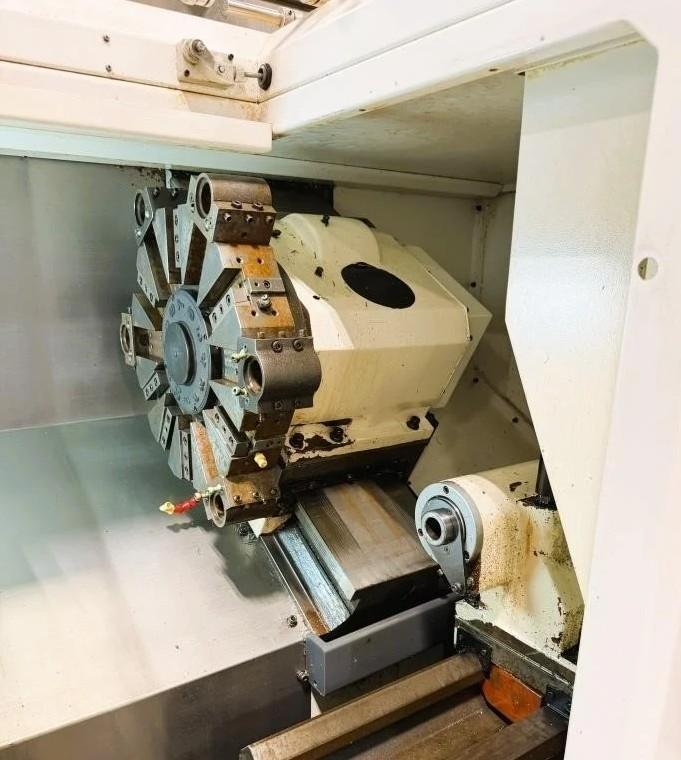

| Turret Capacity | 12 |
| Machine Dimensions | 104" x 66" x 68" |
| Machine Weight | 10000 pounds |
|

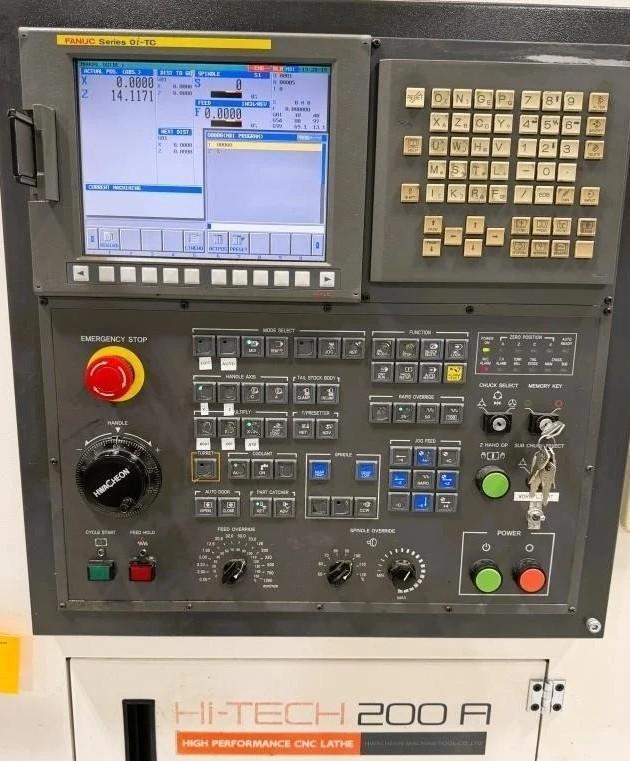

- Fanuc 0i-TC CNC Control
- Manual Guide i (Conversational Programming) - Collet Chuck on Spindle - Parts Catcher Arm - Tailstock |
|
