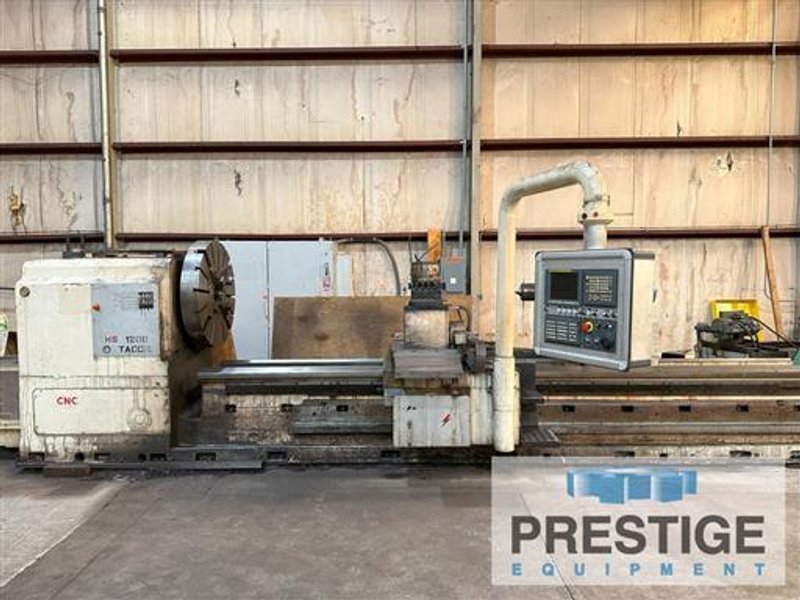

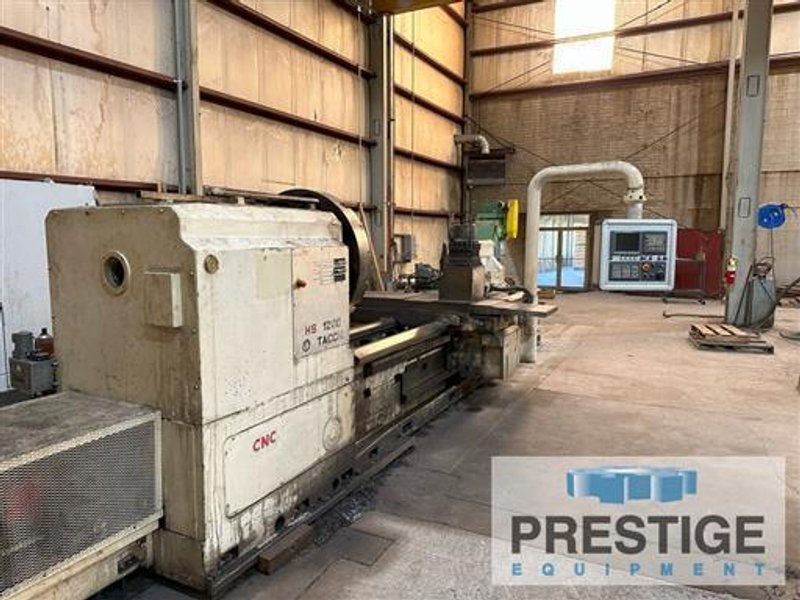

Lathes CNC

CAPACITY:
Maximum Swing Over Bed 53.14"
Maximum Swing Over Gap 84.64"
Maximum Swing Over Saddle 35.82"
Distance Between Centers, Gap Open 157.48"
Distance Between Centers, Gap Closed 236.22"
Length of Gap 78.74"
Main Spindle Bore 4.72"
Work Piece Weight Between Ctrs 19,841 lbs

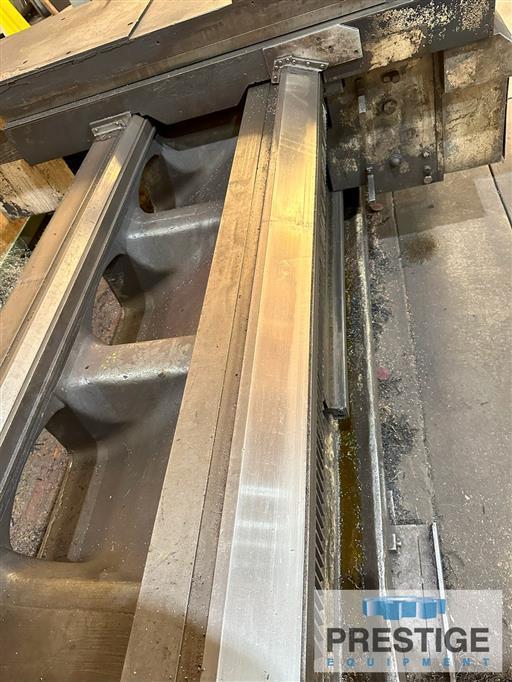

Width of Bed 31.49"
Spindle Speeds, 3-Ranges 2-720 RPM
Torque 13000 Nm

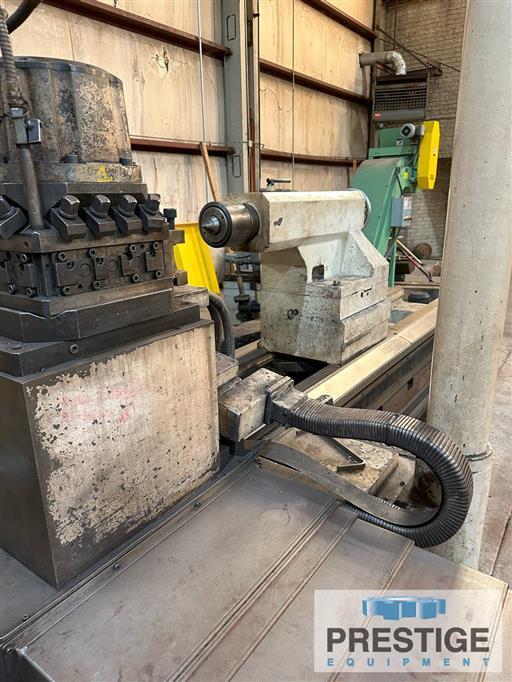

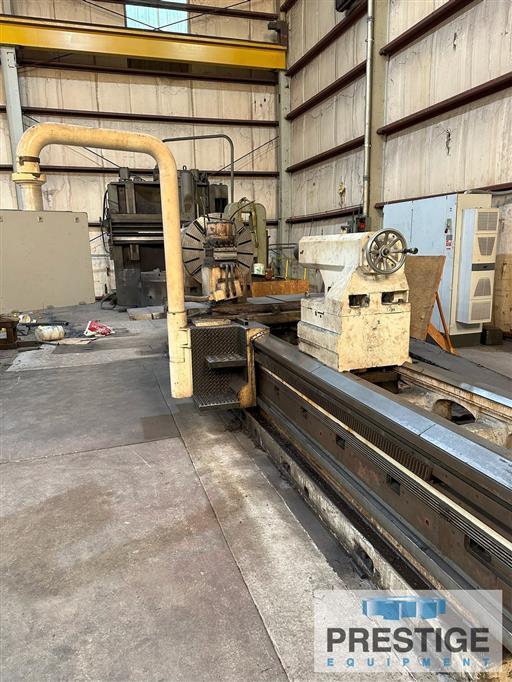

Tailstock Quill Diameter 5.9"
Tailstock Quill Travel 15.74"



Equipped With:

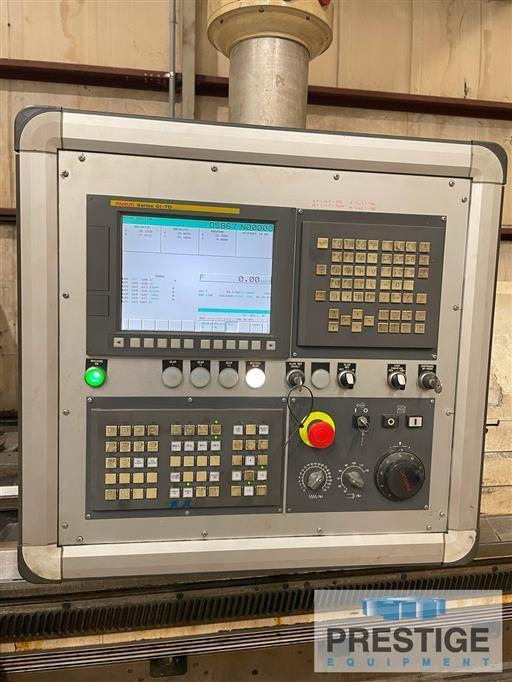

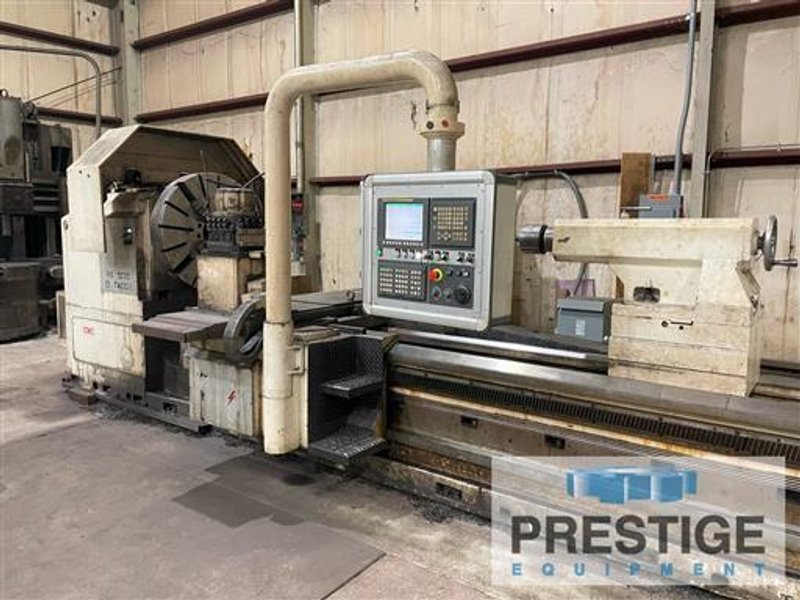

Fanuc Oi-TD CNC Control

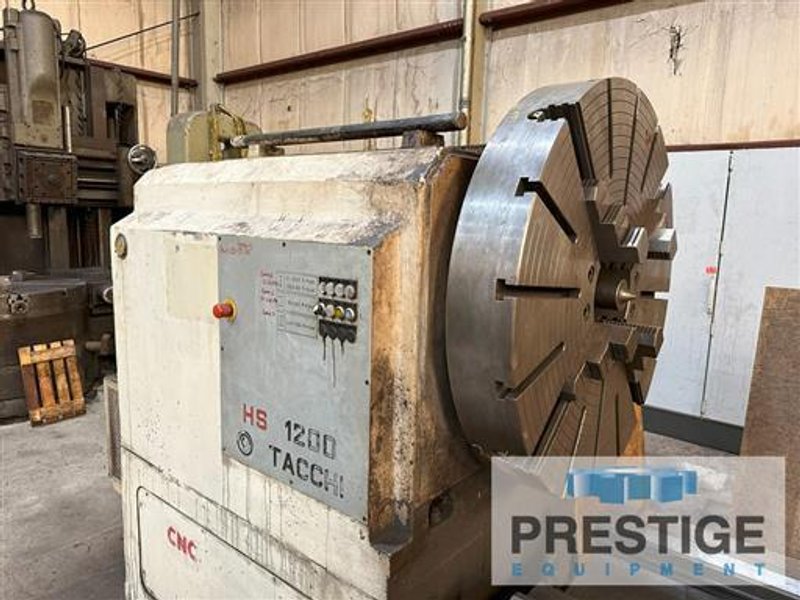

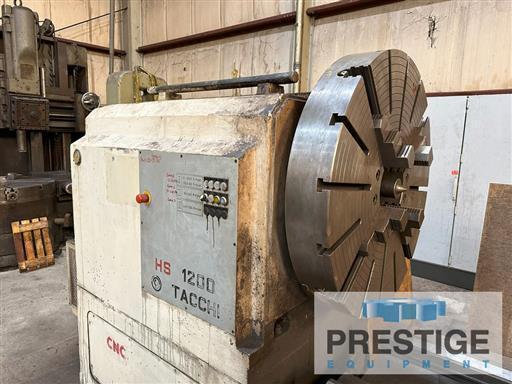

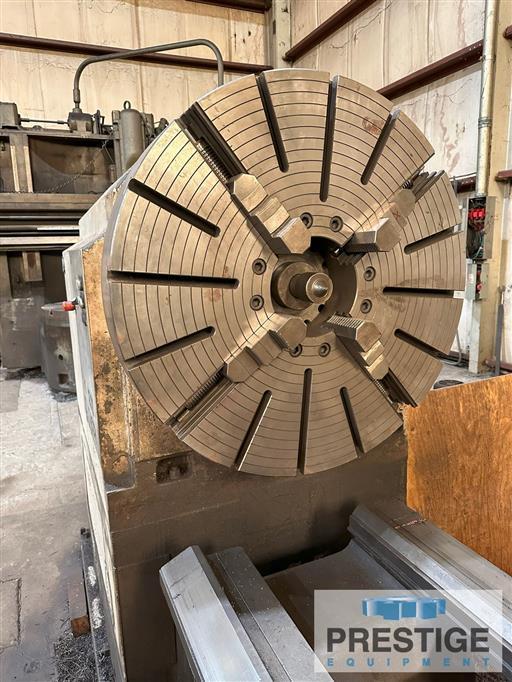

39" 4-Jaw chuck

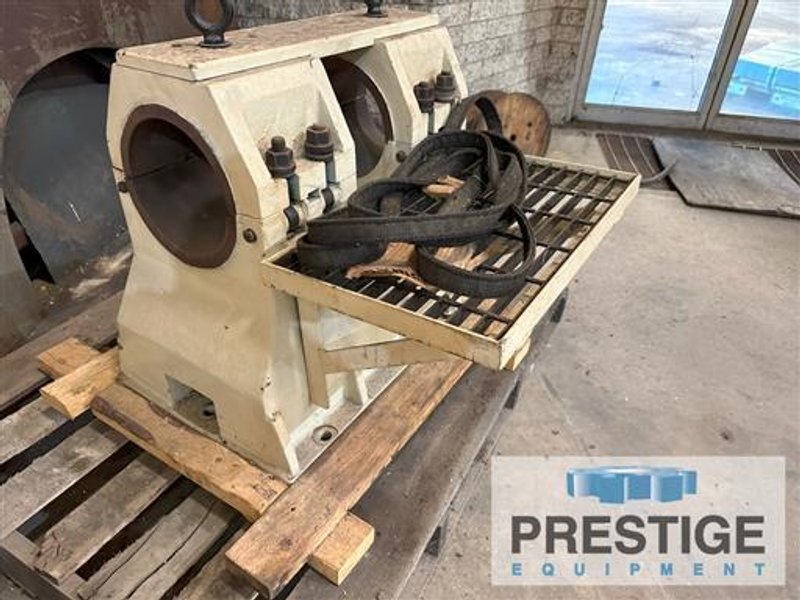

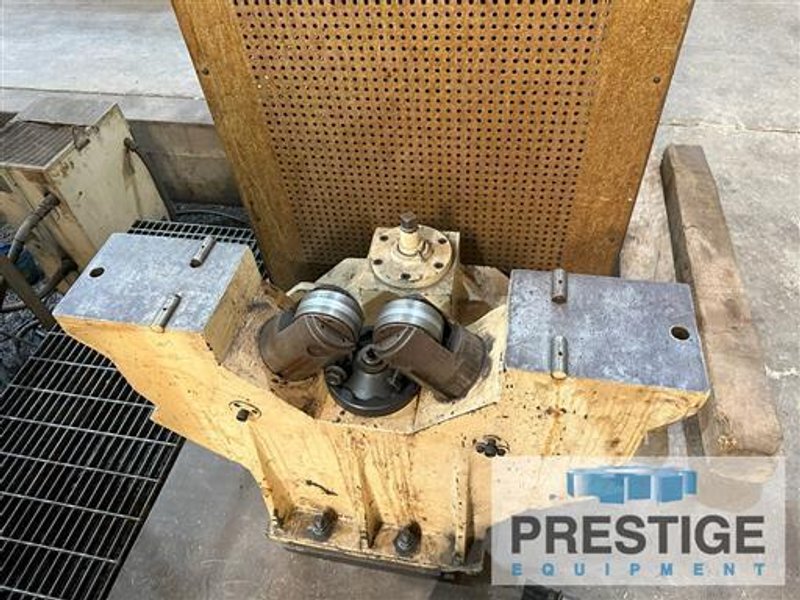

17.71" Steady Rest

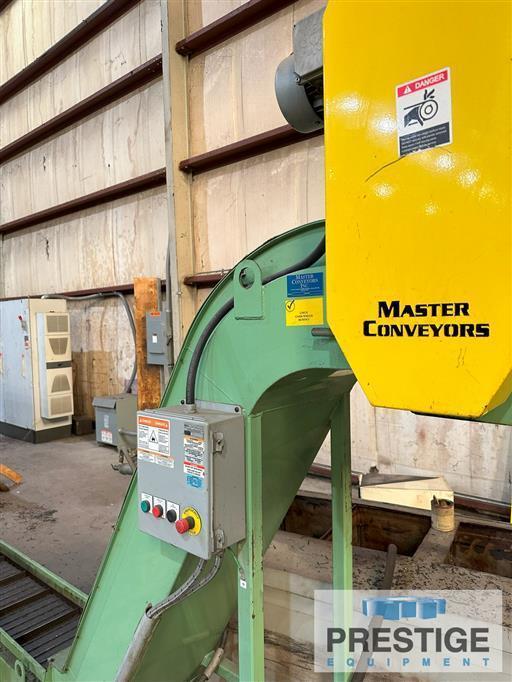

Chip Conveyer
Coolant Equipment

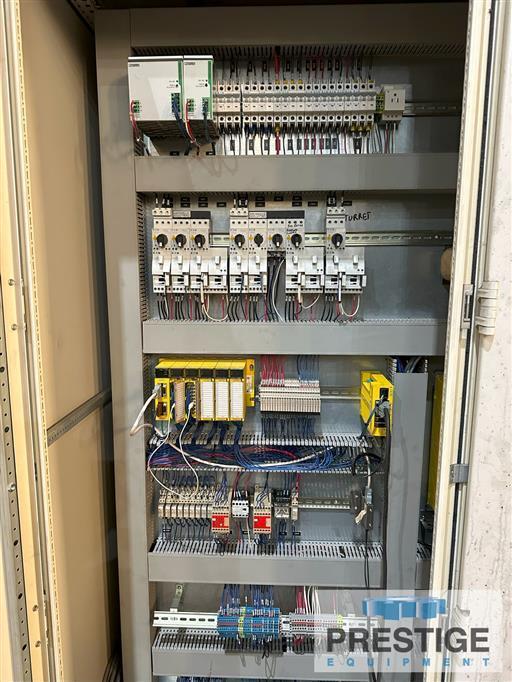

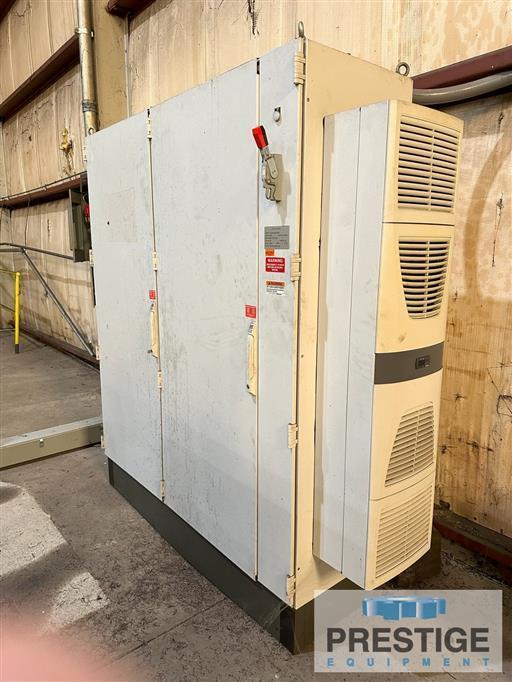

NOTE: Use to machine landing gear, 2013 - complete remanufacture Mechanical. hydraulic, New electrical panel, New Fanuc Drives, New Fanuc CNC Control Type FA Oi -TD Package # 2, with the fallowing options: Controlled Axis Detach, Serial Spindle Interface, tool Geometry and Wear compensation, 512 Part Program Storage. Manual pulse Generator, Two Fanuc Alpha HVi for X and Z axis servo package, One Fanuc 40 HVi (60 HP.) AC Main Spindle Drive.


NOTE: Inspect in plant under power
