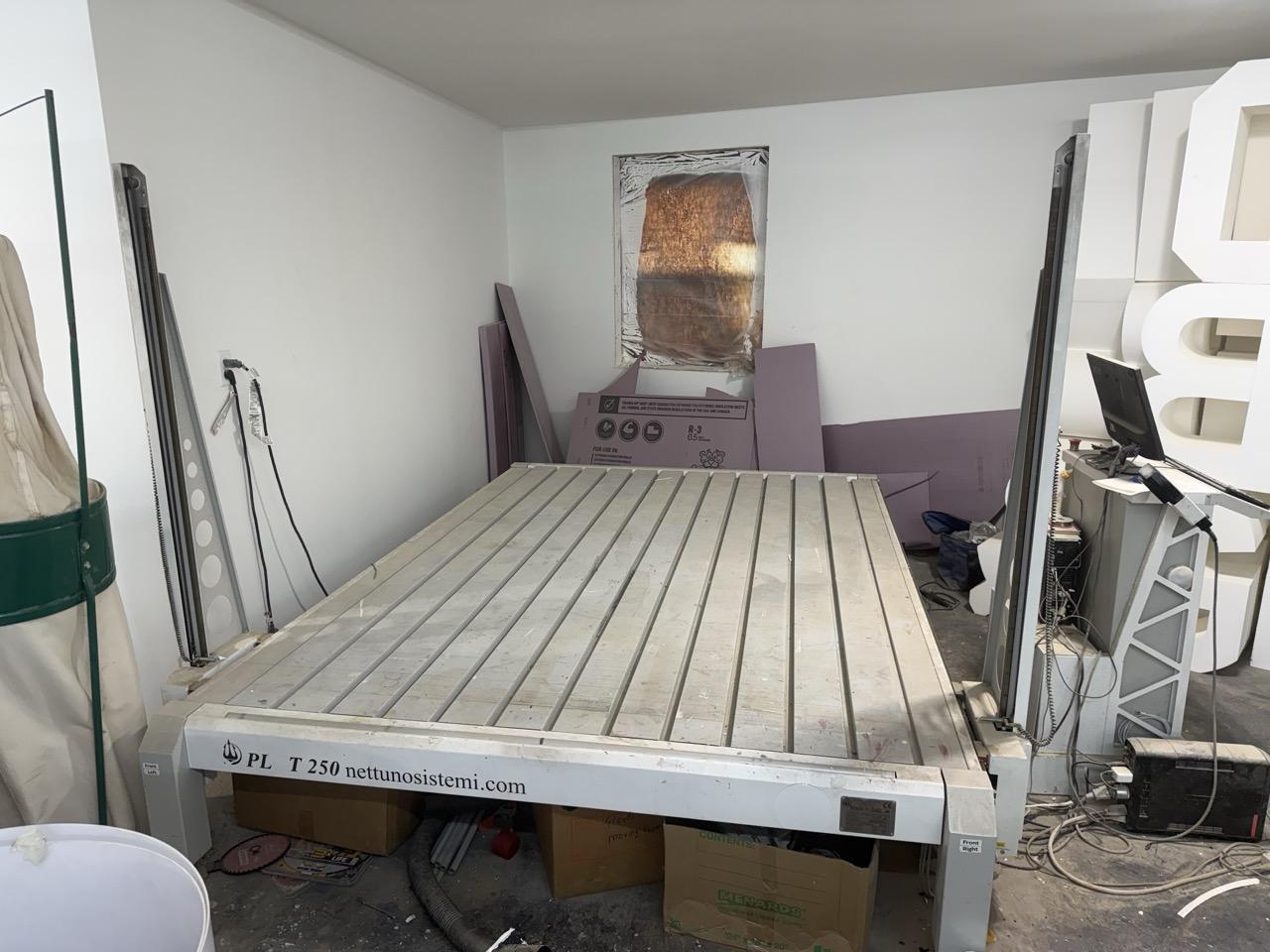

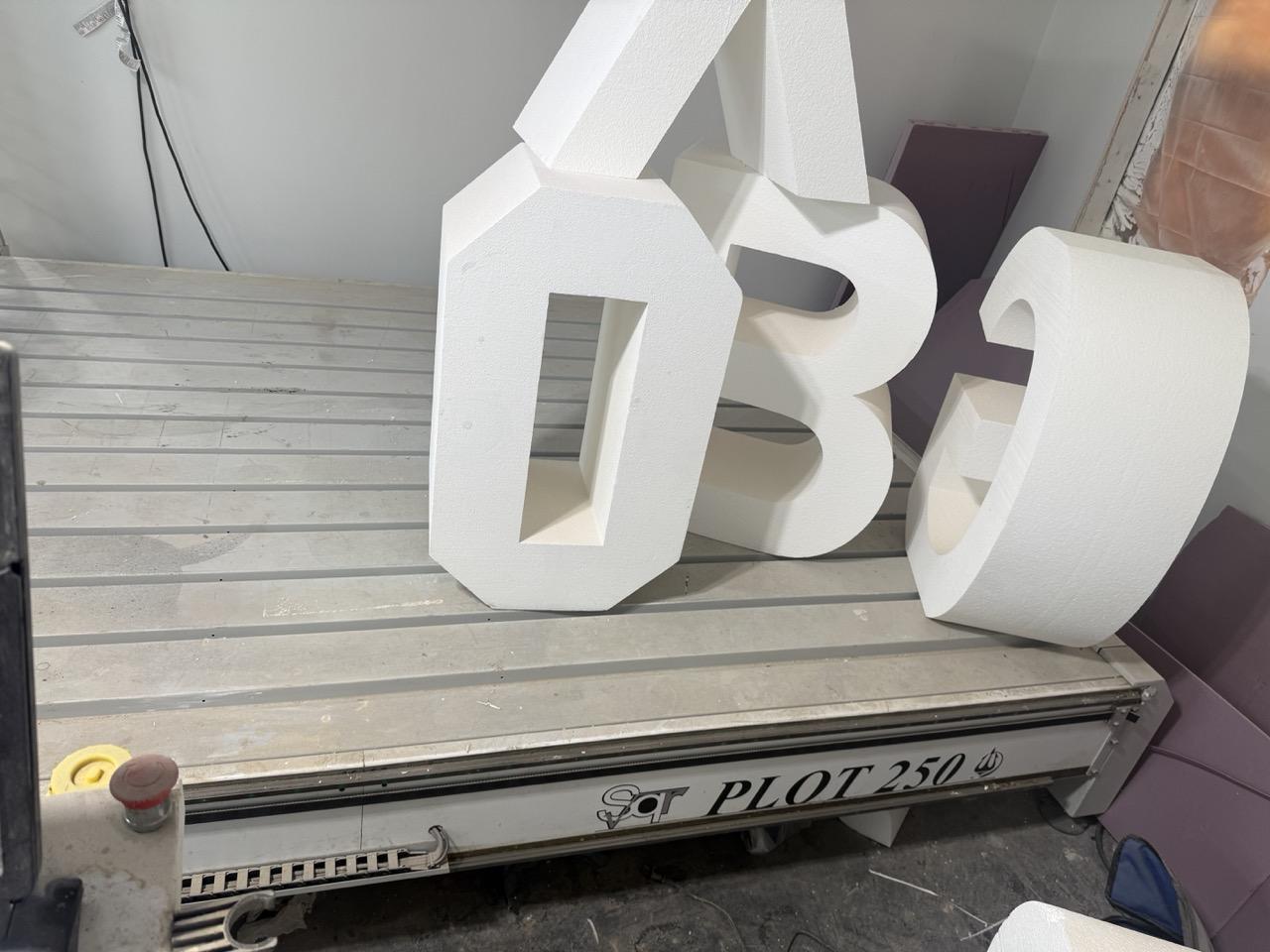

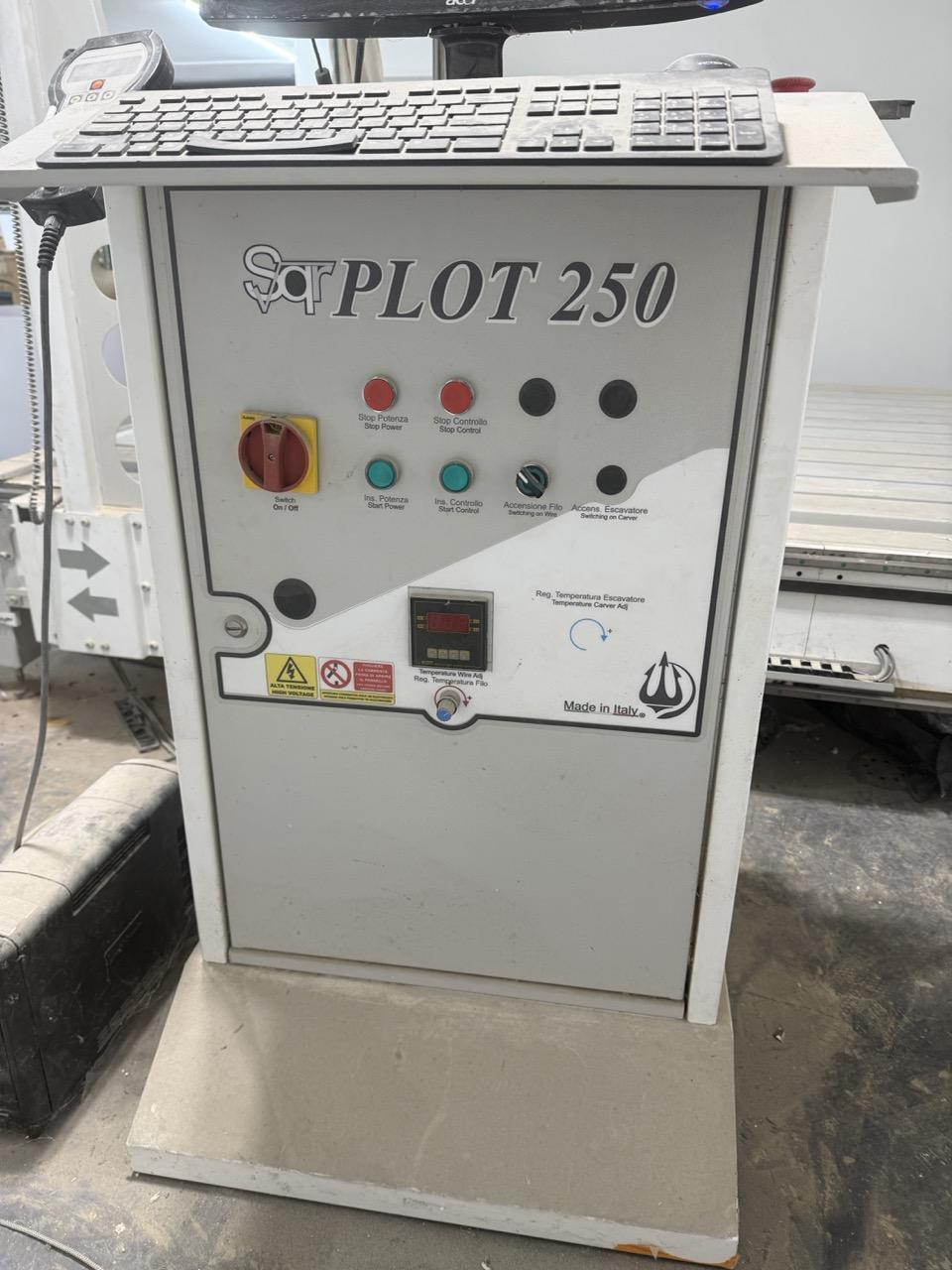

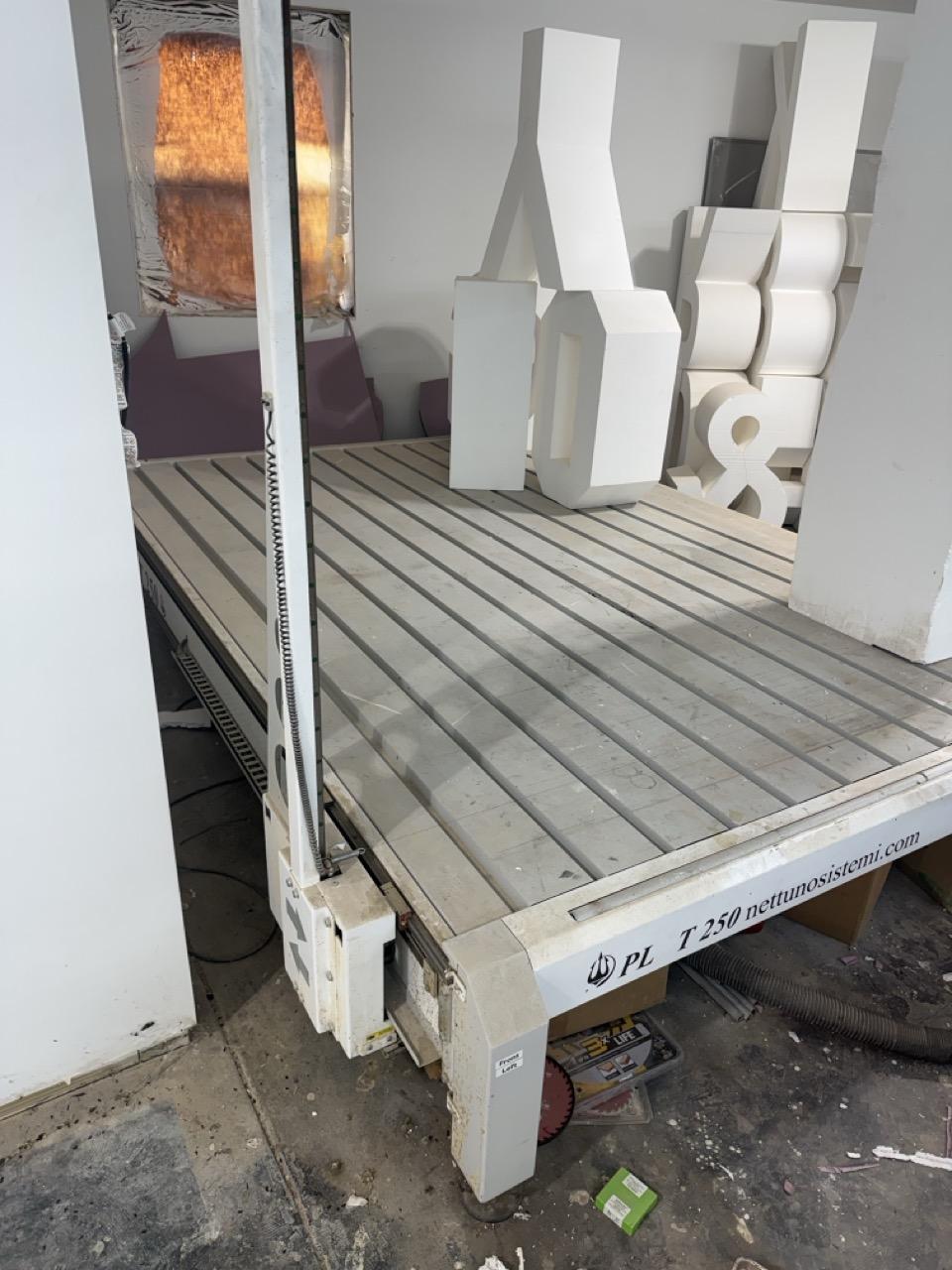

Nettuno Plot 250 4-Axis CNC Hot Wire Cutting System, 2019 – Vertical Turntable

Model: Plot 250 Year: 2019 Machine Type: CNC Hot-Wire Cutting System Number of Axes: 4 independent axes Cutting Area: 2,500 mm X x 1,250 mm Y x 2,000 mm Z (approx. 98.4″ x 49.2″ x 78.7″) Maximum Axis Speed: 13 m/min Movement Accuracy: ±0.05 mm Cutting Wire Length: 2,000 mm (approx. 78.7″) Cutting Wire: Ø 0.25 mm titanium Wire Tensioning: Spring tension Wire Temperature Adjustment: External potentiometer Single-Wire Power Consumption: 1 kW Motors: Stepper motors X/Y Axis Transmission: Ball-bearing guides and toothed belts Machine Structure: Powder-coated steel Table Top: Powder-coated steel Power Supply: 220/230V, 50/60 Hz Machine Dimensions: 3,200 x 2,400 x 1,900 mm (approx. 126″ x 94.5″ x 74.8″) Machine Weight: 400 kg (approx. 882 lb.)

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
