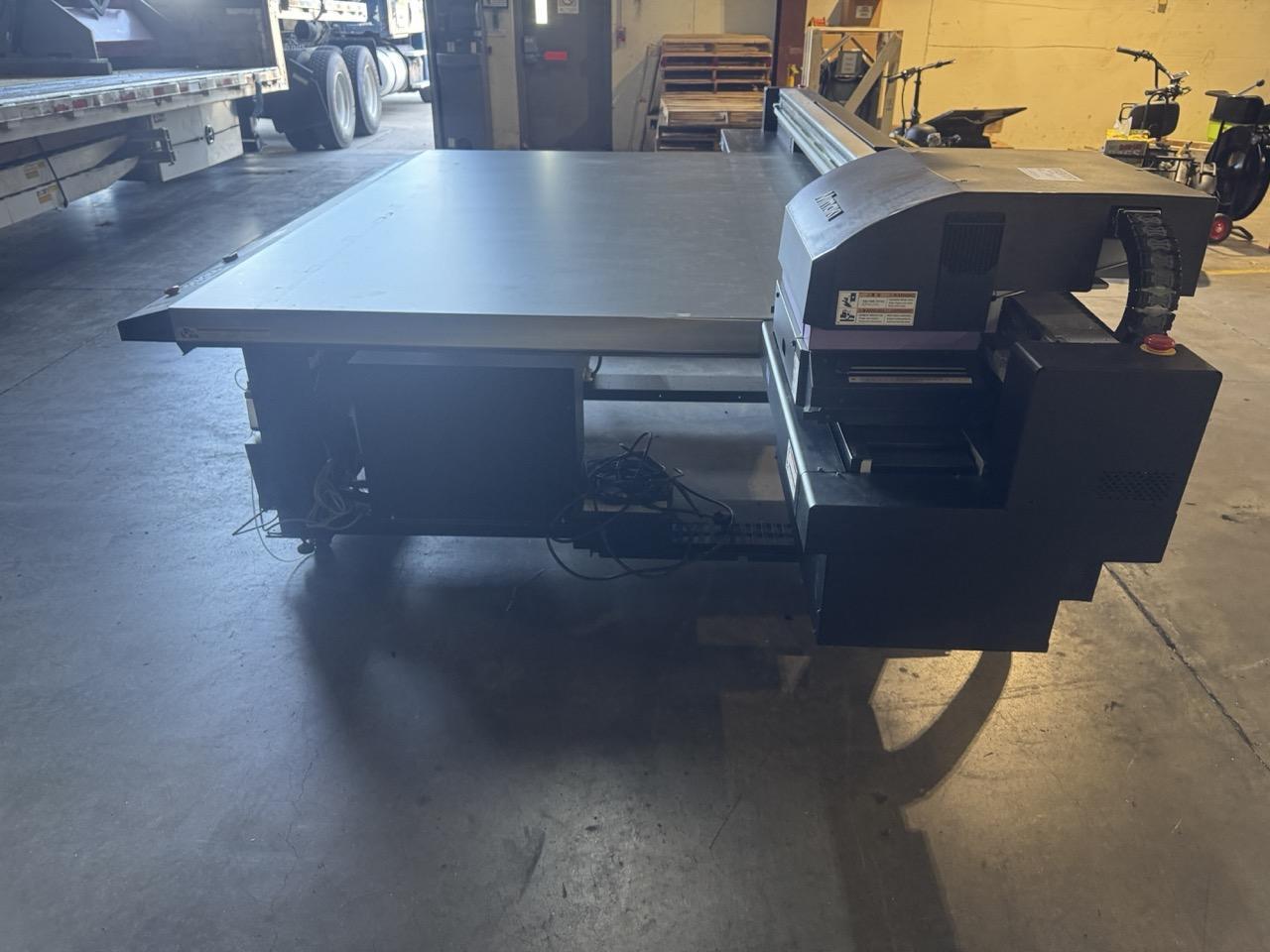

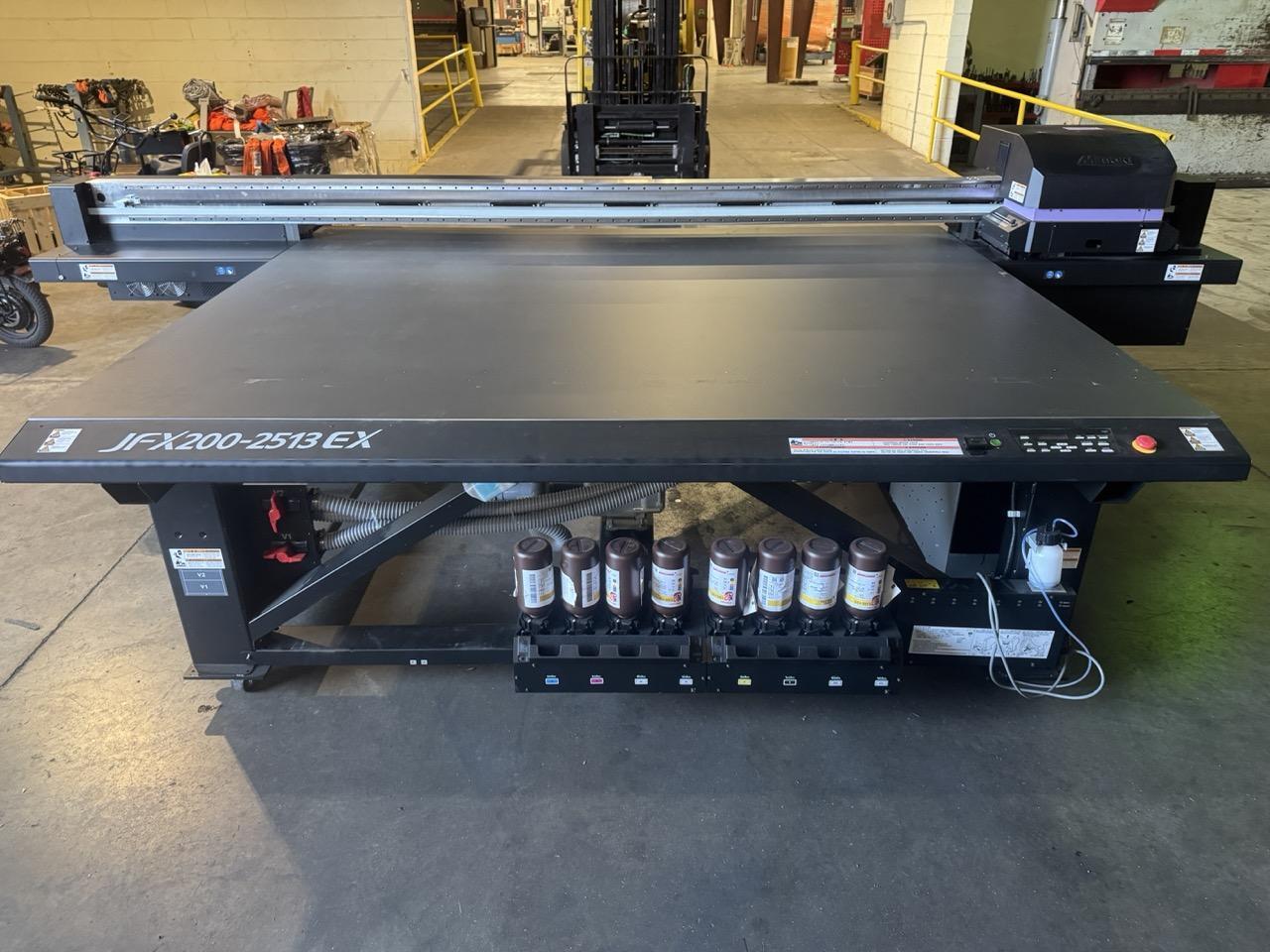

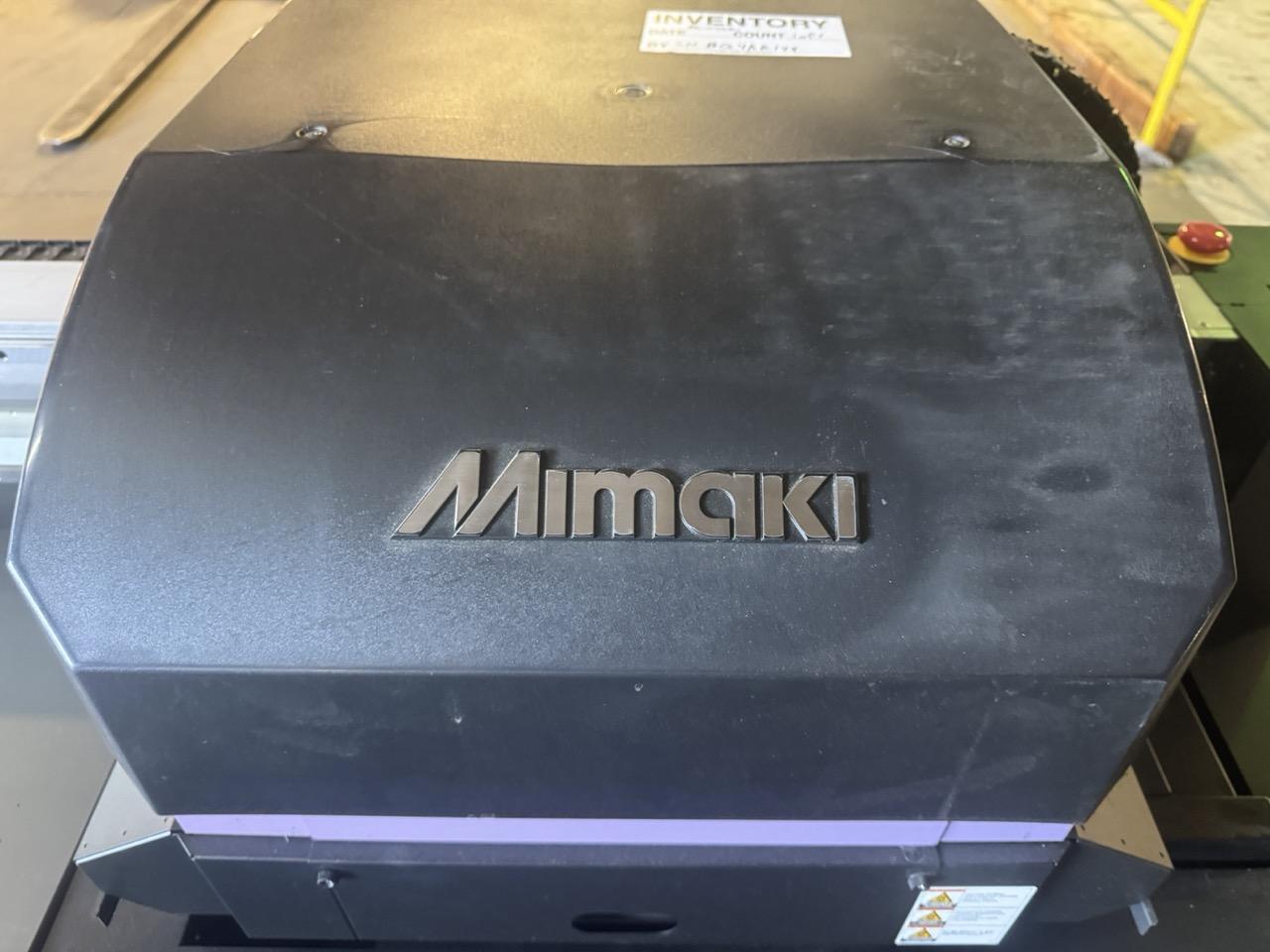

Mimaki JFX200-2513 4′ x 8′ UV-LED Flatbed Wide Format Digital Printer, 2024

2024 Mimaki JFX200-2513 industrial 4′ x 8′ UV-LED flatbed wide-format digital printer featuring a 98.4″ x 51.2″ print area, up to 1,200 dpi resolution, dual-zone vacuum table, multiple UV-curable ink configurations, and the ability to print rigid substrates up to 2″ thick.

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Manufacturer Mimaki Model JFX200-2513 Year 2024 Machine Type UV-LED Flatbed Wide Format Printer Print Technology UV-Curable Inkjet Printheads 2 On-Demand Piezo Heads, Staggered Array Maximum Print Area 98.4″ × 51.2″ / 2,500 × 1,300 mm Nominal Board Size 4′ × 8′ Maximum Media Thickness 2.0″ / 50 mm Print Resolution 300 / 450 / 600 / 900 / 1,200 dpi Ink Type UV-Curable Available Ink Colors CMYK, White, Clear; configurations vary by ink series Compatible Ink Series LUS-120, LUS-150, LUS-200, LUS-350, LH-100 Primer PR-100 / PR-200 compatible Ink Supply 1-liter bottles White Ink System Mimaki Circulation Technology Media Hold-Down Vacuum Table Vacuum Zones 2 UV Curing LED-UV System UV LED Service Life 5,000+ hours nominal Interface USB 2.0 Power Supply Single Phase, 200–240 VAC, 50/60 Hz Current Less than 12A Power Consumption Less than 2.88 kVA Machine Dimensions 173.2″ × 96.4″ × 49.2″ assembled Installation Dimensions Approx. 173.2″ × 88.5″ × 49.2″ Machine Weight Approx. 1,433 lb. / 650 kg

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
