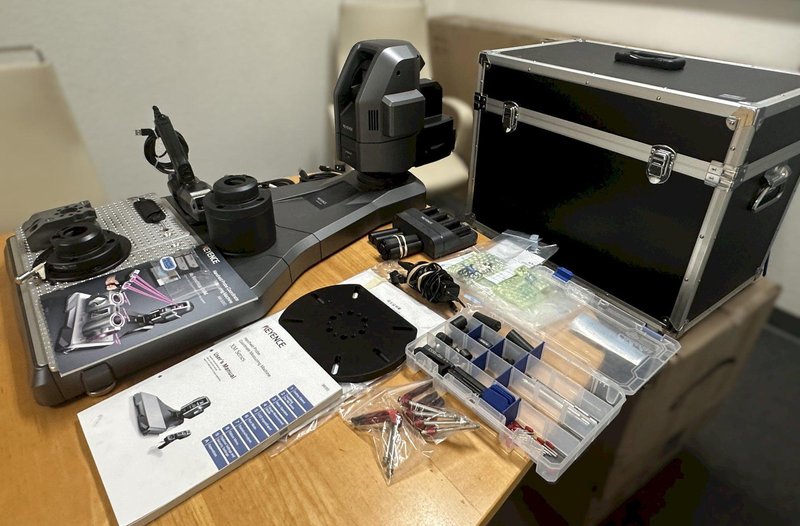

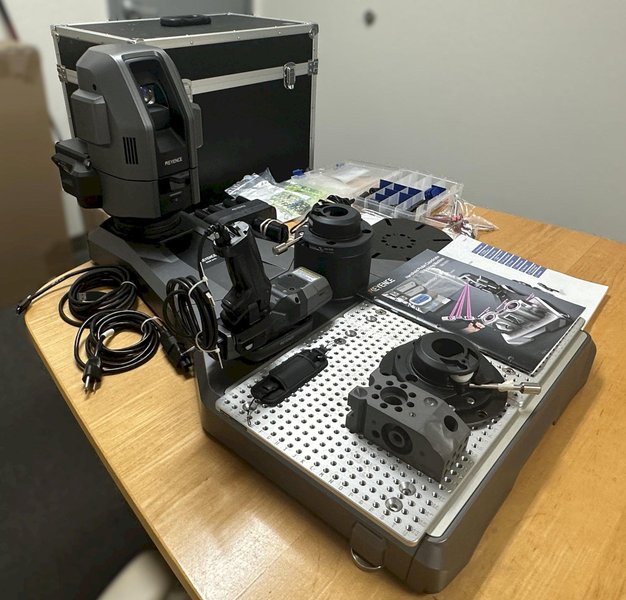

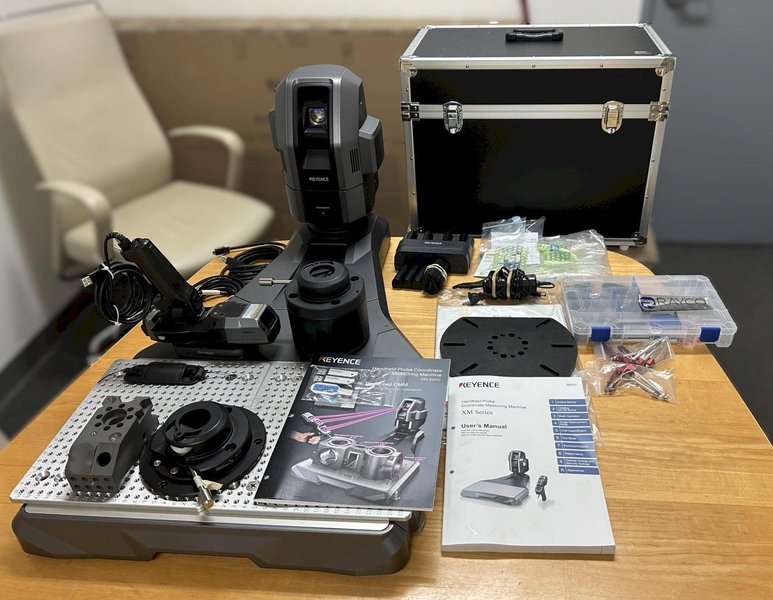

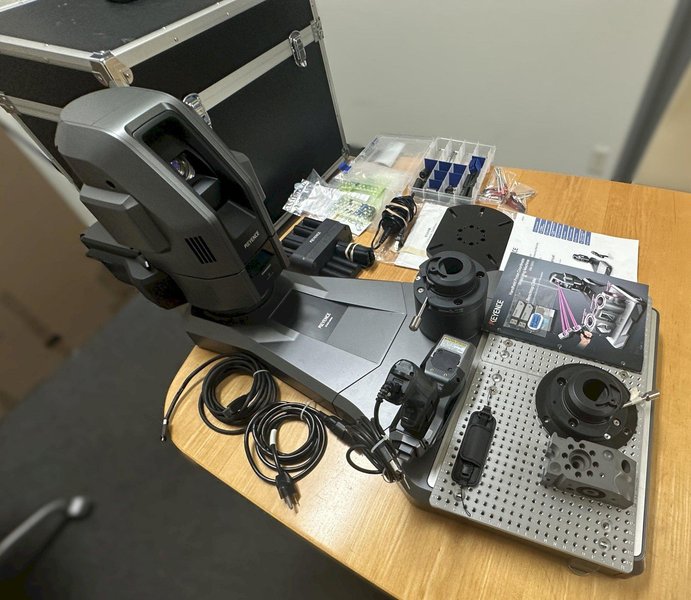

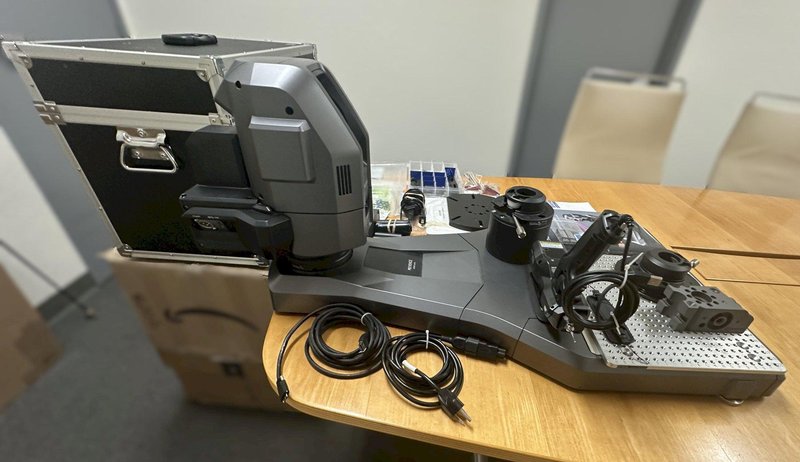

KEYENCE XM-5000 Coordinate Measuring System
Brand
Category
Model
XM-5000
Stock #
7179
Year
Not specified
Condition
Not specified
Location
California

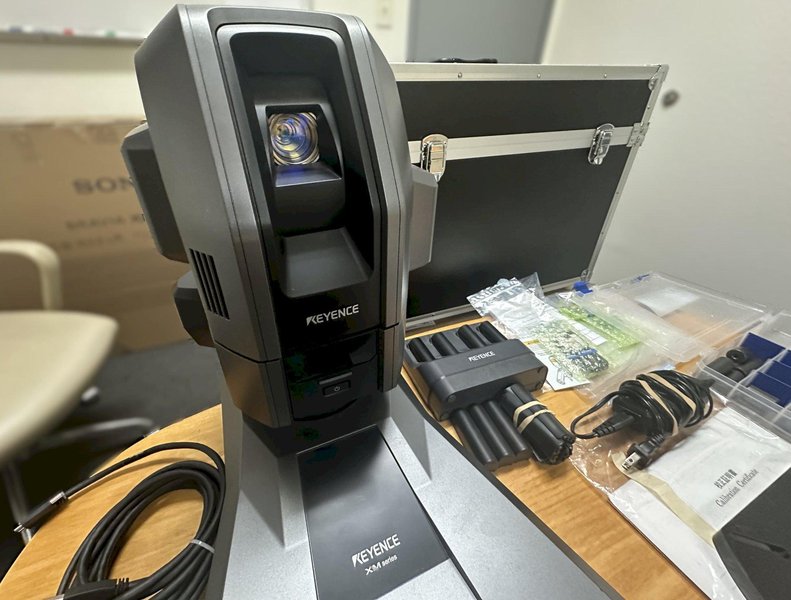

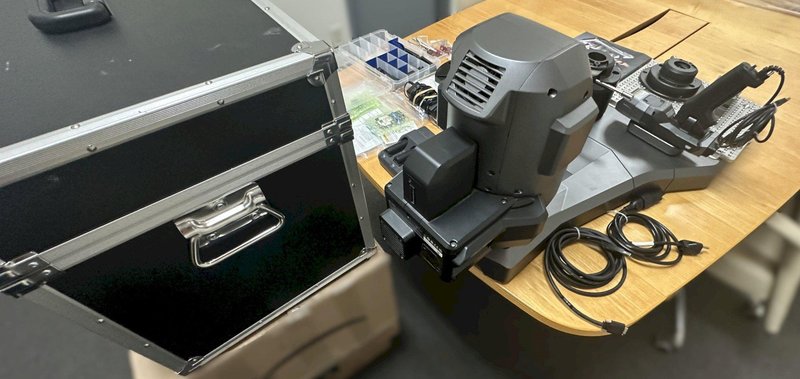

| Camera Unit | (Specs Below) |
| Maximum Measurement Length (WxDxH) | 78.74" x 47.24" x 39.37" |
| Indication Error Accuracy | ±(7 + 9L/1000) µm |
| Repeatability | ±3 µm |
| Minimum Display Unit (Distance) | 0.000004" |
| Minimum Display Unit (Angle) | 0.0001 degrees |
| Camera Unit Rotation Angle (Theta Rotation) | ±40° |
| Camera Unit Rotation Angle (Tilt Rotation) | ±25° |
| Weight | Approx. 17.64 lb |
| External Input | 2 inputs, Maximum applied voltage: 26.4 V ON voltage: 19 V or more, OFF current: 0.1 mA or less |
| External Output | 7 outputs, Maximum applied voltage: 30 V, Maximum sink current: 50 mA, Leakage current: 0.1 mA or less, Residual voltage: 1.4 V or less (50 mA) / 1.0 V or less (20 mA) |

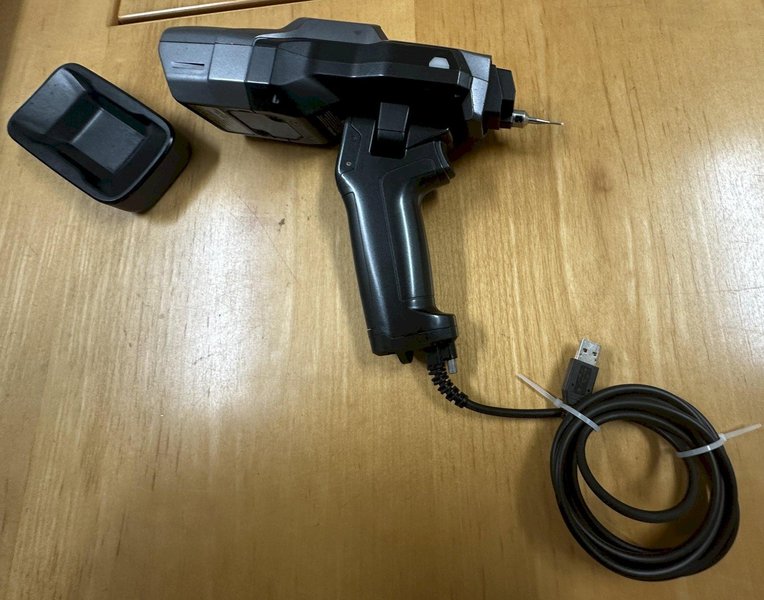

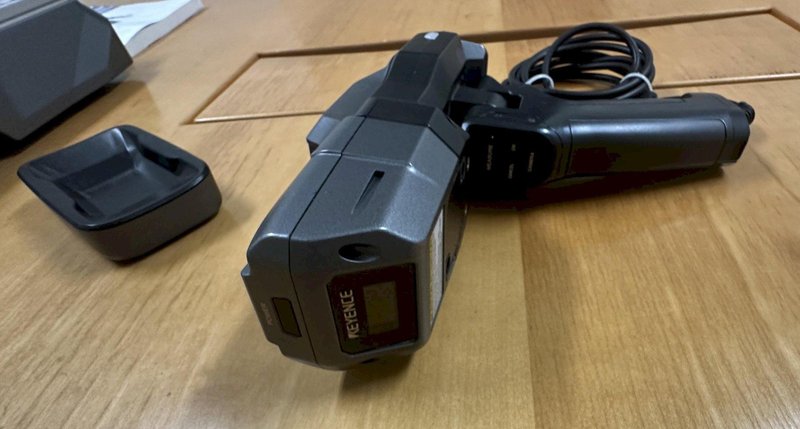

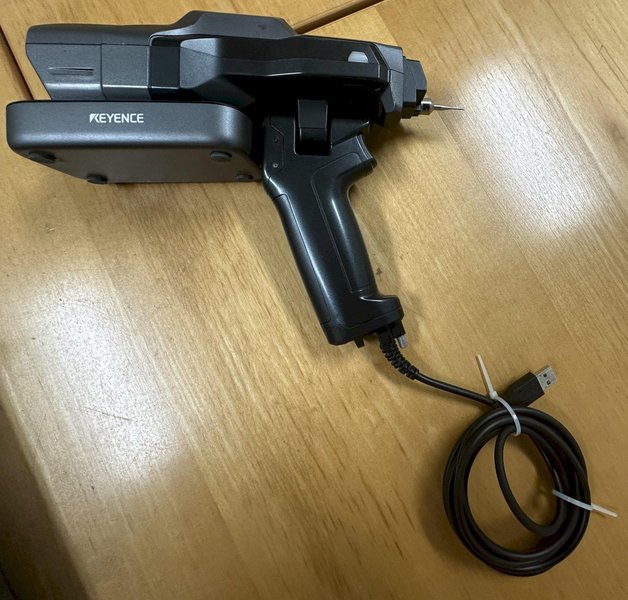

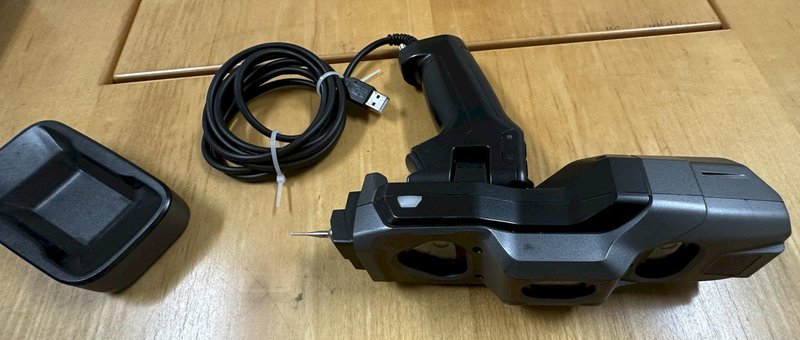

| Probe | (Specs Below) |
| Number Of Markers | 7 |
| Light Source | 870 nm |
| Applicable Stylus | M5 |
| Display Method | OLED |
| Resolution | 96 x 39 pixels |
| Hardware Keys | MEASURE, OK, CANCEL, CAMERA, TRIGGER, POWER |
| WLAN Communication | IEEE 802.11b/g/n |
| USB Communication | USB 2.0 |
| Infrared Communication | 945nm |
| Battery | Dedicated lithium-ion battery pack |
| Battery Capacity | 3250 mAH |
|
BANK OWNED – OPEN TO ALL OFFERS KEYENCE XM-5000 Coordinate Measuring System |
|
